Product Type	Integrated Fridge-Freezer Combination
Brand	Bertazzoni
Model	RBM24F4FXNV (also REF24BMFIXNV)
Power Supply	115 V / 60 Hz, 175 W
Climate Class	SN (50-89°C), N (16-32°C), ST (61-100°C), T (61-109°C)
Refrigerant	R600a (flammable)
Fridge Temperature	36°F to 46°F (adjustable)
Freezer Temperature	-13°F to 5°F (adjustable)
Fresco Drawer Temperature	27°F to 37°F (adjustable, can be disabled)
Special Functions	Super Cool, Super Freeze, Eco Mode, Holiday Mode
Max Freezing Capacity/24h	5.8 lb (2.6 kg)
Max Shelf Load	22 lb (10 kg)
Automatic Ice Maker	Yes (depending on model, with switch)
Defrost System	No Frost (automatic), with manual defrost option
Lighting	LED (12 V / 10 W, replacement by professional)
Water Connection	Required for ice maker, pressure 25-80 psi (207-552 kPa)
Installation	Clearances: min. 1 3/4" from wall, 1" at top, 5/16" on sides, door opening 130°
Door Reversal	Possible (kit provided, detailed procedure in manual)
Maintenance	Clean interior with baking soda and warm water solution; exterior stainless steel with non-abrasive cleaner
Safety	Flammable refrigerant, do not puncture circuit, do not use mechanical devices to defrost
Error Codes	F2 (Fresco sensor), F3 (fridge sensor), F4 (freezer sensor), F5 (defrost), 2E (fan), CE (communication)
Warranty and Support	Contact: us.bertazzoni.com/more/support

Frequently Asked Questions - RBM24F4FXNV BERTAZZONI

What is the ideal temperature for the refrigerator?

The recommended temperature is 41°F (5°C) for the refrigerator, adjustable between 36°F and 46°F via the control panel.

How to activate the Super Cool function?

Press the (Super Cool) button; the refrigerator runs at 36°F for 24 hours, then returns to the normal setting.

What does the error code F3 on the display mean?

The F3 code indicates a fault in the refrigerator compartment sensor. The appliance continues cooling, but contact a professional technician.

Why is ice forming on the back wall of the refrigerator?

This is normal: ice droplets may form on the back wall. Ensure no food is in contact with this wall.

How to manually defrost the freezer?

Simultaneously press the + buttons and hold for 5 seconds to activate manual defrost. The evaporator cleans itself. To deactivate, hold for 3 seconds.

Can I reverse the door opening direction?

Yes, reversal is possible. Follow the detailed procedure in the manual (steps 1 to 7). The hinge kit is provided.

How to clean the interior of the refrigerator?

Use a solution of baking soda and warm water. Do not use abrasive products. Rinse and dry thoroughly.

What to do in case of a power outage?

Keep the refrigerator door closed to maintain temperature. Do not refreeze thawed food.

How to adjust the temperature of the Fresco drawer?

Use the dedicated button on the panel to adjust between 27°F and 37°F. Hold for 3 seconds to deactivate the drawer (display shows OFF).

The appliance makes a gurgling noise, is this normal?

Yes, it is the sound of refrigerant circulating. It is normal, even when the compressor is not running.

USER MANUAL RBM24F4FXNV BERTAZZONI

BERTAZZO ITALIA

EN	INSTALLATION MANUALUSER AND MAINTENANCE MANUALREF24BMFIXNV RBM24F4FXNV	3
FR	MANUEL D'INSTALLATIONMANUEL D'UTILISATION ET D'ENTRETIENREF24BMFIXNV RBM24F4FXNV	25

FROM THE DESK OF OUR PRESIDENT

Dear new owner of a Bertazzoni appliance,

I want to thank you for choosing one of our beautiful products for your home.

My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food.

Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners.

By making beautiful products we respond to our customers' flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure.

This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.

Enjoy!

Paolo Bertazzoni

President

Pedro Sectorzom

MANUAL VALIDITY

The following manual is valid for all the product codes mentioned below:

• REF24BMFIXNV
• RBM24F4FXNV

GENERAL INFORMATION 7

READING THE MANUAL 7

INTRODUCTION AND SAFETY 7

SAFETY INFORMATION 8

HYDROCARBON (HC) WARNING 9

DISPOSAL OF OLD APPLIANCE 9

ENERGY SAVING 9

BEFORE FIRST USE 10

USE 11

USING THE FRIDGE 11

LED LIGHT REPLACEMENT INSTRUCTIONS 15

CARE AND CLEANING 15

CLEANING THE INTERIOR SURFACES 15

STAINLESS STEEL EXTERIOR SURFACES 15

CLEANING THE DOOR SEALS 16

DEFROSTING 16

TROUBLESHOOTING 16

INSTALLATION INSTRUCTIONS 18

PREPARING FOR INSTALLATION 18

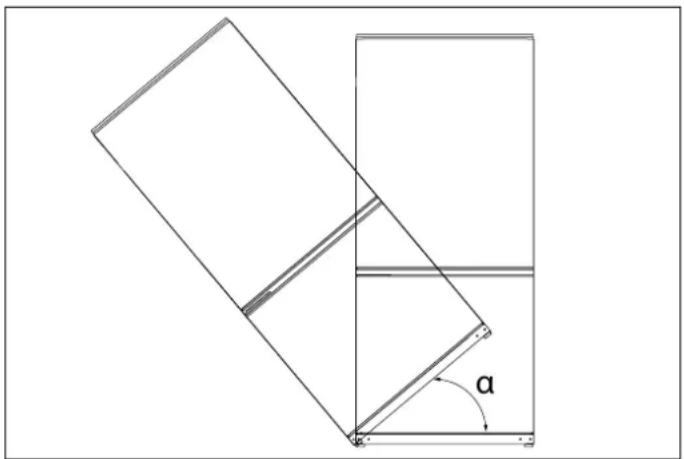

VENTILATION 18

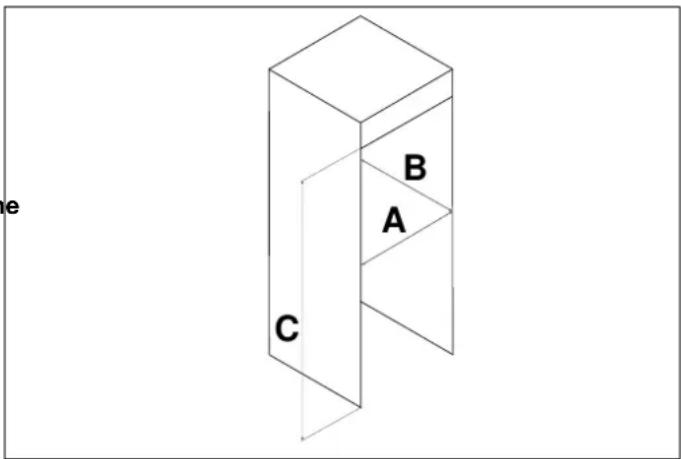

CUTOUT DIMENSIONS 18

PRODUCT DIMENSIONS 19

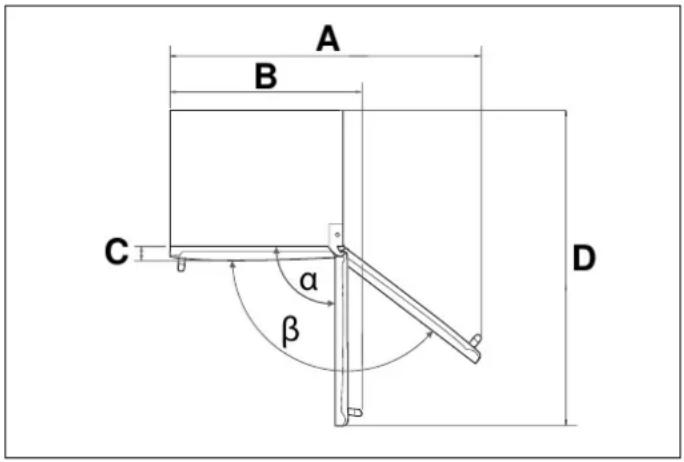

TOP VIEW 19

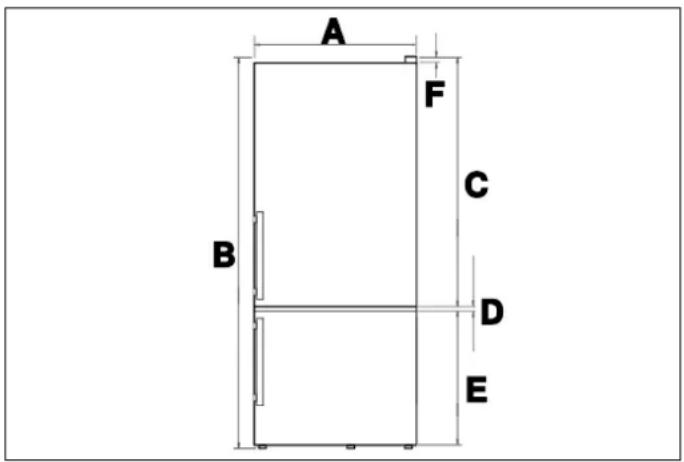

FRONT VIEW 19

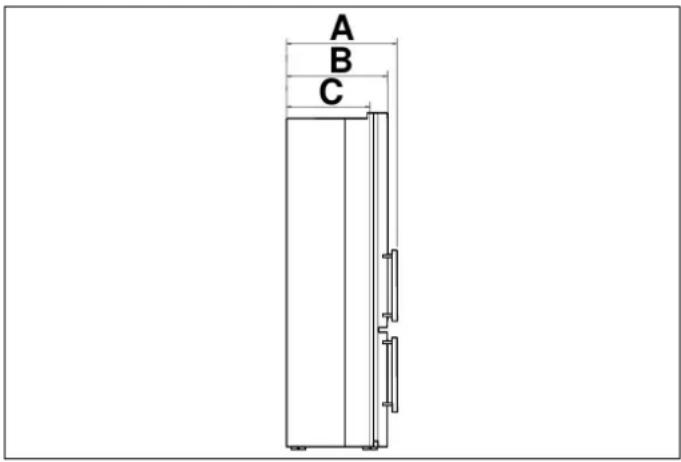

SIDE VIEW 19

ELECTRICAL REQUIREMENTS 20

PLUMBING REQUIREMENTS (DEPENDING ON MODEL) 20

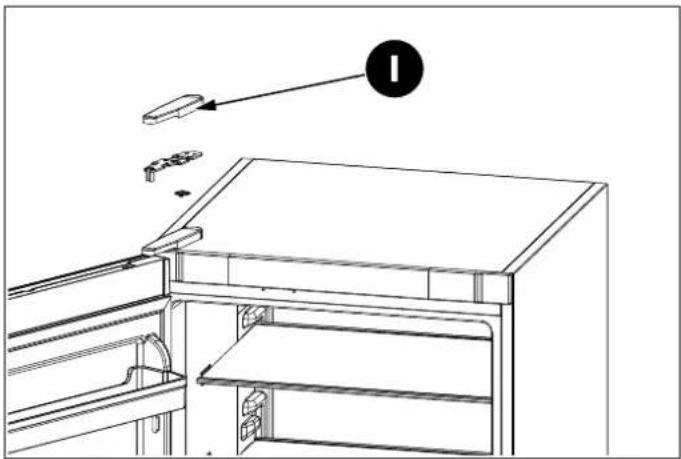

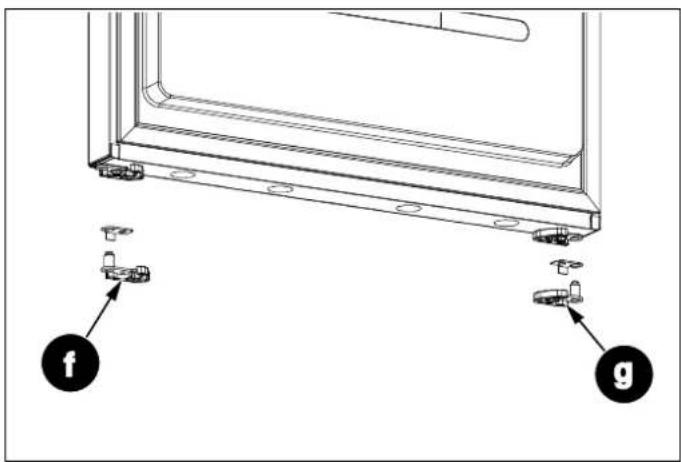

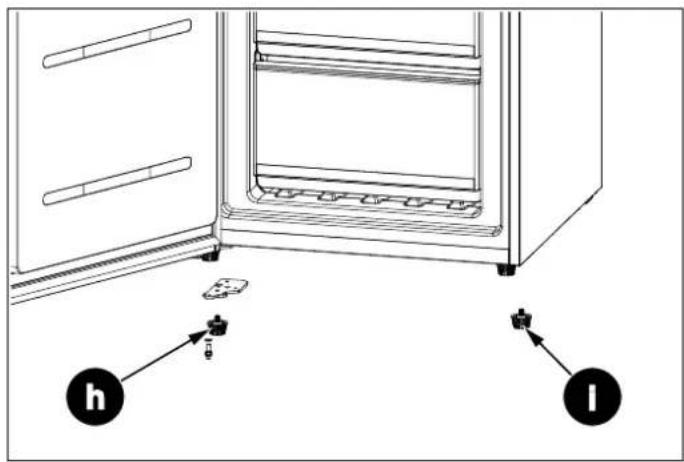

REVERSING THE APPLIANCE DOORS 21

ENSURING THE DOOR SEALS CORRECTLY 23

CUSTOMER CARE 24

Thank you for purchasing this product.

INTRODUCTION AND SAFETY

In order to get the most out of your refrigerator, please read this instruction manual carefully before use. Keep all documentation for use at a later date or for future owners.

Read the instructions provided in this manual carefully before installing and/or using the appliance.

This product is intended solely for residential use or similar. This will help you to get to know your new device. applications, such as:

Keep this document to hand so that you consult it at any gmoment, and hand it on to any subsequent owners.

The staff kitchen areas of shops, offices and other working environments; on farms, by guests at hotels, motels, bed and breakfasts (B&Bs) and other residential-type environments.

It may be used for catering services and similar applications, provided it is not used to store products for retail sale.

This appliance must be used only for purposes of food storage; any other use is considered hazardous and the manufacturer will not be held liable in the event of such use. Also, it is recommended that you take note of the warranty conditions.

READING THE MANUAL

These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not contain or support.

The images and illustrations in this document refer to various models and may differ slightly from the product purchased.

The manufacturer does not accept any responsibility for personal injury or damage to property arising from incorrect installation or misuse of the appliance.

The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force.

In the event of complaints, please contact the customer service.

Read the safety messages provided in the introduction to this manual and give due consideration to the safety notes such as: "Attention", "Warning" and "Danger" which appear in the text.

DANGER

This symbol indicates a situation that is a danger to you and others. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous or fatal accidents.

WARNING

This symbol indicates safety information. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous accidents.

CAUTION

This symbol indicates a procedure which could put the appliance's structure or components at risk. Take particular care over these procedures.

NOTE

This symbol indicates useful advice and draws your attention to correct procedures and practices. Complying with the instructions marked with this symbol will avoid problems for you.

The symbol highlights methods or procedures for correct use of the appliance.

SAFETY INFORMATION

WARNING

Risk of fire / Flammable materials

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they are supervised or have been given instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to ensure against hazards.

WARNING

Keep ventilation openings in the enclosure or built-in structure where the appliance is housed free of obstructions.

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process unless they are recommended by the manufacturer.

WARNING

Do not damage the refrigerant circuit.

WARNING

Do not use electrical appliances inside the unit's food storage compartments unless these are of a type recommended by the manufacturer.

WARNING

When positioning the appliance, make sure that the power cord does not become trapped or damaged.

WARNING

Do not place multi-outlet power strips or portable power supplies at the rear of the appliance.

Do not store explosive substances, such as aerosol cans with a flammable propellant, inside this appliance.

This appliance is intended to be used in residential and other similar applications, such as:

- staff kitchen areas in shops, offices and other working environments;

• in farm houses and by guests at hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

Please comply with local regulations when disposing of the appliance, due to its flammable refrigerant and insulation-blowing gas.

If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid hazards.

WARNING

To prevent hazards associated with appliance instability, the appliance must be anchored according to the instructions.

Component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service

DANGER

Risk of fire or explosion: flammable refrigerant used

• Do not use mechanical devices to defrost refrigerator.
• Do not puncture refrigerant tubing.

The maximum loading of shelves is 22 lbs each.

HYDROCARBON (HC) WARNING

DISPOSAL OF OLD APPLIANCE

Your product's cooling system contains R600a. This gas is Properly dispose of your appliance packaging. Ensure that flammable. Therefore, be careful not to damage the cooling refrigeration equipment is disposed of in an system or the tubing during use or transportation. If environmentally friendly way, including both your old and damaged, keep the appliance away from potential sources new appliances at the end of their service life. Follow local of ignition, which could cause it to catch fire, and ventilate regulations for the disposal of appliances with flammable the room where the appliance is placed. refrigerants and blowing gas.

NOTE

If the appliance is damaged or if you see a gas leak, please keep away from the gas as it may cause ice burn if it comes into contact with the skin. Thoroughly ventilate the room in which the appliance is situated.

WARNING

Before disposal, make old, worn appliances unusable by removing the plug, cutting the power cable, and destroying any snap fastenings or bolts. This prevents children from locking themselves inside the appliance during play (risk of suffocation) or causing other dangers.

NOTE

The type of gas used in the product is listed on the rating label, which is located on the left interior wall of the refrigerator.

WARNING

Do not dispose of the appliance with normal household waste. Avoid damaging the coolant circuit, especially the heat exchanger at the back or bottom of the unit.

WARNING

Never attempt to burn the product as a means of disposal.

The symbol on the product or packaging indicates that this product should not be treated as normal household waste. Instead, take it to a recycling collection point for electrical and electronic goods. Correct disposal protects the environment and public health. For more information on recycling, contact your local authorities or waste collection services.

ENERGY SAVING

For optimal energy saving, we recommend the following:

• Install the appliance away from heat sources, out of direct sunlight and in a well-ventilated room.
- Avoid putting hot food into the refrigerator, which would raise the internal temperature, thus causing the compressor to run continuously.
- Do not overfill the compartments, as this prevents air from circulating properly.
- If ice should form, defrost the appliance in order to facilitate the transfer of cold.
- In the event of an electrical power failure, it is advisable to keep the refrigerator door closed.
- Open the appliance doors as infrequently and for the briefest amounts of time possible.
- Do not adjust the settings to extremely cold temperatures.
- Remove any dust that accumulates on the back of the appliance

BEFORE FIRST USE

You must allow the fridge to settle for at least four hours prior to switching the power on.

It is recommended that you clean the interior of the appliance prior to first use using a solution of bicarbonate of soda and warm water, then thoroughly dry the interior. The fridge may have an odour to it at first use. This will disappear as the appliance cools.

NOTE

The appliance will start operating at 41 °F for the fridge and 0 °F for the freezer and work continuously until it comes down to the correct temperatures. If the appliance is switched off, you should allow five minutes before switching it on again in order to prevent unnecessary damage to the compressor. Never store inflammable or explosive items, strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frost at the back does not mean that the fridge is malfunctioning.

USING THE FRIDGE

• Never put liquids into the refrigerator uncovered
• Never put hot foods into the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
• Nothing should rest against the rear wall of the refrigerator, as this will cause the formation of frost, which will be difficult to remove, and possible condensation problems.
• Make sure food is clean and that any excess water is wiped off before putting it into the fridge.
• Wrap or cover food before putting it into the fridge. This will help impede the loss of moisture, keep food fresh and prevent unpleasant odours.
• Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelves. This will to prevent deterioration, which could occur when the door is kept open for long periods of time.
• Do not overfill the fridge. There should be sufficient space between foods to allow cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
• Never store raw meats on shelves above cooked meats or produce. This will help to prevent juices from raw meat from contaminating other foodstuffs.

USING THE FREEZER

• The freezer compartments are designed to store frozen food only.
• Never put hot or warm foods into the freezer; allow them to cool fully before putting them into the freezer.
• When storing frozen food, follow the instructions on the food packaging. If no information is provided, foods should not be stored for longer than three months after the purchase date.
• Store food in small packages (ideally less than 2.2 lbs). This reduces freezing time and improves the quality of the food after thawing.
• Wrap food before putting it into the freezer. To stop the wrapping from sticking together, ensure it is dry.
• Label food before freezing, with information including help type of food and dates of storage and expiration.
• Once food is thawed, it must not be refrozen. In order to prevent wastage, only defrost as much food as is required.
• Bottled or canned drinks should not be stored in the freezer compartments, as they could explode.
• The maximum amount of fresh food that can be frozen within a 24-hour period is 5.8 lbs.
• Do not attempt to freeze more than the maximum amount.

FRESCO ZONE DRAWER

- The temperature inside the Fresco drawer can be regulated within a range of between +37 °F and 27 °F. This is the ideal drawer for storing meat and fish.

STORAGE

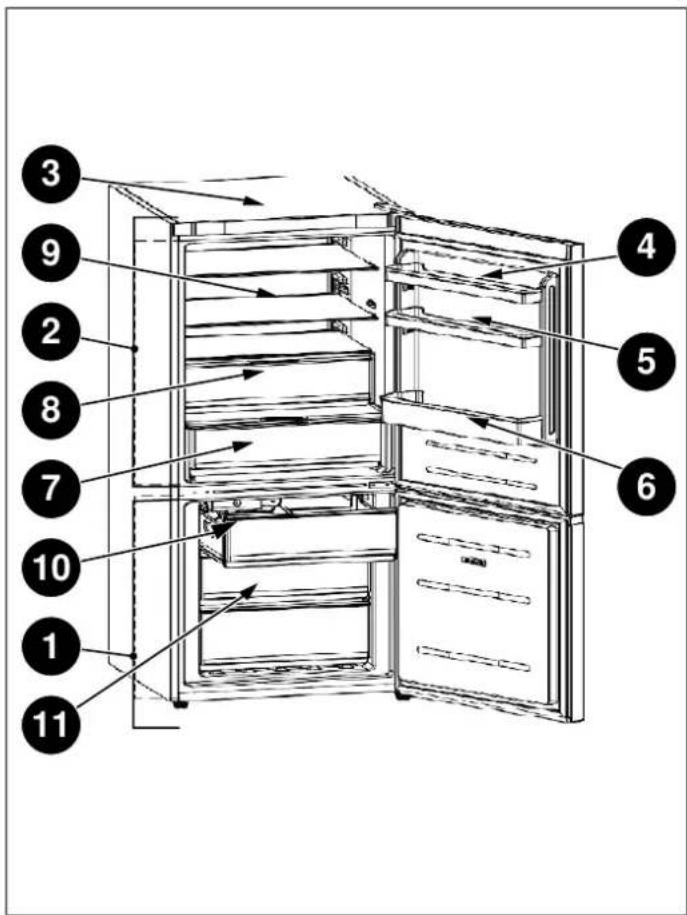

Labeled diagram of a refrigerator interior showing numbered compartments and doorways

Fig. 1

1 Freezer compartment
2 Refrigerator compartment
3 Display
4 Butter, cheeses, etc.
5 Food in jars and bottles
6 Beverages, e.g. milk
7 Fresco drawer for fresh meat and fish or fruit and vegetables
8 Crisper for fruit and vegetables
9 Yoghurt, preserves, etc
10 Ice cubes storage (depending on model)
11 Freezer drawer

The fridge section is for short-term food storage. Although low temperatures can be maintained, it is not recommended to store food for extended periods.

The temperature can vary between the different sections as the cold air circulates within the fridge. For this reason, foods should be stored in different sections according to type.

The fridge shelves can be moved within the refrigerator compartment depending on storage requirements. To move a shelf, lift up the rear section and then pull it outwards.

To replace, slide the shelf back into the slot and then lower the rear section.

The most energy-saving configuration requires the drawers, door bins and shelves to be installed in the appliance; please see the pictures above.

TECHNICAL SPECIFICATIONS

Permissible water pressure	25-80 psi (207-552 kPa)
Electrical connection	115 V/60 Hz
Rated input power 175 W
Climate class SN-N-ST-T

CLIMATE CLASS	AMBIENT TEMPERATURE
SN 50°C to +89°C
N	+16°C to +32°C
ST	+61°C to +100°C
T	+61°C to +109°C

NOTE

This appliance may not work properly if being left at a temperature above or below the indicated climate class range for a long period of time.

CONTROL PANEL

Row of eight icons including shopping cart, umbrella, water drop, battery, fuel pump, sprout, grocery store, and power button on black background (no text or symbols)

Fig. 2

1) When the appliance is switched on for the first time, it will be operating at the following settings: 41°F for the fridge, 32°F for the Fresco and 0°F for the freezer. If you wish adjust the temperature or functions manually, use the appropriate button to perform the desired operation. The temperature range for the Fresco is from 27°F to 37°F.
2) Fridge temperature adjustment: Press the button on the left-hand side of the control panel to adjust the temperature within a range of between 36^ F and 46^ F.
3) Freezer temperature adjustment: Press the button on the right-hand side of the control panel to adjust the temperature within a range of between 5°F and -13°F.
4) Fresco drawer temperature adjustment: The button controls temperature. By pressing on this button, you can adjust the temperature within a range of between 27°F and 37°F. This function can be turned on/off by pressing and holding the button for three seconds (OFF is displayed).
5) Super Cool: Press the button; the button lights up and the fast cooling function is turned on. The fridge automatically begins running at a temperature setting of 36^ F and continues for 24 hours, after which it returns its normal setting and the symbol is no longer lit.
6) Holiday Mode: Press the button; the button lights up, the holiday function is turned on and the whole appliance automatically begins running at the following settings: fridge at 63 °F and freezer at 0 °F.

Eco Mode: Press the button on the control panel; the Eco function is turned on and the button lights up. The ridge compartment runs at a setting of 41°F and the freezer compartment runs at a setting of 0°F. The Fresco works at a setting of 37°F.

8) Super Freeze: Press the button; the button lights up and the freezer begins to run the fast freezing function, with a temperature setting of -13^ F. After 24 hours, the fast freezing function quits automatically.
9) Press and hold the power button for 3 seconds to switch off your appliance. The button lights up and the power is shut off. The interior lamps switch off and the compressor stops operating. Press and hold the button for 3 seconds to switch on your appliance. The symbol lights up and power is restored.
10) No Frost models are equipped with a manual defrosting function. Press and hold buttons + for 5 seconds to switch on the manual defrosting function to clean the freezer evaporator. The freezer temperature symbol remains steadily lit. Press and hold buttons + for 3 seconds to switch off the manual defrosting function. To The freezer temperature symbol goes dark.
11) Fault Display: This appliance has a "Fault Display & Alarm" function. Once the sensors detect a fault, alerts are shown on the temperature display; the appliance still cools, but a professional service engineer should be called in to check it.

• F2 – Fresco sensor
• F3 – Fridge compartment sensor
• F4 – Freezer compartment sensor
• F5 – Defrosting sensor
• 2E – Freezer fan/motor fault
- CE– Communication fault between main board and display panel

The above Faults are only shown on the display; there is no audible alarm signal. AUTOMATIC ICE MAKER (DEPENDING ON MODEL)

Maximum freezer temperature exceeded alarm: If, after the freezer reaches the set temperature, the temperature rises to above 30^ F, the alarm will sound, accompanied by simultaneous flashing of the freezer temperature display. Press any button to cancel the audible alarm. The flashing will continue until the temperature falls below 30^ F.

Key Operation Instructions:

1) Short press the button to switch the ice machine on or off.
2) When the machine is on, press and hold the button for 10 seconds to manually de-ice.

NOTE

The main board is located in the compressor compartment.

POSITION CONDITIONS

41°F / 0°F	Summer or ambient temperature
	between 77°F - 95°F
41°F / 0°F	Spring, autumn or ambient temperature
	between 59°F - 77°F
41°F / 0°F	Winter or ambient temperature
	between 41°F - 59°F
Super Freezing function Super Freeze
Super Cooling function Super Cool

Lamp Status Description:

1) Switch On State: the light will fade on and then fade off.
2) Switch Off State: the light remains off.
3) Ice Full State: the light stays on continuously.
4) Drawer Removal: the light flashes slowly once every 0.5 seconds (1Hz)

Fault Status:

1) Ice Jam: the light flashes quickly once every 200 ms.

Diagram showing two labeled components (1 and 2) pointing to a rectangular object inside a container, likely for assembly or installation instructions.

Fig. 3

1 Ice Maker
2 Ice Maker Switch

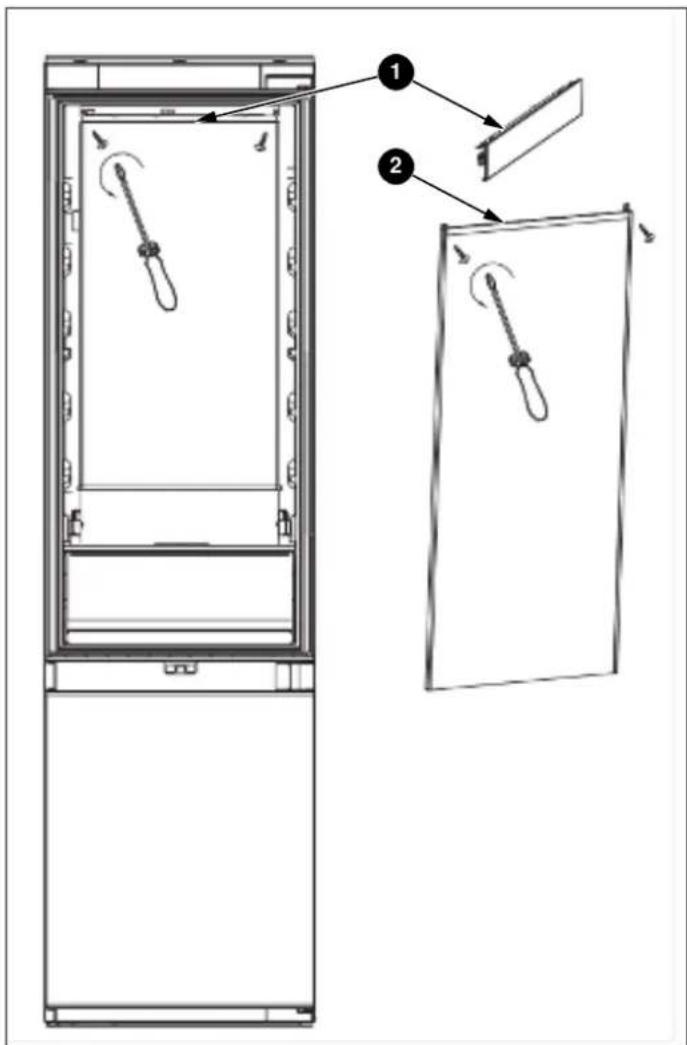

LED LIGHT REPLACEMENT INSTRUCTIONS

NOTE

The LED light is intended to be non-replaceable by the user; it needs to be replaced by a service professional.

Lighting parameters: 12V / 10W

1) Unplug the power plug.
2) Remove the aluminium alloy trim strip on the top of the LED surface light source, then remove the left and right mounting screws.
Steps 1 and 2 are shown below.
3) Install the new LED light board.
4) Finally, replace the aluminium alloy trim strip.

Technical diagram showing two views of a refrigerator with labeled parts and directional arrows indicating motion or movement.

Fig. 4

CARE AND CLEANING

Always disconnect the appliance from the mains power before performing any cleaning or maintenance.

The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.

Clean the shelves and door bins separately by hand with a mild solution of washing-up liquid and water. Do not put them in the dishwasher.

If the appliance is not going to be used for an extended period of time, unplug and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odours.

CLEANING THE INTERIOR SURFACES

To clean the interior surfaces and all removable parts, wash them with a mild solution of dishwasher soap, water, and sodium bicarbonate. Rinse and dry thoroughly.

Do not allow the water to come into contact with the lighting equipment or control panel.

WARNING

Do not use vinegar, rubbing alcohol or any alcohol-based cleaning agent on any of the interior surfaces.

Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long.

If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follows:

1) Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open.

Ventilate the room thoroughly to accelerate the process.

2) When defrosting is completed, clean your freezer as described above.

STAINLESS STEEL EXTERIOR SURFACES

Use a non-abrasive stainless-steel cleaning agent; apply it with a soft, lint-free cloth.

For polishing, wipe the surface gently with a damp micro fibre cloth and follow with dry wash leather.

Always rub in the direction of the grain of the stainless steel.

CLEANING THE DOOR SEALS

Take care to keep door seals clean. Sticky food and drinks if you have any problems with your appliance, you should can cause seals to stick to the cabinet and tear when you check this troubleshooting section prior to calling Customer open the door. Wash the seals with a mild detergent and Care.

warm water. Rinse and dry them thoroughly after cleaning.

DEFROSTING

The product has a No Frost system, which is designed to prevent heavy build-up of ice. Under normal conditions of use, there should be no need to regularly defrost the freezer system.

NOTE

If you are regularly finding a heavy build-up of ice or puddles of water in the freezer section, then it is likely that the door is not sealing properly. This could be due to a defective door seal or an incorrectly fitted or overly heavy cabinet door panel. For more information, see the troubleshooting section about ice.

TROUBLESHOOTING

If the appliance is not working, check that:

• The appliance is receiving electrical power.
• The fuses in the home are intact and the fuse in the plug has not blown.
  • The fridge has not been turned off.

- The electrical outlet is functioning properly. To check this, plug another electrical appliance into it to see if the outlet is faulty.

If the appliance is working, but not very well, check that:

• The appliance is not overloaded.
- The thermostat is set to an appropriate temperature.
• The doors are closing properly.
- The cooling system on the back of the appliance is clean and free of dust and is not touching the rear wall.
- There is enough ventilation around the side and rear walls.

If the appliance is noisy, check that:

• The appliance is level and stable.
- The side and rear walls are clear and there is nothing resting against the appliance.

NOTE

The coolant gas in the refrigerator may make a slight bubbling or gurgling noise, even when the compressor is not running.

If the appliance is beeping, check that:

- The doors are closed. An alarm will sound after a door has been open for 60 seconds.

If ice has formed on the back wall of the fridge:

• It is normal for some ice droplets to form on the back wall of the fridge. This does not constitute a fault with the appliance.
• Ensure that no items inside the fridge are in contact with the back wall.
• Check that there is some resistance when opening the appliance door. If it opens at the slightest touch, it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact Customer Care so that the seal can be replaced.

- This can be due to the cabinet door(s) not being properly fitted. If you are at all unsure, ask your installer to check the cabinet doors.

If excessive ice has formed in the freezer:

• Check that there is some resistance when opening the appliance door. If it opens at the slightest touch, it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact Customer Care so that the seal can be replaced.
• This can be due to the cabinet door(s) not being properly fitted. If you are at all unsure, ask your installer to check the cabinet doors.

If one or more of the LED units inside the appliance is not working:

- Contact Customer Care to arrange a service visit.

PREPARING FOR INSTALLATION

This appliance must not be installed close to heat sources, e.g. heating elements or cookers, or in a damp location.

Seek the help of one or two other individuals when installing this appliance. This appliance may have sharp edges. Wear PPE appropriate to the task and the environment.

• Use the height-adjustable feet at the front of the appliance to ensure that the appliance is level.
• The cooling system on the back of the appliance must not touch the rear wall. The larger the gap, the better.
• The appliance must be installed with adequate ventilation. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

VENTILATION

The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the air around the appliance. Incorrect ventilation can lead to premature compressor failure, excessive power consumption and total system failure, and it may invalidate the warranty provided with the appliance.

Technical line drawing of a mechanical component with a folded section and angle label 'a' (no text or symbols beyond basic geometry)

Fig. 5

CUTOUT DIMENSIONS

e B A C

Fig. 6

A. 24" (610 mm)
B. 25" (635 mm)
C. 74 3/16" (1885 mm)

NOTE

Do not tilt beyond =40^

PRODUCT DIMENSIONS

TOP VIEW

A B C α β D

Fig. 7

A. 38 3/4" (983.4 mm)

D. 47 13/16" (1214.5 mm)

B. 25 3/4" (654.2 mm)

E. 90^

C. 2 3/8"(60 mm)

F. 130^

FRONT VIEW

A F B C D E

Fig. 8

A. 23 7/16" (595 mm)
B. 73 1/4" (1860 mm)
C. 40 3/8"(1025 mm)
D. 3/8" (10 mm)
E. 30 3/4" (781 mm)
F. 9/16" (14 mm)

SIDE VIEW

A B C

Fig. 9

A. 28 1/16" (713.2 mm)
B. 25 9/16" (650 mm)
C. 23 1/4" (590 mm)

NOTE

To improve the efficiency of the of the cooling system and save energy, it is necessary to maintain a good ventilation around the appliance appliance for heat dissipation. For this reason, it is necessary to have sufficient free space around the around the refrigerator.

NOTE

It is recommended to leave a clearance of at least 1 3/4" from the wall, at least 1" from the top, at least 5/16" from the sides to the walls, and a clearance in front to allow the door to open 130°.

ELECTRICAL REQUIREMENTS

Please check the electrical standards and local codes before installing the appliance.

The appliance must be applied with single phase alternating current of 115 V (Volts), 60 Hz (Hertz). If the voltage fluctuates exceeding the upper limit, A.C. automatic voltage regulator of more than 350 W should be applied to the refrigerator for safety use.

WARNING

Do not use any extension cord or multiple sockets which could cause overloading of wiring circuits and could cause a fire. Always plug the appliance in its own individual electrical socket that has a voltage corresponding to that indicated on the rating plate.

PLUMBING REQUIREMENTS (DEPENDING ON MODEL)

The refrigerator is equipped with a 59" long water hose (1/4" diameter) that includes a female 1/4" compression fitting nut, provided in the accessory bag inside the refrigerator packaging.

^0 Before installation, the refrigerator's water system must be connected to the house's main water supply. To do this, connect the water hose to the rear of the refrigerator and then to your home's water supply.

The refrigerator does not come with a water filter. However, a third-party water filter can be installed if desired. The water supply line must be located either inside the cabinet where the appliance is installed or in an adjacent cabinet, with an opening at the rear of one of these cabinets.

The refrigerator's water system must be connected to the house's main water supply.

The pressure of the water system must be between 25-80 psi (1.7-5.5 bar). If the water pressure exceeds 80 psi (5.5 bar) but remains below 120 psi (8 bar), install a pressure limiting device or water impact protector to the inlet valve.

WARNING

Do not install or operate the appliance if the water pressure exceeds 120 psi (8 bar). Objects that might pierce the water hose or cause them to twist must not be present where the water line is installed

WARNING

The hose that runs from the water supply must be one piece. Do not use extension hoses.

WARNING

Make sure that the power is cut off when establishing the appliance's water connection.

WARNING

The water valve must be closed when connecting the water hose.

WARNING

It is strongly recommended to keep the water valve accessible after product installation.

WARNING

This appliance is suitable for use with a cold potable water supply only.

NOTE

Once the connection is complete, open the water valve and make sure that there is no leakage. Otherwise, water may damage the cabinetry.

Technical line drawing of a refrigerant system with internal components and a close-up view (no text or labels)

Fig. 10

REVERSING THE APPLIANCE DOORS

The opening side of the door can be changed, switching from the right side (as supplied) to the left side if necessary.

WARNING

When reversing the door, the appliance must not be connected to the power supply. Ensure that the plug is removed from the power socket.

NOTE

If required, you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator.

To reverse the door, proceed as follows:

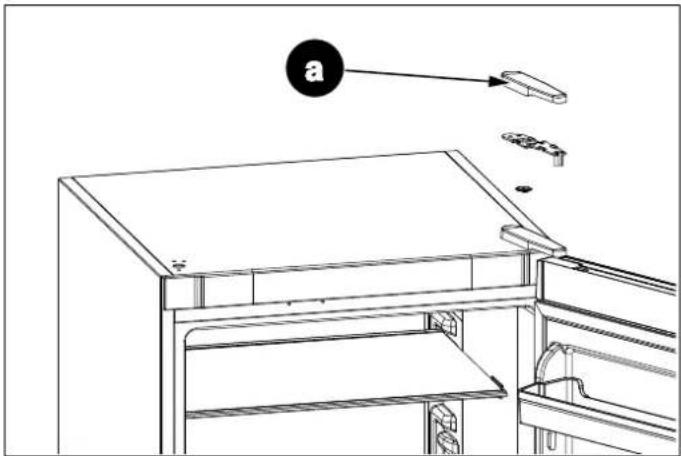

1) Disassemble the upper hinge [a] cover and upper hinge and remove the upper door

a

Fig. 11

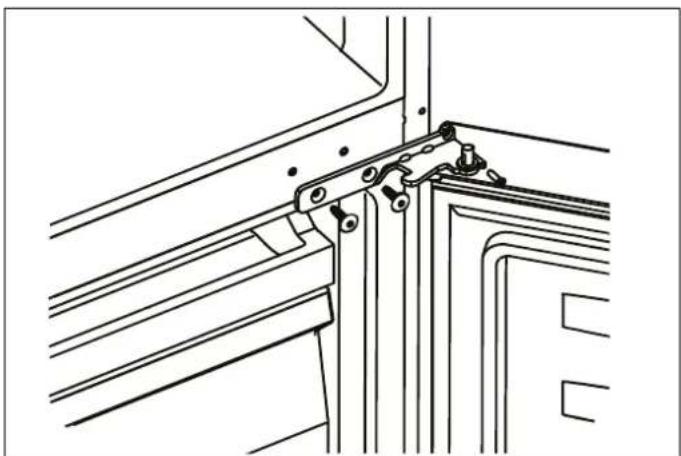

2) Remove the middle hinge and the freezer door.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Fig. 12

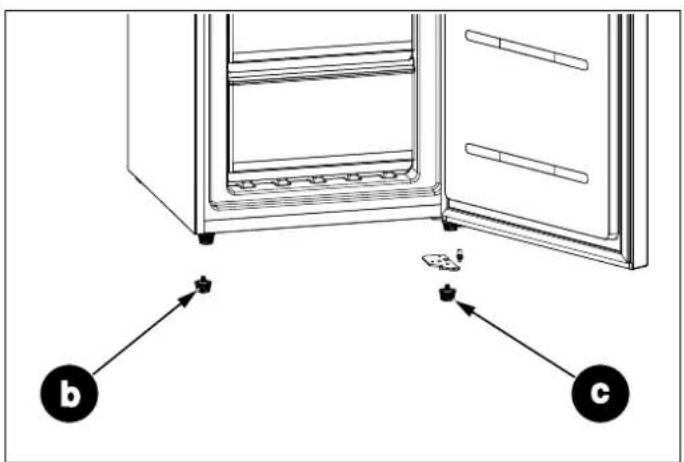

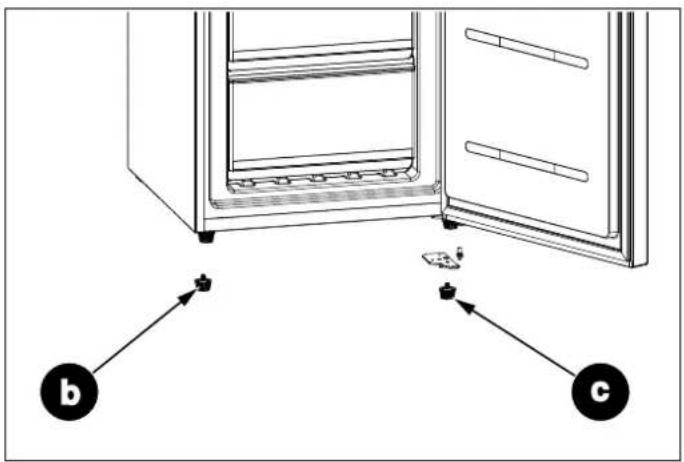

3) Remove the left leg [b] from the bottom of the refrigerator and the right leg [c] from the bottom of the refrigerator and the lower hinge.

5) Install the legs and lower hinge [h], [i], on the opposite sides from where they were removed at the bottom of the refrigerator.

Diagram showing a refrigerator with labeled parts (b and c) and directional arrows indicating movement or positioning.

Fig. 13

Diagram of a refrigerator interior with labeled parts and directional arrows indicating components.

Fig. 16

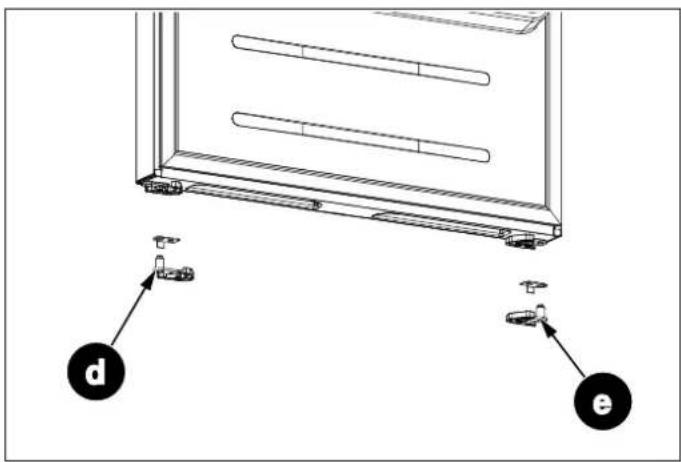

4) Remove the door hinge assemblies [d], [e], [f], [g] from the two doors and install the door hinge assemblies. present in the bag of accessory components inside the refrigerator on the other side of the doors

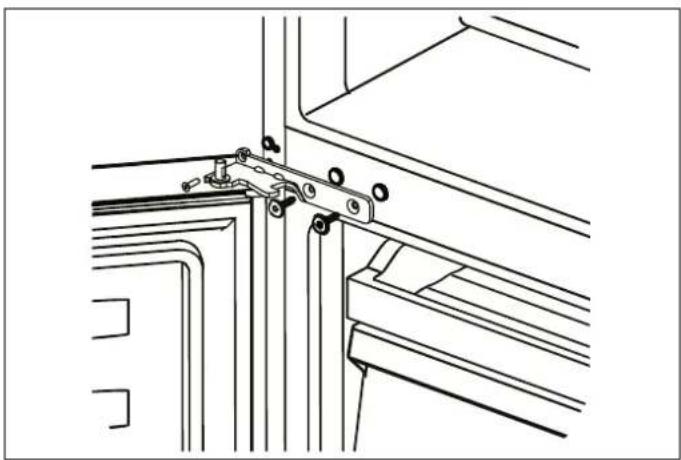

6) Install middle hinge-left (provided in the plastic accessory bag) and ensure the freezer door in place.

Diagram showing a device with labeled components (d, e) and directional arrows indicating movement or assembly.

Fig. 14

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Fig. 17

Technical diagram showing a mechanical assembly with labeled components f and g, likely illustrating a mounting or mounting process.

Fig. 15

7) Install the upper door and fix the upper hinge [I] and hinge cover on the left side.

Line drawing of a cabinet interior with an open lid and hanging control panel (no text or symbols)

Fig. 18

ENSURING THE DOOR SEALS CORRECTLY

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to hold the hair dryer too close to the appliance, which could damage the seal.

A distance of approximately 3 15/16" should be suitable. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

For any warranty information and service request, contact us:

CUSTOMER CARE

In USA: https://us.bertazzoni.com/more/support

In CANADA: https://ca.bertazzoni.com/more/support

DU BUREAU DE NOTRE PRÉSIDENT

DIMENSIONS DU PRODUIT 41

VUE DU DESSUS 41

VUE AVANT 41

VUE LATÉRALE 41

EXIGENCES ÉLECTRIQUES 42

EXIGENCES DE PLOMBERIE (SELON LE MODÈLE) 42

INVERSION DES PORTES DE L'APPAREIL 43

ASSURER LA BONNE ÉTANCHÉITÉ DE LA PORTE 45

SERVICE CLIENTÈLE 46

Labeled diagram of a refrigerator interior showing numbered compartments and doorways

Fig. 1

Row of eight icons including recycling, shopping cart, tree, water drop, blank rectangle, fuel pump, sprout, and power button (no text or symbols)

Fig. 2

Diagram showing two labeled components (1 and 2) pointing to a device inside a container or enclosure.

Fig. 3

Technical diagram showing two views of a refrigerator with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a mechanical assembly with two rectangular components and an angular dimension labeled 'a' (no text or symbols beyond the label)

Fig. 5

DIMENSIONS DE L'OUVERTURE

B A C

Fig. 6

A. 24" (610 mm)
B. 25" (635 mm)
C. 74 3/16" (1 885 mm)

NOTE

DIMENSIONS DU PRODUIT

VUE DU DESSUS

A B C α β D

Fig. 7

A. 38 3/4" (983,4 mm)

D. 47 13/16" (1214,5 mm)

B. 25 3/4" (654,2 mm)

E. 90^

C. 2 3/8" (60 mm)

F. 130^

VUE AVANT

A F B C D E

Fig. 8

A. 23 7/16" (595 mm)
B. 73 1/4" (1860 mm)
C. 40 3/8" (1025 mm)
D. 3/8" (10 mm)
E. 30 3/4" (781 mm)
F. 9/16" (14 mm)

VUE LATÉRALE

A B C

Fig. 9

A. 28 1/16" (713,2 mm)
B. 25 9/16" (650 mm)
C. 23 1/4" (590 mm)

NOTE

Technical line drawing of a refrigerant system with internal components and a close-up view (no text or labels)

Fig. 10

INVERSION DES PORTES DE L'APPAREIL

Technical diagram of a cabinet with labeled components and an arrow indicating direction, including parts labeled 'a' and 'b'.

Fig. 11

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Fig. 12

Diagram showing a device with labeled components (d, e) and directional arrows indicating flow or movement.

Fig. 14

Diagram showing a refrigerator interior with labeled components b and c, indicating parts of the refrigerator.

Fig. 13

Technical diagram showing a mechanical assembly with labeled parts f and g, likely illustrating a component or assembly.

Fig. 15

Diagram of a refrigerator interior with labeled parts h and l, showing door, drawer, and shelf arrangement.

Fig. 16

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Fig. 17

Line drawing of a refrigerator interior with a handle and labeled component (no text or symbols)

Fig. 18

ASSURER LA BONNE ÉTANCHÉITÉ DE LA PORTE

CUSTOMER CARE

Au Canada: https://ca.bertazzoni.com/more/support

www.bertazzoni.com

Via Palazzina. 8.

42016 Guastalla RE
