USER MANUAL SJ-UE135T2W-EU SHARP

Your fridge conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge for the first time. It contains important safety information on the installation, safety, use and maintenance of your Fridge. Retain this manual for future use.

FIRE

Warning; Risk of fire / flammable materials

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge clear from obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside the Fridge.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid personal injury or damage this appliance must be installed in accordance with the manufacturer instructions.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

The small quantity of refrigerant used in this fridge is eco-friendly R600a (an isobutene) and is flammable and explosive if ignited in enclosed conditions.

* While carrying and positioning the fridge, do not damage the cooler gas circuit.
* Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the fridge.
* This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments which can be equated with ordinary household

- farm houses and by clients in hotels, motels and other residential type environments which can be equated with ordinary household

- bed and breakfast type environments which can be equated with ordinary household

- catering and similar non-retail applications which can be equated with ordinary household

* Your fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician)

* This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

* Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

* A damaged power cord /plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

* This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

* Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
* Clean regularly surfaces that can come in contact with food and accessible drainage systems.
* Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
* Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
* One-, two- and three-star compartments are not suitable for the freezing of fresh food.
* If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

CHAPTER -1: SAFETY INSTRUCTIONS

Disposal

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.
• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

For Denmark products:

The appliance is equipped with a plug approved in the EU (EU-Schuko Plug) and can be used in Finland, Norway and Sweden. In Denmark, the appliance is only approved for use with a wall outlet type E or type CEE7 // 7-S with a ground leg. If there is only wall outlet type K at the connection point, Replacing EU-Schuko plug with the Danish plug must be performed by only an authorized service personnel. Alternatively, connect a suitable and approved power adapter to transition between Schuko plug and Danish earth system. This adapter (min. 10 amps and up to max. 13 amps) can be ordered via at well assorted whitegoods dealer or authorized electrician. Only with one of these methods it can be ensured that the appliance is the correct safety ground. In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

Disposal

The symbol of the crossed-out wheeled bin shown on the product or its packaging means that the device must not be disposed of with other household waste but requires separate collection. You can dispose of the device free of charge at your local waste return and collection system. The addresses can be obtained from your responsible city council or local government. Regarding the return of waste electrical and electronic equipment (WEEE) at certain retailers free of charge, please contact your retailer.

Returned WEEE can be prepared for recycling to reduce waste and save resources. Please note that the device may contain substances which are harmful for the environment and human health if not used

according to environmental protection standards. The separate collection and recycling of WEEE helps to prevent negative consequences for the environment and human health.

If possible, please remove all batteries and accumulators as well as all removable lamps before disposing of the device.

Please note that you are responsible for deleting all personal data on the device to be disposed of.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not connect your Fridge to the mains electricity supply using an extension lead.
• A damaged power cord / plug can cause fire or give you and electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

• Never bend the power cord excessively.
- Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.

Installation Information

Before unpacking and manoeuvring your fridge please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Do not expose your fridge to moisture or rain.
• Your fridge should be positioned at least 20mm away from another freezer.
• Clearance of at least 150 mm is required at the top of your fridge. Do not place anything on top of your fridge.
• For safe operation it is important that your fridge is safe and balanced. The adjustable feet are used to level your fridge. Make sure that your appliance is level before placing any foodstuffs inside it.
• We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.
  • Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.
• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Diagram of two coiled heat exchangers with directional arrows indicating movement (no text or labels)

CHAPTER -1: SAFETY INSTRUCTIONS

Before Using your Fridge

- Before setting up your fridge, check for any visible damage. Do not install or use your fridge if it is damaged.

- When using your fridge for the first time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efficient operation and prevents damage to the compressor.

- You may notice a light odor when using your fridge for the first time. This is perfectly normal and will fade away as the fridge starts to cool.

CHAPTER -2: YOUR FRIDGE

This appliance is not intended to be used as a built-in appliance.

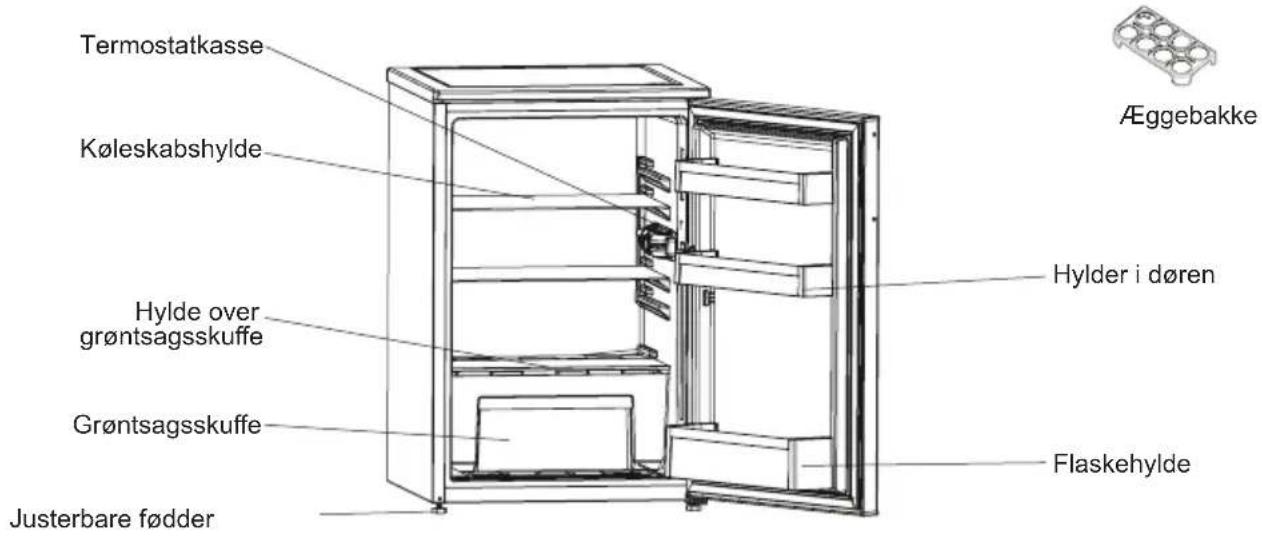

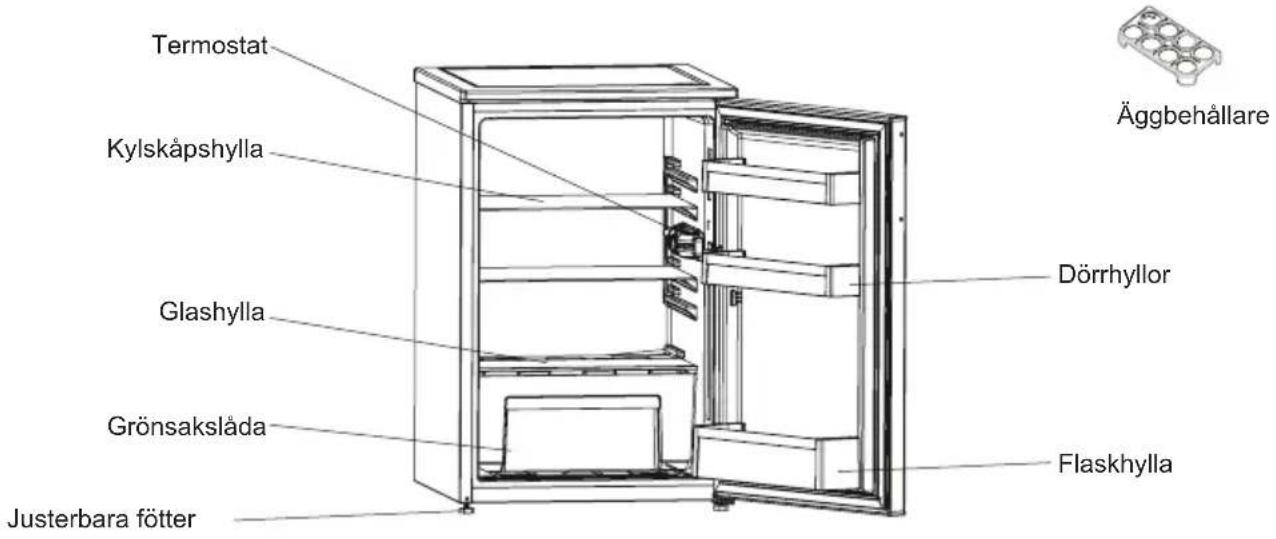

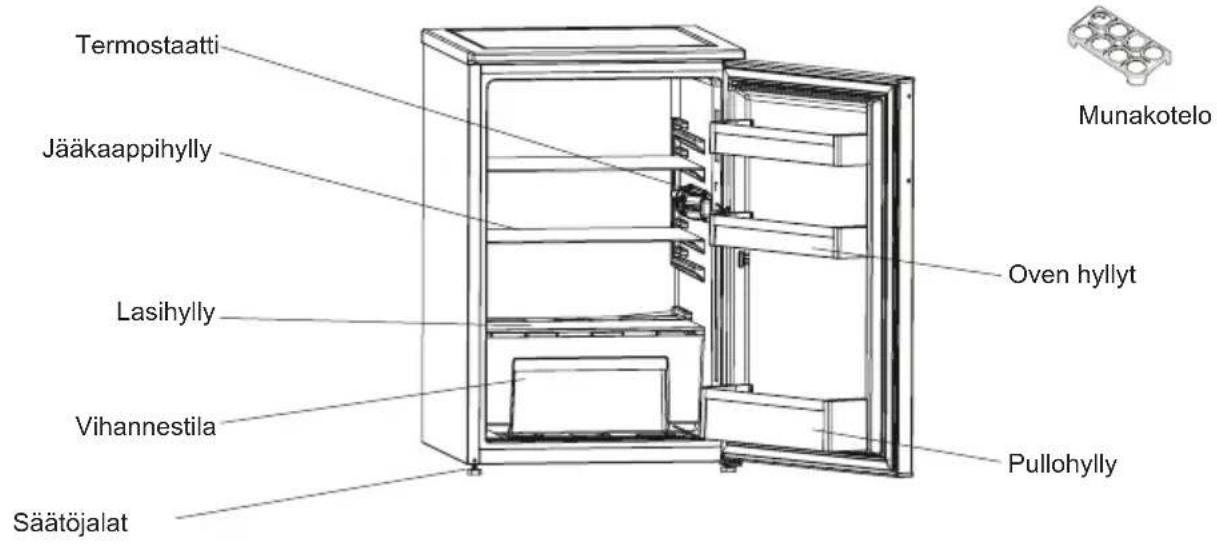

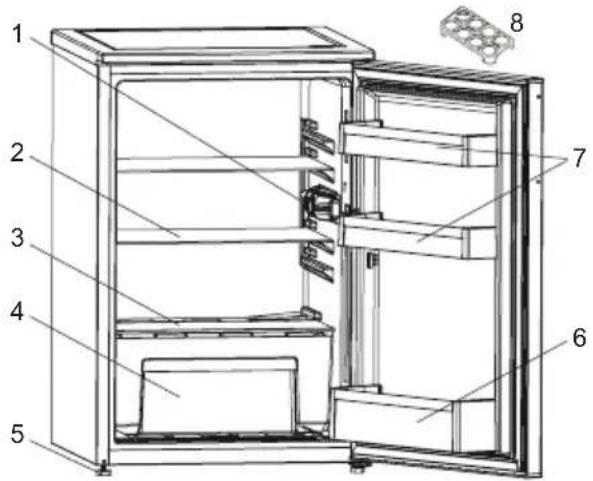

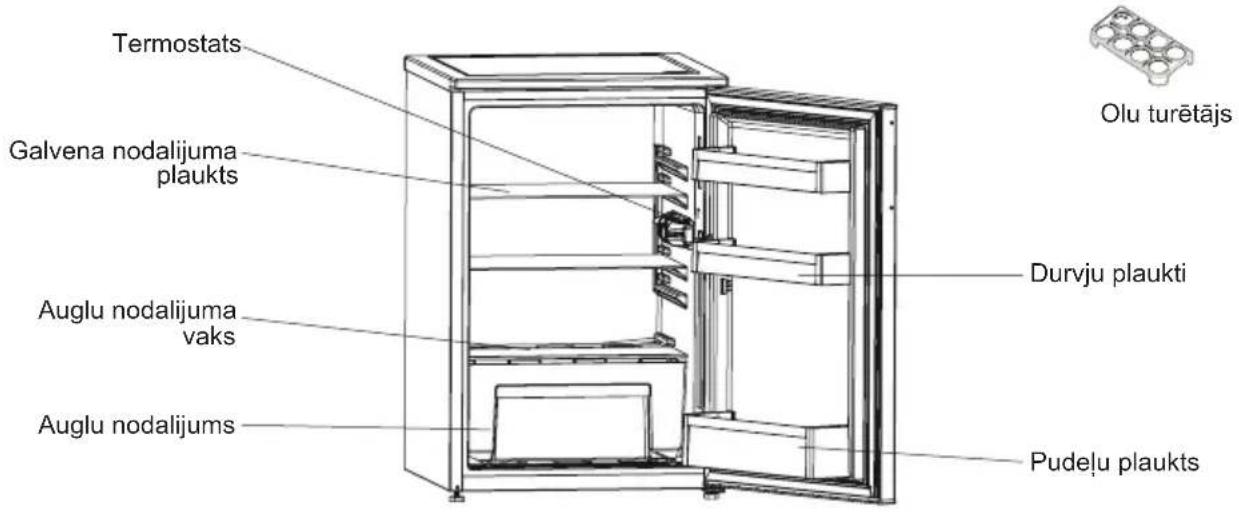

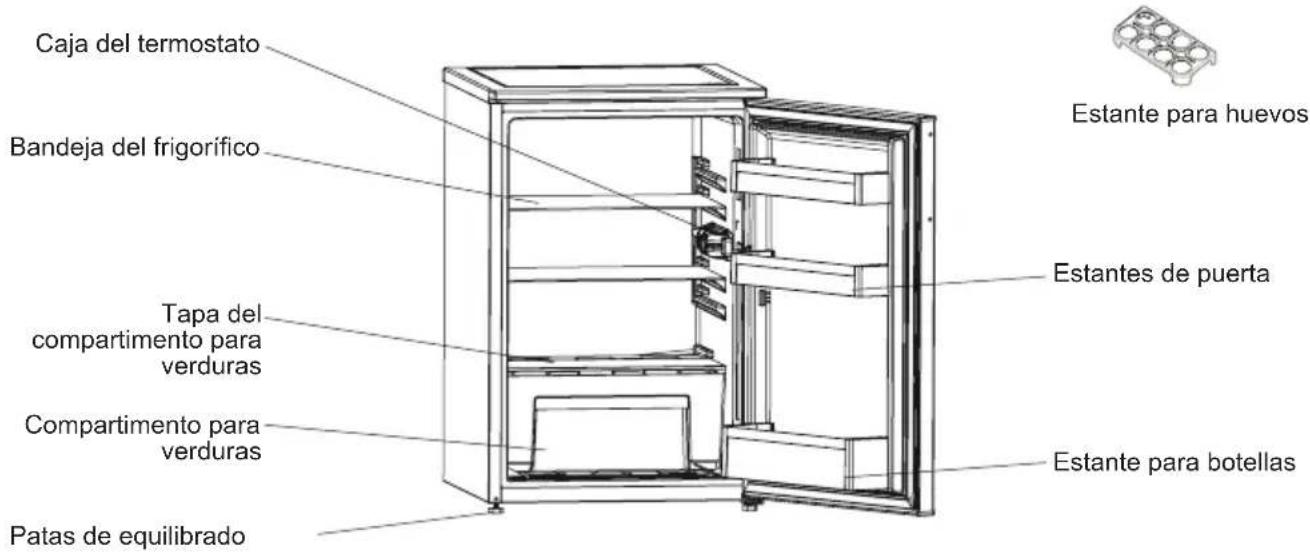

Technical diagram of an open refrigerator with numbered parts labeled 1 through 8

1. Thermostat knob
2. Fridge shelves
3. Crisper cover
4. Crisper
5. Levelling feet
6. Bottle shelf
7. Door upper shelves
8. Egg holder

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

This figure has been drawn for information purposes to show the various parts and accessories in the appliance. Parts may vary according to the model of the appliance.

CHAPTER -3: USING YOUR FRIDGE

Thermostat Setting

The fridge thermostat automatically regulates the temperature of the compartment. Fridge temperatures can be obtained by rotating the knob to higher numbers, 1 to 5.

Important note: Do not try to rotate the knob beyond position 1, it will stop your appliance from working.

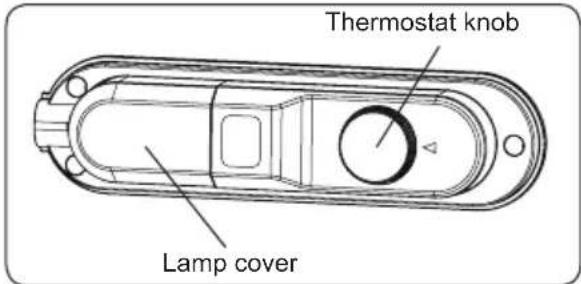

Thermostat knob Lamp cover

Thermostat Settings

• Set the knob to a low/medium position, up to 3, for short-term storage of food in the appliance.
• Set the knob to a medium position, 3 or 4, for long-term storage of food in the appliance.
• For long-term storage of food in the refrigerator, you can set knop maximum position (4 - 5).

Larders (coolers) have not any freezer compartment but can cool up to 4 - 6 °C.

Temperature Settings Warnings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the fridge. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• When setting the thermostat, take into consideration how often the appliance door is opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.
• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

CHAPTER -3: USING YOUR FRIDGE

Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.

To better store the food in your refrigerator, especially in the coldest area, make sure the message "OK" appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly

It may be difficult to see the indicator, make sure it is properly lit. Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary,

with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change.

NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

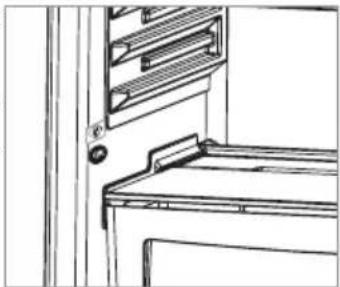

Store food in the coldest area of the refrigerator.

Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.

The following symbol indicates the coldest area of your refrigerator.

To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.

The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.

As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Cleaning

• Before cleaning your fridge, turn your mains supply off and remove the plug from the socket.
- Do not wash your fridge by pouring water on to it.
- Use a warm, soapy cloth or sponge to wipe the interior and exterior of your fridge.

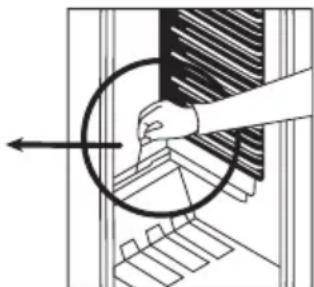

- Carefully remove all shelves and drawers by sliding upwards or outwards and clean with soapy water. Do not wash in a washing machine or dishwasher.
- Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your fridge. This may cause damage to the plastic surfaces and other components with the chemicals they contain.
- Clean the condenser at the back of your fridge at least once a year with a soft brush or vacuum cleaner.

Make sure that your fridge is unplugged while cleaning.

Defrosting

• Defrosting occurs automatically in the refrigerator during operation; water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator.

Simple line drawing of a metal beam or support structure (no text or symbols)

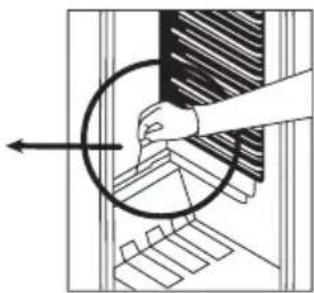

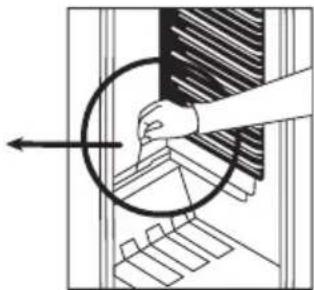

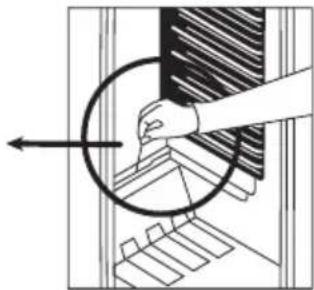

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Replacing LED Lighting

If your fridge has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.

CHAPTER -4: FOOD STORAGE GUIDANCE

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
  • To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food Maximum storage time How and where to store
Vegetables and fruits 1 week	Vegetable bin
Meat and fish 2 - 3 days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3 - 4 days On	the designated door shelf
Butter and margarine 1 week	On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month	On the designated egg shelf
Cooked food	2 days	All shelves

CHAPTER -5: DOOR REVERSAL

Repositioning the door

• It depends on which fridge you have as to whether it is possible the reverse the doors.
• It is not possible where handles are attached at the front of the appliance.
• If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call Sharp service.

CHAPTER -6: TROUBLESHOOTING

Your fridge is not operating

Check if:

• There is power
• The plug is correctly connected to the socket
  • The plug or mains fuse has blown
• The socket is faulty. Examine this by plugging your fridge into a working socket.

The appliance performs poorly

Check if:

• The appliance is overloaded
• The doors are closed properly
• There is any dust on the condenser
- There is enough space near the rear and side walls.

Your fridge is operating noisily

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash: Due to the flow of the refrigerant in the tubes of the system.

Air blowing noise: Indicates normal operation of the system due to the circulation of air.

There is a build-up of humidity inside the cooler

Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.
• The fridge door is opened frequently. Humidity of the room enters the fridge when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

The door is not opening and closing properly

Check if:

• There is food or packaging preventing the door from closing
• The door compartments, shelves and drawers are placed properly
  • The door joints are broken or torn
• Your fridge is level.

Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to chapter cleaning and leave the door open to prevent humidity and smell.
• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

CHAPTER -7: TIPS FOR SAVING ENERGY

1. Always allow foodstuffs to cool before storing in the appliance.
2. Thaw food in the fridge compartment, this helps save energy.

CHAPTER -8: TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

CHAPTER -9: CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.sharphomeappliances.com

Inhalt

Diagram of two coiled heat exchangers with internal structures and directional arrows (no text or labels)

Technical diagram of an open refrigerator with numbered parts labeled 1 through 8

Line drawing of a refrigerator interior with no text or symbols

Technical line drawing of a mechanical component with an inset showing a magnified view of a circular feature (no text or symbols)

Line drawing of a refrigerator interior with no text or symbols

PARTIE -3: UTILISATION DE L'APPAREIL

Simple line drawing of a metal beam or support structure (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

PARTIE -5: DISPOSITION DES ALIMENTS

HOOFDSTUK -5: PROBLEEMOPLOSSING....40

HOOFDSTUK -6: TIPS VOOR ENERGIEBESPARING ....40

Line drawing of a refrigerator interior showing door, seat, and shelf (no text or symbols)

Reiniging

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

HOOFDSTUK -5: PROBLEEMOPLOSSING

www.sharphomeappliances.com

Índice

Diagram showing two curved heat exchanger-like structures with internal flow indicators (no text or symbols)

CAPÍTULO 2: SU FRIGORÍFICO

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Limpieza

Simple line drawing of a metal bracket or support structure (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

www.sharphomeappliances.com

Conteúdos

CAPÍTULO -1: AVISOS GERAIS....53
CAPÍTULO -2: O SEU FRIGORÍFICO....58
CAPÍTULO -3: UTILIZAÇÃO DO FRIGIRÍFICO....58
CAPÍTULO -4: GUIA DO ARMAZENAMENTO DE ALIMENTOS....60
CAPÍTULO -5: RESOLUÇÃO DE PROBLEMAS....60
CAPÍTULO -6: DICAS PARA POUPAR ENERGIA 60
CAPÍTULO -7: DADOS TÉCNICOS 61
CAPÍTULO -8:SERVIÇO E ASSISTÊNCIA AO CONSUMIDOR....61

Line drawing of a cabinet or storage unit with no visible text or symbols

Limpeza

Simple line drawing of a metal bracket or support structure (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Visite o nosso website para: www.sharphomeappliances.com

Indhold

KAPITEL -1: GENERELLE ADVARSLER....63

KAPITEL -2: DIT K∅LESKAB....68

KAPITEL -3: SÅDAN ANVENDES DIT KÖLESKAB 68

KAPITEL -4: GUIDE TIL OPBEVARING AF MADVARER....69

KAPITEL -5: FEJLFINDING 70

KAPITEL -6: TIP TIL ENERGIBESPARELSE 70

KAPITEL -7: TEKNISKE DATA 71

KAPITEL -8: KUNDEPLEJE OG -SERVICE 71

Diagram of two coiled heat exchangers with directional arrows indicating flow (no text or labels)

KAPITEL -2: DIT K∅LESKAB

Line drawing of a cabinet or storage unit with a door and shelf, no text or symbols present

i illustrationen.

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Termostatinnstillinger

Termostaten regulerer automatisk temperaturen inne i kjølerommet. Du oppnår lavere temperatur ved å dreie bryteren fra posisjon« 1 » til « 5 ».

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Simple line drawing of a metal bracket or support structure (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

www.sharphomeappliances.com

Installationsinformation

Installationsinformation

Diagram of two heat exchanger-like structures with cooling fins and heating elements (no text or labels)

KAPITEL -2: DIN KYL

Line drawing of a refrigerator interior with no visible text or symbols

Rengöring

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

www.sharphomeappliances.com

Sisältö

LUKU -1: YLEISIÄ VAROITUKSIA....93
LUKU -2: JÄÄKAAPPISI....98
LUKU -3: JÄÄKAAPIN KÄYTTÖ 98
LUKU -4: RUOAN SÄILYTYSOPAS....99
LUKU -5: VIANMÄÄRITYS....100
LUKU -6: ENERGIANSÄÄSTÖVINKKEJÄ....100
LUKU 8: TEKNISET TIEDOT ....101
LUKU 9: ASIAKASPALVELU JA HUOLTO....101

Diagram of two heat exchangers with cooling pipes and a moving object inside (no text or symbols)

LUKU -2: JÄÄKAAPPISI

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Puhdistaminen

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or tool interacting with a bracket (no text or symbols present)

LUKU -5: VIANMÄÄRITYS

LUKU 7: TEKNISET TIEDOT

www.sharphomeappliances.com

Sisältö

LUKU -1: YLEISIÄ VAROITUKSIA....103
LUKU -2: JÄÄKAAPPISI....108
LUKU -3: JÄÄKAAPIN KÄYTTÖ 108
LUKU -4: RUOAN SÄILYTYSOPAS....109
LUKU -5: VIANMÄÄRITYS....110
LUKU -6: ENERGIANSÄÄSTÖVINKKEJÄ....110
LUKU 7: TEKNISET TIEDOT ....111
LUKU 8: ASIAKASPALVELU JA HUOLTO....111

Diagram of two heat exchangers with cooling pipes and a moving object inside (no text or symbols)

LUKU -2: JÄÄKAAPPISI

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Puhdistaminen

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or tool interacting with a bracket (no text or symbols present)

LUKU -5: VIANMÄÄRITYS

LUKU 7: TEKNISET TIEDOT

www.sharphomeappliances.com

Sisukord

1. PEATÜKK: ÜLDHOIATUSED....113
2. PEATÜKK: TEIE KÜLMIK 118
3. PEATÜKK: KÜLMIKU KASUTAMINE....118
4. PEATÜKK: TOIDU HOIUSTAMISE JUHIS....119
5. PEATÜKK: TÖRGETE KÖRVALDAMINE....120
6. PEATÜKK: NÕUANDED ENERGIA KOKKUHOIDMISEKS 120
7. PEATÜKK: TEHNILISED ANDMED 121
8. PEATÜKK: KLIENDITEENINDUS....121

Line drawing of a cabinet or rack structure with no visible text or symbols

Puhastamine

Technical line drawing of a mechanical component with an inset showing a magnified view of a component (no text or symbols present)

LED-valgusti vahetamine

www.sharphomeappliances.com

Satura rādītājs

1. NODAŁA. VISPĀRĪGI BRĪDINĀJUMI ......123
2. NODALA. LEDUSSKAPIS....128
3. NODALA. LEDUSSKAPJA LIETOŠANA....128
4. NODALA. NORĀDES PAR PĀRTIKAS UZGLABĀŠANU....129
5. NODALA. PROBLÉMU NOVĚRŠANA....130
6. NODALA. PADOMI PAR ENERGIJAS TAUPİŠANU ....130
7. NODALA. TEHNISKIE DATI....131
8. NODAŁA. KLIENTU APKALPOŠANA UN SERVISS ....131

Diagram of two coiled heat exchangers with cooling arrows indicating airflow direction (no text or labels)

2. NODALA. LEDUSSKAPIS

Line drawing of a cabinet or rack structure with no visible text or symbols

Tirišana

Simple line drawing of a metal bracket or support structure (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

www.sharphomeappliances.com

CE

Service & Support

Visit Our Website

sharphomeappliances.com
