USERMANUAL

No Frost Fridge-Freezer combination

BERLIN299-E-NF-080D

CONTENTS;

SAFETY INFORMATION ...... 2

SCRAPPING OLD APPLIANCES 3

CE Conformity 4

Energy Saving 4

Before first use 4

Use the Fridge 5

Chiller Zone drawer 5

Use the Freezer 6

Correct storage 7

Control panel & Operation 8

LED light replacement instructions 10

Care and Cleaning / Defrosting 11

Troubleshooting 12

Installation preparations 13

Ventilation 14

QR code Warranty & Service....61

Thank you for purchasing this product1

+efore using your refrigerator, please read this instruction manual carefully in order to maximize its performance. Store all documentation for future use or for other owners. This product is intended solely for household use or similar applications such as: The kitchen area for personnel in shops, offices and other working environments on farms, by clients of hotels, motels and other environments of a residential type, at bed and breakfasts(+&+), for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Warning sign depicting a flame symbol in a yellow triangle, indicating hazard or hazard status.

Warning; Risk of fire / flammable materials

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3children should be supervised to ensure that they do not play with the appliance.

6f the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: °o not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING : °o not damage the refrigerant circuit.

WARNING : °o not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING : When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING : °o not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

°o not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas.

If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions

SCRAPPING;OLD;APPLIANCES;

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

CE Conformity

+y placing the C€ mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Saving energy

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice in order to facilitate the transfer of cold.
  • In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid setting the temperature too cold.
• Remove dust present on the rear of the appliance.

Before first use

You must allow the fridge to settle for at least four hours prior to switching the power on1

It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. The fridge may have an odor to it at first use. This will disappear as the appliance cools.

Please note:

The appliance will start with setting 5°C for fridge and -18°C for freezer and work continuously until it comes down to the correct temperature. If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by cooling the back panel inside the appliance. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frost on the back is not a malfunction of the fridge.

Use the Fridge

• Never put liquids in the refrigerator uncovered.
- Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
- Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
- Make sure food is clean and any extra water is wiped away before putting into the fridge.
- Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
- Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
- Do not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
- Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
- Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.

Chiller Zone drawer

- The temperature inside the Chiller Zone drawer can be regulated from +3°C to -3°C. This is the ideal drawer to store meat and fish.

Use the Freezer

• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen food. 6f no information is provided, foods should not be stored for more than 3 months after the purchase date.
• Store food in small packages (ideally less than 1kg). This reduces the freezing time and improves the quality of the food after thawing.
• Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
• Label the food before freezing with information including type of food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage.
• +ottled or canned drinks should not be stored in the freezer compartments as they could explode.
• Do not attempt to freeze more than the maximum amount.

Correct storage

The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.

As the cold air circulates within the fridge, the temperature can vary between the different sections. That's why foods should be stored in different sections according to type of food.

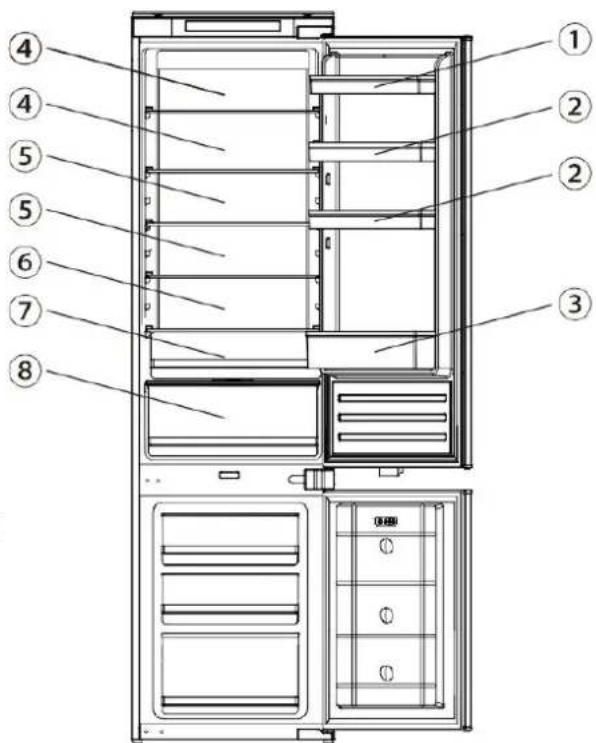

1. +utter, cheese etc.
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. Yogurts, preserves etc.
6. 95cl bottles or ready meals etc.
7. Fruit and vegetables
8. Fresh meat and fish/fruit and vegetables

The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.

To replace, slide the shelf back into the slot, and then lower the rear section.

The most energy-saving configuration requires drawers, Chiller zone box and shelves to be positioned in the product, please refer to the image.

Technical diagram of an refrigerator with numbered parts for identification

Control panel & Operation

1. First time of switching on the appliance, this appliance always works at settings: 5°C for fridge, 0°C for Chiller zone drawer and -18°C for freezer. If you want to adjust the temperature or functions manually, press the button to conduct the operations. Temperature range of Chiller zone drawer is between -3°C and 3°C.

2. Fridge temperature adjustment – press button Shift part of control panel to achieve various temperatures between 2^ and 8^ .

3. Freezer temperature adjustment – press button on right part of control panel to achieve temperatures between -15^ C and -25^ C.

4. Chiller Zone drawer dual function: this button controls temperature. By pressing this button, the digit will go from -3^ to +3^ . This function can be On/Off by continuously pressing for 3 sec. (shows OFF).

5. Fast Cooling function – Press button , light of button lights up and Fast Cooling function is turned on, fridge starts to work automatically at temperature setting of 2^ C and stops after 24 hours and light of symbol goes out.

6. Holiday function-Press button 📋, light of button lights up, Holiday function is turned on and whole appliance starts to work automatically at settings: fridge at 17^ C and freezer at -18^ C .

7. ECO function – Press button on control panel, ECO function is turned on and button lights up, fridge compartment works at setting 5°C and freezer compartment works at setting of -18°C. The Chiller zone drawer works at setting of 3°C.

8. Fast Freezing function – Press button 🙏, light of button lights up and freezer start to work at Fast Freezing function, temperature setting -25°C. After 24 hours, Fast Freezing function quits automatically.

9. Press button ⏻ for 3 sec. to switch off your appliance, the button lights up and power is cut off. Internal lighting is turned off and compressor stops working. Press button ⏻ for 3 sec. to switch on your appliance, the symbol lights up and power is on again.

10. On the No-Frost models, there is an Extra Defrosting function: Press the buttons

and 🧿 or 5 secs. to switch on the Extra Defrosting function to clean the freezer evaporator

and

3 sec. to switch off

and digits of freezer temperature light up. Press the buttons and the Extra Defrosting function and the digits of freezer temperature go out.

11. Error codes:

This appliance has Fault & Alarm function. If the sensors are experiencing any malfunction, you will see an error code displayed on the temperature display, the appliance still cools but a professional service engineer of the Customer Service is to be called to check the appliance.

F2 – Chiller zone sensor

F3 – Refrigerator sensor

F4 - Freezer sensor

F5 – Defrost sensor

2E - Faulty fan or motor in freezer

CE- Error between Control Panel and Display

These error codes are shown on display, no voice or signal will be heard.

Temperature alarm in freezer: when freezer temperature reaches the set temperature, from that moment on if temperature rises to >-1^ C, the alarm will sound and the digits of the freezer temperature will flash. Press any button to cancel the voice alarm. The digits will keep flashing until the temperature is <-1^ C again.

PS: The Main board is located in compressor compartment.

POSITION CONDITIONS
5°C/-18°C	Summer or ambient temperature between 25°C - 35°C
5°C/-18°C	Spring or ambient temperature between 15°C - 25°C
5°C/-18°C	Winter or ambient temperature between 5°C - 15°C
Super freezing function	Quick freeze
Super cooling function	Super cooling

LED light replacement instructions

Note: the LED light is non replaceable by the user and needs to be replaced by professionals.

Lighting parameters: 12V

1. Unplug the power plug from the socket.
2. Remove the top LED light fixing screws, remove the top light and disconnect the connecting cable.
3. Replace the LED light board.
4. Install the top light in reverse order and plug in the power plug when done.

Care and Cleaning

Always disconnect the appliance from the power supply before doing any cleaning or maintenance.

The fridge and freezer compartments should be cleaned using a solution of bicarbonate of soda and lukewarm water. °o not use abrasive products or detergents. After cleaning, rinse and dry thoroughly.

3lean the shelves and balconies separately manually with a mild solution of washing-up liquid and water. °o not put them in the dishwasher(

6f the appliance is not to be used for longer periods of time, unplug and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odors.

Defrosting

The product has a No-Frost system which is designed to prevent the heavy build up of ice. Under normal use, there should be no need to regularly defrost the freezer system.

Please note: 6f you are regularly notice a heavy build up of ice or pools of water in the freezer compartment, then it is likely that the door is not sealing properly. This could be due to a defective or an incorrectly fitted door seal or an excessively heavy decor door. For more information see the troubleshooting section about ice.

Troubleshooting

If you have any problems with your appliance, you should check the troubleshooting section prior to contacting our Service department.

If the appliance is not working, check if:

There is power to the appliance.

The fuses in your home are intact

The fuse in the plug has not blown.

The fridge has not been turned off.

The plug and socket are functioning fine.

To check this, plug another electrical appliance

in to see if the socket is faulty.

If the appliance is working but not very well, check if:

The appliance is not overloaded.

The thermostat is set to an appropriate temperature.

The doors are closing properly.

The cooling system at the rear of the appliance is clean and free of dust and not touching the rear wall.

There is enough ventilation at the sides and rear walls.

If the appliance is noisy, check if:

The appliance is level and stable.

The sides and rear walls are clear and there is nothing resting on the appliance.

Note: The cooling gas in the refrigerator may make a slight bubbling or gurgling noise even when the compressor is not running.

If the appliance is beeping, check if:

The doors are closed. An alarm will sound after 60 sec. that the door is still open.

If ice has formed on the back wall of the fridge:

It is normal for some ice droplets to form on the back wall of the fridge.

This does not constitute a fault with the appliance.

Ensure that no items inside the fridge are in contact with the back wall.

3heck that there is some resistance when opening the door of the appliance. 6f it opens at the slightest touch it may mean that the door seal needs to be replaced.

3heck the door seal for any kinks, debris or damage. 6f you notice any, and are unable to resolve the issue yourself, contact our Service °epartment so that the seal can be replaced.

This can be due to the decor door(s) not being properly fitted. 6f you are not sure, ask your fitter to check the décor doors.

If excessive ice has formed in the freezer:

3heck if there is some resistance when opening the door of the appliance. 6f it opens at the slightest touch it may mean that the door seal needs to be replaced.

3heck the door seal for any kinks, debris or damage. 6f you notice any, and are unable to resolve the issue yourself, contact our Service department so that the seal can be replaced.

This can be due to the decor door(s) not being properly fitted. 6f you are not sure, ask your fitter to check the decor doors.

If one or more of the LED units inside the appliance is not working:

3ontact our Service department to arrange a service visit.

Installation preparations

This appliance must never be installed close to heat sources e1g1 heating elements or cookers, nor in damp places1

Seek the help of another individual or two, when installing this appliance1 This appliance may have sharp edges1 Wear adequate Personal Protective Equipment for the task and environment1

To ensure the appliance is level, you should adjust the height by setting the adjustable feet at the front of the appliance.

The cooling system at the rear of the appliance must not touch the rear wall. The greater the gap, the better.

The appliance must be installed with adequate ventilation surrounding the appliance. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

Ventilation

The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat produced from the cooling compartment needs to be dissipated into the atmosphere. 6ncorrect ventilation can lead to premature compressor failure, excessive power consumption, total system failure and may invalidate the warranty provided with the appliance. For products intended to be installed into a tall housing unit, the following requirements need to be met:

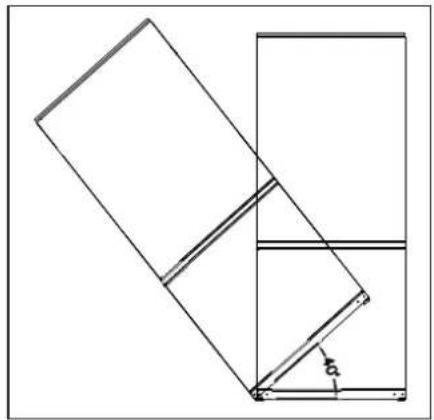

Do not tilt beyond 40^

Pure technical line drawing of a mechanical assembly with no text or symbols

An air intake should be provided somewhere in the cabinet run to allow free air in. in this example, a plinthvent is shown underneath the refrigerator.

A cutout should be made in the plinth below the fridge/freezer and this finished neatly using the air vent grille.

Alternatively, a thin section of the plinth can be removed to allow air into the unit (recommended 500mm x 40mm

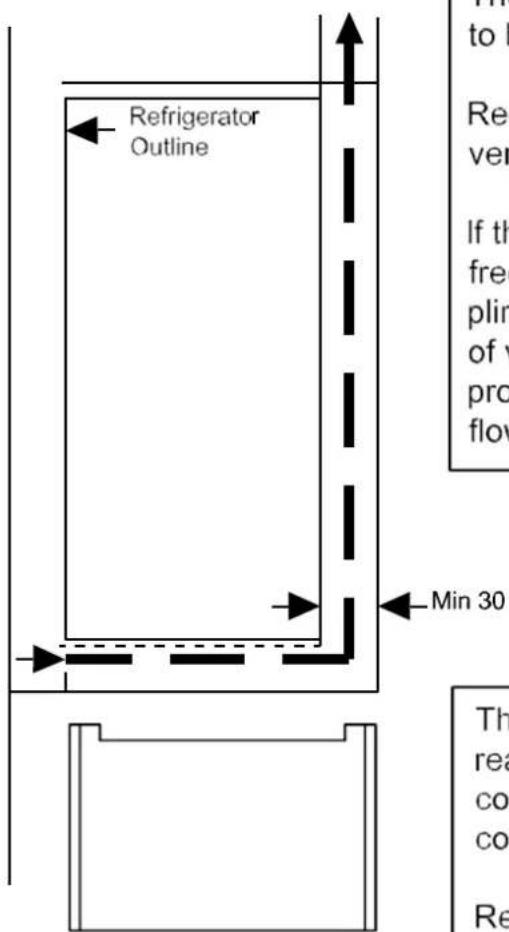

Refrigerator Outline Min 30 The rea co co Re

Top view of rear vent

The top of the cabinet needs to be vented into the room.

Recommended size of ventopening: 500 x 40mm.

If the furniture does not allow free air into the room then a plinth vent, or other means of ventilation needs to be pro-vided to ensure a natural flow of air.

There should be space at the rear of the cabinet to allow cool air to be drawn over the condenser.

Recommended: 500 x 40mm

The open channel at the rear is clearly shown. 6n order to realize correct operation of the appliance it is important that the top of the housing unit is not blocked off. A channel depth of 40-50mm is normal with most units. A ventilation opening is required in the plinth of the unit; this allows air to be drawn over the compressor & heat exchange. As a rule, the more air that can get in and out, the better and more efficient the operation of the product will be1

Checking if the door seals correctly:

6t is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10 cm should be adequate. When you are finished, allow the seal and door to cool before touching them. When done, the seal should remain in position.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]

We can also be reached by phone : [phone]

DOMEST

domestic and professional appliances

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

SALES & SERVICES

MULTIBRAND

MANUELLE

Warning sign depicting a flame symbol in yellow and black on a yellow triangle

Diagram of a refrigerator interior with numbered compartments and doorways for identification

Technical line drawing of a mechanical assembly with two rectangular components and a folded corner (no text or symbols)

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

domestic and professional appliances

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

SALES & SERVICES

MULTIBRAND
