USER MANUAL CEPD200 Canarm

PLEASE READ AND SAVE THESE INSTRUCTIONS

CANARM®

HVAC

MODELS: CEPD150, CEPD200, CEPD300

The purpose of this manual is to aid in the proper installation and operation of the CEPD Series ceiling exhaust fans. These instructions are intended to supplement good general practices and are not intended to overwrite local codes and ordinances.

IT IS THE RESPONSIBILITY OF THE PURCHASER TO ENSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS EQUIPMENT IS HANDLED BY QUALIFIED PERSONNEL.

Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER'S BILL OF LADING AND FILE A CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.

GENERAL SAFETY

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switching on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. Ducted fans must always be vented to the outdoors. 6.

6. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. This unit must be grounded. 8.

7. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

8. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up.

9. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit. Please read specification label on product for further information and requirements. 12. Do not use in a cooking area. 13.

10. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device. The fan must not be installed in a ceiling thermally insulated to a value greater than R40. 15.

11. Please follow all applicable national, state/provincial and local codes. All of them will supersede this manual.

12. Failure to follow the safety instructions in this manual may cause serious injury or death due to electrical shock or high speed rotating parts.

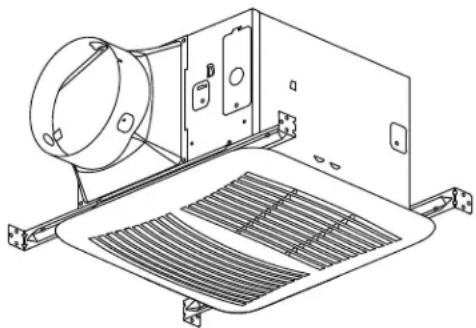

Technical line drawing of a mechanical device with a cylindrical component and grid-like panel (no text or symbols)

CLEANING AND MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the exact service motor. The impeller should also be replaced.

OPERATION

Use an on/off switch to operate this fan. See Electrical wiring connection section for details.

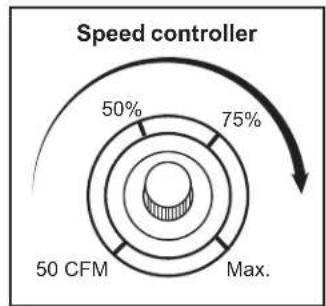

The air delivery can be adjusted by knob, and the adjustment range is 50 CFM to max.

PLAN THE INSTALLATION

1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.

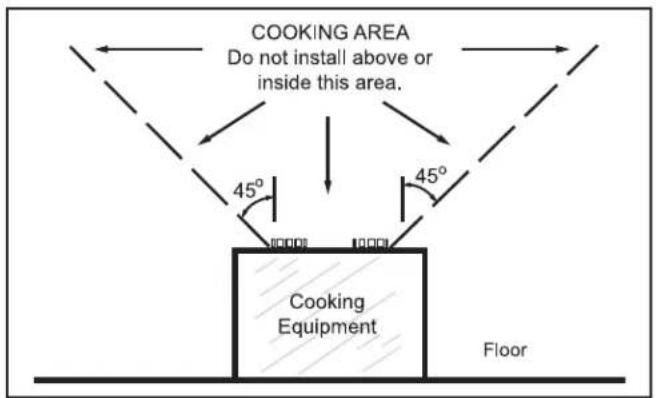

COOKING AREA Do not install above or inside this area. 45° 45° Cooking Equipment Floor

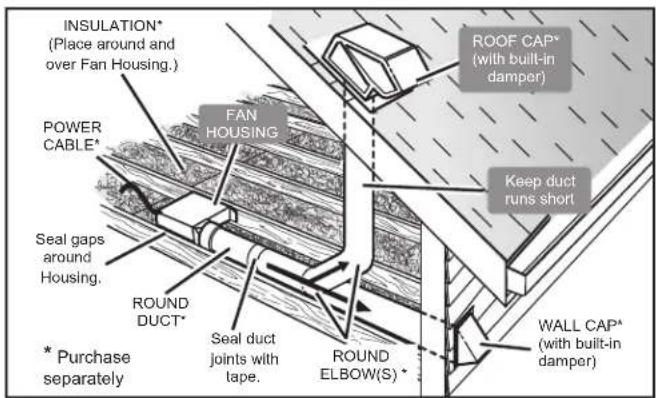

INSULATION* (Place around and over Fan Housing.) POWER CABLE* FAN HOUSING Seal gaps around Housing. ROUND DUCT* * Purchase separately ROOF CAP* (with built-in damper) Keep duct runs short SEAL DUCT joints with tape. ROUND ELBOW(S) * WALL CAP* (with built-in damper)

ASSEMBLY INSTRUCTIONS

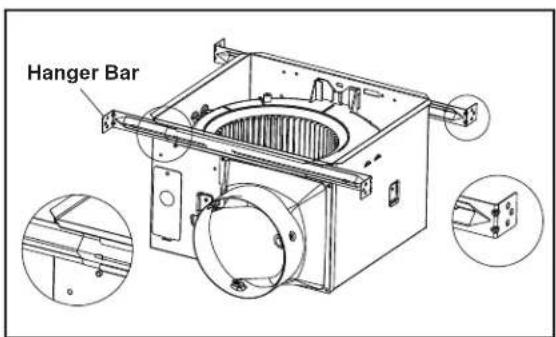

1. Sliding hanger bars have been provided, which allow the housing to be positioned accurately anywhere between the framing. The bars span up to 24 inches and can be used on all types of framing: I-joist, standard joist, and truss construction. Slide hanger bars onto housing and adjust as needed to fit between framing.

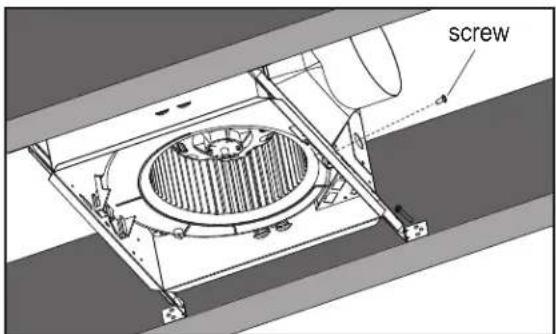

2. Extend the hanger bars to the width of the framing. Position the ventilator with the bottom edge of the hanger bar tabs flush with the bottom edge of the framing, holding the ventilator in place. Secure hanger bars to framing using one screw on each end of hanger bar. Select a proper hole and secure the hanger bars together using one screw.

Hanger Bar

screw

ASSEMBLY INSTRUCTIONS CONTINUED

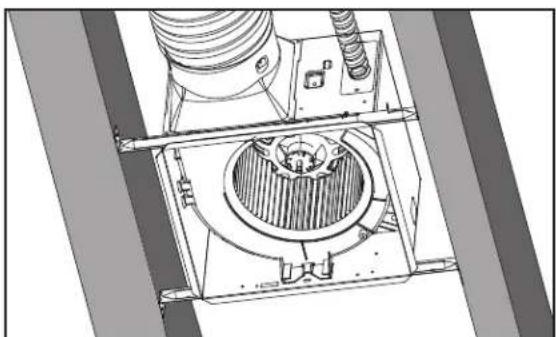

1. Install round ductwork. Connect the round ductwork (not included) to the damper/duct connector, and run the ductwork to a roof or wall cap (not included). Using tape (not included), secure all the ductwork connections so that they are air tight.

The ducting from this fan to the outside of building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated air flow.

Technical line drawing of a mechanical assembly with a central circular component and cylindrical components (no text or symbols)

ELECTRICAL WIRING CONNECTION

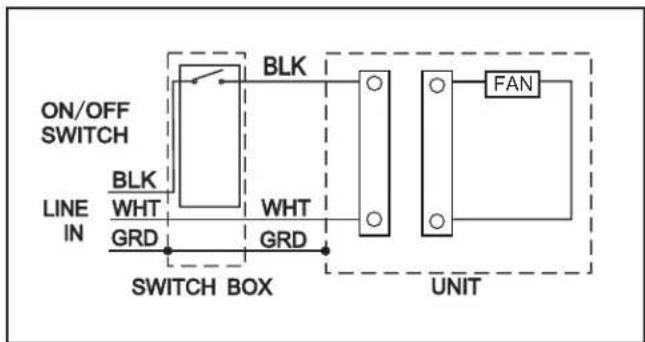

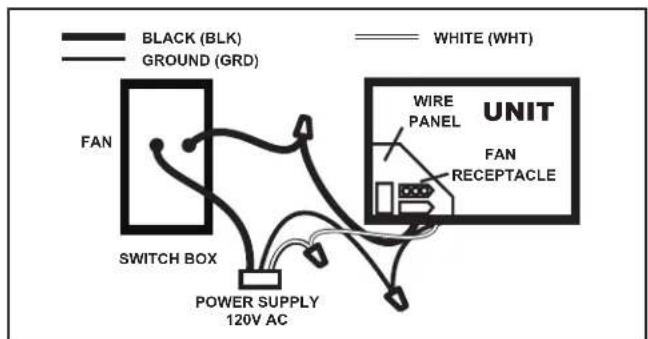

Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the wiring plate. Refer to the wiring diagram, and connect the wires as shown.

ON/OFF SWITCH LINE IN BLK WHT GRD SWITCH BOX BLK WHT GRD UNIT FAN

BLACK (BLK) GROUND (GRD) FAN SWITCH BOX POWER SUPPLY 120V AC WHITE (WHT) WIRE PANEL UNIT FAN RECEPTACLE

GRILLE INSTALLATION

Install ceiling material to complete the ceiling construction. Then, cut around the fan housing.

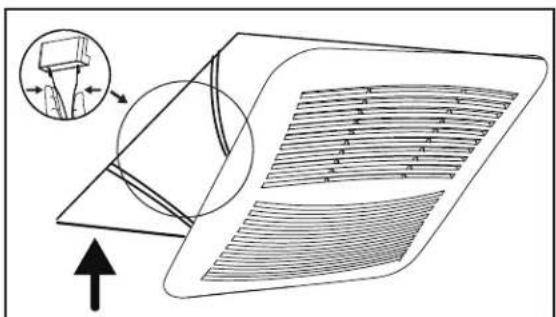

To attach the grille assembly to the fan housing. Pinch the grille springs on the sides of the grille assembly, and position the grille into the housing with the grille springs in the appropriate slots. Push the grille assembly towards the ceiling to secure.

Technical diagram illustrating a mechanical assembly with cross-sections and directional arrows, including a magnified inset showing internal components.

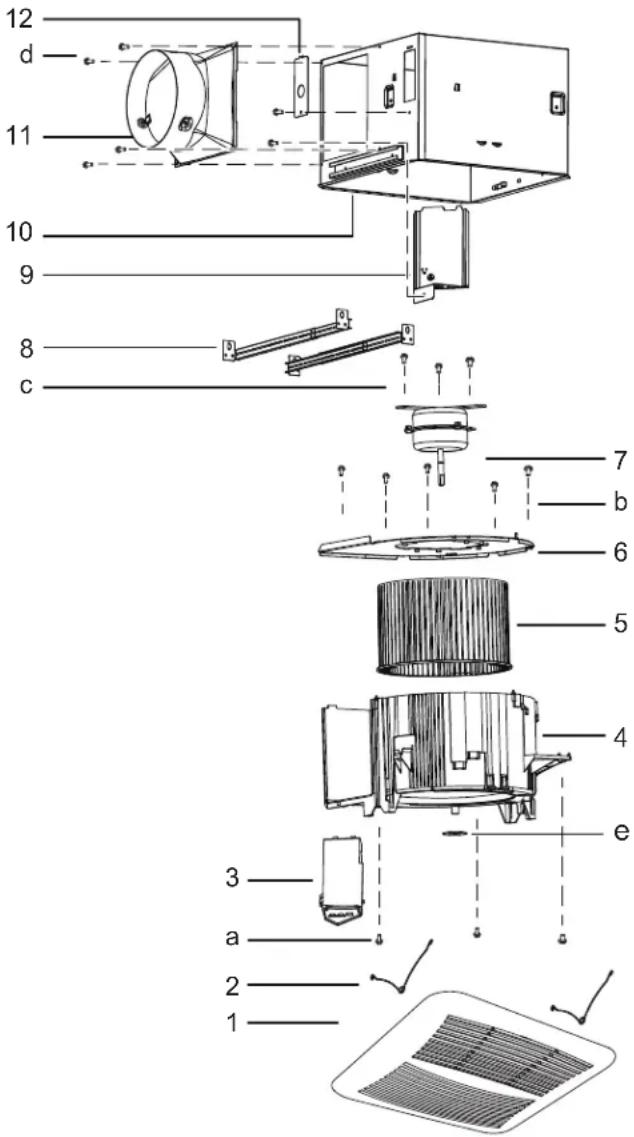

SERVICE PARTS

PARTPART NAMEQTY
1Grille Assembly (2 parts)1
2Grille Spring2
3Power Box1
4Blower1
5Blower Wheel1
6Motor Plate1
7Motor1
8Hanger Bar Kit4
9	Wire Panel /Harness Assembly	1
10Housing1
11	Damper /Duct Connector	1
12Wiring Plate		1
a	Screw	4
b	Screw	5
c	Screw	3
d	Screw	6
eWasher		1

Blower Assembly includes part 3, 4, 5, 6, 7, a, b, c, e
WARNING: Ensure that the fan is switched off from the supply mains before replacing.

Exploded view diagram of a refrigerator with numbered parts for identification

WARRANTY

CANARM Ltd. warrants every new fan to be free of defects in material and workmanship to the extent that, within a period of one year from the date of purchase CANARM Ltd. shall either repair or replace at CANARM's option, any unit or part thereof, returned freight prepaid and found to be defective.

This warranty does not include any labour or transportation costs incidental to the removal and reinstallation of the unit at the user's premises.

NOTICE: No warranty claims will be honored by CANARM Ltd. unless prior authorization is obtained.

SÉRIE CEPD

VENTILATEUR D'EXTRACTION DE PLAFOND ULTRA SILENCIEUX

MODE D'OPÉRATION

LIRE ET GARDER CES INSTRUCTIONS

CANARM®

HVAC

MODÈLES: CEPD150, CEPD200, CEPD300

Technical line drawing of a mechanical device with a circular component and grid-like structure (no text or symbols)

NETTOYAGE ET ENTRETIEN

PLANIFIER L'INSTALLATION

Technical line drawing of a mechanical component with internal structure and mounting brackets (no text or symbols)

CONNEXION DU CÂBLAGE ÉLECTRIQUE

Technical diagram illustrating a mechanical or structural assembly with labeled components and an inset magnified view of a component.

PIÈCES DE RECHANGE
