USER MANUAL WGB-3.7-24-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FENCE POST ANCHOR GROUND SPIKE

MODEL: FX-3.5-24-8 FX-3.5-24-4 FX-3.5-24-6 FX-3.5-36-8

FX-3.5-36-4 WGB-3.7-24-4 WGB-3.7-24-6 WGF-2-34-2

WGF-2-34-4 UX-3.5-27-1 UX-3.5-27-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FENCE POST ANCHOF

GROUND SPIKE

FX-3.5-24-8
FX-3.5-24-4
FX-3.5-24-6
FX-3.5-36-8
FX-3.5-36-4
WGB-3.7-24-4
WGB-3.7-24-6
WGF-2-34-2
WGF-2-34-4
UX-3.5-27-1
UX-3.5-27-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

INTRODUCTION

WARNING:

ASSEMBLY PRECAUTIONS

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
3. Separate and count all parts and hardware.
4. Prepare the following tool: Philips Head Screwdriver.
5. Follow the intended uses only.

Save the instructions.

PRODUCT PAREMETERS

Model	Qty	Color	Material	Wood size to suitable	Height
FX-3.5-24-8	8	Black	Steel	3.5”	24”
FX-3.5-24-4	4	Black	Steel	3.5”	24”
FX-3.5-24-6	6	Black	Steel	3.5”	24”
FX-3.5-36-8	8	Black	Steel	3.5”	36”
FX-3.5-36-4	4	Black	Steel	3.5”	36”
WGB-3.7-24-4	4	Black	Steel	3.5”	24”
WGB-3.7-24-6	6	Black	Steel	3.5”	24”
WGF-2-34-2	2	Black	Steel	/	34”
WGF-2-34-4	4	Black	Steel	/	34”
UX-3.5-27-1	1	Silver	Steel	3.5”	27”
UX-3.5-27-4	4	Silver	Steel	3.5”	27”

PART LIST

When unpacking this product, ensure the parts listed below are includ and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any missing or damaged.

Model	Accessory
FX-3.5-24-8	M8×38	16pcs	M8	16pcs	/	/
FX-3.5-24-4	M8×38	8pcs	M8	8pcs	/	/
FX-3.5-24-6	M8×38	12pcs	M8	12pcs	/	/
FX-3.5-36-8	M8×38	16pcs	M8	16pcs	/	/
FX-3.5-36-4	M8×38	8pcs	M8	8pcs	/	/
WGB-3.7-24-4	M4.8*30	24pcs	M4.8*50	12pcs		1pcs
WGB-3.7-24-6	[BTGW]M4.8*30	36pcs	M4.8*50	18pcs		1pcs
WGF-2-34-2	M4.8*50	8pcs		1pcs	/	/
WGF-2-34-4	M4.8*50	16pcs		1pcs	/	/
UX-3.5-27-1	M8*60	6pcs	Rebar	1pcs	/	/
UX-3.5-27-4	M8*60	24pcs	Rebar	1pcs	/	/

INSTALLATION METHODS

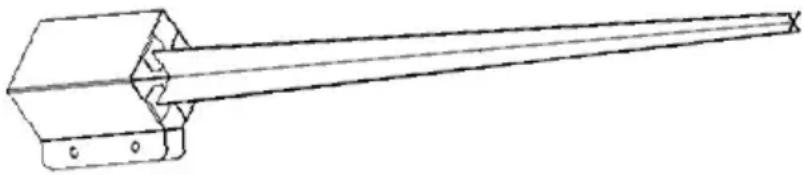

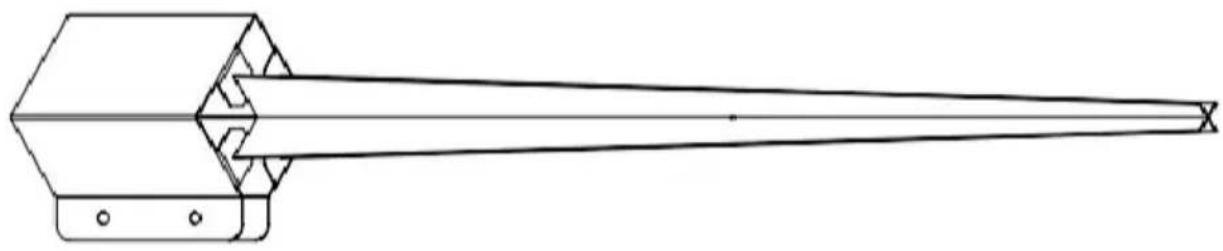

Technical line drawing of a mechanical component with symmetrical features and a tapered shaft (no text or symbols)

Black-and-white photo of a simple geometric sculpture or marker on grass, no text or symbols visible.

Black-and-white photo of a mechanical device with a hammer striking a surface, no visible text or symbols

Close-up of a vertical metal beam mounted on grass, with a small tool nearby (no text or symbols visible)

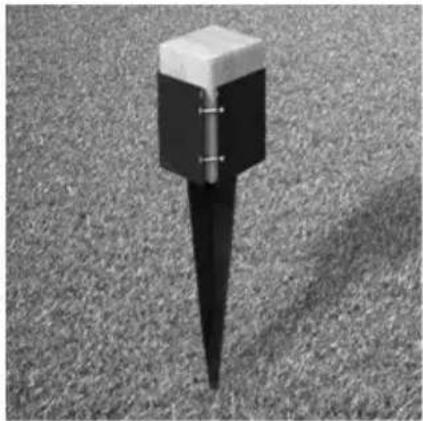

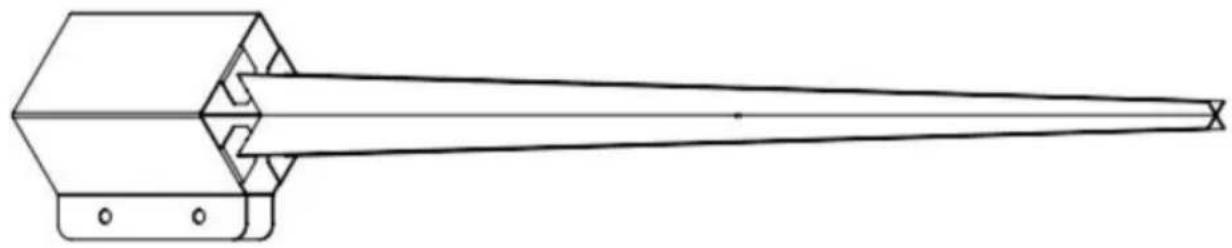

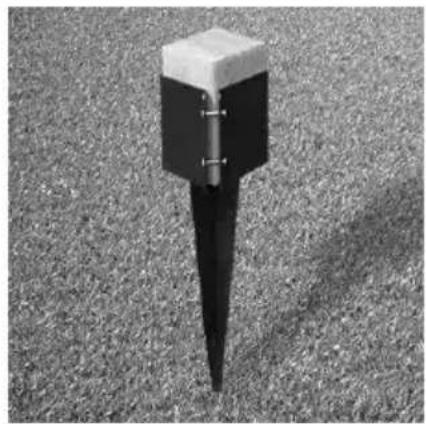

Place the post anchor in the desired position. Get a scrap pie and insert it into the post base.

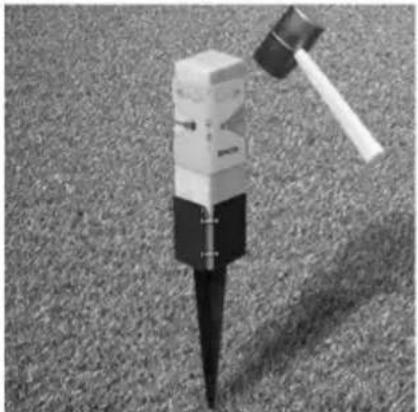

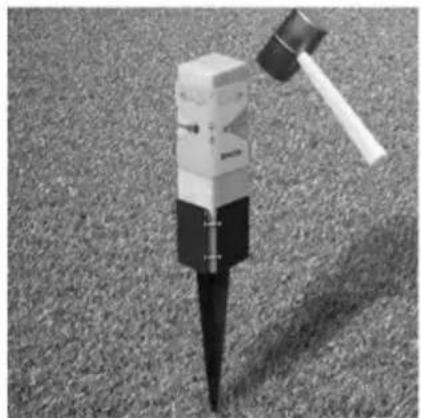

Using a club hammer or heavy-duty sledgehammer (not included wood, driving the post into the ground. Measuring with a level while hammering.

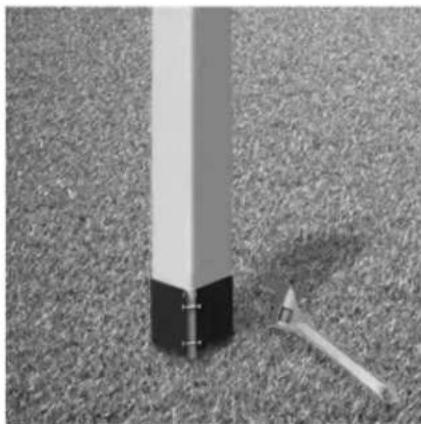

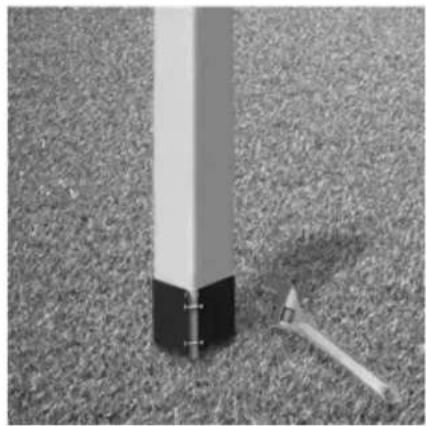

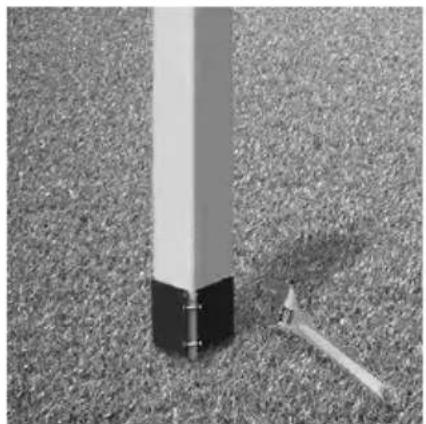

Once the post is securely in the desired position, place your p tighten the bolts to further prevent movement.

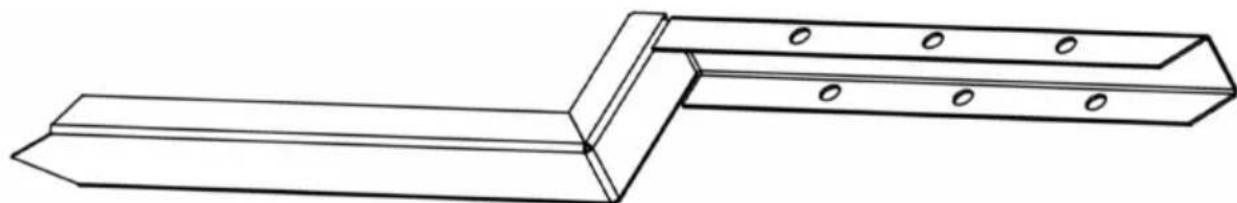

Technical line drawing of two stacked metal beams with holes, no text or symbols present

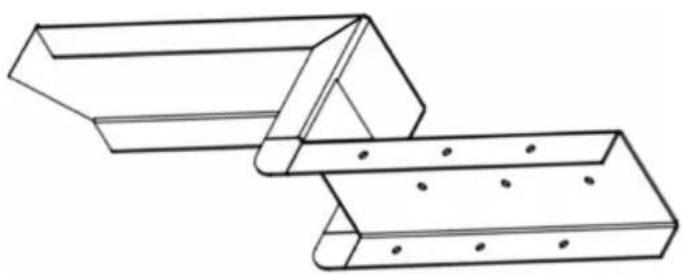

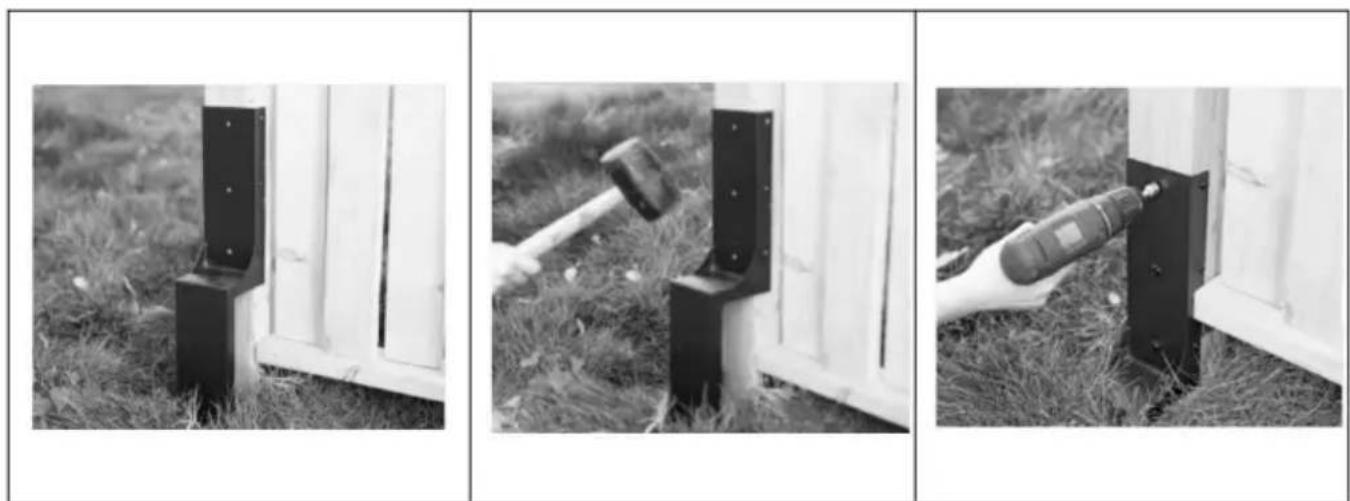

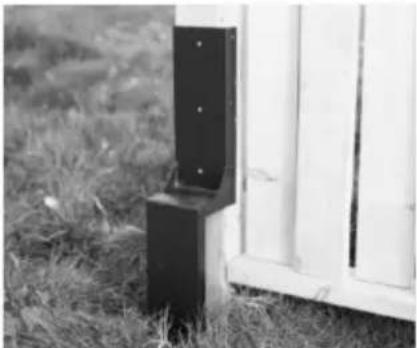

Snap the bracket into the wooden post and keep it perpendicular ground.

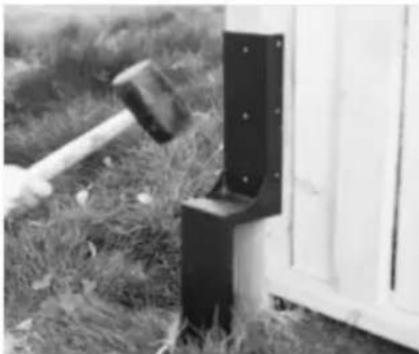

Tap the bracket so that it goes deep into the ground until it the ground.

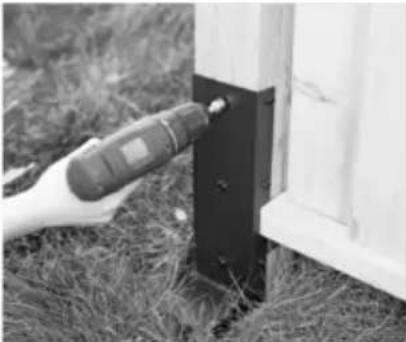

Drill out the pre-set holes and lock in the screws separately to the installation.

Technical line drawing of a mechanical bracket with mounting holes (no text or symbols)

Exterior view of a wooden fence with a black metal bracket attached to a post (no signage or text visible)

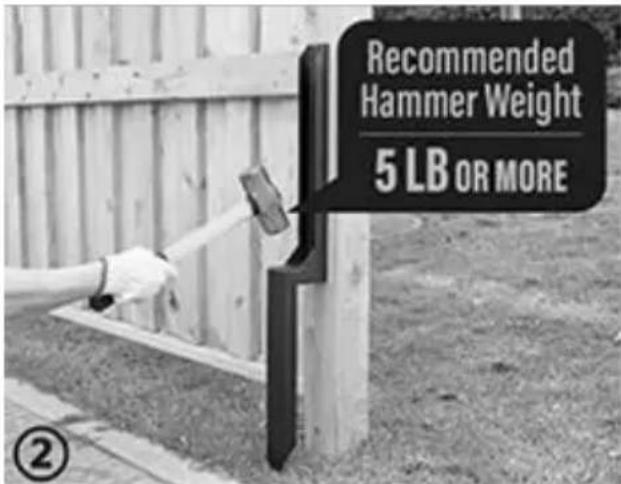

Recommended Hammer Weight 5 LB OR MORE

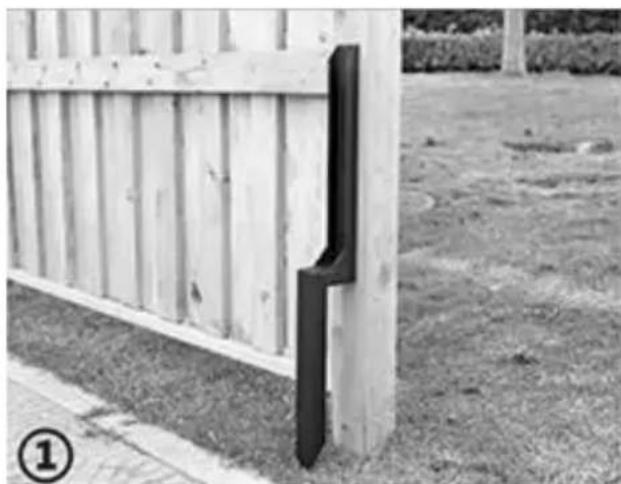

Attach the repair bracket to t post.	Hammering anchor nails into t ground.

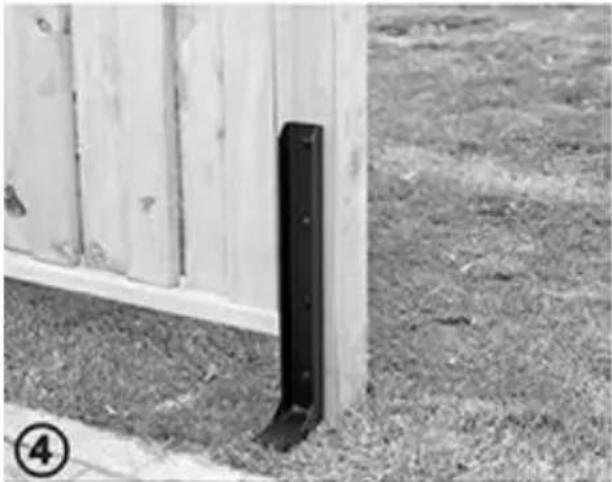

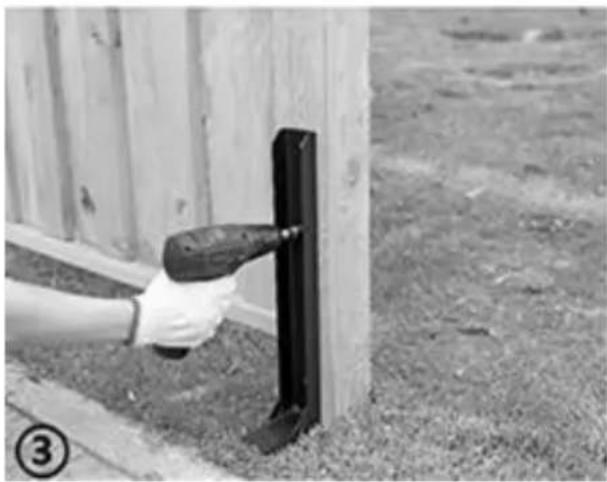

Drill pre-set holes and drill in screws.	Finish the installation.

Line drawing of a mechanical screw or drill bit with no text or symbols

Person using a metal anchor bolt on grass, no visible text or symbols

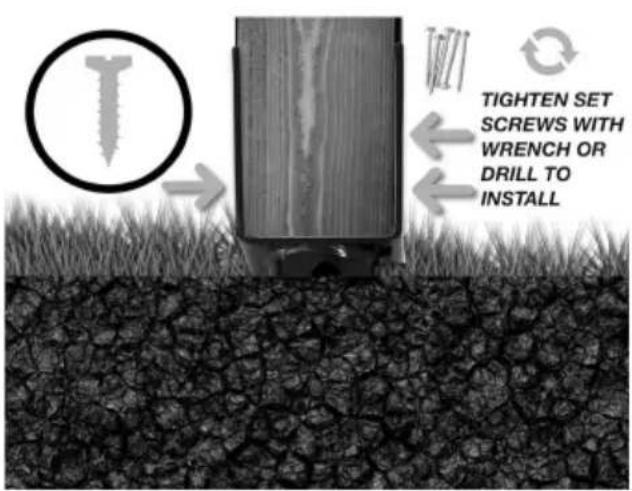

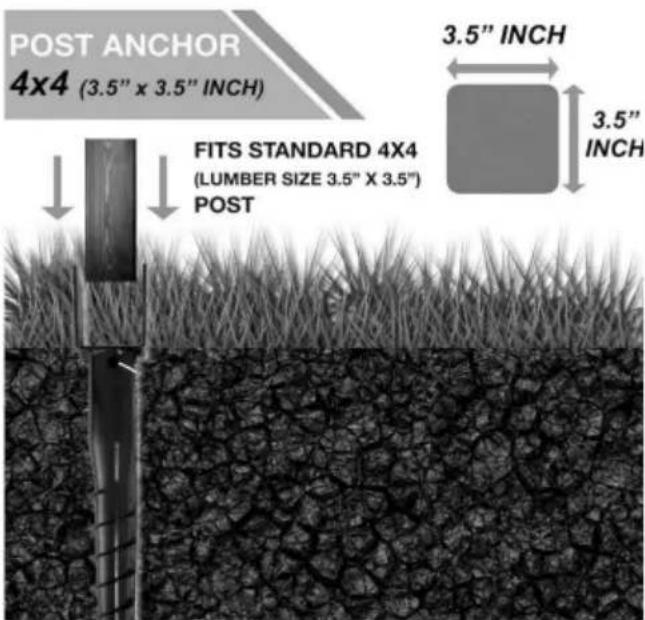

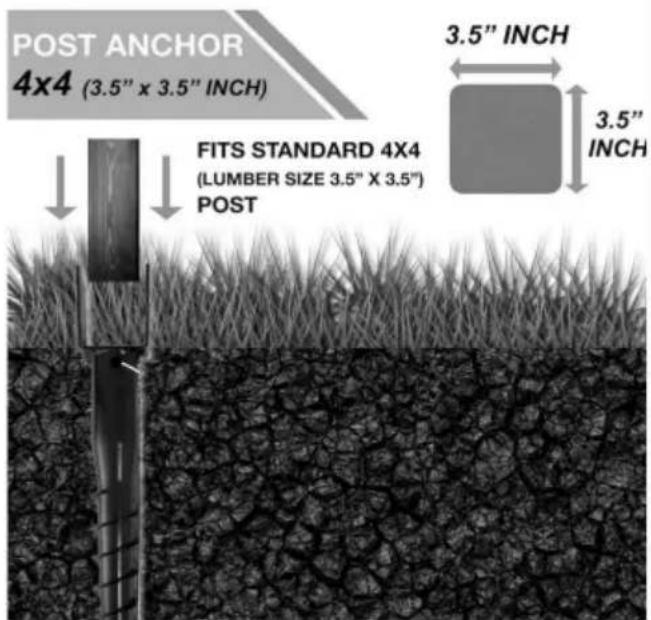

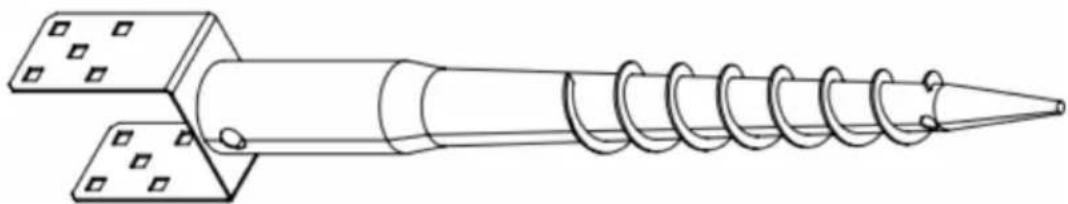

POST ANCHOR 4x4 (3.5" x 3.5" INCH) FITS STANDARD 4X4 (LUMBER SIZE 3.5" X 3.5") POST 3.5" INCH 3.5" INCH

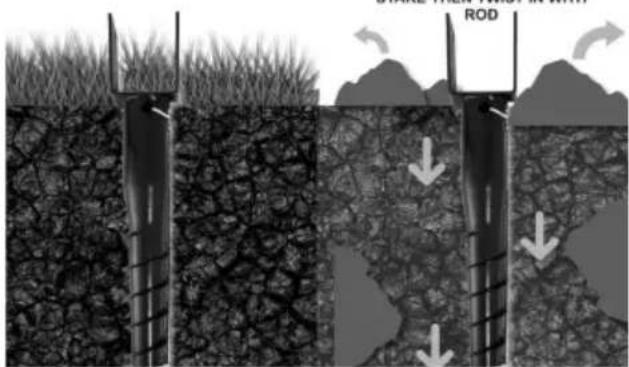

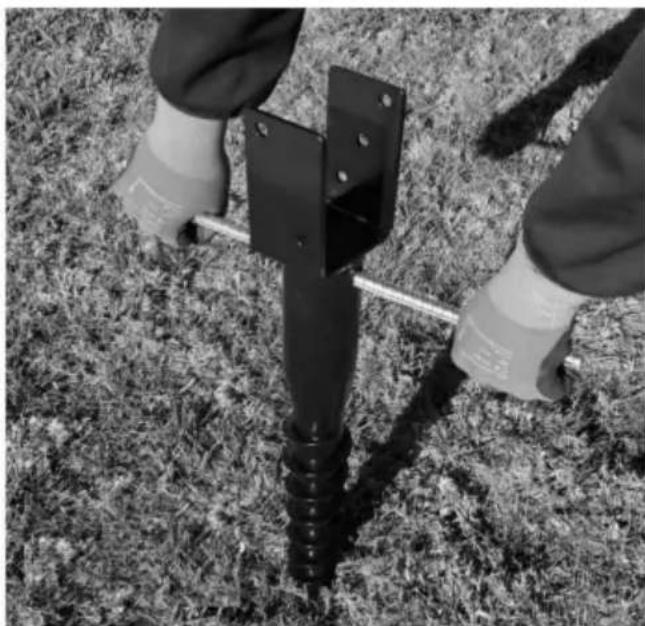

Press into the soil and twist int ground with provided insert rod. Clear a hole deep enough to accommodate the stake yes a smaller diameter than the stake shaft. Insert the stake and twist with tightening rod.	Fits standard 4"x4" post(3.5"x3.5 inner) - perfect for most mailb posts.
WHEN SOIL HARDNESS IS MEDIUM TO SOFT DIGSOME DIGGING CLEAR LARGE ROCKS & DIG A PATH FOR THE STAKE THAT IS SLIGHTLY SMALLER THAN THE SHAFT DIAMETER. INSERT STAKE THEN TWIST IN WITH
Installation: No need for cemer No dig option (for most soil typ	Includes tightening rod and 5 l bolts (use two bolts on one si and three on the other).

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China
