USER MANUAL ZGP484LGRSS Monogram

Professional All-Gas Ranges

Aluminum Foil 7,17,21
Baking/Roasting 19
Broiling/Broiling Guide ..... 20
Controls 9, 16, 19, 20, 23, 25, 26

Convection Cooking 22, 23

Features 9,15

Proofing 25

Self-Cleaning Instructions ..... 26, 27

Care and Cleaning

Burner Caps 34,35
Burner Grates 35

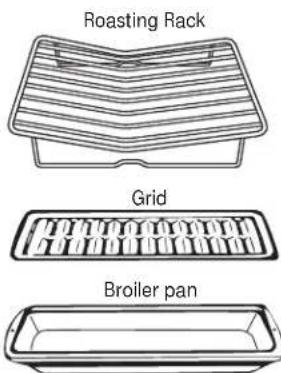

Broiler Pan, Grid and Roasting Rack.... 29

Control Panel and Knobs 29

Cutting Board 36

Grease Troughs 36

Griddle....36

Grill 37

Lift-Off Oven Door 31, 33

Oven Burners 29

Oven Lights 32

Probe 31

Sealed Burner Assemblies ..... 3

Self-Cleaning Oven Racks.... 30

Stainless Steel....33

Consumer Services

Important Phone Numbers ..... 4 1
Model and Serial Number 3
Problem Solver 38-40
Safety Instructions 2,4-8
Warranty 44

⚠ WARNING: If the information in this manual is not followed exactly, a fire or explosion may result, causing property damage, personal injury or death.

— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas supplier.

▲WARNING:

- All ranges can tip.

• BURNS or other SERIOUS INJURIES can result.

- INSTALL and CHECK the anti-tip bracket following the instructions supplied with the bracket.

To reduce the risk of tipping the range, the range must be secured by a properly installed anti-tip bracket. See installation instructions shipped with the bracket for complete details before attempting to install.

To check if the bracket is installed and engaged properly, carefully tip the range forward. The bracket should stop the range within 4 inches. If it does not, the bracket must be reinstalled.

If the range is pulled from the wall for any reason, always repeat this procedure to verify the range is properly secured by the anti-tip bracket.

If your range has no anti-tip bracket, call 1.800.626.8774 to receive one at no cost.

Remove packaging tape	Carefully remove all packaging, foam pads and tape.To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak.	NOTE: The adhesive must be removed from all parts. It cannot be removed if it is baked on.
Write down the model & serial numbers	You'll find them on a label located behind the left burner knob or below the control panel which is visible when the oven door is opened.	Before sending in the registration card, please write these numbers here:
		Model Number
		Serial NumberUse these numbers in any correspondence or service calls concerning your range.
If you received a damaged range	Immediately contact the dealer (or builder) that sold you the range.
Trouble-shooting tips	Before you request service, check the Problem Solver in the back of this manual.	It lists causes of minor operating problems that you can correct yourself.
If you need service	To obtain service, see the Consumer Services page in the back of this manual.We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are the steps to follow for further help.FIRST, contact the people who serviced your appliance. Explain why you are not pleased.In most cases, this will solve the problem.	NEXT, if you are still not pleased, write all the details—including your phone number—to:Manager, Customer RelationsGE AppliancesAppliance ParkLouisville, KY 40225

IMPORTANT SAFETY NOTICE

• The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
• The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.

- Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well-ventilated room.

▲ WARNING: SAFETY PRECAUTIONS

When using your appliance, follow basic safety precautions, including the following:

• Have the installer show you the location of the range gas shut-off valve and how to turn it off if necessary.
• Be sure all packing materials are removed from the range before operating it to prevent fire or smoke damage should the packing material ignite.
• After prolonged use of a range, high floor temperatures may result and many floor coverings will not withstand this kind of use. Never install the range over vinyl tile or linoleum that cannot withstand such use. Never install it directly over interior kitchen carpeting.
• Locate the range out of kitchen traffic path and out of drafty locations and areas with poor air circulation.
• Do not install this product with an air curtain hood or other range hood that operates by blowing air down on the cooktop. This airflow may interfere with operation of the gas burners resulting in fire or explosion hazard.

▲WARNING:

NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven.

▲WARNING:

NEVER cover any slots, holes or passages in the oven bottom or an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may also trap heat, causing a fire hazard.

▲ WARNING: SAFETY PRECAUTIONS

• Use this appliance only for its intended use as described in this manual.
• Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the provided installation instructions.
• Do not attempt to repair or replace any part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
• Before performing any service, DISCONNECT THE RANGE POWER SUPPLY AT THE HOUSEHOLD DISTRIBUTION PANEL BY REMOVING THE FUSE OR SWITCHING OFF THE CIRCUIT BREAKER.
• Do not leave children alone—children should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
• Children in walkers, or children crawling, can be attracted to the oven door handle and may grab and open the oven door. This can result in injury from the door being pulled open on a child, or severe burns if the oven is in use and hot.
• Do not allow anyone to climb, stand or hang on the door, control panel or cooktop. They could damage the range and even tip it over, causing severe personal injury.
• Do not store flammable materials in the oven or near the cooktop.
• Do not store plastic, flammable liquids or combustible materials on top of the optional high shelf.

• CAUTION: ITEMS OF INTEREST TO CHILDREN SHOULD NOT BE STORED IN CABINETS ABOVE A RANGE OR ON THE BACKSPLASH OF A RANGE—CHILDREN CLIMBING ON THE RANGE TO REACH ITEMS COULD BE SERIOUSLY INJURED.

• Never wear loose-fitting or hanging garments while using the appliance. Be careful when reaching for items stored over the range. Flammable material could be ignited if brought in contact with surface burners, burner grates or oven heating elements and may cause severe burns.

• Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch surface burners, burner grates or oven heating elements. Do not use a towel or other bulky cloth.
• When surface cooking, do not touch surface burners, burner grates, grill or griddle (on some models) or the surrounding areas.

When using the oven, do not touch the oven heating elements, the interior surface of the oven or the exterior area immediately surrounding the door or back trim.

These surfaces may be hot enough to burn.

During and after use, do not touch, or let clothing or other flammable materials contact, the surface burners, grill or griddle (on some models), areas near the surface burners or any interior area of the oven; allow sufficient time for cooling first.

Potentially hot surfaces include the cooktop, areas facing the cooktop, oven vent opening, surfaces near the opening, crevices around the oven door, metal trim parts above the door or any backguard or high shelf surface.

⚠️ CAUTION: The inside surface of the oven may be hot when the door is opened.

• Keep the ventilator hood and grease filters clean to maintain good venting and to avoid grease fires. Turn the ventilator OFF in case of fire or when intentionally "flaming" liquor or other spirits on the cooktop. The blower, if in operation, could spread the flames.
• Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160^ F and poultry to at least an INTERNAL temperature of 180^ F. Cooking to these temperatures usually protects against foodborne illness.

▲ WARNING: SAFETY PRECAUTIONS

- Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

Flaming grease outside a pan can be put out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using a multi-purpose dry chemical or foam-type fire extinguisher.

• DO NOT STORE OR USE COMBUSTIBLE MATERIALS, GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
- Do not let cooking grease or other flammable materials accumulate in or near the range. Clean grease troughs (some models) and burner pans after every use.
- If you smell gas, the installer has not done a proper job of checking for leaks. You can have a small leak, and therefore a faint gas smell, if the connections are not completely tight.

Finding a gas leak is NOT a do-it-yourself procedure. Some leaks can only be found with the burner control in the ON position. For your protection, it must be done by a qualified service technician. Never use an open flame to locate a leak.

• If by some chance a burner goes out and gas escapes, open a window or a door to let the room air out. Do not attempt to use the appliance until the gas has had time to dissipate. Follow the instructions in "What to do if You Smell Gas" on page 2.
• Never block the vents (air openings) of the range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion. Air openings are located at the top and bottom of the oven door, in the front portion of the control panel, at the rear of the cooktop and along the bottom of the range.
• Be sure all the range and/or cooktop controls are turned off and the appliance is cool before using any type of aerosol cleaner or cooking spray on or around the appliance. The chemical that produces the spraying action could, in the presence of heat, ignite or cause metal parts to corrode.
• Do not use any type of foil or liner to cover the oven bottom, drip pans or anywhere in the oven, except as described in this manual. Oven liners can trap heat or melt, resulting in damage to the product and risk of shock, smoke or fire.

▲WARNING: SURFACE COOKING SAFETY PRECAUTIONS

• Do not heat unopened food containers; a buildup of pressure may cause the container to burst.

• Set the burner control so that the flame heats only the bottom of the pan and does not extend beyond the bottom of the pan. Excessive flame is hazardous. The high BTU burners can easily melt cookware handles.

• Hold the handle of the pan, using a dry pot holder, to prevent movement of the utensil when stirring or turning food.
  • Always use the LITE position when igniting the surface burners and make sure the burners have ignited.

▲WARNING: SURFACE COOKING SAFETY PRECAUTIONS

- Never leave the surface burners unattended at high flame settings. Boilovers cause smoking and greasy spillovers that may catch on fire. If the burner flames are smothered by a severe boilover which affects the igniter, unburned gas will escape into the room.

- To minimize the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or back of the range without extending over adjacent burners.

- Always turn the surface burners to OFF before removing cookware.

- Carefully watch foods being fried at a high flame setting.

- Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

- Use the least possible amount of fat for effective shallow or deep fat frying. Filling the pan too full of fat can cause spillovers when food is added.

- Use a deep fat thermometer whenever possible to prevent overheating fat beyond the smoking point.

• Always heat fat slowly, and watch as it heats.

- Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is cool.

- If a combination of oils or fats will be used in frying, stir together before heating or as fats melt slowly.

- When using glass cookware, make sure it is designed for top-of-range cooking.

- Do not leave any items on the cooktop. The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

- Do not use aluminum foil to cover the grates or line any part of the cooktop. Doing so may result in carbon monoxide poisoning, overheating of the cooktop surfaces, or a potential fire hazard.

- Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to properly contain food and avoid boilovers and spillovers and large enough to cover burner grate. This will save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on the range can ignite. Use pans with handles that can be easily grasped and remain cool.

- Do not leave plastic items on the cooktop—they may melt if left too close to the vent or burner.

- To avoid the possibility of a burn, always be certain that the controls for all burners are at the OFF position and all grates are cool before attempting to remove them.

- Grease is flammable. Let hot grease cool before attempting to handle it. Avoid letting grease deposits collect in the grill or the griddle grease troughs (some models). Clean these areas after each use.

- For proper lighting and performance of the cooktop burners, keep the burner ports clean. It may be necessary to clean these when there is a boilover or when the burner does not light, even though the electronic igniters click.

- After cleaning, it is important to make sure the cap and burner port are properly aligned with the burner base. Incorrect alignment will produce poor burner performance. Never operate the burner without all burner parts in place.

- Clean the cooktop with caution. Avoid steam burns; do not use a wet sponge or cloth to clean the cooktop while it is hot. Some cleaners produce noxious fumes if applied to a hot surface. Follow manufacturer's directions.

- Do not use the grill for cooking excessively fatty meats or products that can flare-up.

- If range is located near a window, do not hang long curtains that could blow over the surface burners and create a fire hazard.

▲ WARNING: OVEN SAFETY PRECAUTIONS

WARNING:

NEVER cover any slots, holes, or passages in the oven bottom or cover an entire rack with materials such as aluminum foil or oven liners. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Never place foil or oven liners on the oven bottom. They can trap heat causing risk of smoke or fire.

• Place the oven rack in the desired position while the oven is cool. If racks must be handled when hot, do not let pot holder contact the heating elements.
• Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

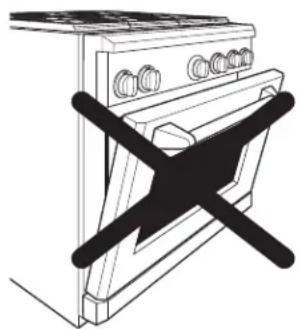

• Never broil with door open. Open door broiling is not permitted due to overheating of control knobs.

• Extending the rack to its fully open position is a convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.

• When using cooking or roasting bags in the oven, follow the manufacturer's directions.
• Do not use your oven to dry newspapers. If overheated, they can catch on fire.
• Do not use oven for a storage area. Items stored in an oven can ignite.
• Do not leave paper products, cooking utensils or food in the oven when not in use.
• Do not allow anyone to climb, stand or hang on the door. They could damage the oven or cause severe personal injury.

▲ WARNING: SELF-CLEANING OVEN

• Be sure to wipe up excess spillage before starting the self-cleaning operation.
• Before self-cleaning the oven, remove the broiler pan, grid and other cookware or aluminum foil.
• Do not clean the oven frame seal or the door seal. These seals are essential for a snug fit. Care should be taken not to rub, damage or remove the seals.

• If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.

• Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

• Clean only the appliance parts specified in this manual during the self-cleaning cycle.

SAVE THESE INSTRUCTIONS

Design information

(Not all features are on all models. Appearance may vary.)

Bamboo Cutting Board

Line drawing of a rectangular metal shelf with slots and two protruding ports (no text or symbols)

Toekick

Grill and Griddle Covers

Pure architectural or decorative grid layout with symmetrical geometric patterns and a central blank space (no text or symbols)

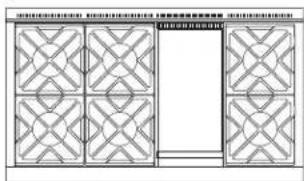

ZGP486NR, ZGP486LR-6 burners and grill ZGP486ND, ZGP486LD-6 burners and griddle

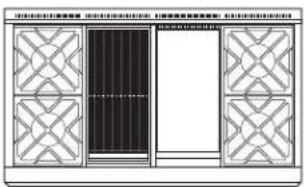

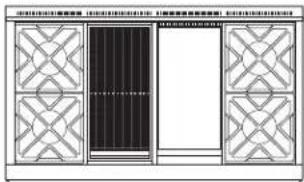

ZGP484NG, ZGP484LG 4 burners, grill and griddle

Pure architectural window diagram with four symmetrical lattice patterns and a central door (no text or symbols)

ZGP364NR, ZGP364LR-4 burners and grill ZGP364ND, ZGP364LD-4 burners and griddle

Pure geometric pattern with interlocking diamond shapes and no text or symbols

ZGP366N, ZGP366L 6 gas burners

ZGP304N, ZGP304L

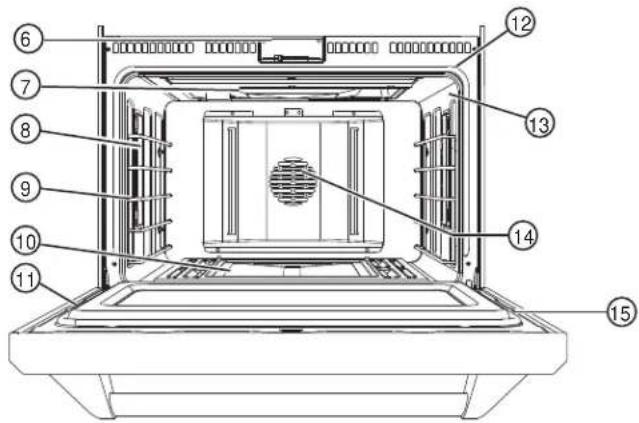

Technical diagram of a 17-inch oven with numbered components for identification

Double oven model shown includes a small oven.

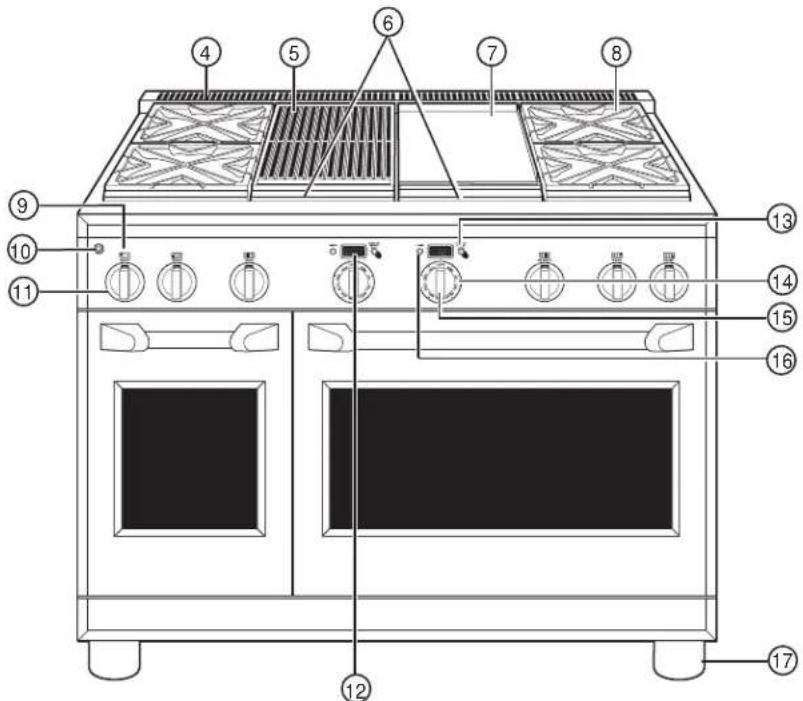

Feature Index Page

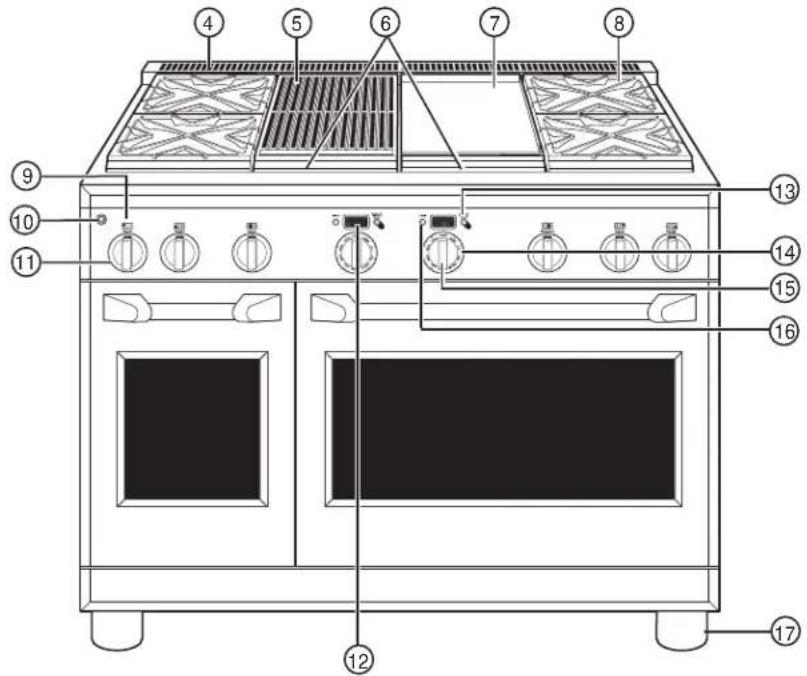

1 Bamboo Cutting Board 36
2 Toekick
3 Grill and Griddle Covers --

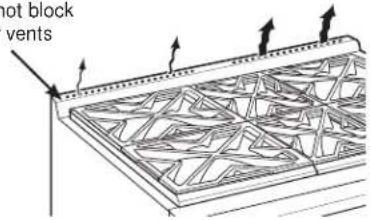

4 Oven Vents 17
5 IR (Infrared) Grill 12, 13
6 Grill and Griddle Grease Troughs 36
7 Griddle 14
8 Cooktop Burner Grates 11, 35
9 Burner Location Indicator
10 LED Bullnose Task Lighting Control

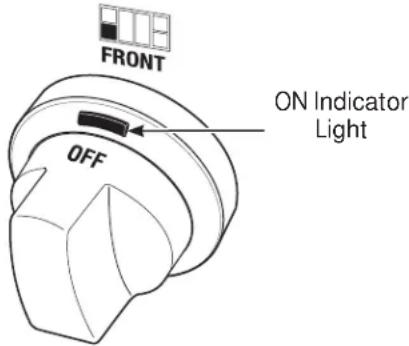

11 Burner Control Knob with Lighted Bezel	10, 29

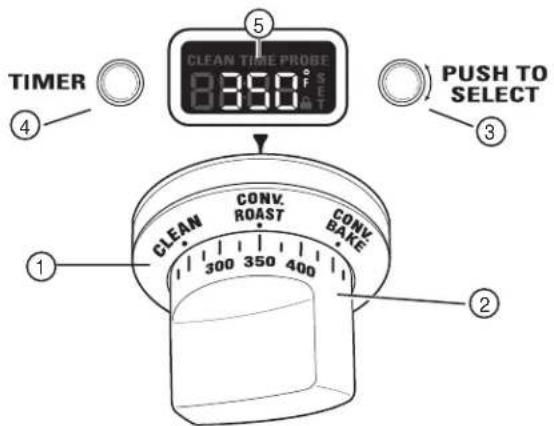

12 Oven Display	16

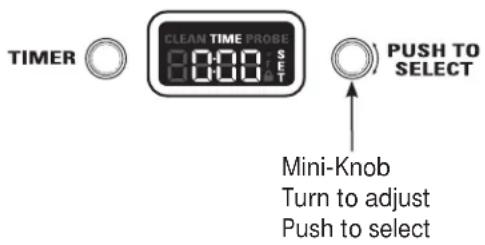

13 Mini-Knob(to select PROBE, TIMER or Special Features)	16, 29

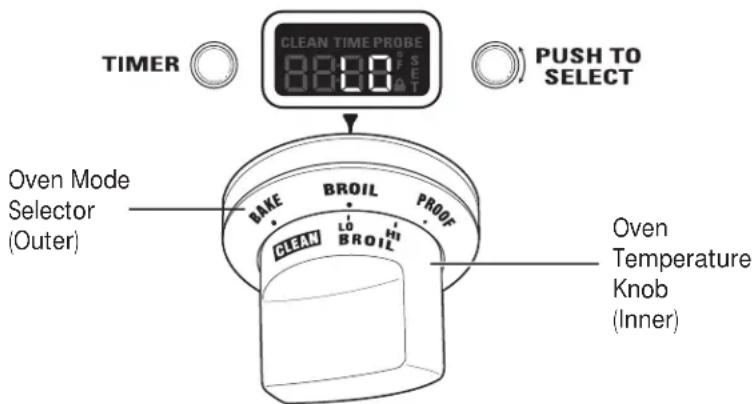

14 Oven Mode Selector	16
15 Oven Temperature Knob 16
16 Kitchen Timer	16, 27
17 Leveling System (4)	--

Cooktop Controls

		Professional All-Gas Range
Electronic ignition & automatic reignition	The range is equipped with electronic ignition which eliminates the need for a standing pilot light.The burners on this range will automatically relight if the flame goes out.All surface burner igniters will spark and make clicking sounds when any burner is turned on. Do not touch any of the burners when igniters are clicking.Occasionally the burners may spark if excess wind or a draft blows the flame away from the burner's flame sensor.	The griddle and IR (infrared) grill are equipped with Glo-Bar igniters. The Glo-Bar remains energized whenever the griddle or IR grill is in use to ensure the burner always stays lit.In case of a power outage, you can light the surface burners on your cooktop with a match. Hold a lighted match to the burner, then turn the knob to the LOW position. Use extreme caution when lighting burners this way.Do not attempt to light the grill or griddle during a power outage. The gas to these burners will automatically shut off during a power outage.
To light a surface burner	Push the control knob in and turn it counterclockwise to the LITE position.	After the burner ignites, turn the knob to adjust the flame size.To turn a burner off, turn the knob clockwise, as far as it will go, to the OFF position.Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.The indicator light on each bezel verifies the burner is on. However, it should not be a substitute for visually checking the flame at the burner.
Dual-flame stacked burners	All surface burners on your range have two sets of flames stacked one on top of the other: the dual-flame burners have a lower (simmer) flame and a upper (main) flame.When a burner is turned on, the lower flame will always light and stay on.Simmering:The stacked burner design provides a wide range of heat settings with which to simmer. Depending on the type and quantity of food, and pan size, the flame can be adjusted to suit your specific need. The lowest setting uses only the lower flame and can maintain delicate foods at a safe 140°F.Cooking:Settings from LO to X-HI will use both upper and lower flames. Use LO to HI for all purpose cooking. Use HI or X-HI (highest setting) with larger diameter cookware.	X-HI and HI are very high heat settings and are intended to sear foods quickly and boil large quantities of water.

Surface Cooking

Professional All-Gas Range

How to select flame size

Watch the flame, not the knob, as you increase or reduce heat.

The flame size on a gas burner should match the cookware you are using.

FOR SAFE HANDLING OF COOKWARE, NEVER LET THE FLAME EXTEND UP THE SIDES OF THE COOKWARE. Any flame larger than the bottom of the cookware will not result in faster heating and could be hazardous.

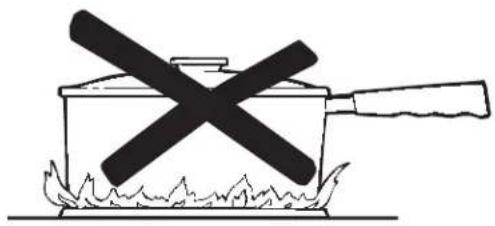

Simple line drawing of a cooking pot with a crossed-out black X mark and flames on the base (no text or symbols)

For surface stability, 6" minimum diameter cookware is recommended. Use larger diameter cookware for heat settings between HI and X-HI.

Wok cooking

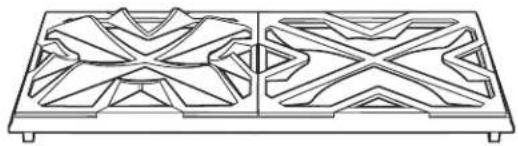

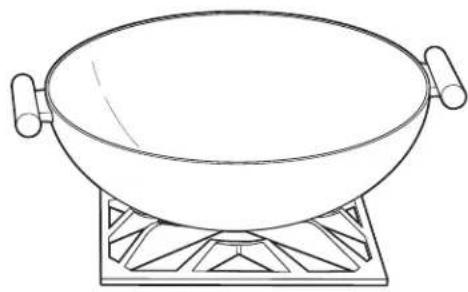

The burner grates are uniquely designed to cook on either side. The flat side accommodates flat bottom cookware (stockpots, sauce pans, frying pans and flat bottom woks), while the wok side is designed to hold a wide variety of round bottom woks without the need for a separate ring.

For easy access, a front burner location is recommended for wok cooking.

The front center burner is recommended for wok cooking on 6-burner 36" and 48" ranges.

⚠️ CAUTION: To properly fit the grate and match the flame size, the wok must be between 12" and 14" in diameter.

Technical line drawing of a symmetrical geometric pattern with interlocking shapes (no text or symbols)

Wok Side
Flat Side

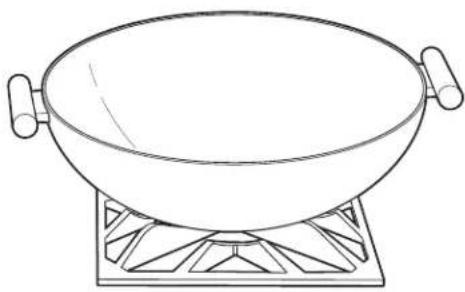

Line drawing of a large wok on a metal heating element (no text or symbols)

Grill safety precautions (on some models)

⚠ WARNING: Do not leave the IR grill unattended at any time.

Grease Flare-ups:

Occasionally, during grilling, grease drippings can ignite creating minor bursts of flame for a second or two. This is normal when grilling.

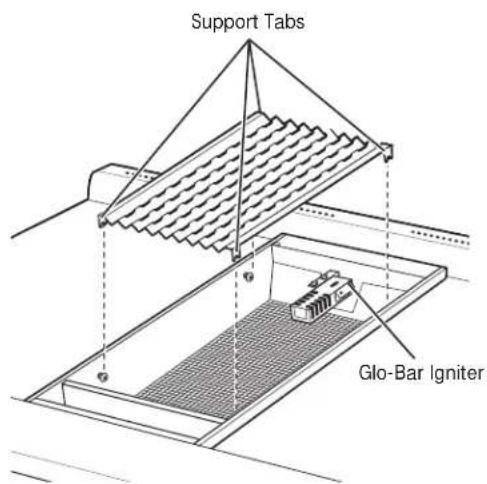

The grill radiant baffle is designed to catch excess grease, limiting flare-ups.

If a flare-up becomes excessive, remove the food from the grill and lower the heat setting until the flare-up subsides.

To further reduce flare-ups, trim excess fat around the edges of steaks and chops, use hamburger that is lean, remove the skin from poultry, etc.

Use a long spatula and a non-flammable mitt when turning food on the grill.

Grill Cover:

Remove the cover before lighting the burner. For your safety, the cover must be removed when using the grill. If the cover is left in place it will become extremely hot.

Cookware:

Do not use any cookware on the grill.

Using the IR grill

Remove the cover before lighting the burner. The cover must be removed when using the IR grill.

Set the control knob to PREHEAT. The longer the grill is preheated, the darker the grill marks will be on the food.

Allow 5 to 15 minutes to fully preheat the grill.

After preheat, the control knob may be set to any position between HI and LO.

Do not leave the grill unattended at any time.

The intense heat caramelizes fats and juices creating authentic barbecued flavor. The IR grill will achieve the same results as an outdoor grill.

All gas grills cook differently. Adjust cooking times and methods when using the IR grill.

Clean the grill grate, grease trough and grease basin after each use. Remove the parts for cleaning after they are cool to the touch.

GRILL LITE PREHEAT

NOTE: The grill will take approximately 45 seconds to ignite. Unlike the surface burners, which use electric igniters, the grill uses a Glo-Bar for ignition. It takes approximately 45 seconds for the Glo-Bar to reach temperature. Gas is only supplied to the grill once the Glo-Bar reaches temperature.

Grill grates (on some models)

Remove the cover before lighting the IR grill.

The grill grate is reversible. Place the handle end toward the front of the cooktop.

The grate will change color when subjected to the heat, and as oils cook onto the surface. This is normal and does not affect the cooking performance.

The porcelainized cast-iron grill grate does not need to be seasoned.

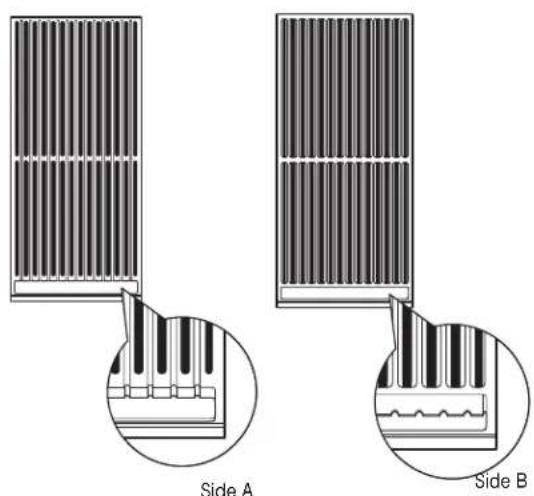

One side of the grate (Side A) is grooved and should be used for foods such as steak or hamburger patties. The grooves are sloped so the excess liquids and oils run toward the front of the grill and into the grease trough.

The other side of the grate (Side B) is designed for delicate foods such as fish.

Turn and move foods as needed.

Side A Side B

Food Setting	Preheat
Hamburger Patties (8)	HI or LO 5 Minutes
Chicken Breast (6)(Bone side down) LO 5 Minutes
T-Bone Steak(1-1/2" thick) LO 5 Minutes
Salmon LO 5 Minutes

Grill radiant baffle

Models equipped with an IR grill have a radiant baffle which distributes the heat from the burners evenly across the grill area. The grill baffle also helps to limit grease flare-ups.

The grill baffle rests on tabs in the grill opening. Be sure the baffle is secured in place by fully engaging the tabs.

IMPORTANT: Avoid contact with the igniter. It is fragile and can chip or break.

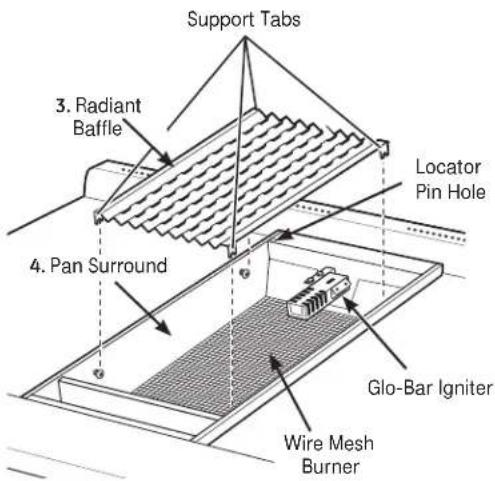

Support Tabs Glo-Bar Igniter

Griddle safety precautions, leveling (on some models)

⚠ WARNING: Do not allow the airflow from the griddle flue cover to be obstructed by cookware or towels.

Remove the metal cover and the cutting board before turning the griddle on.

The griddle assembly should not be removed for cleaning.

Once the unit is in position, the griddle can be leveled. Remove the flue cover by lifting it straight up. Be careful not to scratch the surrounding stainless steel surfaces during removal of the flue cover.

The two inner screws are clamping screws for securing the griddle in place. Loosen these two screws before leveling. Do not remove these two screws.

The two outer screws are leveling screws. Do not remove these two screws. They can be turned to level the griddle or to provide a forward slope to help grease and oils to drain away from the food being cooked. After the first few uses, you will be able to judge the slope best suited for the foods you are cooking and personal preference.

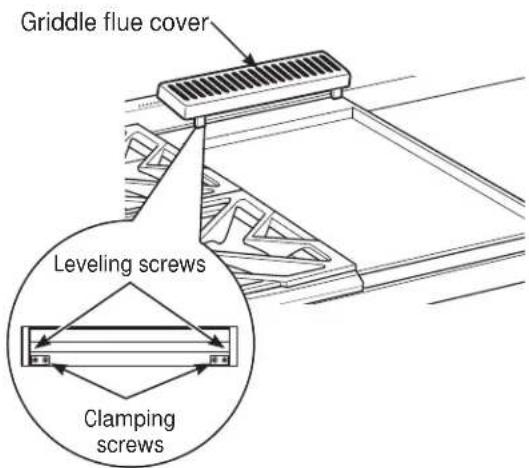

Griddle flue cover Leveling screws Clamping screws

After leveling the griddle, tighten the clamping screws to secure griddle in place. Hand tighten screws; do not over-tighten.

Season the griddle

Before using the griddle for the first time, it must be seasoned.

If the griddle has not been used for a period of time, it should be reseasoned.

1. Clean the griddle thoroughly with hot, soapy water to remove any protective coating.
2. Wipe the surface using a solution of 1 quart water and 1 cup white vinegar. Dry thoroughly.

3. Use a paper towel and wipe 1 tablespoon vegetable oil evenly across the griddle. Do not use corn oil as it can get sticky.

4. Turn the control knob to 400^ F for approximately 30 minutes. Turn the heat off when the oil starts to shimmer.

5. Repeat Step 3. Be sure to cover the entire surface with the oil.
6. Allow the griddle to cool. Wipe the entire surface of the griddle using a heavy cloth to remove the oil. The griddle is now ready to use.

Using the griddle

The griddle surface is a combination of highly polished Type 304 stainless steel and an aluminum core plate for even heat distribution. It is normal for it to darken with use as oils cook onto the surface to provide a stick-resistant base or "seasoning."

The griddle is thermostatically controlled and can be set to maintain any temperature from 200^ F to 450^ F.

NOTE: Unlike the surface burners, which use electric igniters, the griddle uses a Glo-Bar for ignition. It takes approximately 45 seconds for the Glo-Bar to reach temperature. Gas is only supplied to the griddle once the Glo-Bar reaches temperature.

To heat the griddle, push in the control knob and turn to the desired temperature setting. The light on the bezel will glow to indicate the thermostat control is working.

GRIDDLE 250

Food Item Temperature Setting
Pancakes 375°F
Hamburgers 400°F
Bacon* 400°F
Grilled Cheese 350°F
Eggs 275°F

* NOTE: Place bacon on a cold griddle. Do not preheat.

Design information

Note: Not all features are on all models.

Full Extension Oven Rack

Low Profile Oven Rack

Broiler Pan and Grid

Temperature Probe

Roasting Rack

Technical diagram of an oven with numbered components for identification

Feature Index Page
1 Full Extension Oven Rack(s) 18, 19, 23, 30— 2 in large oven— 2 in small oven
2 Low Profile Oven Rack (1 in large oven) 18, 19, 21, 30
3 Broiler Pan and Grid 22, 29
4 Temperature Probe 24, 31
5 Roasting Rack 22, 29
6 Automatic Oven Door Latch 26
7 IR (Infrared) Broil Burner 29
8 Halogen Oven Lights	32
9 Oven Rack Supports— 5 positions in large oven— 4 positions in small oven	19, 23
10 Bake Burner (under oven floor)	29
11 Oven Door Seal	33
12 Oven Frame Seal	33

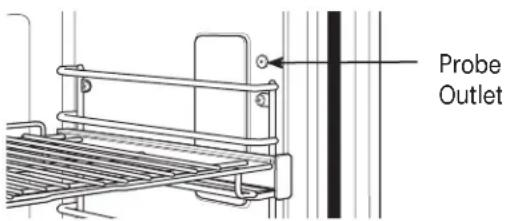

13 Temperature Probe Outlet— right side in large oven— left side in small oven	24
14 Convection Fan	22, 23
15 Oven Door	31, 33

NOTE: On models equipped with 2 ovens, both ovens have same features.

Features of your oven control and timer

TIMER ④ 5 CLEAN TIME PROBE 8:30 AM ③ PUSH TO SELECT ① CLEAN CONV. ROAST CONV. BAKE 300 350 400 ②

1 Oven Mode Selector – Turn outer ring to select:

PROOF – Maintains a warm environment useful for rising yeast-leavened products.

BAKE – Select for traditional baking.

CONV BAKE – Use for convection baking.

CONV ROAST – Use for convection roasting.

BROIL – Select for broiling.

CLEAN—Select for the self-cleaning

function. See the Self-Cleaning Oven section.

2 Temperature Knob - Turn to select:

Temperatures from 175°F to 550°F.

LOW BROIL – A lower broiling temperature is automatically set.

HIGH BROIL – A higher broiling temperature is automatically set.

CLEAN—The self-clean temperature is automatically set.

3 Mini-Knob - Turn to select and push to enter PROBE or TIMER settings. Also to adjust CLEAN cycle time.

4 Timer Button - Push to select the kitchen timer function. The timer does not control oven operations.

5 Oven Display - Displays oven functions such as oven and probe temperatures and kitchen timer.

The Oven Mode Selector (1) AND the Temperature Knob (2) must be set together in one of the following valid pairings:

Oven Mode Selector Temperature Knob

BAKE 175 ^ to 550 ^ F

CONV BAKE 175 ^ to 550 ^ F

CONVECTION/ROAST 175 ^ to 550 ^ F

BROIL HIGH or LOW BROIL

CLEAN CLEAN

PROOF ---

To cancel a feature, turn either the Oven Mode Selector or the Temperature knob to OFF.

To cancel PROOF, turn the Oven Mode Selector to OFF.

Baking Tips

		Professional All-Gas Range
Rear oven vents	An internal cooling fan operates during all oven modes. The warm air from the oven is exhausted through vents located at the rear of the cooktop.Do not allow the airflow from the rear vents to be obstructed by cookware or towels.	Do r rear
Aluminum Foil and Oven Liners	⚠CAUTION: Do not use any type of foil or oven liner to cover the oven bottom. These items can block airflow or melt, resulting in damage to the product and risk of carbon monoxide poisoning, smoke or fire. Damage from improper use of these items is not covered by the product warranty.Foil may be used to catch spills by placing a sheet on a lower rack, several inches below the food. Do not use more foil than necessary and never entirely cover an oven rack with aluminum foil. Keep foil at least 1-1/2" from oven walls to prevent poor heat circulation.	Note: "NO FOIL ON OVEN BOTTOM" note is enameled on the bottom of the oven cavity and is designed to withstand self-cleaning temperatures. Do not attempt to peal or scrape off.
Pan placement	For even cooking and proper browning, there must be enough room for air circulation in the oven.Baking results will be better if baking pans are centered as much as possible rather than being placed to the front or to the back of the oven.
Baking pans/sheets	Use the proper baking pan. The type of finish on the pan effects the amount of browning that will occur.• Dark, rough or dull pans absorb heat resulting in a browner, crisper crust. Use this type for pies.	• Shiny, bright and smooth pans reflect heat, resulting in a lighter, more delicate browning.Cakes and cookies require this type of pan or sheet.• Glass baking dishes also absorb heat. When baking in glass baking dishes, the temperature may need to be reduced by 25°F.
Preheating	Allow the oven to preheat before placing food in the oven. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.	Note: Condensation or fogging on the inside of the oven door glass is normal during the preheating of the oven and will evaporate usually by the end of the preheating cycle.

Oven Racks

Professional All-Gas Range

Full extension oven racks

⚠️ CAUTION: To avoid possible

burns, place the racks in the correct position before turning on the oven.

The correct rack position depends on the kind of food and the browning desired.

The racks have a frame that locks into the rack supports on both sides. Once the frame is locked into place, always pull the rack out, by its upper front rail, to its full extension stop position, when placing or removing cookware.

Remove and replace oven racks

To remove a rack:

1. Make sure the rack is pushed all the way into the oven.

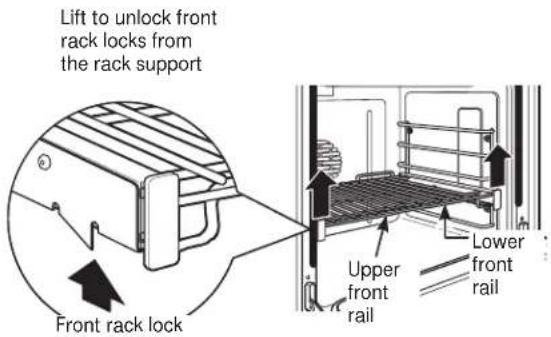

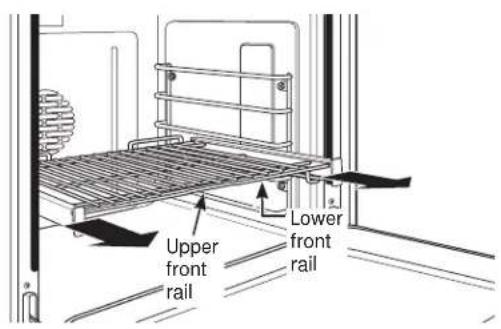

2. Grasp the rack by both its upper front rail and its lower front rail and lift straight up to unlock the front rack locks from the rack supports.

Lift to unlock front rack locks from the rack support Front rack lock Upper front rail Lower front rail

1. Firmly holding onto both the upper and lower front rack rails, pull the rack forward and remove it from the oven.

Upper front rail Lower front rail

To replace a rack:

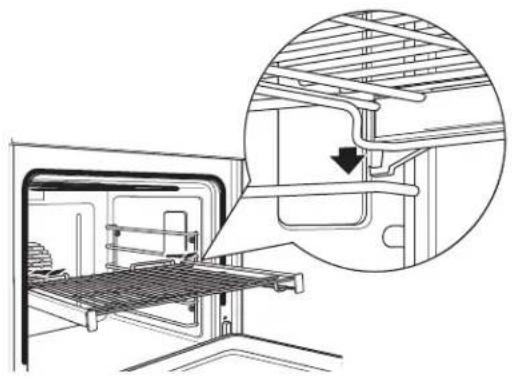

1. Place the rear rack locks over and onto the rack supports (five rack positions are available including the top position).

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

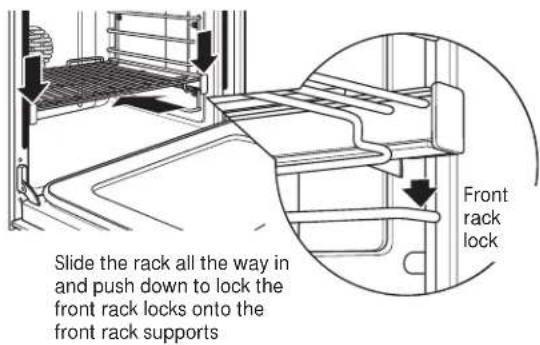

1. Slide the rack all the way in until the rear rack locks are secure on the rear rack supports and press the front rack locks onto the front rack supports.

Slide the rack all the way in and push down to lock the front rack locks onto the front rack supports Front rack lock

1. Pull the rack all the way out to check that it is properly engaged.

Low profile oven rack

The low profile oven rack is designed for optimized performance when baking or broiling certain foods in your Monogram Professional All-Gas range. It can also be used as a normal oven rack with the full extension oven racks as well.

Please refer to the oven rack position table for your bake/broil/convection mode for details as to location and rack type for the best performance.

How to set the oven for baking

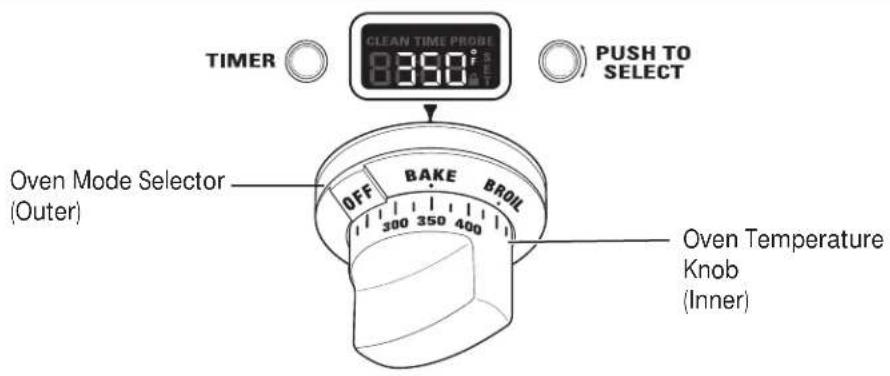

TIMER 0:350° PUSH TO SELECT Oven Mode Selector (Outer) OFF BAKE BROIL 300 350 400 300 350 400 Oven Temperature Knob (Inner)

1. Turn the Oven Mode Selector to BAKE.
2. Using the Temperature knob, set the desired temperature, in 25°F increments, from 175°F to 550°F.

The oven will now begin to preheat. The temperature display will begin at 100^ F and remain there until the oven exceeds that temperature. From that point, the display will show the actual temperature.

The interior lights will turn on and stay on until the oven is turned off. The convection oven fan will turn on temporarily during preheat. The control will beep when the oven is preheated and food can now be placed inside the oven.

1. Turn the Oven Mode Selector and the Temperature knob to OFF when baking is finished.

NOTE: A cooling fan will turn on to cool internal parts. This is normal, and the fan may continue to run even after the oven is turned off.

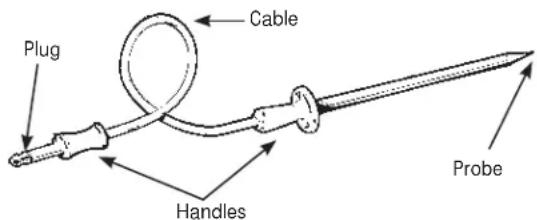

Use the temperature probe when a precise internal temperature is important. See Using the probe.

Line drawing of a kitchen appliance with multiple bowls and a rack, no text or symbols present

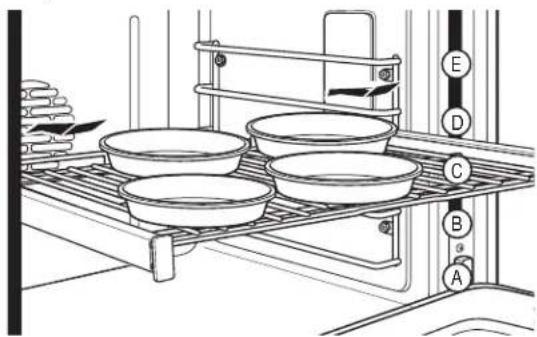

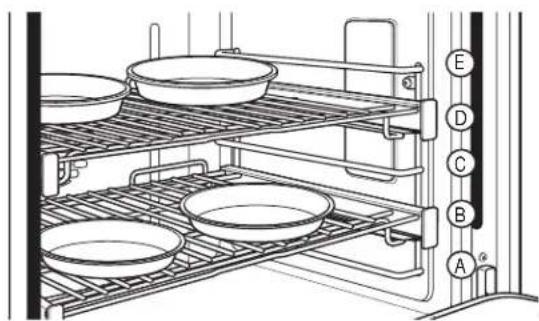

For best results when baking four cake layers at one time, place four pans on one shelf using the center position C. Place the pans so each has at least 1-1/2" air space around it..

Technical line drawing of a rack with multiple bowls and labeled components (A–E), no readable text or symbols present.

Or, place four pans using racks B and D. Stagger the pans so that one pan is not directly above another as shown above.

The oven has 5 rack positions. See the Full extension oven racks section for how to use, remove and replace the racks.

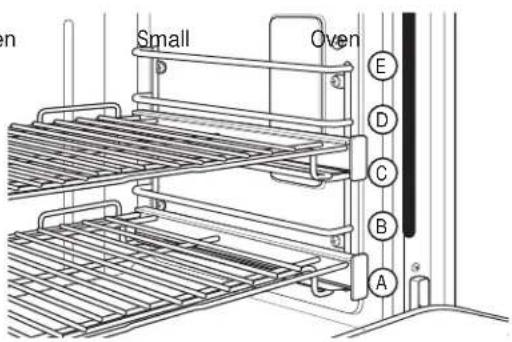

The double oven range has a small oven with 4 rack positions. Rack position C is not in the small oven.

Type of Food Rack Position Rack Position			Oven
Angel food cake A A
Biscuits or muffins C	C
Cookies	C	C
Brownies	B	C
2 Layer cakes	B B
4 Layer cakes	C	—
Sheet cakes or9 x 13 cakes	B or C	C
Quick breads	C B
Bundt or pound cakes	B or C	B
Scratch Pies or pie shells	B	B
Frozen pies	B or C	—
Casseroles	B or C	C
Pizza	C	B

Suggested shelf positions are intended as general guidelines. Experiment with these positions for specific foods and personal preference.

Introduction to broiling

The broil mode has 2 settings. Choose HI or LO setting.

- The HI setting can be used to seal in juices or provide intense browning or charring when needed for foods such as hamburgers, roasted vegetables, whole peppers, eggplant, corn, assorted cut vegetables, kabobs and very thin meats such as smoked pork chops, London broil and chicken.

- The LO setting can be used for foods that need adequate browning and also need to be thoroughly cooked, like fish fillets, pork tenderloin and beef roast.

How to set the oven for broiling

TIMER CLEAN TIME PROBE 00:00 F SE 00:00 T PUSH TO SELECT Oven Mode Selector (Outer) BAKE BROIL PROOF CLEAN LO BROIL H1 Oven Temperature Knob (Inner)

1. Turn the Oven Mode Selector to BROIL
2. Turn the Oven Temperature Knob to LO BROIL or HI BROIL. LO or HI will appear in the display.

NOTE: Always broil with the door closed. If the door is left open, the display will scroll "CLOSE door" and the elements will not turn on until the door is shut.

The oven interior lights will turn on and stay on until the oven is turned off.

1. When broiling is finished, turn the Oven Mode Selector and the Temperature knob to OFF.

NOTE: A cooling fan will turn on to cool internal parts. This is normal, and the fan may continue to run even after the oven is turned off.

NOTE: Broil will not work if the temperature probe is plugged in. Never leave your probe inside the oven during a broil cycle.

Line drawing of a kitchen appliance with a black X symbol indicating a prohibition or prohibition (no text or symbols present)

Open door broiling is not permitted.

Broiling guide

Due to the variety of of meats and cuts available, you may select alternate rack positions based on personal preferences of doneness and external searing. For optimal searing, preheat oven for 5-10 minutes.

The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts E, D, C, and B.

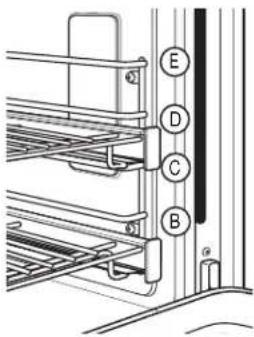

NOTE: In general, higher rac positions yield darker external searing and lower positions yeild more doneness.

FOOD DONENESS		TYPE OR THICKNESS	RACK POSITION	BROIL SETTING	COMMENTS
Steak Rare - Me-	dium Rare (140°F-150°F)	1" thick D-E Hi	Steaks less than 1" thick are		difficult to cook rare. They may cook through before browning.
	Medium (160°F) 3/4" to 1" thick C-D Hi	To avoid curling,	slash fat at 1"		intervals.
	Well Done (170°F) 1/2" to 3/4" thick B-C	Hi
Chicken		Breast, bonless	B-C	Hi or Lo	Broil skin-side down first
		Breast, bone-in	B-C	Hi or Lo
Fish Fillets		1-lb fillets1/4" to 1/2" thick	D	Lo	Handle and turn very carefully
Kabobs		(5 skewers)	D	Hi
Sliced Vegetables			D	Lo

The U.S. Department of Agriculture says "Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive." (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Aluminum foil

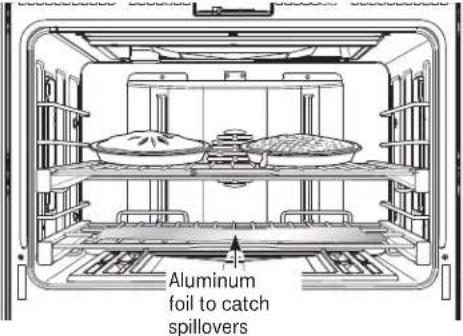

You can use aluminum foil to line the broiler pan and broiler grid. However, you must mold the foil tightly to the grid and cut slits in it just like the grid.

Convection Baking or Roasting

Professional All-Gas Range

Introduction to convection cooking

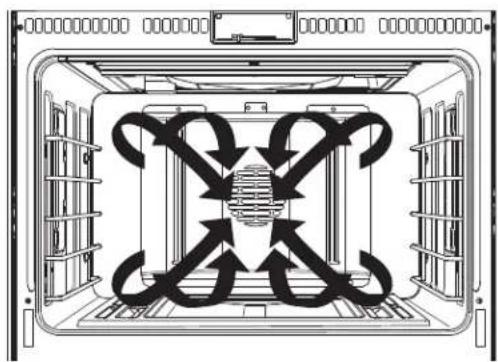

The Monogram reverse-air convection system consists of two dedicated heating elements wrapped around the convection fan. After preheating to the set temperature, all heat in CONV BAKE mode comes from these two dedicated elements. The convection fan periodically pauses, then changes direction to best distribute hot air throughout the oven. As a result, foods are evenly cooked and browned—often in less time with convection heat.

NOTE: The convection fan shuts off when the oven door is opened.

Technical line drawing of a mechanical or electrical enclosure with internal flow patterns (no text or symbols)

Cookware for convection cooking

Before using your convection oven, check to see if your cookware leaves room for air circulation in the oven. If you are baking with several pans, leave space between them. Also, be sure the pans do not touch each other or the walls of the oven.

Cookware used in standard BAKE will also work in CONV BAKE. See Baking Tips section.

It is recommended that when baking cookies, the best results are attained with a flat cookie sheet instead of a pan with sides. For recipes like oven-baked chicken, use a pan with low sides. Hot air cannot circulate well around food in a pan with high sides.

Adapting recipes

You can use your favorite recipes in the convection oven.

When convection baking, it may be necessary to reduce the baking temperature by 25^ F or to adjust the cooking time. No temperature adjustment is necessary when using CONV ROAST.

Some package instructions for frozen casseroles or main dishes have been developed using commercial convection ovens. For best results in this oven, preheat the oven and use the temperature on the package.

Convection roasting tips

Use the broiler pan, grid and the roasting rack for best results. Use of the rack will result in improved browning on the underside of meat or poultry.

1. Place the oven rack on a low rack position (A).
2. Place the grid on the broiler pan and put the roasting rack over them.
3. Place meat on the roasting rack.

Roasting Rack

Grid

Broiler pan

How to set the oven for convection baking or roasting

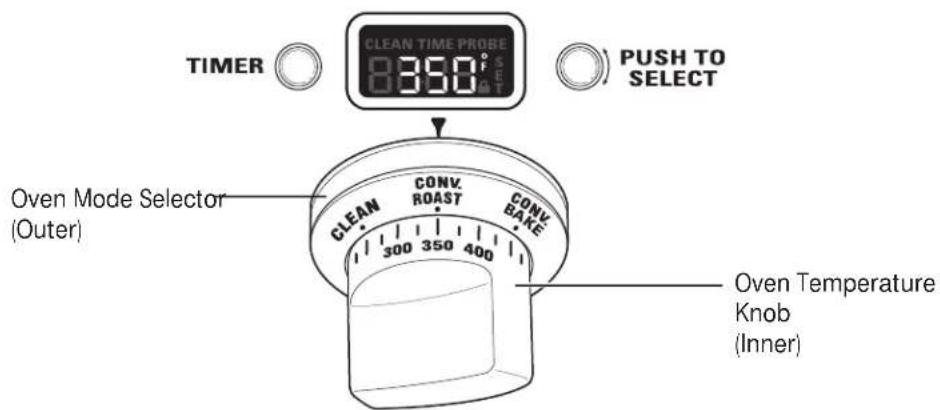

TIMER CLEAN TIME PROBE 8300 F S E T PUSH TO SELECT Oven Mode Selector (Outer) CLEAN CONV. ROAST CONV. BAKE 300 350 400 Oven Temperature Knob (Inner)

Convection Baking is ideal for evenly browned baked foods cooked on single or multiple racks. Select Convection Roast to roast large, tender cuts of meat uncovered.

When set on CONV BAKE or CONV ROAST, the rear convection elements and the fan operate when the oven is heating.

1. Turn the Oven Mode Selector to CONV BAKE or CONV ROAST.
2. Using the Temperature knob, set the desired temperature, in 25°F increments, from 175°F to 550°F.

The oven will now begin to preheat. The temperature display will begin at 100^ F and remain there until the oven exceeds that temperature. From that point, the display will show the actual temperature.

The interior lights will turn on and stay on until the oven is turned off. The convection oven fan will turn on during preheat. The control will beep when the oven is preheated and food can be placed inside the oven.

1. Turn the Oven Mode Selector and the Temperature knob to OFF when convection cooking is finished.

NOTE: A cooling fan will turn on to cool internal parts. This is normal, and the fan may continue to run even after the oven is turned off.

Use the temperature probe when a precise internal temperature is important. See Using the probe.

Type of Food Rack Position Rack Position
Muffins and Cupcakes(multiple racks) B & D	B & D
Cookies(multiple racks)	A, C & E	B & D
Frozen Appetizer	C	—
Frozen Appetizer(multiple racks)	A, C , E	—
Roasting(large cuts of meat)	A	B
Turkey orWhole Chicken	A	B

Suggested shelf positions are intended as general guidelines. Experiment with these positions for specific foods and personal preference.

n Small Oven E D C B A

The oven has 5 rack positions. See the Full extension oven racks section for how to use, remove and replace the racks.

The double-oven range has a small oven with 4 rack positions. Rack position C is not in the small oven.

How to use the probe with bake, convection bake and convection roast

⚠️CAUTION: Use oven mitts when inserting or removing the probe from the hot oven. Areas around the probe inlet can be very hot.

For many foods, especially roasts and poultry, internal food temperature is the best test for doneness. The temperature probe takes the guesswork out of cooking foods to the exact doneness you want.

The probe can be used with the BAKE, CONV BAKE and CONV ROAST.

1. Push the tip of the probe into the thickest part of the meat.
2. Place the rack in the desired rack position.
3. Set the oven controls. Turn the Oven Mode Selector to CONV BAKE, CONV ROAST or BAKE. Turn the Temperature Knob to desired oven temperature in 25°F increments, from 175°F to 550°F. Allow the oven to preheat if necessary. The oven and oven lights will turn on immediately and stay on until the oven is turned off.
4. Use oven mitts to place the food in the hot oven. Insert the plug into the outlet. Make sure it is pushed all the way in. Close the oven door.
5. Turn the Mini-Knob to find the desired internal food temperature. Push the Mini-Knob to select that temperature.

TIMER

PUSH TO SELECT

Probe Outlet

The word PROBE and SET, will flash in the display until a temperature is selected. If no temperature is set, the probe will default to 100^ F. If the oven was not preheated, the display will show LO.

The internal food temperature can be set from a minimum of 100^ F and up to 200^ F maximum.

When food reaches the set internal temperature, the display will beep. To stop the reminder beep, turn the Oven Mode Selector and the Temperature Knob to OFF. Use oven mitts to remove the probe from the oven outlet.

To change the set internal temperature anytime in the cooking process, push the Mini-Knob and turn to adjust the temperature. Press the Mini-Knob to select.

Using the probe

Use only the probe provided with the range.

Use the handles of the probe and plug when inserting and removing them from the meat and oven outlet.

• To avoid damaging the probe, do not use tongs to pull on the cable when removing it.
• To avoid breaking the probe, make sure food is completely defrosted before inserting.
• To prevent possible burns, always wear an oven mitt when removing the plug; internal oven surfaces may be hot.

Plug Cable Handles Probe

The temperature probe has a skewer-like probe at one end and a plug at the other end that goes into the outlet in the oven.

• Never leave the probe inside the oven during a broil or self-cleaning cycle.
• Do not store the probe in the oven.

Proper placement of the probe

• Measure the distance to the center of a roast by laying the temperature probe on top of the meat. Use your thumb and forefinger to mark where the edge of the meat will come on the probe.
• Insert the probe up to the point marked with your finger. The tip of the probe should be in the center of the meat.

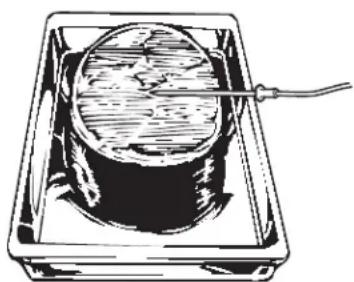

Illustration of a cylindrical object inside a rectangular container with a wire extending from it (no text or symbols)

How to set the oven for proofing

The proofing feature maintains a warm environment which is useful for rising yeast-leavened dough.

1. Turn the Oven Mode Selector to PROOF. The display will show "PrF". PROOF mode will not operate when oven is above 125°F. The display will scroll "too hot". Allow the oven time to cool.

For best results, cover the dough with a cloth or with greased plastic wrap.

Use rack position B or C in the large oven. Use rack position B in the small oven.

The proofing feature automatically provides the optimum temperature for the proofing process; therefore the Temperature knob does not affect the proof temperature.

The oven interior lights cycle on and off as necessary to maintain optimum proof temperature until the Oven Mode Selector has been turned to OFF.

• To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door unnecessarily.
• Check bread products early to avoid over-proofing.
• When proofing is finished, turn the Oven Mode Selector to OFF.

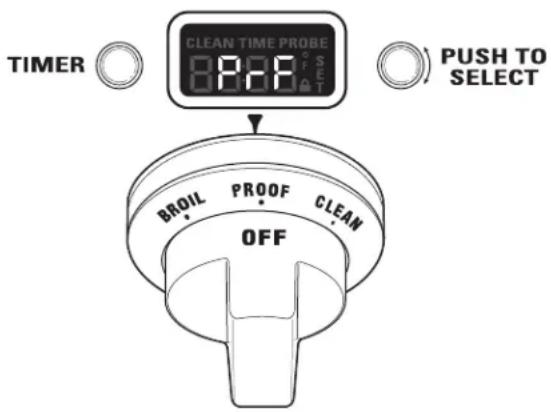

TIMER CLEAN TIME PROBE 10000 10000 PUSH TO SELECT BROIL PROOF CLEAN OFF

⚠️ CAUTION: Do not use the proofing mode for warming food or keeping food hot. The proofing oven temperature is not hot enough to hold foods at safe temperatures.

Self-cleaning safety precautions

The self-clean oven feature is designed to make cleaning the inside of the oven easy by using very high temperatures to burn away food spills.

⚠ WARNING: Wipe up excess grease and other food spills with a damp cloth.

Excessive food soils can ignite leading to smoke and heat damage.

• Do not clean the oven seals, damage can occur.
• Remove cookware, broiler pan, grid, probe and any aluminum foil from the oven.
• Make sure the oven light lens and lens frame are in place.
• Do not use commercial oven cleaners, abrasives or oven protectors in or near the self-cleaning oven.
• We recommend venting your kitchen with an open window or using a ventilation fan/hood during the self-clean cycle.
• Clean soil from around the frame and from around the oven door, outside the oven seals. These areas must be cleaned by hand.

- The oven racks may be left in the oven during the self-clean cycle.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well-ventilated room.

NOTE: During the self-clean cycle, the cooktop will be locked out and not functional. If a surface burner is turned on after the self-clean cycle has begun, a warning will be displayed on the Oven Display "err turn surf frnr off" and a beeping sound will be heard.

NOTE: Self-Clean will not work if the temperature probe is plugged in or if the Sabbath mode is set.

On double oven models, you can set a clean cycle in both ovens at the same time. The last oven set will automatically delay its start until the end of the first oven's clean cycle.

On double oven models, you can bake in one oven and self-clean in the other at the same time. However, you cannot use the PROOF mode setting in one oven while the other oven is self-cleaning.

How to set the oven for cleaning

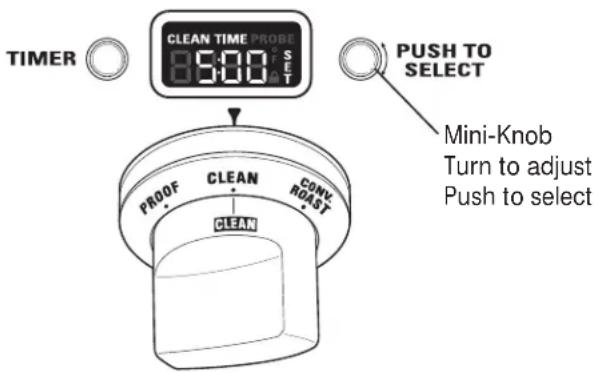

TIMER CLEAN TIME PROBE SET 8:00 PUSH TO SELECT PROOF CLEAN CONV. ROAST CLEAN Mini-Knob Turn to adjust Push to select

1. Turn off all surface burners. (The CLEAN cycle will not start until all surface burners have been turned off.)
2. Turn the Oven Mode Selector to CLEAN.
3. Turn the Temperature knob to CLEAN. The control automatically defaults to the recommended clean cycle time of 5 hours. The clean time may be adjusted to any time between 3 and 5 hours using the Mini-Knob. The display will show the actual time remaining.
4. Push the Mini-Knob to start the CLEAN cycle. If "CLOSE door" scrolls in the display, the self-clean cycle has been selected but the door is not closed. Close the oven door.

The symbol will flash as the oven door is locked. It will not be possible to open the oven door during the clean cycle.

1. After the clean cycle is complete and the oven has cooled, "End" will show in the display and the will turn off. Turn the Oven Mode Selector and the Temperature knob to OFF.

To interrupt a clean cycle, turn the Oven Mode Selector and the Temperature knob to OFF. When the oven has cooled to a safe temperature, the symbol will turn off indicating the door may be opened.

An interrupted clean cycle cannot be restarted until after the oven is cool enough for the door to unlock.

After a clean cycle

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with warm sudsy water and rinse thoroughly with a vinegar and water mixture. These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

Timer

NOTE: The timer is independent of all the other functions and does not control the oven.

To set the timer:

1. Push the TIMER button.
2. TurntheMini-Knob to adjust any length of time up to 12 hours and push to select it.

On double oven models, each oven control has its own timer function. Each timer can be set independently.

The control will beep with 1 minute remaining and the display will show seconds until the timer counts down to :00. When the timer reaches :00, the control will beep 3 times followed by one beep every 6 seconds until the Mini-Knob is pushed.

To cancel the timer:

1. PushtheTIMER button.
2. TurntheMini-Knob to :00 and push to select.
   To adjust the timer after start:
3. PushtheTIMER button.
4. TurntheMini-Knob to a new desired time and push to select.

TIMER CLEAN TIME PROBE 0:00 SET PUSH TO SELECT Mini-Knob Turn to adjust Push to select

NOTE: The timer cannot be used while the oven is self-cleaning. (On double oven models, the timer for the oven that is not in the self-cleaning mode may be used.)

Oven thermostat adjustment

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

On double oven models, use the large oven controls to enter the mode and to select the adjustment.

To adjust the oven thermostat:

1. Push and hold the TIMER button and Mini-Knob at the same time for 4 seconds until the display shows "SF" (Special Features).
2. Turn the Mini-Knob counterclockwise until the display scrolls "OFFSET". Push the Mini-Knob to select the offset mode.
3. Turn the Mini-Knob to adjust the oven thermostat up to 35^ F hotter or (-) 35^ F cooler in 1^ F increments.
   3A. On double oven models, you can adjust the thermostat of the small oven by turning the Mini-Knob above the small oven. Use the large oven Mini-Knob to select that adjustment.

TIMER

PUSH TO SELECT

Mini-Knob Turn to adjus Push to selec

1. Push the Mini-Knob to select your choice and exit the mode. If you do not wish to save changes, push the TIMER button to exit at any time.

NOTE: This adjustment will only affect Bake, Convection Bake and Convection Roast temperatures; it does not affect broiling or self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

Sabbath mode

To set the Sabbath mode:

The Sabbath mode is designed for use on the Jewish Sabbath and other Jewish holidays.

It can be used for baking only. It cannot be used for any other cooking mode.

When the Sabbath feature is set, the oven light and all audible beeps will be disabled. The feature will also provide a random delay period, of approximately 30 seconds to 1 minute, before the oven will turn on once it is set to BAKE.

1. Push and hold the TIMER button and Mini-Knob at the same time for 4 seconds until the display shows "SF" (Special Features).
2. Turn the Mini-Knob clockwise until the display scrolls "SAbbAtH." Push the Mini-Knob to select the Sabbath mode.
3. Once "SAbbAtH" is selected, the display will scroll "SAbbAtH ON".

The Sabbath setting will control both ovens. The symbol will appear in both oven display windows.

For double oven models, use the large oven control to set the Sabbath feature for both ovens.

TIMER

PUSH TO SELECT

Mini-Knob Turn to adjust Push to select

To Cancel the Sabbath Mode:

Repeat steps 1, 2 and 3. The display will scroll "SAbbAtH OFF".

The oven temperature may be adjusted at any time by turning the temperature knob. There is a random delay before the oven elements respond.

K

Certified Sabbath Mode

Control panel and knobs

Clean up spatters with a damp cloth. Remove heavier soil with warm, soapy water.

Do not use abrasives of any kind on the control panel or knobs.

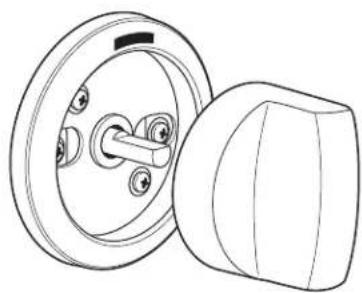

The control knobs may be removed for easier cleaning. To remove a knob, pull it straight off the control panel. Wash the knobs in hot soapy water, but do not soak.

An optional set of black control knobs is available for purchase at additional cost. Order the knob set for your model.

Technical line drawing of a mechanical knob and handle assembly (no text or symbols)

NOTE: The Mini-Knob is not removable.

Models Order Numbers
ZGP304N, ZGP304L WB03K10268
ZGP366N, ZGP366L WB03K10269
ZGP364NR, ZG364LR WB03K10270
ZGP364ND, ZGP364LD WB03K10271
ZGP484NG, ZGP484LG WB03K10272
ZGP486NR, ZGP486LR WB03K10273
ZGP486ND, ZGP486LD WB03K10274

TIMER ○ CLEAN TIME PROBE 8:8:8:7 ○ PUSH TO SELECT Mini-Knob

NOTE: For 30" ranges, ZGP304N and ZGP304L, place the knob with X-HI setting on the right-front side.

To order, call GE National Parts Center at 800.626.2002.

Oven burners

Do not attempt to clean the IR (Infrared) broil burner. Any soil will burn off when the burner is heated.

The bake burner is not exposed.

Broiler pan, grid and roasting rack

The broiler pan, grid and roasting rack are all dishwasher safe. However, baked on foods may require washing by hand with a commercial oven cleaner or abrasive detergent.

Do not store a soiled broiler pan or grid anywhere in the oven. Always properly dispose of excess grease.

⚠️ CAUTION: Do not clean the broiler pan, grid or roasting rack in a self-cleaning oven.

Roasting Rack Grid Broiler pan

Oven racks

The racks may remain in the oven during the self-cleaning cycle without being damaged.

Periodically, after several self-clean cycles, the oven racks may need to be lubricated using the Graphite Lubrication shipped with your range. To order additional Graphite Lubrication, call our National Parts Center at 800.626.2002 and reference WB02T10303.

1. Remove rack from the oven. See the Full extension oven racks section.
2. Fully extend the rack on a table or countertop. Newspaper may be placed underneath the rack for easy cleanup.

Technical line drawing of a mechanical or architectural component with grid-like structure (no text or symbols)

1. If there is debris in the slide tracks, wipe it away using a paper towel. NOTE: Any graphite lubricant wiped away must be replaced.

Diagram showing a hand holding a tool interacting with a wall-mounted structure, with arrows indicating direction of movement.

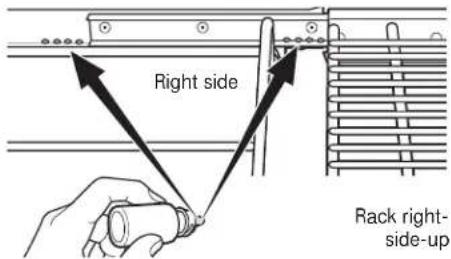

1. Shake the graphite lubricant before opening it. Starting with left slide mechanism of the rack, place four (4) small drops of lubricant on the two (2) bottom tracks of the slide close to the bearing carriers.

Right side Rack right- side-up

1. Repeat for the right slide mechanism of the rack.

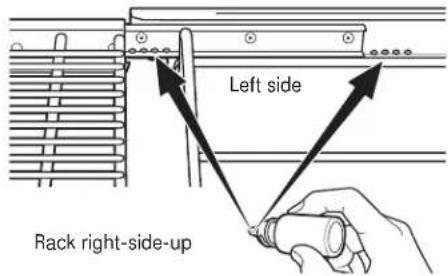

Left side Rack right-side-up

1. Open and close the rack several times to distribute the lubricant.
2. Replace the cap on the lubricant and shake it again. Turn the rack over and repeat steps 3, 4, 5 and 6.
3. Close the rack, turn rack right-side-up and place in the oven. See the Full extension oven racks section.
4. Repeat above steps for each rack.

NOTE: Do not use a cooking spray or other lubricant sprays on the slides.

Low profile oven rack

The gray porcelain-coated low profile rack may remain in the oven during the self-cleaning cycle without being damaged. It may also be cleaned using a mild abrasive cleanser. After cleaning, rinse the rack with clean water and dry with a clean cloth.

Periodically and after clean cycles, the low profile rack may need to be lubricated to aid sliding. Wipe the rack edges or oven rack supports with the Graphite Lubrication shipped with your range or vegetable oil.

To order additional Graphite Lubrication, call our National Parts Center at 800.626.2002 and reference WB02T10303.

Line drawing of a grid-like structure with vertical bars, no text or symbols present

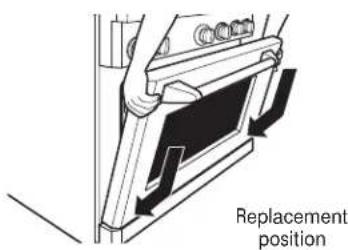

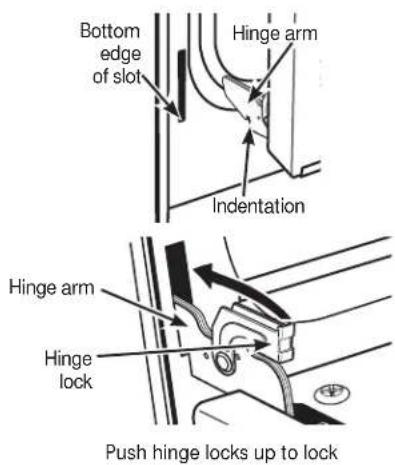

Lift-off oven door

The door is very heavy. Be careful when removing and lifting the door.

Do not lift the door by the handle.

To remove the door:

1. Fully open the door.
2. Pull the hinge locks down toward the door frame, to the unlocked position. A tool, such as a small flat-blade screwdriver, may be required.
3. Firmly grasp both sides of the door at the top.
4. Close door to the door removal position, (approximately 15 degrees from closed) and lift it up and out until the hinge arm is clear of the slot.

Slot Hinge lock

Pull hinge locks down to unlock

Removal position

To replace the door:

1. Firmly grasp both sides of the door at the top.
2. With the door at the same angle as the removal position, seat the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully seated into the bottom of the slot.
3. Fully open the door. If the door will not fully open, the indentation is not seated correctly in the bottom edge of the slot.
4. Push the hinge locks up against the front frame of the oven cavity, to the locked position.
5. Close the oven door.

Replacement position

Bottom edge of slot Hinge arm Indentation Hinge arm Hinge lock Push hinge locks up to lock

Probe

Allow the temperature probe to cool before cleaning.

The probe should be cleaned with soap and water by hand.

Do not immerse the temperature probe in water.

Do not store the temperature probe in the oven.

Do not clean the temperature probe in the self-cleaning oven.

Line drawing of a medical or laboratory instrument with a circular component and a long rod (no text or symbols)

Oven lights

CAUTION:

Before replacing a bulb, disconnect electrical power to the oven at the main fuse or circuit breaker panel.

Each oven is equipped with halogen light columns located on the side walls of the oven. The lights come on when the door is opened or when the oven is in a cooking cycle.

Each light assembly consists of a removable light cover with two locking clips and a light compartment with three halogen bulbs.

Be sure to let the light cover and bulb cool completely. For your safety, do not touch a hot bulb with bare hands or a damp cloth.

To remove:

1. Remove the racks from the oven. See the Full extension oven racks section.

2. Using a 7/16" nutdriver, remove the four nuts holding the rack supports to the oven wall.

Technical line drawing of a multi-tiered metal shelf or rack structure with circular vent and wall connections (no text or symbols)

1. Remove the glass light cover by pulling its back edge out and rolling it toward you. Do not remove any screws.

Pure technical line drawing of mechanical components without any text, numbers, or symbols

1. Using gloves or a dry cloth, remove the burned-out light bulb by pulling it straight out.

Hand placing a component into a rectangular panel with a black arrow indicating direction (no text or symbols)

To replace:

Use a new 120-volt Halogen bulb, with G8 pins, not to exceed 25 watts.

Replacement bulbs may be purchased by calling 800.626.2002. Order Part Number WB25T10064.

NOTE: Higher wattage bulbs will damage your oven.

Using gloves or a dry cloth, remove the bulb from its packaging. Do not touch the bulb with bare fingers. Oil from bare fingers may cause hot spots on the glass surface and lead to premature failure of the bulb. If you do touch the glass, clean it with alcohol prior to installation.

1. Push the bulb straight into the receptacle all the way.

Hand holding a tool with a black arrow pointing to a vertical bar (no text or symbols visible)

1. Replace the light cover, by placing its front edge under the front two tabs in the light compartment. Roll the back edge into place, making sure that it is firmly seated.

NOTE: If the locking clips fell from the glass lens cover, hold them on the cover, in the correct position, while replacing the cover on the light compartment.

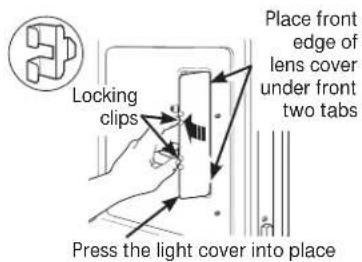

Place front edge of lens cover under front two tabs Locking clips Press the light cover into place

The light cover must be in place when using the oven.

1. Reinstall the rack support. Be sure to orient the support so that the top tabs for the nuts are closest to the top of the oven. Lightly secure with the four nuts removed earlier, but do not over-tighten or the enamel could be chipped.

Technical line drawing of a multi-tiered shelving unit with circular inset detail (no text or symbols)

1. Replace the racks. See the Full extension oven racks section.

2. Reconnect electrical power to the oven.

Care and Cleaning

		Professional All-Gas Range
To clean the door	The oven frame and door, outside the oven seals, should be cleaned by hand. Enameled surfaces should be cleaned with hot soapy water. See Stainless Steel Surfaces section for all Stainless Steel areas.	Do not rub or clean the door seal—the fiberglass material of the seal has an extremely low resistance to abrasion. An intact and well-fitting oven seal is essential for energy-efficient operation and good baking results. If the seal becomes worn, frayed, damaged or displaced it must be replaced by a qualified technician.
Stainless steel surfaces	Do not use a steel-wool pad; it will permanently scratch the surface.To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner. Always wipe the surface in the direction of the grain. Follow the cleaner instructions for cleaning the stainless steel surface.A bottle of stainless steel cleaner is provided with the range.	To inquire about purchasing stainless steel appliance cleaner, please call our toll-free number, 800.626.2002 or visit monogram.com.
Oven bottom	The oven bottom has a porcelain enamel finish. To make cleaning easier, protect the oven bottom from excessive spillovers. A smaller sheet of foil or sheet tray may be used to catch a spillover by placing it on the rack below the rack you are cooking on. This is particularly important when baking a fruit pie or other foods that are highly acidic. Hot fruit fillings or other foods that are highly acidic (such as tomatoes, sauerkraut and sauces with vinegar or lemon juice) may cause pitting and damage to the porcelain enamel surface and should be wiped up immediately	Never fully cover a rack with aluminum foil. This will disturb the heat circulation and result in poor baking.⚠ WARNING: Do not use aluminum foil to line the oven bottom. Foil may trap heat from the bottom burner, resulting in a risk of fire or product damage.To clean up spillovers, use soap and water, an abrasive cleaner or soap-filled scouring pad. Rinse well to remove soap before self-cleaning.

Dual-flame stacked burners

The burner consists of three parts: the burner base, burner head, and burner cap. The burner head and burner cap can be lifted off, making them easy to clean.

⚠️ CAUTION: DO NOT OPERATE THE BURNER WITHOUT ALL BURNER PARTS IN PLACE.

Surface burners should be cleaned routinely, especially after bad spillovers, which could clog the slots and holes in the burner heads.

The electrode is located at the rear of each burner. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result.

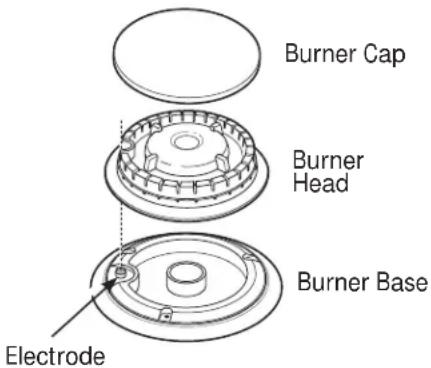

Burner Cap Burner Head Burner Base Electrode

To remove the burner parts:

1. Turn all controls OFF before removing any burner parts.
2. When cool, you may lift off the burner grates, burner caps and burner heads for easier cleaning. Do not remove the burner bases.
   NOTE: The ZGP304 model has 2 different size burners. Be sure to replace the burners in the same location.

Cleaning

Lift off burner parts only when cool. Wash in hot, soapy water. You may use a plastic scouring pad to remove burned-on food particles.

To remove burned-on food, soak the burner heads in a solution of mild liquid detergent and hot water for 20–30 minutes. For more stubborn stains, use a plastic scouring pad or toothbrush.

If the spill goes inside the burner head assembly, wash it under running water and shake to remove excess water.

After Cleaning

Before replacing the burner parts, shake out excess water and then dry them thoroughly.

To replace the burner parts:

Make sure that the burner parts are replaced in the correct location.

1. Replace the burner head on top of the burner base, making sure that the hole in the burner head is properly aligned with the electrode in the burner base. A small gap between the base and head is normal.
2. Place the burner cap on top of the burner head. Make sure that the burner cap is properly seated on the burner head.

Burner cap not properly seated

Care and Cleaning

		Professional All-Gas Range
Spark igniter and electrodes	The electrode of the electronic ignition system is positioned at the rear of the burner base. When cleaning the cooktop, be careful not to snag the igniter with your cleaning cloth. Damage to the igniter could occur.Be careful not to push in a control knob while cleaning. It could cause the igniter to spark.Make sure that the white ceramic igniters on the cooktop are dry and clean. Clean the metal portion of the electrode with a soft cloth or emery board.Do not attempt to remove the electrode from the cooktop.	Clean this metal part with an emery board.Do not clean this white ceramic part with an emery board.

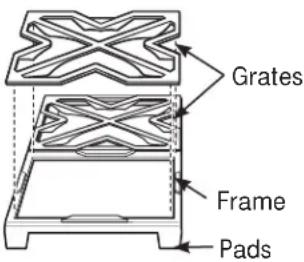

Burnergrates	The enameled cast-iron burner grates should be cleaned regularly.You must put the grates on the self-clean oven rack during the self-clean cycle. DO NOT put the grate on the oven floor during a self-clean cycle. DO NOT put the frame inside the oven during a self-clean cycle. Only the grate can withstand the heat of the self-clean cycle. The frames may be cleaned by hand or in the dishwasher.Wash them in hot soapy water, rinse, and dry thoroughly.Although they are durable, the grates will gradually lose their shine, regardless of the best care you can give them. This is due to their continual exposure to high temperatures.Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.	For stability, the frames have rubber pads on each corner. During cleaning and use, be careful not to damage or snag rubber pads.

Care and Cleaning

		Professional All-Gas Range
Grease troughs(on some models)	Grease from the griddle and the grill will drain into the enameled cast-iron grease troughs at the front of the range. Once the troughs have cooled, they may be lifted out for easier cleaning.To remove the cool grease trough from the griddle, slide it toward the front and lift up.To remove the cool grease trough from the grill, lift the grill frame and lift out the trough.Do not allow grease to accumulate in the grease troughs as it can be a fire hazard. Clean the grease troughs as soon as they are cool. The grease troughs can be cleaned by hand with hot soapy water or in the dishwasher. Wipe any spillage in the trough basin with a soft cloth.For stability, the troughs have rubber pads at the front. Be careful not to damage the pads when removing for cleaning.
Griddle(on some models)	Thoroughly clean the griddle of grease and food particles, using a square-edged metal spatula, while it is still hot.Wipe the griddle with a dry, heavy, coarse cloth to remove any remaining residue and food particles. If the griddle is cleaned with anything other than a dry, heavy, coarse cloth, it will need to be reseasoned.Never flood the hot griddle with cold water. This could cause the griddle to crack or warp.	NOTE: It is normal for the stainless steel griddle to discolor to a yellow-brown color after use.
Cutting board(on some models)	Wash the bamboo cutting board with warm water and a mild soap. Occasionally, wipe it with mineral oil.Do not clean the cutting board in the dishwasher.

Grill grate, frame and baffle

(on some models)

The IR Grill should be cleaned immediately after each use.

1. Clean the Grill Grate:

Turn the burner to OFF. Use a barbecue mitt to remove the hot grill grate. Place the grill grate in a basin or sink and scrub with a brass bristle brush. Rinse frequently.

The grill grate may also be cleaned in the oven during the self-cleaning cycle, or, it can be cleaned in the dishwasher.

2. Clean the Grill Grate Frame:

The grill grate frame can be cleaned by hand or in the dishwasher. Do not clean the grill grate frame in a self-cleaning oven. The grill grate frame has rubber pads on each bottom corner. Be careful not to damage the pads during the cleaning process.

3. Clean the Radiant baffle:

Lift the baffle out of the pan. Clean the baffle with hot soapy water or in the dishwasher.

4. Clean the Pan Surround, Wire Mesh:

The pan surround and wire mesh cannot be removed. Clean them in place. Use a soft damp cloth to clean the pan surround. Gently brush food particles into the grease trough or use a vacuum cleaner for excess debris.

IMPORTANT: Keep the grill burner and ceramic igniter dry. Do not spray water or cleaner directly onto the wire mesh or igniter. Avoid contact with the igniter, it is fragile and can chip or break.

Reassemble the Grill:

Reverse the steps above to reassemble the grill. The radiant baffle support tabs should engage the pins on the side of the pan surround. Replace the grate frame. Be sure to engage the bottom locator pin with the pin hole at the left rear side of the pan. Replace the grill grate with the handle end towards the front of the range.

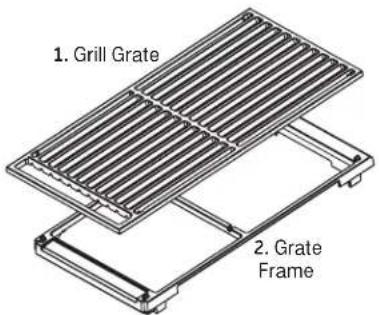

1. Grill Grate 2. Grate Frame

Support Tabs 3. Radiant Baffle 4. Pan Surround Locator Pin Hole Glo-Bar Igniter Wire Mesh Burner

Review the troubleshooting tips on the following pages first and you may not need to call for service.

PROBLEM POSSIBLE CAUSE
OVEN WILL NOT WORK	A fuse in your home may be blown or the circuit breaker tripped.The oven controls are not properly set.The oven controls are set for cleaning. If necessary, allow the oven to cool; then open the door.Make sure the Oven Mode Selector is set to BAKE and the Temperature knob is set to a temperature.
SURFACE BURNERS LIGHT BUT OVEN DOES NOT	The oven gas shut-off valve may have accidentally been moved during cleaning or moving.
OVEN LIGHT(S) DO NOT WORK	The light bulb is defective. Replace the bulb.The oven is self-cleaning or the Sabbath feature is set. The oven lights do not come on during self-cleaning or if the Sabbath feature is set.The oven is set for Proof mode. The lights cycle on and off as necessary to maintain Proof temperature.
FOOD DOES NOT BAKE OR ROAST PROPERLY	The oven controls are improperly set. See the Baking or Roasting section.Oven not preheated for a long enough time; wait for the oven to signal preheat.Incorrect cookware or cookware of improper size being used. See Baking Tips.Racks in the wrong position. See the Baking or Roasting section.Use a foil tent to slow down browning during roasting.Oven thermostat needs adjustment. See the Oven thermostat adjustment section.
FOOD DOES NOT BROIL PROPERLY	This model is designed for closed door broiling only. Close the door. Always broil with the door closed.The oven controls are not set at BROIL. See the Broiling section.The probe is plugged into the outlet in the oven. Remove the probe from the oven.Improper rack position being used.Cookware is not suited for broiling. Use the broiling pan and grid that came with your oven.Aluminum foil used on the broiling pan and grid has not been fitted properly and slit as recommended.
OVEN WILL NOT SELF CLEAN	The oven temperature is too high to set a self-clean operation.Allow the oven to cool below the locking temperature and reset the controls.The controls are not properly set. See the Self-Cleaning Oven section.
CRACKING OR POPPING SOUND DURING CLEANING	This is normal. This is the sound of the metal heating and cooling during both the cooking and cleaning functions.
EXCESSIVE SMOKING OCCURS DURING CLEANING	The oven is heavily soiled. Turn the Oven Mode Selector and the Temperature knobs to OFF. Open the windows to rid the room of smoke. Wait until the locked door indicator light goes off. Wipe up excess soil and reset the clean cycle.
OVEN NOT CLEAN AFTER A CLEAN CYCLE	The oven was heavily soiled. Clean up heavy spillovers before starting the clean cycle.Heavily soiled ovens may need to self-clean again.Oven is connected to a 208V electrical supply. Set your cleaning time for 5 hours.The oven controls are not properly set. See the Self-Cleaning Oven section.
OVEN RACKS ARE DIFFICULT TO SLIDE	The racks were cleaned in the self-clean cycle and now need periodic lubrication.Do not spray with a cooking spray or other lubricant sprays. See Full extension oven racks in the Care and Cleaning section.
TIMER DOES NOT WORK	The timer cannot be used while the oven is self-cleaning.
OVEN TEMPERATURE TOO HOT OR TOO COLD	Oven thermostat needs adjustment. See the Oven thermostat adjustment section.
OVEN DOOR WILL NOT OPEN AFTER A CLEAN CYCLE	The oven is too hot. Allow the oven to cool below locking temperature.
"Err turn SurFACE BurnErS OFF" SCROLLS IN THE DISPLAY	Self-clean is in progress and the Cooktop Lockout feature is activated. No surface cooking is permitted during the self-clean operation. Wait until the self-cleaning operation has been completed.
"CLOSE door" SCROLLS IN THE DISPLAY	The self-clean cycle has been selected but the door is not closed. Close the oven door. The symbol will appear in the display
IS ON WHEN YOU WANT TO COOK	The oven door is locked because the temperature inside the oven has not dropped below the unlocking temperature. Turn the Oven Mode Selector and the Temperature knobs to OFF. Allow the oven to cool.
F- AND A NUMBER FLASH IN THE DISPLAY	The oven has a function error code. Turn the Oven Mode Selector and the Temperature knobs to OFF. Allow the oven to cool for one hour. Put the oven back into operation.Disconnect all power to the oven for 30 seconds and then reconnect power. If the function error code repeats, call for service.
DISPLAY GOES BLANK	The display is blank when the oven or timer is not in use.A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker.
UNABLE TO GET THE DISPLAY TO SHOW "SF"	The TIMER and the MINI-KNOB buttons must be pushed at the same time and held for 4 seconds.
"PROBE" APPEARS IN THE DISPLAY	This is reminding you to enter a probe temperature after plugging in the probe. Enter a probe temperature
SHOWS IN DISPLAY	The Sabbath mode has been selected.
POWER OUTAGE	If the oven was in use during a power outage or surge, the oven must be reset. Turn the Temperature knob and the Oven Mode Selector to OFF. Reset the controls to begin again.
STEAM FROM THE VENT	When using the convection mode, it is normal to see steam coming out of the oven vent. As the number of racks or amount of food being cooked increases, the amount of visible steam will increase.
BURNING OR OILY ODOR EMITTING FROM THE VENT	This is normal in a new oven and will disappear in time.
STRONG ODOR	This is temporary. An odor from the insulation around the inside of the oven is normal for the first few times the oven is used.
FAN NOISE A cooling fan	an or a convection fan (depending on the function you are using) may turn on. This is normal. The cooling fan will turn on to cool internal parts. It may run after the oven is turned off. The convection fan may cycle on and off until the function is over or the door is opened.
CONVECTION FAN NOT ON ALL THE TIME	The convection fan (depending on the function you are using) may cycle on and off until the function is over or the door is opened for optimized performance. This is normal. In additin, the convectin fan may cycle in the clockwise and counterclockwise direction until the function is over or the door is opened.
BURNERS DO NOT LIGHT OR SPARK RANDOMLY	Electrical plug is not plugged into a live power outlet.Gas supply not turned on.Burner parts not replaced correctly.Holes in the simmer rings or slits in the burner rings are clogged.Clogged orifice, or wet burners or electrodes.Cooktop Lockout feature is activated.A fuse in your home may be blown or circuit breaker tripped.
BURNERS HAVE YELLOW OR YELLOW-TIPPED FLAMES	Burner parts not replaced correctly. A. Yellow flames: Call for service. B. Yellow tips on outer cones: Normal for LP gas. C. Soft blue flames: Normal for natural gas.If burner flames look like (A), call for service. Normal burner flames should look like (B) or (C), depending on the type of gas.
BURNER FLAMES VERY LARGE OR YELLOW	The range may be connected to the wrong fuel type. Contact the person who installed your range or made the conversion
BURNER CONTROL KNOB WILL NOT TURN	When the knob is at the OFF position, it must be pushed in before it can be turned, and it can only be turned in a counterclockwise direction. When the knob is at any other position, it can be turned in either direction without being pushed inwards.
CONDENSATION OR FOGGING ON THE INNER DOOR GLASS	Condensation or fogging on the inside of the oven door glass is normal during the preheating of the oven and will evaporate usually by the end of the preheating cycle.

With the purchase of your new Monogram appliance, receive the assurance that if you ever need information or assistance from GE, we'll be there. All you have to do is call—toll-free!

GE Answer Center®

In the USA: 800.626.2000

Whatever your question about any Monogram major appliance, GE Answer Center® information service is available to help. Your call—and your question—will be answered promptly and courteously. Call the GE Answer Center® Monday to Friday, 8 a.m. to 10 p.m. EST, and Saturday, 8 a.m. to 7 p.m. EST.

OR

Visit our Website at: monogram.com

In Canada, call 800.561.3344.

In-Home

Repair Service

In the USA:

800.444.1845

In Canada:

800.561.3344

A GE consumer service professional will provide expert repair service, scheduled at a time that's convenient for you. To schedule service, call Monday to Friday, 7 a.m. to 10 p.m. EST, or Saturday and Sunday, 8 a.m. to 6 p.m. EST. Many GE Consumer Service company-operated locations offer you service today or tomorrow, or at your con venience. Our factory-trained technicians know your appliance inside and out—so most repairs can be handled in just one visit.

In Canada: Monday to Friday, 7 a.m. to 8 p.m. and Saturday, 8 a.m. to 5 p.m. EDST.

For Customers With Special Needs...

In the USA:

800.626.2000

SHALLOW-CONTROL FLOOR TORTUTS ON WALL PLUMBING CEMENT EXTRACTION CAN BE INSTALLED TORTUTS ON WALL CABRETS SECTION A-A & SHALLOW-DEPTH BAN2 WITH HEAD DREAM BAN2 SHOULD ALSO UNDERGATE SCALE 1:4*7

GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons with limited mobility.

Consumers with impaired hearing or speech who have access to a TDD or a conventional teletypewriter may call 800.TDD.GEAC (800.833.4322) to request information or service.

Service Contracts

In the USA:

800.626.2224

In Canada:

800.561.3344

You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect and you'll receive a substantial discount. With a multiple -year contract, you're assured of future service at today's prices.

Parts and

Accessories

In the USA:

800.626.2002

In Canada:

800.561.3344

Individuals qualified to service their own appliances can have parts or accessories sent directly to their home. The GE parts system provides access to over 47,000 parts...and all GE Genuine Renewal Parts are fully warranted. VISA, MasterCard and Discover cards are accepted.

User maintenance instructions contained in this manual cover procedures intended to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

YOUR MONOGRAM RANGE WARRANTY

Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty. Please have serial number and model number available when calling for service.

WHAT IS COVERED

LIMITED TWO-YEAR WARRANTY

For two years from date of original purchase, we will provide, free of charge, parts and service labor in your home to repair or replace any part of the range that fails because of a manufacturing defect.

LIMITED FIVE-YEAR WARRANTY

For five years from the date of original purchase, we will provide, free of charge, replacement gas surface burners if they fail in normal household use. (The grill, griddle and oven burners are not included.) You pay for the service trip to your home and all service labor charges.

LIMITED LIFETIME WARRANTY

For the lifetime of the gray porcelain enamel oven racks, we will provide, free of charge, replacement racks if they fail in normal household use. You pay for the service trip to your home and all service labor charges.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for ordinary home use in the 48 mainland states, Hawaii and Washington, D.C. In Alaska the warranty is the same except that it is LIMITED because you must pay to ship the product to the service shop or for the service technician's travel costs to your home.

All warranty service will be provided by our Factory Service Centers or by our authorized Customer Care® servicers during normal working hours.

Should your appliance need service, during warranty period or beyond, in the U.S.A. call 800.444.1845. In Canada: 800.561.3344

WHAT IS NOT COVERED

• Service trips to your home to teach you how to use the product.
• Discoloration of the griddle plate or oven racks.
- Chipping of porcelain enamel grates or oven racks.
- Replacement of house fuses or resetting of circuit breakers.
- Incidental or consequential damage caused by possible defects with this appliance.
- Damage after delivery.
- Damage to the product caused by accident, fire, floods or acts of God.

• Product damage or failure of the product if it is abused, misused, used for other than the intended purpose, or used commercially.
• Improper installation, delivery or maintenance.

If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, gas, exhausting and other connecting facilities as described in the Installation Instructions provided with the product.

- Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company, Louisville, KY 40225

Table des matières

Cuisson en surface

Brûleurs ....53

Plaque chauffante 57

Ustensiles....54

Four

Commandes....52,59,62,63,

66, 68, 69

Instructions relatives

Plaque chauffante 79

Porte du four

Line drawing of a rectangular metal frame with slots and two protruding clips, labeled with number ② (no text or symbols on the structure itself)

Plinthe

Pure architectural diagram of a symmetrical window with lattice patterns, no text or symbols present

Pure geometric pattern with interlocking diamond shapes and no text or symbols

Technical diagram of a front-end oven with numbered components for identification

Simple line drawing of a cooking pot with a crossed-out black X mark and flames on the base (no text or symbols)

Technical line drawing of a symmetrical geometric pattern with interlocking shapes (no text or symbols)

Face du wok
Face plate

Line drawing of a large pan on a metal stand (no text or symbols)

Technical diagram of an oven with numbered components for identification

Technical diagram of a mechanical assembly with an inset showing a detailed view of internal components (no text or symbols present)

Technical line drawing of a laboratory filtration setup with labeled components (no text or symbols beyond labels)

Line drawing of a kitchen appliance with multiple dish trays and labeled parts (A–E), no text or symbols present.

Line drawing of a kitchen appliance with a black X symbol indicating a crossed-out or anti-summer condition (no text or symbols present)

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts A through E.

Diagram of a server rack with internal air flow patterns (no text or symbols)

Technical diagram of a rack-mounted device with labeled components A through E

Technical line drawing of a mechanical device with no visible text or symbols

Prise de la sonde

Simple line drawing of a pot on a tray with a coiled tube, no text or symbols present

Technical line drawing of a mechanical switch component (no text or symbols)

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Diagram showing two arrows pointing to a vertical structure with a base, possibly illustrating a mechanical or structural concept.

Line drawing of a wire mesh grid structure (no text or symbols)

Line drawing of a medical or laboratory instrument with a circular component and a long rod (no text or symbols)

Lampes du four

▲ MISE EN GARDE:

Technical line drawing of a multi-tiered metal shelf assembly with mounting holes (no text or symbols)

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Hand inserting a small component into a wall-mounted device (no text or symbols visible)

Hand holding a small object with an arrow pointing to a vertical line (no text or symbols visible)

Technical line drawing of a mechanical component with ribbed structure and mounting holes (no text or symbols)

Simple line drawing of a conical object with an arrow pointing upward (no text or symbols)

3D rendering of a rectangular grid-patterned object with no visible text or symbols

Line drawing of a rectangular metal frame with evenly spaced slots and two small protrusions at the top (no text or symbols)

Placa de protección

Pure architectural or mechanical diagram with symmetrical grid patterns and a central rectangular block (no text or symbols)

ZGP486NR, ZGP486LR-6 quemadores y parrilla ZGP486ND, ZGP486LD-6 quemadores y plancha

Pure architectural window diagram with symmetrical lattice and central door (no text or symbols)

Pure geometric lattice pattern with interlocking diamond shapes (no text or symbols)

ZGP366N, ZGP366L 6 quemadores a gas

ZGP304N, ZGP304L

Technical diagram of a 17th-century kitchen appliance with numbered components for identification.

Simple line drawing of a cooking pot with a crossed-out black X mark and flames on the base (no text or symbols)

Technical line drawing of a symmetrical geometric pattern with interlocking shapes (no text or symbols)

Line drawing of a wok on a heating table (no text or symbols)

Technical diagram of an oven with numbered components for identification

Technical line drawing of a mechanical assembly with an inset magnified view showing internal components (no text or symbols)

Line drawing of a laboratory setup with multiple bowls and a rack, no visible text or symbols

Technical line drawing of a rack with multiple bowls and a vertical scale labeled A, B, C, D, E (no text or symbols on the diagram itself)

Line drawing of a kitchen appliance with a black X symbol indicating a prohibition or prohibition (no text or symbols present)

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts A, B, C, D, and E.

Diagram of a refrigerator interior showing airflow patterns around the vent (no text or labels)

Technical diagram of a rack-mounted device with labeled components A through E

Technical line drawing of a mechanical assembly with no visible text or symbols

Salida de la sonda

Simple line drawing of a cylindrical object inside a rectangular frame, with a cable inserted (no text or symbols)

©

Line drawing of a mechanical switch component with a circular dial and handle (no text or symbols)

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Diagram showing two arrows pointing at a wall-mounted structure with a finger inserted (no text or symbols)

Line drawing of a wire mesh grid (no text or symbols)

Puerta del horno desmontable

Line drawing of a medical or laboratory instrument with a circular component and a long handle (no text or symbols)

Luces del horno

PRECAUCIÓN:

Technical line drawing of a multi-tiered metal shelf mounted on a wall, with no visible text or symbols.

Pure electrical circuit lines without any symbols

Hand inserting a small object into a wall-mounted device (no text or symbols visible)

Para reemplazar:

Hand holding a tool with an arrow pointing to a vertical line (no text or symbols)

Technical line drawing of a multi-tiered metal shelf or rack structure with mounting holes, shown without any text or symbols.

Architectural line drawing of a window frame structure with slats and grilles (no text or symbols)

3D rendering of a rectangular grid-patterned object with no visible text or symbols

Garante: General Electric Company, Louisville, KY 40225

Printed in Mexico
