EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

22 Care and cleaning

24 Troubleshooting

28 Installation

32 Technical data

34 Customer service

Adjust the temperature for fridge 14

Adjust the temperature for freezer 14

fresh 0°C function 14

Please click the contents to look at the detail information.

Thank you for purchasing a Candy Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Energy lable Quick guide Warranty card

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

RNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.
▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

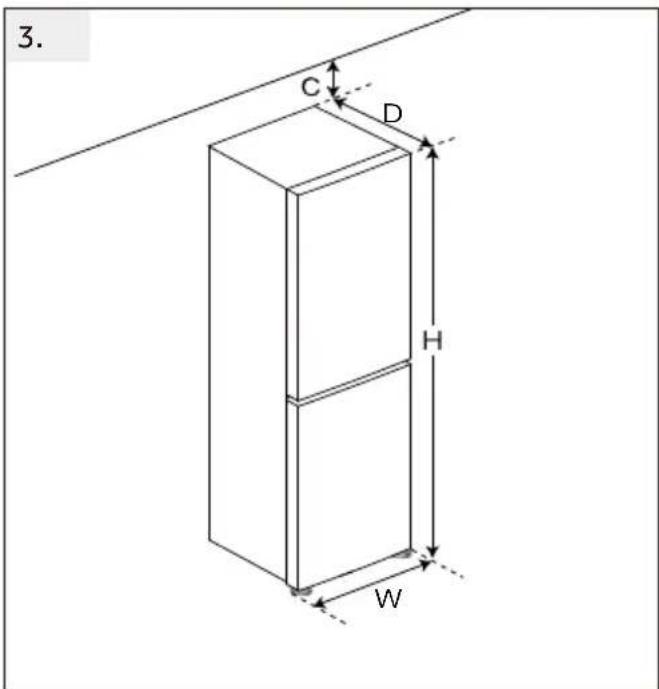

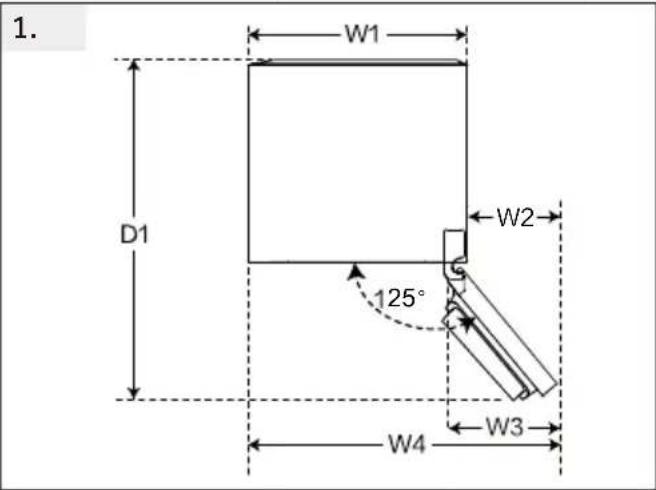

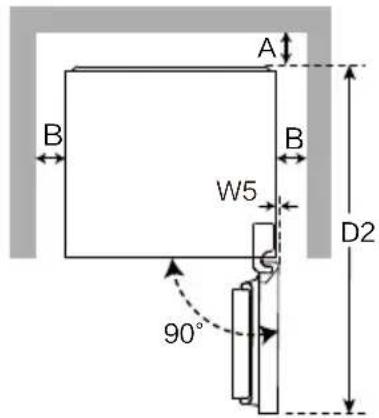

The appliance should be placed in a well-ventilated place. Ensure a space of at least 5 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

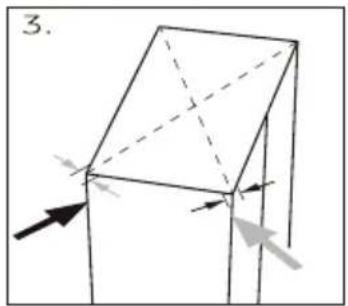

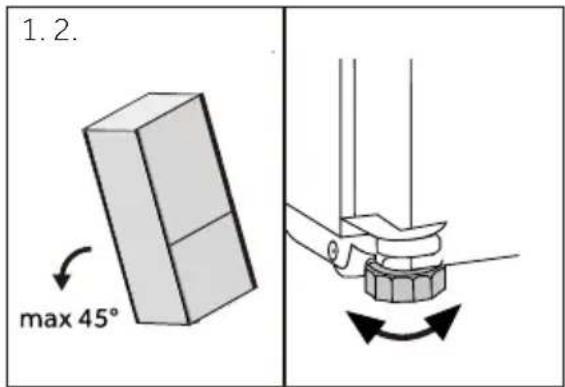

▶ Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature Display or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be acces-sible.

▶ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are con-stantly supervised.

▶ Children shall not play with the appliance.

▶ If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

▶ Notice that the appliance, f or example CNCQ2T518EW、ONCQ2T518EX、G-NCQ2T518EB, CNCQ2T518DW, CNCQ2T518DX, CNCQ2T518EC, CNCQ2T518EG is set for operation at a specific ambient range between 10°C and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.

▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
- When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING!

▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives of CE UK CA

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE or UKCA marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

1 2 3 4 5 6 8 9 10

CNCQ2T518EW

CNCQ2T518EX

CNCQ2T518EB

CNCQ2T518DW

CNCQ2T518DX

CNCQ2T518EC

CNCQ2T518EG

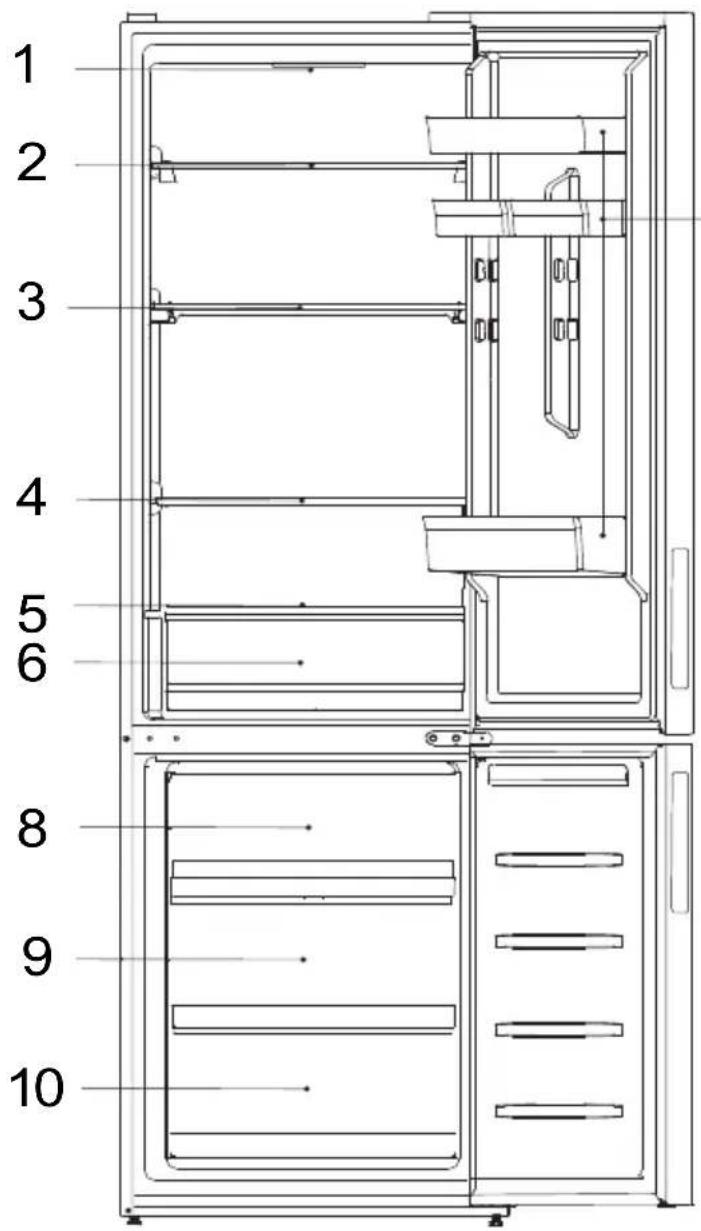

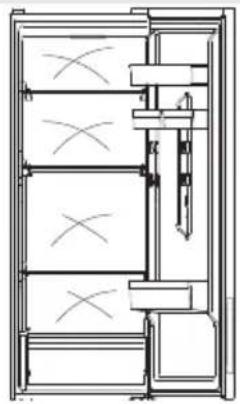

A: Refrigerator compartment

1-Display panel
2-Glass shelf
3-Glass shelf
4-Glass shelf
5-Drawer cover
6- Fresh 0°C drawer
7-Door balcony

B: Freezer compartment

8-Easy access tray
9-Middle freezer storage drawer
10-Lower freezer storage drawer

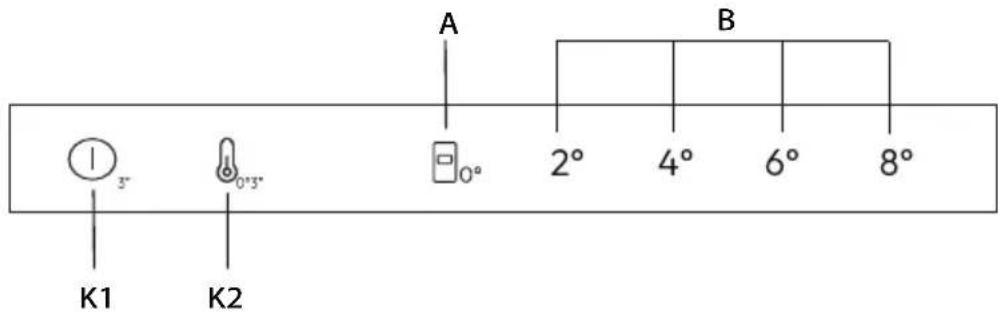

Display panel

A B K1 K2 0°3" 0° 2° 4° 6° 8°

Buttons

K1 Power On/Off, used to switch On/Off the appliance.

K2 Temperature selection

On/Off key, used to switch on/off fresh 0°C.

llndicators

A Fresh 0°C function

B Fridge temperature display

Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environment friendly way.
▶ Clean the inside and outside of the appliance as well as the interior and accessories with water and a mild detergent, and dry it well with soft cloth.

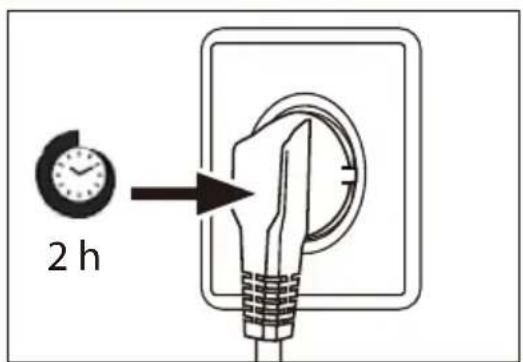

▶ After the appliance has been levelled and cleaned, please wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food.

Mechanical buttons

The buttons on the display panel are mechanical buttons.

Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator "4°" of "B" (Fridge temperature display) and the indicator "☐°" of fresh 0°C drawer illuminates. The fridge temperature and freezer temperature are automatically set to 4°C and -20°C respectively fresh 0°C drawer come into operation.

NOTICE

The appliance is preset to the recommended temperature of 4°C. These are the recommended settings. If desired, you can change these temperatures manually.

Door opening alarm

When the refrigerator door is open for more than 3 minutes, the door opening alarm will sound.

The alarm can be silenced by closing the door. If the door is open for more than 7 minutes, the light inside the refrigerator will automatically turn off, the indicator "6°" of "B" and the indicator "☐ 0°" will flash alternately.

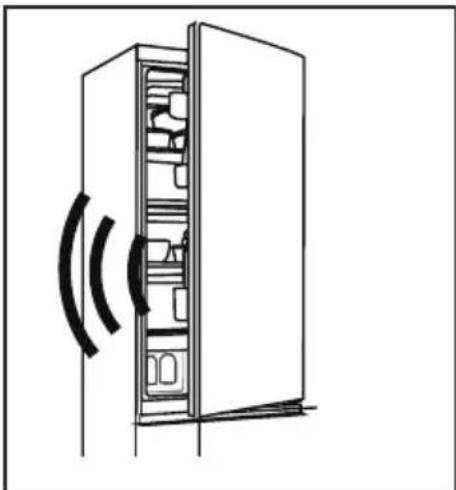

Line drawing of an open refrigerator with a sound wave indicator (no text or symbols)

Power on/off

When the appliance is in the power on, press the K1 button for 3 seconds, the appliance enters standby mode, the compressor stops working, and the light extinguish; When the appliance is in standby mode, press the K1 button for 3 seconds, the appliance is power on, the compressor will work, and the light will be on.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature

Frequency of door opening

Amount of stored foods

Installation of the appliance

Adjust the temperature for fridge/freezer compartment

1. Press the key "K2" (Fridge Temperature Selection) to select the Fridge Temperature;

2. Indicator "B" (Fridge temperature display) will be bright alternately as below;

$$ 2 ^ {\circ} \rightarrow 4 ^ {\circ} \rightarrow 6 ^ {\circ} \rightarrow 8 ^ {\circ} $$

1. After about 3s, the setting will be confirmed.

2. When selecting the Fridge temperature from the Display panel, the corresponding temperature for Freezer is 2^(-22^) 4^(-20^) 6^(-18^) 8^(-16^) .

Adjust the temperature for chill compartment

To enter "fresh 0°C" mode, with the fridge door open, press the K2 for 3 seconds with an acoustic signal, the indicator 📋 0° " Iluminates, the temperature of fresh 0°C will nearby 0°C.

To exit "fresh 0°C" mode, with the fridge door open, press the K2 for 3 seconds and an acoustic signal, the indicator "☐o°" extinguish ";the temperature of the" 0° "drawer will changes with the temperature of the refrigeration.

NOTICE

1. When the room temperature is below 8^ C, and the refrigeration is in the 2^ mode, whether “fresh 0^ C” mode is opened or closed, the temperature of fresh 0^ C drawer nearby 0^ C

Tips on storing fresh food

Storing into the refrigerator compartment

Keep your fridge temperature below 5°C.

Hot food must be cooled to room temperature before storing in the appliance.

Foods stored in the refrigerator should be washed and dried before storing.

Food to be stored should be properly sealed to avoid odor or taste alterations.

Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogeneous cooling.

Foods eaten daily should be stored at the front of the shelf.

Leave a gap between foods and the inner walls, allowing air flowing. In any way, don't store foods against the rear wall: foods could freeze against the rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.

Frozen food can be gently defrizzed in the refrigerator compartment. This saves energy.

The ageing process of fruit and vegetables such as courgettis, melons, papaya, bananas, pineapples, etc. can be accelerated in the refrigerator. Therefore, it is not recommended to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See Care And Cleaning.

Different foods should be placed in different areas according to their properties.

Storage into the freezer compartment

• Keep the freezer temperature at- 18°C.
• Hot food must be cooled to room temperature before storing in the freezer compartment.
• Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg
• It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic.
• In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.

Precautions for the use of chill compartment

- It is suitable for storing ready-to-eat food, such as short-term fish, meat, etc. Most foods can be kept fresh at zero degrees, which is the best choice for storing ready-to-eat fresh food.

- It is not suitable for storing fruits and vegetables in chill compartment-t

WARNING!

Acid, alkali and salt etc. could erode the internal surface of the freezer.

• Do not place the food with these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately.
• Do not exceed the food storage time recommended by the manufacturers. Only take the required amount of food out of the freezer.
• Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may be less edible.
• Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate.
• Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables: 6-12 months).
• While freezing fresh food, avoid bringing them in contact with already frozen food. Risk of thawing!

When storing commercially frozen foods, please follow these guidelines:

• Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines!
- Try to keep the length of time between purchase and storage as short as possible to preserve food quality.
• Buy frozen food, which have been stored at a temperature of -18^ C or below.
- Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and refrozen at some point-temperature rising affects the quality of food.

NOTICE

Due to different models, your product may not have all of the following features. Please refer to chapter Product Description.

Pure technical line drawing of a door or cabinet with no text, numbers, or symbols

Multi-air-flow

The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Diagram showing two hands holding a tray with labeled arrows and numbered sections, likely illustrating a physics or engineering concept.

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

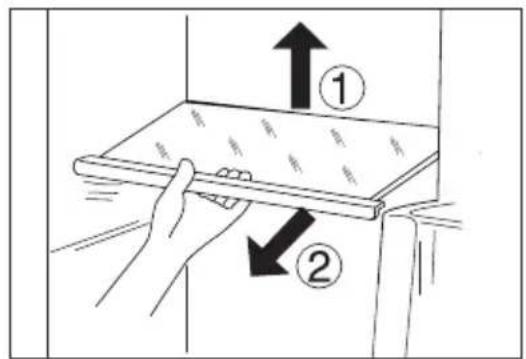

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

Removable door racks/bottle holder

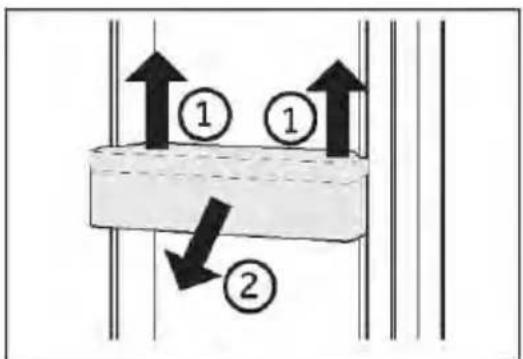

1. The door racks can be removed for cleaning:

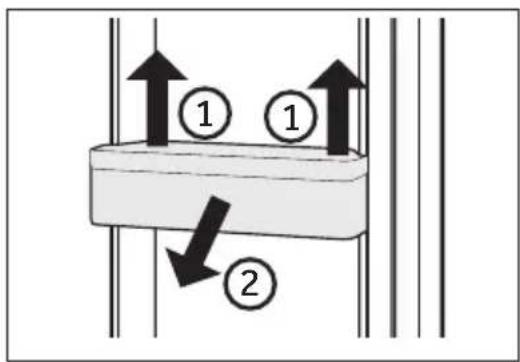

2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Fridge storage drawer

For using and setting the Fridge storage compartment, please check section USE .

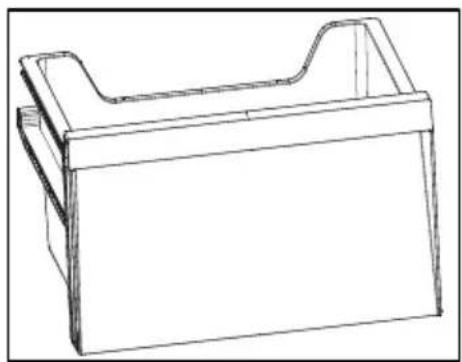

Technical line drawing of a rectangular mechanical part with a U-shaped cutout (no text or symbols)

Freezer drawer

The freezer drawer can be extended straightly and completely. You can store and remove the freezing good comfortably.

Removable drawer

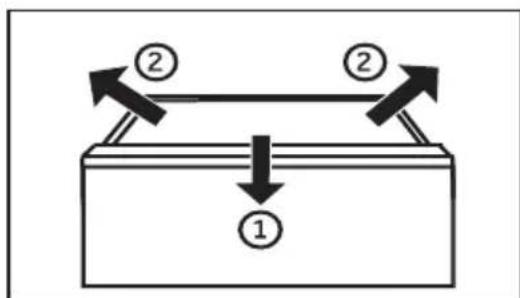

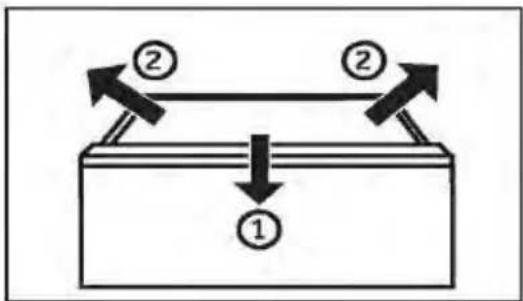

To remove the drawer out, pull out to the maximum extent ①, lift and remove ②.

In order to insert the drawer, the above steps are carried out in reverse order.

Do not overload the drawers: Maximum load of each drawer: 35kg!

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and briefly as possible.
▶ Do not overfill the appliance to avoid obstructing the air flow.
▶ Avoid air within the food packaging.
▶ Keep door seals clean so that the door always closes correctly.

The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance in a factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

▶ Always keep the door gasket clean.

Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
▶ Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.

If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.

In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service

▶ Rinse and dry with soft cloth.

▶ Do not clean any of the parts of the appliance in a dishwasher.

▶ Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 1.5 W

Non-use for a longer period

If the appliance is not used for an extended period of time:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.

▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycleConnect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mis-matched.The required air circulation is not guaranteed.In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.Clean the inside of the refrigerator.Wrap the food thoroughly..

Problem Possible Cause Possible Solution
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appli-ance.	The temperature is set too low.	Reset the temperature.
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the hu-midity decreases.Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	· The goods were not adequately packaged.· A door/drawer of the appliance is not tightly closed.· The door/drawer has been opened too frequently or for too long.· The door/drawer gasket is dirty, worn, cracked or mismatched.· Something on the inside prevents the door/drawer to close properly.	· Always pack the goods well.· Close the door/drawer.· Do not open the door/drawer too frequently.· Clean the door/drawer gasket or replace them by new ones.· Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	· - · This is normal.
The appliance makes abnormal sounds.	· The appliance is not located on level ground.· The appliance touches some object around it.	· Adjust the feet to level the appliance.· Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	· - · This is normal.
You will hear an alarm beep.	· The fridge storage compartment door is open.	· Close the door.
You will hear a faint hum.	· The anti-condensation system is working	· This prevents condensation and is normal
Problem Possible Cause	Possible Solution
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.

▶ Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10°C and 43°C, for this refrigerator, for example, CNCQ2T518EW、CNCQ2T518EX、CNCQ2T518EB, CNCQ2T518DW、CNCQ2T518DX, CNCQ2T518EC,CNCQ2T518EGsince it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators)

Recommended Space

Recommended space when door is opened.

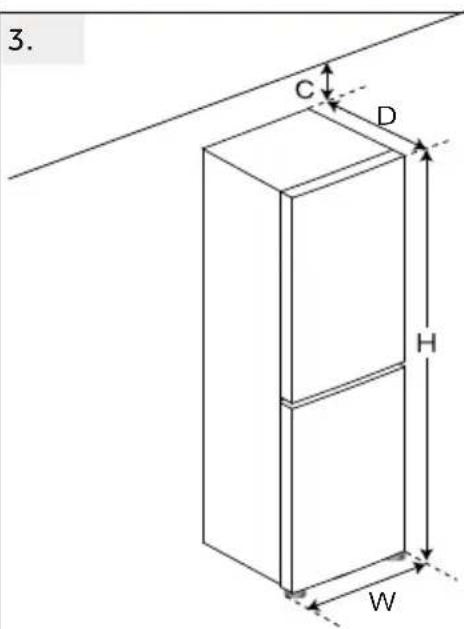

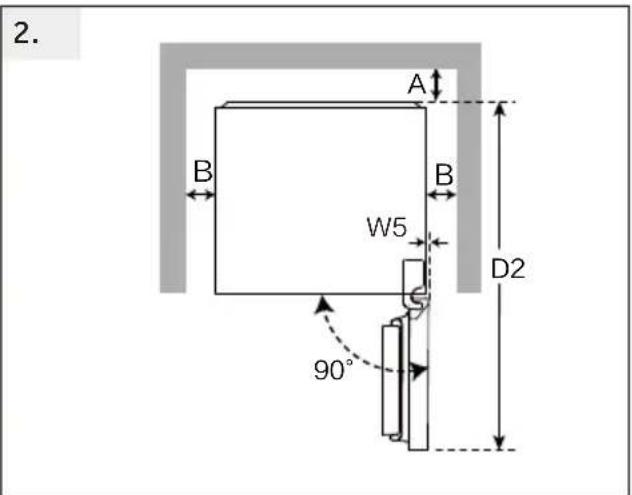

1. W1 D1 W2 125° W4 W3

2. A B W5 B D2 90°

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, it's recommended to observe the information of the ventilation cross sections.

Aigning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the refrigerator slightly backwards.
2. Set the fee to the desired level.

Make sure the distance to the wall on the hinge side is at least 100 mm for the door to open properly.

1.2. max 45°

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

i NOTICE

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

2 h

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

\~ power supply, socket and fusing are appropriate to the rating plate.
\~ the power socket is earthed and no multi-plug or extension.
\~ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Door Reversibility

Before connecting the appliance to the power supply, you should check whether the door swing must be changed from right (as delivered) to left, if this is required by the installation location and the usability.

WARNING!

\~ The appliance is heavy. You need two persons to carry out the door reversibility.
Before any operation, first unplug the appliance from the mains
Do not tilt the appliance more than 45 to prevent damage of the refrigeration system.

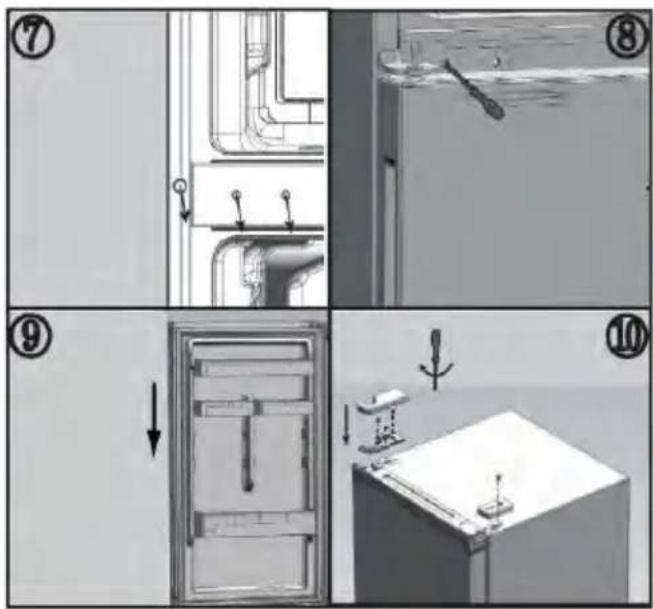

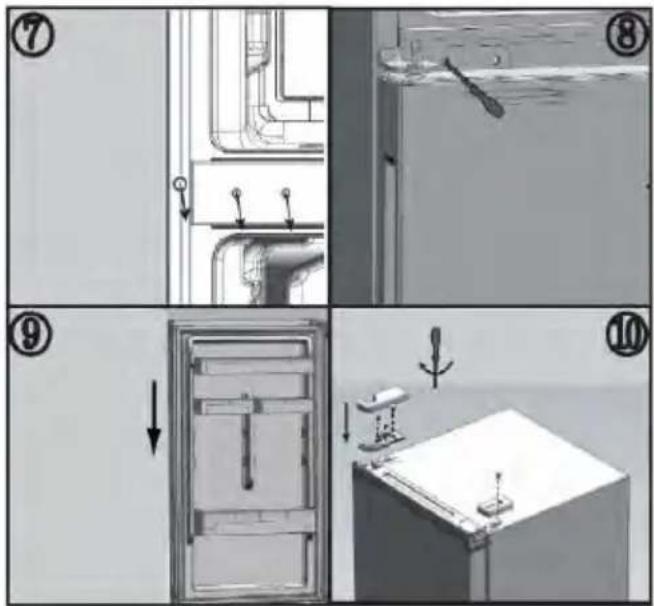

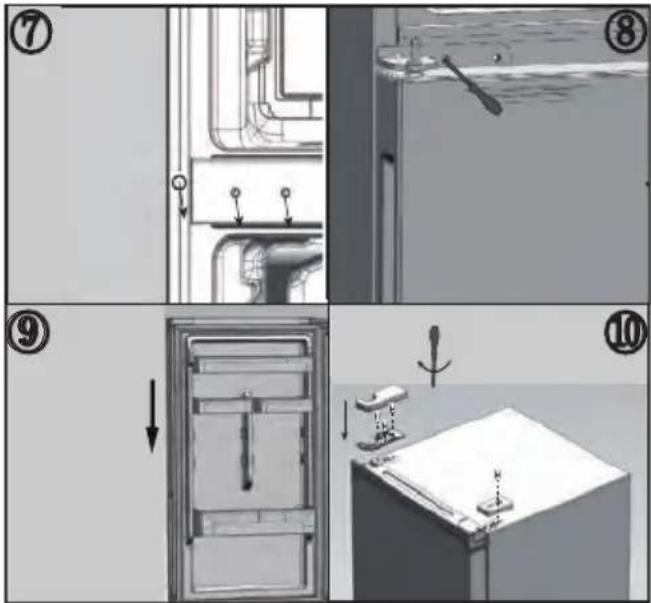

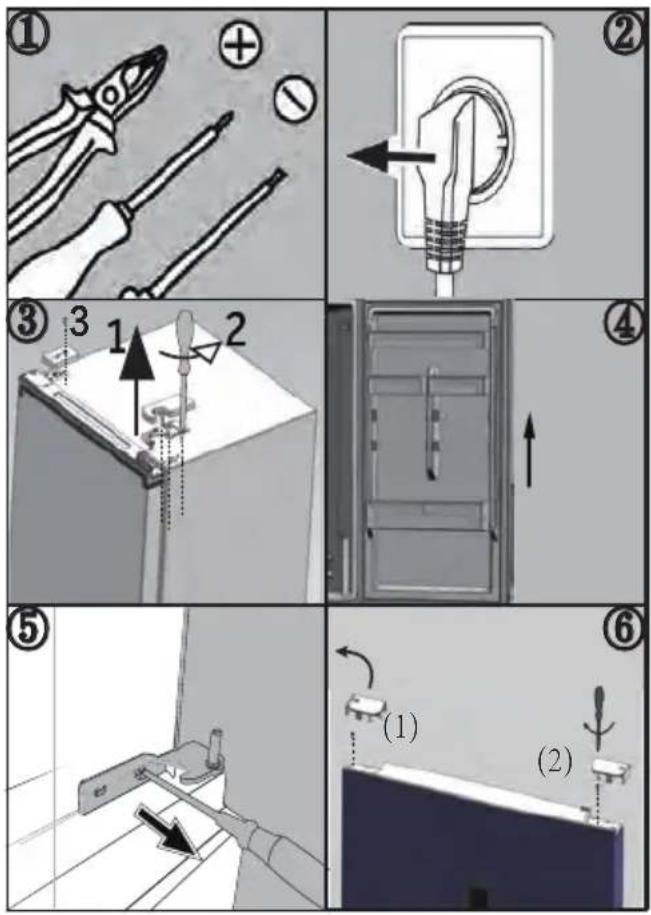

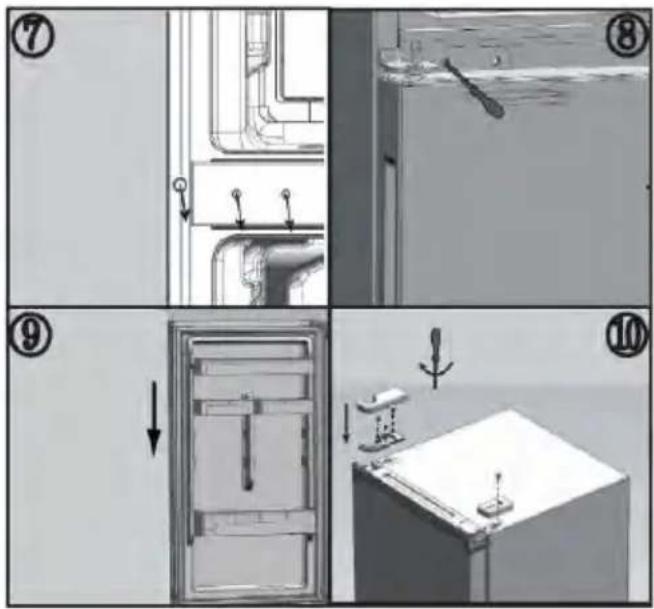

Assembly steps

1. Provide necessary tool.
2. Unplug the appliance.
3. Remove the upper hinge cover 1 and unscrew the upper hinge (three screws) on right side 2 and left 3

4. Lift the loose refrigerator door carefully off the middle hinge.

5. Remove the middle hinge.

6. Turn the door upside down and unscrew the cover (1). Take out the new cover (2) from the necessary bag and screw them to opposite side.

7. Change the positions of the blanking plugs and the screw on the side.

8. Screw the middle hinge to the left side of the appliance. Pay attention to inverting the pivot of the middle hinge, ensuring that the side with the gasket is facing upwards

9. Lift the upper door carefully on the middle hinge. And be sure the pivot fits into the hinge barrel of the lower door.

10. Take out the new upper hinge and hinge cover from the accessory bag. Fix the upper hinge with three screws on left side of appliance. And the put the hinge cover over the hinge.

After the change of the door, check if the door seals are located properly on the housing and all screws are tightened well.

Ambient temperatures

Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C

Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C;

Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C;

Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C.

Product parameters according to regulation (EU)2019/2016

Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located

Model	CNCQ2T518EW CNCQ2T518EX CNCQ2T518EB CNCQ2T518EC CNCQ2T518EG	CNCQ2T518DW CNCQ2T518DX
Type of refrigerating appliance	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E	D
Annual energy consumption (kWh/annum)	237	194
Volume Refrigerator compartment(L)	197	197
Volume Freezer compartment(L)	82	82
Freezing Class	4-star	4-star
Defrosting type	Auto-defrost	Auto-defrost
Temperature rise time(h)	11	11
Freezing capacity(kg/24h)	5	5
Climate class	SN.N.ST.T	SN.N.ST.T
Volume Chill compartment(L)	31	31

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Model	CNCQ2T518EWCNCQ2T518EXCNCQ2T518EBCNCQ2T518ECNCQ2T518EG	CNCQ2T518DWCNCQ2T518DX
Total volume(L)	279	279
Voltage/Frequency	220~240V/50Hz	220~240V/50Hz
Rated current(A)	1.2	1.2
Main fuse(A)	16	16
Refrigerant	R600a(40g)	R600a(40g)
Dimensions(W/D/H in mm)	545*602*1825	545*602*1825

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
our European Call Service-Center (see listed phone numbers below) or
the Service & Support area at www.haier.com where you can activate the service
▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

Serial No.

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES) 902 509 123
Haier Germany (DE) 0180 5 39 39 99		• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT) 0820 001 205		• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

36 Информация за безопасност

41 Предназначение

Simple line drawing of a hand with finger pressing a circular button (no text or symbols)

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a multi-level cabinet or enclosure with internal compartments and doorways (no text or symbols)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Регулируеми рафтове

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Line drawing of a rectangular mechanical part with a U-shaped cutout (no text or symbols)

Чекмедже на фризера

Illustration of a hand cleaning a window with a basin nearby (no text or symbols)

W1 D1 W2 125° W4 W3

1.

A B W5 B D2 90°

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Поддръжка на уреда

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Six-panel diagram illustrating a mechanical or electrical installation procedure with numbered steps and tool tips.

Diagram showing a kitchen interior with numbered steps and labeled components, including handrails, water level, and storage unit.

Westgate House, Westgate, Ealing

London, W5 1YY

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Zapnutí/vypnutí

Technical line drawing of a cabinet or enclosure with multiple compartments and doorways (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a device or panel, with arrows indicating movement or force direction.

Nastavitelné police

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Zásuvka mrazničky

Simple line drawing of a window with a hand near the top and a basin below (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Údržba zařízení

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Ventilační průřez

Diagram illustrating six steps of installing a screwdriver, switch, lamp, door lock, and hand tool with numbered instructions.

Diagram showing a kitchen interior with numbered steps and mechanical components, including valve, door, and refrigerator parts.

Okolní teploty

Westgate House, Westgate, Ealing

London, W5 1YY

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a door with multiple compartments and handles (no text or symbols)

Mehrfach-Luftstrom

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Line drawing of a rectangular mechanical part with two side brackets (no text or symbols)

Gefrierschublade

Illustration of a hand washing clothes near a window with a bowl nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Gerätehalterung

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Lüftungsquerschnitt

Six-step diagram illustrating a mechanical or electrical installation procedure with labeled steps and tool icons.

Diagram showing a kitchen interior with numbered steps and mechanical components, including handrails and a refrigerator.

Westgate House, Westgate, Ealing

London, W5 1YY

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a cabinet or enclosure with multiple compartments and doorways (no text or symbols)

Πολλαπλή ροή αέρα

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Ρυθμιζόμενα ράφια

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Line drawing of a rectangular mechanical part with a U-shaped top and side flange (no text or symbols)

Συρτάρι καταψύκτη

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Συντήρηση Συσκευής

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Διατομή αερισμού

Diagram illustrating six steps of installing a screwdriver, showing tool positioning and component assembly.

Diagram showing a door lock operation with numbered steps and labeled components

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Encendido/Apagado

Technical line drawing of a door frame with multiple compartments and door handles (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

Estantes ajustables

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Line drawing of a rectangular mechanical part with a U-shaped cutout (no text or symbols)

Illustration of a hand cleaning a wall with a basin nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Six-step diagram illustrating a mechanical or electrical installation procedure with labeled steps and tool icons.

Diagram showing a kitchen interior with numbered steps and mechanical components, including handrails and a refrigerator.

Temperaturas ambiente

Westgate House, Westgate, Ealing

Londres, W5 1YY

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Mise au rebut

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Marche/Arrêt

Technical line drawing of a door frame with multiple compartments and doorways (no text or symbols)

Flux multi-air

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

Clayettes réglables

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

Line drawing of a rectangular mechanical part with a U-shaped cutout (no text or symbols)

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Section de ventilation

Six-step diagram illustrating a mechanical or electrical installation procedure with numbered steps and tool tips.

Diagram showing a door lock operation with numbered steps and labeled components

Westgate House, Westgate, Ealing

Londres, W5 1YY

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Be-/kikapcsolás

Technical line drawing of a door with multiple compartments and X-shaped cutouts (no text or symbols)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Állítható polcok

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Hütő tárolófiók

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Fagyasztó fiók

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Six-step diagram illustrating a mechanical or electrical installation procedure with labeled steps and directional arrows.

Diagram showing a door lock operation with numbered steps and labeled components

Westgate House, Westgate, Ealing

London, W5 1YY

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a door with multiple compartments and cross marks (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Ripiani regolabili

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

Cassetto frigo

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Illustration of a kitchen sink with a bed and a hand washing it near a window (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Diagram illustrating six steps of installing a screwdriver, switch, lamp, door lock, and clamp mechanism with numbered instructions.

Diagram showing a kitchen interior with numbered steps and mechanical components, including valve, door, and refrigerator parts.

Temperature ambiente

Westgate House, Westgate, Ealing

London, W5 1YY

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Verwijdering

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Aan/uit

Technical line drawing of a door with multiple compartments and X-shaped cutouts (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Verstelbare planken

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Koelkastlade

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Vriezerlade

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Diagram illustrating six steps of installing a screwdriver, showing tool application, component insertion, door opening, and mounting mechanism.

Diagram showing a door installation procedure with numbered steps and labeled components

Westgate House, Westgate, Ealing

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Zasilanie Wł./Wył.

Technical line drawing of a door with multiple compartments and X-shaped cutouts (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a device with internal components, likely illustrating a physical or engineering concept.

Regulowane półki

Diagram showing fluid flow with numbered arrows and circular indicators, likely illustrating a physical or mathematical process.

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Szuflada zamrażarki

Simple line drawing of a hand cleaning a window with a basin nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Six-step diagram illustrating a mechanical or electrical installation procedure with numbered steps and tool tips.

Diagram showing a door lock operation with numbered steps and labeled components

Westgate House, Westgate, Ealing

Londyn, W5 1YY

Simple line drawing of a hand cursor clicking a button with a circular icon (no text or symbols)

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Ligar/Desligar

Technical line drawing of a door with multiple compartments and X-shaped cutouts (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Gaveta de armazenamento do frigorífico

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Gaveta do congelador

Simple line drawing of a window with a hand near the top and a basin below (no text or symbols)

Substituir as lâmpadas LED

AVISO!

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Diagram illustrating six steps of installing a wall-mounted electrical socket, with numbered instructions and component diagrams.

Diagram showing a door lock operation with numbered steps and labeled components

Temperaturas ambiente

Westgate House, Westgate, Ealing

London, W5 1YY

B: Compartiment congelator

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Pornire/oprire

Technical line drawing of a door with multiple compartments and X marks (no text or symbols)

Flux de aer multiplu

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surfaces, possibly illustrating a physical or engineering concept.

Rafturi ajustabile

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Line drawing of a rectangular mechanical part with a U-shaped top and side profile (no text or symbols)

Sertar congelator

Simple line drawing of a kitchen sink with a cloth and a bowl, no text or symbols present

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Westgate House, Westgate, Ealing

Londra, W5 1YY

Simple line drawing of a hand with finger pressing a circular button (no text or symbols)

A: Chladiaci priestor

1-Zobrazovací panel

2-Sklenená polica

3-Sklenená polica

4-Sklenená polica

5-Kryt zásuvky

6-Zásuvka Fresh 0°C

7-Priehradky na dverách

B: Mraziaci priestor

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Zapnutie/vypnutie

Technical line drawing of a door with multiple compartments and X-shaped cutouts (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Nastavitelné police

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Zásuvka na skladovanie v chladničke

Line drawing of a rectangular mechanical part with two side brackets (no text or symbols)

Zásuvka mrazničky

Diagram showing two labeled components (① and ②) with bidirectional arrows between them, likely representing a mechanical or electrical system.

VAROVANIE!

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Údržba spotrebiča

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Diagram illustrating six steps of installing a wall-mounted electrical socket, with numbered instructions and component diagrams.

Diagram showing a door lock operation with numbered steps and labeled components

Westgate House, Westgate, Ealing

London, W5 1YY

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Odstranjevanje

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Vklop/izklop napajanja

Technical line drawing of a door with multiple compartments and X marks (no text or symbols)

Več pretokov zraka

Diagram showing two labeled arrows (① and ②) pointing to a device with textured surfaces, possibly illustrating a mechanical or electrical process.

Nastavljive police

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Predal za shranjevanje v hladilniku

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Predal zamrzovalnika

Simple line drawing of a washing machine and a basin (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Vzdrževanje naprave

Napravo je treba postaviti na ravno in trdo površino.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Westgate House, Westgate, Ealing

London, W5 1YY

*Trajanje garancije hladilnega aparata:

Simple line drawing of a hand with finger pressing a button (no text or symbols)

Line drawing of a refrigerator with doors open and hanging, showing sound waves (no text or symbols)

Architectural floor plan showing room layouts and doorways (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surfaces, possibly illustrating a physics or engineering concept.

Podesive police

Diagram showing two labeled arrows (① and ②) pointing upward and downward through a liquid container, likely illustrating fluid flow or pressure concepts.

Technical line drawing of a mechanical part with a U-shaped groove (no text or symbols)

Ladica zamrzivača

Ladice zamrzivača mogu se izvući ravno i to do samog kraja. Možete bez poteškoća pohraniti i ukloniti zamrznute namirnice.

Uklonjiva ladica

Prilikom uklanjanja ladice, izvucite je do samog kraja ①, podignite i izvadite ②. Prilikom ponovnog postavljanja ladice provedite opisane korake obrnutim redoslijedom.

UPOZORENJE!

Nemojte prenatrpati ladice: Maksimalni kapacitet svake ladice: 35 kg!

Svjetlo

Simple line drawing of a kitchen sink with a bowl and a hand holding a bag (no text or symbols)

Brtva vrata uvijek mora biti čista.
Očistite unutrašnjost i kućište uređaja spužvom navlaženom toplom vodom i neutralnim deterdžentom.
Očistite unutrašnjost i vanjske površine hladnjaka, uključujući brtve vrata, police na vratima, staklene police, kutije i tako dalje. Koristite mekani ručnik ili spužvu natopljenu toplom vodom (možete dodati neutralni deterdžent u toplu vodu).

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Održavanje uređaja

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Presjek ventilacije

Westgate House, Westgate, Ealing

London, W5 1YY

Simple line drawing of a hand with finger pressing a button (no text or symbols)

Kliknite na sadržaj da biste pogledali detaljne informacije.

Hvala vam što ste kupili proizvod kompanije Candy.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Odlaganje u otpad

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Architectural floor plan showing room layouts and door placements (no text or labels)

Višestruki protok vazduha

Diagram showing two labeled arrows (① and ②) pointing to a tray with contents, indicating movement or force direction.

Podesive police

1. Visina polica može se podesiti tako da odgovara vašim potrebama u pogledu čuvanja hrane.
2. Da biste premestili policu, prvo je uklonite podizanjem zadnje ivice ① i izvlačenjem ②.
3. Da biste je ponovo postavili, stavite je na držače sa obe strane i gurnite je što je moguće dublje dok se zadnji deo police ne učvrsti unutar bočnih ureza

Demontažne police u vratima / držači za flaše

1. Nosači u vratima se mogu ukloniti radi čišćenja:
2. Stavite šake sa obe strane police, podignite je nagore ① i izvucite je ②.
3. Da biste vratili nosač u vrata, obavite gorenavedene korake obrnutim redosledom.

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a liquid container, with numbered circles indicating positions.

Fioka frižidera za čuvanje

Line drawing of a mechanical part with a U-shaped groove and rectangular base (no text or symbols)

Fioka zamrzivača

Fioka zamrzivača se može produžiti ravno i u potpunosti. Proizvode za zamrzavanje možete lako da čuvate i vadite.

Demontažna fioka

Da biste izvadili fioku, izvucite je u najvećoj mogućoj meri①, podignite i izvadite je ②. Da biste ubacili fioku, obavite gorenavedene korake obrnutim redosledom.

UPOZORENJE!

Nemojte da preopteretite fioke: Maksimalno opterećenje svake fioke: 35 kg!

Svetlo

Unutrašnja LED lampica se uključuje kada se otvore vrata. Na učinak svetla ne utiče nijedna postavka uređaja.

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

▶ Uvek održavajte zaptivku vrata čistom.
▶ Očistite unutrašnjost i kućište uređaja sunderom natopljenim toplom vodom i neutralnom deterdžentu.
Oribajte unutrašnjost i spoljašnjost frižidera, uključujući zaptivku vrata, policu u vratima, staklene police, kutije itd. koristeći meku krpu ili sunder umočen u toplu vodu (možete da dodate neutralni deterdžent u toplu vodu).

Ako se prolije tečnost, uklonite sve zaprljane delove, direktno isperite pod tekućom vodom, osušite i vratite nazad u frižider.
Ako se prolije gusta tečnost (na primer, šlag, otopljeni sladoled), uklonite sve zaprljane delove, stavite u toplu vodu od oko 40 °C neko vreme, a zatim isperite pod tekućom vodom, osušite i vratite nazad u frižider.
▶ U slučaju da se neki mali deo ili komponenta zaglavi unutar frižidera (između polica ili fioka), oslobodite ih malom četkom. Ako niste mogli da dođete do dela, obratite se servisnoj službi kompanije Haier
▶ Isperite i osušite mekom krpom.
▶ Nemojte da čistite nijedan deo uređaja u mašini za pranje sudova.
▶ Sačekajte najmanje 7 minuta pre ponovnog uključivanja uređaja, jer često uključivanje može oštetiti kompresor.

Odmrzavanje

Odmrzavanje frižidera i zamrzivača se vrši automatski, tako da ne morate to da radite ručno.

Zamena LED lampica

UPOZORENJE!

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Održavanje uređaja

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Westgate House, Westgate, Ealing

London, W5 1YY

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Architectural floor plan showing room layouts and doorways (no text or labels)

Мультипотік повітря

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with internal patterns, possibly illustrating a physics or engineering concept.

Регульовані полиці

Diagram showing two labeled arrows (① and ②) pointing upward and downward within a container, with arrows indicating flow or movement.

Line drawing of a rectangular mechanical part with a U-shaped top and side gap (no text or symbols)

Illustration of a hand washing clothes near a sink with a basin nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with an arrow indicating direction (no text or symbols)

Diagram illustrating six steps of installing a screwdriver, showing tool positioning and component assembly.

Diagram showing a door installation procedure with numbered steps and labeled components

Westgate House, Westgate, Ealing

London, W5 1YY

Simple line drawing of a hand with finger pressing a circular button (no text or symbols)

Klik på indholdet for at se detaljerede oplysninger.

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Tænd/sluk

Technical line drawing of a door with multiple compartments and a knife (no text or symbols)

Multi-luftstrømning

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surface, possibly illustrating a physical or engineering concept.

Justerbare hylder

Line drawing of a rectangular mechanical part with a curved top and base (no text or symbols)

Fryseskuffe

Simple line drawing of a kitchen sink and bowl on a surface, with no text or symbols present.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Westgate House, Westgate, Ealing

London, W5 1YY

Line drawing of a refrigerator with doors open and hanging, showing sound waves (no text or symbols)

Technical line drawing of a door with multiple X-shaped cutouts and internal compartments (no text or symbols)

Moni-ilmavirtaus

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surface, possibly illustrating a physical or engineering concept.

Säädettävät hyllyt

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, possibly indicating forces or movement in a mechanical or electrical setup.

Line drawing of a rectangular mechanical part with a curved top and base (no text or symbols)

Pakastinlaatikko

Simple line drawing of a kitchen sink and bowl with a hand cleaning the window (no text or symbols)

3. C D H W

(Unit: mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Laitteen huolto

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Slå av/på

Når apparatet er slått på, trykker du på K1-knappen i 3 sekunder, apparatet går inn i standby-modus, kompressoren slutter å fungere og lyset slukkes. Når apparatet er i standby-modus, trykker du på K1-knappen i 3 sekunder, apparatet slås på, kompressoren fungerer og lyset lyser.

Juster temperaturen

Technical line drawing of a door with multiple X-shaped cutouts and a handle (no text or symbols)

Multi-luftstrøm

Diagram showing two labeled arrows (① and ②) pointing to a rectangular object with textured surface, possibly illustrating a physical or engineering concept.

Justerbare hyller

Line drawing of a rectangular mechanical part with a curved top and base (no text or symbols)

Fryseskuff

Fryseskuffen kan trekkes ut rett og fullstendig. Du kan lagre og fjerne frysevaren komfortabelt.

Avtakbar skuff

Simple line drawing of a kitchen sink with a hand cleaning the wall (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

8- Easy access-bricka

Line drawing of a refrigerator with doors open and hanging sound waves (no text or symbols)

Slå på/stänga av

Technical line drawing of a door with multiple compartments and a handle (no text or symbols)

Flera luftflöden

Diagram showing two hands holding a tablet with arrows labeled ① and ② indicating direction of movement or force.

Justerbara hyllor

Line drawing of a rectangular mechanical part with a curved top and base (no text or symbols)

Fryslåda

Simple line drawing of a hand cleaning a window with a bowl nearby (no text or symbols)

3. C D H W

(Unit : mm)	Model
Width	W1	545
	W2	311
	W3	357
	W4	856
	W5	5.5
	W	545
Depth	D1	/
	D2	1103
	D	602
Distance to back wall	A	50
Distance to lateral walls	B	50
Distance to ceiling	C	100
Overall Height	H	1825

100 mm 50 mm 50 mm 50 mm

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Line drawing of a refrigerator with doors open and hanging, showing sound waves (no text or symbols)

التشغيل/الإيقاف
