USER MANUAL SPT-U300-1A4 Vevor

Affordable. Reliable. Home Improvement.

Server Rack Shelf

Model: SPT-U300-1A/SPT-U300-2A SPT-U300-1A(4)

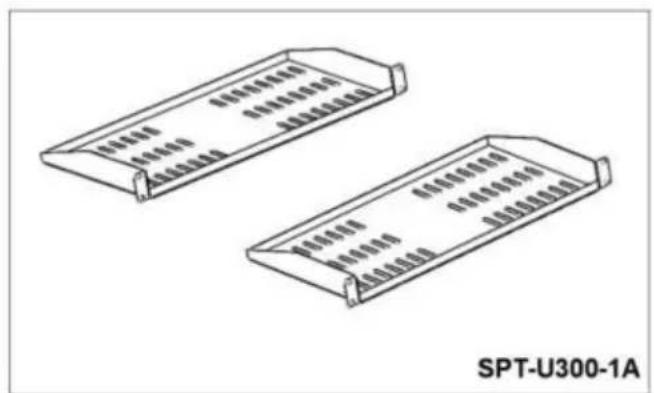

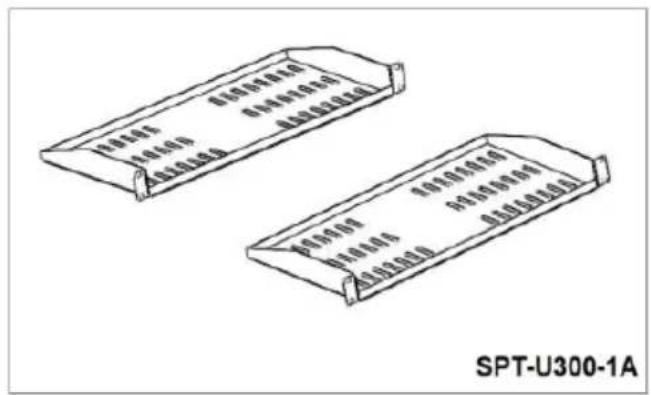

SPT-U300-1A

Isometric line drawing of a 3D rectangular device with internal grid patterns, labeled SPT-U300-2A (no text or symbols on the diagram itself)

Four identical isometric views of a rectangular electronic component with no visible text or symbols

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This product contains small items that could be a choking hazard-keep these items away from children.

SPECIFICATION DATA

PRODUCT PARAMETER

Name	Server Rack Shelf

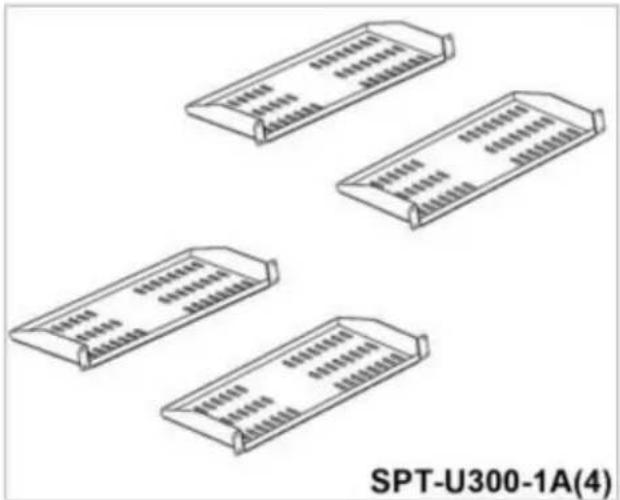

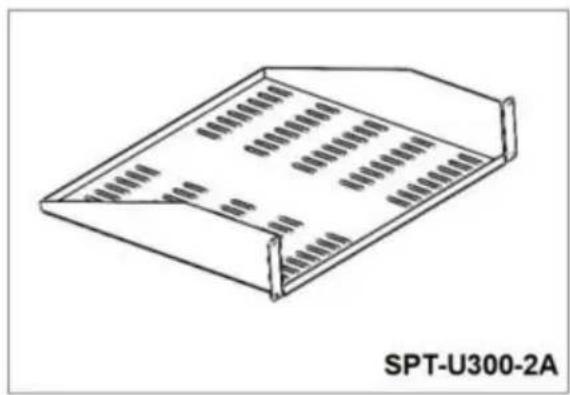

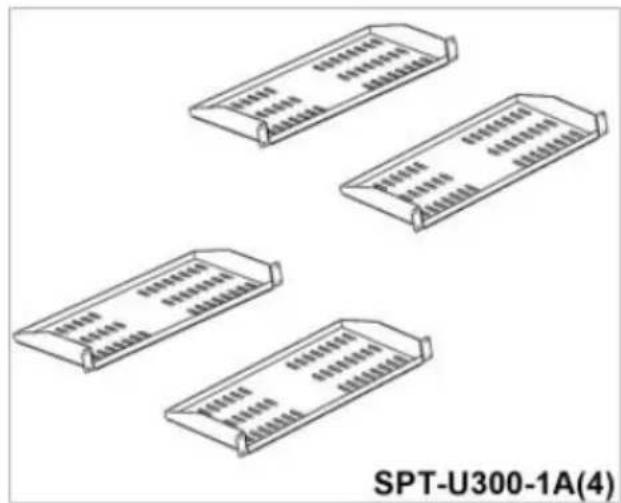

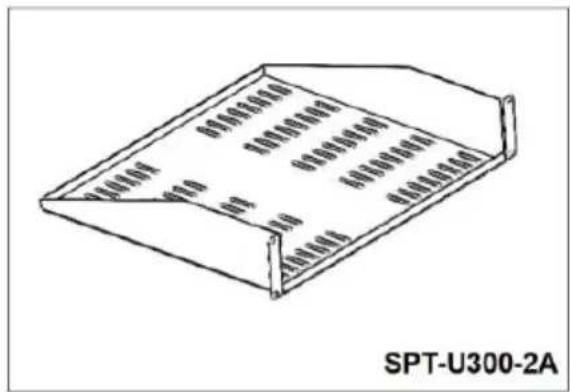

Model	SPT-U300-1A	SPT-U300-2A	SPT-U300-1A(4)
Material	Cold Roll Steel
Color	Black
Installation Width Standard	19"
Depth	10"	16"	10"
Mounting Height	1U	2U	1U
Max weight Capacity	22 kg/50 lbs
Product Size (L*W*H)	480*250*43mm	480*410*90mm	480*250*43mm
Quantity Per Package	2pcs	1pcs	4pcs
Product Weight	3.10Kg	2.45Kg	6.30Kg
Accessories	10 x M6 cage nuts; 10 x M6*12 cross head screws; 1 x Instruction manual.	6 x M6 cage nuts; 6 x M6*12 cross head screws; 1 x Instruction manual.	20 x M6 cage nuts; 20 x M6*12 cross head screws; 1 x Instruction manual.

SYSTEM REQUIREMENTS

● EIA-310 compliant 19 inch server rack/cabinet.
- At least 1U(for SPT-U300-1A & SPT-U300-1A(4)) and 2U(for SPT-U300-2A) of available space in rack/cabinet to mount shelf.
- If using a rack/cabinet that does not use square mounting points at the posts, the appropriate mounting hardware for the rack will be required (consult documentation for the rack or contact the manufacturer).

INSTALLATION

1. Locate a suitable location in the rack/cabinet to mount the shelf. The shelf itself requires 1U(for SPT-U300-1A & SPT-U300-1A(4)) and 2U(for SPT-U300-2A) of space within the rack/cabinet.
2. If the rack uses square mounting holes, install the included cage nut into the square mounting holes on the front posts of the rack.
3. Place the shelf into the rack and align the mouting points on the brackets of the shelf with the mounting points on the rack(for example cage nuts,if used).
4. Use the provided cabinet screws to secure the shelf to the rack.if using the included cage nuts or M6 threaded rack posts,the appropria mounting hardware for the rack should be used.

Make sure that the screws are properly tightened and the shelf has movement before attempting to place anything on the shelf.be sure to observe the maximum weight capacity of the shelf.
