USER MANUAL Rocketboy XXL Klarfit

10021591 10021593 10021595

Rocketboy XXL

Rocketgirl XXL

Rocketstart XXL

Trampolin

Trampoline

Tappeto elastico

Cama elástica

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Unfallursachen 6

Close-up of hands holding a metal pipe or lever against a textured surface (no visible text or symbols)

Close-up of hands holding a metal pipe joint, no visible text or symbols

Circular metal trampoline with a cross-shaped slot on the front pan (no text or symbols visible)

Close-up of a person wearing a black hard hat and belt, standing near a cylindrical object (no visible text or symbols)

Exterior view of a round trampoline table outdoors with trees in the background (no signage or text visible)

Interior view of a warehouse or industrial facility with large metal pipes and machinery (no visible text or symbols)

Person holding a small object near a metal rod, possibly part of a device or tool (no visible text or symbols)

Modern geometric sculpture with curved and straight panels, no visible text or symbols

Outdoor trampoline with a circular pool and metal frame, surrounded by trees and a small pond (no text or symbols visible)

Outdoor trampoline with metal poles in a park setting, surrounded by trees and hills (no visible text or symbols)

Close-up of a metal bracket with a cylindrical object and attached lever against a clear sky (no text or symbols visible)

Close-up of hands adjusting a dark fabric item (no visible text or symbols)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Causes of Accidents 18

Methods for Accident Prevention 19

Individual Parts 21

Assembly 22

Individual Parts of the Safety Net 24

Assembly of the Safety Net 25

Manufacturer & Importer (UK) 26

SAFETY INSTRUCTIONS

• Read this manual carefully before setting up and using the device. Safe and effective use of the device can only be achieved if the device is properly set up, maintained and used. Make sure that all persons using this device are informed about the warnings and safety instructions.
• Before training on this device, seek medical attention and check for physical or health conditions that may prevent the safe and efficient use of this device. If you are taking any medication that affects blood pressure, heart rate, or cholesterol, it is important to consult a physician before you start exercising.
• Pay attention to the signals of your body. Wrong or excessive exercise can be harmful. Stop exercising immediately if you notice any of the following symptoms: chest pain or tightness, irregular heartbeat, extreme shortness of breath, signs of lightheadedness, dizziness or nausea. If you notice any of these symptoms, you should consult a doctor before continuing.

- This device is not intended to be used by persons (including children) with limited physical, sensory or mental faculties or with a lack of experience and / or lack of knowledge, unless directed or supervised by a person responsible for their safety or familiarized with instructions on how to use the device. Children should be supervised to ensure that they do not play with the device.

- Set up the device on a dry and even surface.

- Before each workout, make sure that all screws and fasteners are properly tightened.

- The safety of the device can only be guaranteed if the device is regularly cleaned and examined for possible damage or wear and tear.

- Only use the device as intended. If you discover any defective components during setup or inspection, or if you notice any unusual noises on the device during exercise, stop exercising immediately. Only use the device again after the problem has been identified and solved.

- Wear appropriate clothing when using the device. Avoid loose clothing that could catch on the unit and restrict your freedom of movement.

- The device is approved for domestic use.

- The device is not suitable for therapeutic use.

- Be careful when lifting or moving the unit. Use back-friendly lifting techniques and seek assistance in moving the device.

- Remove items under the trampoline.

- Do not use in rain, wind or thunderstorms. Do not leave outdoors in bad weather. The frame of the trampoline can conduct electricity. Do not allow to come into contact with electricity. Caution during thunderstorms.

- Inspect the trampoline for damaged, worn or broken parts before each use. These can damage the safety of the trampoline and must be replaced immediately. The trampoline may only be used again after these are restored.

- Avoid objects that could catch, such as clothing with hooks.

DANGER

Risk of injury! There must never be more than one person jumping on the trampoline: risk of injury due to collisions. Do not attempt a somersault: there is a risk of landing on the head, which in the worst cases can cause paralysis or even death.

Small objects / packaging parts

Keep small objects and packaging out of the reach of children to prevent children from swallowing them. Do not let small children play with plastic film.

Transport of the device

Please keep the original packaging. To ensure adequate protection during transport, pack the device in its original packaging.

Cleaning the outer surface

Do not use volatile liquids, such as insect sprays. Excessive pressure during wiping can damage the surfaces. Do not use abrasives or other chemical cleaning agents. A soft cloth is enough.

Usage

• The use of the trampoline is not suitable for medical and / or professional purposes.
• The body weight of the user must not exceed 150 kg. Danger for children.
• Children should not use the trampoline unattended.
• Trampolines are not suitable those with a height of under 51 cm or for children under 8 years of age. These children cannot assess the dangers of playing. Accordingly, the trampoline should be inaccessible to children and pets when it is stored.

Notes on setup

• Keep a safety distance of 8 m to electrical cables, branches, pools, grills and fences.
• Set up only on a level, firm and uniform ground.

CAUSES OF ACCIDENTS

Somersaults

No somersaults may be performed on the trampoline, as a landing on the head or neck can lead to neck or back injuries or even paralysis and death. Injuries may even be caused by uncontrolled jumping back and forth.

Multiple users at the same time

Several users who use the trampoline at the same time automatically increase the risk of accidents. These users could collide, land incorrectly or even fall off the trampoline.

Getting on and off

Please be very careful when getting on and off of the trampoline. Do not jump onto the trampoline from higher locations (ladder, roof, etc.). Young children may need help getting on and off. Do not climb onto the cover pads. Hold onto the frame as you dismount.

Frame and springs

When jumping you should always focus on the middle of the trampoline. This reduces the risk of falling when landing on the frame or the springs. Frames and springs must always be completely covered by the cover mats.

Loss of control

Incorrectly landing on the spring mat, frame or cover mat as well as falling from the trampoline can lead to injuries. Basic jumps must be mastered before making more difficult jumps. If the jumper is tired or attempts a jump that exceeds his or her ability, there is a risk of losing control. To regain control of a jump, pull in your knees.

Foreign objects

Do not use the trampoline if pets, people or objects are under the trampoline. While jumping, do not hold anything in your hands or place anything on the trampoline. When another user uses the trampoline, you should make sure that there are no branches, power cables etc. above the trampoline.

Faulty maintenance

Always inspect the trampoline for torn or worn mats and covers, bent frames, missing parts, loose or broken springs, and frame stability before use. Defective or worn parts must be replaced immediately. Until fully restored, do not use the trampoline.

Bad weather

The trampoline should only be used in good weather. A wet jumping mat is too slippery to jump on properly. In gusty or strong winds, you risk losing control while jumping. This trampoline is intended for in-house use.

Unlimited access

When the trampoline is not in use, the access area should be closed so that children cannot play on the trampoline unattended.

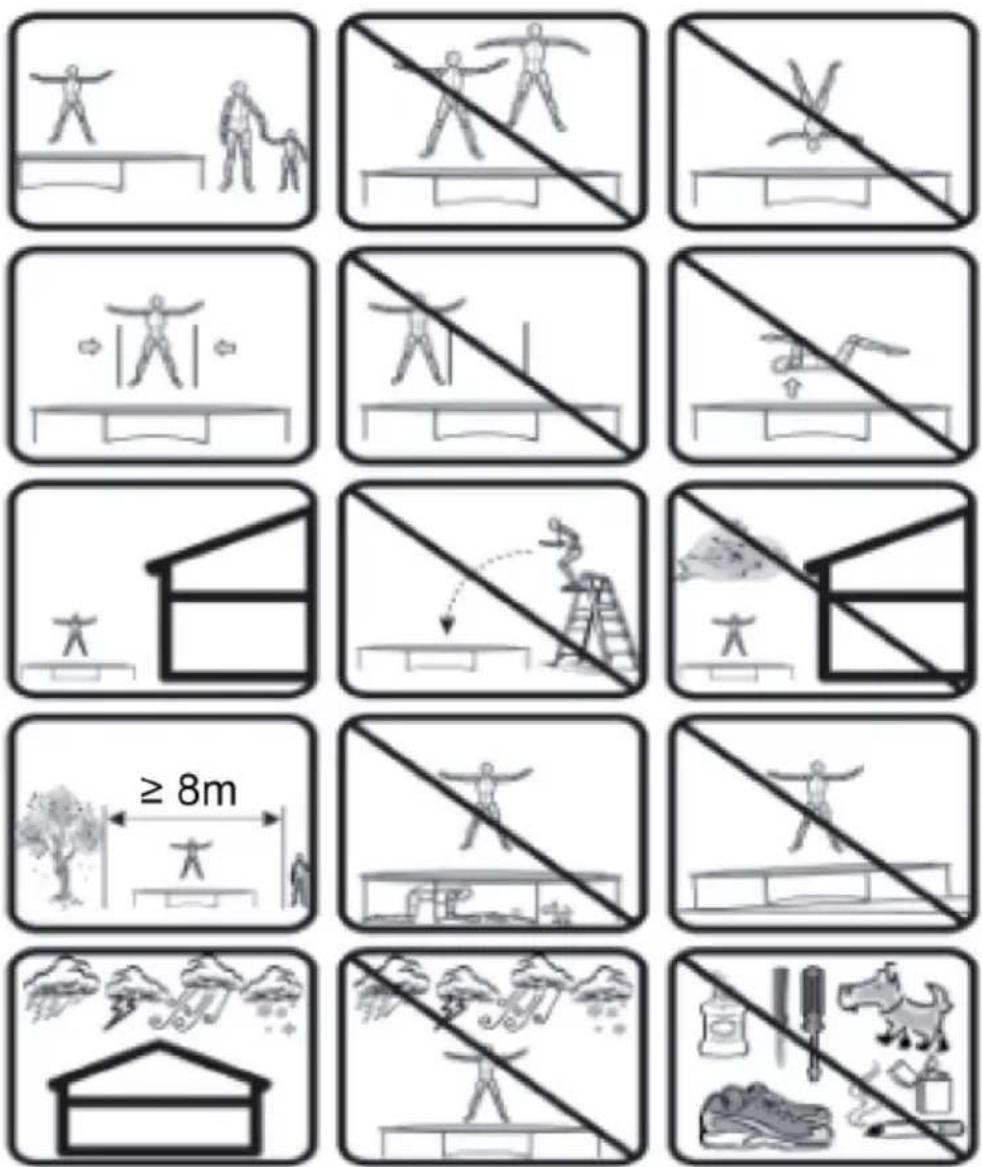

METHODS FOR ACCIDENT PREVENTION

User:

Basic knowledge of the trampoline is a must. The user should first learn how to perform a low and above all controlled jump, and in addition the basic landing positions and combinations before starting with advanced jumping exercises. It is important that all users understand why the jumps must performed in a controlled manner. A controlled jump means that the jump and the landing are the same (see „Basic Jumping Techniques“ section). Learn more about training material from trained trampoline instructors.

Supervisor:

The safety instructions should be strictly followed and enforced by the supervisor. All users of the trampoline should be well informed by the supervisor. If no supervision can be guaranteed, the trampoline must be dismantled. In addition, the user must be informed by the supervisor about all warnings.

INDIVIDUAL PARTS

Note: The device is designed to be put together by two physically fit adults. Persons involved in the assembly should wear protective footwear, gloves and sturdy clothing.

1	2

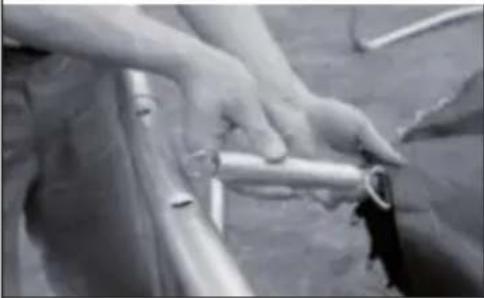

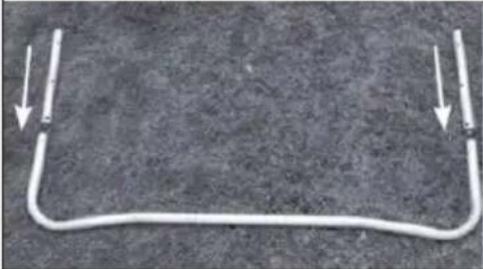

Slide the foot and extension pieces together so that the holes line up. The narrow end of the extension should face upwards.	Slide the guides together to form a circle. When closing the circle, 2 people may be required, with one person using the last guide and the other holding the scaffold up on the opposite side.

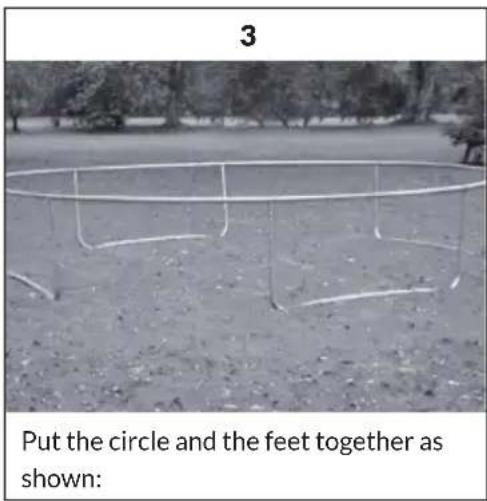

3 Put the circle and the feet together as shown:

4

Close-up of hands holding a metal pipe or lever against a textured surface (no visible text or symbols)

Close-up of hands holding a metal pipe joint, no visible text or symbols

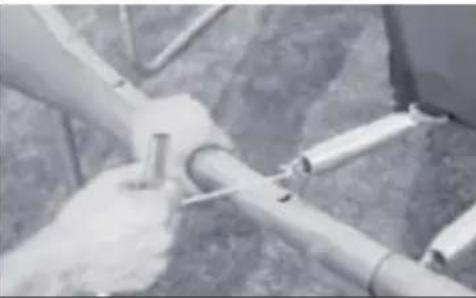

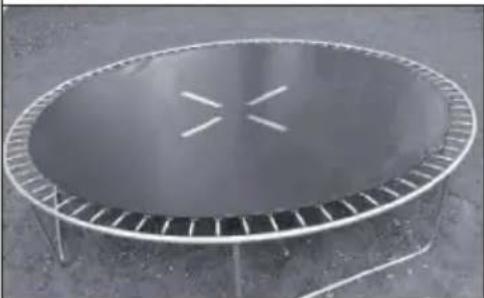

Lay the jumping mat with the stitched side down hitting in the middle of the frame and begin to connect the jump mat to the frame and using the spring. To do this, use the spring pinch point as shown.

Attention! Risk of injury from the spring snapping open or shut.

5

Circular metal trampoline with a cross-shaped slot on the front pan (no text or symbols visible)

Close-up of a black metal bracket attached to a cylindrical structure, with trees in the background (no visible text or symbols)

Lay out the cover so that all springs are covered. Secure the fit of the cover afterwards.

6

Exterior view of a round trampoline table outdoors with trees in the background (no signage or text visible)

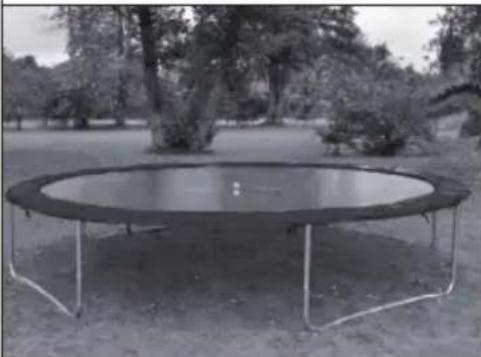

Thoroughly recheck the assembly after completing the work.

INDIVIDUAL PARTS OF THE SAFETY NET

	∅ 244cm	∅ 305cm	∅ 366cm	∅ 400cm	∅ 427cm
Locking screws	12x	12x	16x	16x	16x
Joint	6x	6x	8x	8x	8x
Rod connector	6x	6x	8x	8x	8x
Upper rod	6x	6x	8x	8x	8x
Lower rod	-	6x	8x	8x	8x
Net	1x	1x	1x	1x	1x
Tool	1x	1x	1x	1x	1x

ASSEMBLY OF THE SAFETY NET

1

Interior view of a warehouse or industrial facility with large metal pipes and machinery (no visible text or symbols)

Person holding a tool near a metal bracket, industrial background visible (no text or symbols)

Modern minimalist sculpture with geometric metal supports and a central circular design (no text or symbols visible)

Insert the lower rods as shown and screw them together.

2

Outdoor trampoline with circular frame, surrounded by trees and a small water feature (no text or symbols visible)

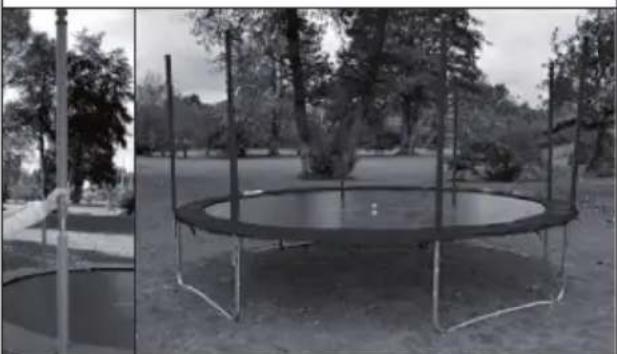

Fix the upper rods to the upper rods as shown.

3

Outdoor trampoline with metal frame and vertical poles, surrounded by trees (no text or symbols visible)

Close-up of a metal bracket with a cylindrical object attached, against a clear sky (no text or symbols visible)

Close-up of hands handling a dark fabric or material (no visible text or symbols)

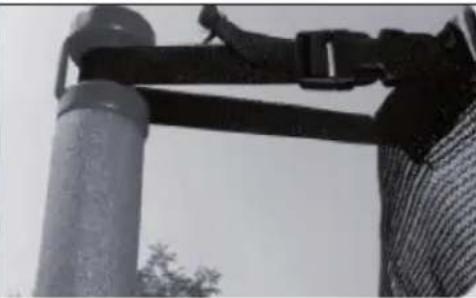

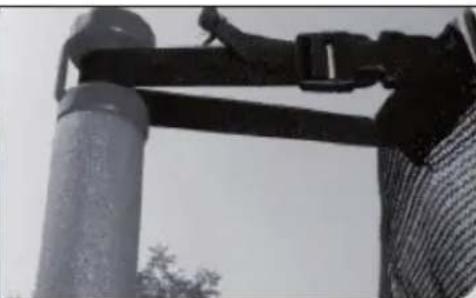

Place the net in the center and clamp it to the upper rods as shown. The zipper must be aligned with the floor and facing outwards. Connect nets and mat.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

Causas de accidentes 30

Close-up of hands holding a metal pipe or lever against a dark background (no visible text or symbols)

Close-up of hands holding a metal pipe joint, no visible text or symbols

Circular metal trampoline with a cross-shaped slot on the floor, set against a plain background (no text or symbols visible)

Close-up of a metal bracket with attached cable, mounted on a cylindrical pole against a clear sky (no text or symbols visible)

Oval trampoline table outdoors in a park with trees and shrubs (no text or symbols visible)

Interior view of a warehouse or industrial facility with large metal pipes and machinery (no visible text or symbols)

Person holding a small object near a vertical metal structure (no visible text or symbols)

Modern minimalist table with geometric cutouts and metal supports (no text or symbols visible)

Outdoor trampoline with a circular pool and metal frame, surrounded by trees and a small pond (no text or symbols visible)

Outdoor trampoline with metal poles in a park setting, surrounded by trees and hills (no visible text or symbols)

Close-up of a metal bracket with a cylindrical object and attached lever against a clear sky (no text or symbols visible)

Close-up of hands adjusting a dark fabric or garment with a zipper (no visible text or symbols)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Outdoor view of a large oval-shaped fence structure on a grassy field, with trees and a distant figure (no text or symbols visible)

Outdoor view of a large oval-shaped fence structure on a grassy field, with trees and a distant figure (no text or symbols visible)

Close-up of hands holding a metal pipe or lever against a textured surface (no visible text or symbols)

Close-up of hands holding a metal pipe joint, no visible text or symbols

Circular metal trampoline with a cross-shaped slot on the front pan (no text or symbols visible)

Close-up of a person wearing a black hard hat and belt, standing near a cylindrical object (no visible text or symbols)

Exterior view of a round trampoline table outdoors with trees in the background (no signage or text visible)

Interior view of a warehouse or industrial facility with large metal pipes and machinery (no visible text or symbols)

Person holding a small object near a metal rod, possibly part of a device or tool (no visible text or symbols)

Modern minimalist table with geometric cutouts and metal supports (no text or symbols visible)

Black-and-white outdoor photo of a round trampoline with metal frames, surrounded by trees and a small water feature (no text or symbols visible)

Outdoor trampoline with metal poles in a park setting, surrounded by trees and hills (no visible text or symbols)

Close-up of a metal bracket with attached lever mechanism against a plain background (no text or symbols visible)

Close-up of hands adjusting a dark fabric or garment with a zipper (no visible text or symbols)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Close-up of hands holding a metal pipe or lever against a textured surface (no visible text or symbols)

Close-up of hands holding a metal pipe joint, no visible text or symbols

Circular metal trampoline with a cross symbol on the front pan (no text or labels visible)

Close-up of a person wearing a black hard hat and belt, standing near a cylindrical object (no visible text or symbols)

Oval trampoline table outdoors in a park with trees and shrubs (no text or symbols visible)

Interior view of a warehouse or industrial facility with large metal pipes and machinery (no visible text or symbols)

Person holding a small object near a vertical metal structure (no visible text or symbols)

Modern geometric sculpture with curved and straight panels, no visible text or symbols

Outdoor trampoline with a circular pool and metal frame, surrounded by trees and a small pond (no text or symbols visible)

Outdoor trampoline with metal poles in a park setting, surrounded by trees and hills (no visible text or symbols)

Close-up of a metal bracket with a cylindrical object and attached lever against a clear sky (no text or symbols visible)

Close-up of hands adjusting a dark fabric item (no visible text or symbols)

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
