Product Type	Ground anchor stake for fence post
Brand	Vevor
Model	FX-3.5-24-4
Material	Steel
Color	Black
Height	24 inches (61 cm)
Compatible wood size	3.5 inches
Quantity per lot	4 pieces
Fixation type	M8×38 bolts and M8 nuts
Tools required	Hammer, level, Phillips screwdriver
Recommended use	Anchoring fence posts, mailboxes, various supports
Installation	Drive into ground using a hammer, then tighten bolts
Maintenance	Clean regularly, check for rust and tighten bolts
Safety	Wear gloves, keep children away during installation
Warranty	Electronic warranty via www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, China

Frequently Asked Questions - FX-3.5-24-4 Vevor

How to install the post anchor?

Place the anchor at the desired location, insert a piece of wood into the base, then drive it into the ground using a hammer. Check the level. Then, place the post and tighten the bolts.

Is it suitable for all soil types?

It works well in most soils. In dry, rocky, or hard soil, it is recommended to dig a hole slightly smaller than the anchor's diameter and insert then screw.

Can I use it for a mailbox post?

Yes, it fits standard 10.2 x 10.2 cm posts (internal 8.9 x 8.9 cm), perfect for most mailboxes.

What tools are needed?

You will need a hammer or mallet, a level, and a Phillips screwdriver to tighten the bolts.

Does the anchor require concrete?

No, it is designed to be driven directly into the ground without needing cement.

Is it rust resistant?

The material is steel with a black coating, which offers some protection. Regular maintenance is recommended to prevent rust.

What is the driving depth?

It depends on the soil, but you need to drive the anchor until the base is flush with the ground, typically about 20-30 cm.

Can the anchor be removed after installation?

Yes, it can be removed by unscrewing or pulling it out of the ground, depending on the model.

What is the load capacity?

The load capacity depends on the soil and fixation. For standard fence use, it supports typical post loads.

Are spare parts available?

Yes, M8 bolts and nuts are supplied and available as spares through Vevor support.

User questions about FX-3.5-24-4 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Fence post anchor in PDF format for free! Find your manual FX-3.5-24-4 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FX-3.5-24-4 by Vevor.

USER MANUAL FX-3.5-24-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FENCE POST ANCHOR GROUND SPIKE

MODEL: FX-3.5-24-8 FX-3.5-24-4 FX-3.5-24-6 FX-3.5-36-8

FX-3.5-36-4 WGB-3.7-24-4 WGB-3.7-24-6 WGF-2-34-2

WGF-2-34-4 UX-3.5-27-1 UX-3.5-27-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FENCE POST ANCHOR

GROUND SPIKE

FX-3.5-24-8
FX-3.5-24-4
FX-3.5-24-6
FX-3.5-36-8
FX-3.5-36-4
WGB-3.7-24-4
WGB-3.7-24-6
WGF-2-34-2
WGF-2-34-4
UX-3.5-27-1
UX-3.5-27-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

INTRODUCTION

WARNING:

ASSEMBLY PRECAUTIONS

Keep children and pets away during assembly.
Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
Separate and count all parts and hardware.
Prepare the following tool: Philips Head Screwdriver.
Follow the intended uses only.

Save the instructions.

PRODUCT PARAMETERS

Model	Qty	Color	Material	Wood size to suitable	Height
FX-3.5-24-8	8	Black	Steel	3.5”	24”
FX-3.5-24-4	4	Black	Steel	3.5”	24”
FX-3.5-24-6	6	Black	Steel	3.5”	24”
FX-3.5-36-8	8	Black	Steel	3.5”	36”
FX-3.5-36-4	4	Black	Steel	3.5”	36”
WGB-3.7-24-4	4	Black	Steel	3.5”	24”
WGB-3.7-24-6	6	Black	Steel	3.5”	24”
WGF-2-34-2	2	Black	Steel	/	34”
WGF-2-34-4	4	Black	Steel	/	34”
UX-3.5-27-1	1	Silver	Steel	3.5”	27”
UX-3.5-27-4	4	Silver	Steel	3.5”	27”

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any parts are missing or damaged.

Model	Accessory
FX-3.5-24-8	M8×38	16pcs	M8	16pcs	/	/
FX-3.5-24-4	M8×38	8pcs	M8	8pcs	/	/
FX-3.5-24-6	M8×38	12pcs	M8	12pcs	/	/
FX-3.5-36-8	M8×38	16pcs	M8	16pcs	/	/
FX-3.5-36-4	M8×38	8pcs	M8	8pcs	/	/
WGB-3.7-24-4	M4.8*30	24pcs	M4.8*50	12pcs		1pcs
WGB-3.7-24-6	M4.8*30	36pcs	M4.8*50	18pcs		1pcs
WGF-2-34-2	M4.8*50	8pcs		1pcs	/	/
WGF-2-34-4	[HYSX]M4.8*50	16pcs		1pcs	/	/
UX-3.5-27-1	[4HBG]M8*60	6pcs	Rebar	1pcs	/	/
UX-3.5-27-4	M8*60	24pcs	[HBG4]Rebar	1pcs	/	/

INSTALLATION METHODS

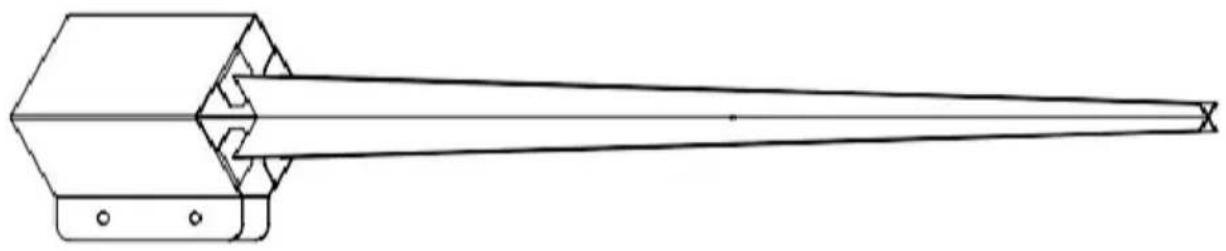

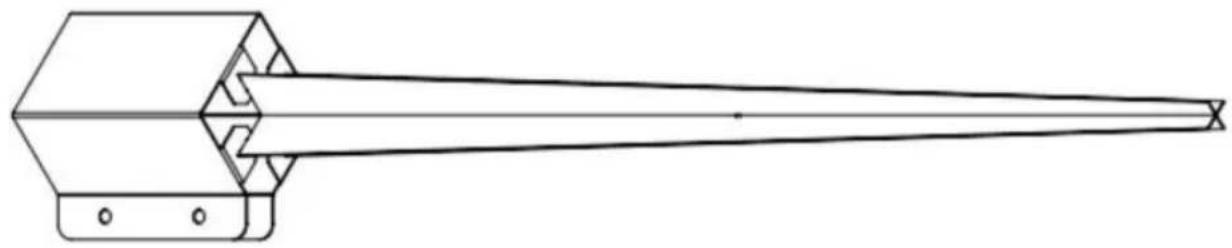

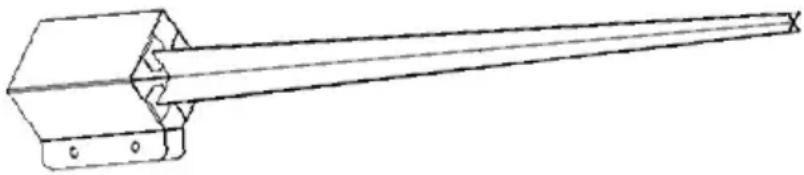

Technical line drawing of a mechanical component with symmetrical features and a tapered shaft (no text or symbols).

Black-and-white photo of a simple geometric sculpture or marker on grass, no text or symbols visible.

Black-and-white photo of a mechanical device with a hammer striking a surface, no visible text or symbols.

Close-up of a vertical metal frame mounted on grass, with a small tool nearby (no text or symbols visible).

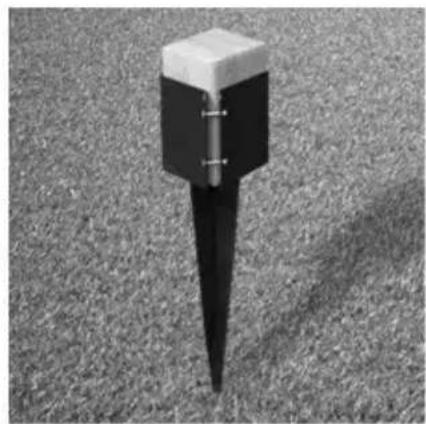

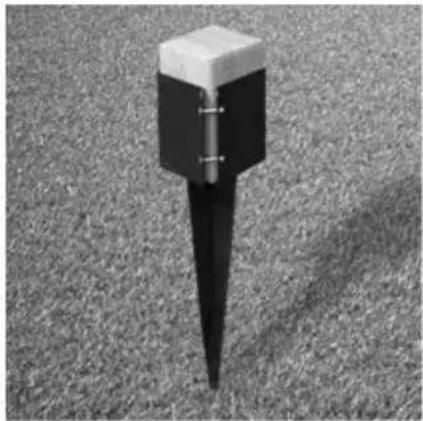

Place the post anchor in the desired position. Get a scrap piece of wood and insert it into the post base.

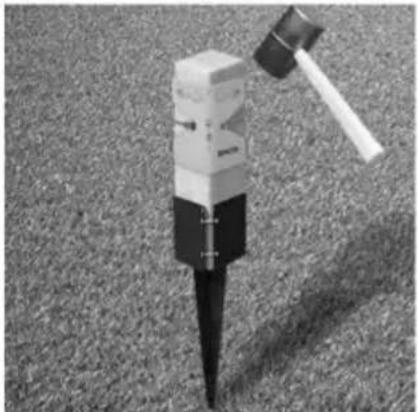

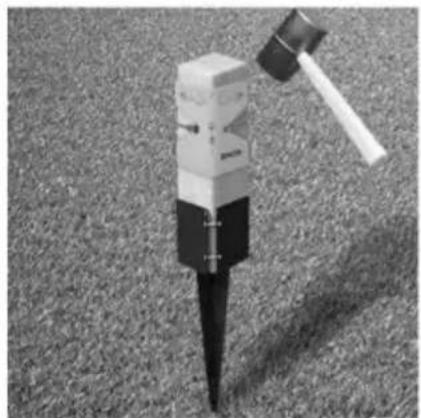

Using a club hammer or heavy-duty sledgehammer (not included), drive the post into the ground. Measure with a level while hammering.

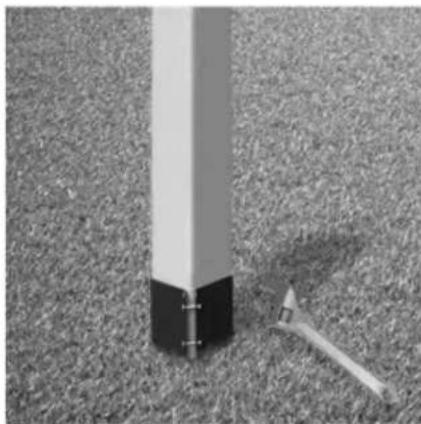

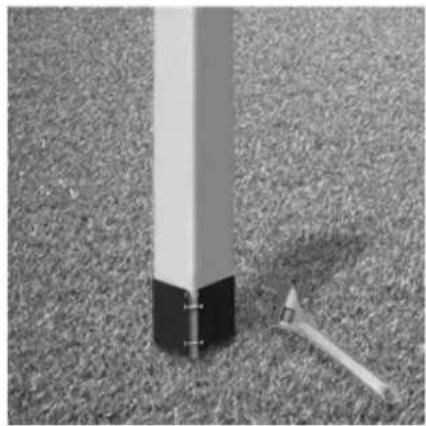

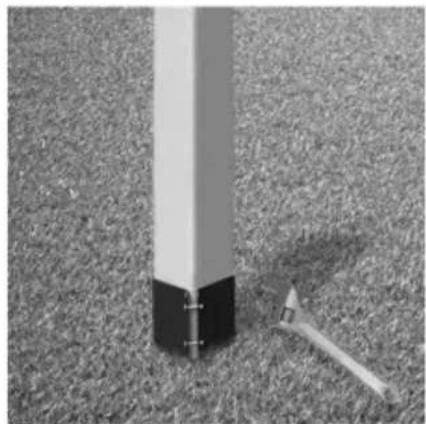

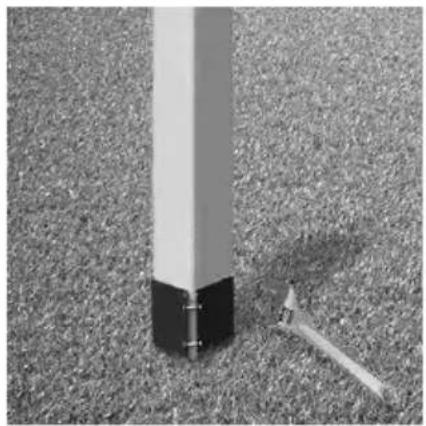

Once the post is securely in the desired position, place your post and tighten the bolts to further prevent movement.

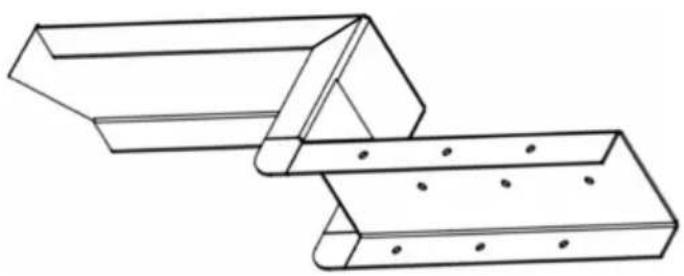

Technical line drawing of two stacked metal beams with holes, no text or symbols present.

Vevor FX-3.5-24-4 - INSTALLATION METHODS - 6

Vevor FX-3.5-24-4 - INSTALLATION METHODS - 7

Vevor FX-3.5-24-4 - INSTALLATION METHODS - 8

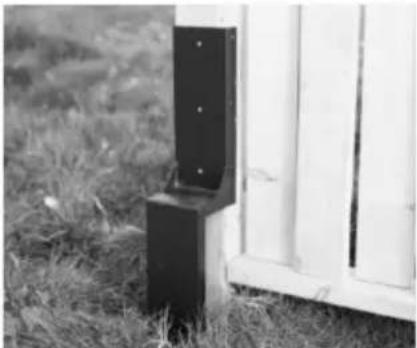

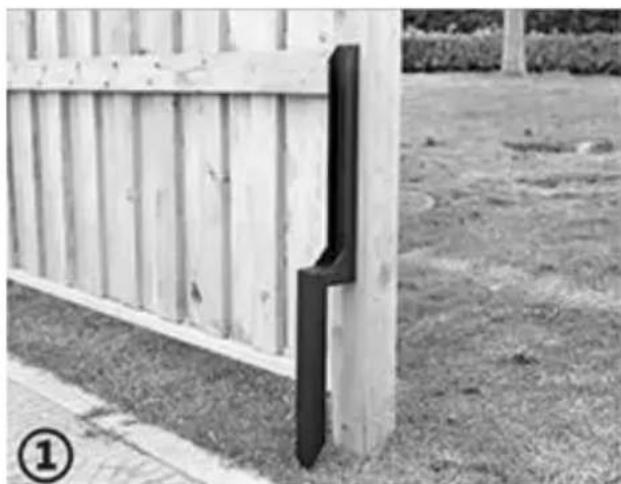

Snap the bracket into the wooden post and keep it perpendicular to the ground.

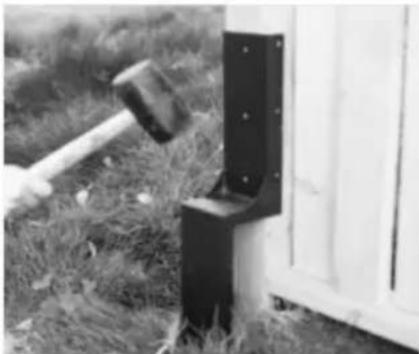

Tap the bracket so that it goes deep into the ground until it is flush with the ground.

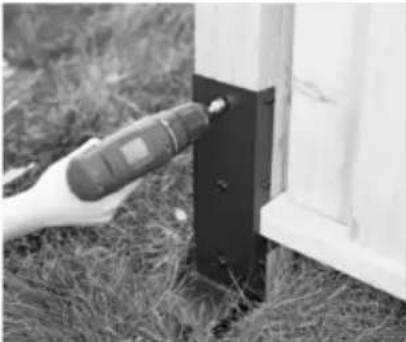

Drill out the pre-set holes and lock in the screws separately to complete the installation.

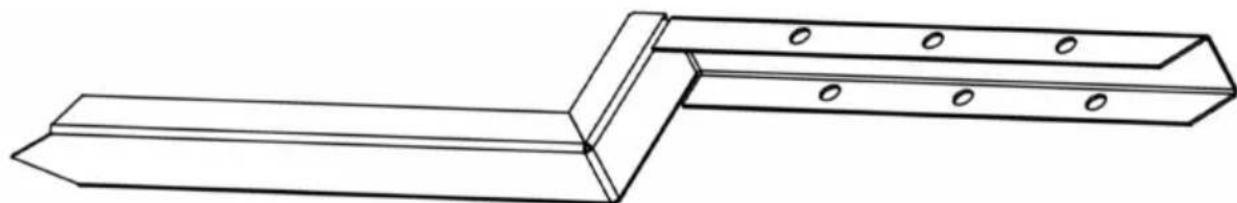

Technical line drawing of a mechanical bracket with mounting holes (no text or symbols).

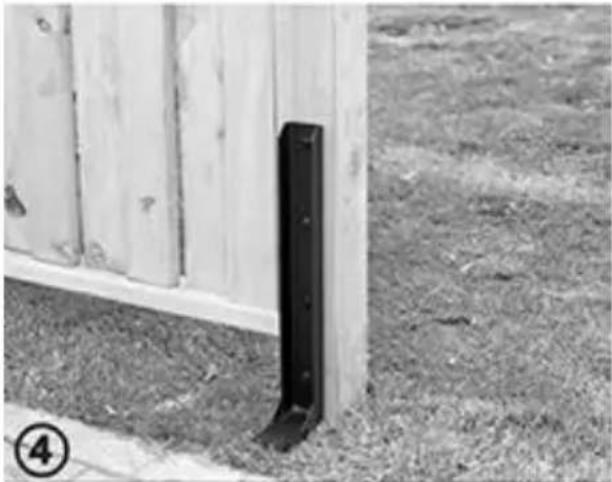

Exterior view of a wooden fence with a black metal bracket attached to a post (no signage or text visible).

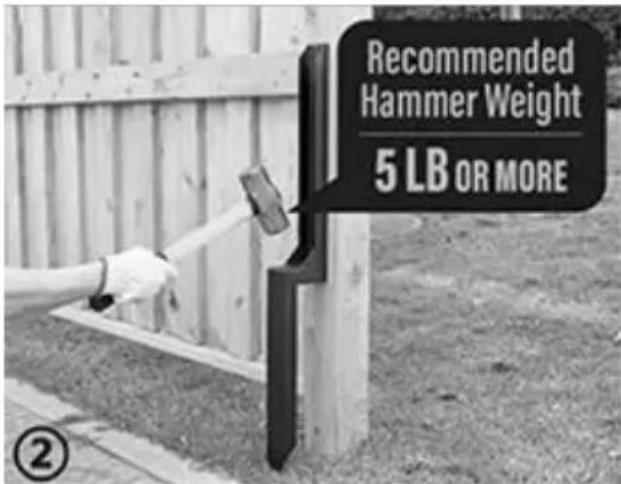

Recommended Hammer Weight: 5 LB OR MORE

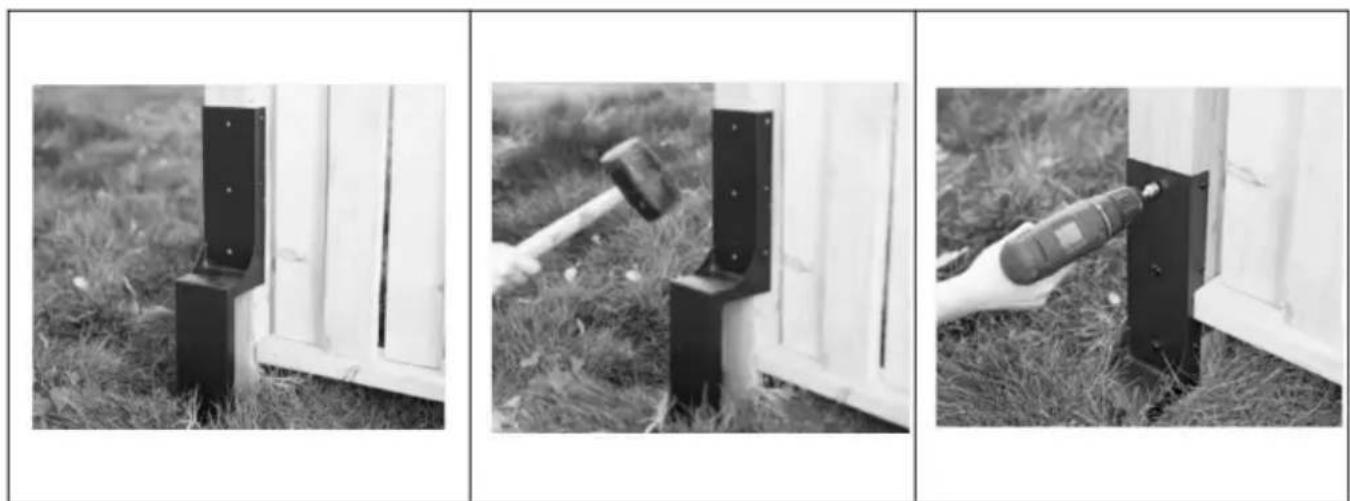

Attach the repair bracket to t post.	Hammering anchor nails into t ground.

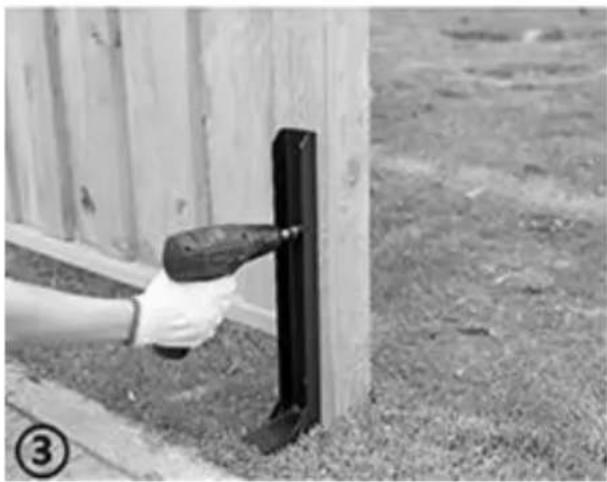

Drill pre-set holes and drill in screws.	Finish the installation.

Line drawing of a mechanical screw or drill bit with threaded end and flanged shaft (no text or symbols).

Person using a metal anchor bolt on grass, no visible text or symbols.

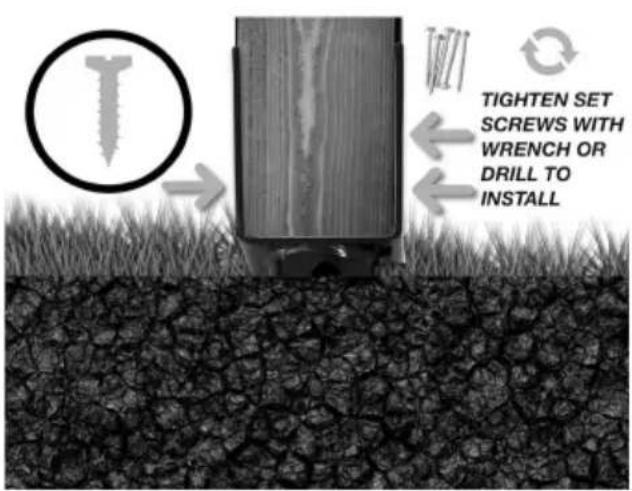

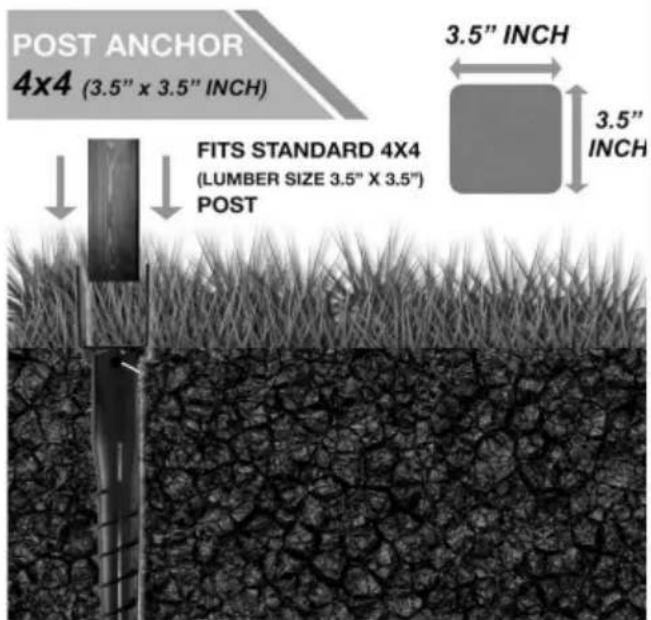

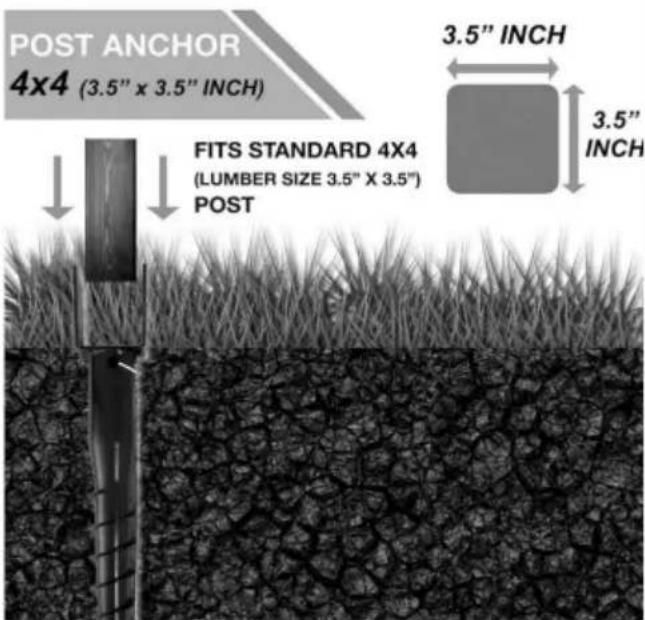

POST ANCHOR: 4x4 (3.5" x 3.5" INCH). FITS STANDARD 4X4 (LUMBER SIZE 3.5" X 3.5"). POST: 3.5" INCH, 3.5" INCH.

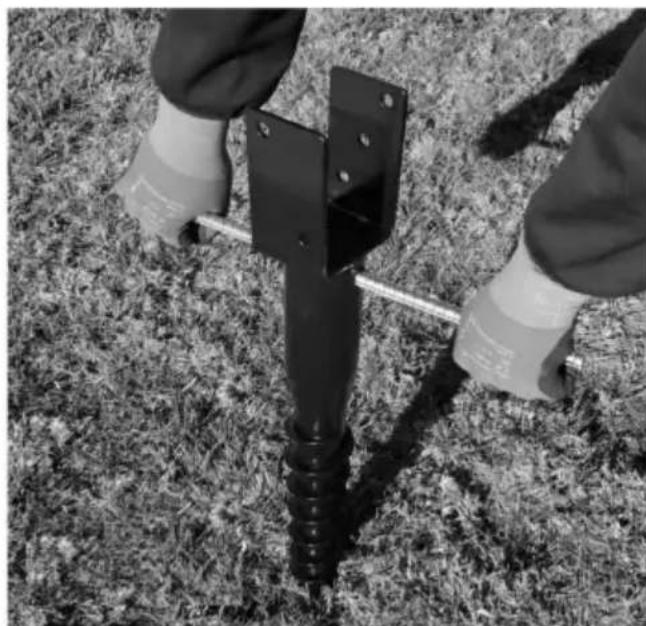

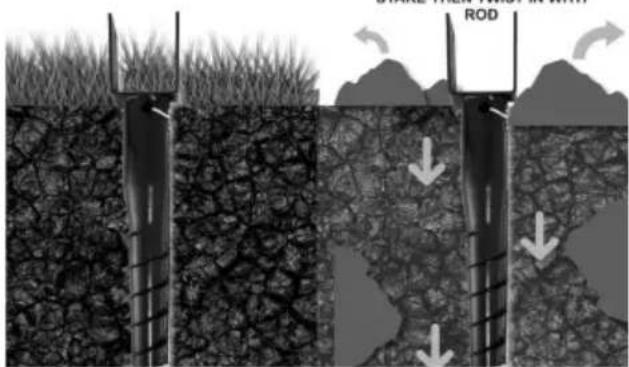

Press into the soil and twist int ground with provided insert rod. Clear a hole deep enough to accommodate the stake yes a smaller diameter than the stake shaft. Insert the stake and twist with tightening rod.	Fits standard 4"x4" post(3.5"x3.5 inner) - perfect for most mailb posts.
WHEN SOIL HARDNESS IS MEDIUM TO SOFT DIGSOME DIGGING CLEAR LARGE ROCKS & DIG A PATH FOR THE STAKE THAT IS SLIGHTLY SMALLER THAN THE SHAFT DIAMETER. INSERT STAKE THEN TWIST IN WITH
Installation: No need for cemer No dig option (for most soil typ	Includes tightening rod and 5 l bolts (use two bolts on one si and three on the other).

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA91730

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

pooledas123@gmail.com

01772418127

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

PRODUCT PARAMETERS

Black and white photo of a pointed metal anchor or marker on grass (no text or symbols visible).

Black-and-white photo of a small scientific instrument with a pointed tip and a handle, placed on grassy ground (no visible text or symbols).

Close-up of a vertical metal post mounted on grass, with a tool nearby (no text or symbols visible).

Three-panel black-and-white photo sequence showing a fence structure, a hammer striking a wall, and a hand using a tool on a post (no text or symbols).

Person using a metal drill bit on grass, no visible text or symbols.

POST ANCHOR: 4x4 (3.5" x 3.5" INCH). FITS STANDARD 4X4 (LUMBER SIZE 3.5" X 3.5"). POST: 3.5" INCH, 3.5" INCH.

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

INSTALLATION METHODS

Technical line drawing of a mechanical component with symmetrical features and a tapered shaft (no text or symbols).

Black and white photo of a pointed metal anchor or support structure on grass (no text or symbols visible).

Black-and-white photo of a small mechanical device with a handle and base, mounted on grass (no visible text or symbols).

Close-up of a vertical metal structure with black and white base, next to a small tool on grass (no text or symbols visible).

Three-panel black-and-white photo sequence showing outdoor installation: brick frame, hammer striking a wall, and hand using a tool on a post (no text or symbols).

Person using a metal drill bit on grass, no visible text or symbols.

POST ANCHOR 4x4 (3.5" x 3.5" INCH) FITS STANDARD 4x4 (LUMBER SIZE 3.5" X 3.5") POST 3.5" INCH 3.5" INCH

Unit 5 Albert Edward House,

www.vevor.com/support

Black and white photo of a pointed metal anchor or marker on grass (no text or symbols visible)

Black-and-white photo of a small scientific instrument with a pointed tip and a handle, placed on grassy ground (no visible text or symbols)

Close-up of a vertical metal post with black base and wooden tool on grass (no text or symbols visible)

Three-panel black-and-white photo sequence showing a fence structure, a hammer striking a wall, and a hand holding a tool on a post (no text or symbols visible)

Person using a metal drill bit on grass, no visible text or symbols

POST ANCHOR 4x4 (3.5" x 3.5" INCH) FITS STANDARD 4X4 (LUMBER SIZE 3.5" X 3.5") POST 3.5" INCH 3.5" INCH
