FS10281-CP-G - Shower head Vevor - Free user manual and instructions
Find the device manual for free FS10281-CP-G Vevor in PDF.
| Product Type | Shower wand (square shower head) |
| Brand | Vevor |
| Model | FS10281-CP-G |
| Head Dimensions | 30.48 cm x 30.48 cm (12 inches x 12 inches) |
| Flow Rate | 2.2 GPM (8.3 L/min) |
| Connection | G1/2" (male thread) |
| Color | Chrome (CP) |
| Material | Chrome-plated plastic (ABS) or chrome-plated brass |
| Features | Fixed shower head, adjustable spray (not specified), rubber nozzles for descaling |
| Maintenance and Cleaning | Clean with a soft cloth and water; descale with white vinegar (soak 30 min); do not use abrasive products |
| Installation | Wall mounting with included bracket; Teflon tape recommended; requires a hole 17.8 cm x 14 cm x 7-8 cm |
| Safety | Wear gloves during installation; check seal tightness; close the switching valve when not in use |
| Included Parts | Control valve (common), shower hose, cover plate, screws, bolts, washers, hex key, Teflon tape |
| Repairability | Spare parts available: seals, nozzle, plate. Disassembly possible with basic tools |
| Warranty | Not specified, but recommended proper use |
Frequently Asked Questions - FS10281-CP-G Vevor
User questions about FS10281-CP-G Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Shower head in PDF format for free! Find your manual FS10281-CP-G - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FS10281-CP-G by Vevor.
USER MANUAL FS10281-CP-G Vevor
MULTIPLE SHOWER HEADS
MODEL: FS10282-BN, FS10282-BN-G, FS10282-MB, FS10282-MB-G,
FS10281-CP, FS10281-CP-G, FS10281-BG, FS10281-BG-G,
MULTIPLE SHOWER HEADS
| FS10280-BN, FS10280-BN-GFS10280-MB, FS10280-MB-G | FS10281-CP, FS10281-CP-GFS10281-BG, FS10281-BG-GFS10281-MB, FS10281-MB-G |
 |  |
 |  |
 |   |
| FS10282-BN, FS10282-BN-GFS10282-MB, FS10282-MB-G | FS10283-CP, FS10283-CP-G |
 |  |
 |   |
   | |
  |  |
  |
This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are technology or software updates on our product.
Warning: To reduce the risk of injury, user must read instructions manual carefully.
INSTRUCTIONS
Warning Tips:
- During the installation process, it is best to wear gloves to prevent sharp corners on the panel from scratching the palm of the hand.
- When installing the shower, ensure that all joints are fully tightened to avoid water leakage.
- When the shower is not in use, please close the switch valve of the shower.
- Not be liable for any of the following claims: 1. Damage and/or breakdown caused by improper use and/or maintenance; or any unauthorized rebuild; including any damage caused by abuse (e.g. falls, drops, etc.) 2. Hire a professional plumber. Not responsible for any damage and/or failure caused by incorrect installation. 3. Damage and/or failure caused by removal after installation or other factors.
- Damage and/or failure caused by applications beyond the scope of use.
- Damage and/or failure caused by sand, dust and other impurities
- Damage and/or failure caused by improper / inadequate maintenance; Rust surface treatment, etc.
- Damage and/or failure caused by fire, earthquake, flood, lightning and other natural disasters, pollution, harmful gas, salt, abnormal voltage, and other factors.
Installation precautions.
- Before installing the spool, clean the dirty water, residue, sand, and impurities remaining in the pipe before installing the spool. Do not open the protective cover before installing the spool to avoid impurities
- Faucets and hot and cold water pipes must be installed correctly. Facing the faucet, connect hot water on the left and cold water on the right
- Check the installation size. Do not forcibly install the product to avoid damaging the parts. How to Clean a shower head: In order to maintain the external brightness and good performance of the shower, please care for the shower in the following ways:
a. Rinse with water only and dry with a soft cotton cloth.
b. Place the shower head in a pot and fill the pot with enough white vinegar to cover the shower head. The acid in the vinegar helps dissolve the deposits on the
white mineral nozzle. Let the shower head soak in vinegar for 30 minutes. The dirtier the shower head, the longer you'll need to soak it in vinegar.
c. Mild liquid and colorless glass cleaner can be used to remove surface dirt and dirt film, not abrasive polish agent 4. Do not use acid detergent, insoluble granul detergent, soap, etc.
SAVE THESE INSTRUCTIONS
INSTALLATION INSTRUCTIONS
| Model | FS10280 | FS10281 | FS10282 | FS10283 |
| Control Valve | Common Temperature | Constant Temperature | Common Temperature | Common Temperature |
| Head's Shower | 12 Inch | 12 Inch | 10 Inch | 10 Inch |
| Head's Shower | Square | Strip | Strip | Strip |
| Arm's Shower | 6 Inch | 6 Inch | 6 Inch | Null |
| Back's Shower | Null | Null | Null | 2 Inch |
| Flow Rate Description | 2.2 GPM (8.3L/min) | |||
| Pipe Threads | Null=NPT1/2” -G=G1/2” | |||
| Color | -BN=Brushed Nickel, -MB=Matte Black,-BG=Brushed Gold, -CP=Chrome Plating, | |||
PARTS LIST
Tools you may need
Wrench
Screwdriver
Teflon Tape
| Install Accessories | ||||
| Hexagon Wrench (1pcs) | Teflon Tape (1pcs) | Screws (4pcs) | Bolt (4pcs) | Flat (4pcs) |
 |  |  |  |  |
FS10281
Parts included
① Faucet Body
② Panel
③ Showerhead
④ Shower arm
⑤ Showerhead
⑥ Shower Socket
⑦ Shower Hose
⑧ Showerhead
⑨ Shower arm
FS10280
FS10282
FS10283
Parts included
① Faucet Body
② Panel
③ Handle
④ Showerhead
⑤ Shower arm
⑥ Showerhead
⑦ Shower Socket
⑧ Shower Hose
⑨ Showerhead
+
⑩ Shower arm
⑨ Back Spray*6

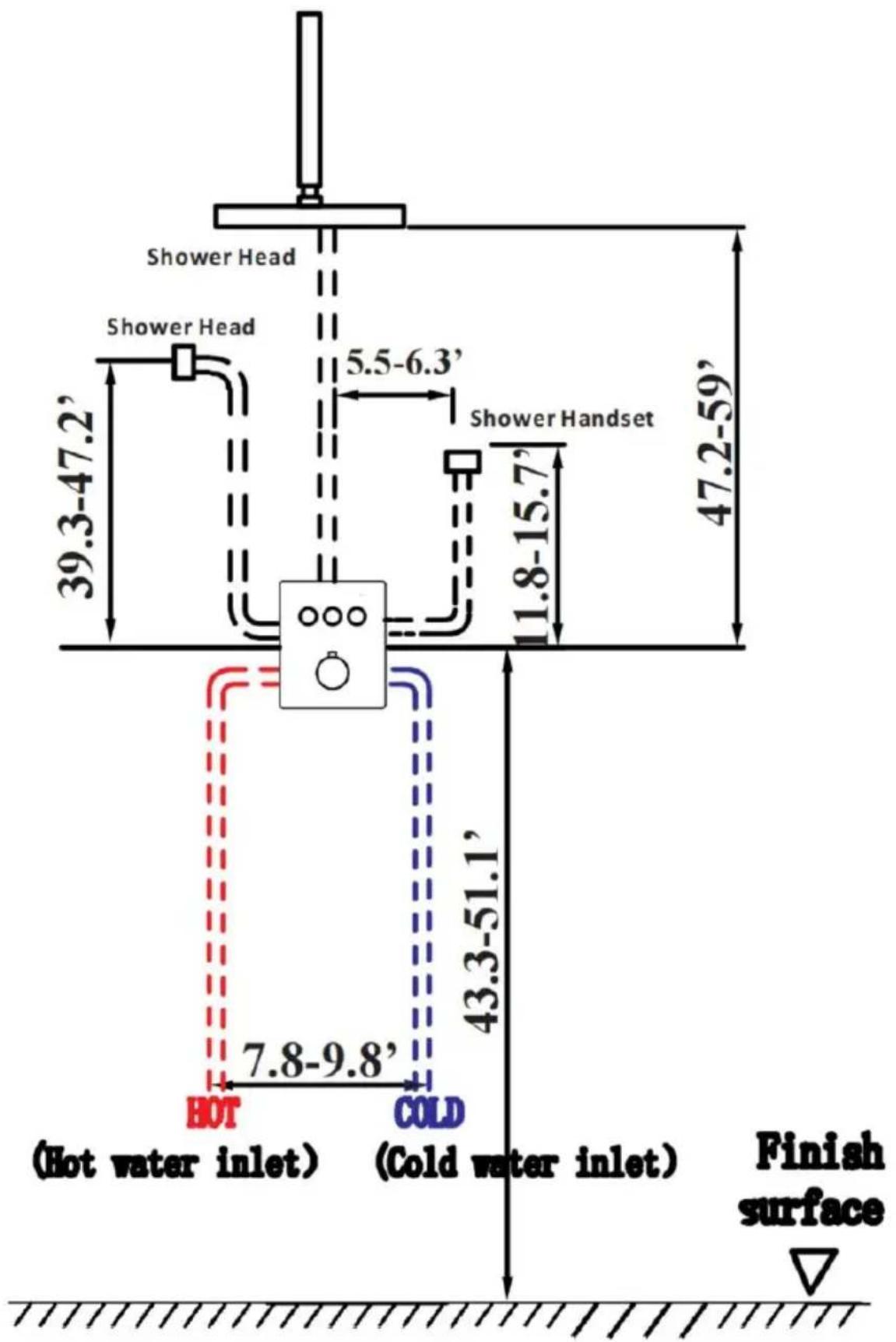

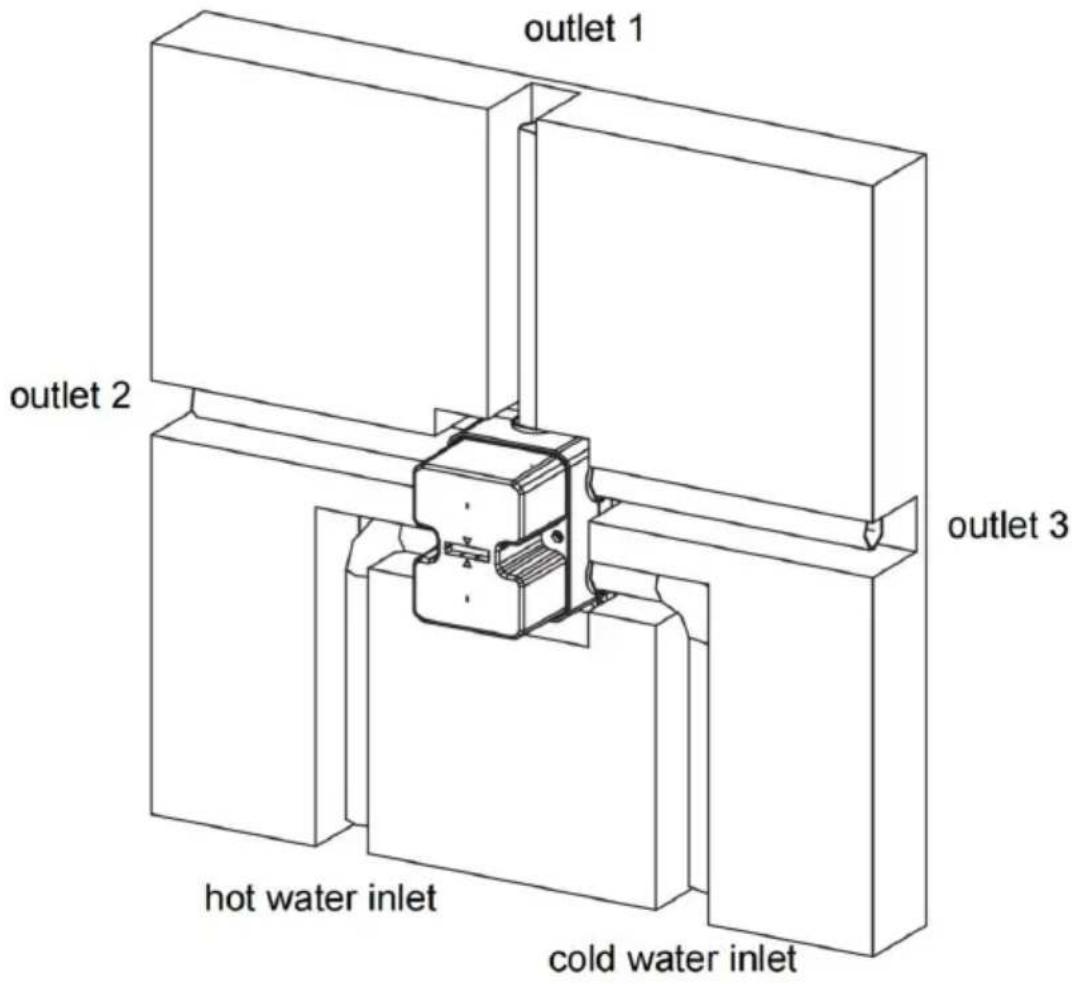

Suggested Installation Dimensions

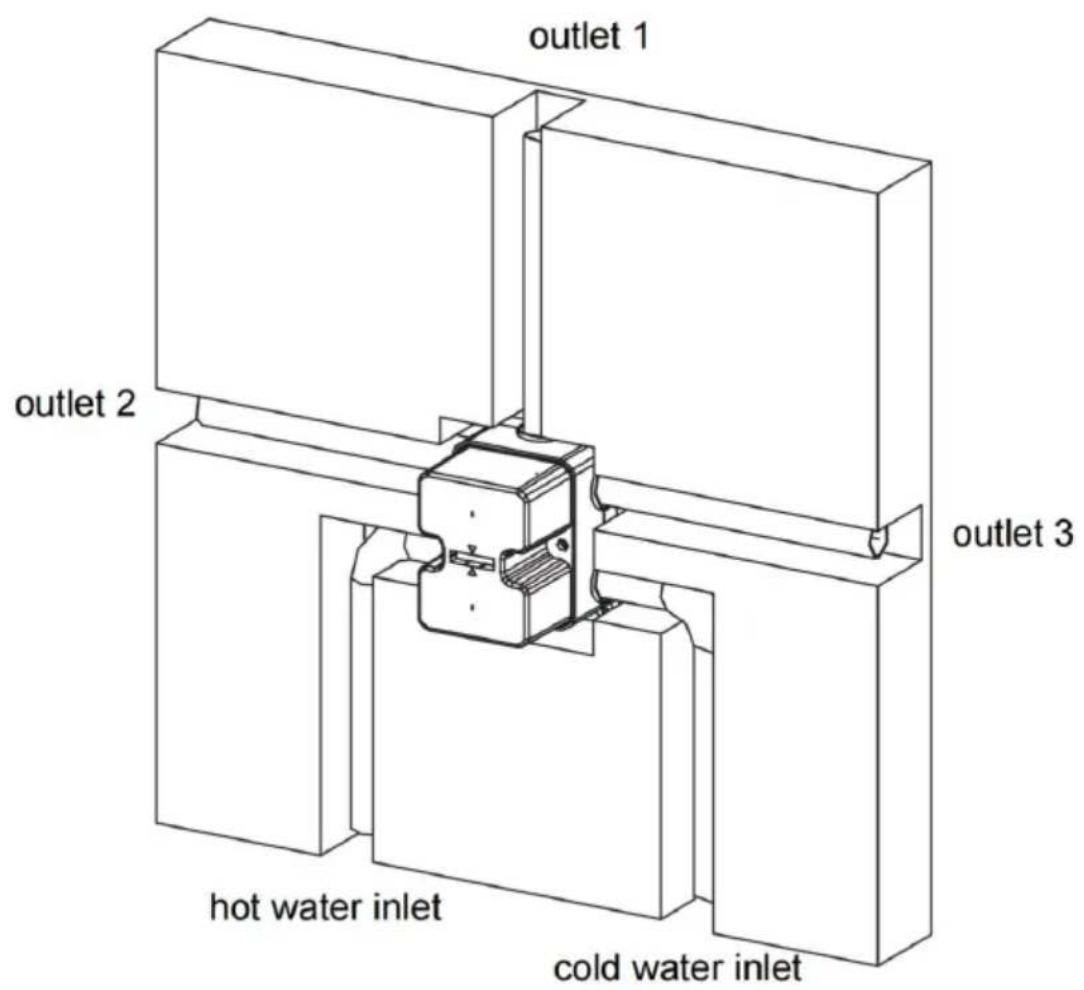

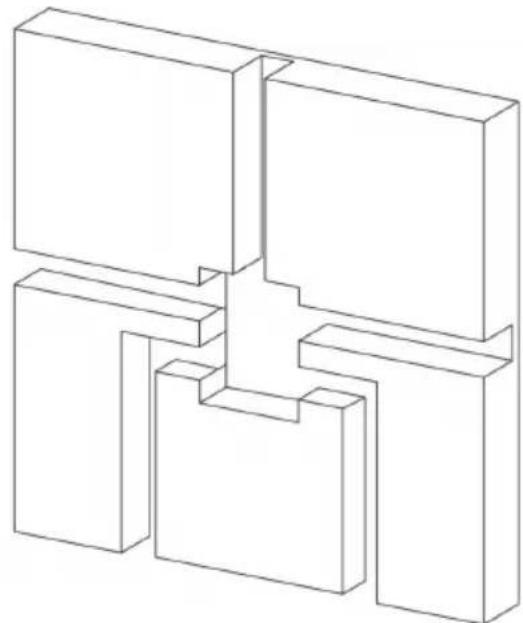

- According to the site conditions and installation size requirements, make a hole with dimensions of 7 inches (length) x 5.5 inches (width) x 2.75-3.15 inches (depth).
- According to the site conditions and installation size requirements, set up the pipe line. (2) Connect the plastic box to the pipe, place the plastic box on the hole, then adjust the levels (the bubble in the middle of the leveler). (3) Make the positioning holes.
- Remove the protective cover when the finished wall is completed and install the escutcheon (B) to the valve (A) and press it against the finished wall. Then, install the handle (C), tighten set screws (E) with Allen key (F), and put on the indication buttons (G).

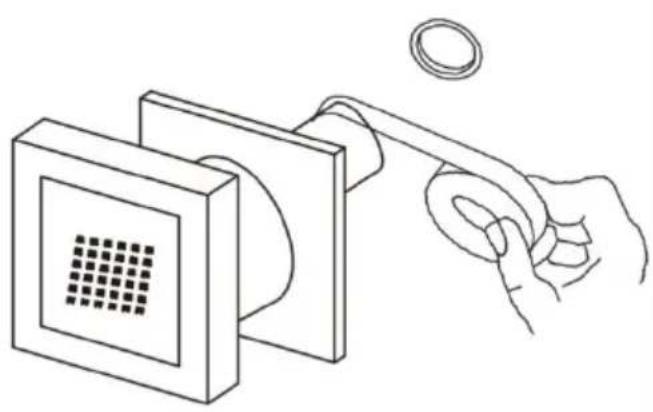

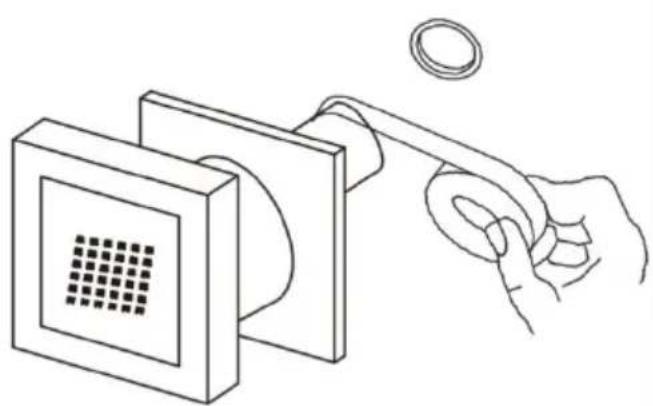

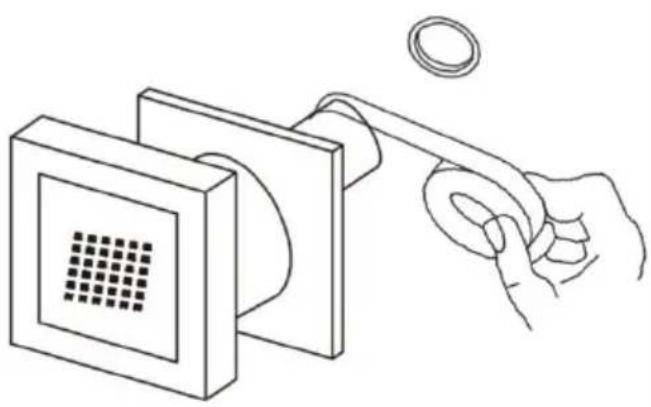

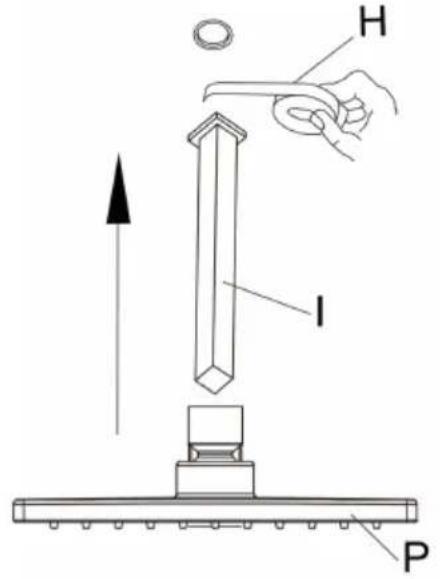

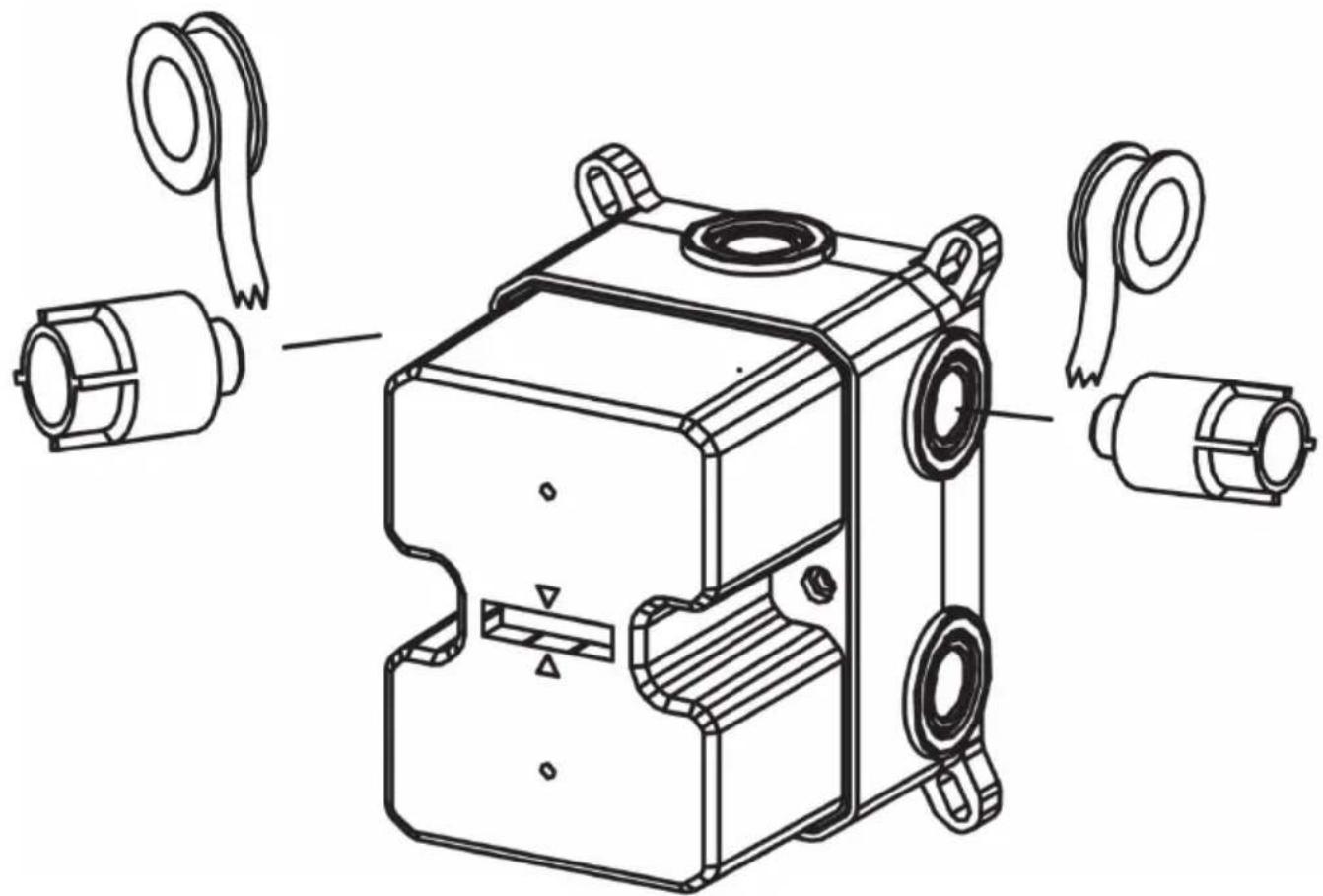

- Turn the water on for 1 minute to flush any debris. Apply Teflon tape to the threaded tail pipe and install the shower hose (I) into the outlet of the wall. Then connect the top shower (P) to the spout.

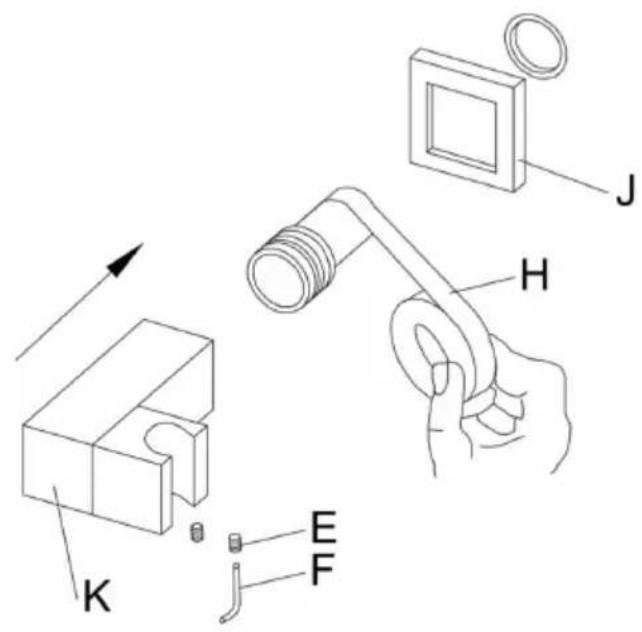

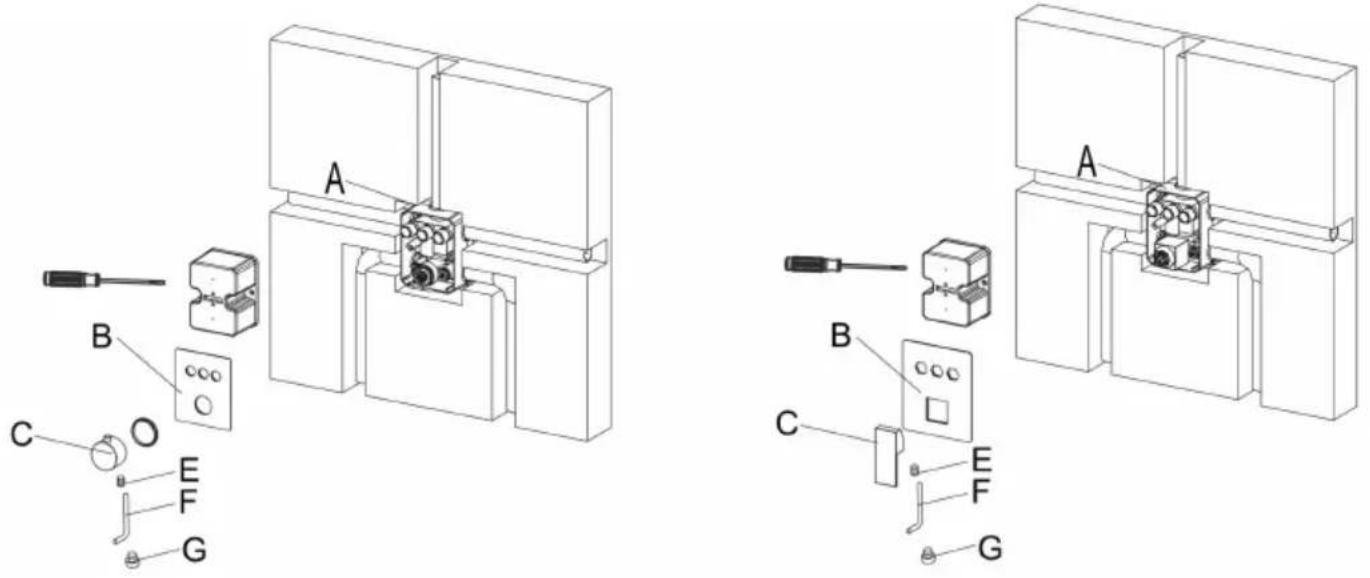

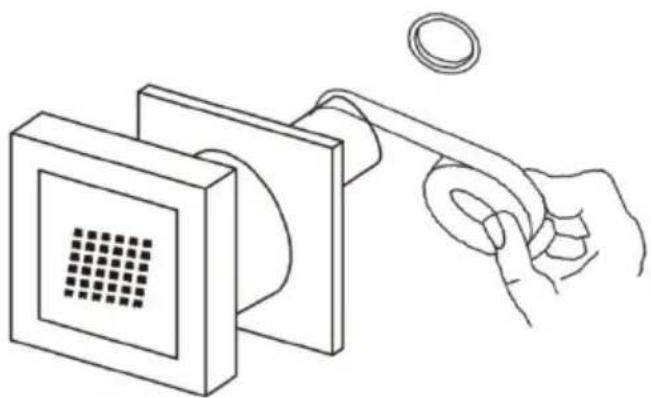

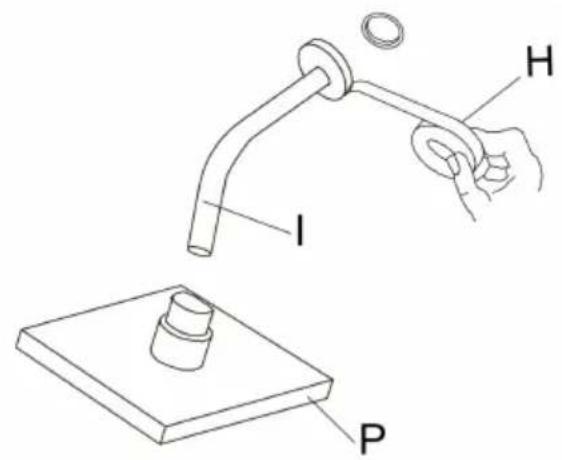

- Apply Teflon tape (H) to the thread end, then fix the cover plate (D) onto the wall supply holder (K) and screw the wall supply holder (K) into the hand shower outlet. Then screw (E) with Allen key (F).
- The distance between the bottom of the opening and the surface of the tile is 30mm. Twist the nozzle to the pipe embedded in the wall.
Product Usage
Rotating temperature control key switch
Rotating temperature control key switch
CLEANING
- To maintain proper working conditions, cleaning is required when mineral deposits appear on spray nozzles. To clean mineral deposits, gently rub rubber nozzles on the face of the shower head to dislodge.
- To clean heavier deposits, remove the shower head and soak face down in a cup of white vinegar for 2-3 hours. Replace the shower head and run in each spray setting to flush out vinegar. DO NOT use harsh chemicals, heavy-duty cleaners, or abrasives. This may damage parts or the finished product and may void the warranty.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London
Road, Staines-upon-Thames, Surrey, TW18 4AX
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
