FS10280-BN-G - Shower head Vevor - Free user manual and instructions

Product Type	Shower Head with Control Valve
Brand	Vevor
Model	FS10280-BN-G
Color	Brushed Nickel
Shower Head Size	12 inches (square)
Valve Type	Common Temperature (non-thermostatic)
Flow Rate	2.2 GPM (8.3 L/min)
Connection Thread	G1/2" (European Standard)
Main Material	Brass with Brushed Nickel Finish
Required Recess Dimensions	7 x 5.5 x 2.75-3.15 inches (L x W x D)
Weight	Approximately 1.5 kg
Box Contents	Valve, shower head, shower arm, hex key, Teflon tape, screws, bolts, mounting plates
Main Functions	Flow and temperature adjustment, adjustable shower head
Recommended Maintenance	Clean with white vinegar for mineral deposits; do not use abrasive products
Safety Precautions	Wear gloves during installation; tighten seals to prevent leaks; close valve after use
Spare Parts Available	Seals, screws, hex key (included), Teflon tape
Reparability	Cleaning and replacing seals possible; call a professional plumber if needed
Manufacturer	Shanghai Muxin Muye Co., Ltd. - Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan, Shanghai 200000, CN
Importer (Australia)	SIHAO PTY LTD, 1 Rokeva Street, ASTWC NSW 2122
Importer (United States)	Sanven Technology Ltd., Suite 250, 9166 Anaheim

Frequently Asked Questions - FS10280-BN-G Vevor

How to install the Vevor FS10280-BN-G shower head?

Installation requires drilling a 7 x 5.5 x 2.75-3.15 inch hole, connecting the plastic box to the pipe, adjusting the level, then fixing the valve and head. Use Teflon tape on the threads. Wear protective gloves.

How to clean limescale deposits on the shower head?

Soak the shower head in white vinegar for 30 minutes to 2 hours, then rinse with water. For rubber nozzles, gently rub. Do not use harsh chemicals.

What type of thread is used on this model?

The FS10280-BN-G model uses a G1/2" thread (European standard). Ensure compatibility with your fittings.

What is the recommended water pressure?

The manual does not specify exact pressure, but the flow rate is 2.2 GPM (8.3 L/min). Standard household pressure is suitable.

Can I use abrasive or acidic cleaners?

No, abrasive or acidic cleaners can damage the finish. Use only mild glass cleaner or white vinegar.

What to do if there is a leak after installation?

Check that all seals are tight and Teflon tape is properly applied. If the leak persists, call a professional plumber.

Is this model compatible with a tankless water heater?

Yes, the 2.2 GPM flow rate is compatible with most tankless water heaters. Check your unit's minimum flow requirement.

How to adjust the water temperature?

The common control valve allows mixing hot and cold water. Turn the handle to achieve the desired temperature. No thermostatic function.

What tools are included with the shower head?

The box contains a hex key, Teflon tape, screws, bolts, and mounting plates. You will need additional wrenches and screwdrivers.

Is there a warranty on this product?

The manual does not mention a specific warranty. In case of defect, contact the seller or importer (Sanven Technology Ltd. in the USA, SIHAO PTY LTD in Australia).

USER MANUAL FS10280-BN-G Vevor

Affordable. Reliable. Home Improvement.

MULTIPLE SHOWER HEADS

MODEL: FS10282-BN, FS10282-BN-G, FS10282-MB, FS10282-MB-G,

FS10281-CP, FS10281-CP-G, FS10281-BG, FS10281-BG-G,

Affordable. Reliable. Home Improvement.

MULTIPLE SHOWER HEADS

FS10280-BN, FS10280-BN-GFS10280-MB, FS10280-MB-G	FS10281-CP, FS10281-CP-GFS10281-BG, FS10281-BG-GFS10281-MB, FS10281-MB-G
FS10282-BN, FS10282-BN-GFS10282-MB, FS10282-MB-G	FS10283-CP, FS10283-CP-G

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product y received. Please forgive us that we won't inform you again if there are a technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

INSTRUCTIONS

Warning Tips:

1. During the installation process, it is best to wear gloves to prevent sharp corners on the panel from scratching the palm of the hand.
2. When installing the shower, ensure that all joints are fully tightened to avoid water leakage.
3. When the shower is not in use, please close the switch valve of the shower.
4. Not be liable for any of the following claims: 1. Damage and/or breakdown caused by improper use and/or maintenance; Or any unauthorized Rebuild; including any damage caused by abuse (e.g. falls, drops, etc.) 2. Hire a professional plumber. Not responsible for any damage and/or failure caused by incorrect installation. 3. Damage and/or failure caused by removal after installation or other factors.
5. Damage and/or failure caused by applications beyond the scope of use.
6. Damage and/or failure caused by sand, dust and other impurities
7. Damage and/or failure caused by improper / inadequate maintenance; Rust surface treatment, etc.
8. Damage and/or failure caused by fire, earthquake, flood, lightning and other natural disasters, pollution, harmful gas, salt, abnormal voltage, and other factors.

Installation precautions.

1. Before installing the spool, clean the dirty water, residue, sand, and impurities remaining in the pipe before installing the spool. Do not open the protective cover before installing the spool to avoid impurities
2. Faucets and hot and cold water pipes must be installed correctly. Facing the faucet, connect hot water on the left and cold water on the right
3. Check the installation size. Do not forcibly install the product to avoid damagir the parts. How to Clean a shower head: In order to maintain the external brightness and good performance of the shower, please care for the shower in the following ways:

a. Rinse with water only and dry with a soft cotton cloth.

b. Place the shower head in a pot and fill the pot with enough white vinegar to cover the shower head. The acid in the vinegar helps dissolve the deposits on the

white mineral nozzle. Let the shower head soak in vinegar for 30 minutes. The dirtier the shower head, the longer you'll need to soak it in vinegar.

c. Mild liquid and colorless glass cleaner can be used to remove surface dirt and dirt film, not abrasive polish agent 4. Do not use acid detergent, insoluble granul detergent, soap, etc.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Model	FS10280	FS10281	FS10282	FS10283
Control Valve	Common Temperature	Constant Temperature	Common Temperature	Common Temperature
Head's Shower	12 Inch	12 Inch	10 Inch	10 Inch
Head's Shower	Square	Strip	Strip	Strip
Arm's Shower	6 Inch	6 Inch	6 Inch	Null
Back's Shower	Null	Null	Null	2 Inch
Flow Rate Description	2.2 GPM (8.3L/min)
Pipe Threads	Null=NPT1/2” -G=G1/2”
Color	-BN=Brushed Nickel, -MB=Matte Black,-BG=Brushed Gold, -CP=Chrome Plating,

PARTS LIST

Tools you may need

Wrench

Screwdriver

Teflon Tape

Install Accessories
Hexagon Wrench (1pcs)	Teflon Tape (1pcs)	Screws (4pcs)	Bolt (4pcs)	Flat (4pcs)

Technical line drawing of a mechanical control box with multiple circular components and mounting brackets (no text or symbols)

FS10281

Parts included

Technical line drawing of a mechanical housing or bracket with mounting holes and internal components (no text or symbols)

① Faucet Body

Simple diagram of a square with three circles and one circle inside, no text or symbols present.

②Panel

③Showerhead

④Shower arm

⑤Showerhead

Pure technical line drawing of mechanical components without any text or symbols

⑥Shower Socket

⑦Shower Hose

⑧Showerhead

⑨Shower arm

Technical line drawing of a mechanical or electrical component with three circular ports and a rectangular base (no text or symbols)

FS10280

FS10282

FS10283

Parts included

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

① Faucet Body

Simple line drawing of a rectangular frame with three circular cutouts and a centered square (no text or symbols)

②Panel

③Handle

④Showerhead

⑤Shower arm

Technical line drawing of a handheld device with a mesh cover and two side views (no text or symbols)

⑥Showerhead

Pure technical line drawing of mechanical components without any text or symbols

⑦Shower Socket

⑧Shower Hose

⑨Showerhead

+

⑩Shower arm

⑨Back Spray*6

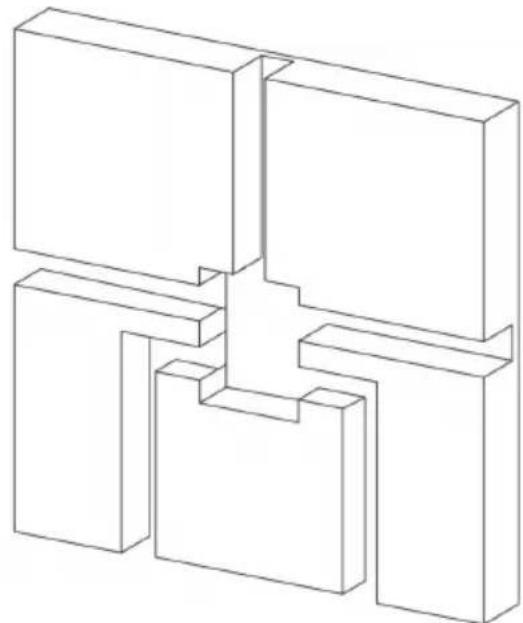

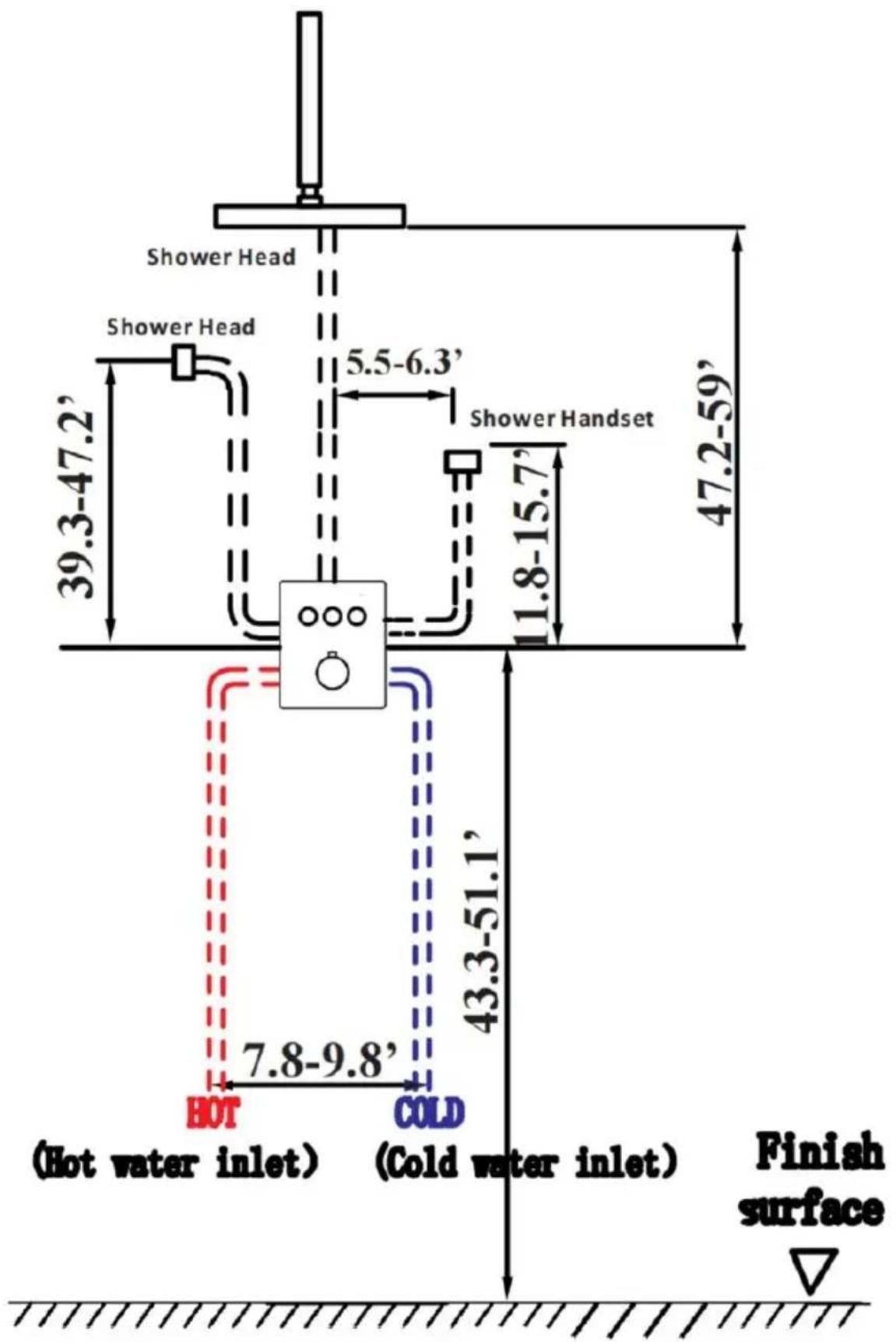

Suggest Installation Dimension

1. According to the site conditions and the installation size requirement and to make a hole, the hole size is 7in (length)* 5.5in (width) *2.75-3.15in (deep)

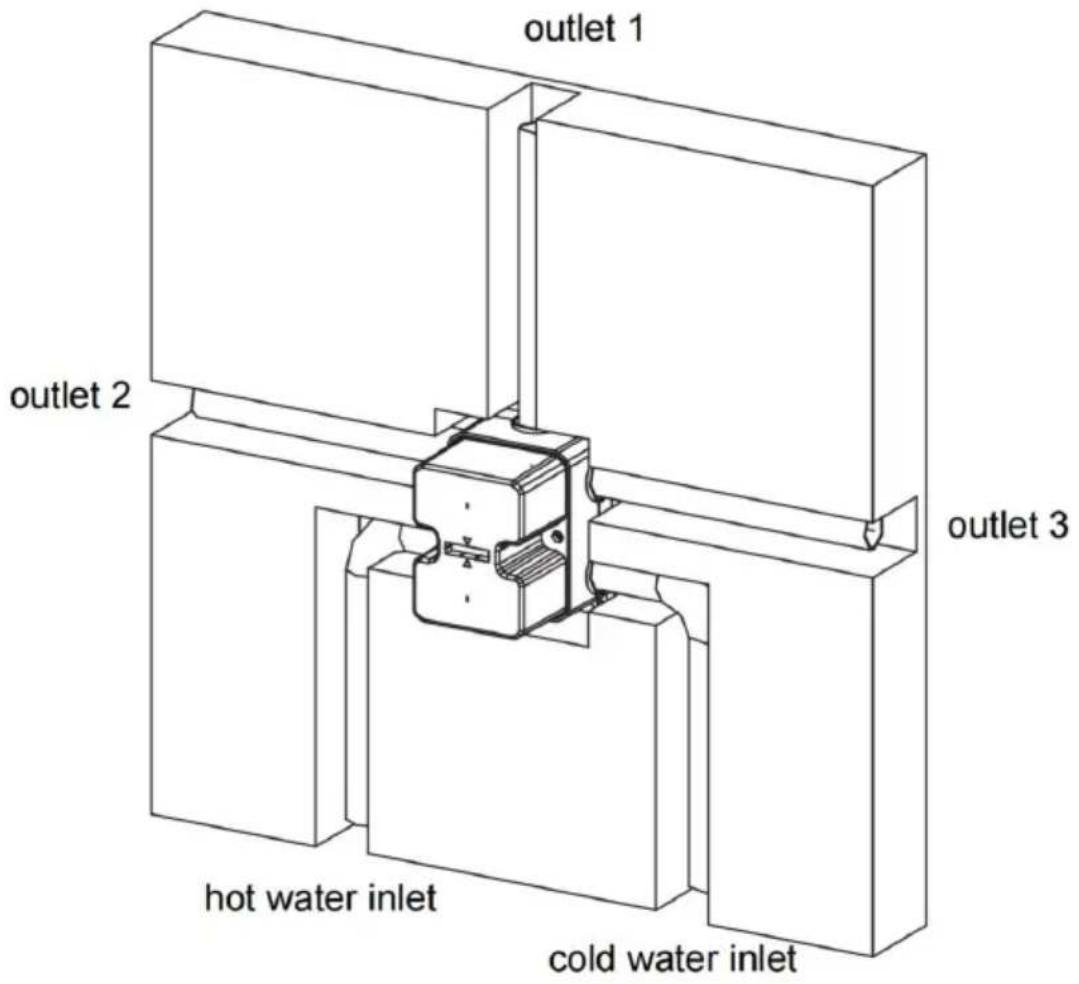

Isometric line drawing of a mechanical or architectural component with no text or symbols

1. According to the site conditions and the installation size requirement to set up the pipe line. (2). Connect the plastic box to the pipe, put the pla box on the hole, then adjust the levels(the bubble in the middle of the leveller).(3). Make the positioning holes.

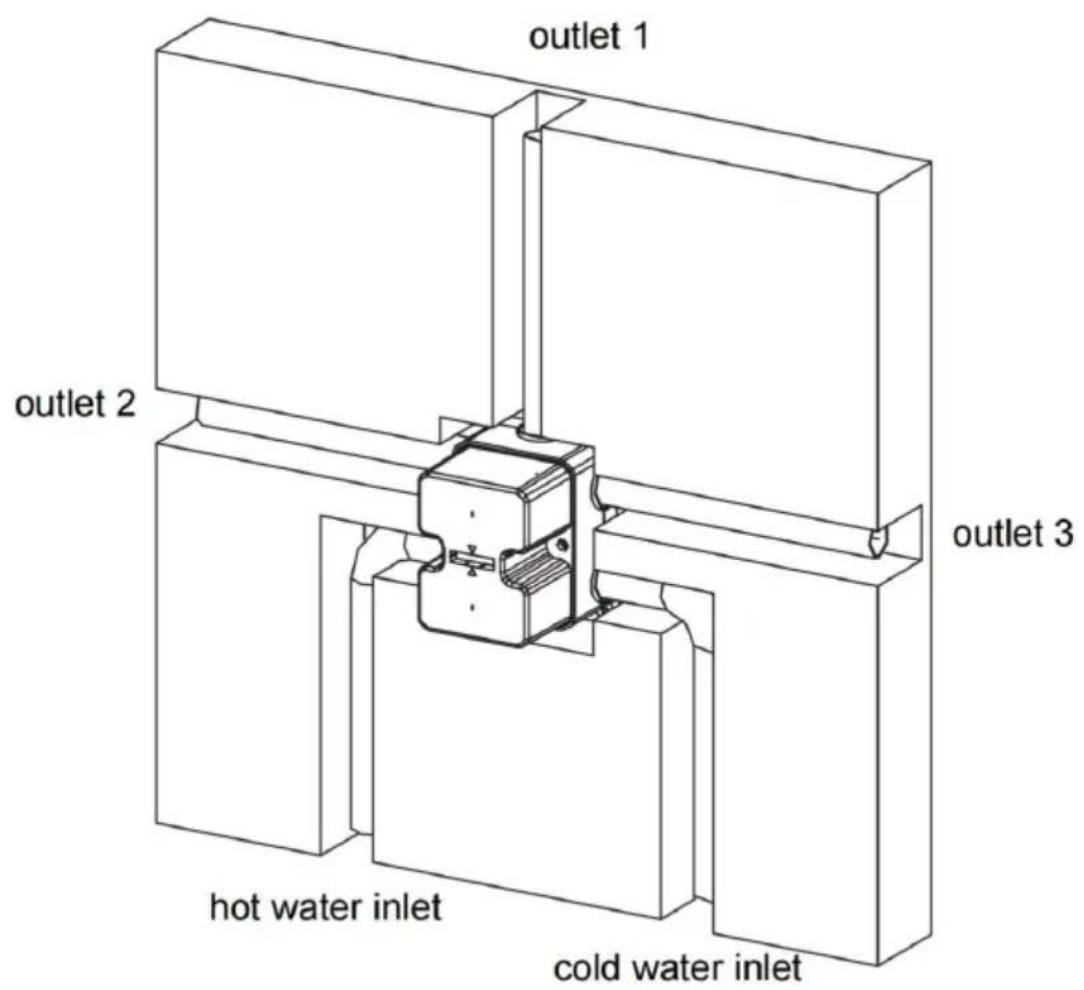

Technical line drawing of a mechanical device with multiple ports and mounting brackets (no text or symbols)

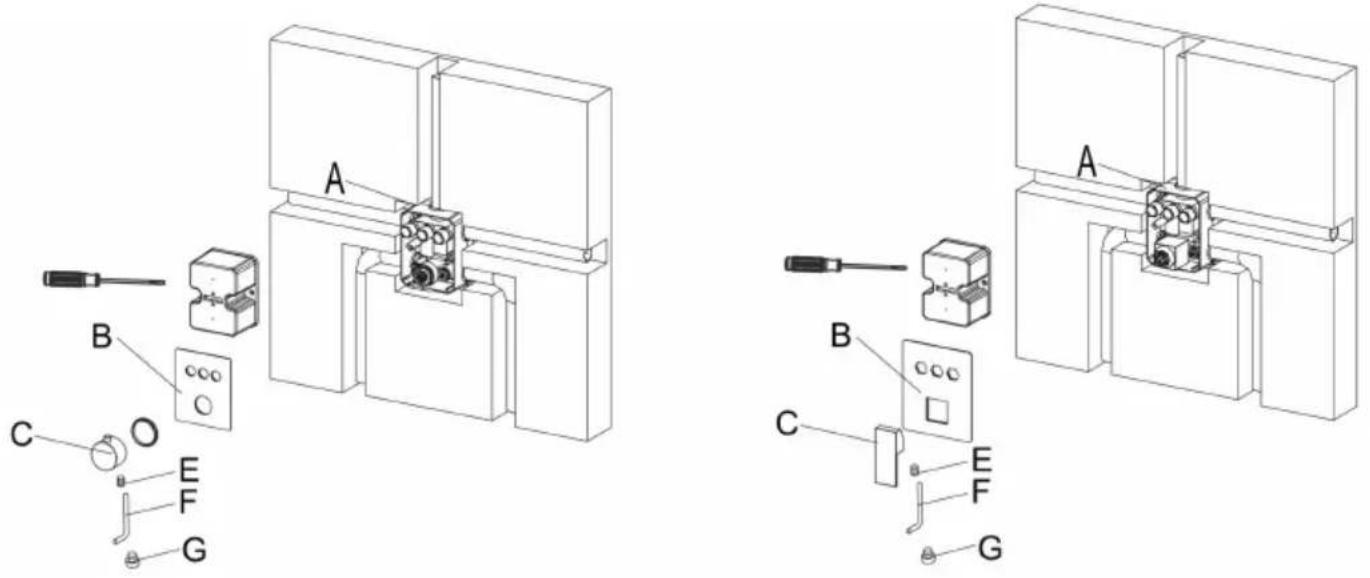

1. Remove the protective cover when the finished wall is completed and install the escutcheon (B) to the valve (A) and press it against the finish wall. Then, install the handle (C), tighten set screws (E) with Allen key (F) and put on the indication buttons (G).

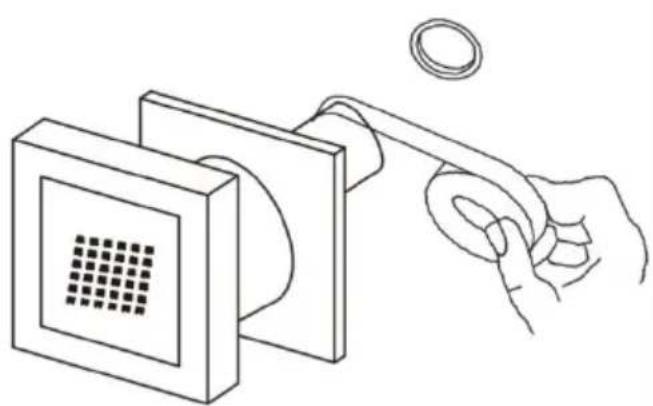

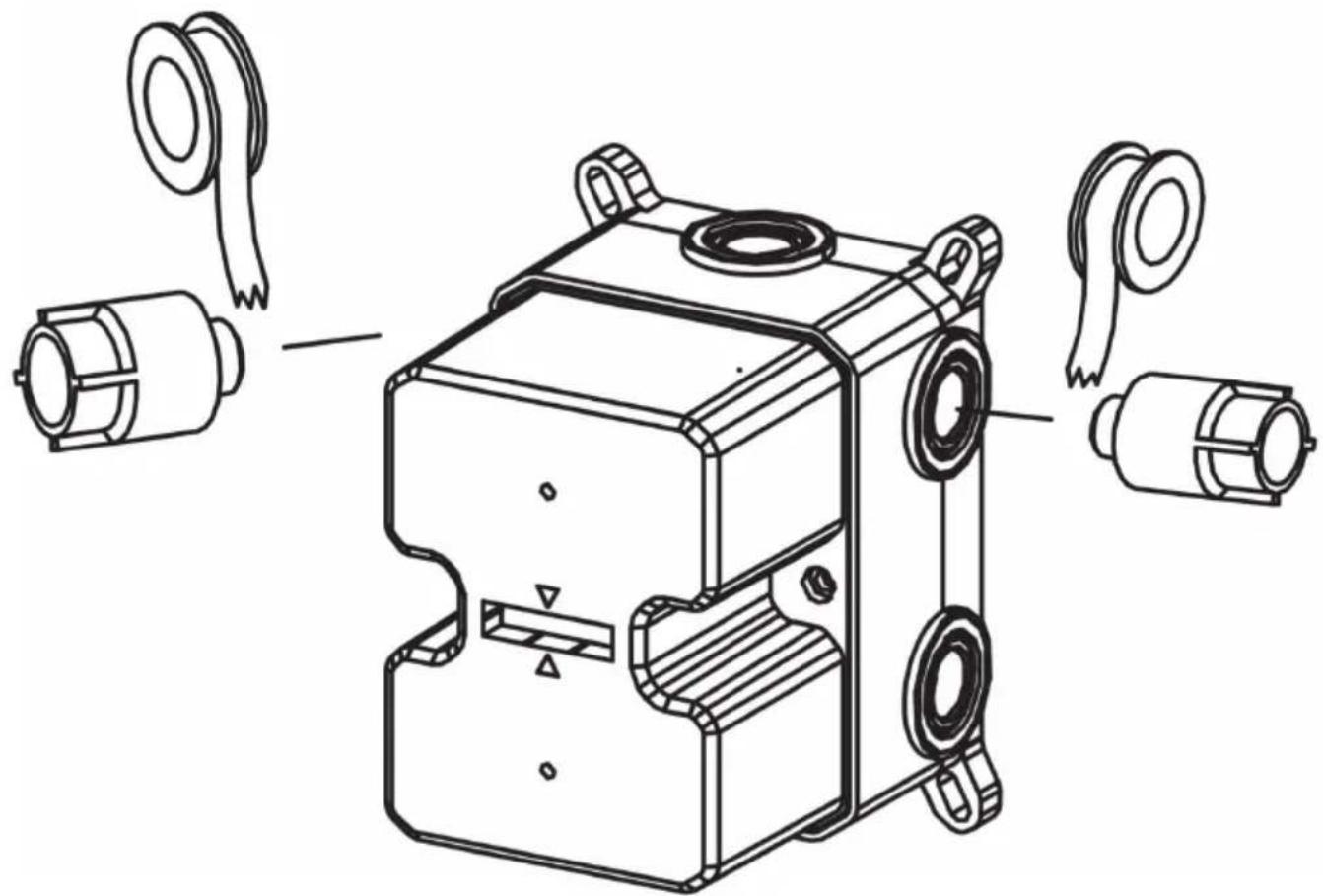

1. Turn the water on for 1 minute to flush any debris. Apply Teflon tape to the threaded tail pipe and install the shower hose (I) into the outlet o wall. Then connect the top shower (P) to the spout.

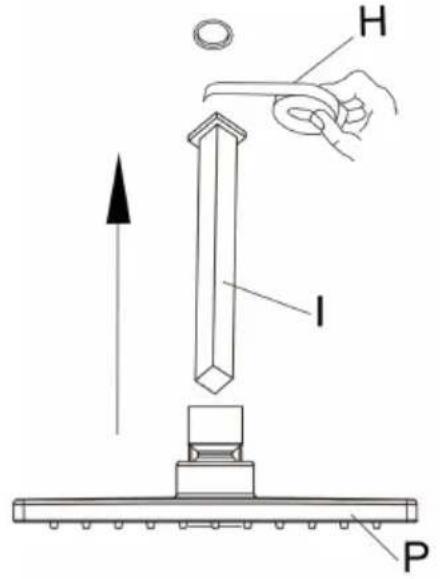

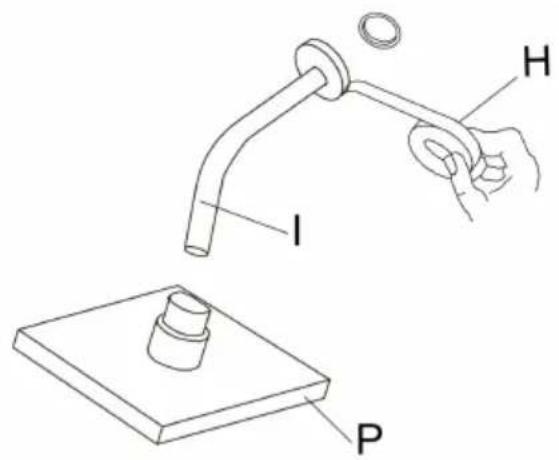

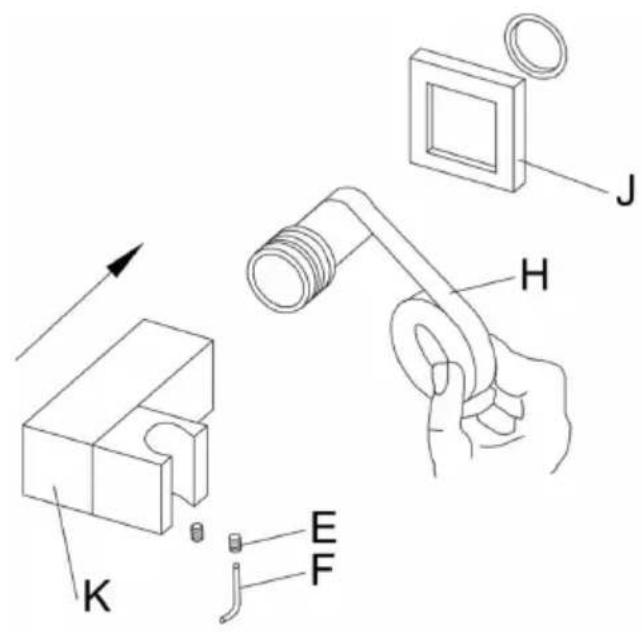

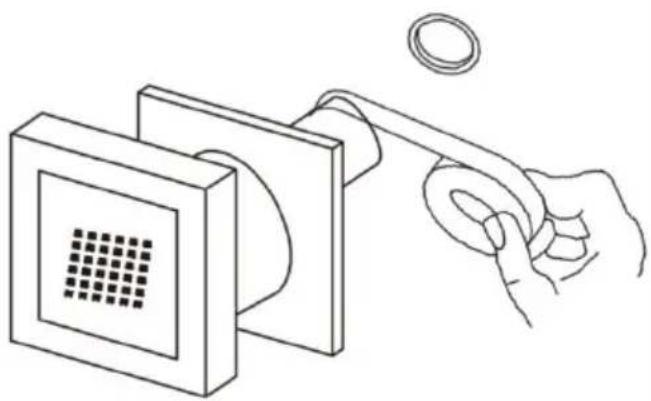

1. Apply Teflon tape (H) to the thread end, the fix the cover plate (d) onto the wall supply holder (K) and screw the v supply holder (K) into the hand shower outlet. and screw (E) with Allen key (F).

2. The distance between the bottom of the opening and the surface of the tile is 30mm.Twist the nozzle to the pipe embedded in the wall;

Line drawing of a hand holding a coiled cable connected to a square mechanical component (no text or symbols)

Product usage

Simple diagram with three circles above a small circle and a small square on the bottom (no text or symbols)

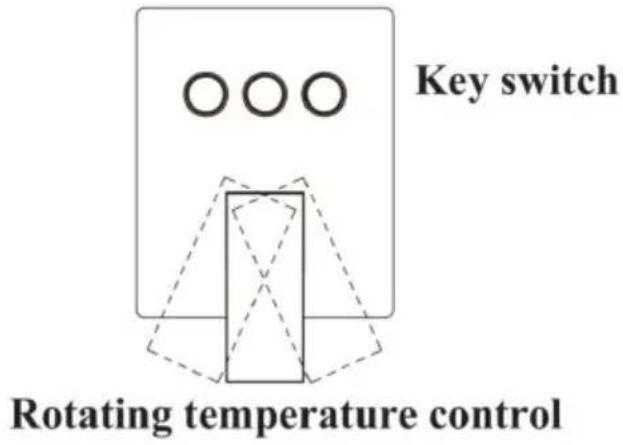

Rotating temperature control
Key switch

CLEANING

1. To maintain proper working conditions or cleaning is required when mineral deposits appear on spray nozzles. To clean mineral deposits or gently rub rubber nozzles on the face of shower head to dislodge.
2. To clean heavier deposits/remove shower head and soak face down in a cup white vinegar for 2-3 hours. Replace shower head and run in each spray setting flush out vinegar, DO NOT use harsh chemicals/heavy-duty cleaners or abrasives. This may damage parts or finished product and may void warranty.

Abstract black cross symbol on a textured gray background (no text or symbols)

Close-up of a fingerprint pattern with no visible text or symbols

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
