USER MANUAL MKE172M1BGK MIDEA

MAX -1.7L - -1.5L - -1.0L - -0.5L - MIN Midea

ELECTRIC KETTLE

USER MANUAL

MKE172M1BGK

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

OPERATION INSTRUCTIONS 07

CLEANING AND MAINTENANCE O

TROUBLESHOOTING 0

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 10

DATA PROTECTION NOTICE 11

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• To protect against fire, electrical shock and injury to persons do not immerse cord, plugs, or other live parts in water or other liquid.
• Do not touch hot surfaces. Use handles or knobs.
• Scalding may occur if the lid is removed during the brewing cycles.

EN

- Do not use outdoor. Household use only.

- Close supervision is necessary when any appliance is used by or near children.

- Do not use appliance for other than intended use.

- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

- Do not let cord hang over edge of table or counter, or touch hot surfaces.

- Do not place on or near a hot gas or electric burner, or in a heated oven.

- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.

• A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

If a longer detachable power-supply cord or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
• The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
• If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

SAVE THESE INSTRUCTIONS

SPECIFICATION

Model

MKE172M1BGK

Rated voltage 120V\~60Hz

Rated power 1500W

Capacity 1.7L

EN

PRODUCT OVERVIEW

Brief Introduction

Rational design, bring convenience and enjoyment to your life

• Rapid boiling, time-saving and energy-saving.
• Removable filter to keep the water clean of any foreign matter.
• Steam control to switch the kettle off after boiling.
  • Automatically shuts off for boil-dry protection.
  • 360 Rotational power base.
• Easy-to-read water-level indication mark.

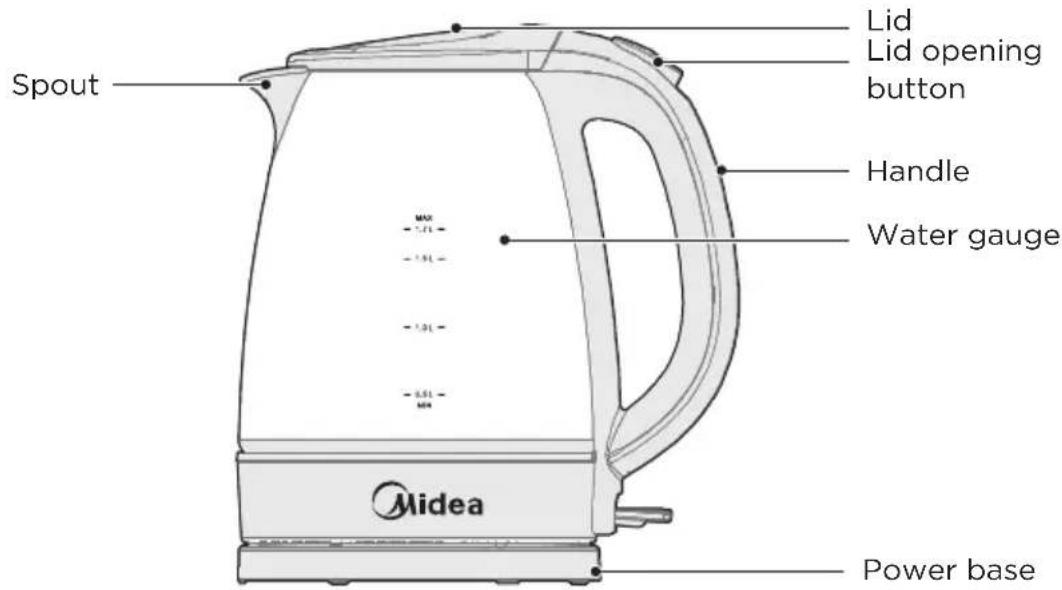

Parts Name

Spout Lid Lid opening button Handle Water gauge MAX -1.7L -1.9L -1.3L -0.5L M4 Midea Power base

EN

OPERATION INSTRUCTIONS

How To Use

For the first time to use or no use for a long time, it is recommended that you fill to the maximum level mark with fresh tap water, boil and empty the kettle at least 2 times to clear kettle of any tiny particles. Do not drink such water.

1. Press the lid lock on the lid, and you can open it.
2. Remove the kettle from the base to the filling place. Fill the kettle with desired amount (no less than the minimum and no more than the maximum.) Put back the lid; place the kettle back on the base unit.
3. Connect the plug into a power outlet (120V, AC), switch the kettle on by pressing the button (start). The light will illuminate to indicate the kettle is heating.
4. The kettle will automatically switch off once the water has boiled and the neon light goes off.
5. Lift the kettle from the base, and you can pour out the water into container.

EN

CLEANING AND MAINTENANCE

Cleaning

NOTE

1 To extend the life of your kettle, please clean the mineral deposits in the kettle regularly.
2 Unplug your kettle and allow it to cool before cleaning.
3 Wipe the kettle and base of unit with a soft, damp cloth. Be sure that the electric kettle socket is kept dry. Dry all parts after every use.
4 Never immerse kettle or power base in water.
5 Removable Scale Filter This kettle has a scale filter inside for clean water. The filter can be removed by grasping it and pulling upward. Run under hot water and rub with a clean cloth or brush.
6 Fill the kettle with 0.5L white vinegar and the remainder with water and allow to stand for over 1 hours;
7 Empty the solution from the kettle. Wipe off the deposits remained with damp cloth.
8 Fill the kettle with clean water, bring to boil and then discard the water. Repeat the process and the kettle will be ready to use;
9 If necessary, repeat the operations above for several times;
10 The surface of the kettle may be wiped over with a damp cloth and polished with a soft dry cloth.
11 Any other servicing should be performed by an authorized service representative.

EN

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

Problem	Cause	Solution
Indicator light does not work	• The plug is not inserted properly	Check plug
	• Loose connecting wire	Send to the after-sales service point for maintenance
	• The lamp is broken	Send to the after-sales service point for maintenance
Other problems	• Other faults of the product	Send to the after-sales service point for maintenance

EN

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

EN

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

EN
