USER MANUAL KD-TPQC-006-20x20ft Vevor

Affordable. Reliable. Home Improvement.

Heavy Duty carports

Model: KD-TPQC-006-20x20ft

Technical Support and E-Warranty Certificate

www.vevor.com/support

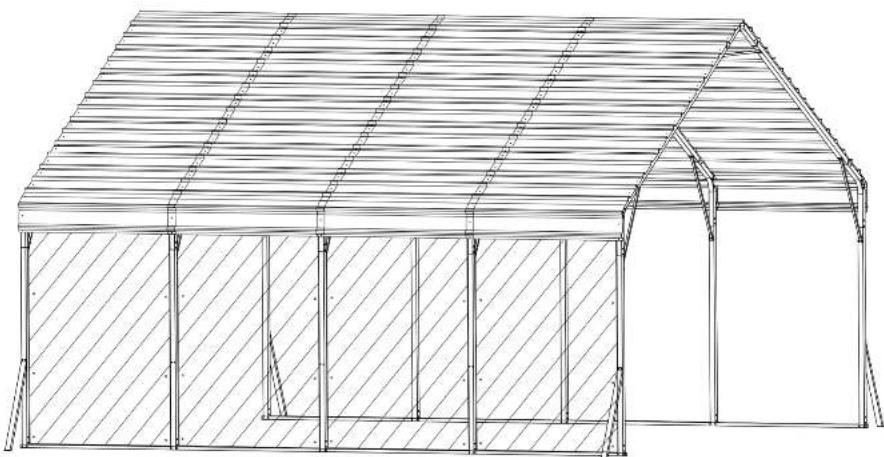

CARPORT INSTALLATION INSTRUCTION

Model: KD-TPQC-006-20x20ft

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

IMPORTANT! PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE INSTALLATION.

1. Have at least two adults during installation. Read all instructions carefully and follow it accordingly. Failure to do so may result in injury or damage to the carport.
2. Never set-up the product in rainy, windy or stormy conditions, especially lighting storms.
3. Keep your carport off of the steep sloppes and inclination.
4. After installation, the carport should be anchored to prevent damage and possible injury. It is the user's responsibility to properly anchor the product.
5. Aleays inspect the carport and each part before use. Make sure that everything is tightly secured. Replace any worn, defective missing parts.
6. For abetter installation and use experience, it is recommended to bring your own ladder, scissors, wlectic drill and glass glue.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1.Assemble only according to these instructions. Improper assembly can create hazards.
2.Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5.Do not assemble if tired or when under the influence of alcohol, drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7.Assemble on a flat, level, hard and smooth surface capable of safely supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1.DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
3.Do not exceed specified weight capacities.
4.Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Wooden Hall Tree.
5.Use as intended only.
6.Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

IMPORTANT! PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE INSTALLATION.

1. Installation requires at least two adults. Read all instructions carefully and follow it accordingly. Failure to do so may result in injury or damage to the carport.
2. Never set up the product in rainy, windy or stormy conditions, especially lighting storms.
3. Keep your carport off of the steep slopes and inclination.
4. After installation, the carport should be anchored to prevent damage and possible injury. It is the user's responsibility to properly anchor the product.
5. Always inspect the carport and each part before use. Make sure that everything is tightly secured. Replace any worn, defective missing parts.
6. For a better installation and use experience, it is recommended to bring your own ladder, scissors, electric drill and glass glue.

Ladder

Scissors

Electric drill

PACKAGE CONTENTS

This carport is packed in 5 boxes. Before the installation, please check all the parts according to the part list. If there is any part missing or defective, please contact us immediately to get replacement parts.

Part No.	Part Name	Drawing	Qty
#1	Side pole 1		8 PCS
#2	Side pole 2		4 PCS
#3	Straight peak pole		10 PCS
#4	Leg pole		10 PCS
#5	Top Reinforcing pole		15 PCS
#6	Ground bar 1		6 PCS
#6a	Ground bar 2		2 PCS
#7	Connector		15 PCS
#8	Ground Reinforcing pole		4 PCS
#9	Side-side defense pole		8 PCS
#10	Side plate 1		3 PCS
#11	Side plate 2		4 PCS
#R	Roof cover		68 PCS
#G1	M5X20 Self-Tapping screws		270 PCS
#G1a	M5X25 Self-Tapping screws		20 PCS
#G2	Socket head bolt		262PCS
#G3	Expansion screws		22 PCS
#G4	Socket head bolt & Nut		32 PCS
#L	Gloves		2 pairs
#Y1	Waterproof tape		6 PCS
#Y2	Anti-cut tape		20 M
#Y3	Enclosure		4 PCS
#Y4	Beads of rope		48 PCS

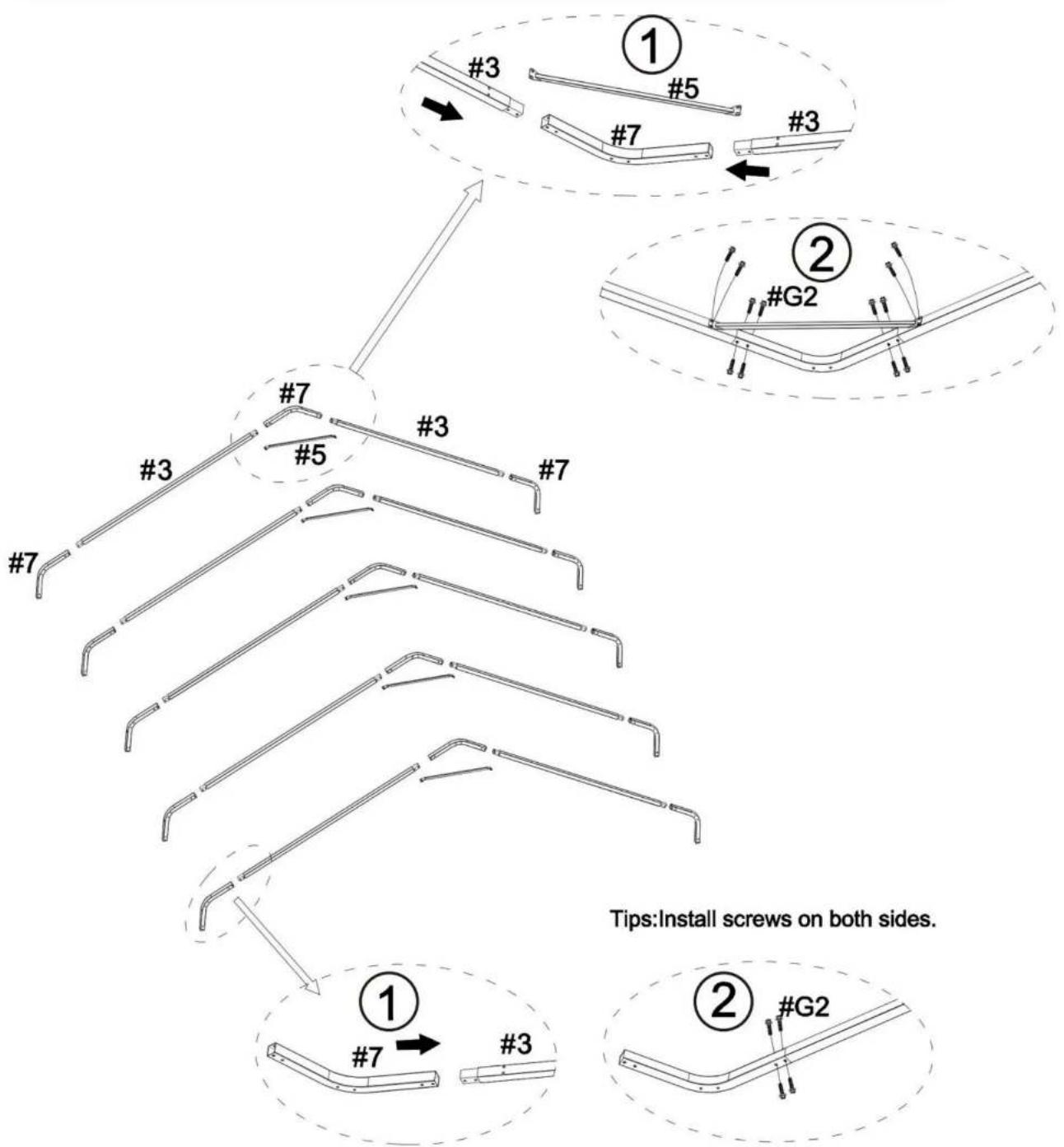

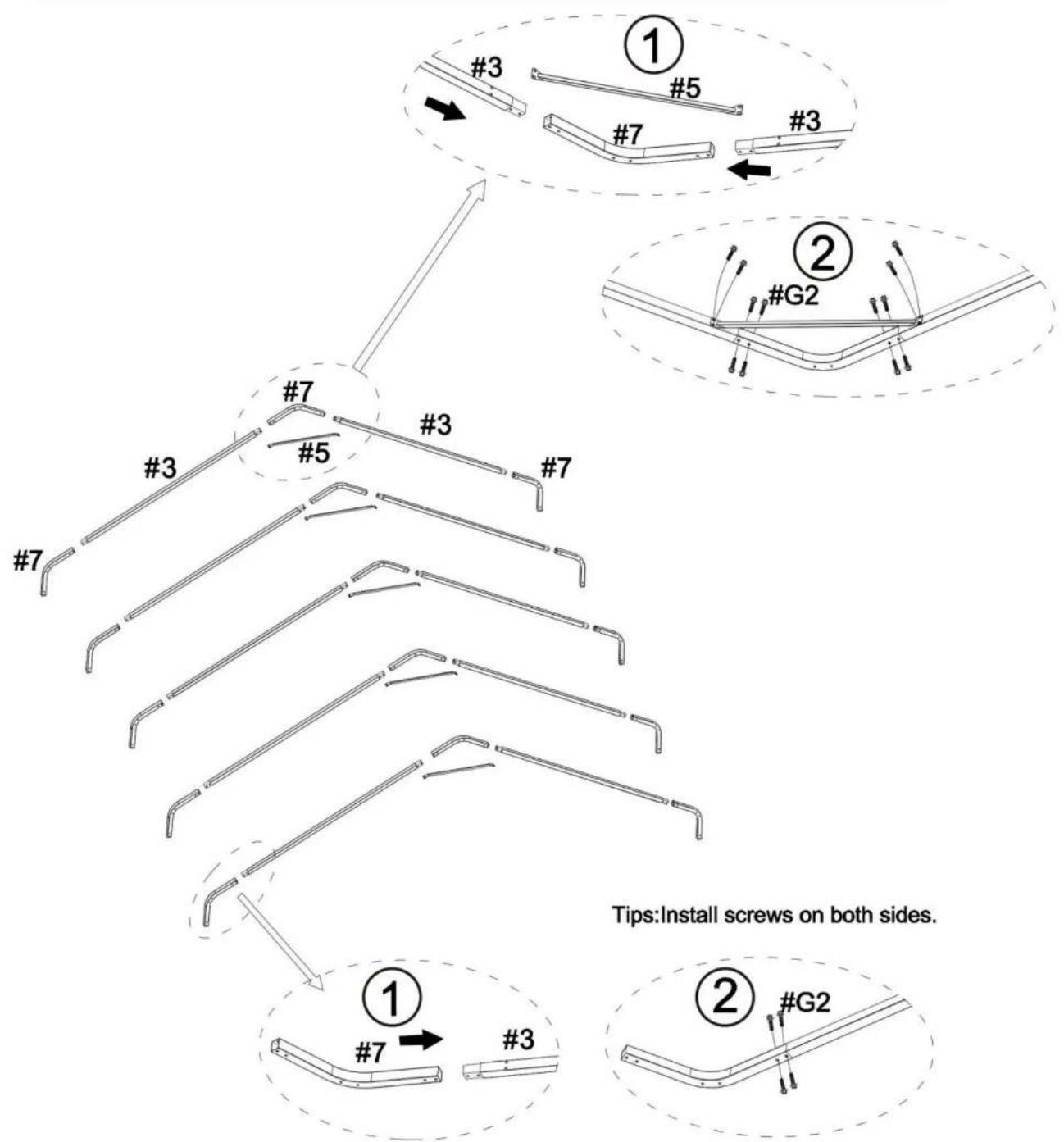

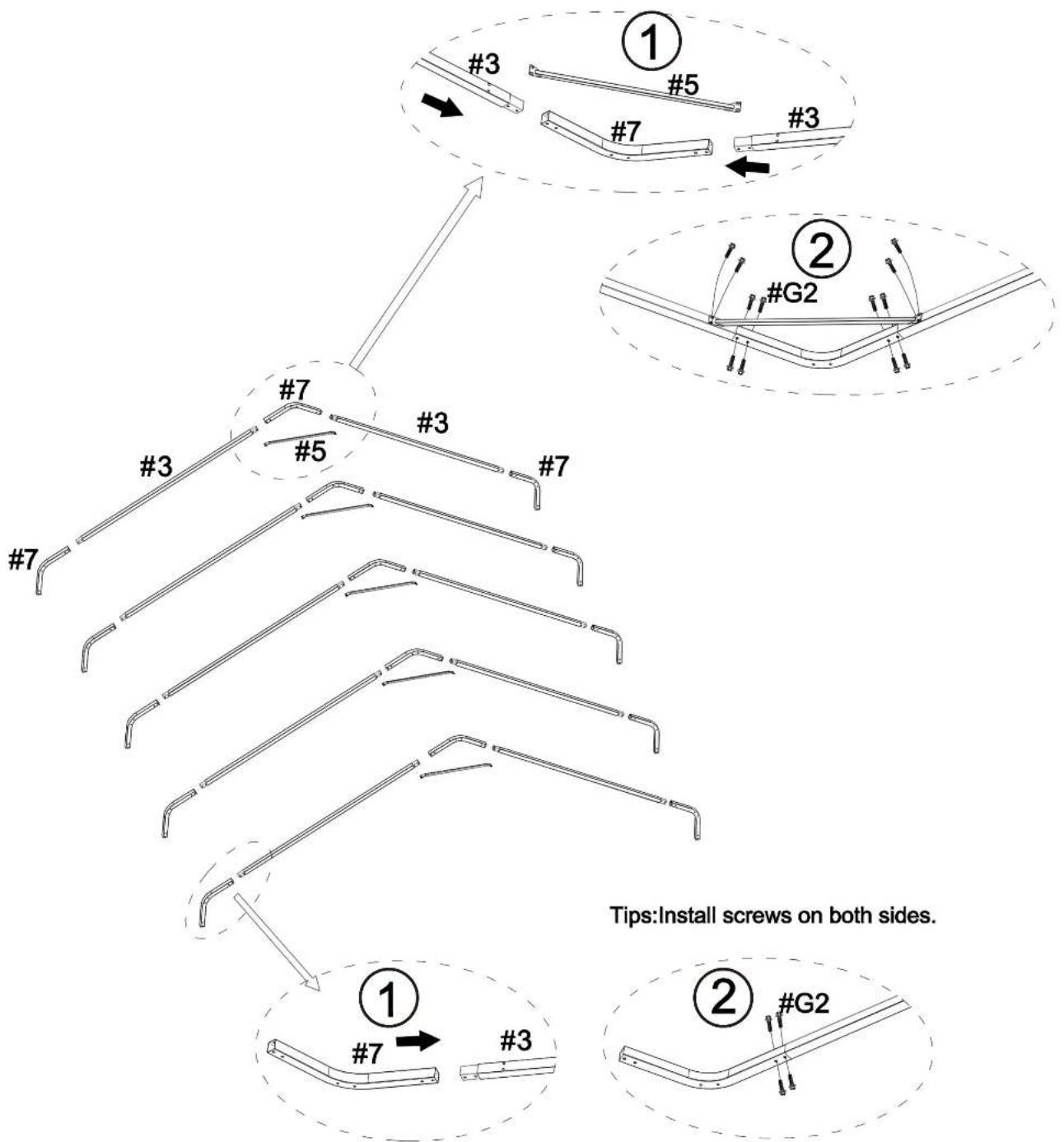

STEP 1: Assemble the Top Frame

#3		X10
#5		X5
#7		X15
#G2		X100

Notice:

The linking screws in this step are all: Socket Head Bolt (#G2)

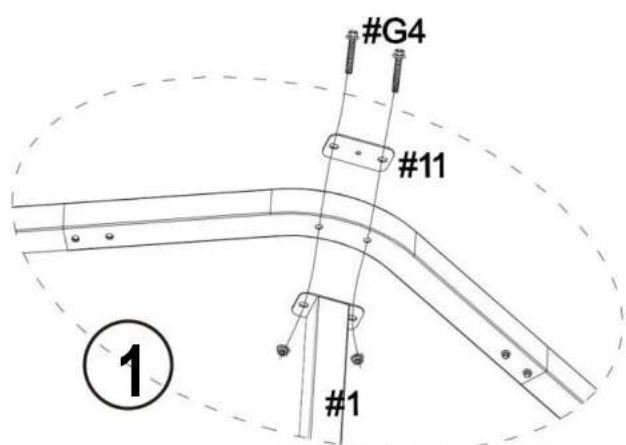

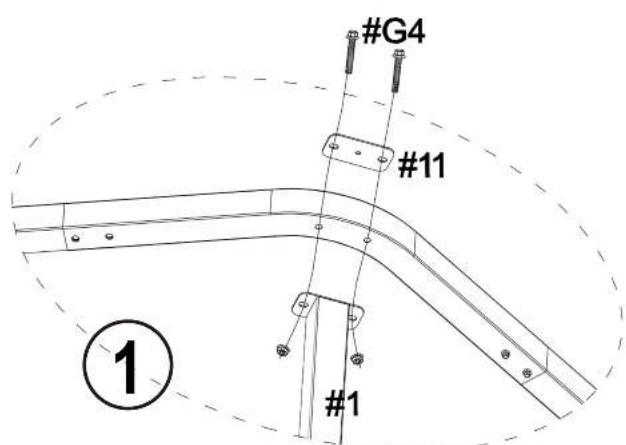

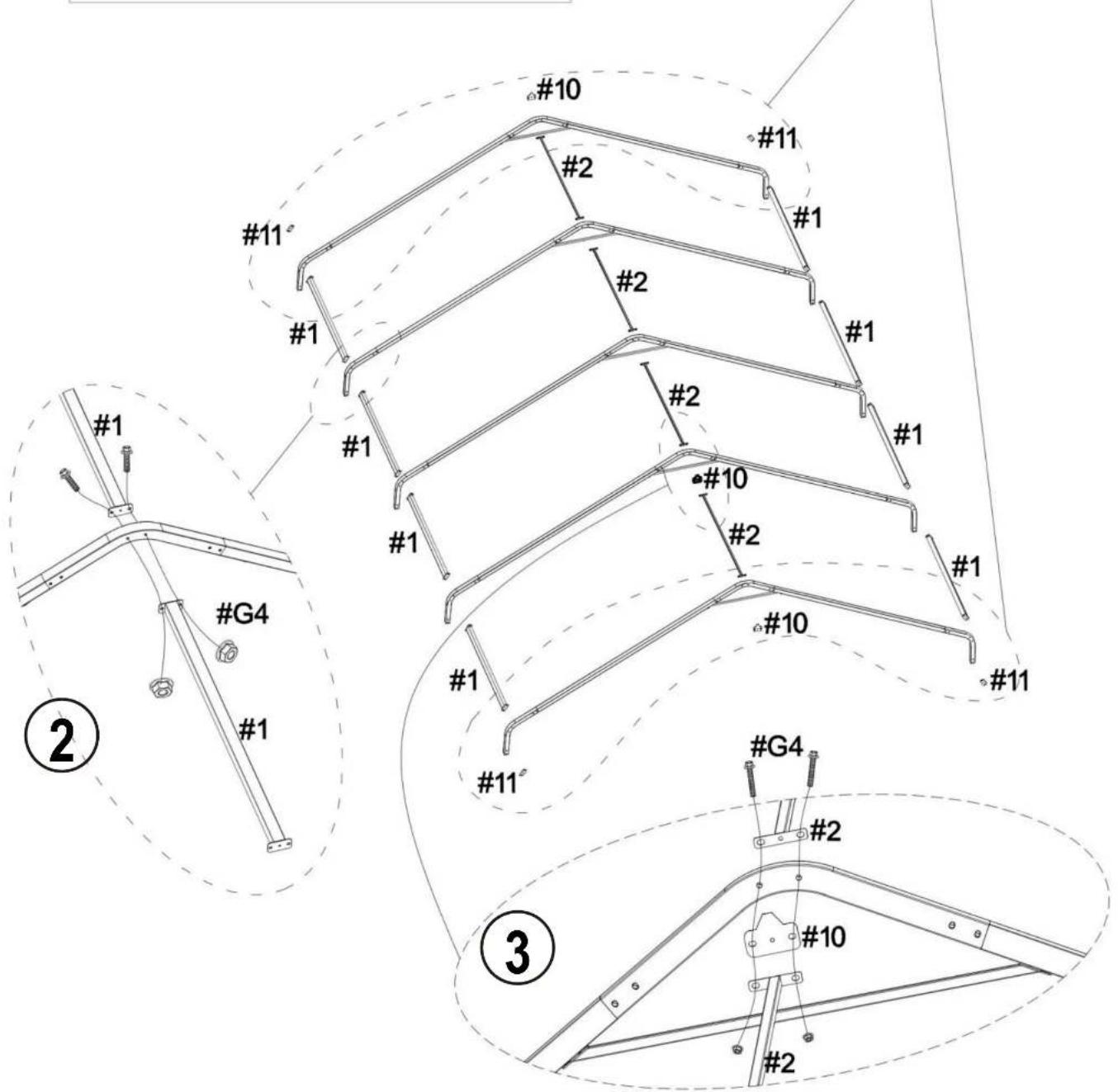

STEP 2:

#1		X8
#2		X4
#10		X3
#11		X4
#G4		X30

Notice:

The linking screws in this step are all: Socket Head Bolt (#G4)

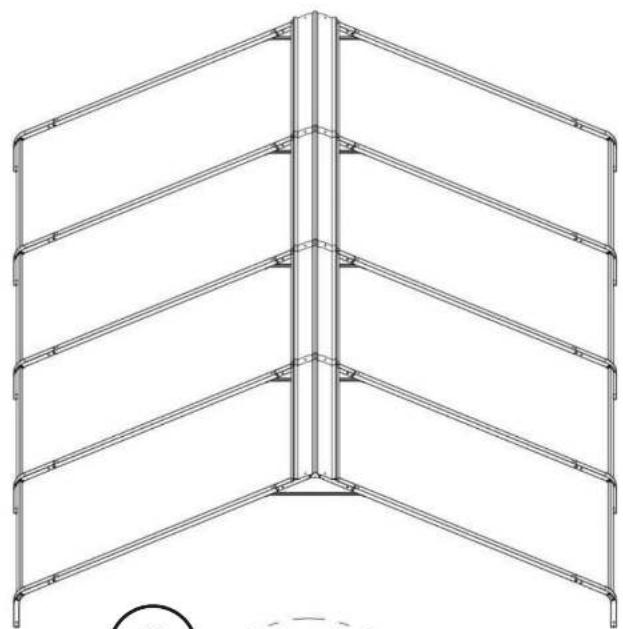

STEP 3: Install the Top Roof

Install all the Roof Cover (#R) to the top frame. The linking screws in this step are all: Self-Tapping Screws (#G1), as shown in the picture.

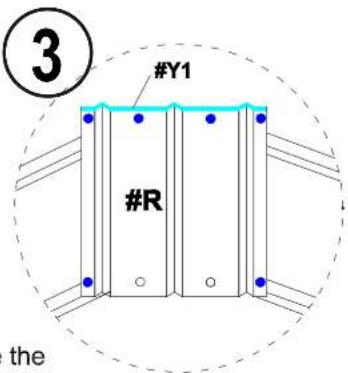

Notice:

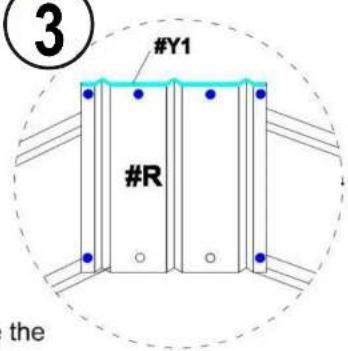

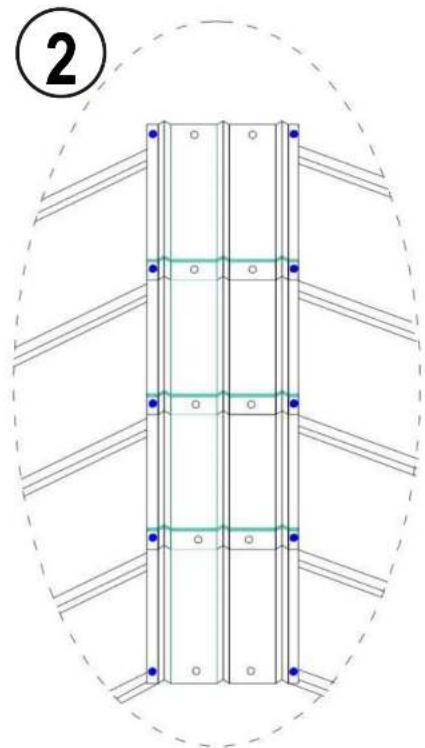

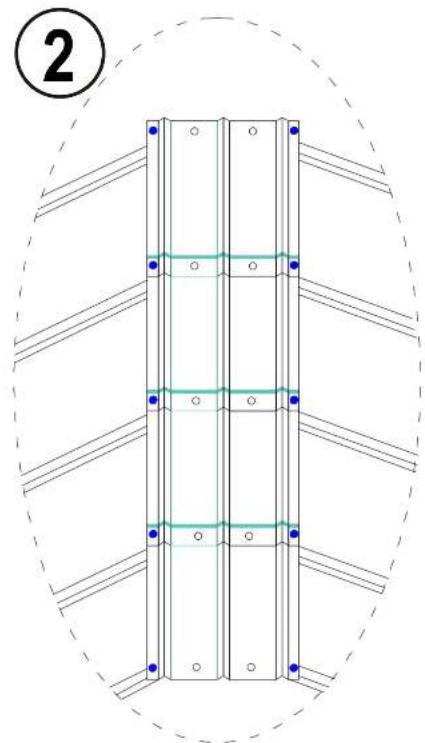

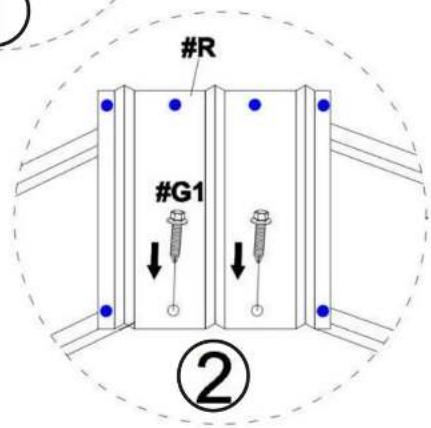

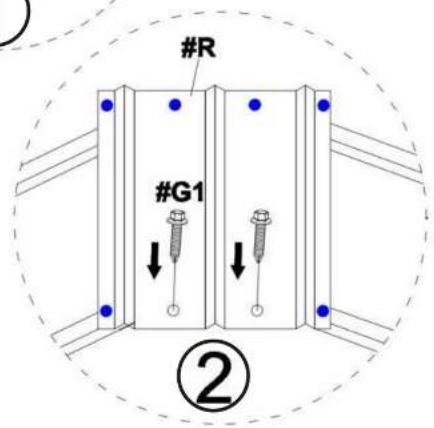

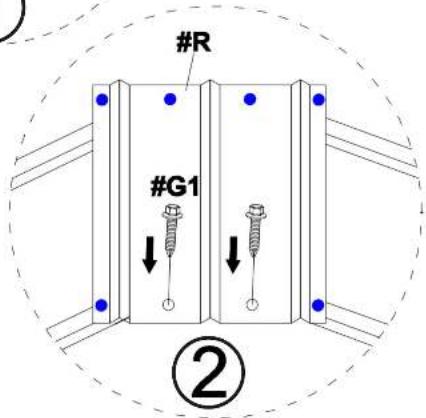

1. The meaning of different colored holes in the Roof Cover(#R);

Blue hole: no screws here right now.
Black hole: nonal installation

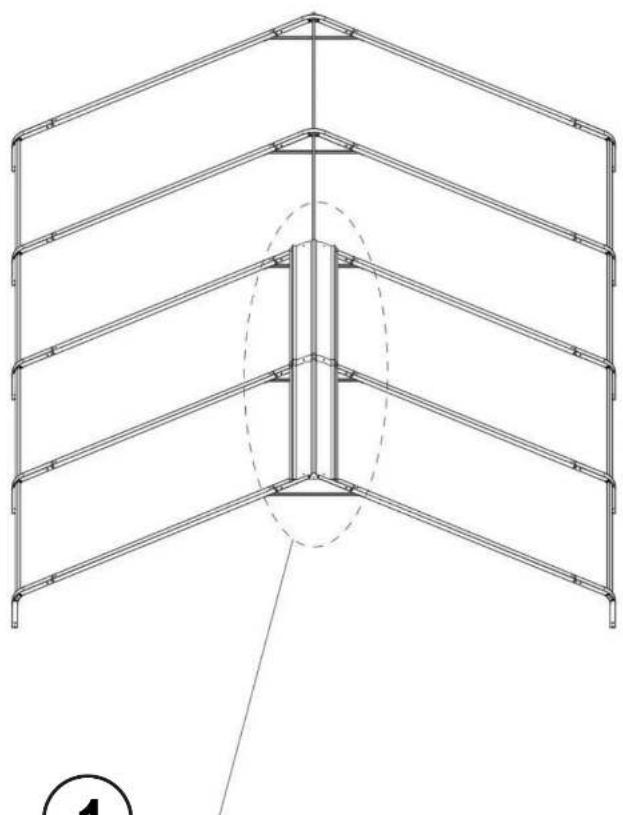

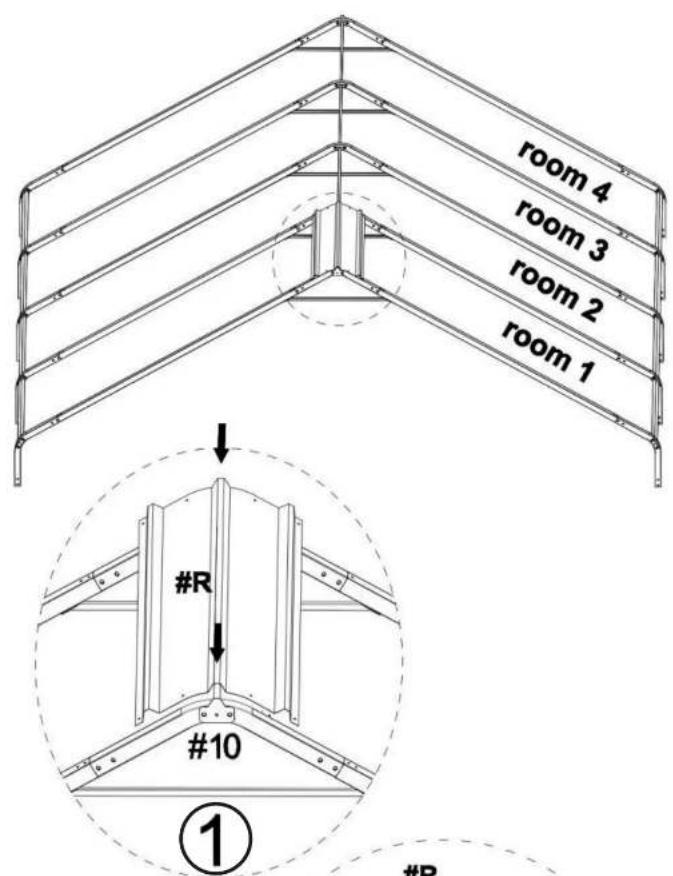

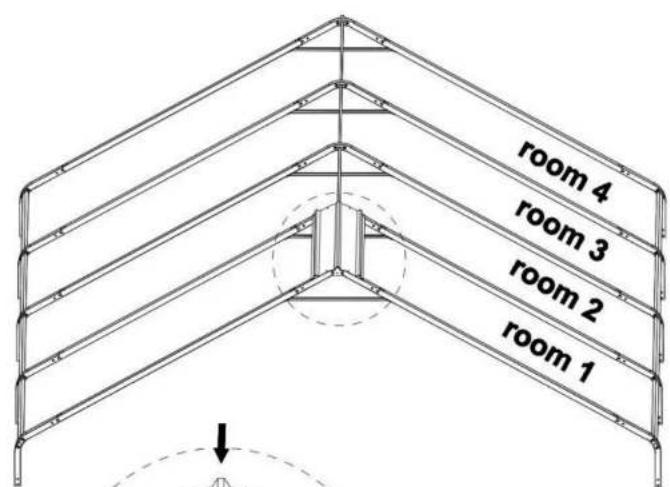

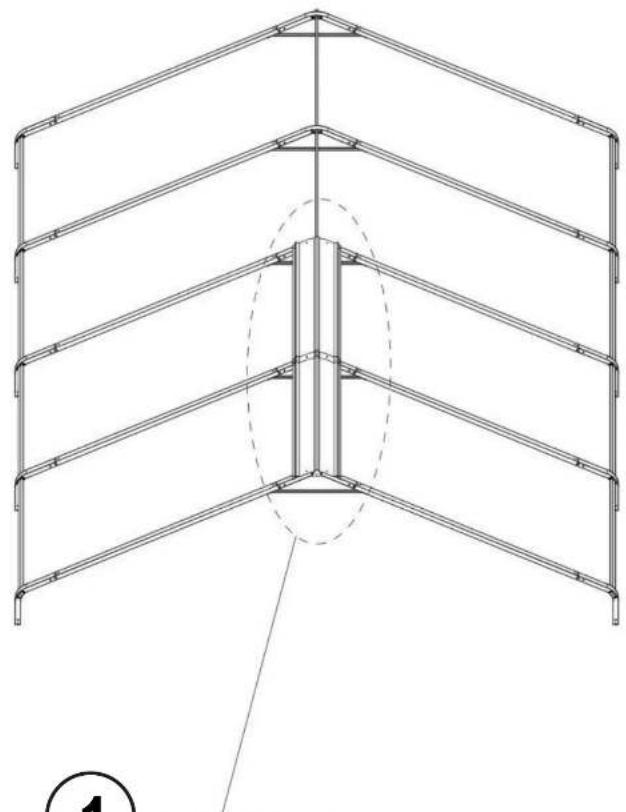

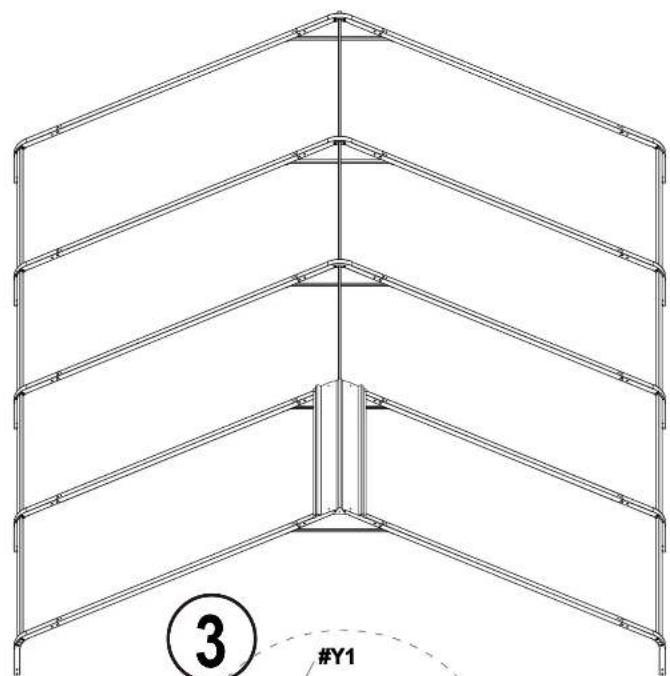

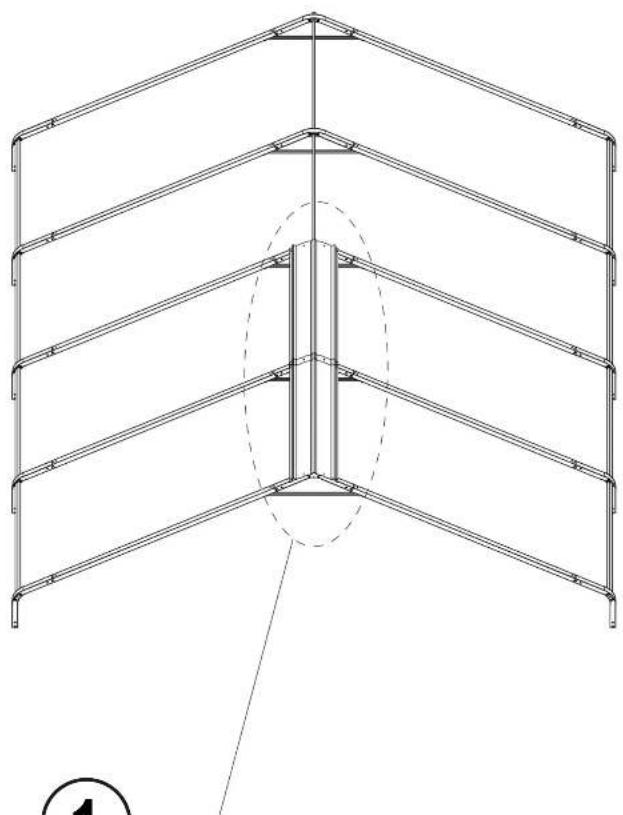

1) Starting from the top middle of room 1 to room 4, install the first row of Roof Covers(#R).

#R		X1
#Y1		X6
#G1		X2

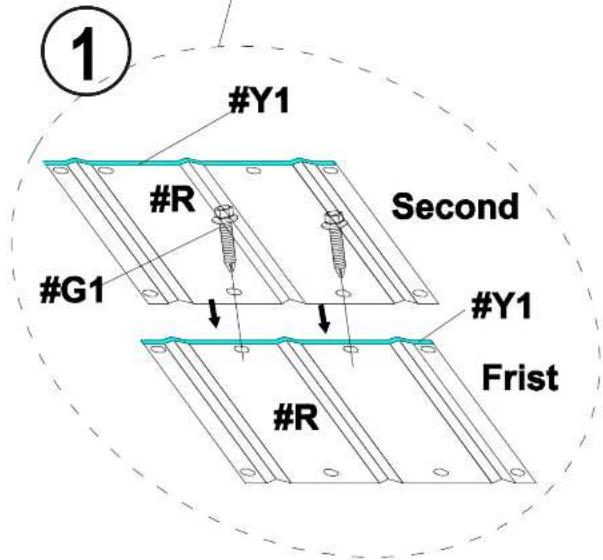

2) When installing each Roof Cover (#R), you need to use Waterproof Tape (#Y1) as shown in the picture.

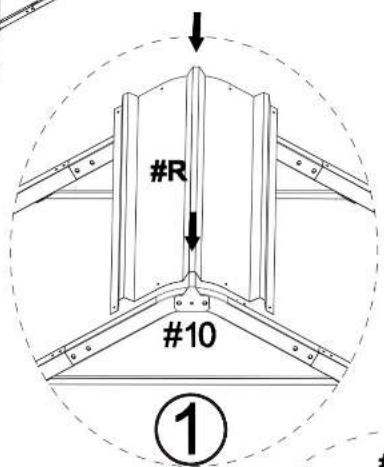

When installing the first piece of roof covering, place the middle slot of the tile at the gasket #10 bump for easy reinforcement with screws

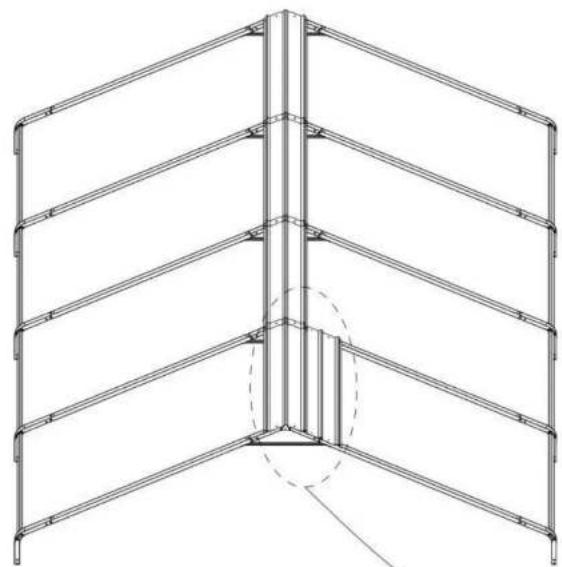

STEP 4:

Notice:

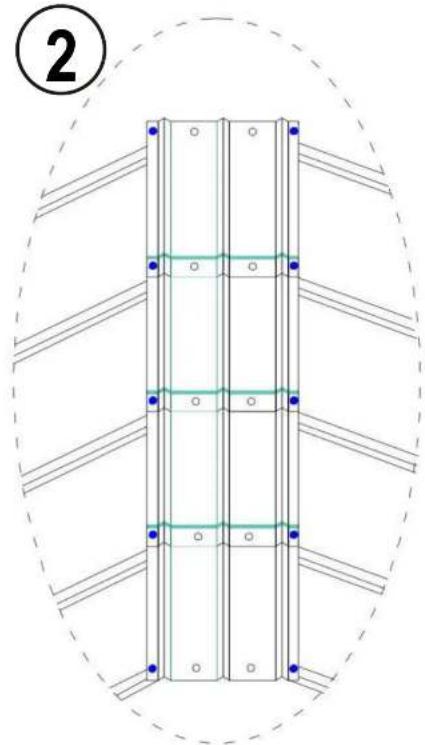

1. Make sure that the screw holes are aligned, and then press the Waterproof Tape (#Y1)
2. Make sure there are no gaps between the two roof covers to prevent water leakage

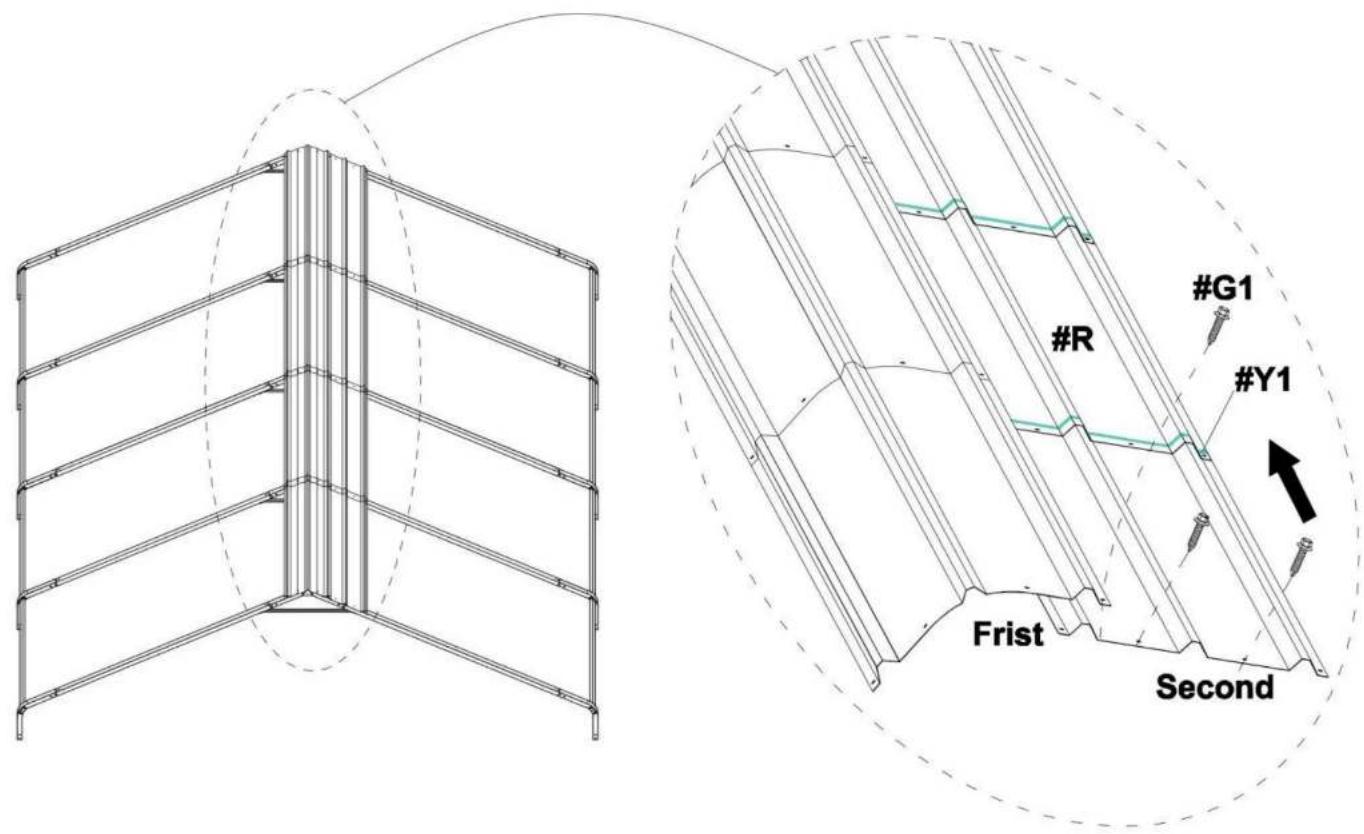

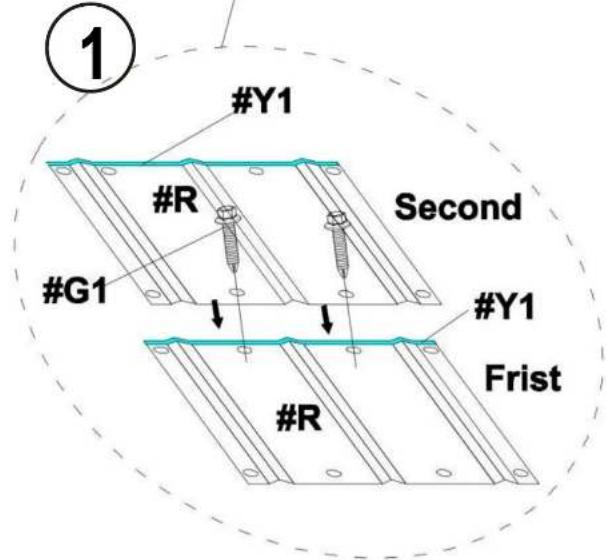

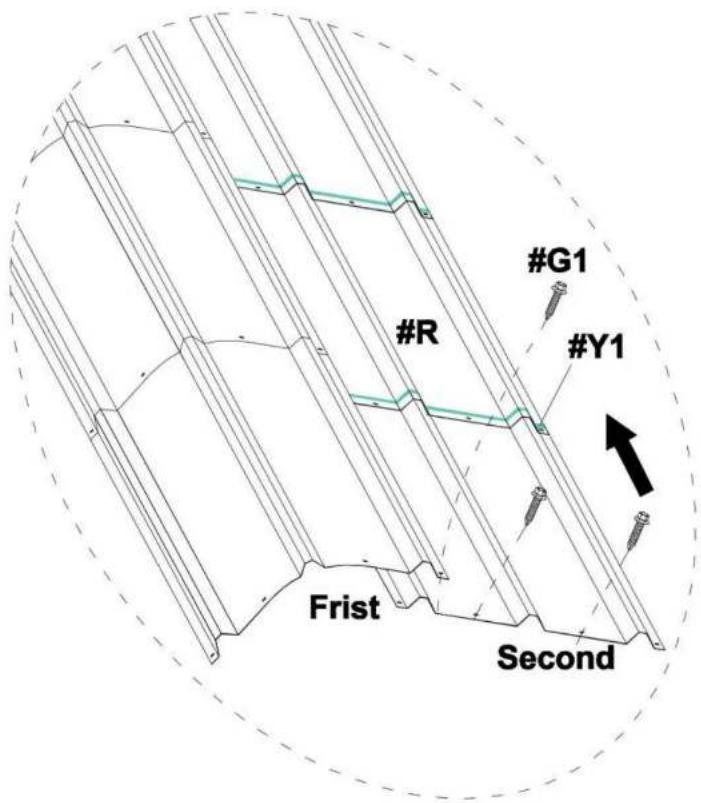

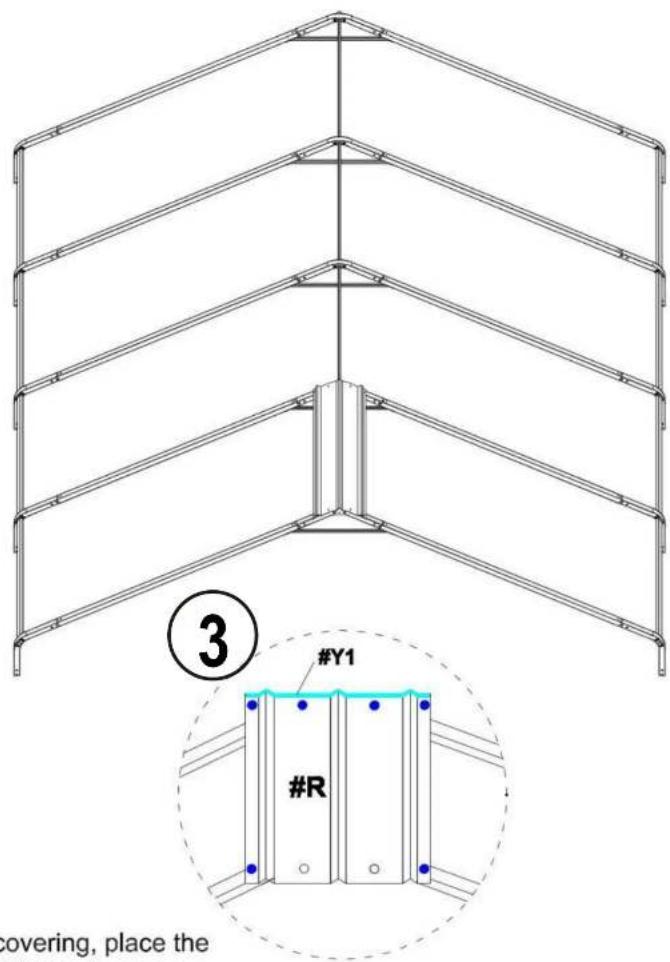

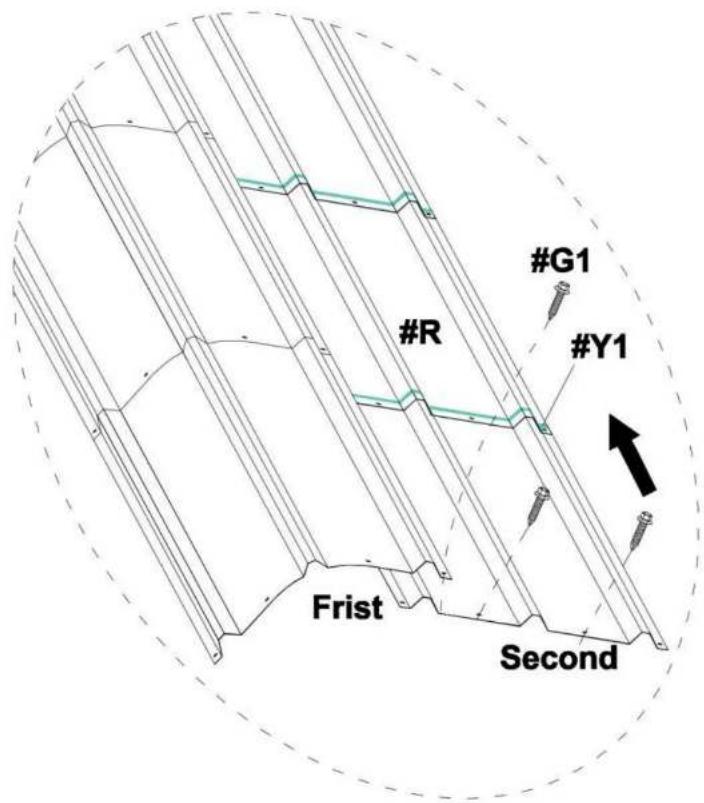

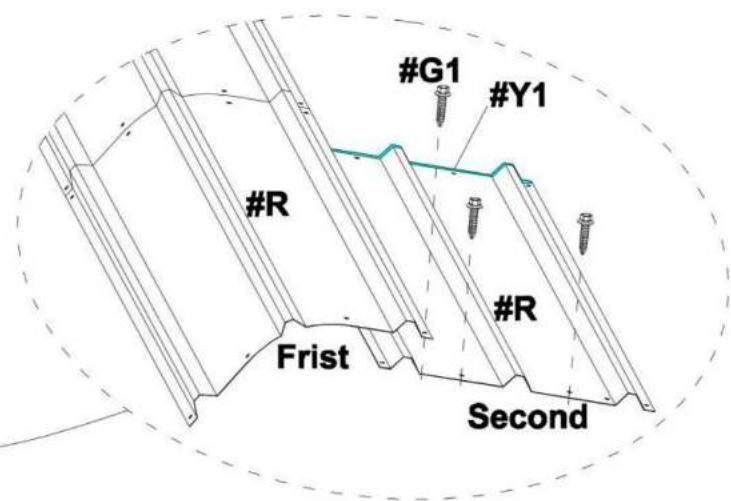

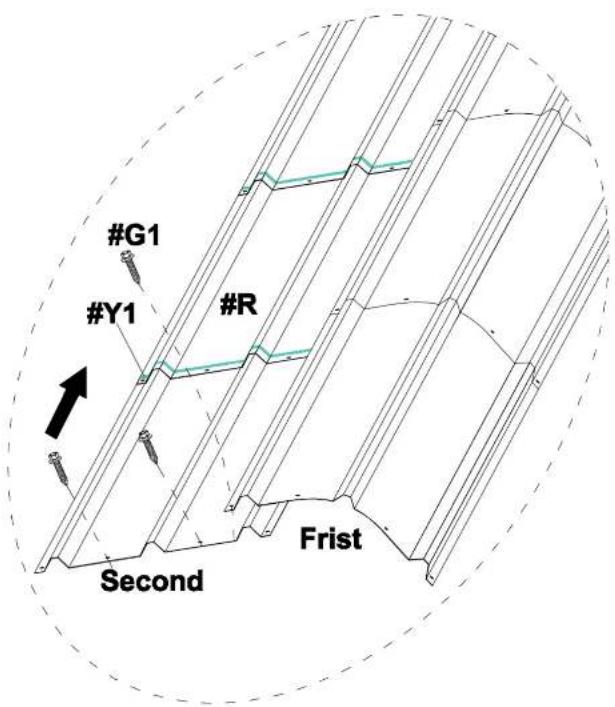

3.1) The second Roof Cover (#R) needs to be placed on the first Roof Cover (#R)

#R		X3
#Y1
#G1		X8

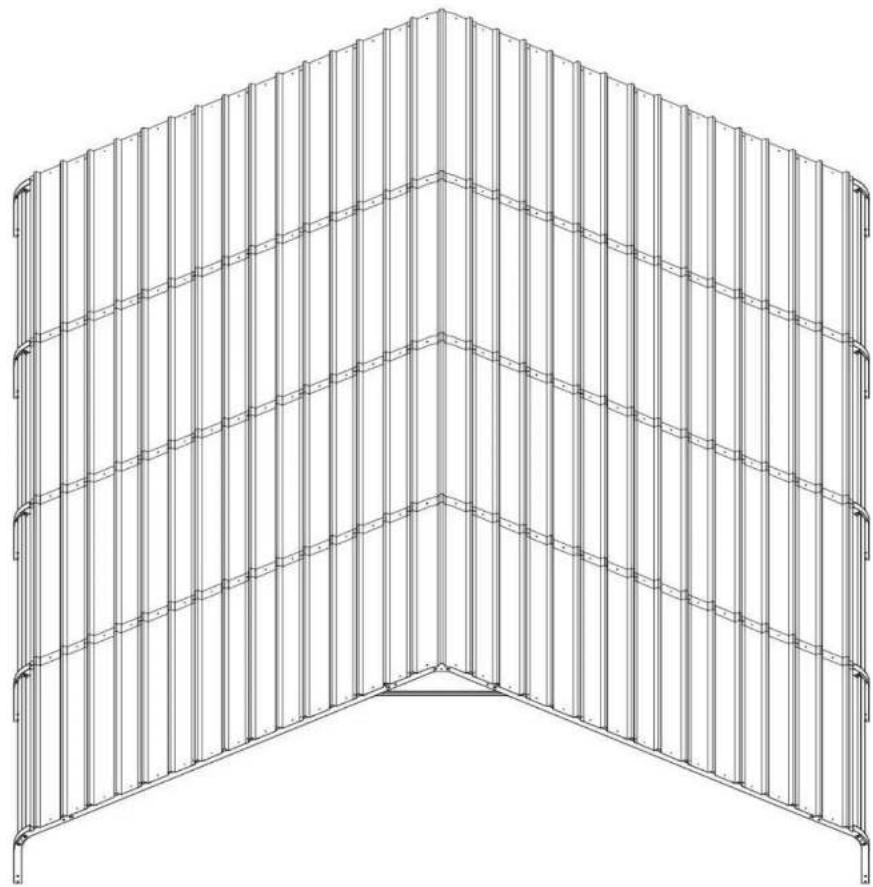

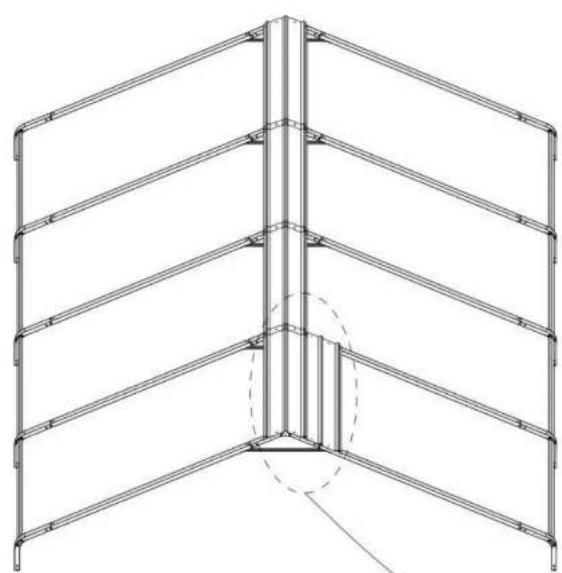

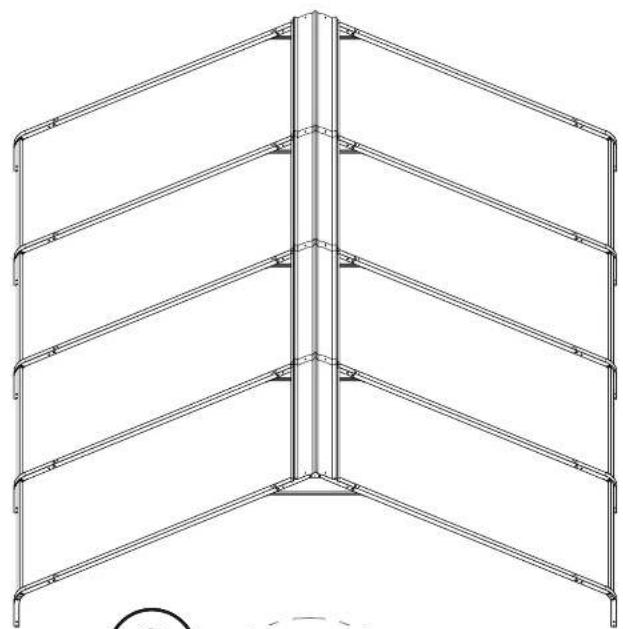

3.2) Follow the previous steps and continue to install the remaining Roof Cover (#R) in the middle row.

4.1) After installing the middle row, continue to install the 4 rows on the right. Each newly installed Roof Cover (#R) in a row needs to be placed below the Roof Cover (#R) in the previous row, as shown in the picture.

#R		X4
#Y1
#G1		X15

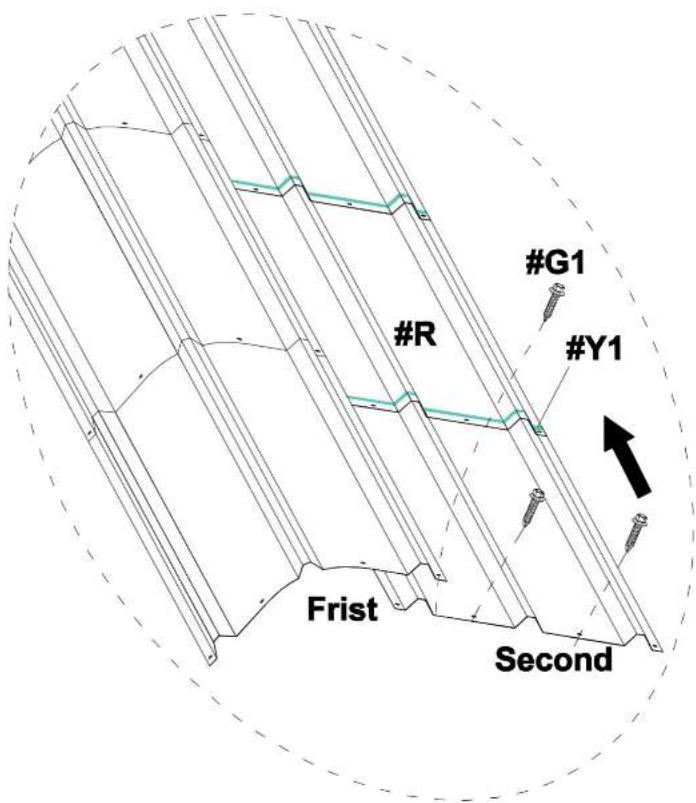

4.2) Same as the previous step, after pasting the Waterproof Tape(#Y1) of RoofCovers(#R),install the next Roof Covers(#R).

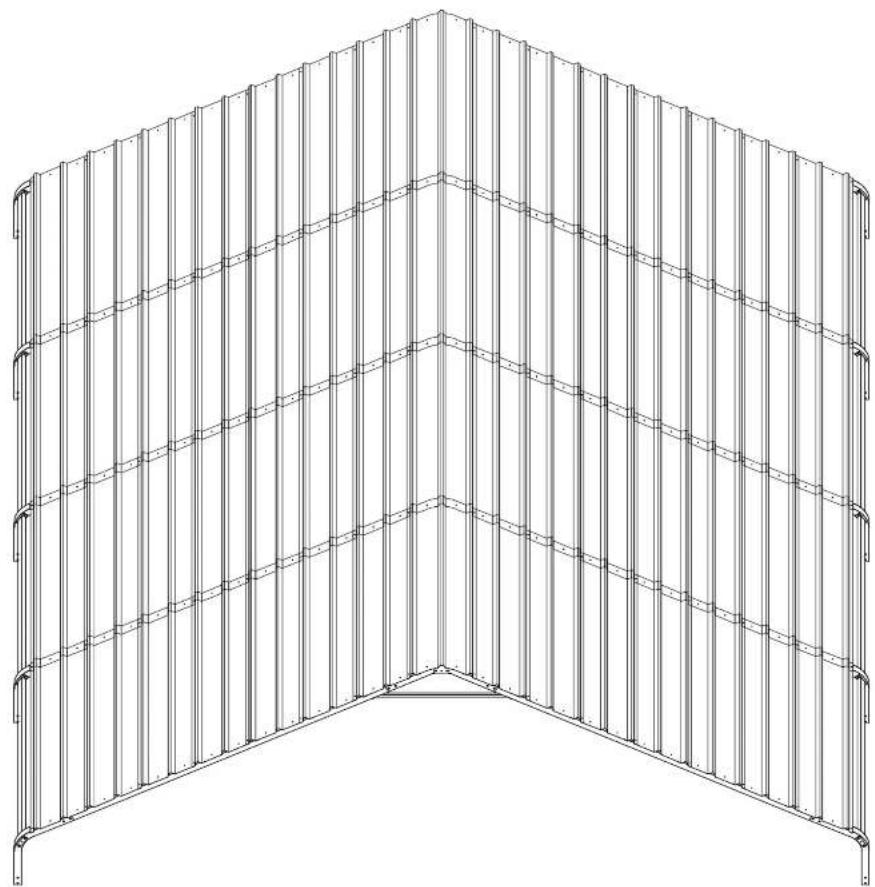

4.3) Follow the previous steps and continue to install the Roof Cover (#R) in the remaining 6 rows on the right.

#R		X24
#Y1
#G1		X90

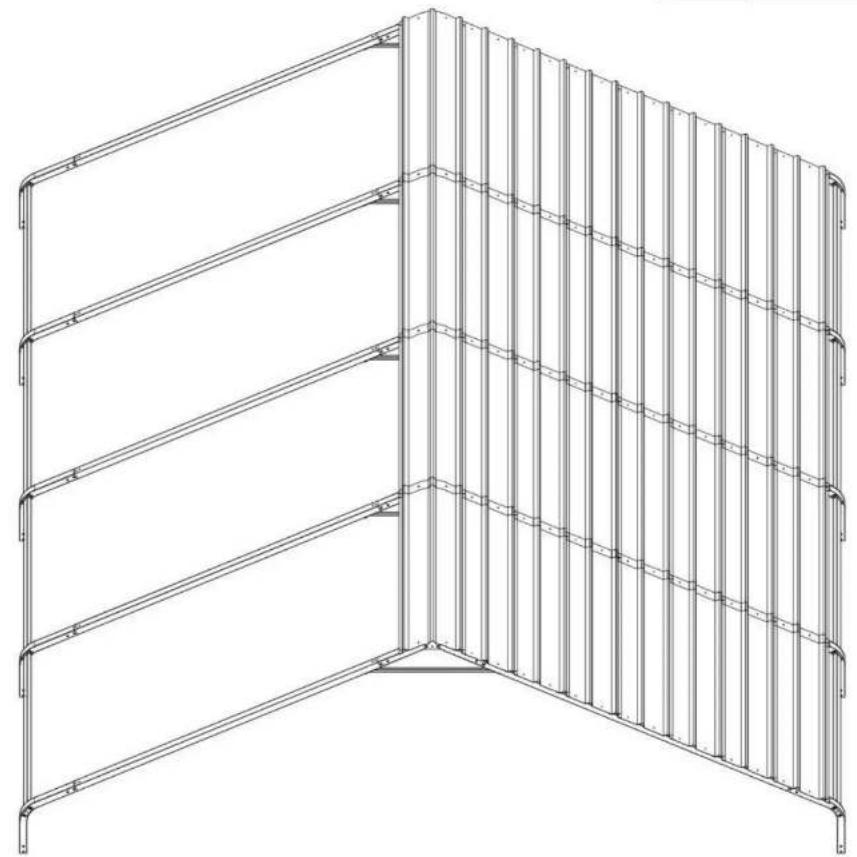

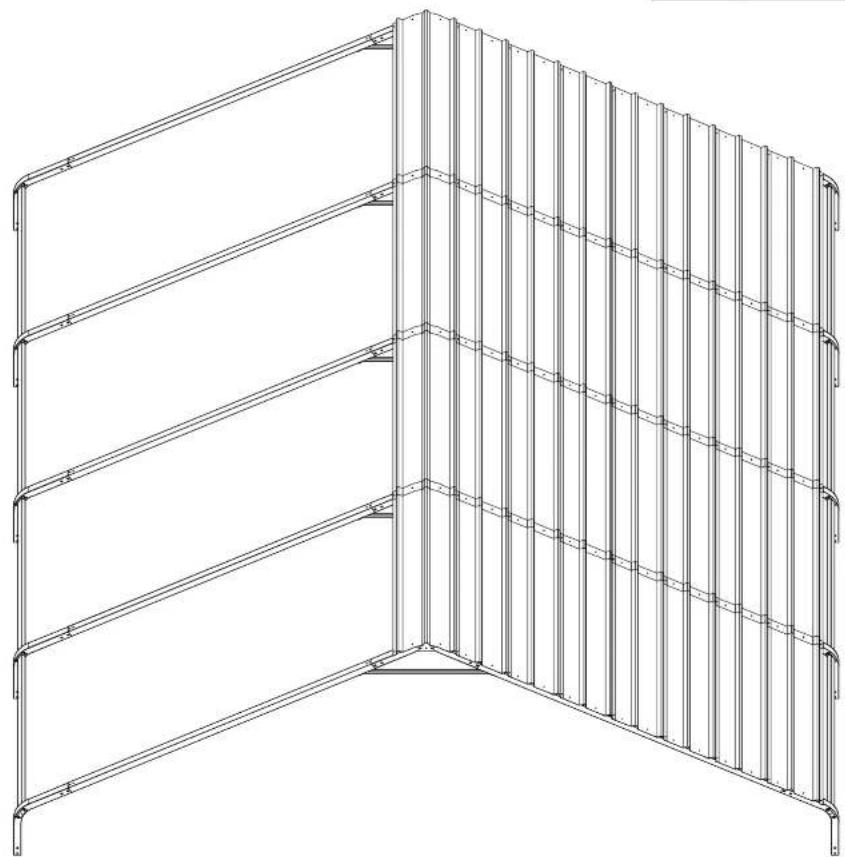

5.2) Same as the installation steps for the 6 rows on the right, please complete the installation of Roof Cover(#R) of the 7 rows on the left.

#R		X28
#Y1
#G1		X105

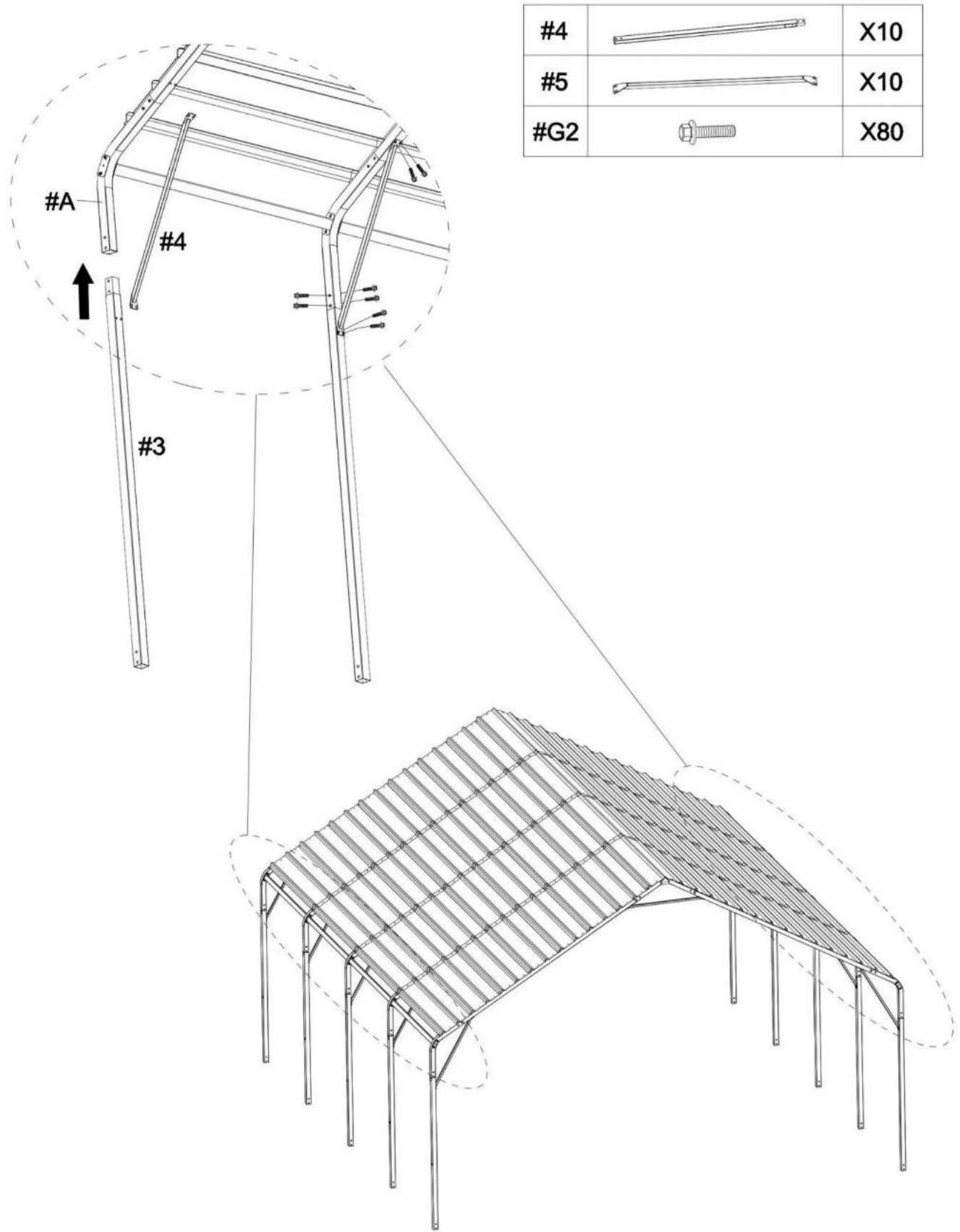

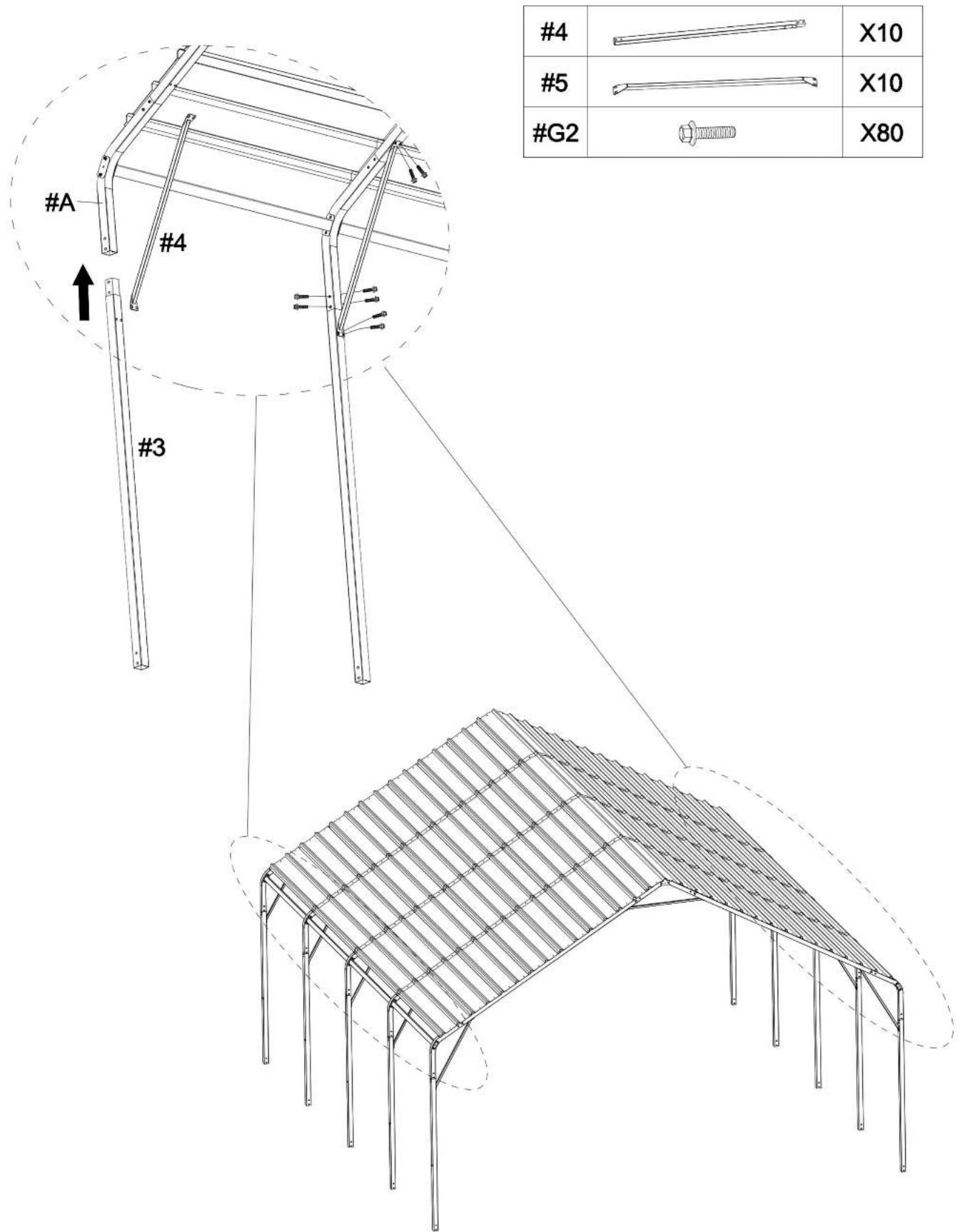

STEP 5: Connect Legs

1) Install Leg Pole(#4) and Top Reinforcing pole(#5) to the Connector(#7).
2) The linking screws in this step are all: Hex Head Cap Bolt (#G2).

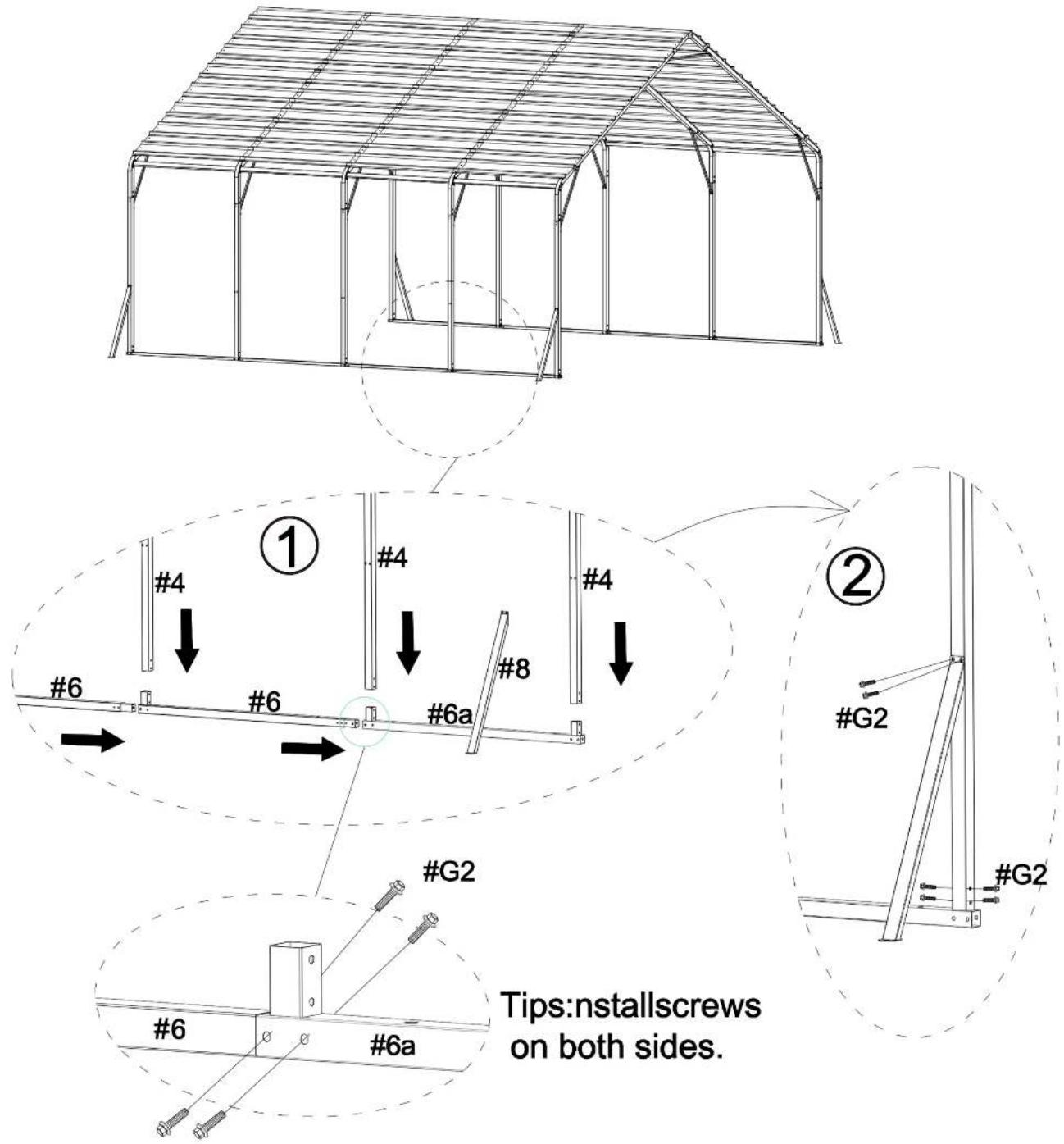

STEP 6: Reinforce the Frame

1)Connect all the Leg Pole(#4) to Ground bar 1(#6) and Ground bar 2(#6a)
2) The linking screws in this step are all: Hex Head Cap Bolt (#G2) and

Expansion screws (#G3).

#6		X6
#6a		X2
#8		X4
#G2		X72

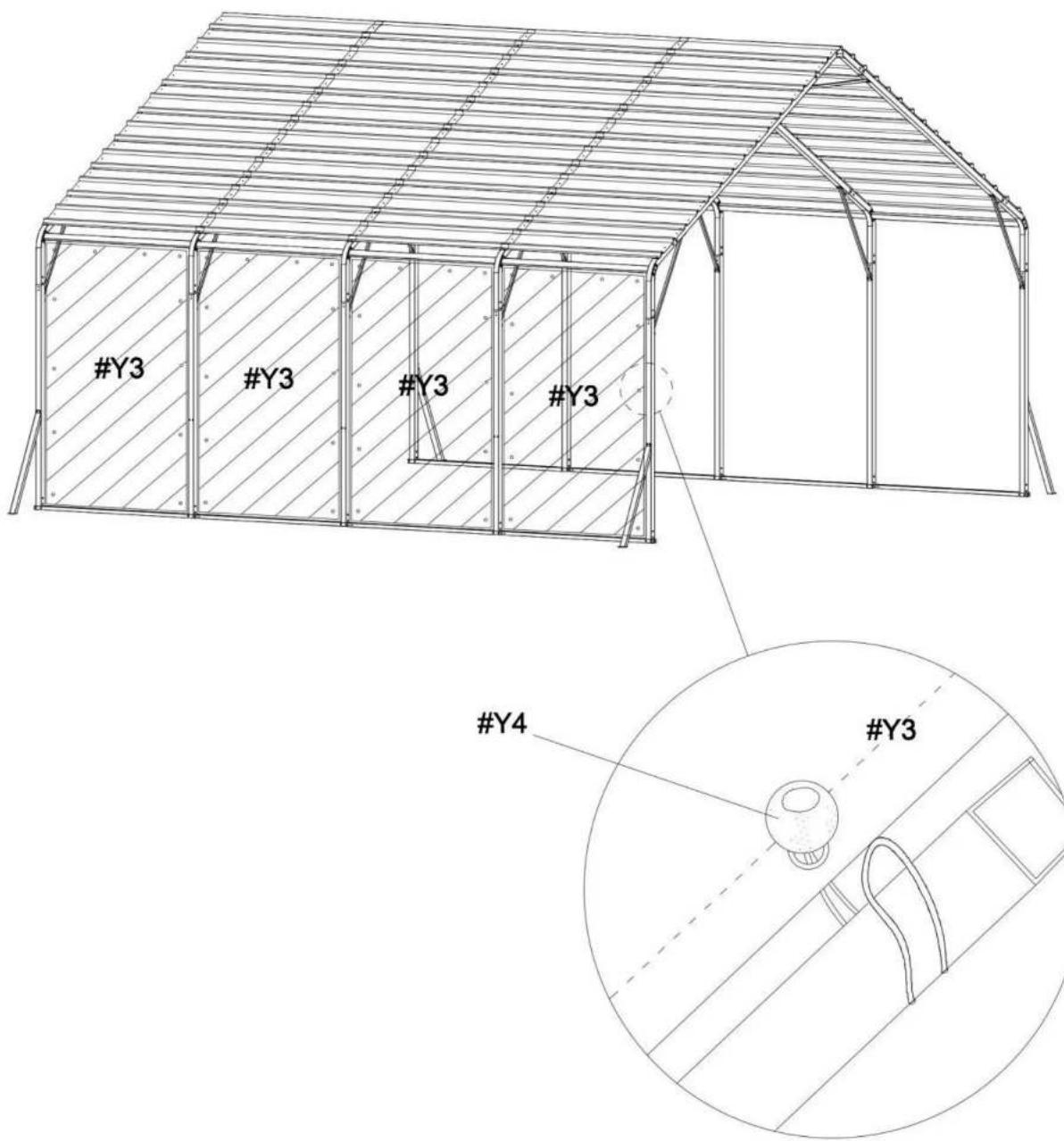

STEP 7: Reinforce the Frame

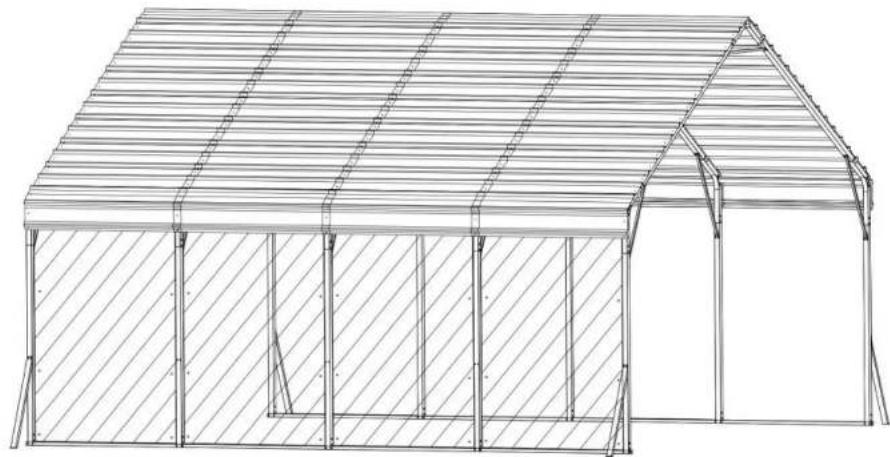

Secure 4 wall cloths (#Y3) to the frame with rope beads (#Y4)

#Y3		X4
#Y4		X48

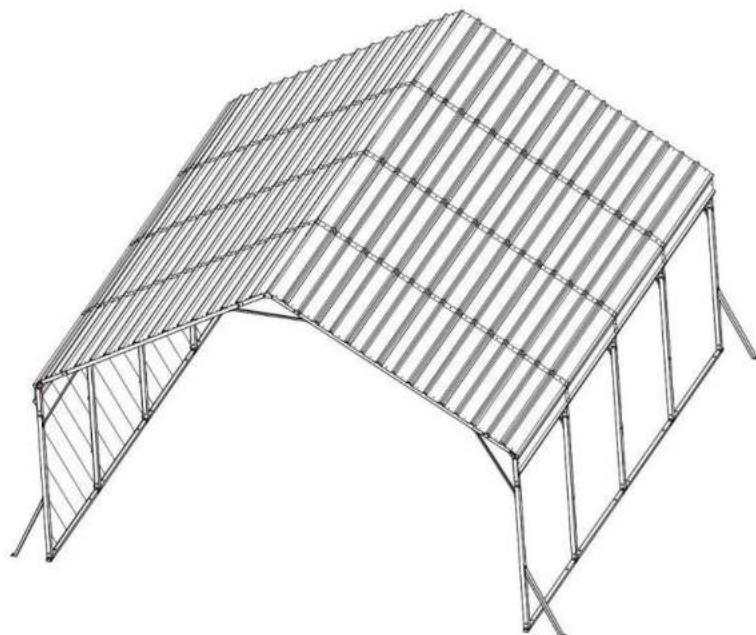

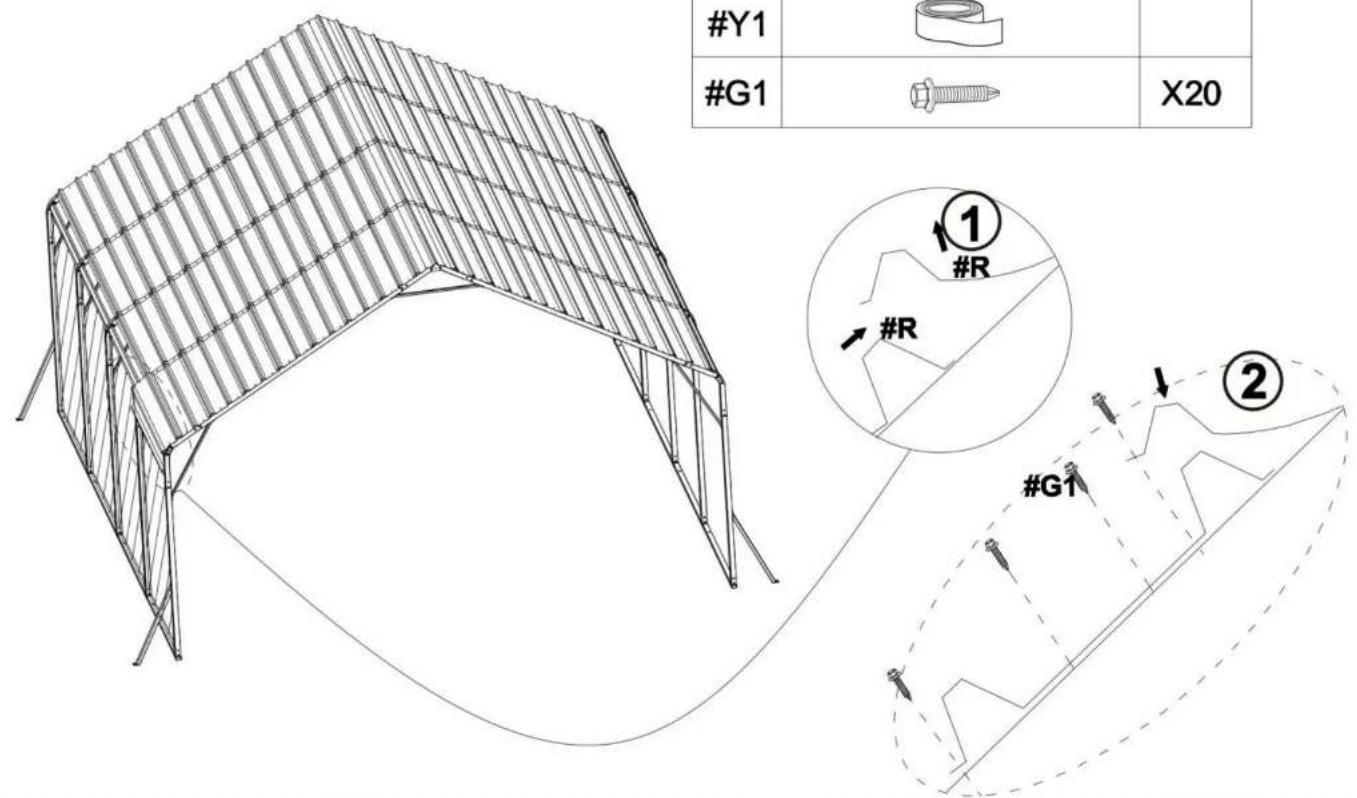

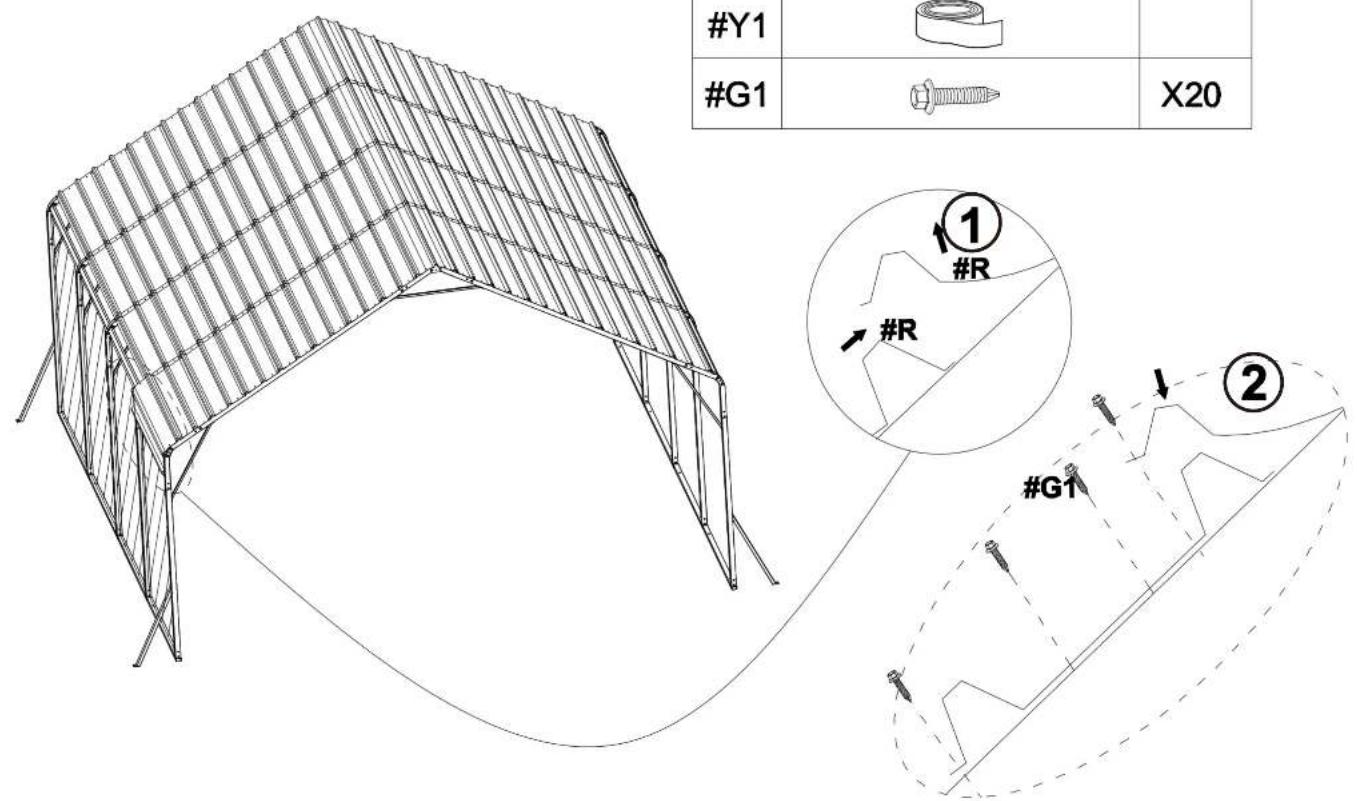

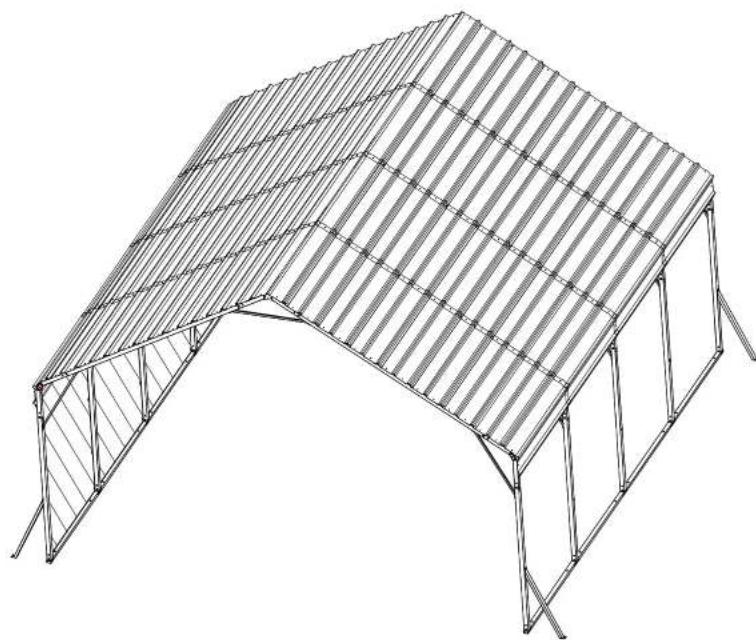

STEP8: Install the Side Roof

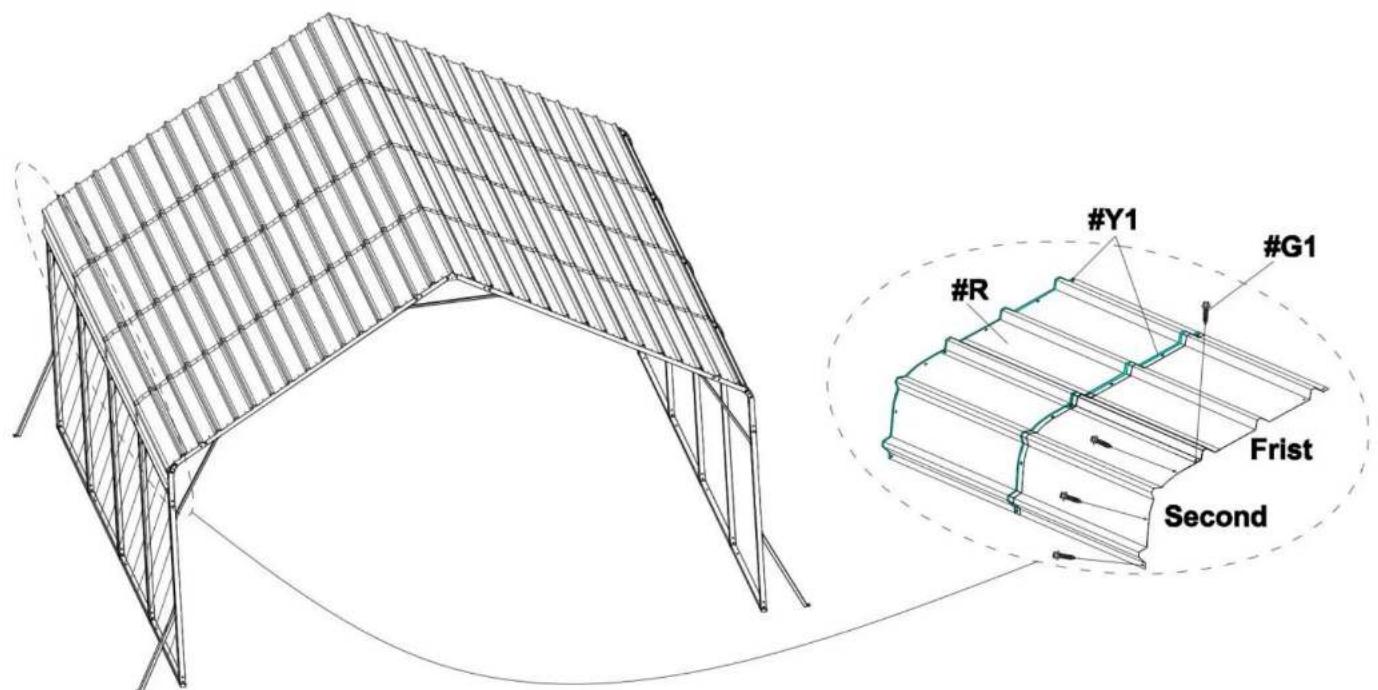

After installing the Leg Pole(#4), continue to install the Roof Cover (#R) in the 4 rows on the left and right sides.

1) First install the Roof Cover (#R) in the left row, as shown in the picture.

#R		X4
#Y1
#G1		X20

Notice:

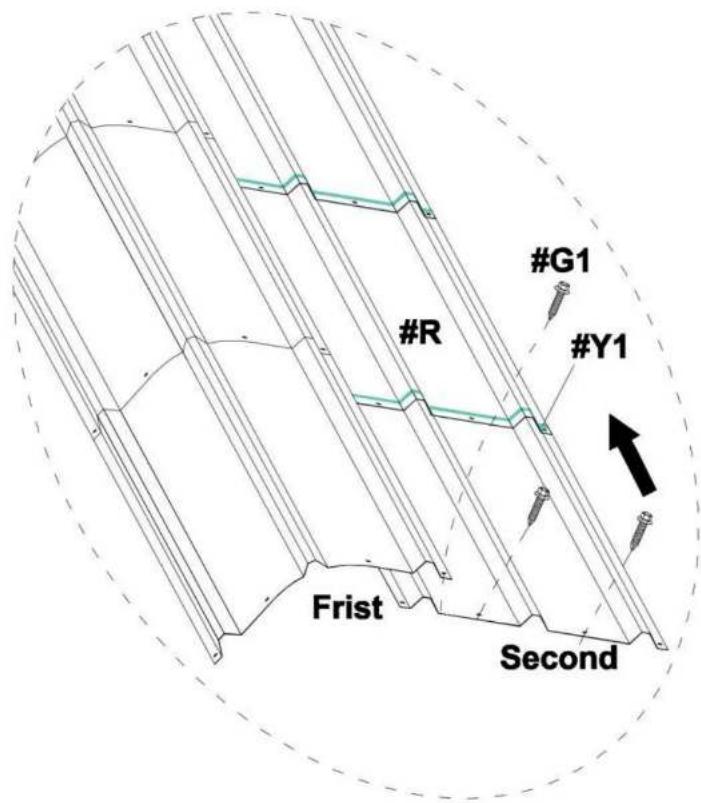

1. Make sure that the screw holes are aligned, and then press the Waterproof Tape (#Y1)
2. Make sure there are no gaps between the two roof covers to prevent water leakage
3. The second Roof Cover (#R) needs to be placed on the first Roof Cover (#R)

2) Follow the previous steps and continue to install the Roof Cover (#R) in the remaining 1 rows on the right.

#R		X4
#Y1
#G1		X20
#Y2

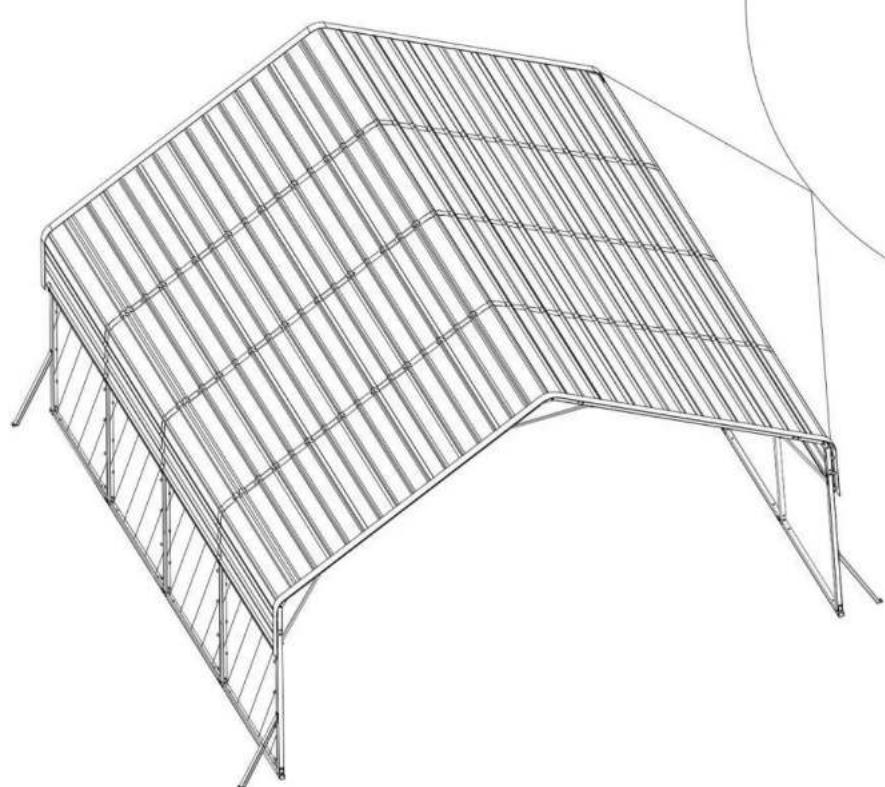

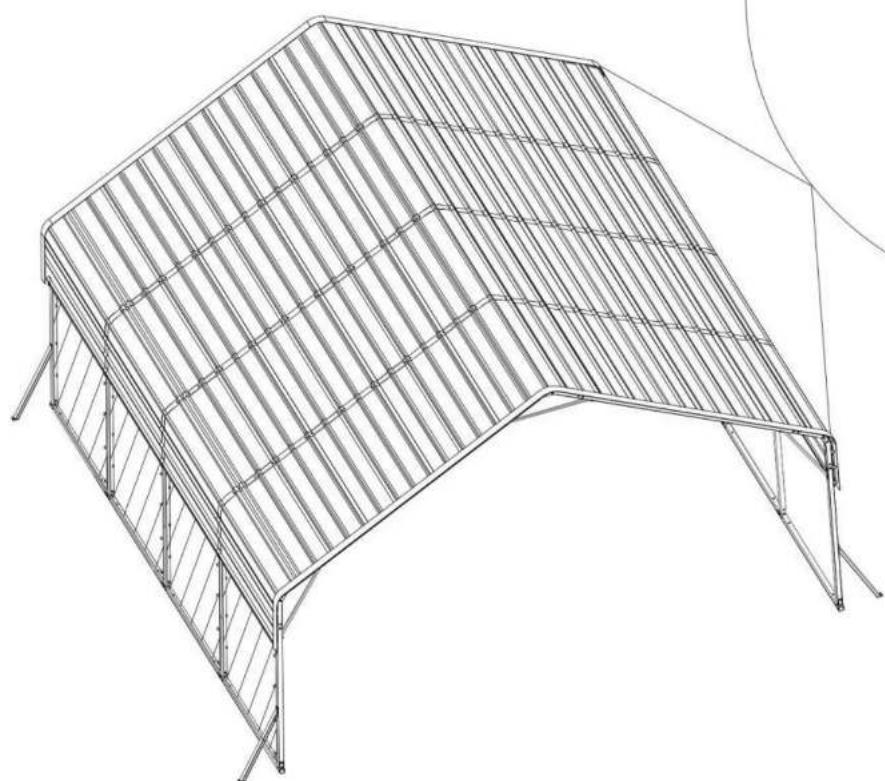

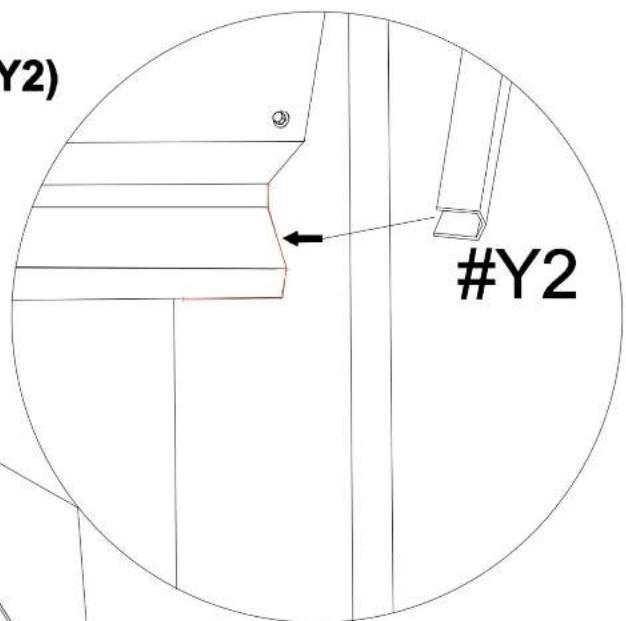

STEP9: Install the Anti-cut Tape (#Y2)

1) Wrap the Anti-cut Tape (#Y2) around the outer edge of the Roof Covers(#R).

Notice: Be careful not to start from the 4 corners when wrapping the tape. Right angles are sharp and need to be avoided.

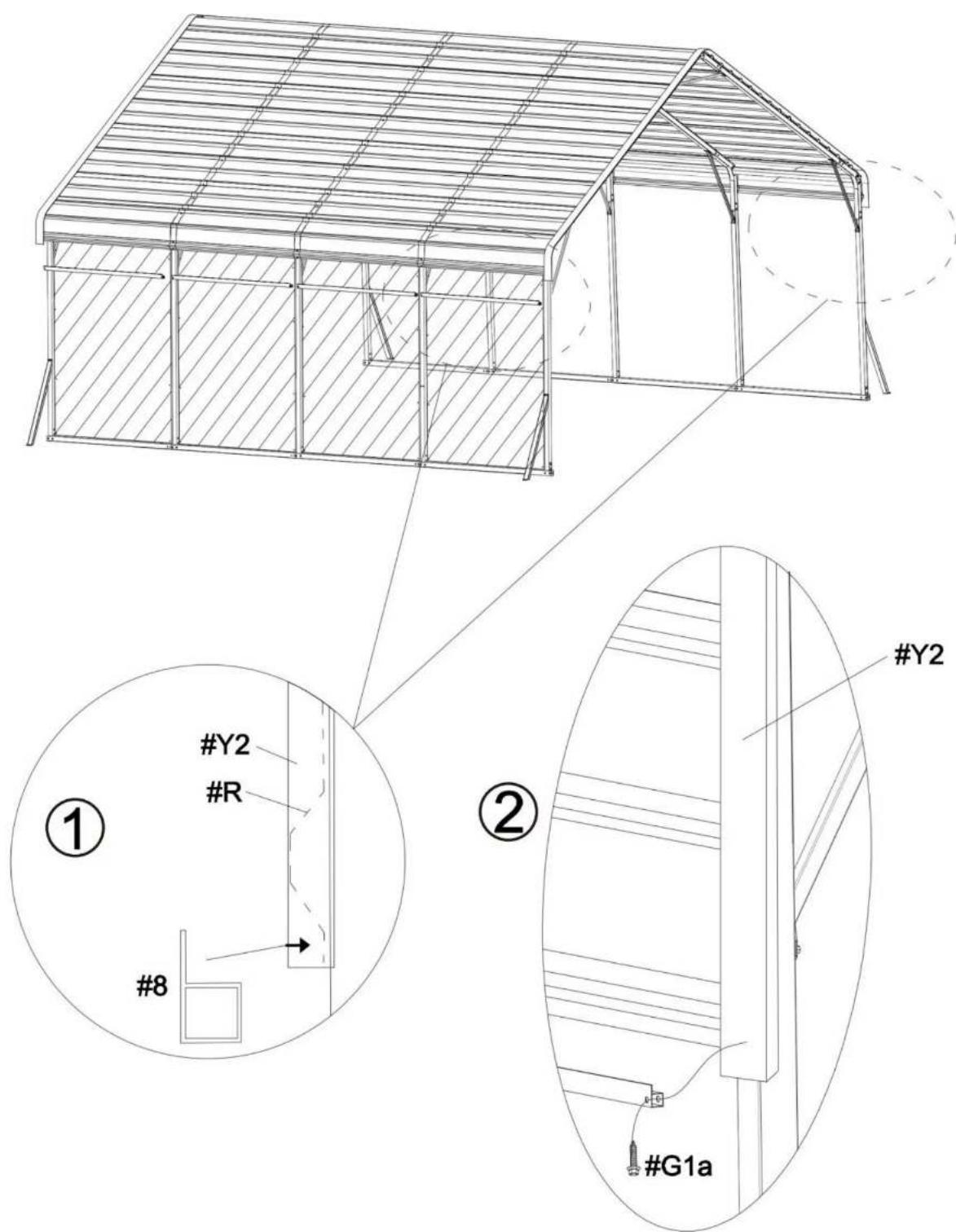

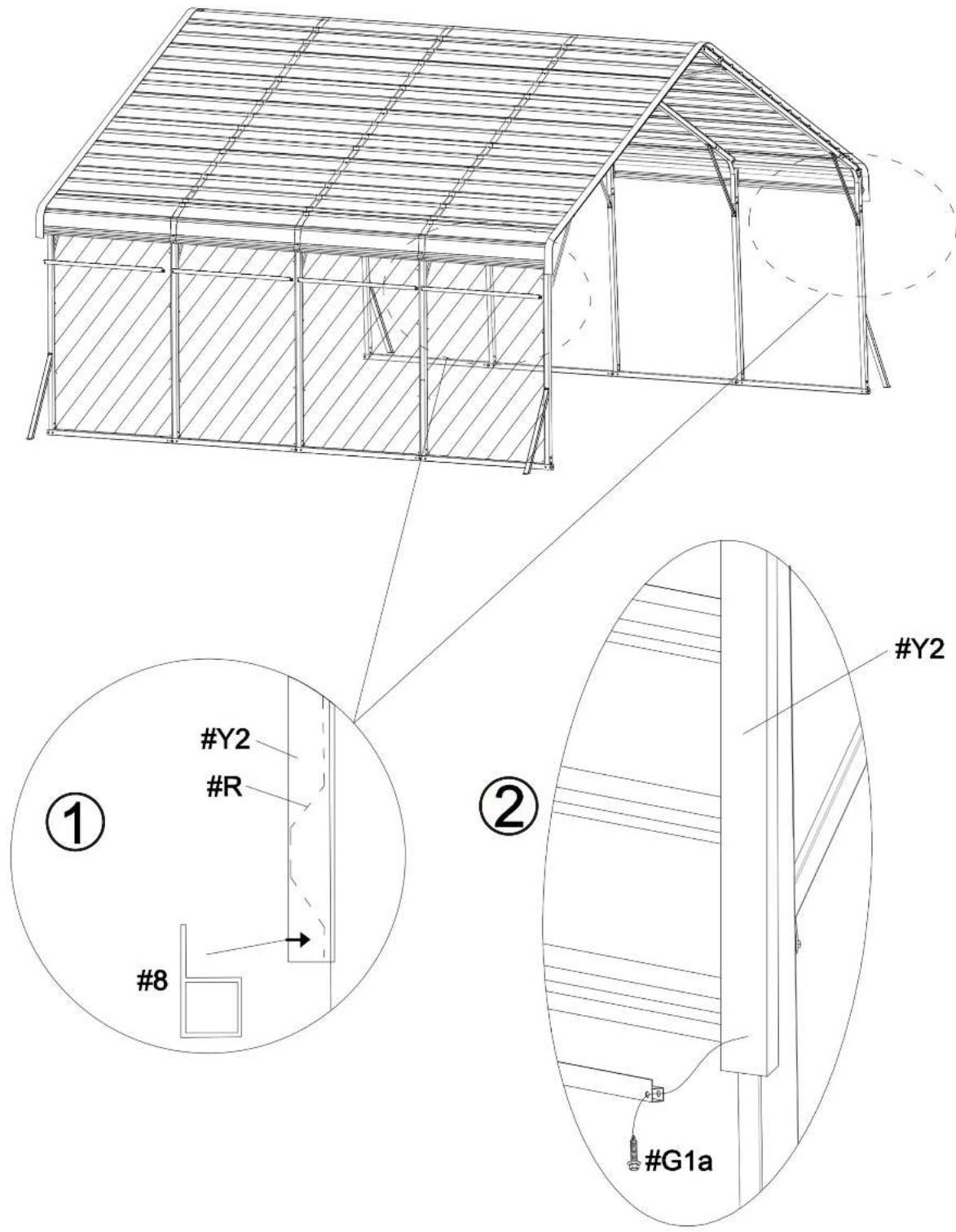

STEP10: Side-side defense pole

After installing I the Roof Cover (#R).on the left and right sides.

1) Install the Side-side defense pole(#9) in the left and right row,

as shown in the picture.

#9	←→	X8
#G1a	←→	X16

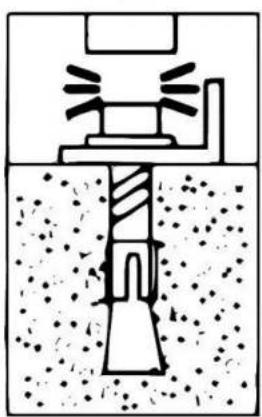

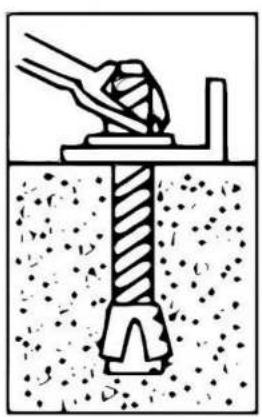

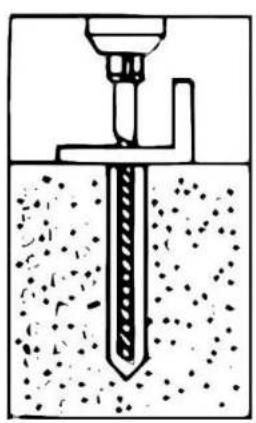

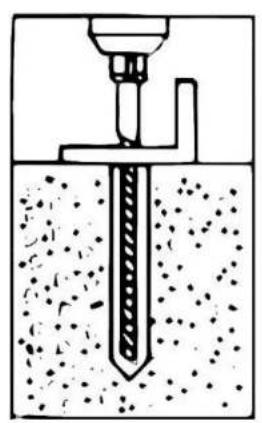

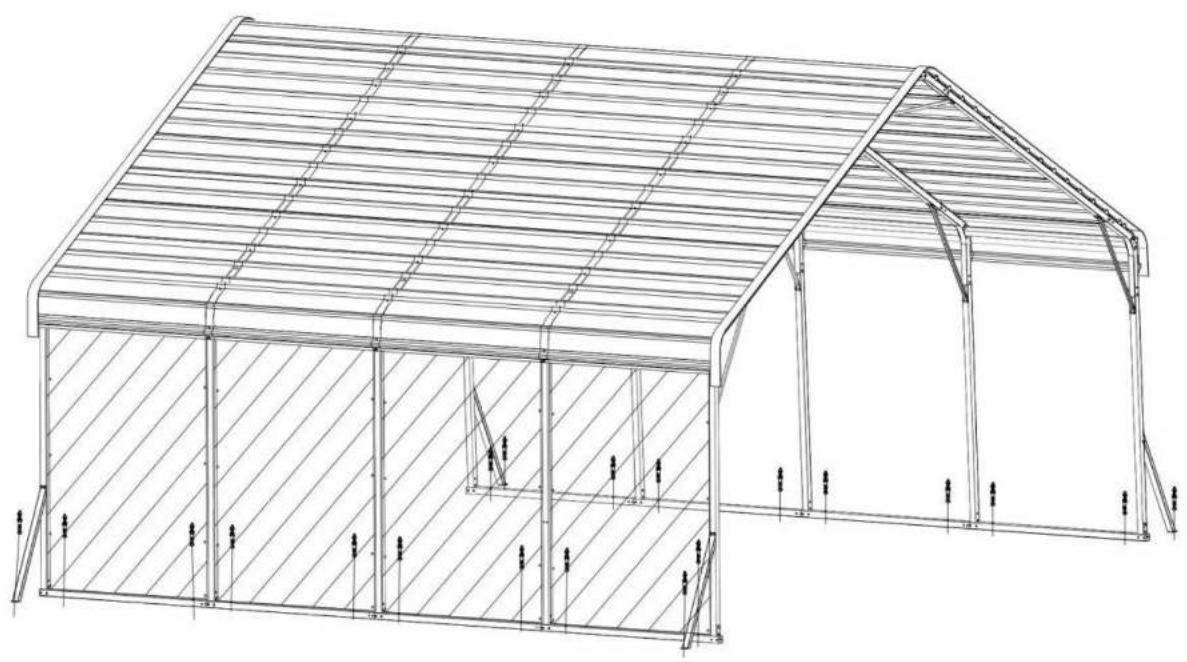

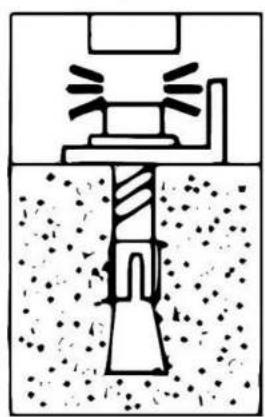

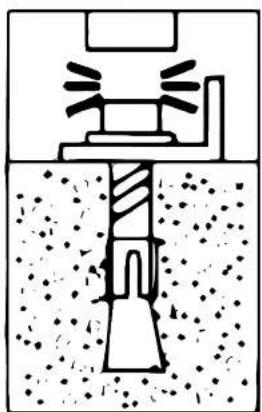

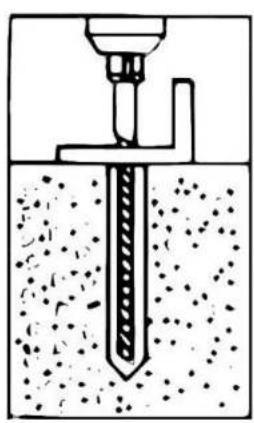

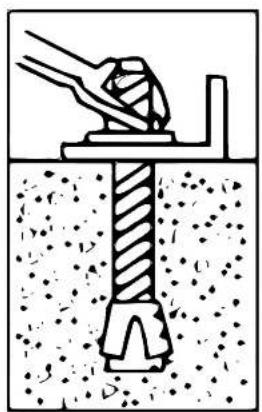

STEP11:Anchor the Carport

Install the Anchor the Carport on the ground.

Notice:

The linking screws in this step are all: Expansion screws

#G3

X20

G3
