SC-19OL-B01 - Suitcase Vevor - Free user manual and instructions

Product type	Child scooter suitcase (scooter model)
Brand	Vevor
Model	SC-19OL-B01

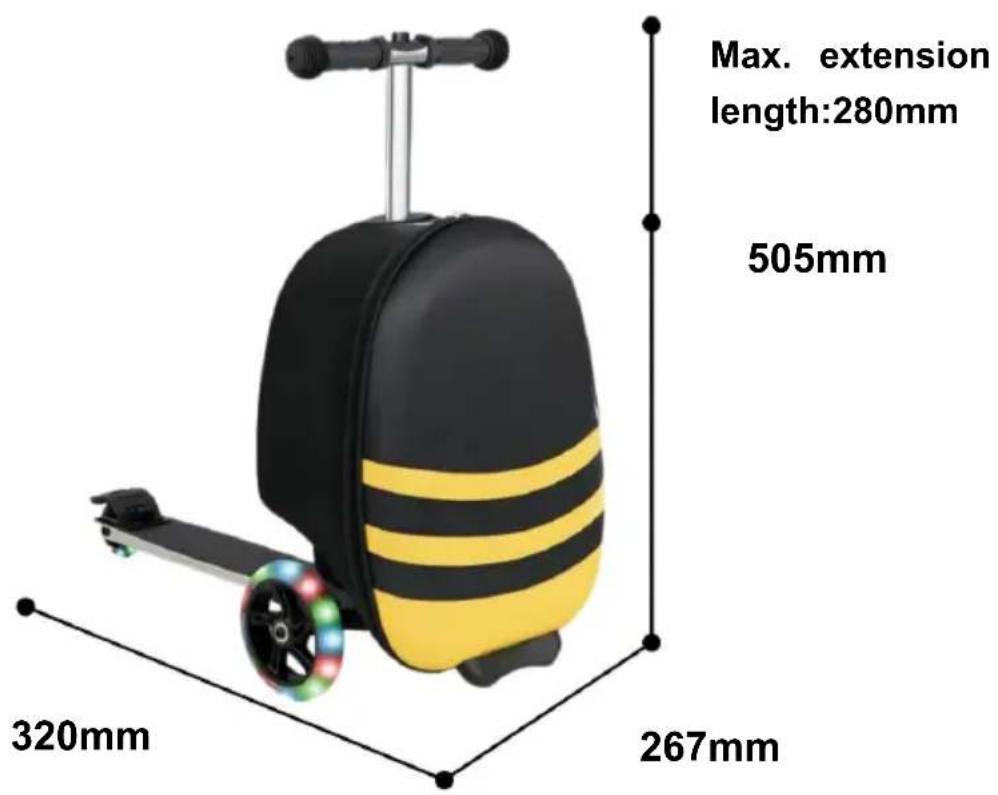

Dimensions (unfolded)	505 x 320 x 267 mm
Maximum handle extension	280 mm
Trunk capacity	20 L (approx. 20 liters)
Maximum supported weight (user)	50 kg (110 lb)
Suitcase weight	Not disclosed (estimated 5 kg)
Materials	EVA, Fabric, PU, Aluminum alloy
Wheels	Light-up PU wheels (2 rear wheels)
Brake	Rear brake
Steering type	Gravity center tilt steering
Folding	Foldable with latch, telescopic handle
Recommended age	Over 5 years
Use surface	Flat and smooth surfaces only
Required safety equipment	Helmet, knee pads, elbow pads
Maintenance	Clean with mild detergent; store in a dry place
Warranty	Technical support and electronic warranty certificate
Manufacturer	Ningbo Bouncie 3D Luggage Manufacturing (China)

Frequently Asked Questions - SC-19OL-B01 Vevor

What is the minimum age to use the SC-19OL-B01 scooter suitcase?

The manufacturer recommends use from 5 years. An adult must supervise the first attempts.

What is the maximum weight supported by the scooter?

The maximum total weight (user + luggage) is 50 kg (110 lb). Do not exceed this limit.

How to unfold and fold the scooter suitcase?

To unfold: turn the latch, lift with a finger, unfold the deck, then lock the latch. To fold: press the handle button while lifting until the safety lock engages.

On what surfaces can you ride?

Use only on flat and smooth surfaces (asphalt, tiles). Avoid gravel, grass, bumps, and wet surfaces.

Is wearing a helmet mandatory?

Yes, it is mandatory to wear a helmet, as well as knee pads and elbow pads. Always fasten the chin strap.

How to clean and maintain the suitcase?

Clean with a mild detergent and a damp cloth. Do not leave the device in direct sunlight or in a dusty place. Store in a dry place.

Does the brake heat up during use?

Yes, the rear brake may heat up after prolonged use. Do not touch the brake immediately after braking.

Can I use the scooter on the road?

No, use on public roads is prohibited. Use it only in private and secure areas, away from vehicles.

What safety accessories are recommended?

Always wear a helmet, knee pads, elbow pads, and closed-toe shoes. Check that all screws are tight before each use.

How to get spare parts or assistance?

Contact customer service via the electronic warranty certificate. Damaged parts (handle, wheels, etc.) must be replaced immediately to avoid accidents.

USER MANUAL SC-19OL-B01 Vevor

RIDING LUGGAGE

MODEL: SC-19UC-B01, SC-19OL-B01, SC-19MT-B01

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL: SC-19UC-B01, SC-19OL-B01, SC-19MT-B01

NOTE: Photo for Reference.

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

The handgrip contains a metal tube and a plastic end piece. Be careful not to drop the scooter when not in use. If the scooter is dropped over a period of time, you will damage the plastic end piece, the hand, and the tube. If you damage this part of the scooter, it is strongly advised that you replace the damaged parts as soon as possible to avoid an accident caused by making contact with these parts.

It is strongly recommended that you wear protective equipment whilst using this product, and the scooter should not be used on any other surface other than flat, even ground. It is not designed for gravel roads, grass surfaces, or any other uneven surfaces, as this could not only damage the scooter but also injure the rider.

Protective equipment should be worn. Not to be used in traffic. The scooter should be used with caution since it requires great skill to avoid falls or collisions causing injury to the user and third parties. Do not take this scooter on the road or public highway.

Important Safety Notice!

1. The product is recommended for users over 5 years old.
2. After checking that all parts are in good condition, remember to ensure that all the screws and wheels are tightly in place before using (hex keys are supplied to tighten these if necessary).
3. Always wear safety equipment such as helmets, knee pads, and elbow pads.

Always wear a helmet when riding your scooter and keep the chin strap securely buckled. Always wear shoes. The maximum weight that this product can hold is 110LB (99.2LB rider & 11LB case storage). Ride on smooth, paved surfaces away from motor vehicles.

1. Avoid sharp bumps, drainage grates, and sudden surface changes. The scooter may suddenly stop. Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and debris. Wet weather impairs traction, braking, and visibility.
2. Do not ride at night.
3. The brake will get hot from continuous use. Do not touch after use.
4. Avoid excessive speed associated with downhill rides.
5. Adults must assist children in the initial adjustment procedures of the scooter, adjust the handlebar and steering to height, and finally to the scooter.
6. Obey all local traffic and scooter riding laws and regulations. Watch for pedestrians.
7. Replace worn or broken parts immediately.
8. Do not use this product for jumping stunts or tricks. The scooter is not designed for such use.

MODEL AND PARAMETERS

Model	SC-19UC-B01, SC-19OL-B01, SC-19MT-B01
Size	20 inch
Capacity	Around 20L
Load-bearing	110LB
Material	EVA+Fabric+PU+Aluminium alloy

OPERATION METHOD

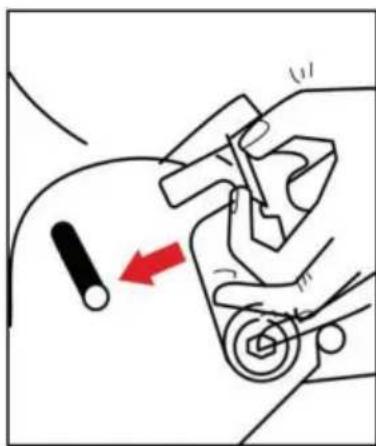

1. Rotate to release the latch.

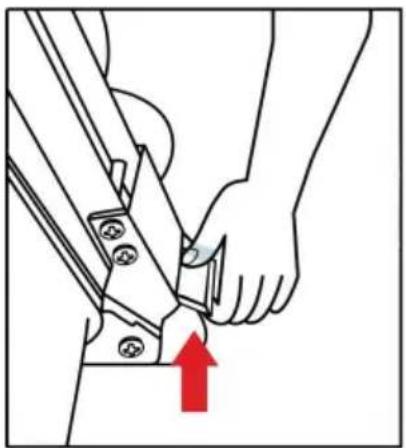

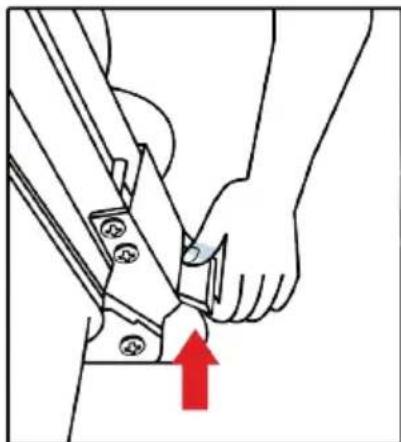

1. Lift with a finger to unfold.

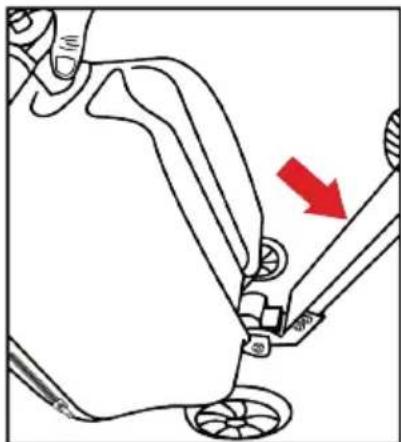

1. Unfold the deck fully down.

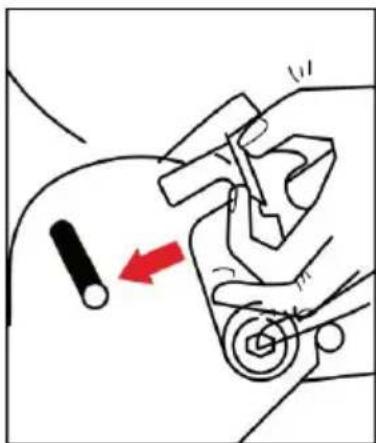

1. Rotate and hook the latch to lock the deck in place before using.

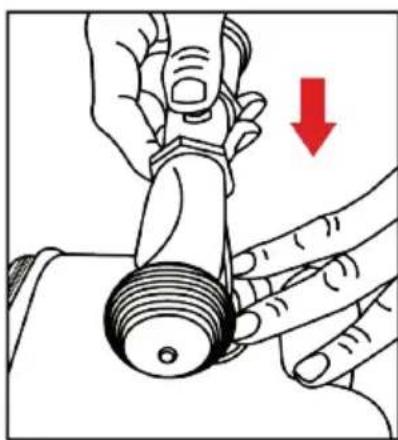

1. Press the button on the handle and keep lifting until the safety lock is engaged.

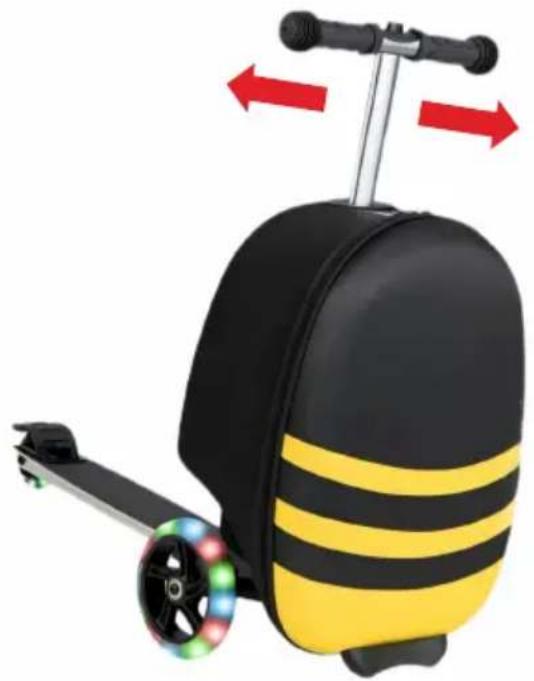

Gravity steering

According to the tilt of the baby's body center of gravity, the gravity sensor controls the steering.

MAINTENANCE

1. After use, please wipe the product with mild detergent.
2. Do not leave this product in high temperatures, intense sunlight or dusty areas.
3. Store in a dry place.
4. Always make sure all screws and nuts are securely tightened before every use. The self-lock fixtures may lose their effectiveness.
5. No modification other than to the manufacturer's instructions shall be made.

Manufacturer: NINGBO BOUNCIE 3D LUGGAGE MANUFACTURING

Address: NO.25, TIANLONG MOUNTAIN ROAD, DAQI, BEILUN

DISTRICT, NINGBO, CHINA 315800

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.
