JZY723KSDJ1/1 - Hot plate Vevor - Free user manual and instructions

Product Type	Rectangular chafing dish (warming dish)
Brand	Vevor
Model	JZY723KSDJ1/1
Dimensions (L x W x H)	Approx. 40 x 30 x 20 cm
Weight	Approx. 2 kg
Fuel	Solid fuel (pellets, gel, etc.)
Main material	Stainless steel
Components	Lid, food pan, water pan, frame, fuel tank
Water pan capacity	Approx. 1 L
Food pan capacity	Approx. 3 L
Main function	Heat and keep food warm using steam
Heating method	Combustion of solid fuel in tank under water pan
Ignition	Use a lighter torch
Extinguishing	Close the metal lid of the fuel tank (do not blow)
Daily maintenance	Clean with warm soapy water after each use
Deep cleaning	Parts washable in commercial dishwasher: food pan and water pan
Safety precautions	Use only solid fuel; do not add fuel while burning; wear protective gloves; keep out of reach of children
Prohibited use	Do not use gasoline, alcohol, or other liquid fuels
Surface temperature	During use, all metal parts become hot
Country of origin	China
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Included accessories	Frame, water pan, food pan, lid, fuel tank

Frequently Asked Questions - JZY723KSDJ1/1 Vevor

What type of fuel should I use with the Vevor chafing dish?

Use only solid fuel (gel pellets, wood, etc.). Never use gasoline, alcohol, or any other flammable liquid.

How to ignite the fuel?

Use a lighter torch to ignite the solid fuel in the tank. Do not pour flammable liquid.

How to extinguish the flame?

Simply close the metal lid of the fuel tank. Do not blow on the flame.

Can fuel be added while the dish is heating?

No, wait until the burning fuel is completely extinguished and cooled before adding more.

How much water should be put in the water pan?

Fill the water pan to about 80% of its capacity. Use hot water to speed up heating. Check the level periodically as water evaporates.

How to clean the chafing dish?

After each use, clean with warm soapy water and a soft cloth. The food pan and water pan can go in a commercial dishwasher. Do not use abrasive products.

Is the chafing dish safe for indoor use?

Use it in a well-ventilated area and on a stable, heat-resistant surface. Never leave unattended and keep children and pets away.

What are the approximate dimensions and weight?

The dish measures approximately 40 x 30 x 20 cm and weighs approximately 2 kg. These values may vary slightly depending on the model.

Can I use this dish to heat food directly without water?

No, the dish works with steam: heated water produces steam that keeps food warm. Do not let it burn dry.

Where to find the full manual and after-sales service?

Download the manual from notice-facile.com or visit www.vevor.com/support for technical support and warranty.

USER MANUAL JZY723KSDJ1/1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

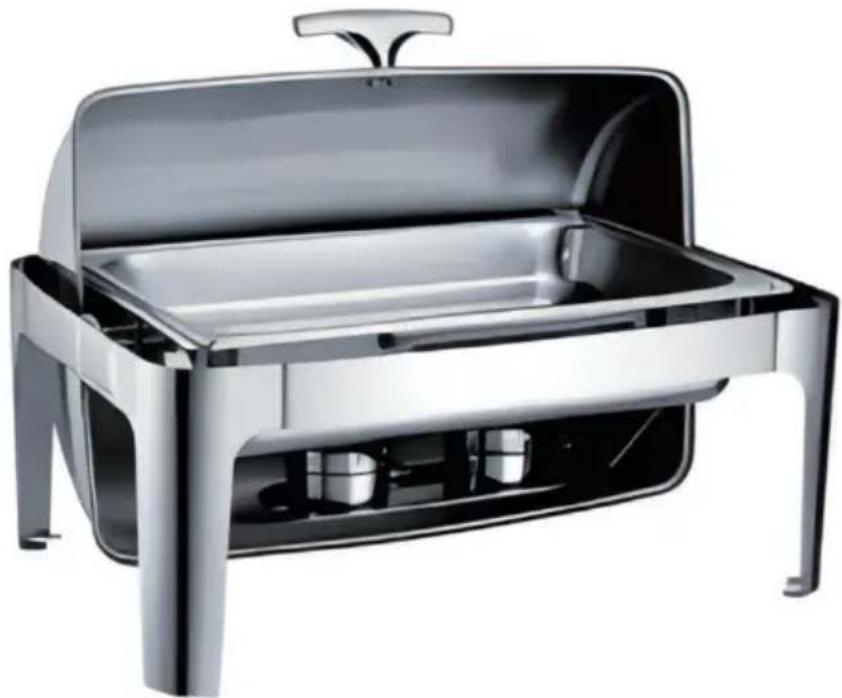

RECTANGLE CHAFING DISH

MODEL: JZY723KSDJ1/1 JZY723KS1/2 JZYQG1/1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RECTANGLE CHAFING DISH

MODEL: JZY723KSDJ1/1 JZY723KS1/2 JZYQG1/1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructio manual carefully.
	Wear protective gloves.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please consult a doctor.

Please read ALL the instructions before using your product.

1. Children and minors cannot use this product.
2. Only solid fuel can be used as heating fuel. Do not use gasoline, alcohol
3. Please use the ignition torch to ignite the fuel.
4. When the fuel is burning, special personnel shall be assigned to watch on prevent it from being hit or toppled.
5. Close the metal cover of the container to extinguish the fuel. Do not blow
6. It is not allowed to add new fuel before the burning fuel is extinguished cooled.
7. Remember to clean the food tray and fuel container after each use.
8. Do not clean with corrosive solvents such as strong acid and alkali
9. Please wear gloves when handling the product.
10. Do not apply this unit to any other purposes than the indicated usage.
11. Before first use, please clean the product.
12. The product cannot be burned dry

WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

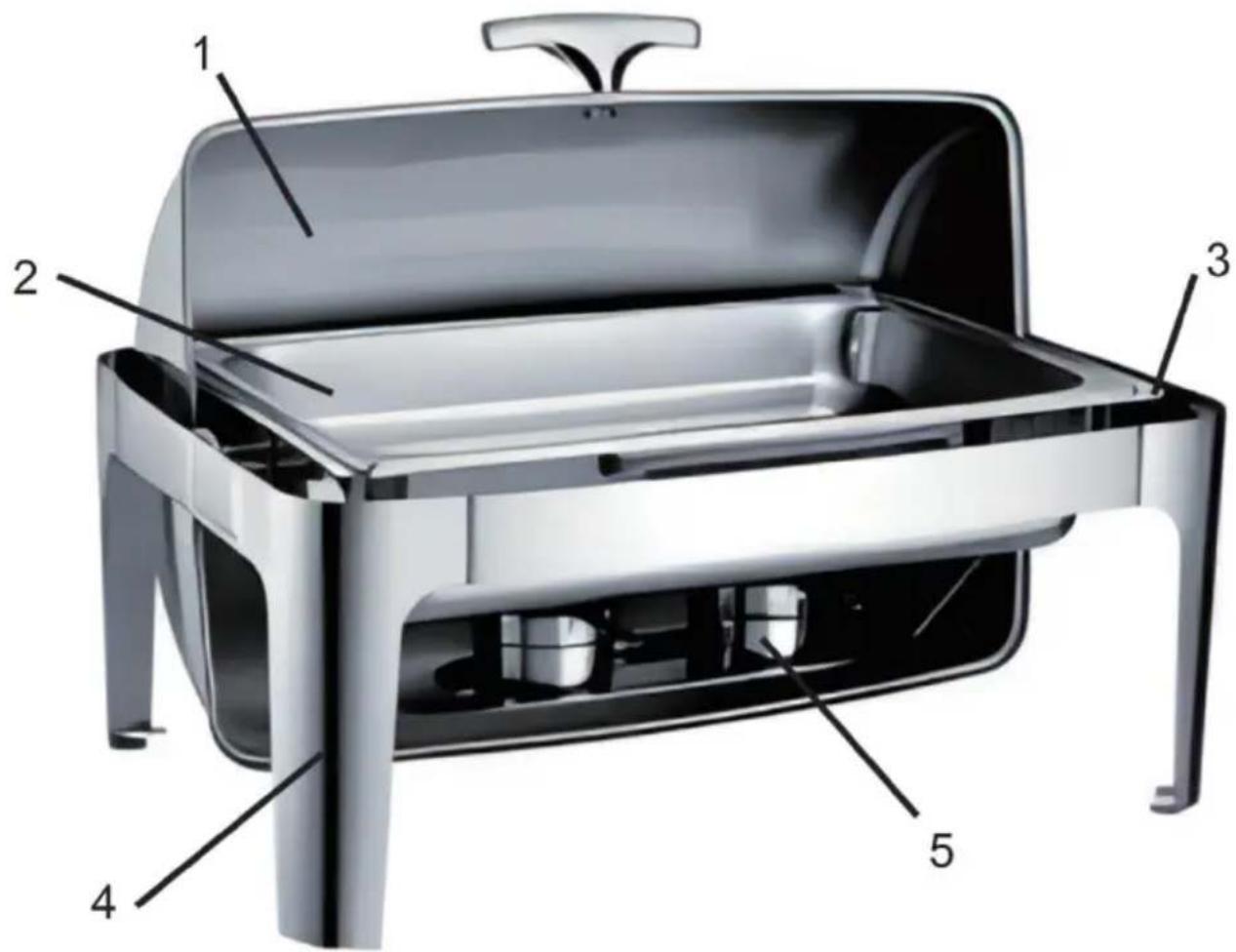

PRODUCT COMPONENTS

1. Lid 2. Food Pan 3. Water Pan
2. Frame 5. Fuel Holder

NOTE: The quantity of parts shown in the manual is the actual usage; unused parts are spare parts.

OPERATING INSTRUCTIONS

Before using the appliance for the first time: Peel off promotional and package materials, and check that the cooking plates are clean and dust-free. If necessary, wipe them over with a damp cloth. Spread over with an absorbent kitchen towel and wipe off any excess oil.

1. Take all the components out of the box and unwrap.
2. Place the frame on a firm surface (see diagram for included parts).
3. Place the fuel holder at the center of the base carefully.
4. Put the water pan into the frame and fill with water (fill with hot water for heating).
5. Remove the cover from the fuel holder, and ignite the fuel to heat the water (steam from the heated water will keep the food hot).
6. Place food in the food pan and set this pan into the water pan. The food should be suspended above the water. Then, place the cover over the food pan.
7. Replace the cover over the fuel holder to extinguish the burning fuel—DO NOT BLOW IT OUT.

NOTE:

1. Always use a scald-proof pad when touching the fuel holder. Fuel, fuel holder, and its cover can get extremely hot.
2. For the best heating efficiency, please keep the lid closed when heating, and check the water level periodically, since the hot water will evaporate into steam.

CLEANING, MAINTENANCE, STORAGE

1. The frame and cover may be cleaned with warm, soapy water.

Never use abrasive materials or scouring pads. Thoroughly wipe off the mild instead of immersing the frame into water. If needed, you can polish it with stainless steel cleaner or glass cleaner without ammonia.

1. Parts that can be cleaned in a commercial dishwasher: Food Pan and Wa Pan.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Lu 803 Nong 11 Hao 1602A-1609 Shi, Baoshan Qu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
