Product Type	Air hockey table with electronic scoring system
Brand	Vevor
Model	AH718-EU
Dimensions (L x W x H)	2140 x 1220 x 813 mm
Materials	Medium-density fiberboard (MDF), metal
Power Supply	DC 24V 2.0A via AC 100-240V 50/60Hz power adapter (max. 50W)
Assembly Required	Yes, according to provided instructions
Number of Players	2 (head-to-head)
Score Display	Electronic, integrated into the table
Included Accessories	2 pushers, 2 pucks, adapter, manual
Maintenance and Cleaning	Regularly clean dust with a clean, dry cloth
Safety	Adult supervision recommended; do not climb on the table; do not use with damaged parts
Spare Parts and Repairability	Contact Vevor technical support for spare parts and repairs
Warranty	Electronic warranty via www.vevor.com/support
Approximate Weight	Approximately 85 kg
Recommended Use	Indoor, on a flat and hard surface
Standards	Compliant with FCC Part 15 (Class B)
Recommended Age	8 years and up (adult supervision recommended)
Quick Start	Assemble according to steps, plug in the adapter, turn on and play

Frequently Asked Questions - AH718-EU Vevor

How to assemble the Vevor AH718-EU air hockey table?

Follow the steps illustrated in the manual. Assemble the main frame, attach the legs, crossbars, and playing surface. Use the provided bolts and tools. Make sure all screws are tightened. Adult supervision is recommended.

What type of power supply is needed?

The included power adapter requires a 100-240V AC 50/60Hz outlet. It provides a DC 24V 2.0A output (max. 50W). Plug the adapter into the wall outlet and connect it to the table.

Does the electronic scoring system work without batteries?

Yes, the scoring system is powered by the power adapter. There is no internal battery.

What to do if the table does not turn on?

Check that the adapter is properly connected and the wall outlet is working. Make sure the cable is not damaged. If the problem persists, contact Vevor support.

How to clean the playing surface?

Use a clean, dry, lint-free cloth to wipe dust. Do not use abrasive chemicals. A dusty environment may affect performance.

Can I use the table outdoors?

No, this table is designed for indoor use only, on a flat, hard surface. Exposure to moisture or outdoor dust can damage it.

What are important safety precautions?

Never climb on the table. Supervise children during use. Ensure the goal is secured to the floor. Use the mallets carefully. Regularly check the condition of parts.

How to get spare parts?

Contact Vevor technical support via www.vevor.com/support to order spare parts or arrange repairs.

Does the table cause radio interference?

This device complies with FCC Class B rules. It may cause interference; if so, move it away from other electronic devices or change the electrical circuit.

What to do if a part is missing or damaged upon unboxing?

Check the parts list in the manual. If any item is missing or damaged, contact Vevor support immediately for a replacement.

USER MANUAL AH718-EU Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

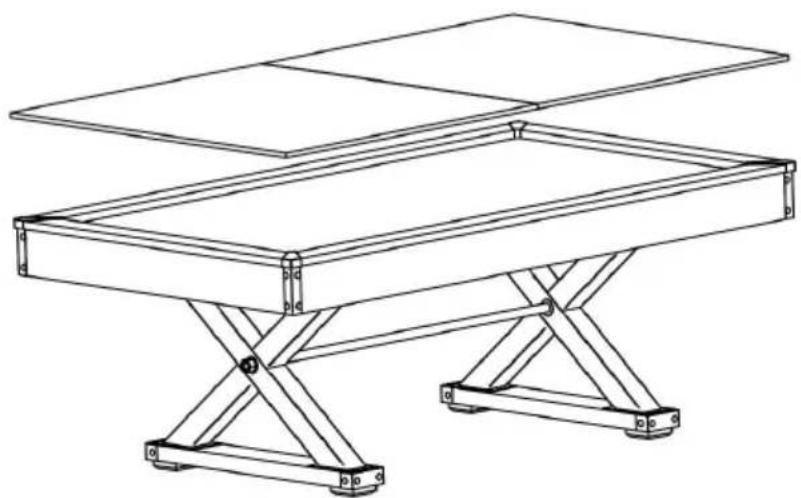

ELECTRONIC SCORING - AIR HOCKEY TABLE

MODEL: AH718-US; AH718-EU

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: AH718-US; AH718-EU

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this Air Hockey Table . Please re of the instructions before using it.The information will help you achieve best possible results.

SAFETY ADVICE

SAFE WORKING PRACTICE

Always inspect the goal post and net for defects before use and replace damaged parts.
Do not use the goal with faulty parts.
The goal must always be secured to the ground. Weights to be on hard surfaces.
- Never climb onto the table. Please always follow the safety instructions.
- We recommend that adults supervise the assembly and use process. Do not drop any heavy objects on the desktop.
- When dismantling the goal ensure that all fittings are packed away and none are left on the playing surface.

WARNING:

Loose pegs may cause injury. Care should be taken when using a r as misuse may cause injury.

SPECIFICATIONS

Model	AH718-US
Product size L x W x H	2140*1220 *813 mm
Materials	medium density fiberboard, metal
Scoring Model	Electronic scoring
Assembly Required	Yes
Sports	air hockey
Rating	DC24V 2.0A (Via AC100~240V 50/60H Max.50W adapter)

Model	AH627-EU
Product size L x W x H	2140*1220 *813 mm
Materials	medium density fiberboard, metal
Scoring Model	Electronic scoring
Assembly Required	Yes
Sports	air hockey
Rating	DC24V 2.0A (Via AC100~240V 50/60H Max.50W adapter)

PART LIST

Note: Refer to part numbers and be sure all parts are in

#1 Main Frame 1 pc	#2 Leg 4 pcs	#3 Cross bar 1 pc	#4 M24 Nut 2 pcs
#5 M24 Washer 2 pcs	#6 Foot 2 pcs	#7 Support brace 1 pc	#8 Dining table 2 pcs
#9 Tenon 2 pcs	#10 Leg leveler 4 pcs	#11 5/16"x3/4" Bolt 16 pcs	#12 5/16"x1-3/4" Bolt 8 pcs
#13 5/16" Washer 32 pcs	#14 Adapter 1 pc	#15 Pusher 2 pcs	#16 Puck 2 pcs
#17 M10 Nut 8 pcs	#18 Wrench 2pc

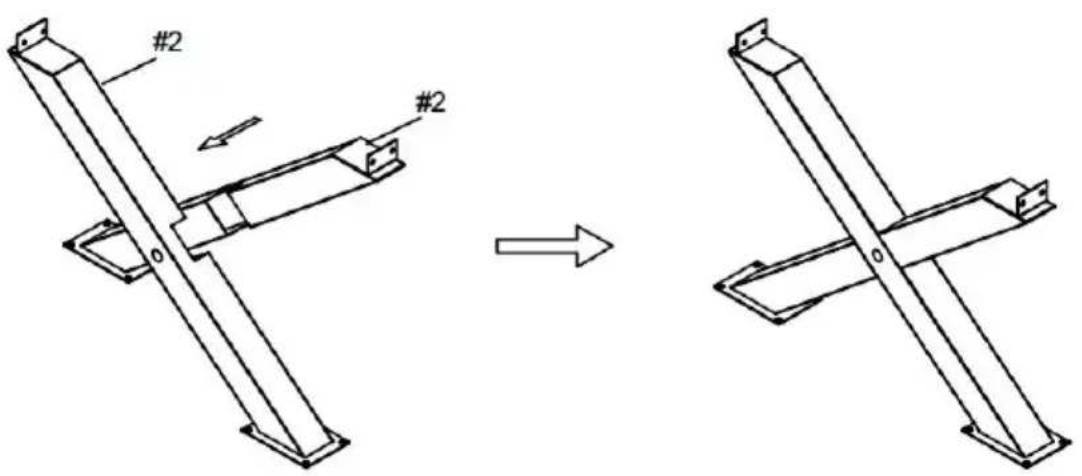

Step:1

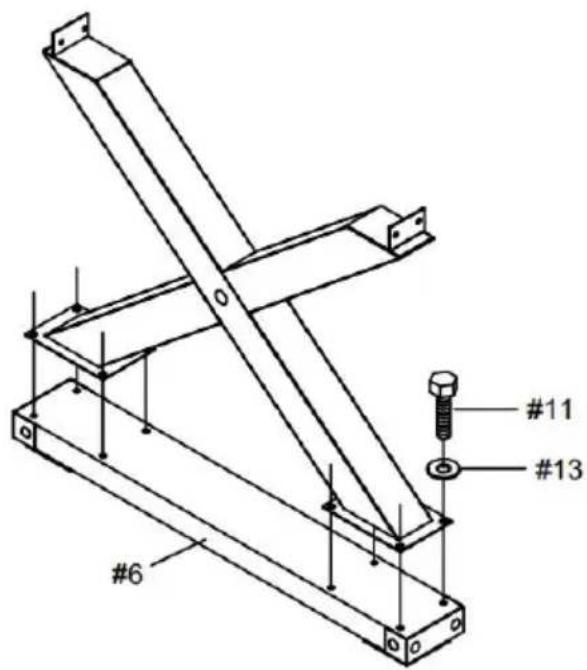

Step:2

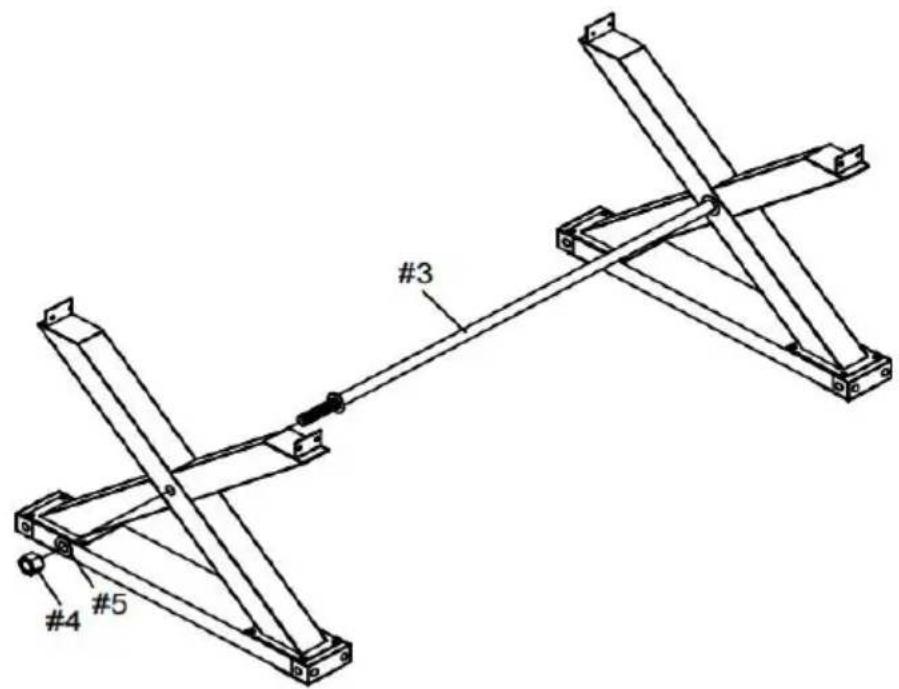

Step:3

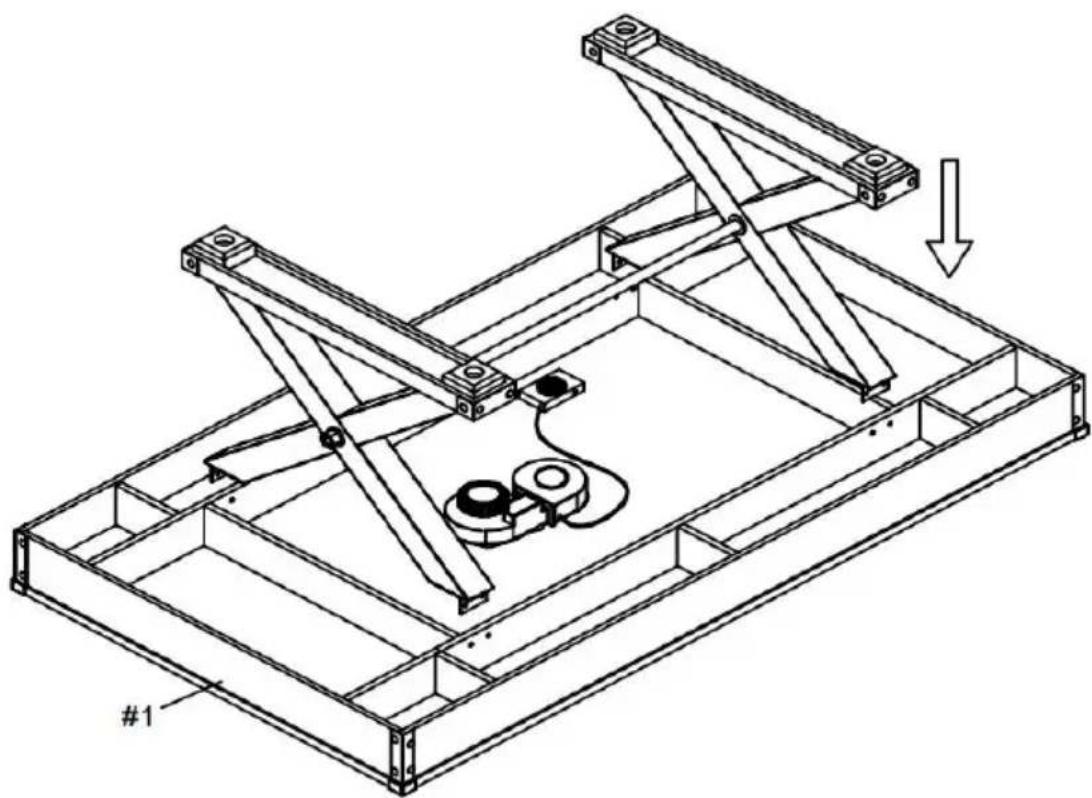

Step: 4

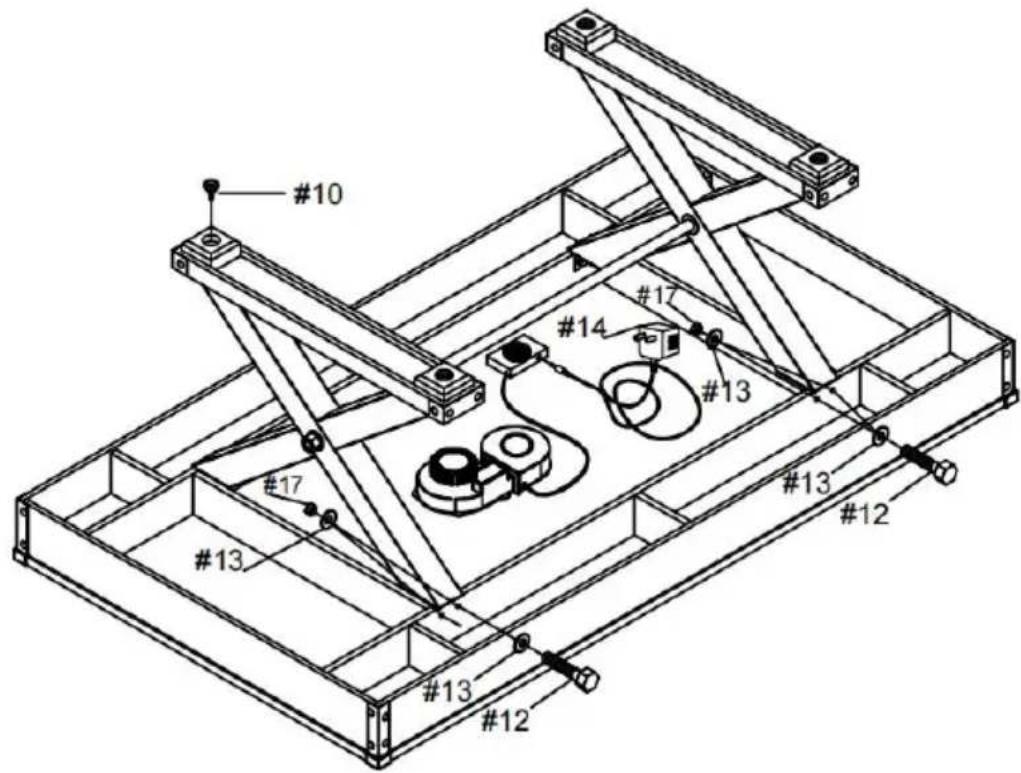

Step: 5

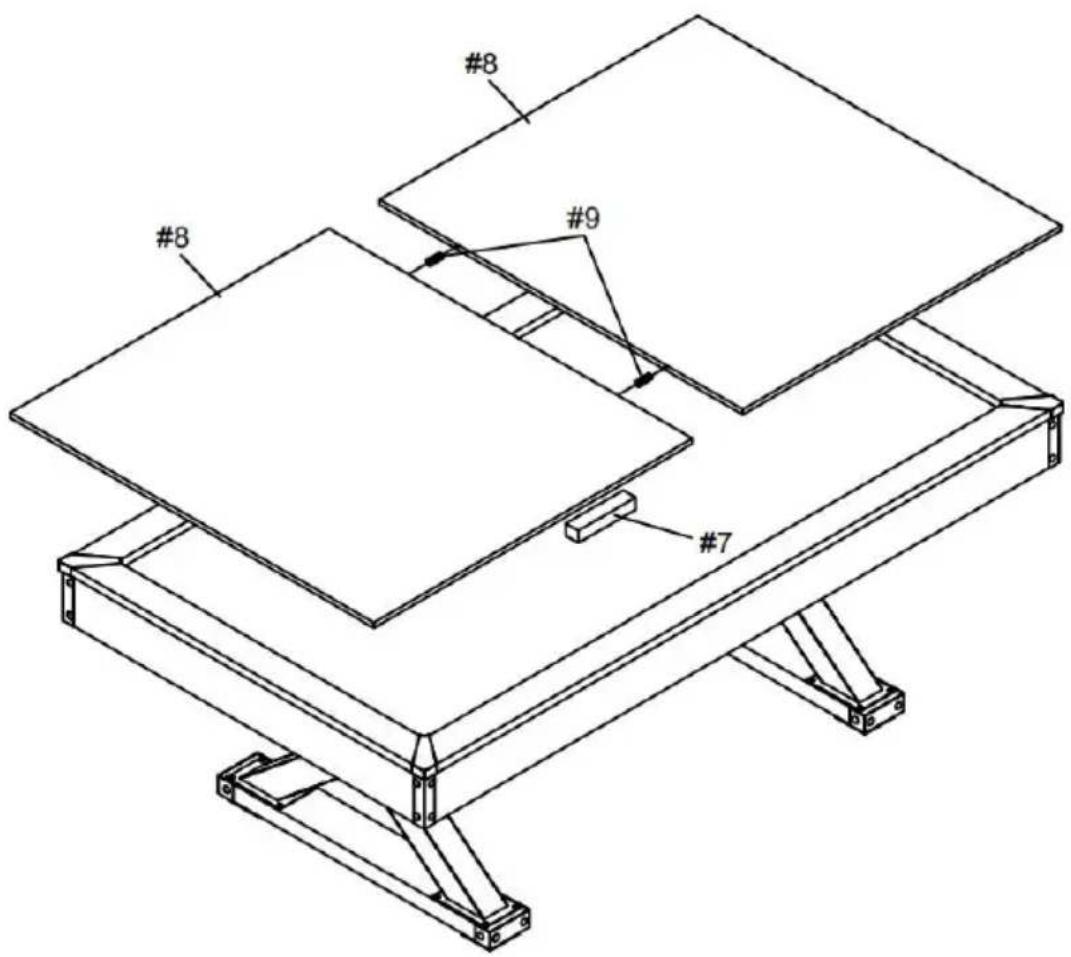

Step: 6

Installation:

1. Choose a relatively flat lawn or ground.
2. Check for any missing or damaged accessories according to the a diagram.
3. Connect the product and lock the screws according to the splicing method shown in Figure.

WARNING!

Read and understand all instructions before using this Air Hockey Tab. The operator must follow basic precautions to reduce the risk of pers injury and/or damage to the equipment.

Keep this manual for safety warnings, precautions, operating or inspect and maintenance instructions.

Please familiarize yourself with the hazard notices found in this manual. Notice is an alert that there is a possibility of property damage, injury, death if certain instructions are not followed.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated replace strict adherence to the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
   2.Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
2. Keep assembly area clean and well lit.
   4.Keep bystanders out of the area during assembly.
   5.Do not assemble when tired or when under the influence of alcohol drugs or medication.
3. Weight capacity and other product capabilities apply to properly and completely assembled product only.
   7.Assemble on a flat, level, hard and smooth surface capable of safe supporting a fully loaded Wine Cabinet.

MAINTENANCE/Service

Have your air hockey table repaired by qualified personnel using only same replacement parts. This will ensure the safety of the air hockey is maintained. A dusty, humid, or corrosive environment can cause data to an air hockey table. To prevent malfunctions in the air hockey table regularly clean the dust with a clean dry cleaning cloth. Please note

lack of maintenance may result in the cancellation of the warranty pethe air hockey table has been modified, or if you attempt to open thhockey table without the consent of the manufacturer's authorized representative, the warranty of this wine cabinet will be invalid.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the IIR a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that if the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product

and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken a collection point for recycling electrical and electronic devices.
