USER MANUAL HE-18C-6M-ZJ Vevor

Affordable. Reliable. Home Improvement.

Manual Honey Extractor

MODEL:HE-18C-6M-ZJ

VEVOR

Affordable. Reliable. Home Improvement.

Manual Honey Extractor

MODEL:HE-18C-6M-ZJ

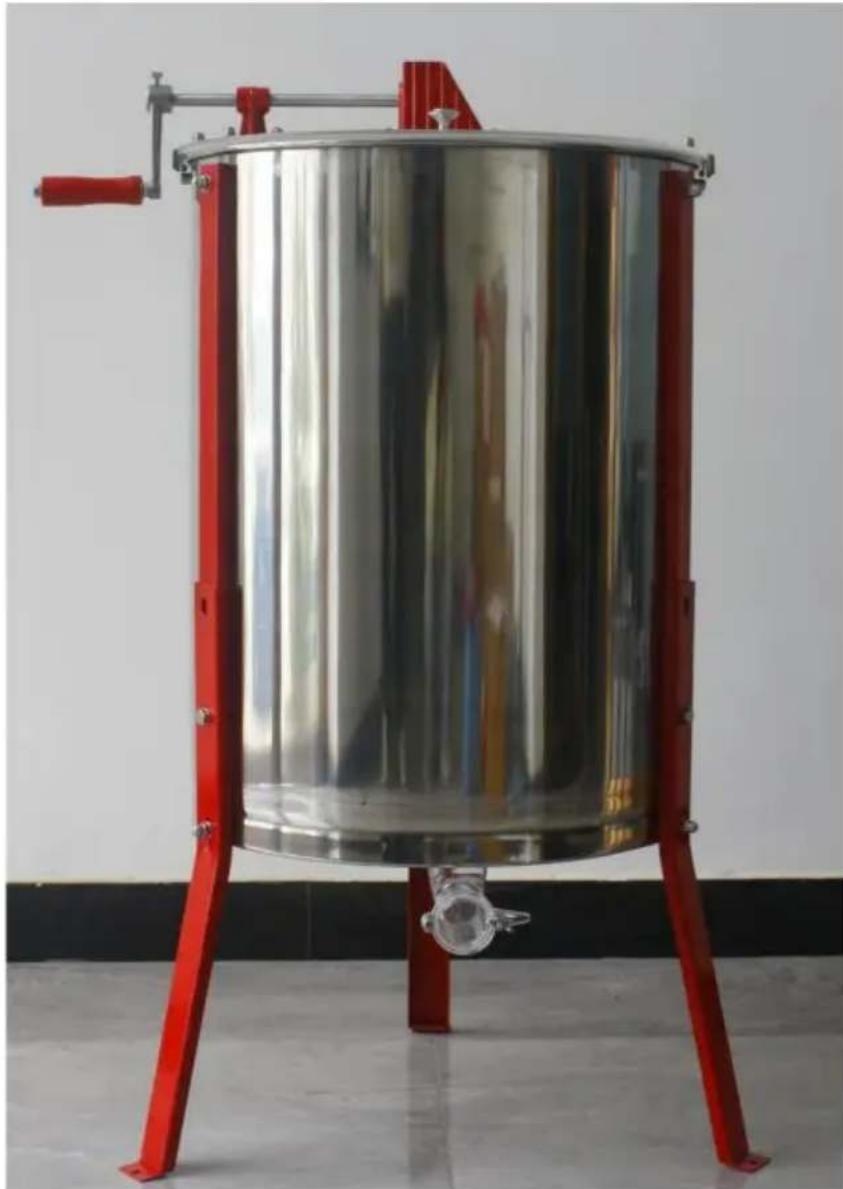

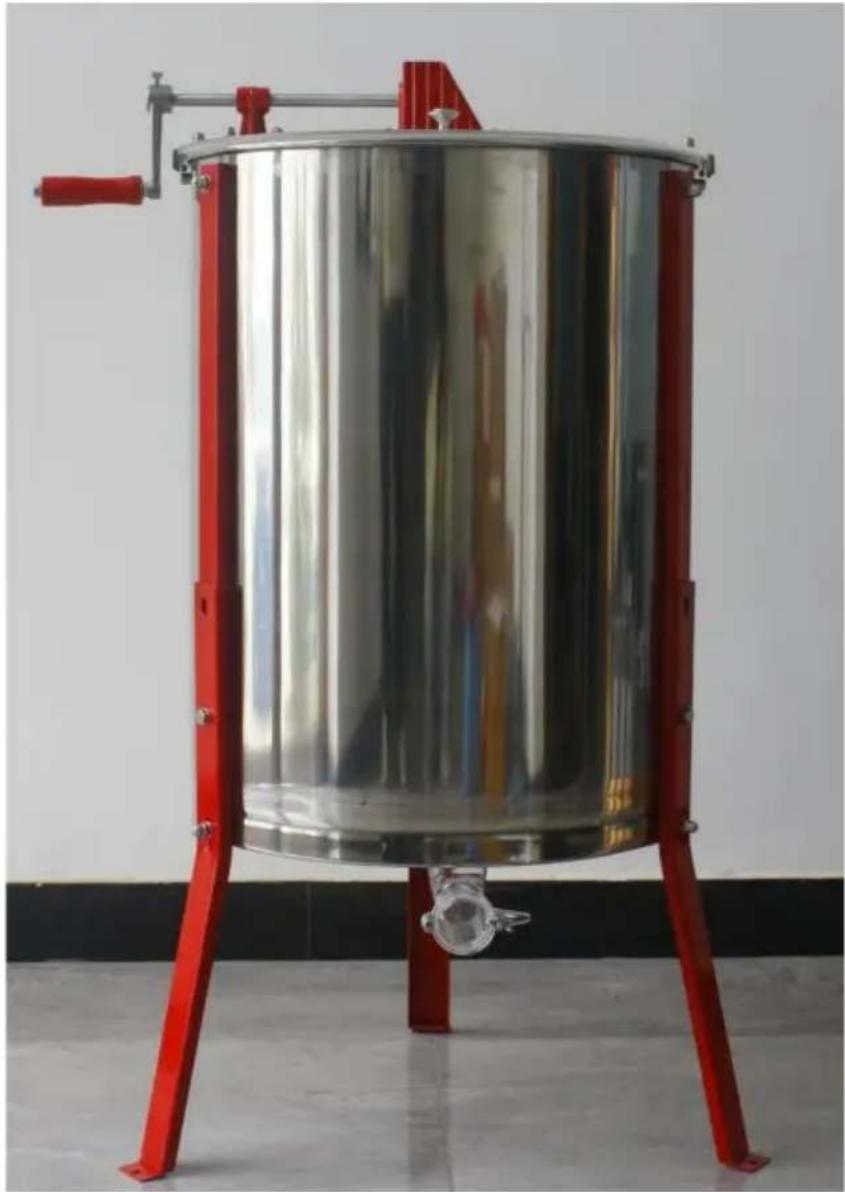

Large stainless steel cylindrical water heater mounted on red metal legs, no visible text or symbols

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or so1 updates on our product.

INSTRUCTIONS

Thank you very much for choosing this product. Please read all the instructic before using it. The information will help you achieve the best possible result PLEASE NOTE! Drawings in this manual are for illustration purposes only and some details may differ from the actual product.

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

Please place in a position that children cannot climb or move, so that the p does not fall over and injure children.

SAVE THESE INSTRUCTIONS

TECHNICAL PARAMETERS

Model	Capacity	Height from the bottom of the barrel to the ground	Frames	Fit frame size(mm)	Main materials
HE-18C-6M-ZJ	18KG	30-40cm(lifting)	Large frame*6 Small frame*6	Large frame: L485 * W160 Small frame: L485 * W140	201 stainless steel

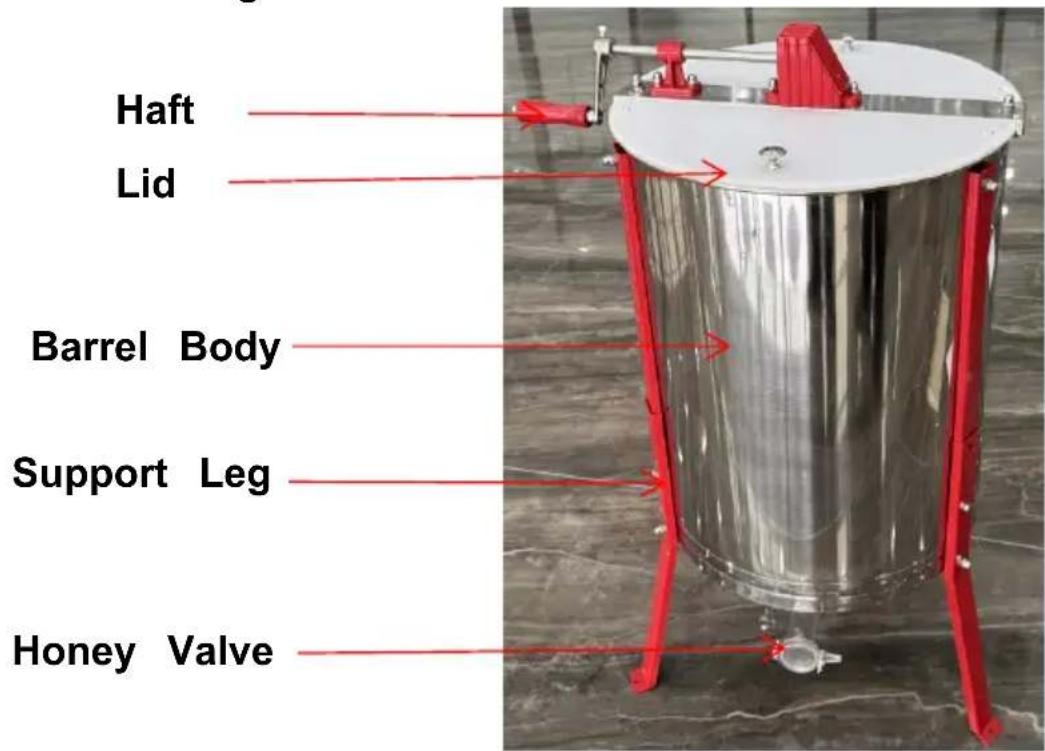

Structure diagram

Haft Lid Barrel Body Support Leg Honey Valve

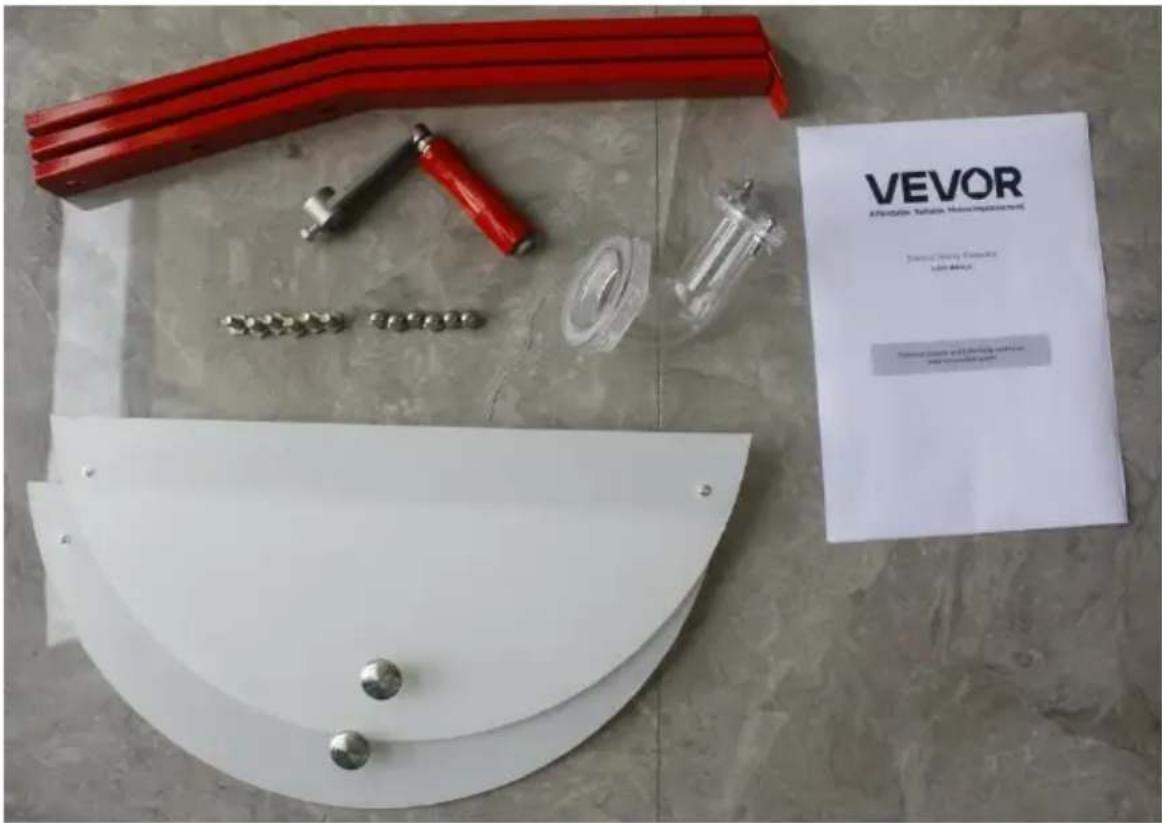

Hardware & aPt List

Assorted metal components and a VEVOR document on a concrete floor (no readable text or symbols in the main image)

Assembly

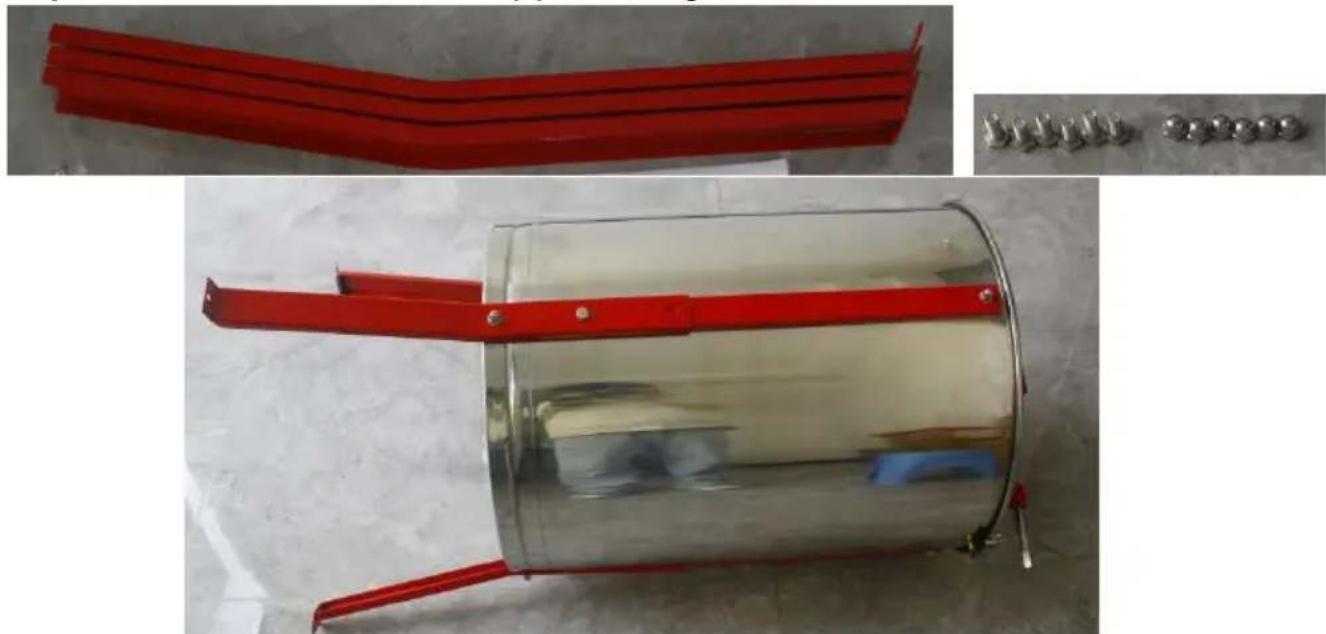

Step 1: Installation of Support Legs.

Two-panel image showing red plastic strips and a transparent cylindrical container with red handles, alongside a close-up of metallic pins (no text or symbols visible)

First, take out the three legs and place the barrel on the ground. No the holes on the three legs with the corresponding three holes on the insert screws into the holes, and tighten them with a screwdriver.

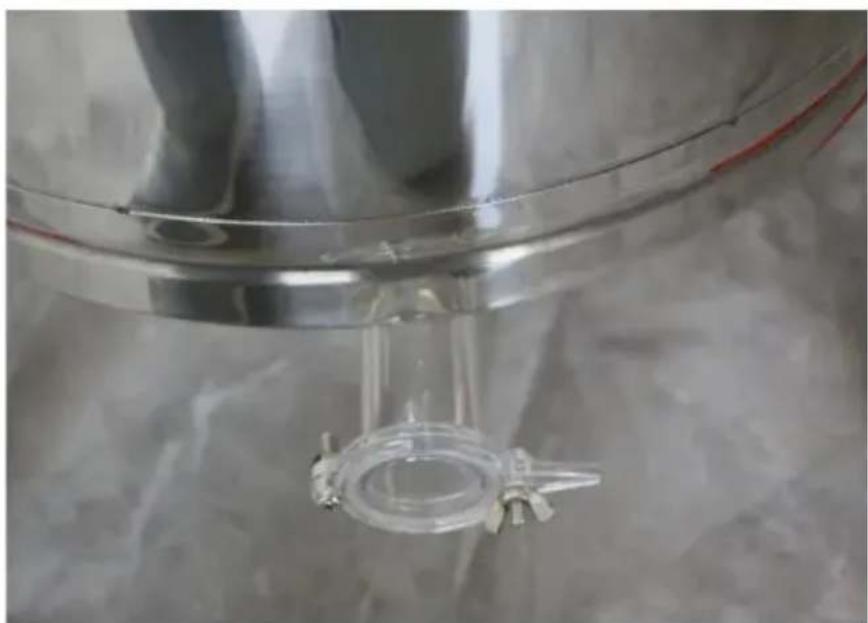

Step 2: Installation of the Honey Valve.

3D CAD renderings of a pipe fitting and housing components (no text or symbols visible)

Close-up of a metallic cylindrical object with a small transparent base and red markings, possibly a container or sensor component (no visible text or symbols)

First, erect the bucket and unscrew the retaining nut at the honey or. The elbow passes through the hole at the bottom of the barrel. Note the sealing ring is above the bottom of the barrel and the elbow is the bottom of the barrel. The fixing nut passes through the elbow and fixed and locked with the elbow screws.

Step 3: Installation of Honey Extractor Lid.

Two white curved surfaces with two small metallic spheres on top, placed on a concrete floor (no text or symbols visible)

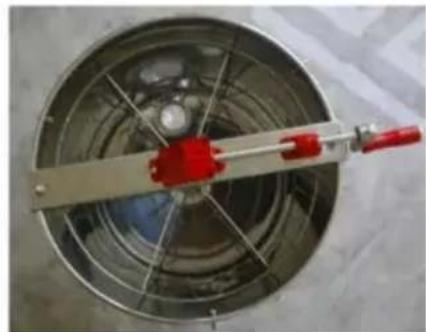

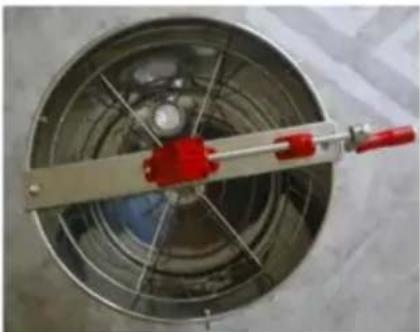

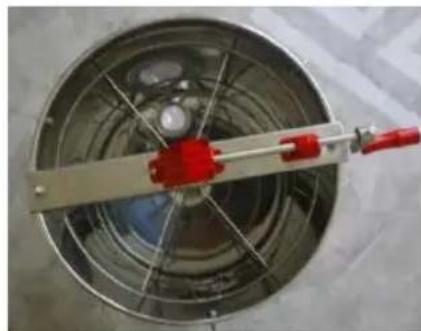

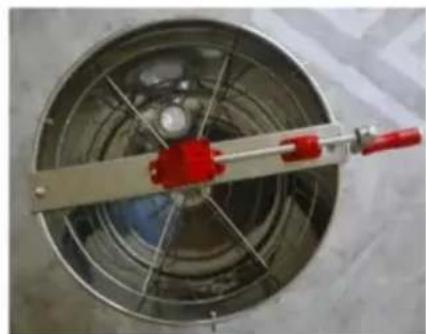

Top-down view of a metallic circular fan with a red-handled lever and central hub (no text or symbols visible)

Put the lid on the mouth of the bucket and place it against the limi position to complete the installation.

Step 4: Install the handle, place the handle on the shaft and tighten

the fixing screws.

Close-up of a metallic tool with a red rectangular component placed on a textured surface (no visible text or symbols)

Close-up of a red-handled tool arm gripping a metallic frame, with no visible text or symbols.

Step 5 : Rotating honey extractor.

Hold the handle with your hand and shake it in the same direction to rotate the inner frame.

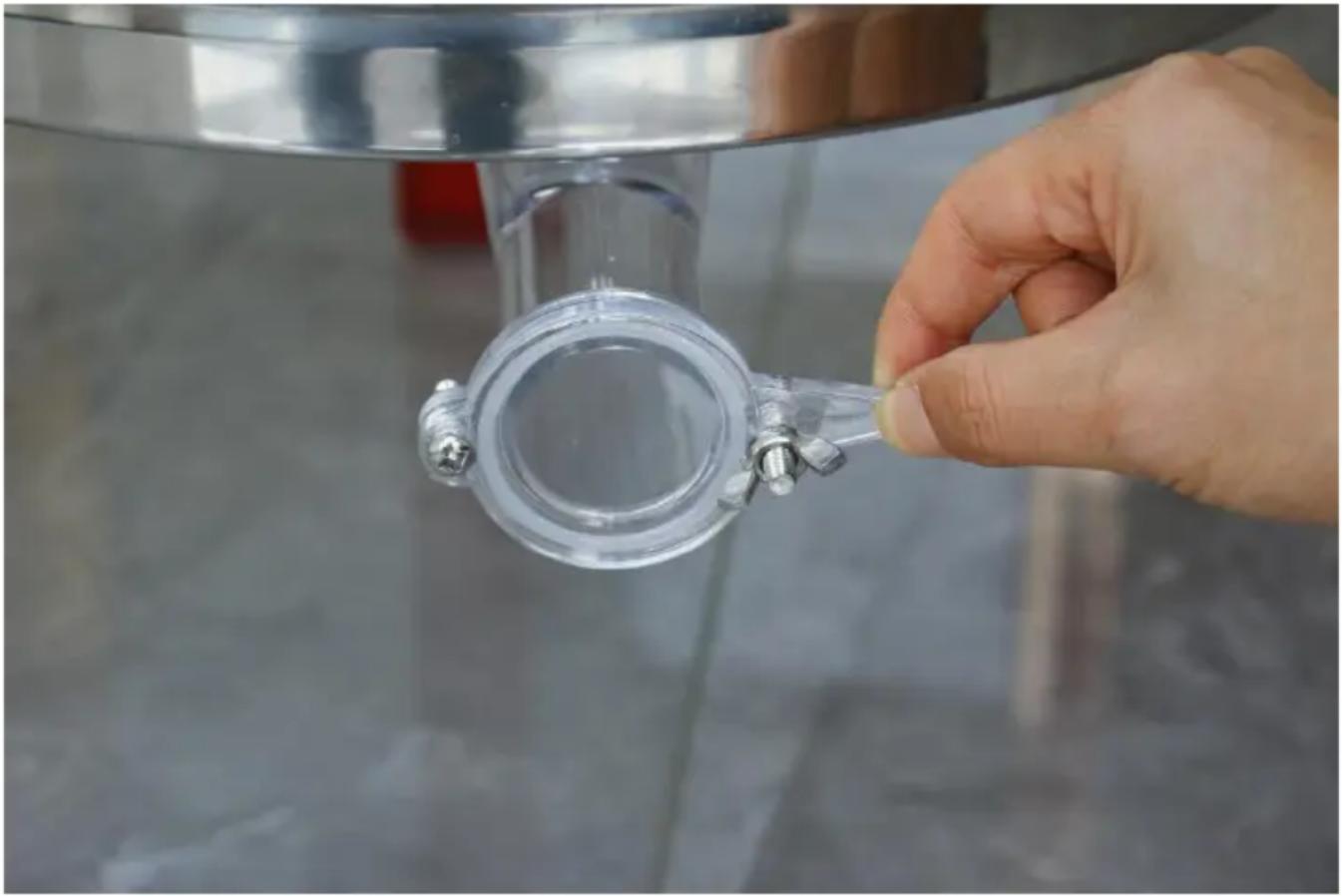

Step 6: Take out the honey.

Hand adjusting a transparent plastic pipe fitting with screws, against a reflective surface (no text or symbols visible)

First, loosen the screw. Then hold the handle of the honey outlet connector, lift it to open the honey outlet, and let the honey flow out.

TROUBLESHOOTING INSTRUCTION

Problem	Reason	Solutions
Shake hands loose	The screws are loos	Tighten the screws with a screwdrive
Barrel shaking	The frames are not placed symmetrically	Place the frames symmetrically
	The feet are not fix on the ground	Fix the feet on the ground

CLEAN,CARE AND STORAGE RULES

Care and cleaning :

The honey extractor shall be thoroughly cleaned and dried before use. Espec the one that has not been used for a long time, shall be disassembled and Otherwise, the honey stains and other impurities left in the honey shaker will pollute the honey.

After using the honey extractor, clean the inner and outer walls of the barrel stainless steel frame. And dry them with a clean and dry cloth, use a hair let them air dry to keep them clean to prepare for the next use.

Storage :

Please store it out of the reach of children;

After using the honey extractor, place it in a cool place and cover it with a cloth to prevent dust from entering.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
