USER MANUAL XXJD1500ZE Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ENGINE STAND

XXJD1500ZE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: XXJD1500ZE

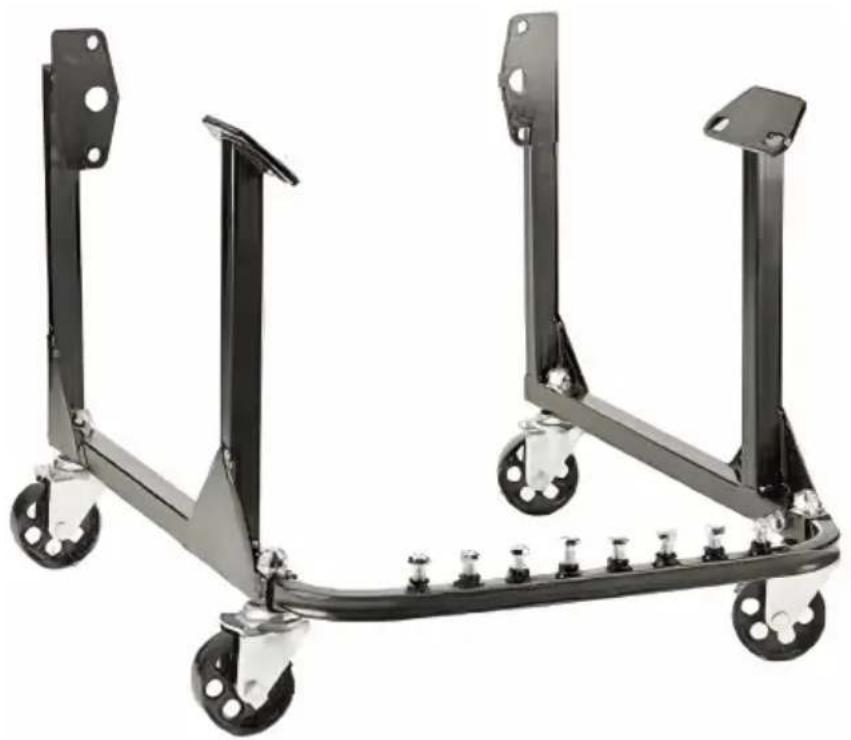

Vevor XXJD1500ZE - MODEL: XXJD1500ZE - 1

natural_image Mechanical support frame with four wheels and metal brackets (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Vevor XXJD1500ZE - IMPORTANT SAFEGUARDS - 1

WARNING: Read and understand this entire manual before operation or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable proper

  • Avoid children using the product. And this product is not a toy. Do not all children to play.
  • Inspect the equipment carefully before each use. Ensure the equipment is damaged, excessively worn, or missing parts.
  • Inspect the work area before each use. Make sure it is free and clear of potential hazards.
  • Make certain all equipment operators are properly trained; understand how to safely and correctly operate the unit.
  • Store these instructions.
  • Keep all decals on the unit clean and visible.

ASSEMBLY PRECAUTIONS

  1. Assemble only according to these instructions. Improper assembly can create hazards.
  2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble when tired or when under the influence of alcohol, drug medication.
  6. Product capabilities apply to properly and completely assembled product only
  7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's

SAVE THESE INSTRUCTIONS

SPECIFICATION

ModelXXJD1500ZE
MaterialSteel
Capacity750lbs
ColorBlack
Suitable EngineBB-CHEVY and GEN-1 SB-CHEVY

ASSEMBLY INSTRUCTIONS

  1. Insert the bracket (No.9, No.10) assembly into the base, then lock with bolt nuts (No.5), flat washers (No.6).
  2. Put the wheel through the mounting holes of the left and right brackets(no and No.10), and then lock it with flat washers 2 and nuts3.
  3. Fasten bolts (No.7) and flat washers (No.8) to the nuts of the base.

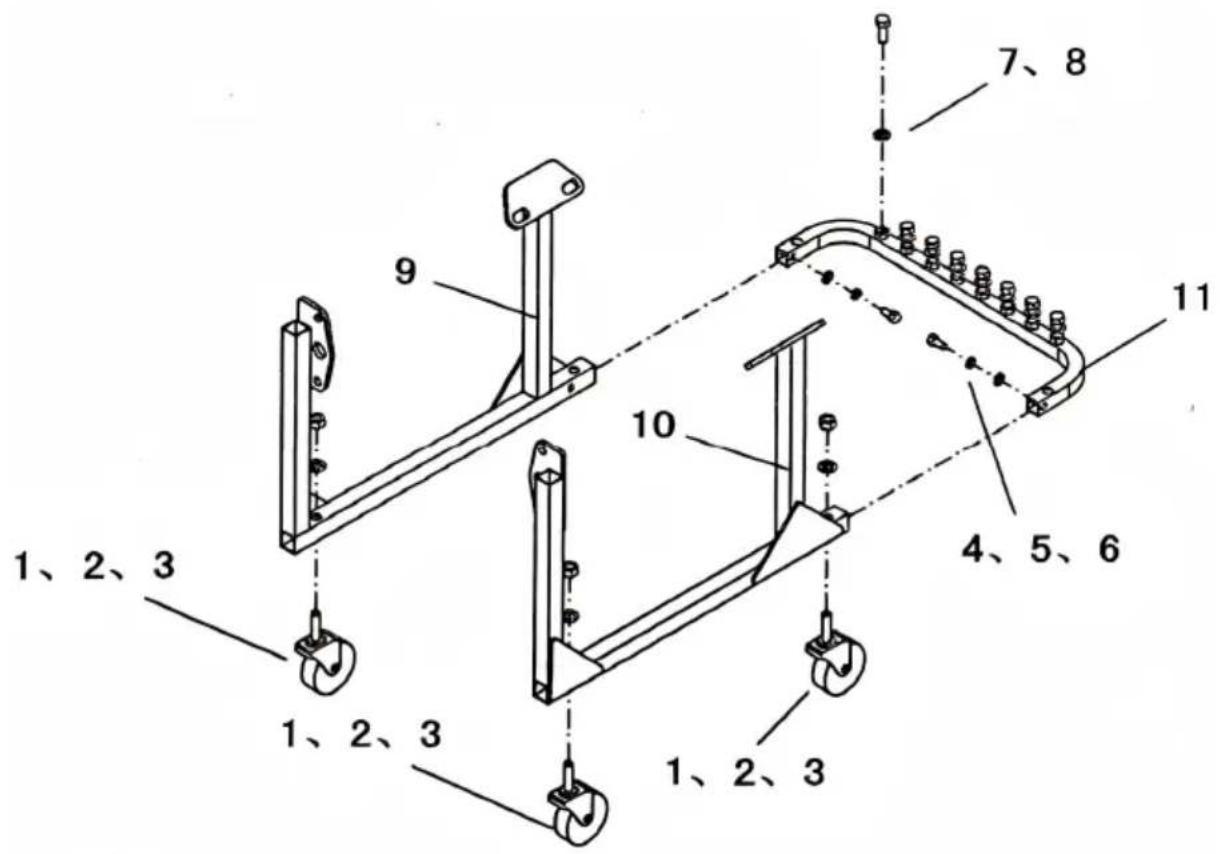

ASSEMBLY DIAGRAM

No.NameSpecificationQTY
1Universal wheels3in4
2Flat washerø124
3NutM124
4BoltM8*162
5Spring washer∅82
6Flat washer∅82
7BoltM10*258
8Flat washerø108
9Right Support/1
10Left Support/1
11Base/1

Vevor XXJD1500ZE - ASSEMBLY INSTRUCTIONS - 1

natural_image Detailed view of an orange and black automotive engine block assembly (no visible text or labels)

CAUTIONS:

When supporting the engine, the engine needs to be firmly fixed to the supp

IMPORTANT SAFETY INFORMATION

Read these safety warnings before operation.

WARNING!

Failure to heed these warnings may result in loss of load, damage to engine and/or engine stand failure, resulting in personal injury or property damage.

WARNING!

Do not overload engine stand beyond rated capacity.

Overloading can cause damage to or failure of the engine stand.

Always use stand on hard, level surface capable of sustaining the load. Use stand on other than hard level surfaces can result in stand instability and pc loss of load.

  1. Visual inspection shall be made before each use of the stands, checking cracks, cracked welds and missing and/or damaged parts. Any stand that app to be damaged in any way shall be removed from service immediately.

  2. BECAUSE OF THE POTENTIAL HAZARDS ASSOCIATED WITH THE MISUSE OF EQUIPMENT OF THIS TYPE, NO MODIFICATIONS SHALL BE MADE TO THE PRODUCT.

  3. Replace worn or damaged parts with Performance Tool replacement parts. sure that only qualified personnel perform repairs.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

ECREP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
