Product Type	Tree Watering Bag
Brand	Vevor
Model	TWB-20GAL-D25 (pack of 25)
Capacity per Bag	20 gallons (approx. 75.7 liters)
Number of Bags	25
Dimensions (each bag)	18 x 34.6 inches (45.7 x 87.9 cm)
Material	PVC 400 g/m²
Color	Green
Main Function	Slow, deep tree watering
Usage	On flat or sloping ground (zipper on uphill side)
Assembly	Zipper around trunk, fill with hose (diameter ≤ 2 inches)
Maintenance	Clean with mild detergent and water, dry before storage
Safety	Do not exceed capacity, do not lift when full, do not use if damaged
Repairability	Repairable with patch and adhesive (not included)
Storage	Cool, dry place, frost-free, drain remaining water
Warranty	Electronic warranty certificate at www.vevor.com/support
Included Manual	Multilingual user manual

Frequently Asked Questions - TWB-20GAL-D25 Vevor

How to install the watering bag around the tree?

Wrap the two sides of the bag around the trunk until the zippers meet, then close the zipper from bottom to top. Make sure the bag is snug and that the zipper is on the uphill side if the ground is sloping.

What is the water capacity of the bag?

Each bag has a capacity of 20 gallons (approx. 75.7 liters). Do not fill beyond this capacity to avoid risk of tearing.

Can the bag be used on a slope or hill?

Yes, the bag can be used on a slope. Place the zippers on the uphill side (toward the top of the slope) and orient the front of the bag downhill to allow proper water flow.

How to clean the watering bag?

Use a mild detergent and water to clean the bag. Do not scrub with hard objects like brushes. Rinse well and dry completely before storage.

How to store the bag in winter?

Drain any remaining water from the bag, remove it from the tree, clean it, dry it completely, then store it in a cool, dry place like a garage or storage shed to prevent freezing.

Can the bag be repaired if torn or punctured?

Yes, if the bag body is damaged, you can repair it using a patch and suitable adhesive (not included). Clean the area around the tear, apply glue and patch, then allow to dry.

What type of water to use in the bag?

Use only clean water. If necessary, filter the water using a cotton cloth placed at the end of the hose to avoid debris.

How long does it take for the water to flow out of the bag?

The flow time depends on your hose flow rate and tree size. Generally, water seeps slowly over several hours for deep watering. You can adjust the flow rate via the faucet.

Is the bag suitable for young trees?

Yes, the bag is suitable for young trees. Be careful not to hang or attach the bag to the straps or handles of young trees; place it directly around the trunk at ground level.

Where to find technical support or warranty?

Technical support and electronic warranty certificate are available at www.vevor.com/support. You can ask questions or request warranty repair there.

USER MANUAL TWB-20GAL-D25 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TREE WATERING BAG

USER MANUAL

MODEL: TWB-20GAL-D3 / TWB-20GAL-D4 / TWB-20GAL-D8 / TWB-20GAL-D12 / TWB-20GAL-D25

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean all categories of tools offered by us. You are kindly reminded to verify when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

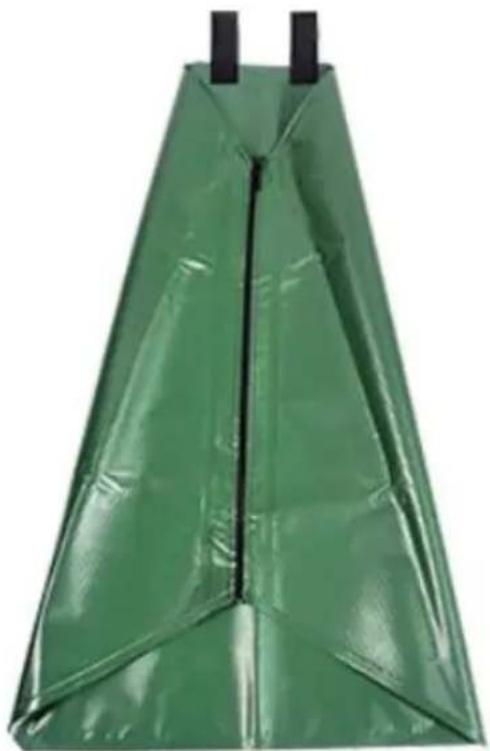

Tree Watering Bag

MODEL: TWB-20gal-D3 / TWB-20gal-D4 / TWB-20gal-D8 / TWB-20gal-D12 / TWB-20gal-D25

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.
6. The diameter of the water injection tube should be less than the water inlet so that the air in the tank can be discharged.
7. Use clean water only. If necessary, filter through cotton cloth on the end.
8. Do not suspend or hang watering bag for new trees from black straps / handles.
9. Never lift tree watering bag by 1 handle / strap - Always use both handles when lifting.
10. Do not unzip or transport or move tree watering bag when full.
11. Do not tear / rip fill opening.
12. Do not zip together more than 2 tree watering bags.
13. Empty the tree watering bag of any remaining water, remove it, store it in a cool, dry place (i.e., storage shed, garage, etc.) when not in use, particularly during the winter months.
14. VEVOR 20 Gallon Tree Watering Bags Can Be Used on a Hillside or Steep Grade.
15. Make sure the tree watering bag is positioned with the zippers on the uphill side of the tree trunk, with the front of the watering bag facing downhill. This will allow the tree watering bag to empty properly.

SAVE THIS MANUAL

PRODUCT PARAMETERS

Model	No. of sets	Capacity	Product Size	Material	Colour
TWB-20gal-D3	3 Pack	20 Gallons	18*34.6inch	PVC (400gsm)	Green
TWB-20gal-D4	4 Pack
TWB-20gal-D8	8 Pack
TWB-20gal-D12	12 Pack
TWB-20gal-D25	25 Pack

PARTS LIST

No.	PART	NAME	QTY
1		Tree Watering Bag (Model: TWB-20gal-D3)	3
2		Tree Watering Bag (Model: TWB-20gal-D4)	4
3		Tree Watering Bag (Model: TWB-20gal-D8)	8
4		Tree Watering Bag (Model: TWB-20gal-D12)	12
5		Tree Watering Bag (Model: TWB-20gal-D25)	25
6		USER MANUAL	1

ASSEMBLY STEPS

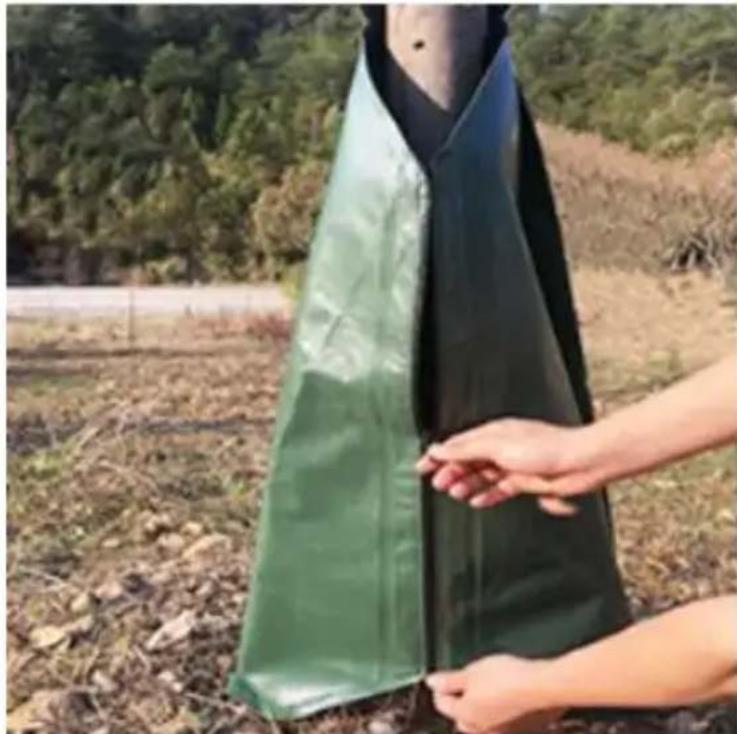

Step 1: Wrap both sides around the trunk until the zippers meet and come together from bottom to top.

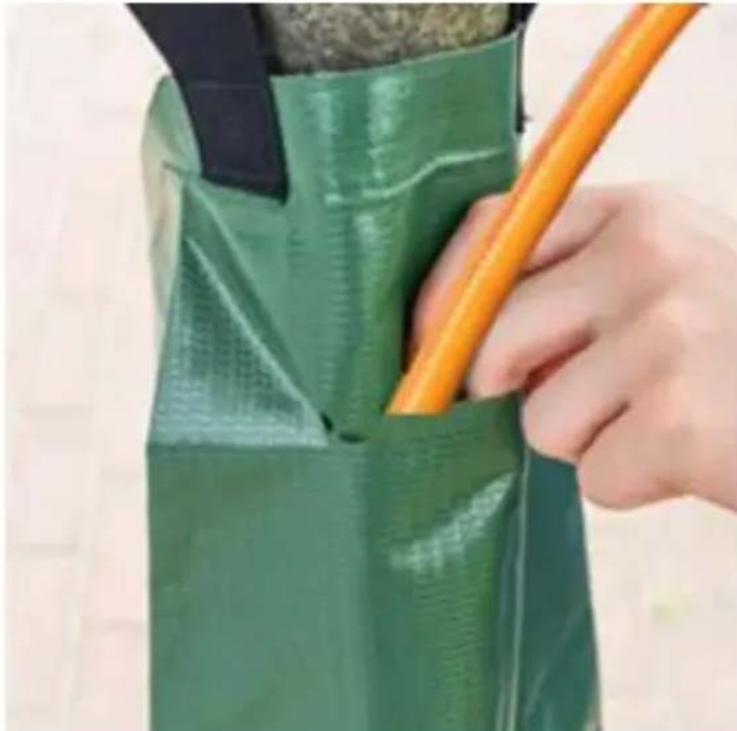

Step 2: Insert water hose (up to 2 inches diameter) into the fill opening, turn on water supply, and begin filling.

ASSEMBLY STEPS

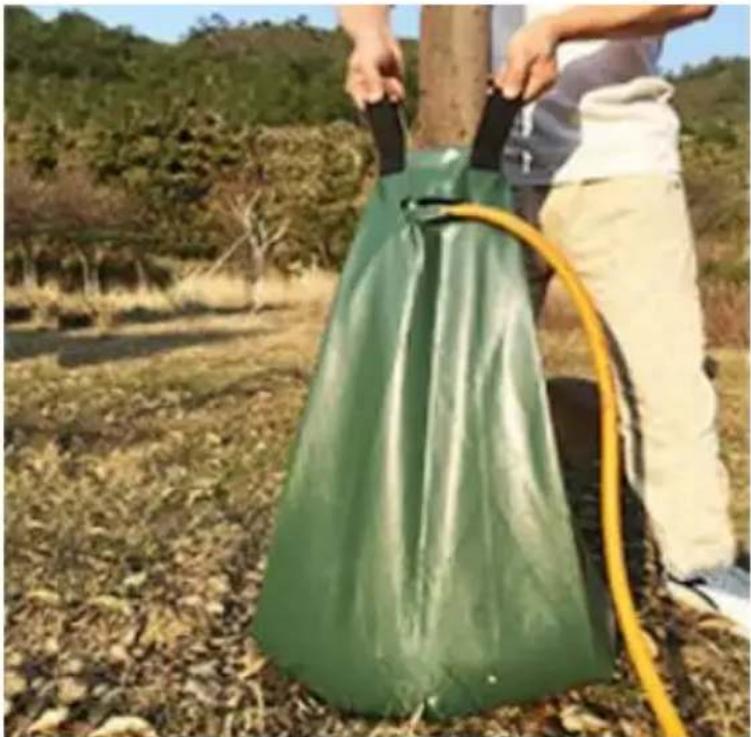

Step 3: Fill the tree watering bag only to 1/4 capacity, then gently pull on the two straps at the top of the tree watering bag to fully expand it.

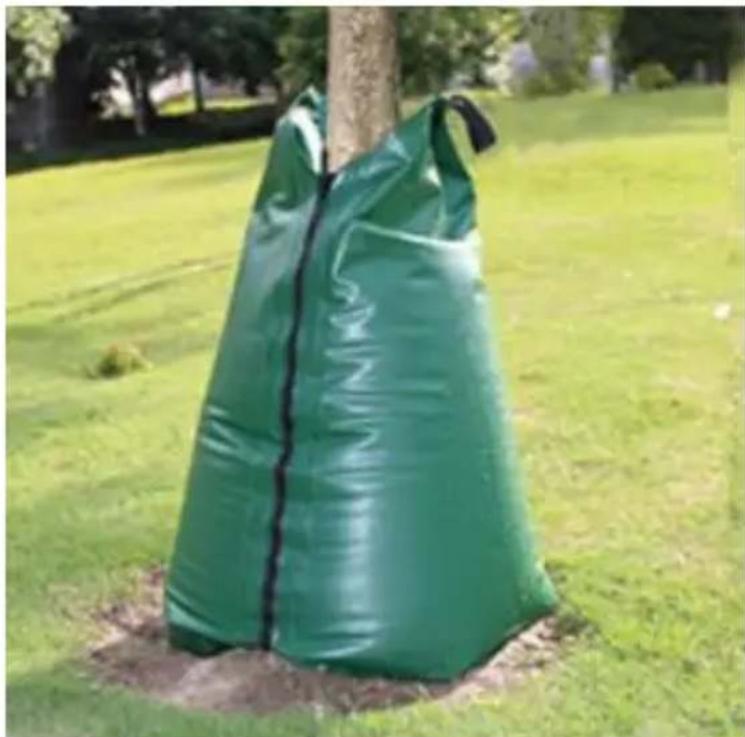

Step 4: Fill the tree watering bag with water to the desired level and drain.

MAINTENANCE AND STORAGE

1. Please use mild detergent and water for cleaning.
2. Don't scrub the tree watering bag with hard objects like brushes.
3. Dry the tree watering bag before storage. Do not store it in a damp place.
4. Clean the debris at the filter port in time to avoid clogging.
5. If the barrel body is damaged, it can be repaired with the attached patch (Please bring your own glue).

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803 Nong 11 Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
