TWB-20GAL-D4 - Irrigation timer Vevor - Free user manual and instructions

Product Type	Tree Watering Bag (Slow Drip Irrigation)
Brand	Vevor
Model	TWB-20GAL-D4 (Pack of 4)
Capacity per Bag	20 gallons (approx. 75.7 liters)
Dimensions (W x H)	18 x 34.6 inches (45.7 x 87.9 cm)
Material	Reinforced PVC 400 g/m²
Color	Green
Assembly	Wrap around trunk, close with zipper
Filling	Via water hose (max diameter 2 inches)
Use on Slope	Yes, zipper on uphill side for proper drainage
Safety	Do not sit, do not exceed capacity, do not lift when full, inspect before use
Maintenance	Clean with mild detergent, dry completely before storage
Storage	Cool, dry place, protect from frost (winter)
Repairability	Repair patch possible (glue not included)
Included Parts (model D4)	4 watering bags, 1 user manual
Warranty	Technical support and e-warranty via www.vevor.com/support
Unit weight (empty)	Approx. 1.5 kg (estimated)
Watering Flow Rate	Slow drip (regulation hole)

Frequently Asked Questions - TWB-20GAL-D4 Vevor

How to assemble the Vevor TWB-20GAL-D4 watering bag?

Wrap both sides around the trunk until the zippers meet, then close them from bottom to top. Insert the water hose (max diameter 2 inches) into the filling opening.

How much water should I put in the bag?

First fill to 1/4 capacity, then gently lift the straps to expand the bottom, then fill to desired level. Do not exceed maximum capacity of 20 gallons.

Can I use the bag on a slope?

Yes, place the bag with the zipper on the uphill side of the trunk, front facing downhill. This ensures proper drainage.

How to clean and maintain the watering bag?

Use mild detergent and water. Do not scrub with hard brushes. Dry completely before storage. Clean the filter regularly to prevent clogging.

Where to store the bag when not in use?

Empty all remaining water, remove the bag and store it in a cool, dry place (shed, garage) especially in winter to avoid freezing.

What to do if the bag is damaged or punctured?

The bag can be repaired with a repair patch (not included). Use appropriate PVC glue. Follow the patch instructions.

Can I stack multiple bags on the same tree?

No, do not assemble more than 2 tree watering bags according to the manual. Respect this limit to avoid damage.

Is the bag suitable for all trees?

Yes, it wraps around the trunk, but ensure the trunk diameter allows proper zipper closure. For young trees, do not hang the bag by the black straps.

How to get technical support or warranty?

Visit www.vevor.com/support for technical support and electronic warranty certificate.

What are important safety precautions?

Do not sit or stand on the bag. Never lift it by a single handle. Inspect before each use. Do not use if parts are loose or damaged.

USER MANUAL TWB-20GAL-D4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TREE WATERING BAG

USER MANUAL

MODEL: TWB-20GAL-D3 / TWB-20GAL-D4 / TWB-20GAL-D8 / TWB-20GAL-D12 / TWB-20GAL-D25

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean all categories of tools offered by us. You are kindly reminded to verify when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Tree Watering Bag

MODEL: TWB-20gal-D3 / TWB-20gal-D4 / TWB-20gal-D8 / TWB-20gal-D12 / TWB-20gal-D25

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of this user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.
6. The diameter of the water injection tube should be less than the water inlet so that the air in the tank can be discharged.
7. Use clean water only. If necessary, filter through cotton cloth on the end.
8. Do not suspend or hang watering bag for new trees from black straps / handles.
9. Never lift tree watering bag by 1 handle / strap - Always use both handles when lifting.
10. Do not unzip or transport or move tree watering bag when full.
11. Do not tear / rip fill opening.
12. Do not zip together more than 2 tree watering bags.
13. Empty the tree watering bag of any remaining water, remove it, store it in a cool, dry place (i.e., storage shed, garage, etc.) when not in use, particularly during the winter months.
14. VEVOR 20 Gallon Tree Watering Bags Can Be Used on a Hillside or Steep Grade.
15. Make sure the tree watering bag is positioned with the zippers on the uphill side of the tree trunk, with the front of the watering bag facing downhill. This will allow the tree watering bag to empty properly.

SAVE THIS MANUAL

PRODUCT PARAMETERS

Model	No. of sets	Capacity	Product Size	Material	Colour
TWB-20gal-D3	3 Pack	20 Gallons	18*34.6inch	PVC (400gsm)	Green
TWB-20gal-D4	4 Pack
TWB-20gal-D8	8 Pack
TWB-20gal-D12	12 Pack
TWB-20gal-D25	25 Pack

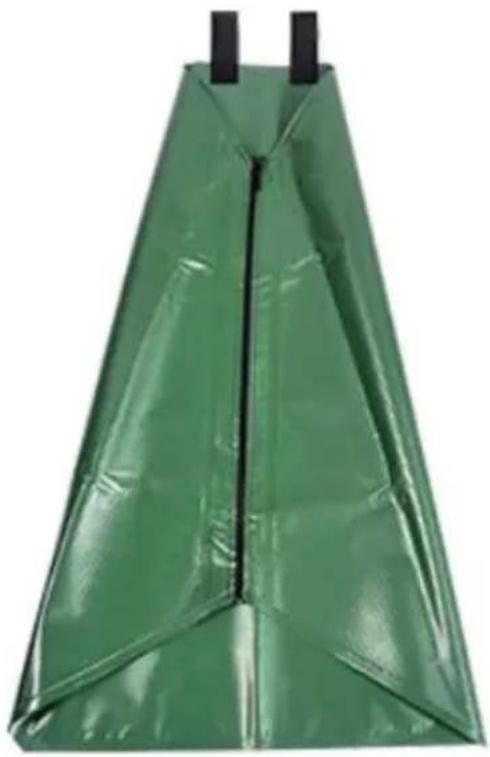

PARTS LIST

No.	PART	NAME	QTY
1		Tree Watering Bag (Model: TWB-20gal-D3)	3
2		Tree Watering Bag (Model: TWB-20gal-D4)	4
3		Tree Watering Bag (Model: TWB-20gal-D8)	8
4		Tree Watering Bag (Model: TWB-20gal-D12)	12
5		Tree Watering Bag (Model: TWB-20gal-D25)	25
6		USER MANUAL	1

ASSEMBLY STEPS

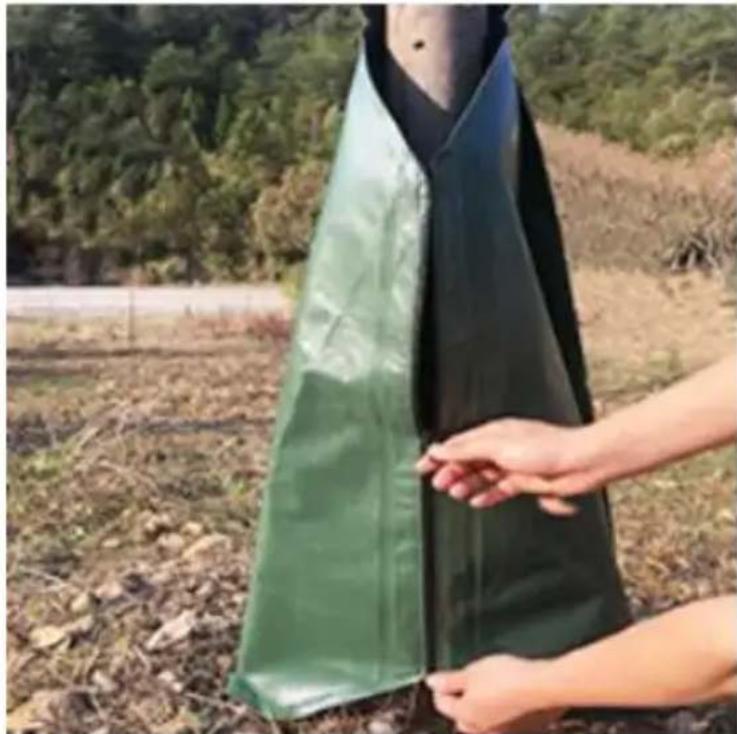

Step 1: Wrap both sides around the trunk until the zippers meet and come together from bottom to top.

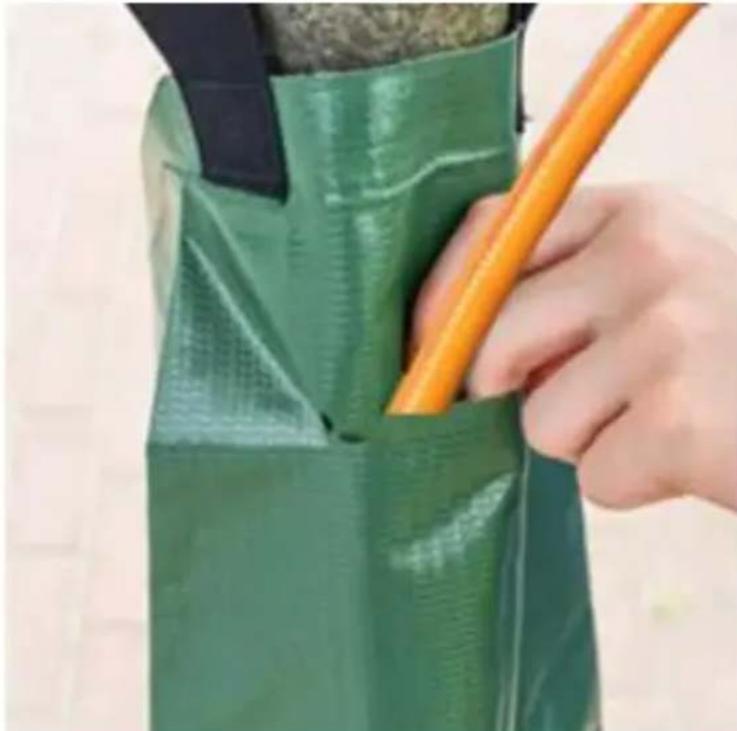

Step 2: Insert water hose (up to 2 inches in diameter) into the fill opening, turn on the water supply, and begin filling.

ASSEMBLY STEPS

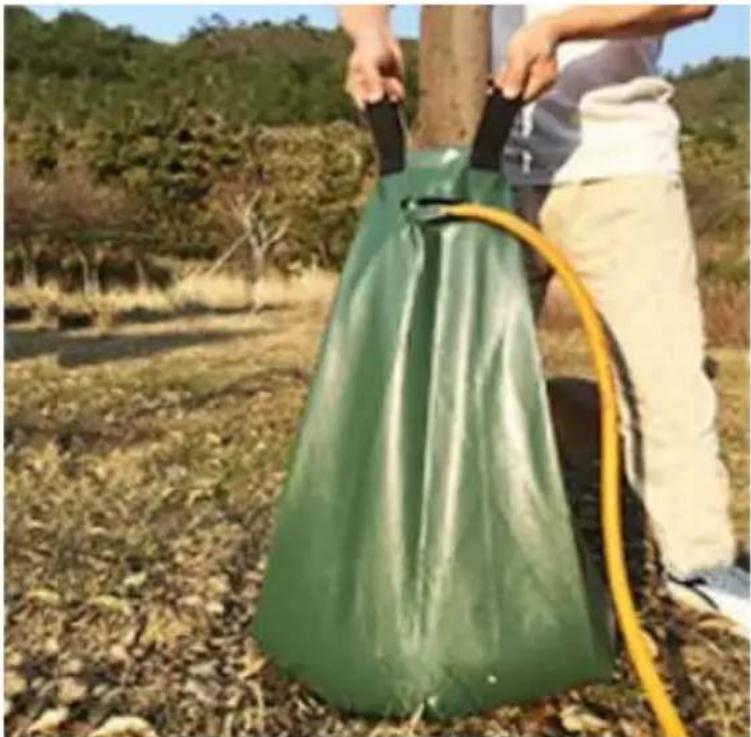

Step 3: Fill the tree watering bag only to 1/4 capacity, then gently pull on the two straps at the top of the tree watering bag to fully expand it.

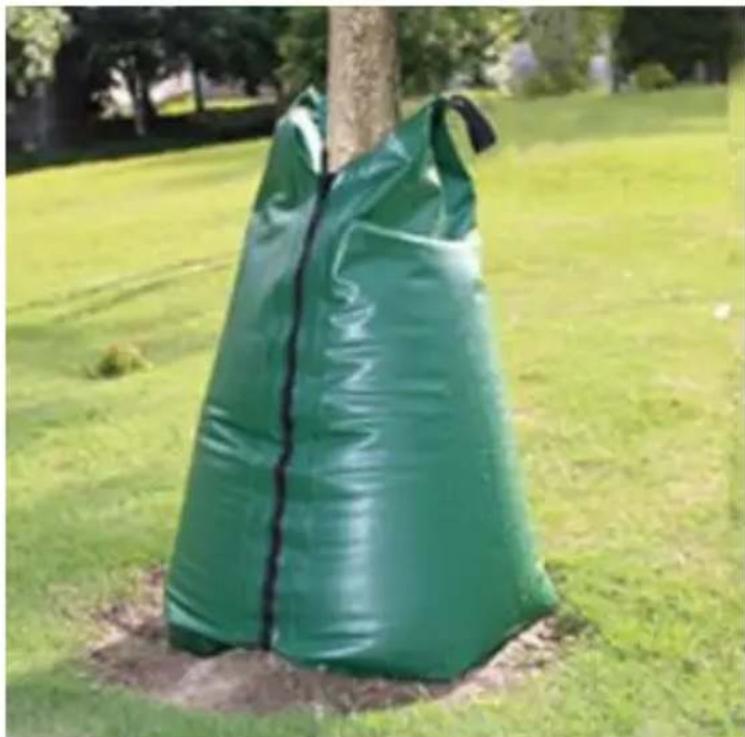

Step 4: Fill the tree watering bag with water to the desired level and drain.

MAINTENANCE AND STORAGE

1. Please use mild detergent and water for cleaning.
2. Don't scrub the tree watering bag with hard objects like brushes.
3. Dry the tree watering bag before storage. Do not store it in a damp place.
4. Clean the debris at the filter port in time to avoid clogging.
5. If the barrel body is damaged, it can be repaired with the attached patch (Please bring your own glue).

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
