Product Type	Ice cream machine (electric mixer for hard ice cream, frozen yogurt, milk with frozen fruits)
Brand	Vevor
Model	XZ-620
Main Use	Chains of fresh drink shops, bars, fast food restaurants and other entertainment venues
Capacity of included cups	9 oz, 12 oz, 16 oz
Adjustable Speed	Yes, speed selection button (low then high depending on ingredients)
Splash Protection	Plexiglas protective cover
Power Supply	See nameplate (reliable grounding, do not share the outlet)
Installation Conditions	Stable and horizontal surface, good ventilation, stable ambient temperature
Water Inlet and Outlet	Inlet hose in clean water, drain hose in bucket
Cleaning	Unplug, remove the stirrer (turn counterclockwise), clean with a damp cloth, do not rinse with water
Included Parts	Mixing machine, hopper (3 pcs), cups (9 oz, 12 oz, 16 oz), user manual
Warranty and Support	Technical support and electronic warranty certificate at www.vevor.com/support
Safety	Mandatory grounding, do not tilt more than 10°, do not put hands in mixing area, minors prohibited
Common Troubleshooting	If the machine does not work: check voltage, outlet, switch or motor (replace if necessary)

Frequently Asked Questions - XZ-620 Vevor

How to use the XZ-620 machine?

Pour the ice or yogurt into a sturdy cup. Place the cup under the mixing head and lift until contact. Turn on the switch and select the speed. Start at low speed, then switch to high speed. Slowly move the cup up and down. After mixing, turn off the machine.

How to clean the machine?

Unplug the machine. Use the provided key to turn the stirrer counterclockwise and remove it. Carefully clean the mixer end with a damp cloth. Never rinse directly with water. Reinstall the stirrer by tightening it.

What to do if the machine does not start?

Check the power supply voltage (use a regulator if necessary), reinsert the plug, or test the switch. If nothing works, the motor may be defective and needs to be replaced.

What types of ice can be prepared?

This machine is designed for hard ice cream, frozen yogurt, or a mixture of milk with frozen fruits.

What are the important safety precautions?

The machine must be reliably grounded. Do not tilt it more than 10° during operation. Do not put hands in the mixing area. Minors must not use it. Always unplug after use.

What accessories are included?

The package contains: the mixing machine, a hopper (3 pieces), cups of 9 oz, 12 oz and 16 oz, and the user manual.

Where to find technical support?

Visit the website www.vevor.com/support for technical support and the electronic warranty certificate.

How to install the machine?

Place it on a stable and horizontal surface. Plug into a grounded outlet. Connect the inlet hose to clean water and the drain hose to a bucket.

What to do in case of abnormal noise or vibrations?

Check that the machine is on a flat and stable surface. If parts are loose, adjust and tighten them.

Can corrosive liquids be used or poured directly into the refrigerator?

No, do not fill the machine with corrosive liquids and do not pour liquids directly into the refrigerator. Use only suitable ingredients.

USER MANUAL XZ-620 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC ICE CREAM MIXER MACHINE USER MANUAL

Model: XZ-620

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Line drawing of a laboratory apparatus with a conical funnel and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Attentions

It is mainly used for hard ice cream or frozen yogurt or a mix of milk with frozen fruit. Applicable to cold drink chain stores, bars, fast food restaurants and other entertainment places.

Before using the Machine, please read this manual carefully and it properly

1. Before using the Machine, clean it inside and outside with a damp
2. Do not fill the Machine with corrosive liquids. Do not directly pour into the refrigerator.
3. When the Machine is not used for a long time, please disconnect power supply and keep it dry.
4. Machine clean the inner chamber to prevent odor and bacteria and ensure food safety.

Installation

1. Surface: Place the machine on a stable surface to ensure that the machine is vertically horizontal
2. Grounding: reliable grounding, according to the grounding and voltage requirements on the machine rated label

Note: stable ambient temperature, good ventilation, stable voltage, good cleaning conditions will make the machine have higher efficiency, less power consumption and longer life.

Installation process

1) Position selection places the machine on a sufficiently stable and ro level stage to safely support its weight.

2) power suppl

a. Select the appropriate power supply according to the voltage and power on the nameplate

b. Connect the power cord and power supply to ensure that the grow wire is firmly connected to the ground wire

Note: For safety reasons, make sure the ground connection is good. external wires and other appliances must meet national standards.

3) Water input and drainage output Put the inlet pipe into the clean a clear water, and put the drainage pipe into the drainage bucket.

Operation

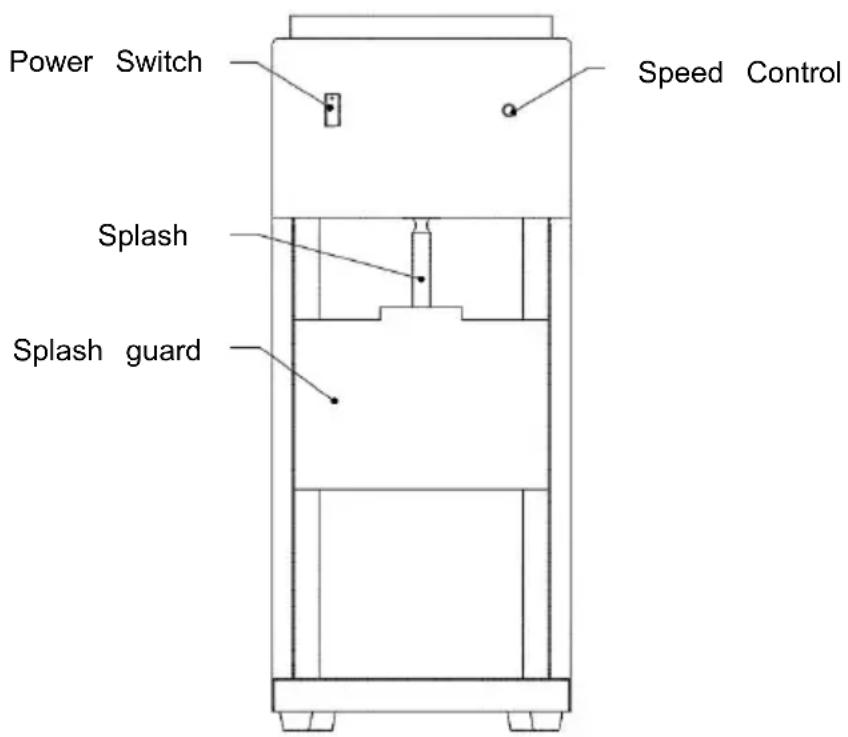

Appearance introduction

Power Switch Speed Control Splash Splash guard

How to use

1. Pour the ice cream (or yogurt) into a firm cup, and pour the ingi that need to be added; 2. Put the cup on and hold the cup tightly sides instead of the bottom);
2. Place the cup under the mixing head and lift it upward until the head touches the bottom of the cup;
   4, turn on the power switch to select the required speed (speed select knob);
   5, according to different ingredients, generally run at low speed, and turn to high speed;
3. During the mixing process, follow the mixing head and move the slowly up and down until every corner of the cup (if the ice cream should be shaken slowly);
   7, after finishing, use the other hand to switch the power switch to stop the operation.

Cleaning

1. Before cleaning, please make sure that the power cord is removed the machine is in a power off state.
   2, with the machine configuration of the wrench, stuck on the motor counterclockwise hand turn the agitator, remove the agitator, and then clean.
   3, when cleaning, the front end of the mixer can be removed, thorol cleaned, cleaned with a rag after cleaning, and then installed back or machine to tighten.

Troubleshooting methods

Question	Possible cause	Rx
The machine does not work	1. the voltage is to high or too low	Use the regulator
	power suppl	Insert the plug again
	The switch is broke	Change the switch
	Motor failure	Replace the motor
Often shut down	Input voltage or the problem	Use the regulator
Noise and vibration	The machine floor is uneven	Place the machine or flat and stable surfac
	The parts on the machine are loose	Adjust the parts and tighten them

Packing List

No.	Item	Qty	Remark
1	Mixer Machine	1 set
2	Hopper	3 set	9oz、12oz、16oz
3	Manual	1 pcs

Safety Precautions

Before using this machine, read the following instructions: pay attention to:

• This machine must be grounded reliably; do not share the socket \ other electrical appliances.
• Check the voltage specification on the type plate corresponds to that the energy supply.
  • The machine cannot tilt by more than 10 degrees during the opera
• When the machine is plugged in, cover the plexiglass protective cover the machine. Do not put hands and hard objects within the mixing range the screw separator, which may cause serious harm to the body or machine.
• The machine should be unplugged and cleaned after each use. After cleaning, wipe it with a towel. Wipe it off with a wet towel. Do not directly with water.

- The local machine is strictly prohibited to use by minors.
