USER MANUAL XU-2309 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WELDING CURTAIN

MODEL:XU-2307/XU-2316/XU-2314/XU-2315/XU-2318/
XU-2317/XU-2310/XU-2308/XU-2309/XU-2312/XU-2311/
XU-2313/XU-2319/XU-2320

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only. An estimate of savings you might benefit from buying certain tools with us the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are in order with us if you are actually saving half in comparison with the top market

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in a injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. In order to ensure your own safety, please make sure to ANSI-approved goggles and heavy-duty work gloves when installing this product.
3. Keep the assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Product capabilities apply to properly and completely assembled product only
7. Assemble on a flat, level, hard and smooth surface capable of safely sup a fully loaded Welding Curtain.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this. Please keep small spare parts out of children's reach.
3. Use only on a flat, level, hard and smooth surface capable of safely supfully loaded Welding Curtain.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.
6. We recommend 2 or more people to install.
7. Keep away from sharp points,blades and other items,so as not to scratch product.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	XU-2307	XU-2316	XU-2314	XU-2315	XU-2318	XU-2317
Color	Red	Green	Red	Yellow	Yellow	Red
Size	6'X6'	6'X6'	6'X6'	6'X6'	6'X8'	6'X8'
Panel	1	3	3	3	3	3
Material	Flame-resistant Vinyl
With Frame	x	√	√	√	√	√
Window	x	x	x	x	x	x

Model	XU-2310	XU-2308	XU-2309	XU-2312	XU-2311	XU-2313	XU-2319	XU-2320
Color	Green	Red	Yellow	Yellow	Red	Green	Red	Yellow
Size	6'X6'	6'X6'	6'X6'	6'X8'	6'X8'	6'X8'	6'X8'	6'X8'
Panel	1	1	1	1	1	1	1	1
Material	Flame-resistant Vinyl
With Frame	✓	✓	✓	✓	✓	✓	✓	✓
Window	×	×	×	×	×	×	✓	✓

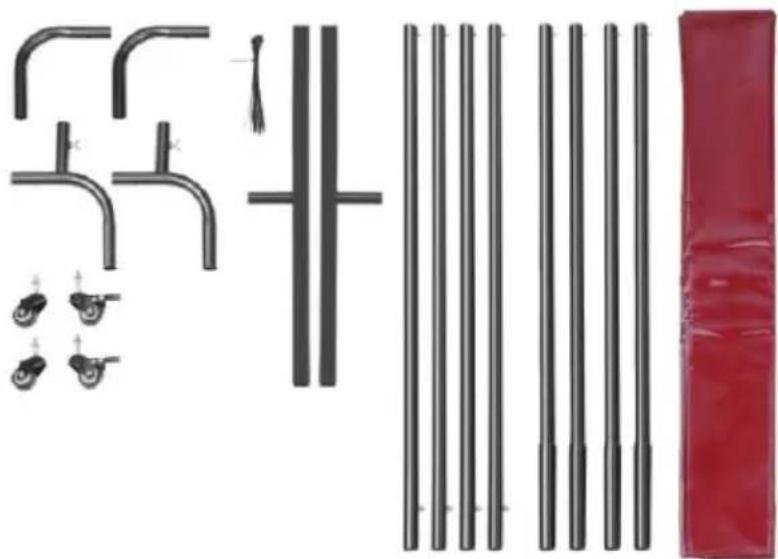

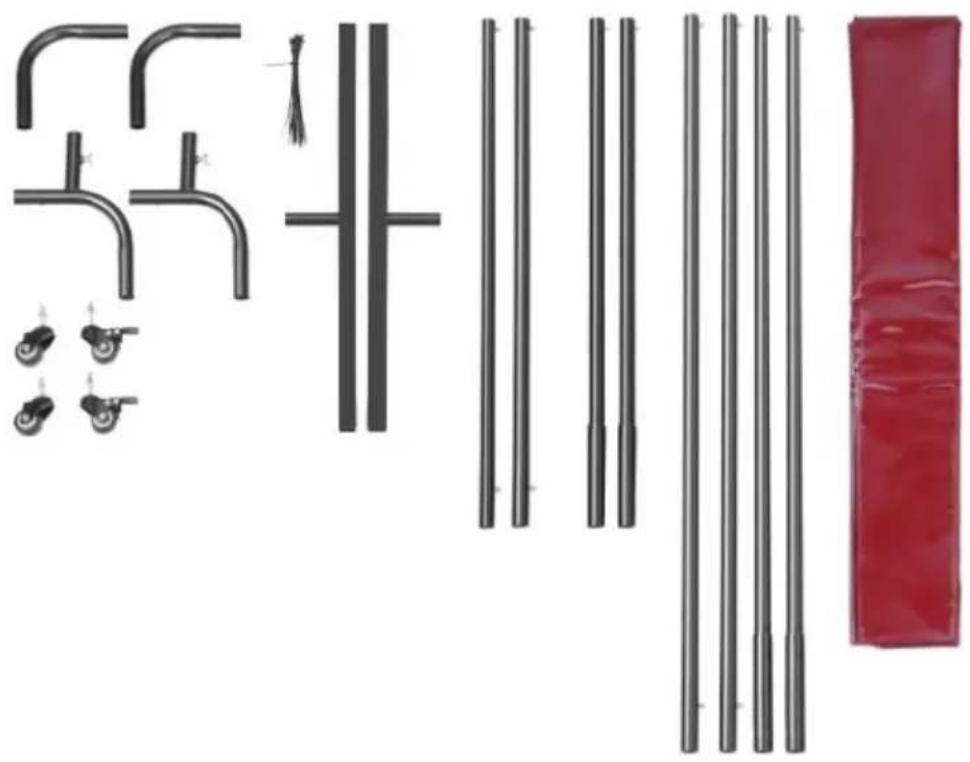

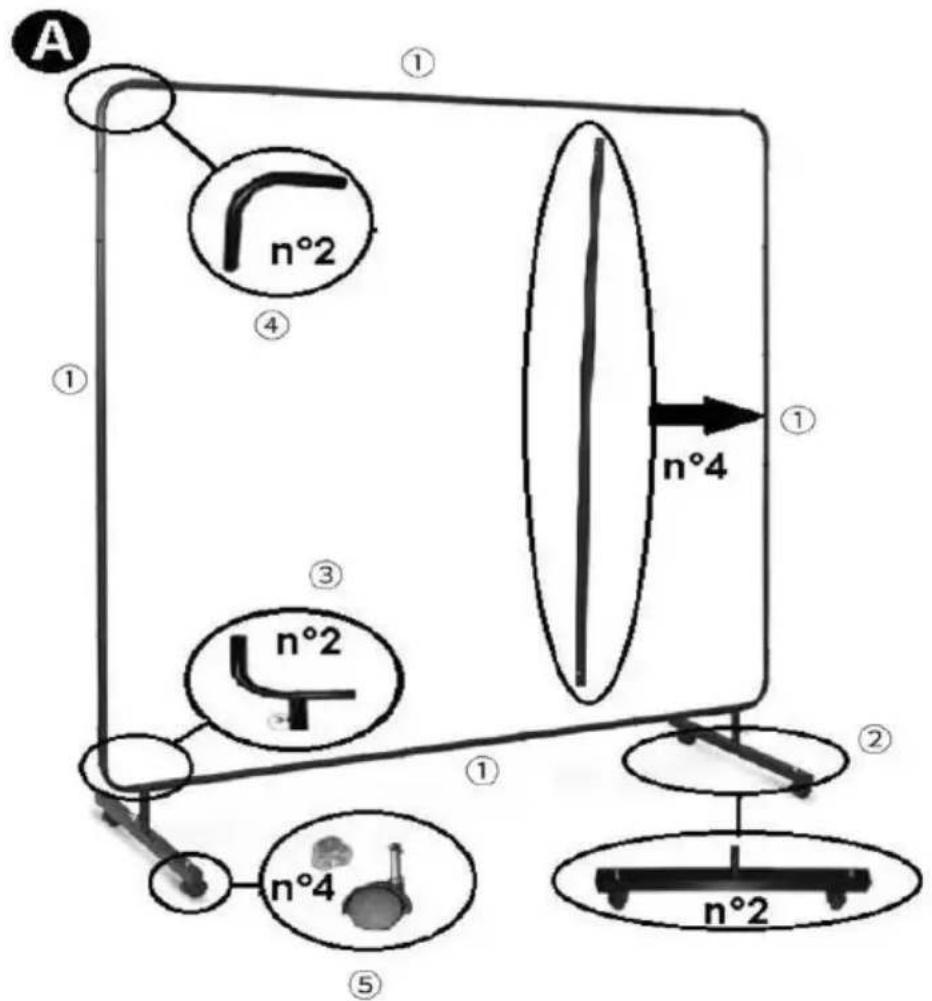

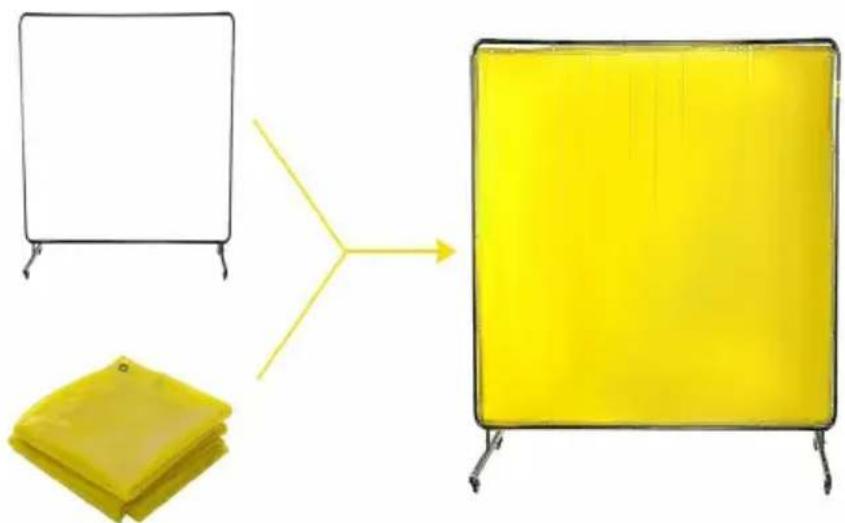

Components

Notice:

1. Pay attention to the correct use of screw specifications according to the instruction manual.
2. Please wear gloves when installing.

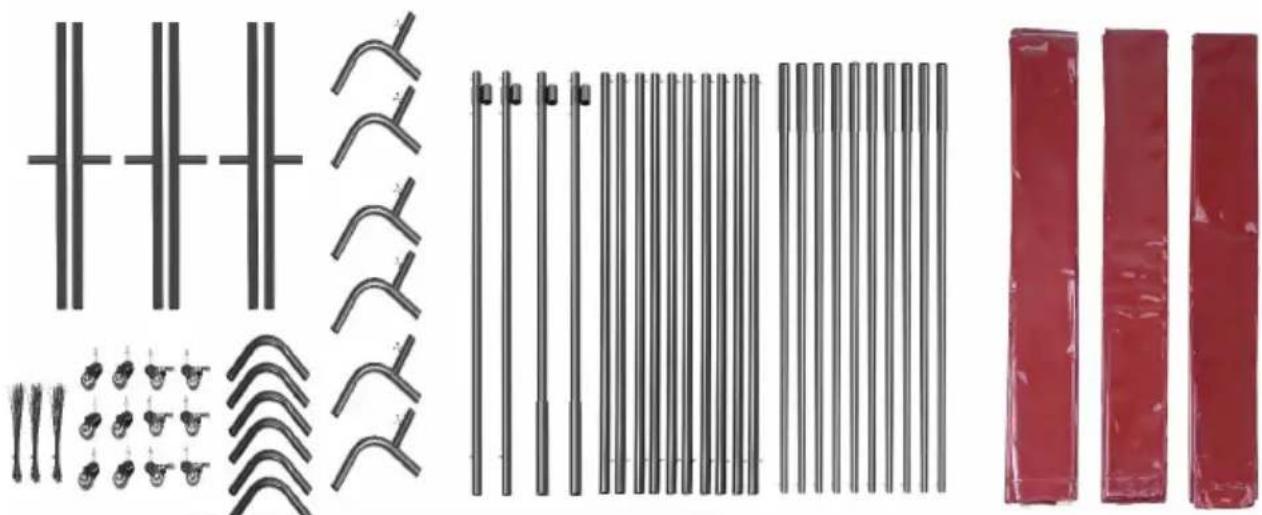

XU-2316/XU-2314/XU-2315

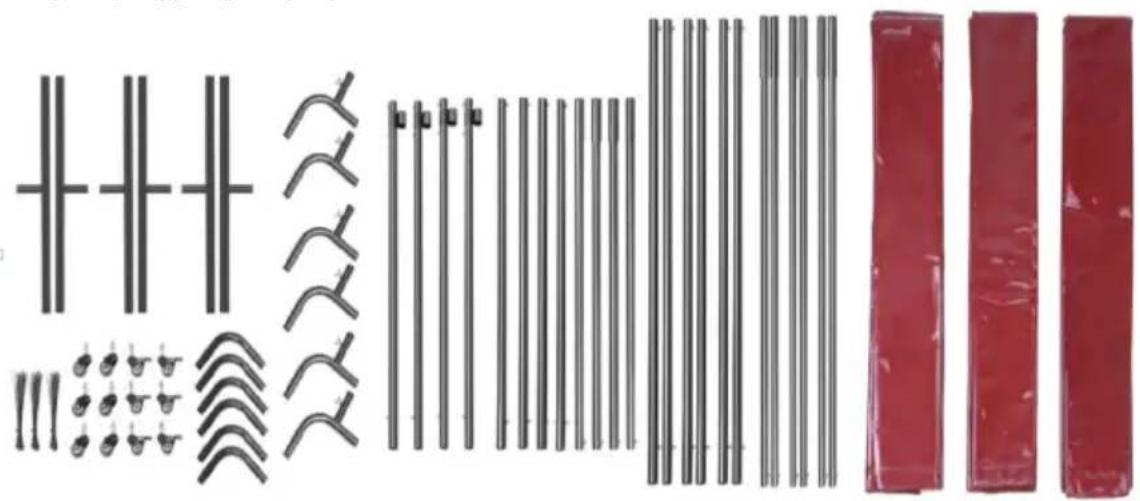

XU-2318/XU-2317

XU-2319/XU-2320

XU-2310/

XU-2308/XU-2309
