Product Type	Welding Curtain
Brand	Vevor
Model	XU-2312
Dimensions	6 x 8 ft (approx. 183 x 244 cm)
Color	Yellow
Material	Fire-resistant vinyl
Number of Panels	1
With Frame	Yes
Viewing Window	No
Main Use	Arc welding, UV and spark protection
Mounting	Assembly required, recommended for two people
Safety	Do not use as a toy, avoid tipping, use on flat surface
Care and Cleaning	Clean with a soft, dry cloth
Spare Parts	Not provided, contact Vevor support
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical Support	www.vevor.com/support
Country of Manufacture	China
Standards	Complies with safety requirements

Frequently Asked Questions - XU-2312 Vevor

How to install the Vevor XU-2312 welding curtain?

Installation requires two people. Assemble the frame according to the provided instructions, then attach the curtain. Use a flat and stable surface. Wear protective gloves and safety goggles.

What safety precautions should be taken?

Do not sit or stand on the curtain. Keep children away. Inspect before each use for any loose or damaged parts. Use only on a flat, hard surface.

Can I use this curtain for MIG/MAG welding?

Yes, the curtain is designed for use with all arc welding processes, including MIG/MAG, TIG, and stick welding. It protects against UV and sparks.

How to clean the welding curtain?

Clean the curtain with a soft, dry cloth. Do not use harsh or abrasive chemicals that could damage the fire-resistant vinyl.

Is the curtain fire-resistant?

Yes, the material is fire-resistant vinyl that complies with safety standards. It resists welding sparks but is not completely non-flammable.

What are the height and width of the curtain?

Dimensions are 6 feet high by 8 feet wide (approx. 183 cm x 244 cm). It is a single-panel curtain.

Does assembly require specific tools?

The mounting kit includes the necessary screws and parts. You will need a screwdriver and possibly a wrench for assembly. Refer to the manual for details.

Can I use it outdoors?

The curtain is designed for indoor use. Outdoors, it may be affected by wind; ensure it is securely fastened and use only in calm weather.

How to contact Vevor customer service?

Visit www.vevor.com/support for technical assistance and to download the electronic warranty certificate. You can also ask questions there.

What to do if the curtain is damaged?

If the curtain is torn or damaged, do not use it. Contact Vevor support via the website for advice on repairs or replacement. Spare parts may be available upon request.

USER MANUAL XU-2312 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WELDING CURTAIN

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us, the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are paid order with us if you are actually saving half in comparison with the top market

Red rectangular screen with black frame and stand (no text or symbols)

Red rectangular object with glossy surface and small circular mark (no visible text or symbols)

Orange rectangular panel with a yellow top and black frame, mounted on a stand (no text or symbols visible)

Three red rectangular panels arranged in a V-shape, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. In order to ensure your own safety, please make sure to ANSI-approved goggles and heavy-duty work gloves when installing this product.
3. Keep the assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Product capabilities apply to properly and completely assembled product only
7. Assemble on a flat, level, hard and smooth surface capable of safely sup a fully loaded Welding Curtain.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this. Please keep small spare parts out of children's reach.
3. Use only on a flat, level, hard and smooth surface capable of safely sup fully loaded Welding Curtain.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.
6. We recommend 2 or more people to install.
7. Keep away from sharp points, blades and other items, so as not to scratch product.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	XU-2307	XU-2316	XU-2314	XU-2315	XU-2318	XU-2317
Color	Red	Green	Red	Yellow	Yellow	Red
Size	6'X6'	6'X6'	6'X6'	6'X6'	6'X8'	6'X8'
Panel	1	3	3	3	3	3
Material	Flame-resistant Vinyl
With Frame	×	√	√	√	√	√
Window	×	×	×	×	×	×

Model	XU-2310	XU-2308	XU-2309	XU-2312	XU-2311	XU-2313	XU-2319	XU-2320
Color	Green	Red	Yellow	Yellow	Red	Green	Red	Yellow
Size	6'X6'	6'X6'	6'X6'	6'X8'	6'X8'	6'X8'	6'X8'	6'X8'
Panel	1	1	1	1	1	1	1	1
Material	Flame-resistant Vinyl
With Frame	√	√	√	√	√	√	√	√
Window	×	×	×	×	×	×	√	√

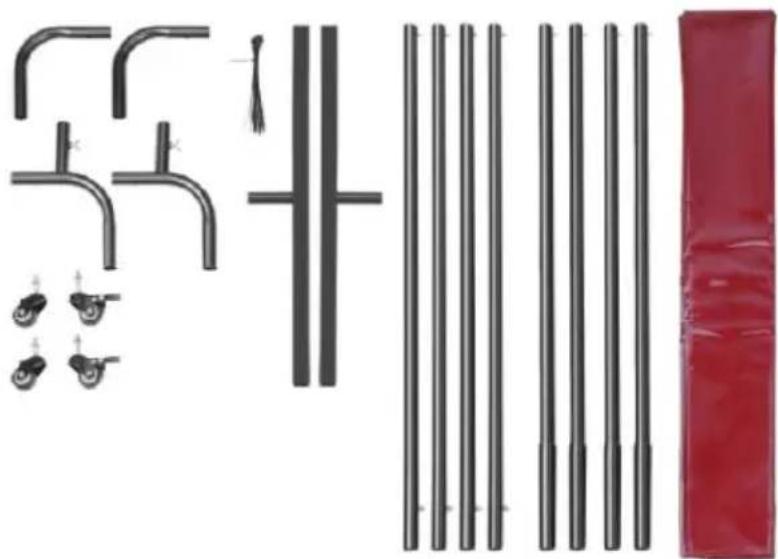

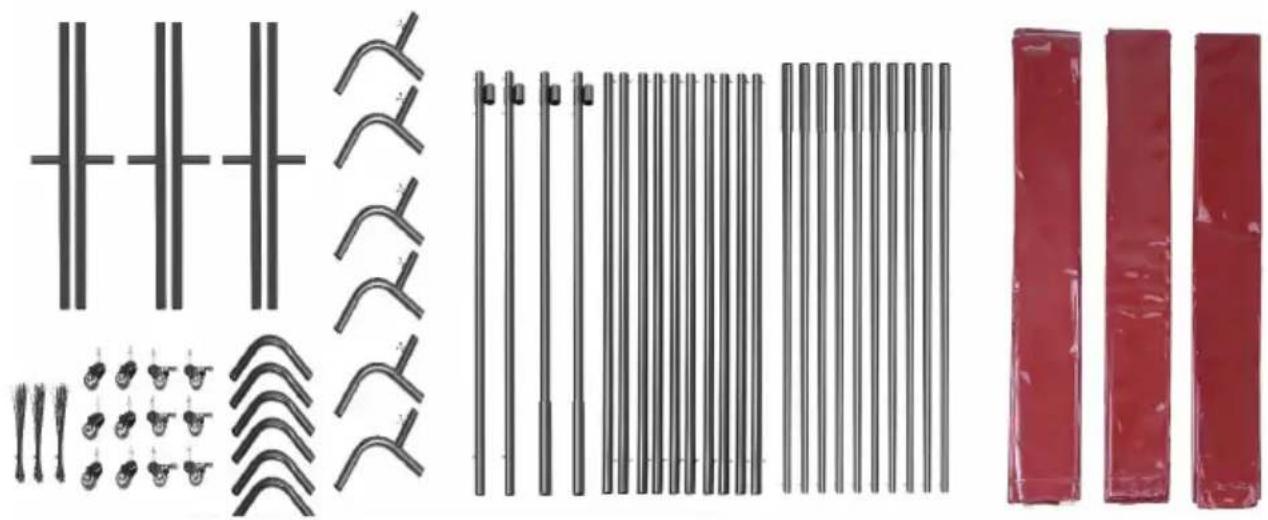

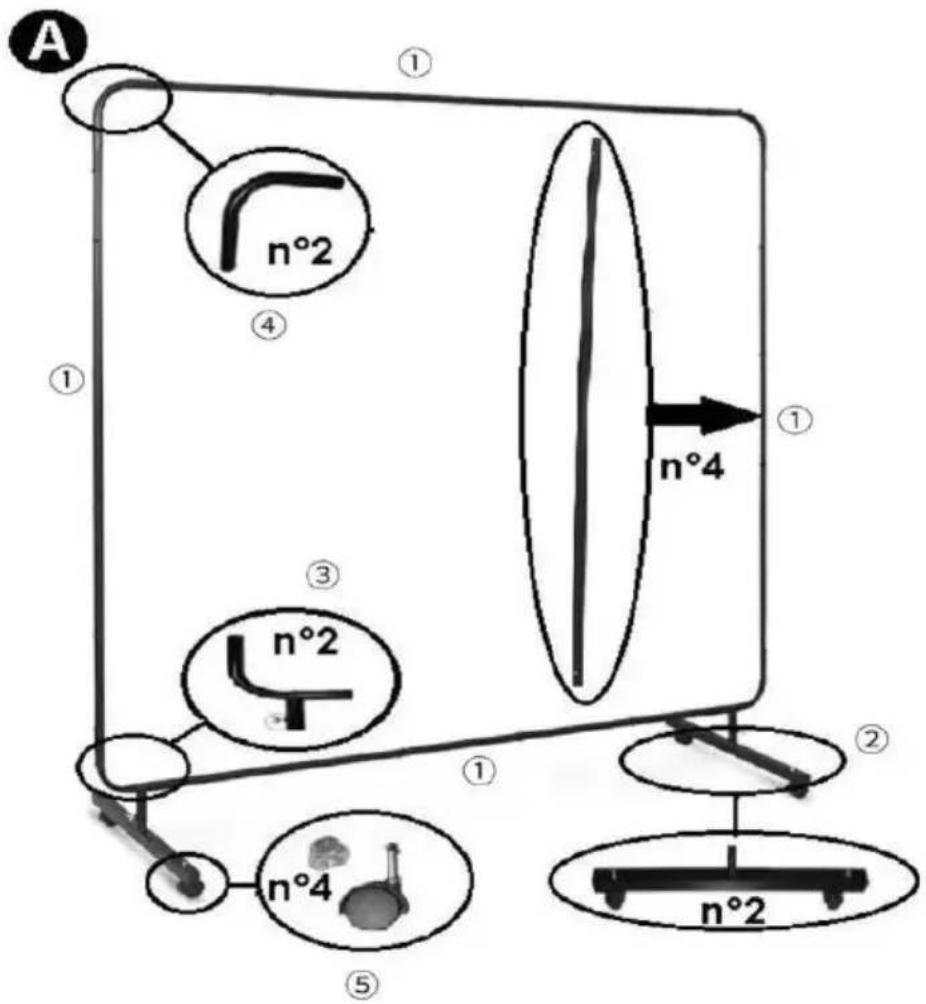

Components

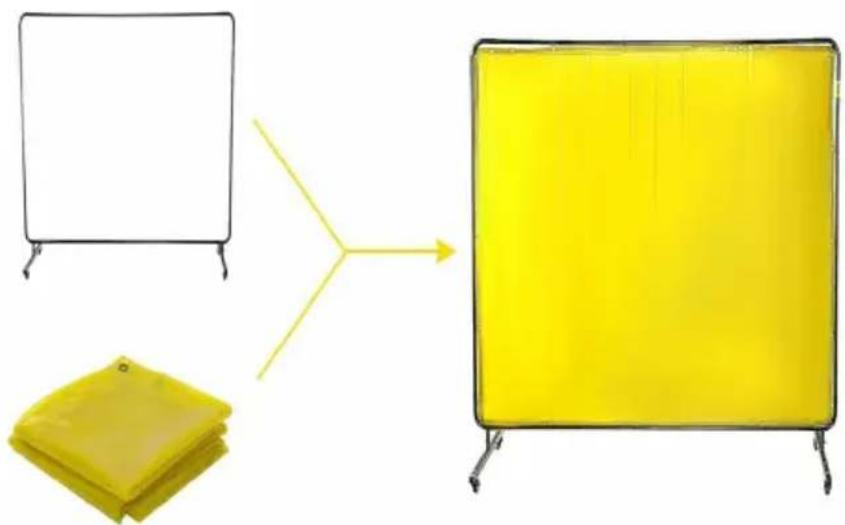

Diagram showing a yellow rectangular panel being folded into a larger yellow panel, with a separate empty white panel nearby (no text or symbols)

1. Pay attention to the correct use of screw specifications according to the instruction manual.
2. Please wear gloves when installing.

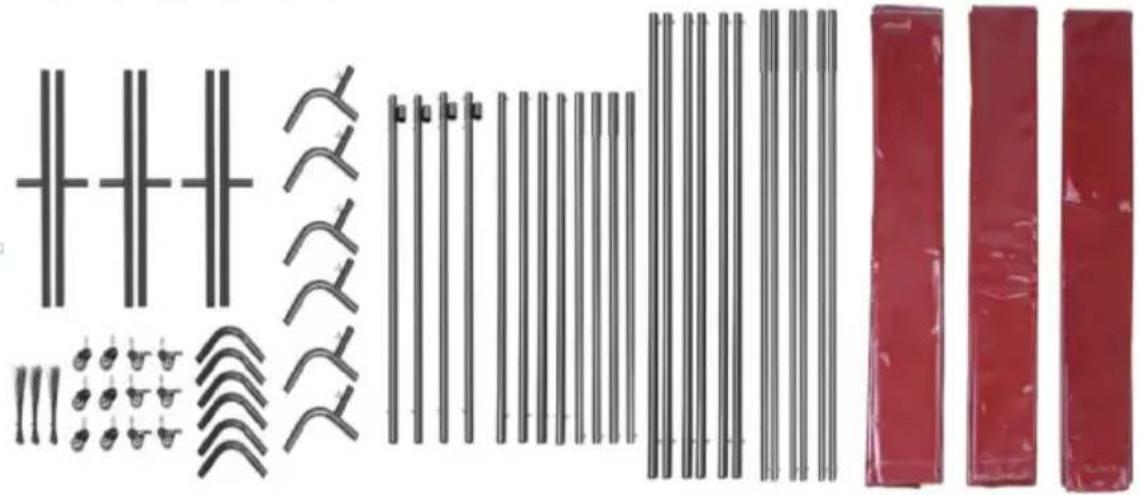

XU-2316/XU-2314/XU-2315

Collection of black and red geometric shapes including trapezoids, curved lines, and rectangular blocks (no text or symbols)

XU-2318/XU-2317

XU-2319/XU-2320

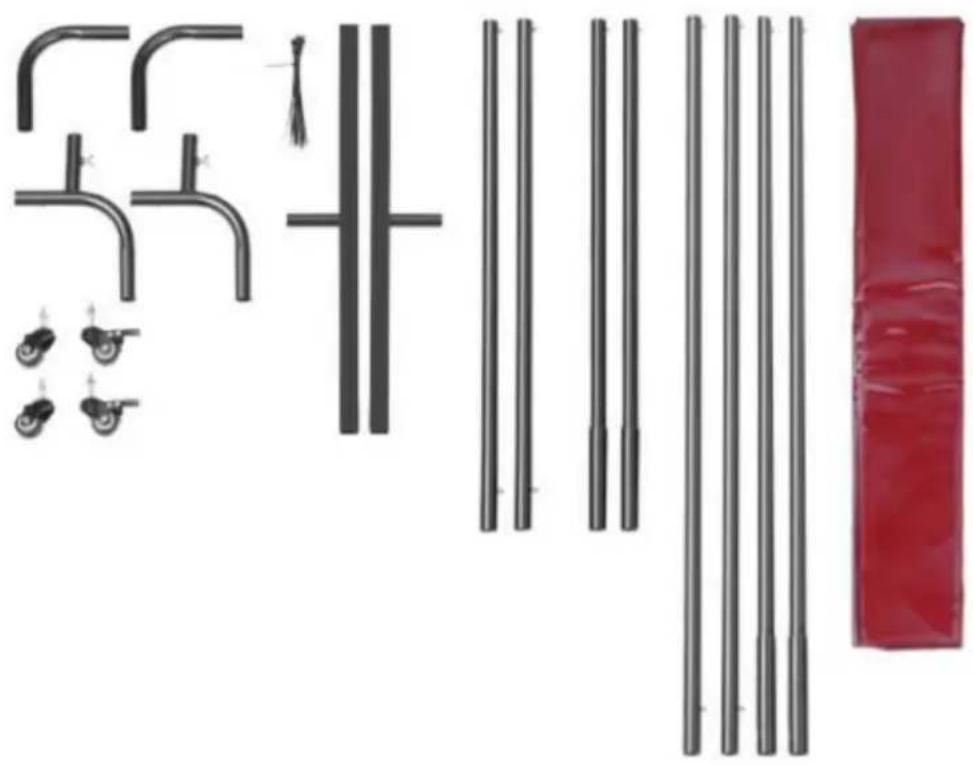

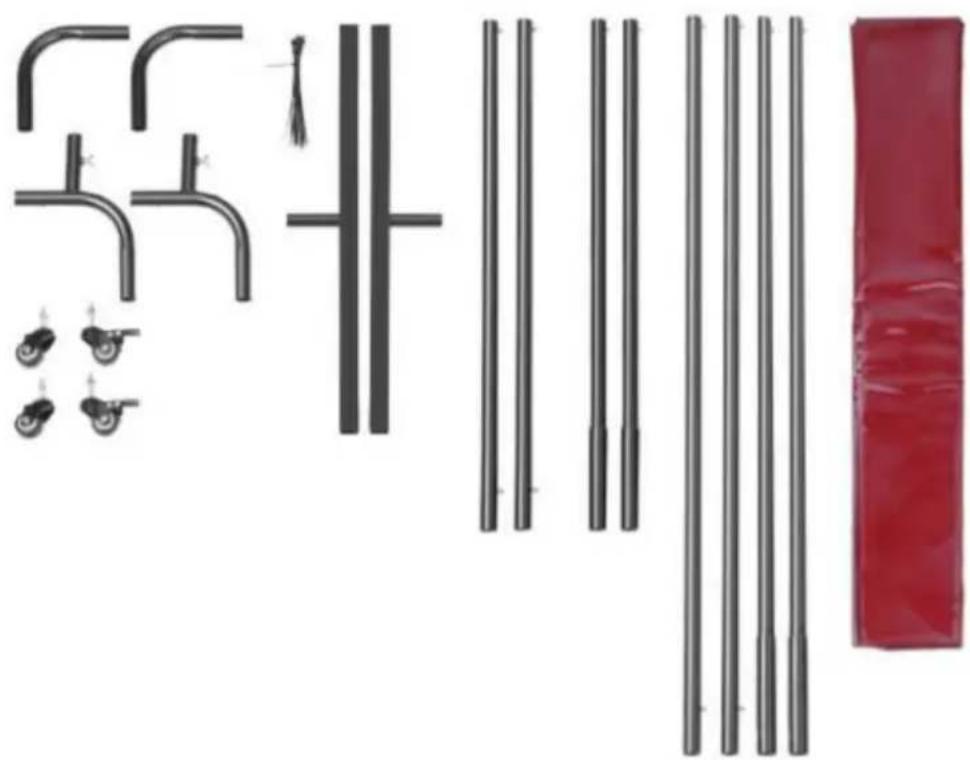

Collection of metal pipe fittings and a red cover (no text or symbols visible)

XU-2310/
XU-2308/XU-2309

Pure electrical circuit lines without any symbols

Collection of industrial pipe fittings and tools, including curved and straight pipes with a red cover (no text or symbols visible)

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
