USER MANUAL XF8308 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Repair Seats

MODEL:XF8308

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Repair Seats

Model:XF8308

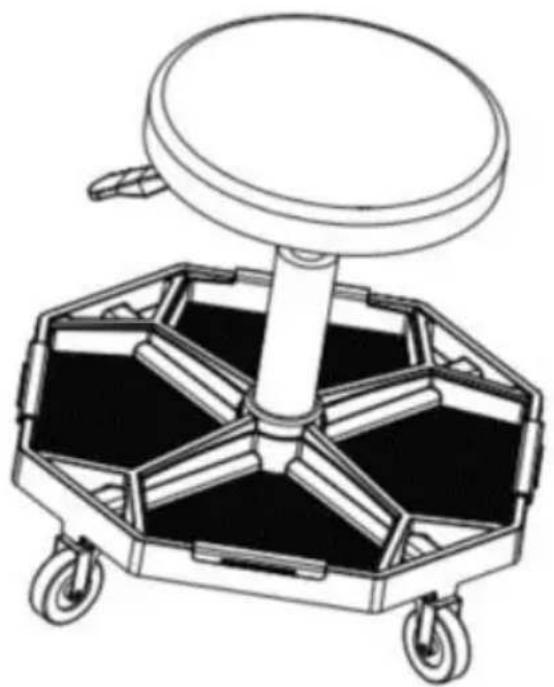

Technical line drawing of a mechanical support system with a circular top and six octagonal wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

• Assemble only according to these instructions. Improper assembly can create hazards.
• Keep children, pets, and bystanders out of the area during assembly. Distractions can cause you to lose control of tools, injuring yourself or others.
  ·Weight capacity and other product capabilities apply to properly and completely assembled product only. Do not use if incompletely or improve assembled.

Use precautions

·This product is not a toy. Do not allow children to play with or near and store out of reach of children.
- Use the stool and accessories as intended and in accordance with the instructions, taking into account with the working conditions and the work be performed. Use of the stool for operations different from those intended could result in a hazardous situation.
- Inspect before every use; do not use if parts are loose or damaged.
·Do not exceed weight capacity of 300 lbs.(136kg).
- NOTE: Be aware of dynamic loading! Sudden shifts in the load may be create excess load, which may result in product failure.
- Store idle equipment. When not in use, this product must be stored in location to inhibit rust.
- The warnings, cautions, and instructions discussed in this instruction manual can not cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product but must be supplied by the operator.

WARNING: Do not stand on Stool Pad. Serious injury can occur.

TECHNICAL PARAMETERS

Model	XF8308
Rated Load (lbs)	300
Seat size(mm)	φ300*50
Product size(mm)	425*425*400-540

PART LIST

Part	Description	picture	Qty
1	Foam-padded seat		1
2	Pneumatic cylinder		1
3	Bottom cross		1
4	Base plate		1
5	removable plastic chassis		4
6	2.5"Caster		4
7	Tube type nut		4
8	hex key		1

Essential tools for auto beauty and mechanical repair

1. The multi-functional tool stool is equipped with a slideable chase to rage rack and two bottle racks for all of your car cleaning supplies, allowing you to easily clean the wheels without having to bend frequently to add pressure to the back and knees.
2. Suitable for DIY work items in garages, workshops or homes. multi-function tool stool is equipped with durable casters and rubber wheels to allow you to slide easily and quickly in the or driveway.
3. Match the perfect height of the car's side decoration or wheel cleaning-sit down to complete the low-altitude work of car quick beauty, polishing, waxing, ceramic coating, mechanical maintenance, wheel cleaning, tire and rubber. cleaning, plastic repair, etc. without standing or Bend over to reduce pressure your back or knees.
4. Convenient storage space-there is a storage drawer and two s storage trays under the seat to easily store car cleaning tools such as spray bottles, sealants, microfiber towels, sponges, applicators, etc., so that you can carry it with you when you v

INSTRUCTION FOR USE

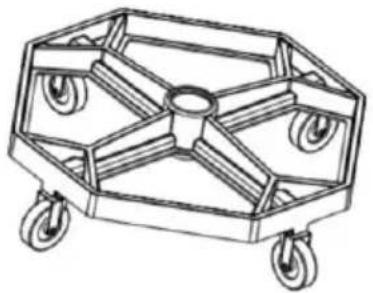

1 · Assemble the 4pcs 2.5" caster 2 · Place the plastic base on the one by one on the bottom cross cross assembled in step 1, as and fasten them with Tube type shown in the figure. nuts , as shown in the figure.

Simple line drawing of a four-legged pulley or stand with wheels, no text or symbols present.

Line drawing of a multi-rotor cart with wheels, no text or symbols present

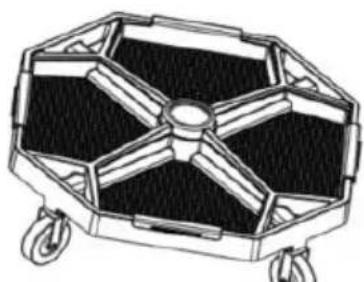

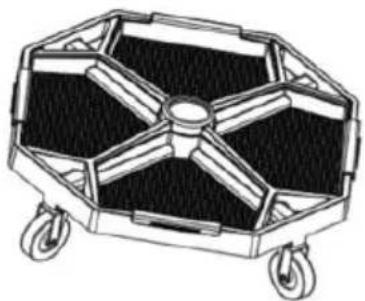

3 Place the four tool boxes in S 2, as shown in the figure.

Technical line drawing of a multi-wheeled cart with four wheels and a central hub (no text or symbols)

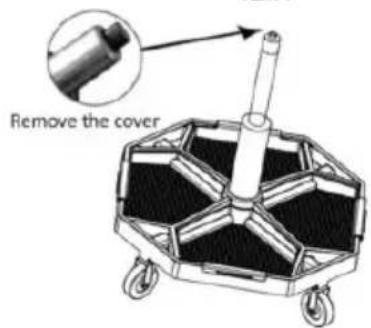

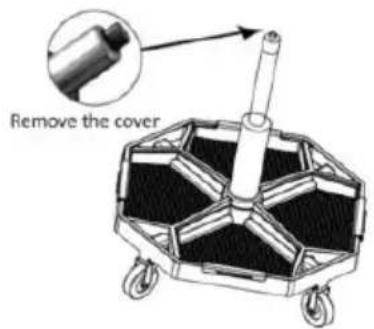

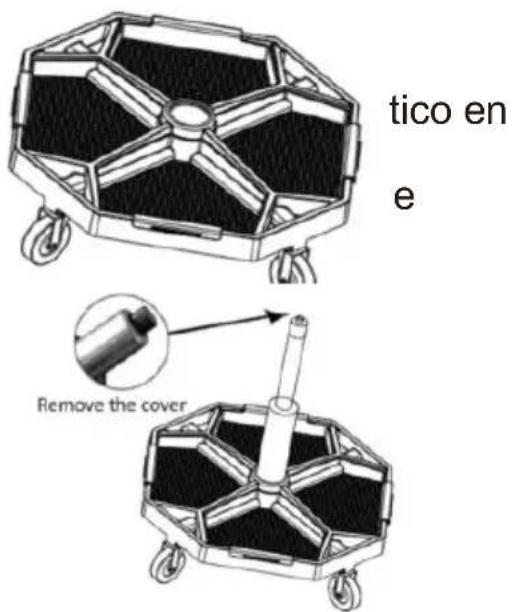

4 Insert the pneumatic cylinder into the base of Step 3, as shown in the figure.

Remove the cover

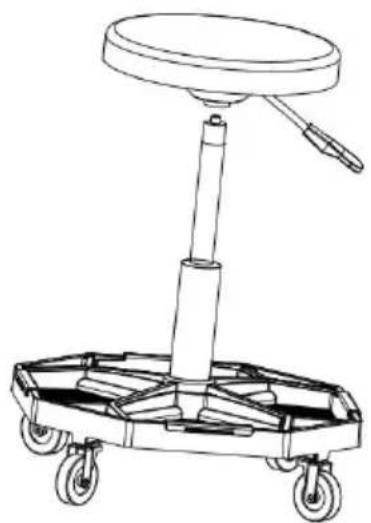

5 Place the foam-padded seat onto the small end of the pneumatic cylinder into the seat assembly as shown.

Line drawing of a mechanical cart with wheels and a handle (no text or symbols)

MAINTENANCE INSTRUCTIONS

1. Regular Inspection

Conducted weekly. Check the seat surface for cracks, tears, or signs. Examine the connections of the seat frame to see if they are loose, damaged. Test whether the seat adjustment mechanisms (such as height adjustment and backrest tilt) work smoothly.

2. Cleaning

Performed bi-weekly. Use a vacuum cleaner with a soft brush attachment remove dirt, debris, and dust from the seat surface, crevices, and unfor fabric seats, mix a mild detergent with warm water. Dip a soft solution and gently wipe the seat surface following the fabric's texture over-wetting. For leather seats, use a specialized leather cleaner. Apply amount to a clean, soft cloth and wipe the seat in a circular motion dry cloth to buff the leather to restore its shine.

3. Lubrication

Done monthly. Apply a small amount of multi-purpose grease to the I pivot points of the seat adjustment mechanisms to maintain smooth oil and prevent squeaking. Check the rollers or sliders (if applicable) and them with a silicone-based lubricant to ensure easy movement.

CAUTION: Do not lubricate casters

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical support system with a circular top and six octagonal wheels (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIE Z NAMI!

Simple line drawing of a four-legged pulley or stand with wheels, no text or symbols present.

Technical line drawing of a four-legged cart with six legs and a central hub (no text or symbols)

Line drawing of a four-wheeled cart with six wheels and a central hub (no text or symbols)

Remove the cover

Line drawing of a mechanical cart with a cylindrical base and handle (no text or symbols)

MAINTENANCE INSTRUCTIONS

1. Regularna kontrola

Technical line drawing of a mechanical support system with a circular top and six octagonal wheels (no text or symbols)

Simple line drawing of a four-pole mechanical support system (no text or symbols)

Line drawing of a multi-rotor cart with wheels, no text or symbols present

1. D eins wie

Technical line drawing of a mechanical device with octagonal frame and wheels (no text or symbols)

der Schritt 3,

Line drawing of a mechanical cart with wheels and a handle (no text or symbols)

MAINTENANCE INSTRUCTIONS

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Technical line drawing of a mechanical support system with a circular top and six octagonal wheels (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Simple line drawing of a four-legged pulley or stand with wheels, no text or symbols present.

Technical line drawing of a multi-wheeled cart with six wheels and a central hub (no text or symbols)

Line drawing of a four-legged cart with wheels, no text or symbols present

Remove the cover

Line drawing of a four-wheeled cart with a cylindrical base and top handle (no text or symbols)

MAINTENANCE INSTRUCTIONS

Technical line drawing of a mechanical support system with a circular top and six octagonal wheels (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Simple line drawing of a four-pole mechanical stand with wheels, no text or symbols present.

Line drawing of a multi-rotor cart with wheels, no text or symbols present

1. P in d wee

Technical line drawing of a multi-rotor mechanical device with six blades and wheels (no text or symbols)

cilinder s

Remove the cover

Line drawing of a four-wheeled cart with a cylindrical handle and top platform (no text or symbols)

MAINTENANCE INSTRUCTIONS

Technical line drawing of a mechanical support system with a circular top and six octagonal wheels (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Simple line drawing of a four-pole mechanical stand with wheels, no text or symbols present.

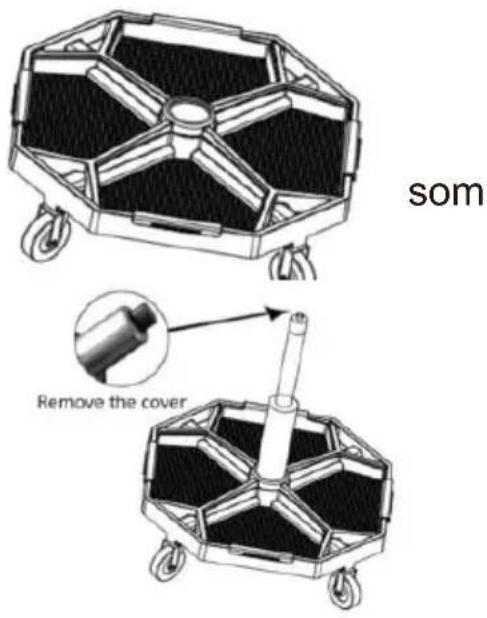

3 · Placera de fyra
