SUO-4824GW - Toys Vevor - Free user manual and instructions

Product type	Foosball table (table football)
Brand	Vevor
Model	SUO-4824GW
Dimensions (approx.)	120 x 70 x 85 cm
Weight (approx.)	35 kg
Number of players	2 to 4
Materials	Composite panels, metal rods, plastic
Features	Sliding rods with handles, score counters, cup holders, balls included
Assembly	Requires 2 adults, estimated time 30-60 minutes
Safety	Choking hazard (small parts), not suitable for children under 3 years
Care and cleaning	Clean with a soft, non-abrasive cloth
Spare parts and repairability	Parts available through after-sales service, full list in the manual
Warranty	Electronic warranty certificate, technical support at www.vevor.com/support

Frequently Asked Questions - SUO-4824GW Vevor

How to assemble the SUO-4824GW foosball table?

Follow steps 1 to 12 in the manual. It is recommended to have two adults. Start with the side panels, insert the rods with washers and spacers, then attach the legs and accessories. Use the provided Allen key.

Are the player rods adjustable?

Yes, the rods slide in the designated holes. Make sure the rubber spacers and plastic washers are correctly placed to prevent excessive play.

What should I do if parts are missing or damaged?

Contact after-sales service via www.vevor.com/support. Refer to the parts list included in the manual to identify missing parts.

Can I use this table outdoors?

No, this product is designed for indoor use only. Do not use it in rainy or cloudy weather to avoid electric shock or damage.

How to clean the foosball table?

Use a soft, non-abrasive cloth. Avoid harsh chemicals that could damage the playing surface.

What is the maximum weight supported by the table?

Are the included balls standard size?

Yes, two standard foosballs are included. If you lose them, you can use spare balls of similar size.

How to adjust the tension of the rods?

Check that the rubber spacers and washers are properly in place. If the rods are too stiff or too loose, you can adjust by slightly tightening or loosening the fixing screws.

Is this table suitable for children?

Not suitable for children under 3 years due to choking hazard from small parts (balls, etc.). For older children, parental supervision is recommended.

Where can I find the manual in French?

The manual is available as a free PDF download on notice-facile.com. You can also request a translation into your language via the form on the site.

USER MANUAL SUO-4824GW Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TABLE SOCCER

MODEL:SUO-4824GW

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: SUO-4824GW

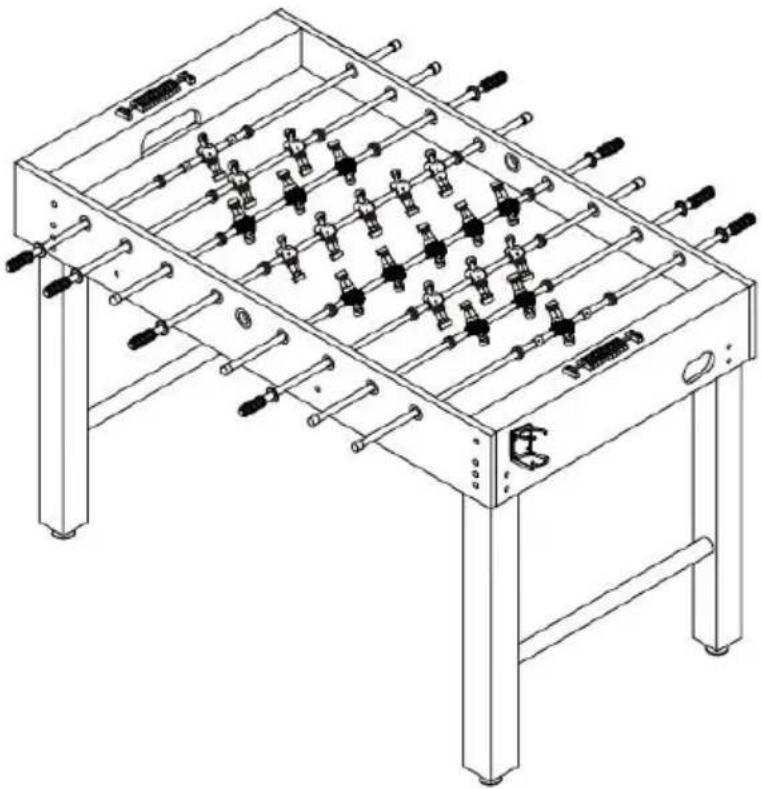

Line drawing of a two-footed football table with clubs and rings (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use manual will outline safety warnings and precautions, operating, maintenance. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Can and common sense are not built into this product, since we believe uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.

2. Do not assemble when tired or when under the influence of alcohol drugs or medication.

3. Weight and elastic and other product properties are only applicable correctly and completely assembled products.

4. Keep the assembly area clean and well-lit.

5. Keep bystanders out of the area during assembly.

6. This is a equipment, not a toy, it needs to be used under the g a professional. Do not allow children and pets to play alone or appro this item.

7. Use as intended only. Do not sit or stand on the product.

8. Inspect before every use. Do not use it if parts are loose or dan

9. Do not apply this unit to any other purposes than the indicated u

10. Do not use it for commercial purposes.

11. Do not clean it with any abrasive material.

12. Never leave it unattended while in use.

13. Pet urine and feces can damage the product, please keep away.

14. Do not place the product on or near hot air, electric burners or 15. Young children should be supervised to ensure that they do not with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes falls. People or pets hanging on the product will cause injury or death

WARNING: Choking Hazard--Toy contains small balls and/or small parts. Not for children under 3 years.

IMPORTANT! Before attempting assembly please read through this instruction book to familiarize yourself with

the parts and assembly steps. We recommend that two adults assemble this game. Please refer to the Parts List below and be sure that all I have been included.

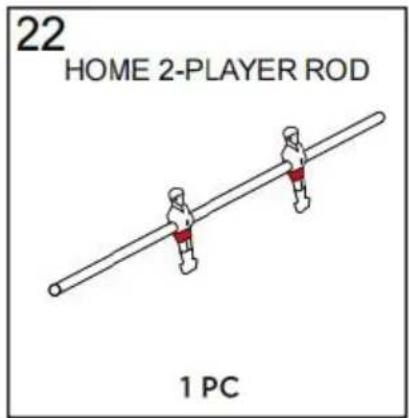

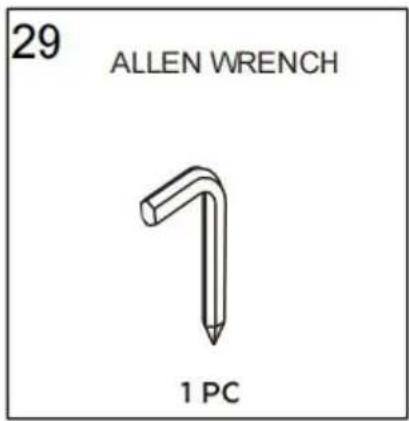

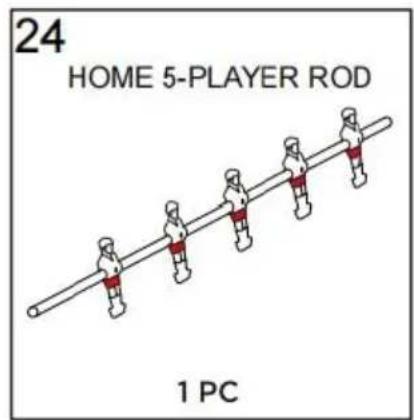

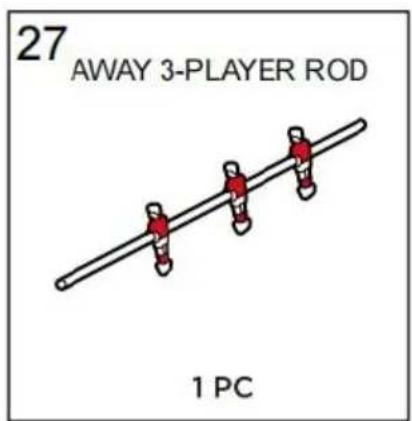

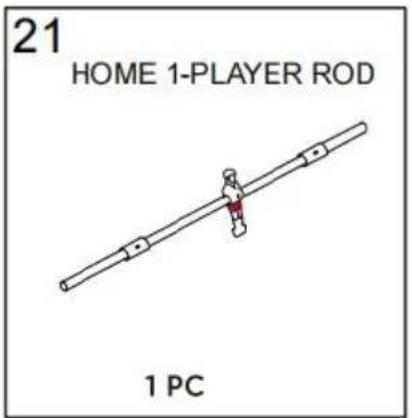

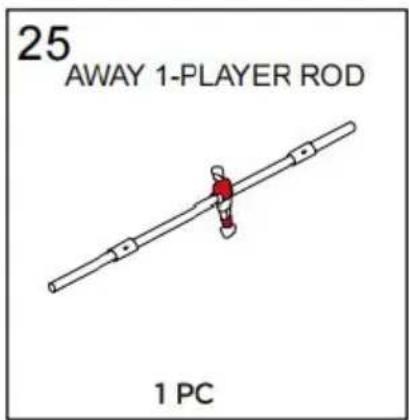

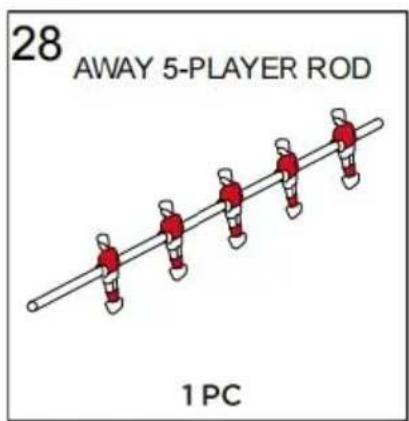

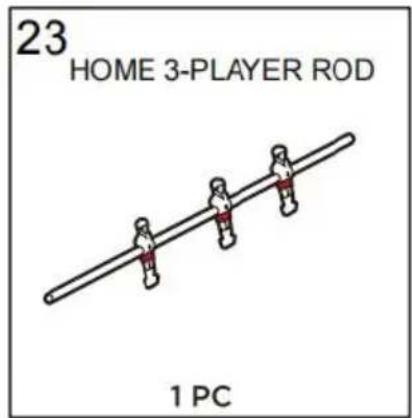

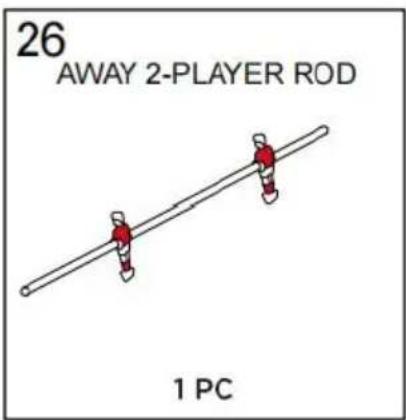

PARTS LIST

1 RUBBER SPACER16 PCS	2 PLASTIC WASHER16 PCS	3 RWA 3.5X35MM4 PCS	4 BARREL NUT4 PCS	5 WASHER24 PCS
6 TM 6X40MM BOLT24 PCS	7 FEET4 PCS	8 FA 3.5X28MM4 PCS	9 FA 3.5X12MM8 PCS	10 END CAP8 PCS
11 HANDLE8 PCS	12 SOCCER BALL2 PCS	13 CUP HOLDER2 PCS	14 SCORER2 PCS	15 SIDE PANEL2 PCS
16 PLAYFIELD1 PC	17 SUPPORT2 PCS	18 END PANEL2 PCS	19 LEG4 PCS	20 LEG SUPPORT2 PCS

ASSEMBLY INSTRUCTIONS

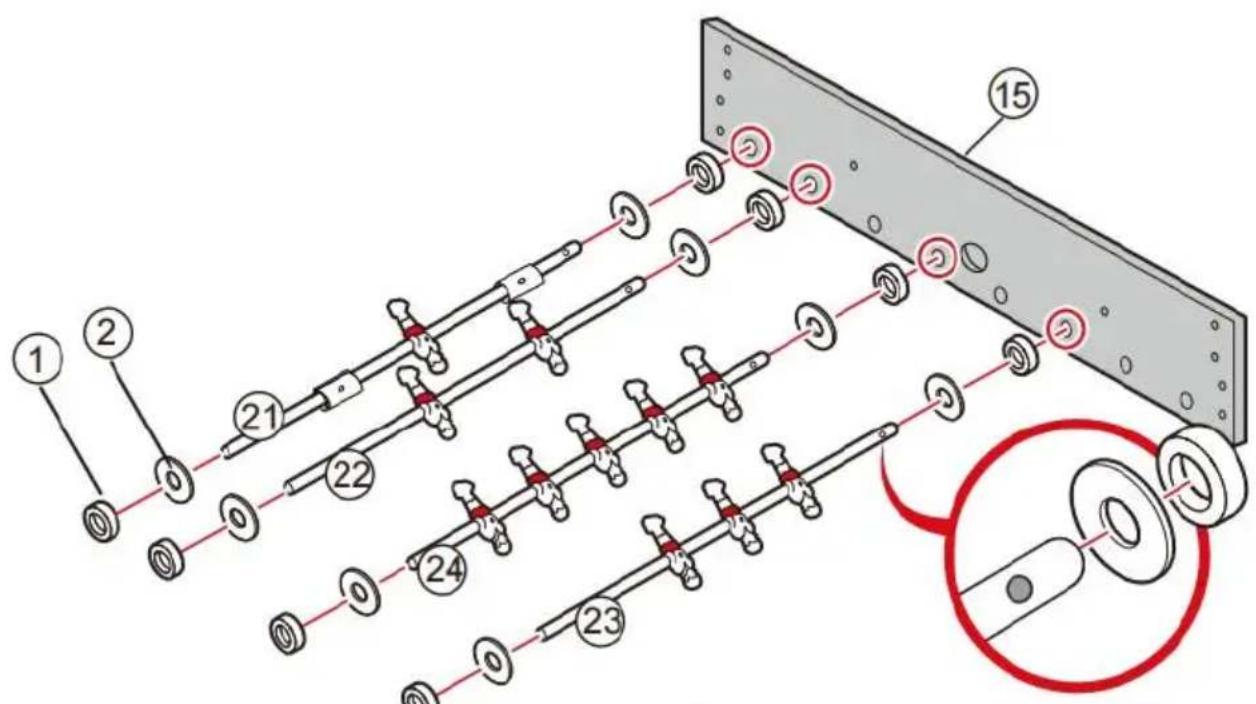

STEP1: Place a part 15 side panel with the ball entry hole closer to floor. Slide four part (21-24) home player rods with eight part 1 rubber spacers and eight part 2 plastio washers into the designated holes.

Make sure that the ends with a hole are arranged on the same side.

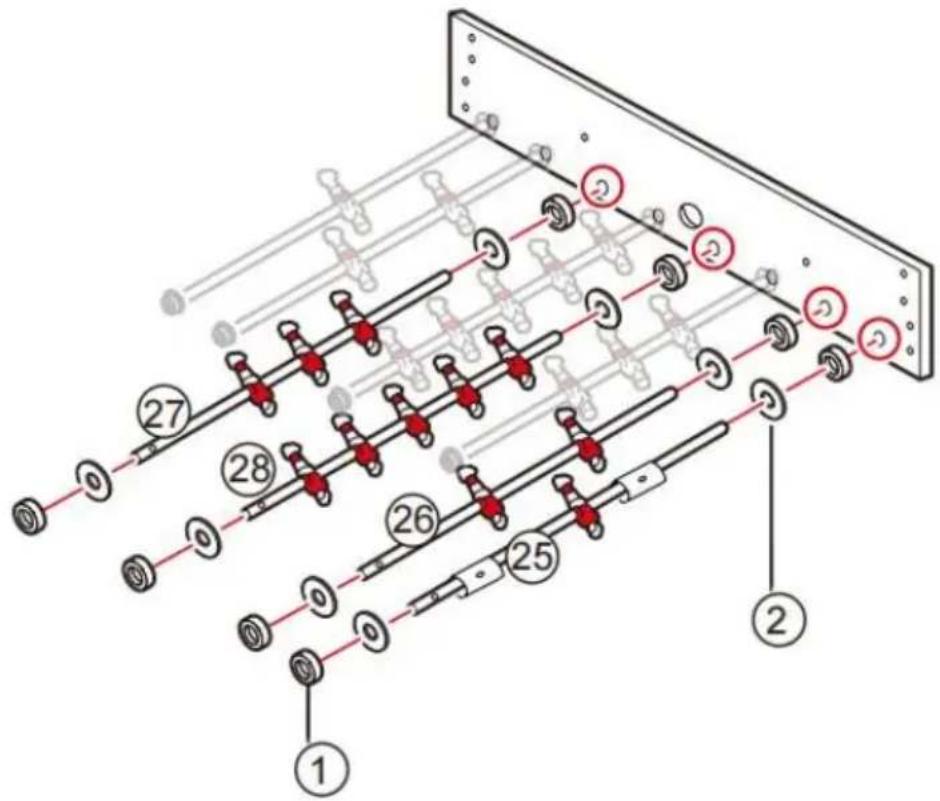

STEP2:Slide four part (25-28)away player rods with eight part 1 rubb spacers and eight part 2 plastic washersin to the designated holes.

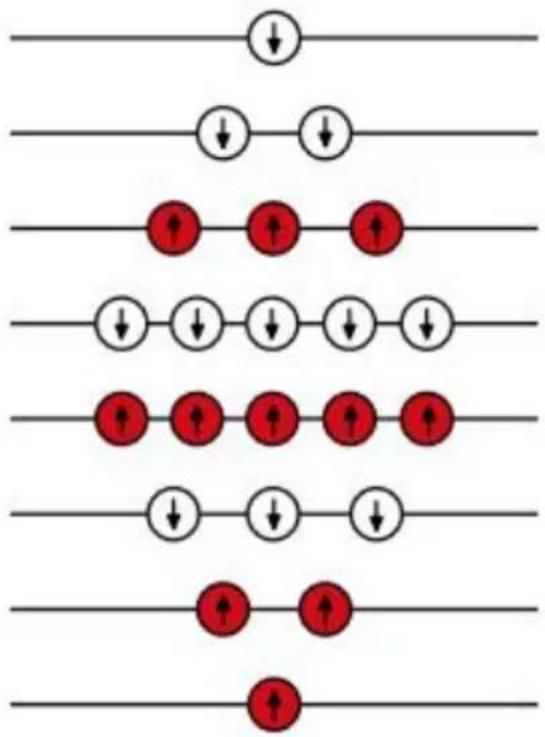

STEP3: Confirm that the rods are arranged correctly and the players of the same team face the same direction.

NOTE: The figures and table are upside down in this diagram.


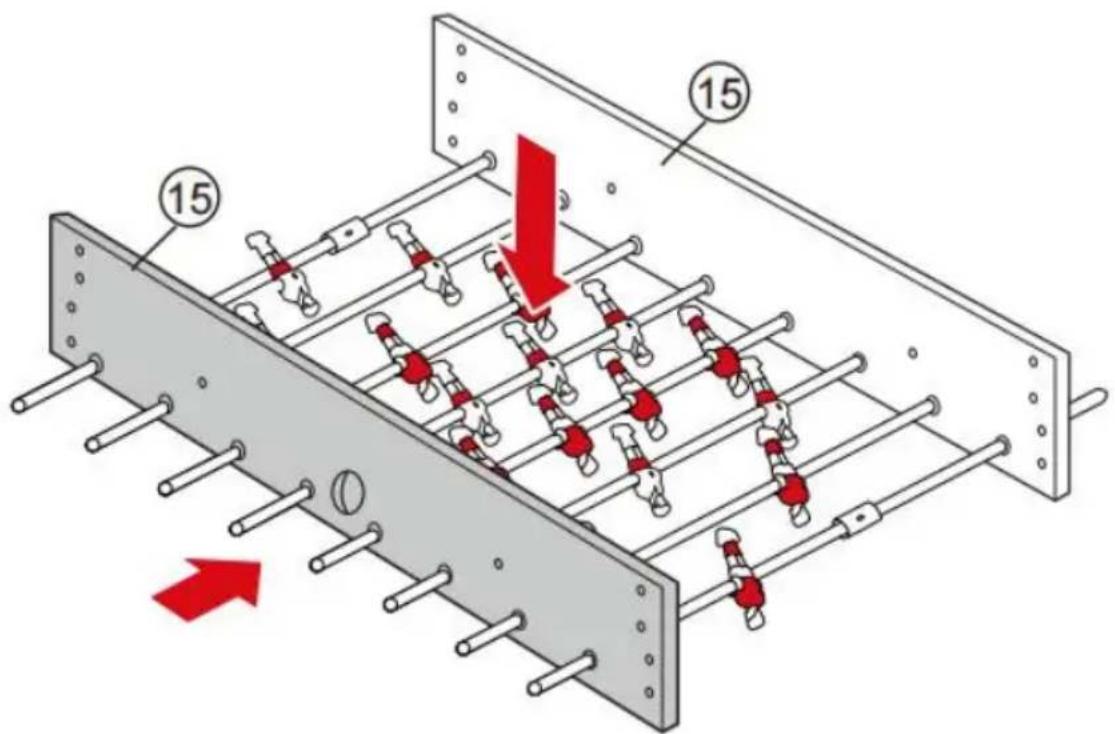

STEP4:Slide the other part 15 side panel onto the rods.

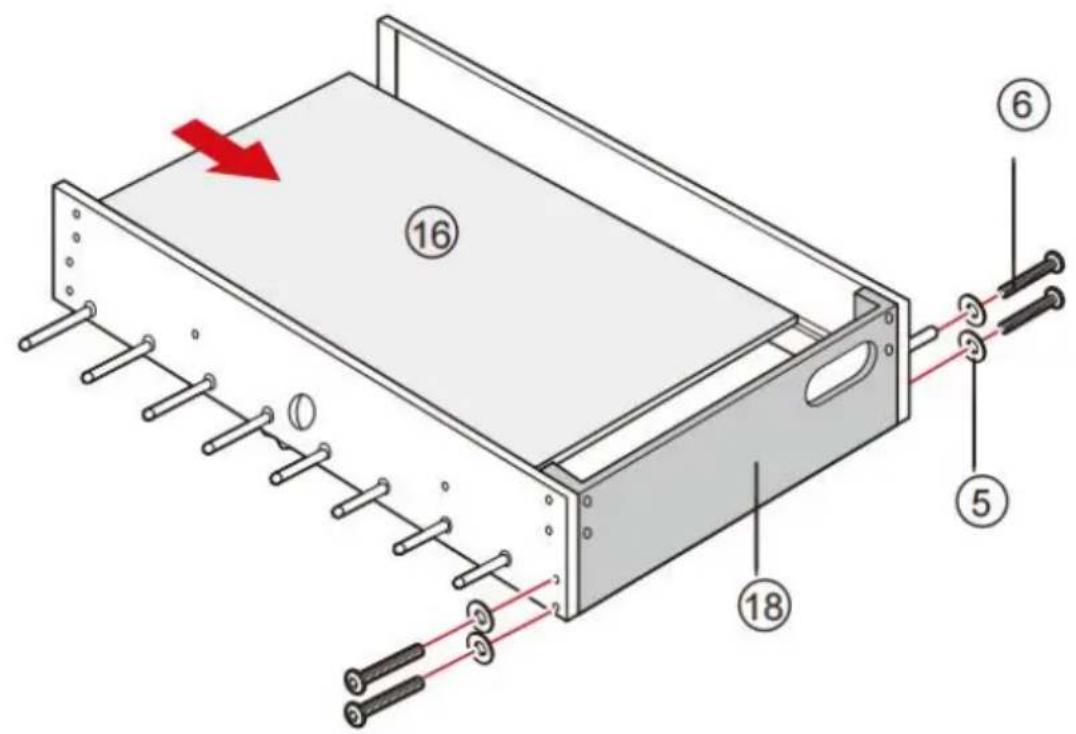

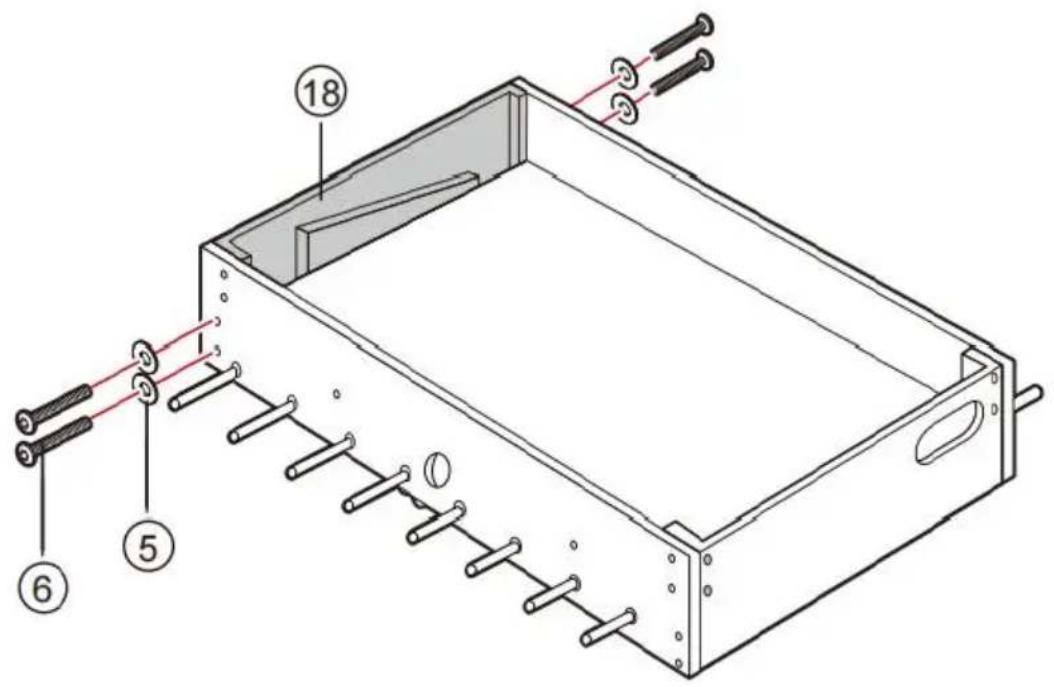

STEP5:Attach one part 18 end panel with four part 6 bolts and four washers. Flip the part 16 playfield upside down and slide it into the s the part 15 side panels.

STEP6: Attach the other part 18 end panel with four part 6 bolts and part 5 washers.

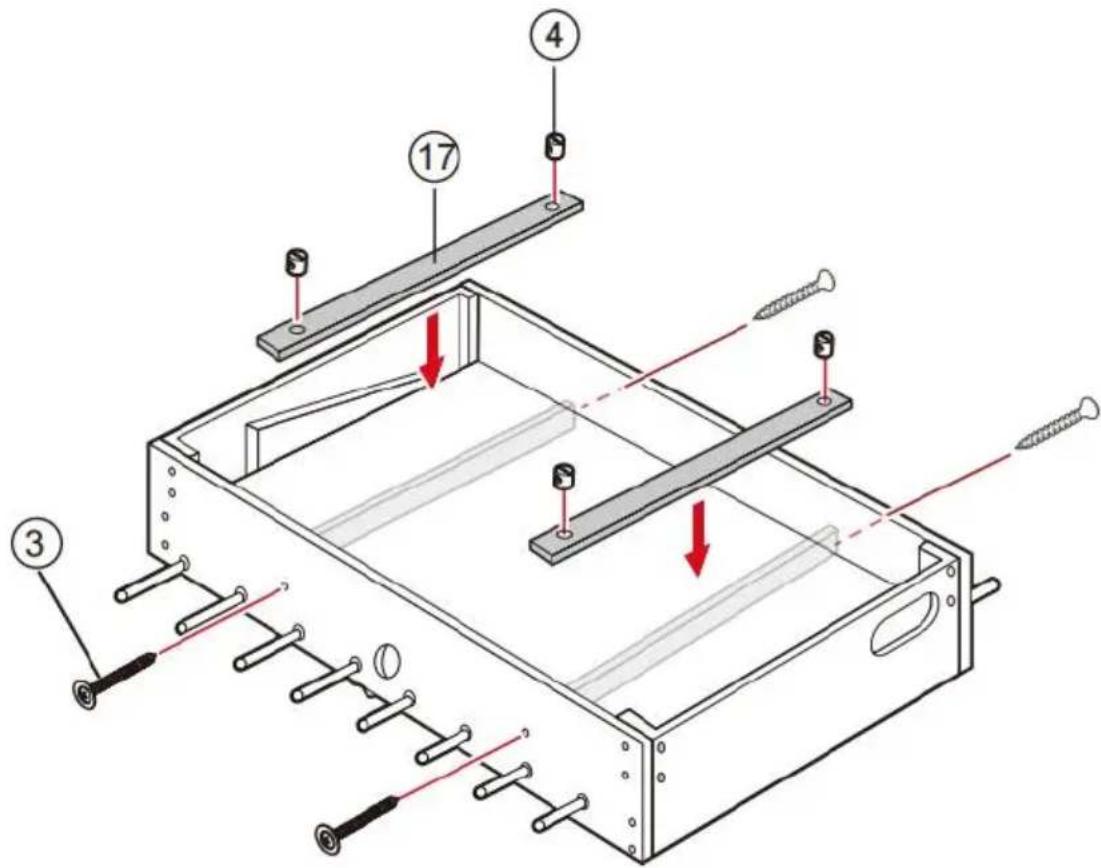

STEP7: Attach two part 17 supports with four part 3 screws and four nuts.

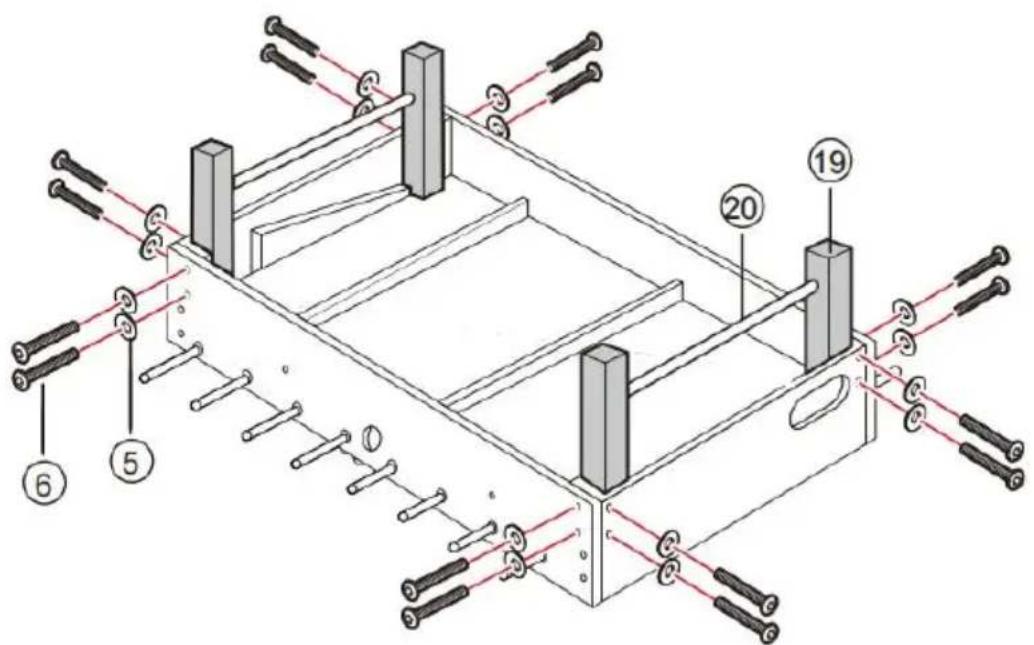

STEP8: Insert four part 19 legs into the corners.

Place two part 20 support bars between the legs.

Attach the legs with sixteen part 6 bolts and sixteen part 5 washers.

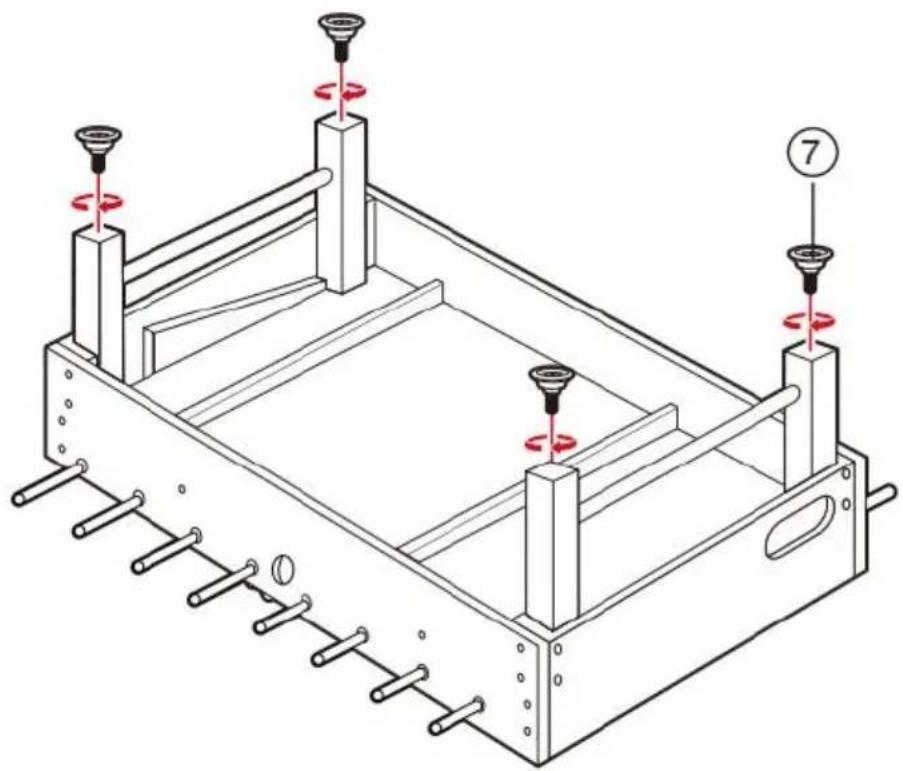

STEP9:Screw in four part 7 feet.

Technical line drawing of a mechanical testing setup with no visible text or symbols

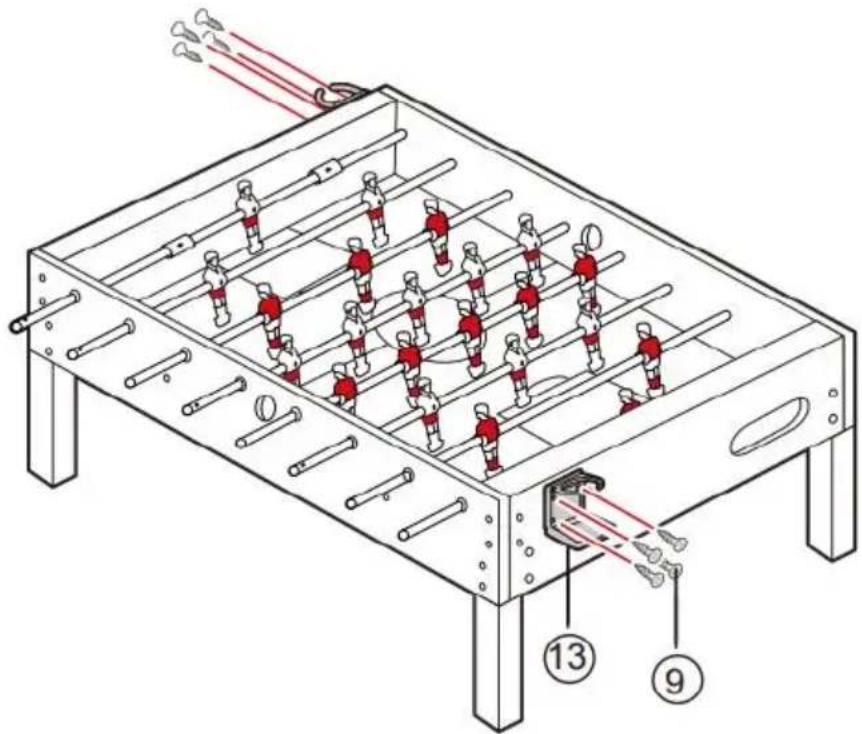

STEP10: Carefully flip the table over.

Attach two part 13cup holders with eight part 9 screws.

NOTE: Do not lift the table while holding onto the rods.

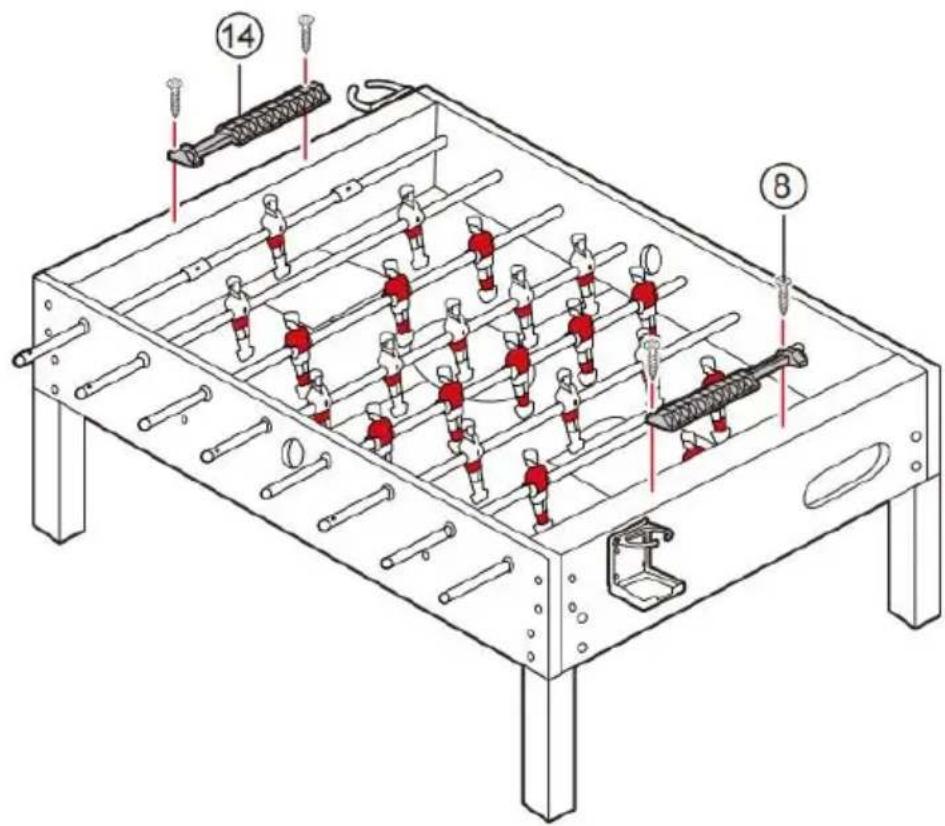

STEP11:Attach two part 14scorers with four part 8 screws.

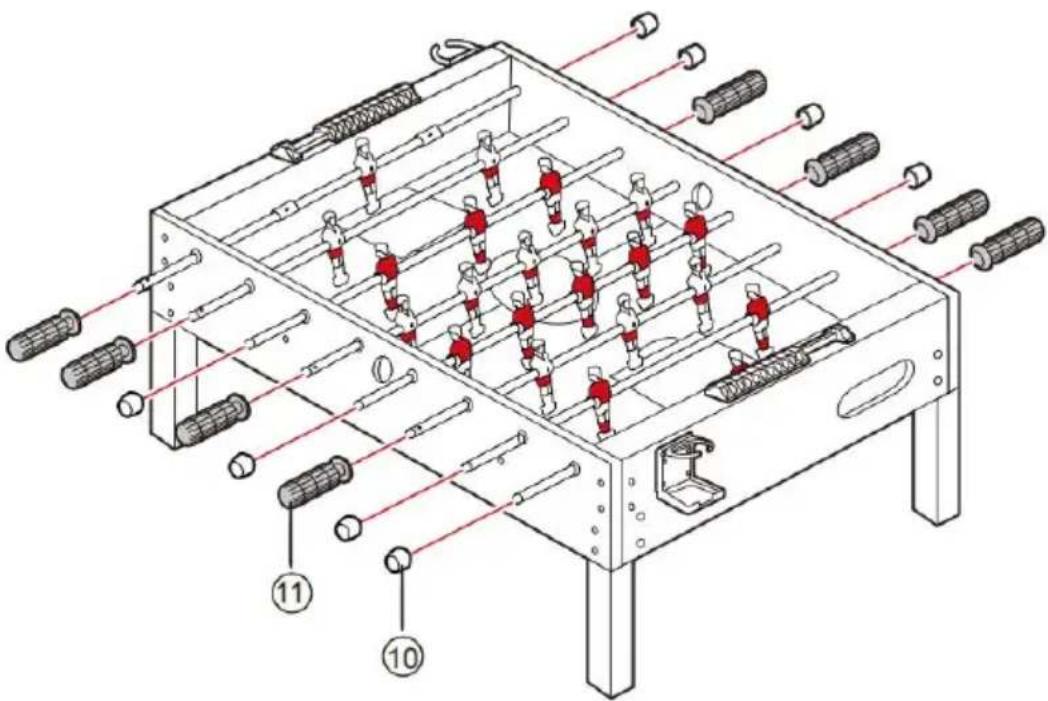

STEP12:Slide eight part 11 handles onto the ends of rods with a hole. Slide eight part 10 end caps onto the ends of rods without a hole.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

Tel: [phone]

Made In China
