USER MANUAL T51030AK Vevor
Affordable. Reliable. Home Improvement.
FIREPLACE TOOL SET
MODEL:T51030AK
VEVOR
Affordable. Reliable. Home Improvement.
FIREPLACE TOOL SE"
MODEL:T51030AK
Warning-To reduce the risk of injury, user must re instructions manual carefully.
INSTRUCTIONS
Thank you very much for choosing this FIREPLACE TOOL SET . Please read all of the instructions before using it.The information will help you achieve the best possible results.
CAUTION: Fireplace tools are dangerous. Use under adult supervision. Keep away from children!

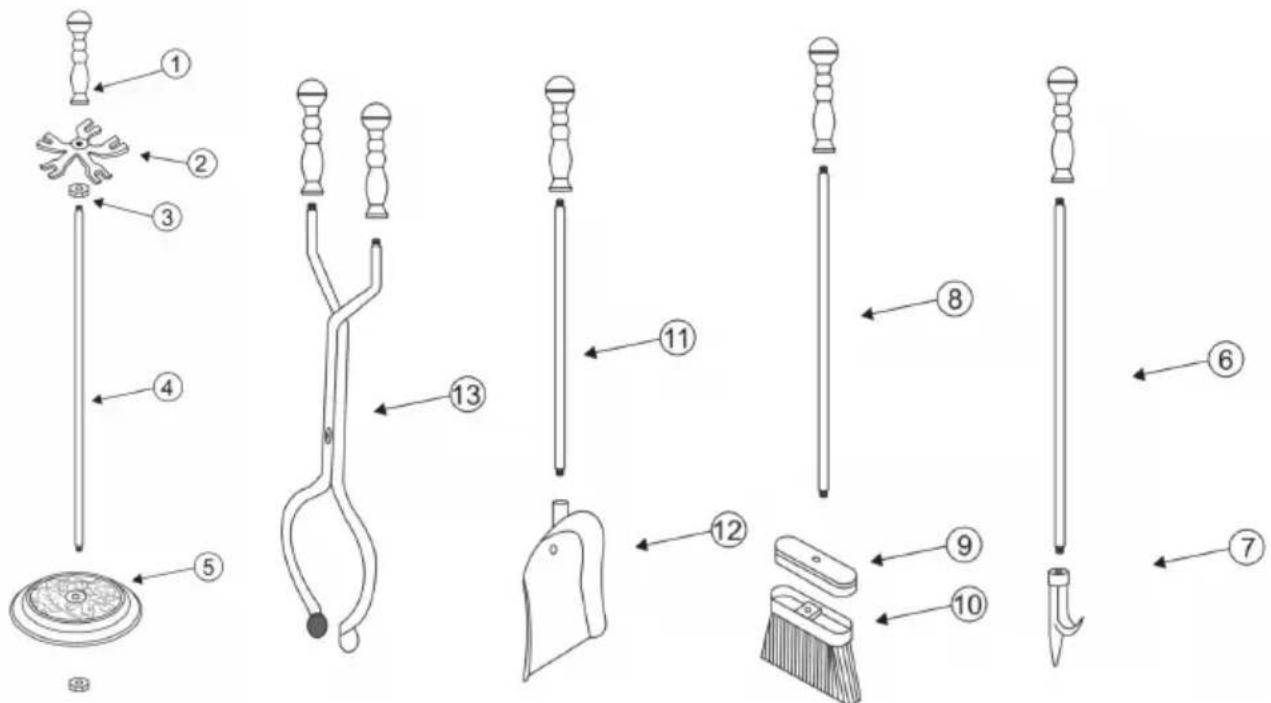

| PART | Description | QTY | PART | Description | QTY |
| 1 | Handles | 6 | 8 | Brush rod | 1 |
| 2 | Yoke | 1 | 9 | Brush cap | 1 |
| 3 | Nut | 2 | 10 | Brush | 1 |
| 4 | Stand rod | 1 | 11 | Shovel rod | 1 |
| 5 | Base | 1 | 12 | Shove | 1 |
| 6 | Poker rod | 1 | 13 | Tong | 1 |
| 7 | Poker | 1 | 14 | Extra Nuts | 2 |
| Model | T51030AK |
| Tools Height | 30.5 inch |
| Stand Overall Dimension(s) | 770×225×225mm (After assembly) |
| Shovel Overall Dimension(s) | 690×35×130mm (After assembly) |
| Poker Overall Dimension(s) | 675×35×50mm (After assembly) |
| Brush Overall Dimension(s) | 680×35×135mm (After assembly) |
| Tong Overall Dimension(s) | 675×35×100mm (After assembly) |
| Net Weight | 6.3 kg ±3% (After assembly) |
ASSEMBLE

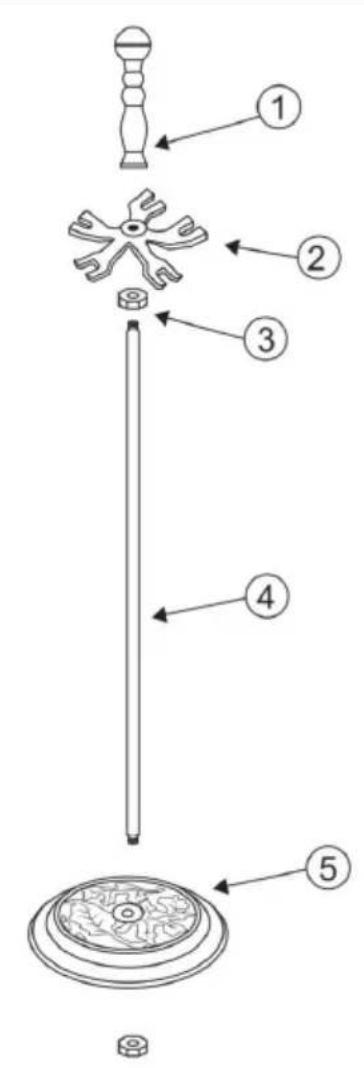

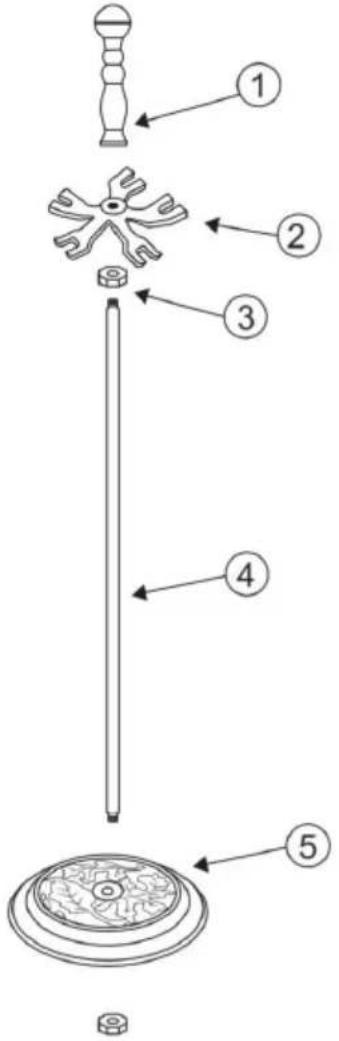

 | BASE ASSEMBLY1.Screw stand rod into base.Sec with nut under the base.2.Fasten nut to top of stand roo Place yoke bracket on stand roo Be sure the yoke is square with base. Screw on handle. |
TOOL ASSEMBLY
- Screw handles onto each tool rod.
- Screw rod (with handles attached) on each tool.
Keep this product clean by using a damp cloth.DONOT use abrasive cleaners, as it will cause parts to tarnish or rust.
Fireplace tools are dangerous. Use under adult supervision. Keep away from children!
Tools may be hot/sharp. Keep out of reach of children!
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
| EC | REP |
