USER MANUAL TE23K1002 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CORNER SHOWER BENCH

MODEL:TE23K1002

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

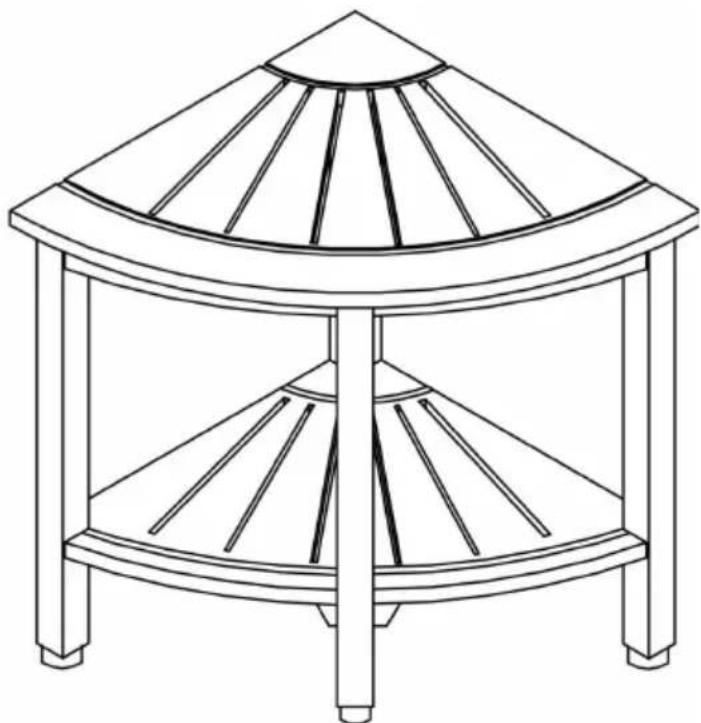

CORNER SHOWER BENCH

MODEL:TE23K1002

Line drawing of a simple curved table with a conical top and four legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy. Please keep the product away from children w assembling.
2. Use as intended only. Do not let children play or jump on the product. I stand on the item or use it as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTION

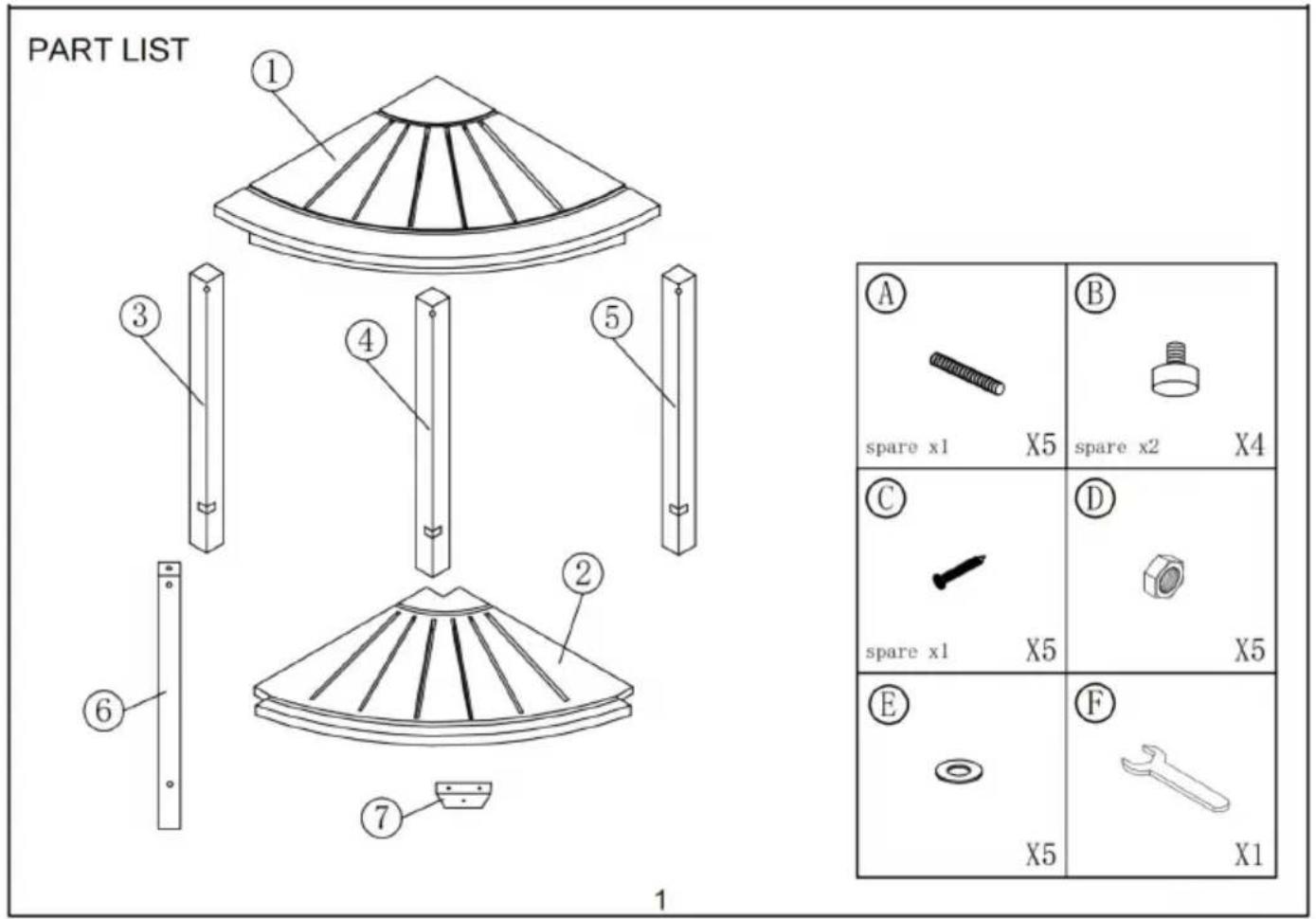

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

PART LIST ① ③ ④ ⑤ ⑥ ⑦ 1 A spare x1 X5 B spare x2 X4 C spare x1 X5 D X5 E X5 F X1

PRODUCT PAREMETERS

Model	TE23K1002
Radius	15.5”
Height	18.5”
Rated Load	500lbs
Material	Teak

CLEANING AND MAINTENANCE

• You can use a soft cloth to clean the dust. If there are stains on the you can wipe it gently with a clean damp cloth, or use a professional cleaner to clean it.
• Do not store in direct sunlight. Store in a cool, dry place.
• Do not submerge in water. Please clean the stool with a soft cloth.
• Please dry the surface after each use and place it in a ventilated envirc

• Please avoid direct sunlight to the product surface for a long time.

• Regularly use teak oil for maintenance to maintain the gloss of the surface and extend its life.

• Do not store in extreme temperature environments. Too high or too low temperature can cause problems such as deformation and cracking. Place in an environment with a suitable temperature.
• Periodically (every 90 days), make sure the screws are fully tightened.

INSTALLATION AND OPERATION INSTRUCTIONS

1. Installation Procedures

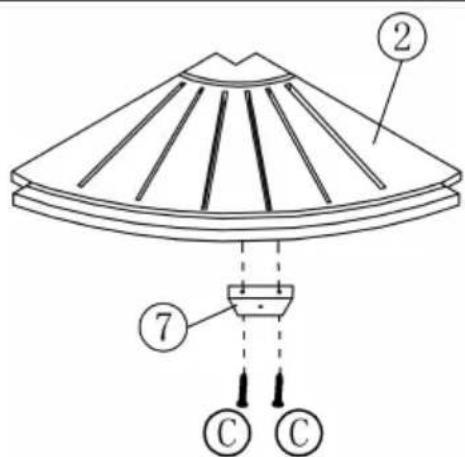

STEP1

Diagram of a conical lamp with labeled components and pin connections

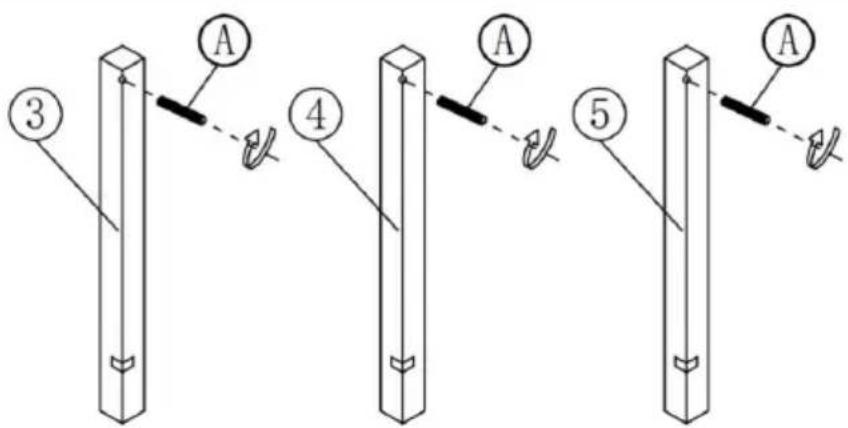

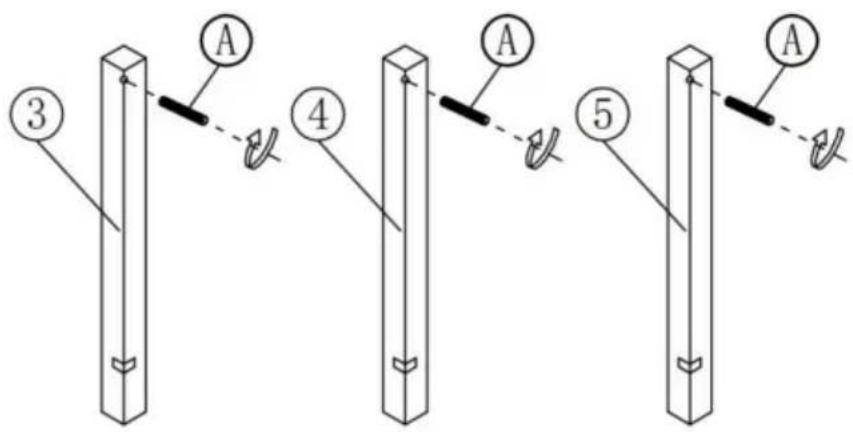

STEP2

Diagram showing five sequential steps of a mechanical or electrical component with labeled parts A and numbered positions 3, 4, and 5.

⑥ A A

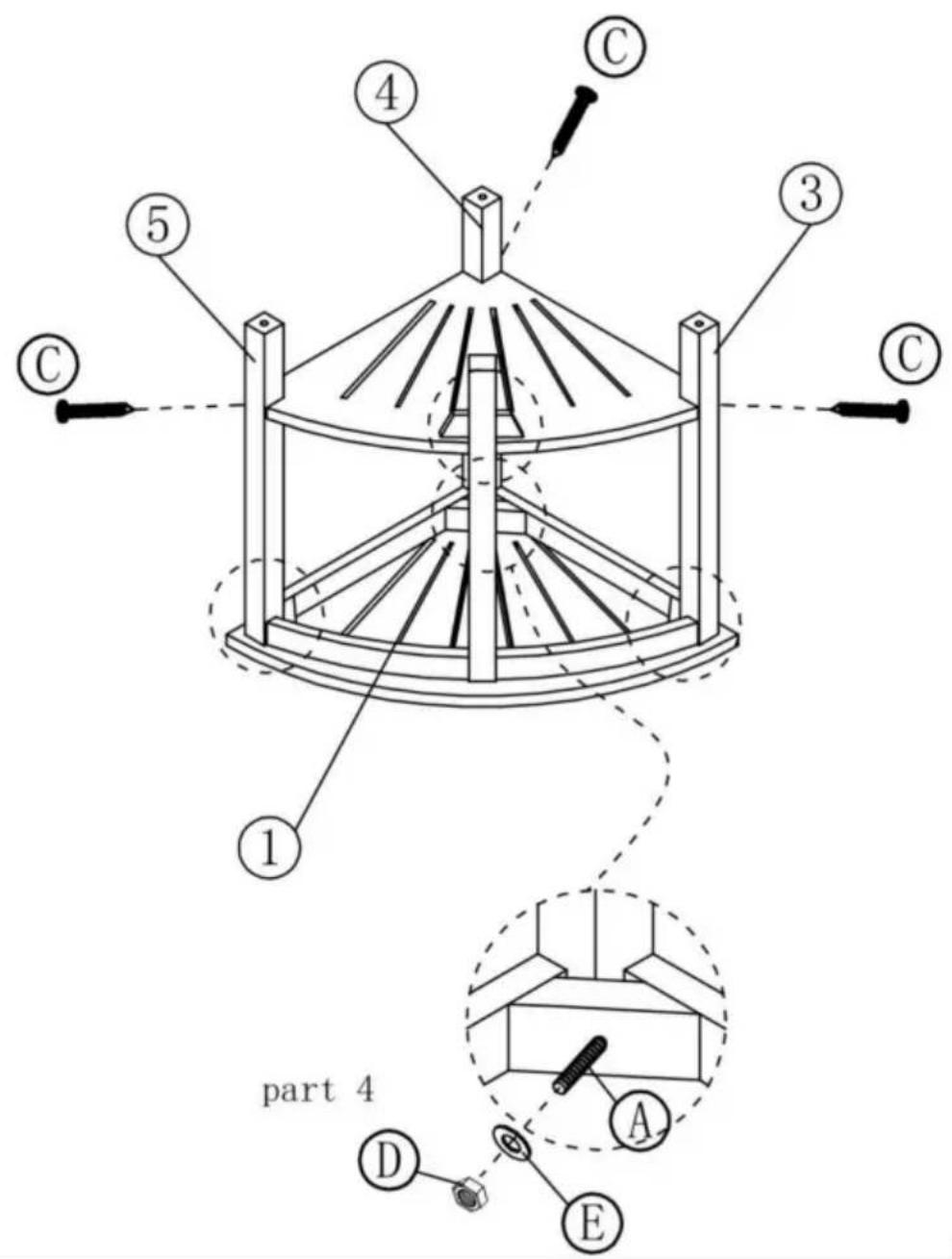

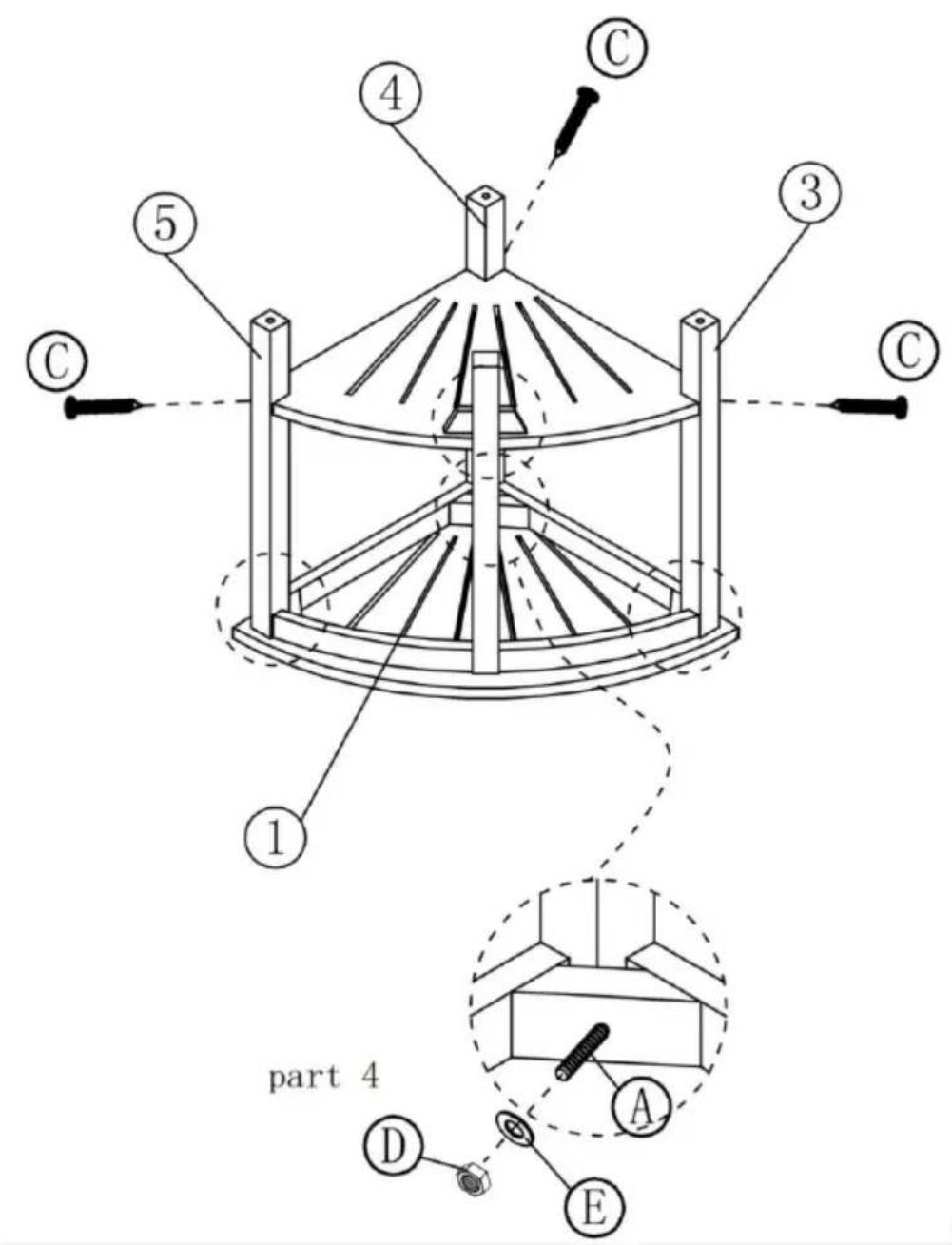

STEP3

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ part 4 A B C D E

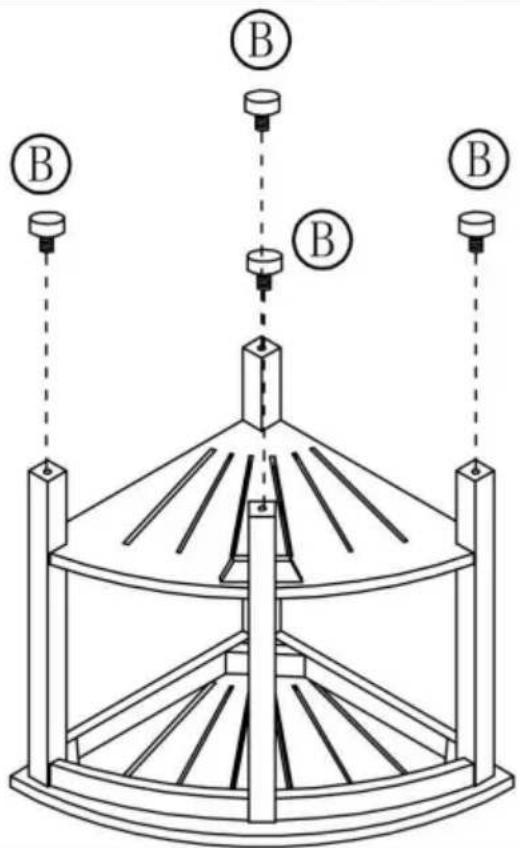

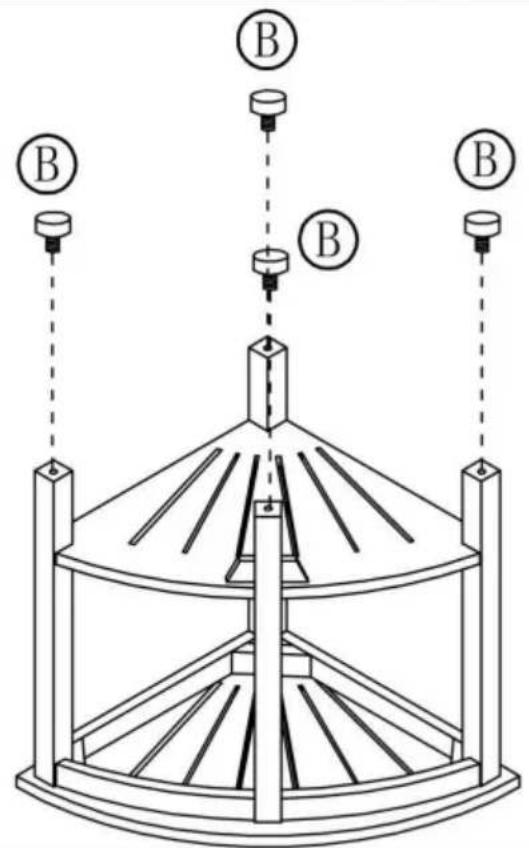

STEP4

Diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.
