SS-630DZ - Safe Vevor - Free user manual and instructions

Product Type	Electronic safe
Brand	Vevor
Model	SS-630DZ
External dimensions	400 x 350 x 630 mm
Power supply	4 AA alkaline batteries (1.5 V)
Operating voltage	4.2 - 7 V DC
Low battery warning threshold	4.6 V ± 0.2 V (red indicator)
Lock type	Electronic numeric keypad
Code capacity	3 to 12 digits (user code and manager code)
Number of emergency keys	2
Built-in alarm	Yes, with vibration detection and lockout after 3 errors
Silent function	Yes, enable/disable sounds
Temporary lockout function	Yes, 4 minutes after 5 errors
Opening methods	Password + button, emergency key + button, external power pack + password
Material	Steel
Included accessories	2 emergency keys, external power pack, 4 expansion bolts, fireproof bag, manual
Installation	Wall or floor mounting with expansion bolts
Cleaning and maintenance	Wipe with a dry cloth; avoid any liquid on the panel
Repairability	Batteries and keys replaceable; electronic lock not user-repairable
Warranty	Not specified

Frequently Asked Questions - SS-630DZ Vevor

How to open the safe for the first time?

Use the provided emergency key. Slide the cover of the emergency lock, insert the key and turn it counterclockwise. Turn the handle clockwise to open the door.

How to set a user password?

Open the door, press the internal adjustment button. The buzzer sounds and the yellow light turns on. Enter a 3 to 12 digit password within 3 seconds, then press # to confirm.

What to do in case of low battery?

Replace the 4 AA alkaline batteries. If the battery is too low to open, use the external power pack inserted into the dedicated socket, then open with your password.

How to open the safe if I forgot the password?

Use the emergency key. Insert it into the emergency lock, turn it counterclockwise, then turn the handle. If the key is lost, use the external power pack and the management password (if set).

How to enable or disable keypad sounds?

Tap the touch screen to wake it up, then enter 11#. A long beep confirms that all sounds are enabled or disabled.

What to do if the alarm goes off?

Enter your correct password and press # to stop the alarm. If you forgot the password, open with the emergency key then remove the batteries to cut the alarm.

How to clean the safe?

Use a soft, dry cloth. Never pour any liquid on the control panel to avoid electronic damage.

How to mount the safe to the wall or floor?

Drill holes at the desired locations, insert the provided expansion bolts, then screw the bolts from inside the safe. Use tools appropriate for your surface (wood, tile, concrete).

The door does not close properly, what to do?

Ensure nothing is blocking the bolts. Enter your user code and turn the knob clockwise to retract the bolts, then close gently.

What to do in case of battery failure without emergency key?

Use the provided external power pack. Plug it into the external port of the safe, enter your password and press # or *, then turn the knob to open.

USER MANUAL SS-630DZ Vevor

SAFE BOX

USER MANUAL

MODEL: SS-630DZ

VEVOR

SAFE BOX

MODEL: SS-630DZ

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

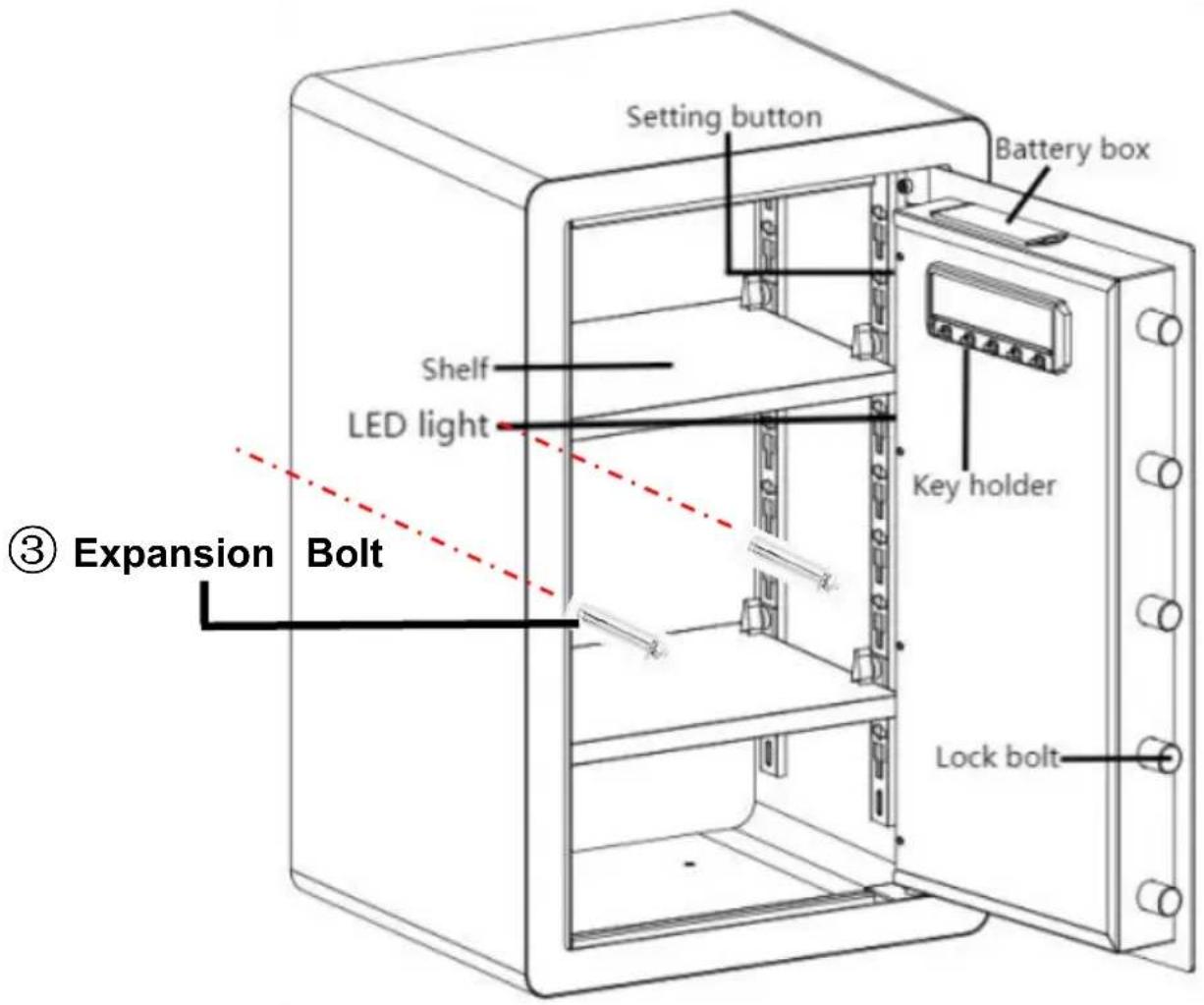

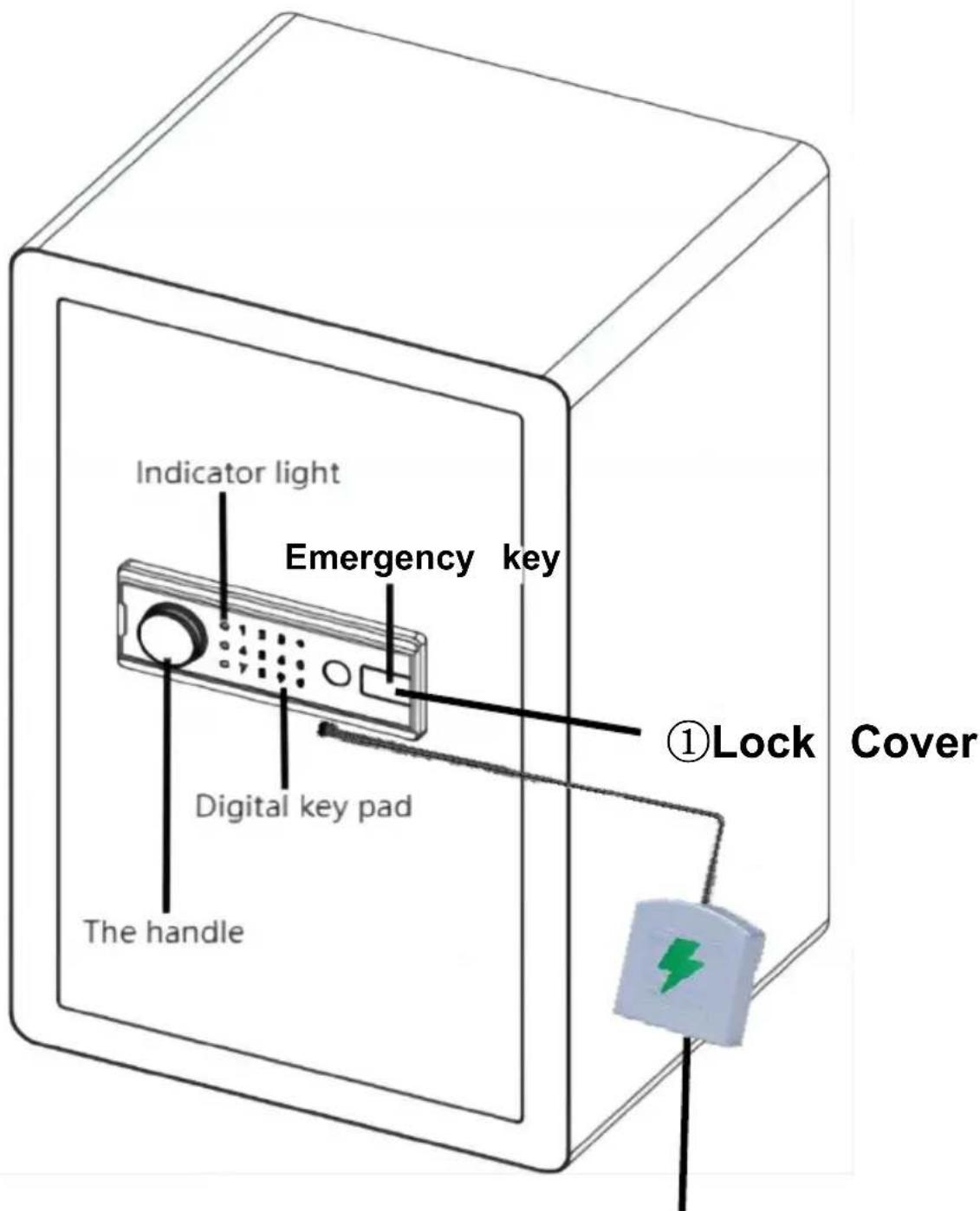

PARTS LIST

Thank you very much for choosing this safe box. Please read all of the instructions before using it. The information will help you achieve the best possible results.

② External Power Box

1	Lock Cover*1
2	External Power Box*1
3	Expansion Bolt*4
4	Emergency Key*2
5	Fireproof Bag*1
6	English Manual*1

OPENING YOUR SAFE FOR THE FIRST TIME

To open the door for the first time, use the configured emergency key to open the door. The operation steps are as follows:

1. Slide right to open the emerg lock cover.	4. Install batteries into battery box.
2. Insert the emergency key in the keyhole and rotate it 65° counterclockwise.	5.Make sure the battery matches ‘+’ and ‘-’. (not including 4 alkalin 1.5V batteries)
3.Turn the handle clockwise to open the door.	6.Weak power, emergency method: Emergency key

DESCRIPTION:

1. This product has 2 sets of passwords. The factory original password is "123456", and the factory management password you need to set up yourself.
2. Yellow light: normal indicator, or wrong password indicator.
3. Green light: unlock and light up for 6-7 seconds.
4. Red light: low battery indicator.

PERSONAL PASSWORD SETTING

1. In the state of opening the door, press the internal setting button, the buzzer will sound once, and the yellow indicator light will be on.
2. Enter any new 3-12 digit password within 3 seconds. Press "#" to confirm. If the buzzer sounds once and the yellow light goes off, the password has been set successfully.

Notice: After your password is set, please test the new password to make sure it is valid. If you enter a wrong password, the yellow light will be on and a beep sound will occur three times, just re-enter the correct password.

MANAGE PASSWORD SETTINGS

1. In the state of opening the door, press number key "0" twice, then press the internal setting button. The buzzer sounds once and the yellow indicator light is on.
2. Enter any new 3-12 digit password within 3 seconds. Press "#" to confirm. The buzzer will sound once and the yellow indicator light will go off, which means the management password has been set successfully.

Notice: Do not set the personal password the same as the management code.

SOUND ON AND OFF

Touch the touch screen to wake up. Enter "11#" and the buzzer "dri" makes a long sound, indicating that all sounds are successfully enabled or disabled.

THREE WAYS TO OPEN THE SAFE

1. Emergency Key + Knob: Use in situations such as first-time use, forgotten password, or dead battery.
2. Password + Knob: Daily unlocking. Enter your personal or management password, press "#" or "*", then turn the knob clockwise.
3. Password + Knob + External Power Box: When the internal battery is dead or the key is damaged or lost. Insert the external power box, enter your personal or management password, press "#", then turn the knob counterclockwise to open the door.

HOW TO REMOVE THE SHELF

Gently push the 4 bendable iron strips under the shelf; when the strips are vertical, you can easily take out the shelf.

LOW BATTERY ALERT

1. If the battery voltage is below 4.8V, the red light will turn on and warn.
2. If the battery voltage is below 3.8V, user operation is prohibited. 6 beeps will indicate that the battery is low and needs to be replaced.

VIGILANCE SETTING AND DEACTIVATION

1. Alarm on setting: In standby state, press the "*" key; the buzzer will sound and the yellow indicator light will turn on. Then it activates the vibrating alarm state.
2. Conditions for the automatic alarm to sound: ①The safe will alarm when hit by a certain external force or vibration; ②Entering the wrong password three consecutive times.
3. This electronic lock has 3 (5) password errors; automatic alarm for 30 seconds or 1 minute. After the alarm is eliminated, the panel is locked for a few minutes; entering the correct password can open it.
4. Alarm cancellation setting: ①Enter the correct password; the green indicator light turns on. It immediately stops the alarm sound and turns off the vibration. ②Open the door with the key and take out the battery.

NOTE: After entering the correct password to eliminate the alarm sound, you need to restart the alarm to enter the alert state.

HOW TO WALL OR FLOOR MOUNTING

* Drill the appropriate size holes for the anchors you are using. * Mount the safe by running screws from inside of the safe and securing them.

anchors

* Use proper drill tools depending on the type of floor you are mounting the safe on (wood, tile, or concrete).

SAFETY AND COMPLIANCE

1. To reduce the risk of theft, the safe must be fixed to the wall or floor to ensure safety.
2. Please take good care of the emergency key and store it in a safe place away from the safe. Do not put the emergency key inside the safe, as the emergency key will be used to open the safe when the battery runs out.
3. Do not place the product on an unsafe overhead surface, to avoid damaging the product or injuring people.
4. Do not spill liquid on the control panel, as it may cause damage to the internal electronic components and prevent them from working properly.

WARMLY REMINDER

1. Because it is purely handmade, inside solder joints or rust stains are a normal phenomenon.
2. Please keep emergency keys, secret cabinet keys, and external power supply box in a safe place.
3. The emergency key cannot open safes of other brands or the same brand, as it is unique. (Please do not try, to avoid damage to the safe and the unmatched key cannot be taken out.)
4. The protective film on the knob cover can be torn off.
5. Before closing the door, do not remove the emergency key or adjust its direction, which can avoid the lock bolt from jamming, and knob operation will be smoother.
6. The door won't shut: Make sure there are no obstructions. If the bolts are extended, re-enter the user code and turn the knob clockwise to retract them.

TECHNICAL PARAMETERS

Model	SS-630DZ
Working Voltage Range	4.2-7Vdc
Working Undervoltage Point	4.6V plus or minus 0.20V
Product Size	400*350*630mm
Working Power	4 AA (1.5V) Alkaline Batteries

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to Australia: SIHAO PTY LTD. 1 Rokeva Street, Eastwood NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
