USER MANUAL SR221265 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

KITCHEN ISLAND USER MANUAL

MODEL: SR221265

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

KITCHEN ISLAND

MODEL: SR221265

Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation.

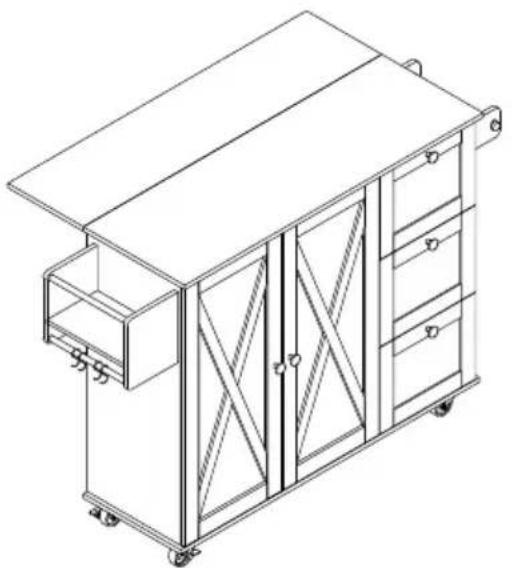

Line drawing of a modular furniture cabinet with handlebars and wheels (no text or symbols)

Model: SR221265

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

PRODUCT PARAMETERS

Model	ProductSize/mm(When the folding board is opened)	Loading Capacity	Top panel size(mm)
SR221265 14	30x680x990 300 lb (Max)		1150x3901150x290□Folding board □

ASSEMBLY PRECAUTIONS

Assembly must follow these instructions. Incorrect assembly can be a hazard.
Wear safety goggles and heavy-duty work gloves during assembly.
Do not assemble when tired or under the influence of alcohol, drugs, or medication.
Weight capacity and other product capabilities only apply to a wholly and correctly assembled product.
Keep the assembly area clean and well-lit.
Keep bystanders out of the area during assembly.
The weight of the plate is heavy; pay attention to the installation to avoid injury, and if necessary, find someone to assist with the installation.

Assembling this cart will take approximately 3 hours; it is recommended that 2 people operate it.

USE PRECAUTIONS

Vevor SR221265 - USE PRECAUTIONS - 1

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

This product is not a toy. Do not allow children to play with this item.
Use as intended only. Do not sit or stand on the product.
Inspect before every use. Do not use it if parts are loose.
Use on flat, level, and hard surfaces only.
Do not exceed the listed weight capacity. Tighten all knobs before applying load. Be aware of dynamic loading! The sudden movement may briefly create an excess load, causing product failure.

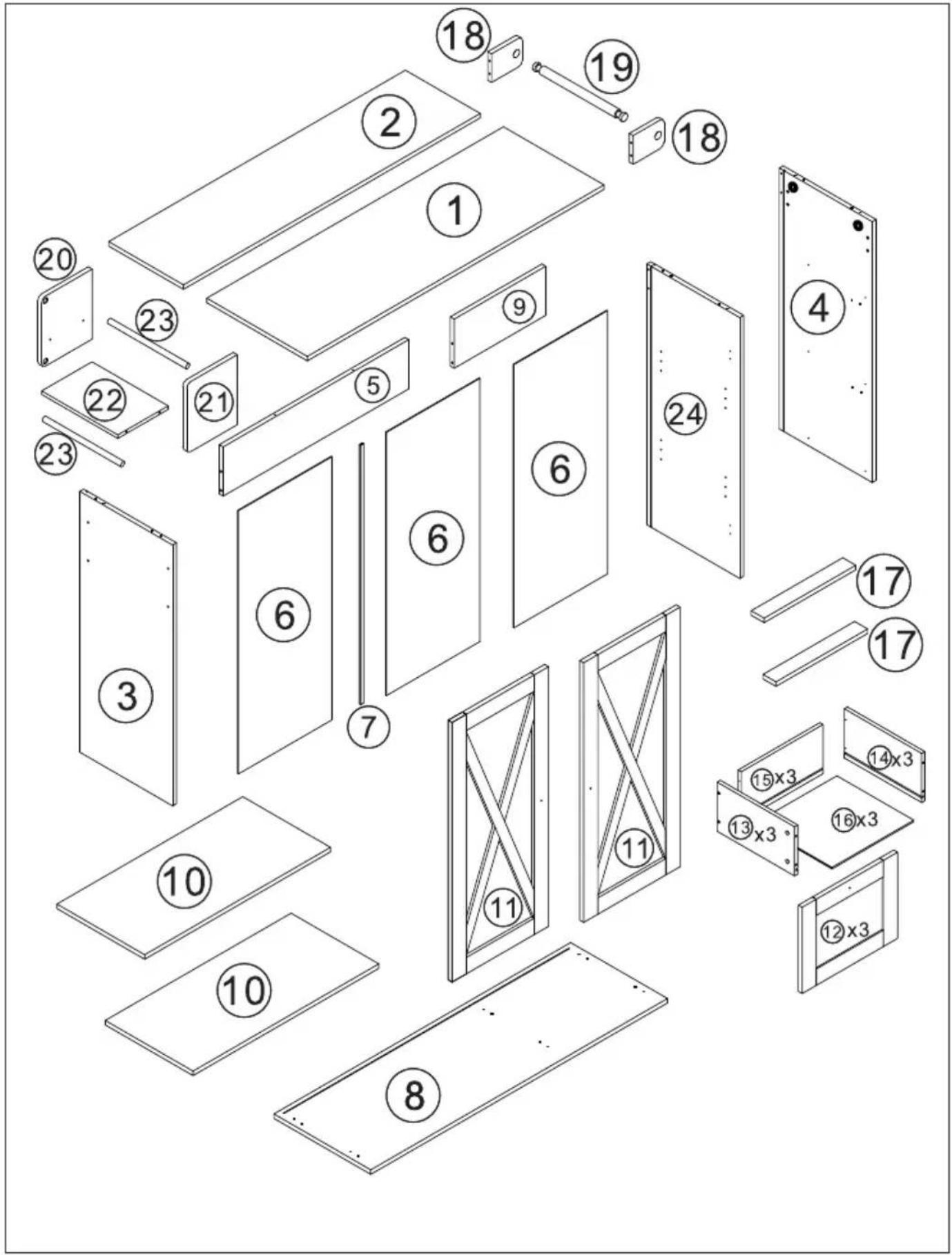

Exploded Drawing Exploded view diagram of a modular device with numbered components for assembly or manufacturing purposes.

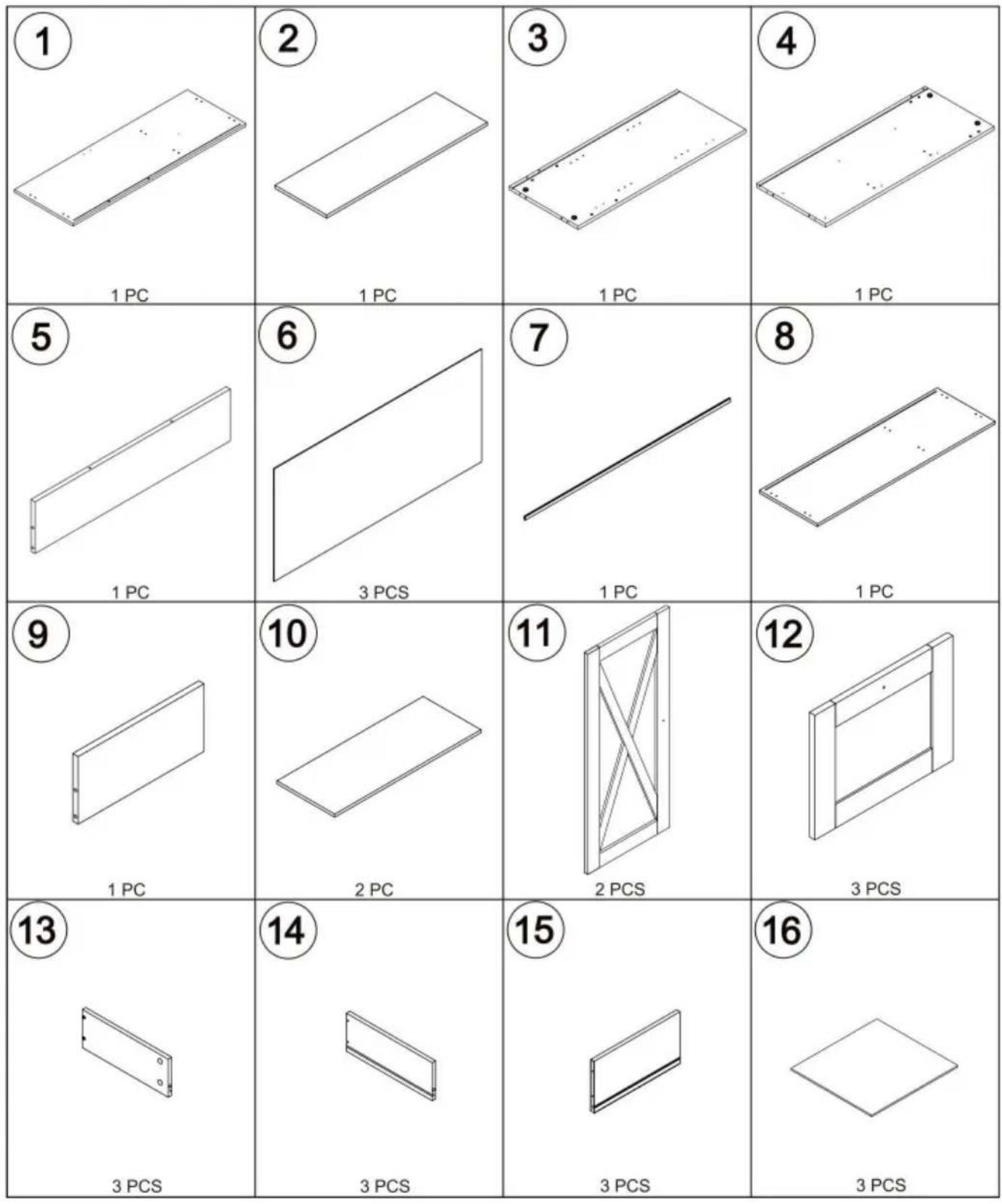

Parts List

1	2	3	4

5	6	7	8

9	10	11	12

13	14	15	16

172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*35[12WS]36 PCS+1spare	B ∅15*1036 PCS+1spare	C ∅6*3016 PCS+1spare	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS+1spare	H M7*40[KCKT]8 PCS
I M5*1426 PCS+1spare	J[XXTW]2 PCS	K2 PCS	L M4*3012 PCS+1spare	M M4*1424 PCS+1spare	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R4 PCS	S1 PC	CL3 PCS	CR3 PCS	DL3 PCS	DR3 PCS

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Vevor SR221265 - Cam Lock Fastening System - 1

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a screwdriver on a base plate (no text or symbols)

Simple line drawing of a mechanical assembly with a rectangular plate and a pin, no text or symbols present.

Isometric line drawing of a mechanical setup with a rotating component mounted on a base plate (no text or symbols)

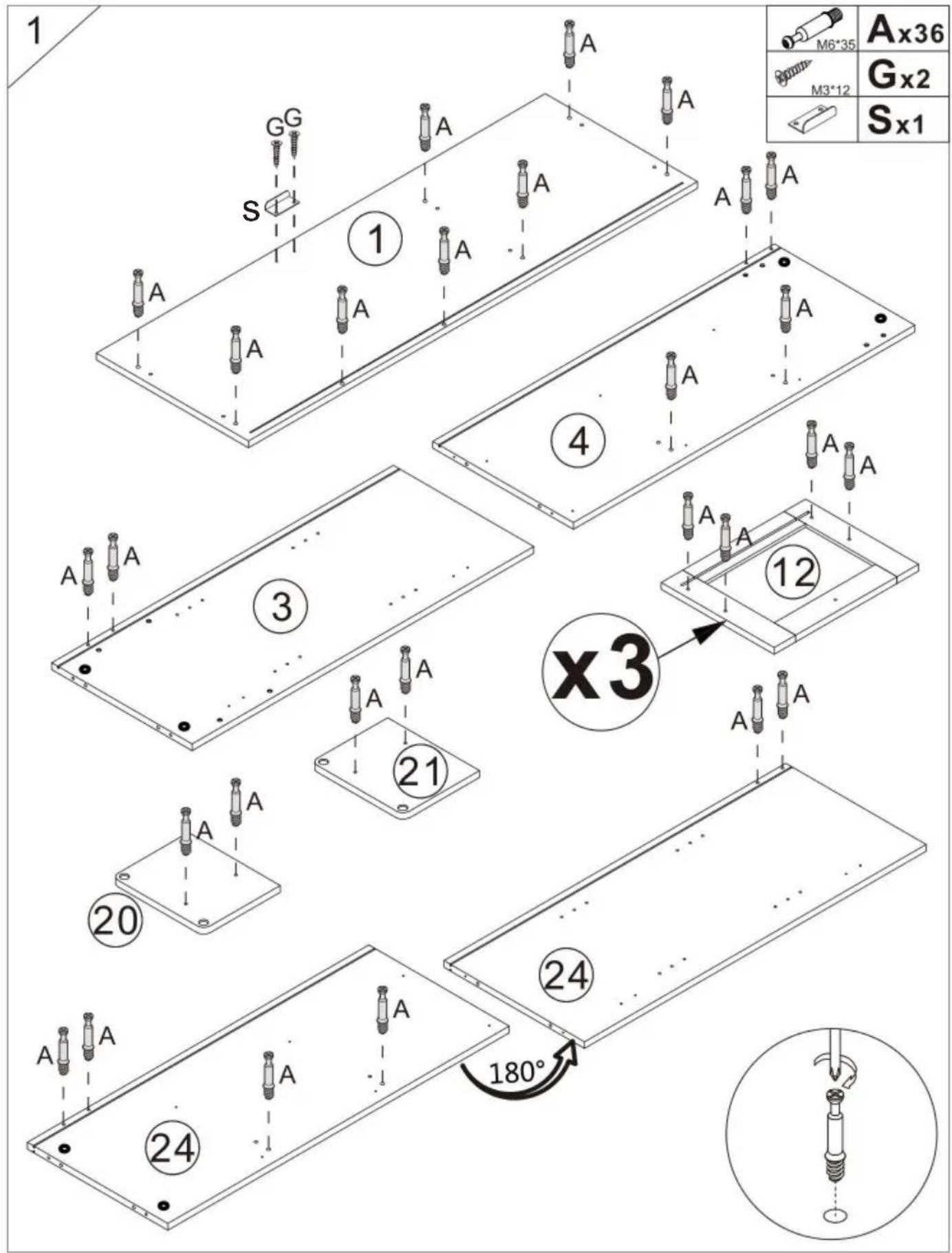

Assembly Steps

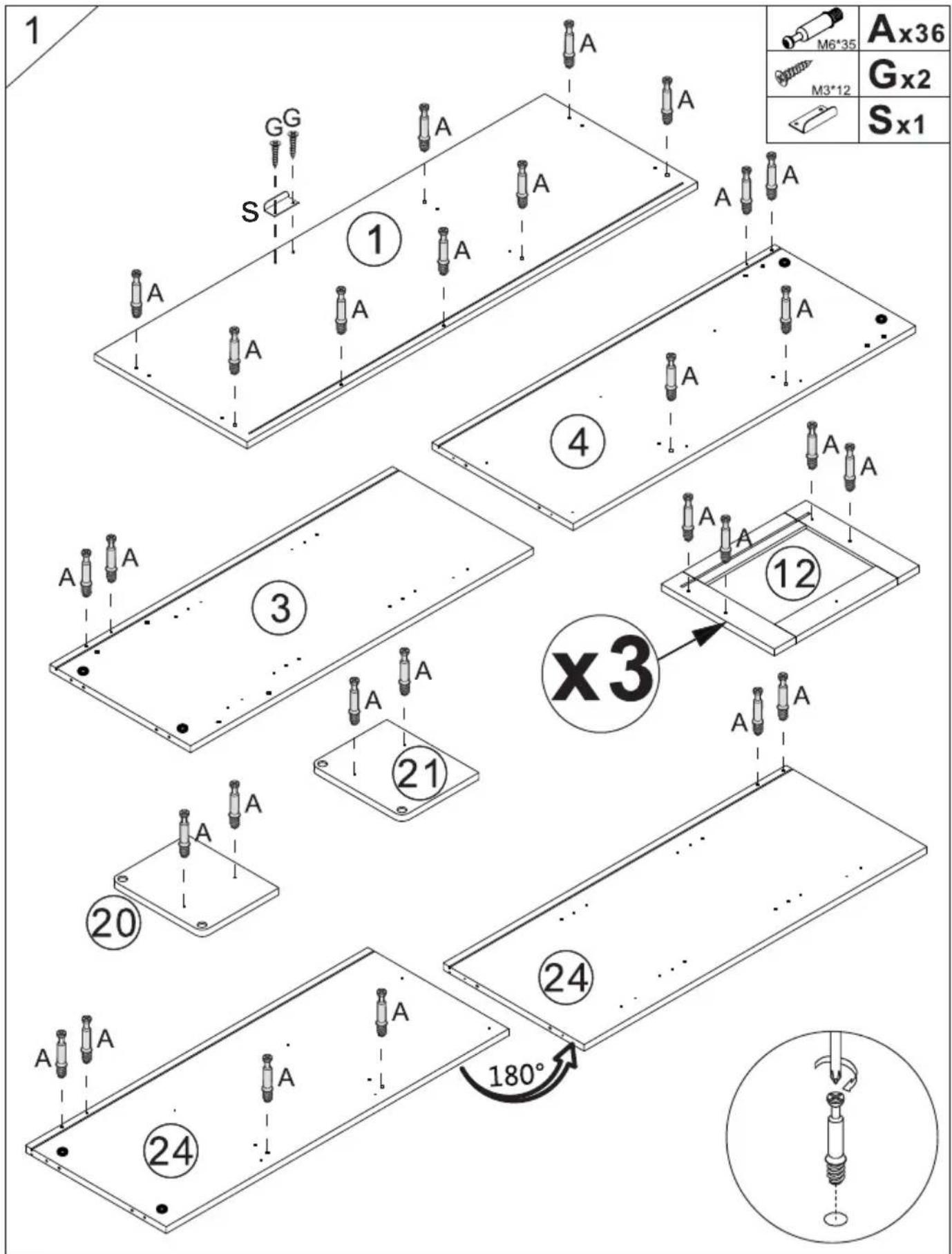

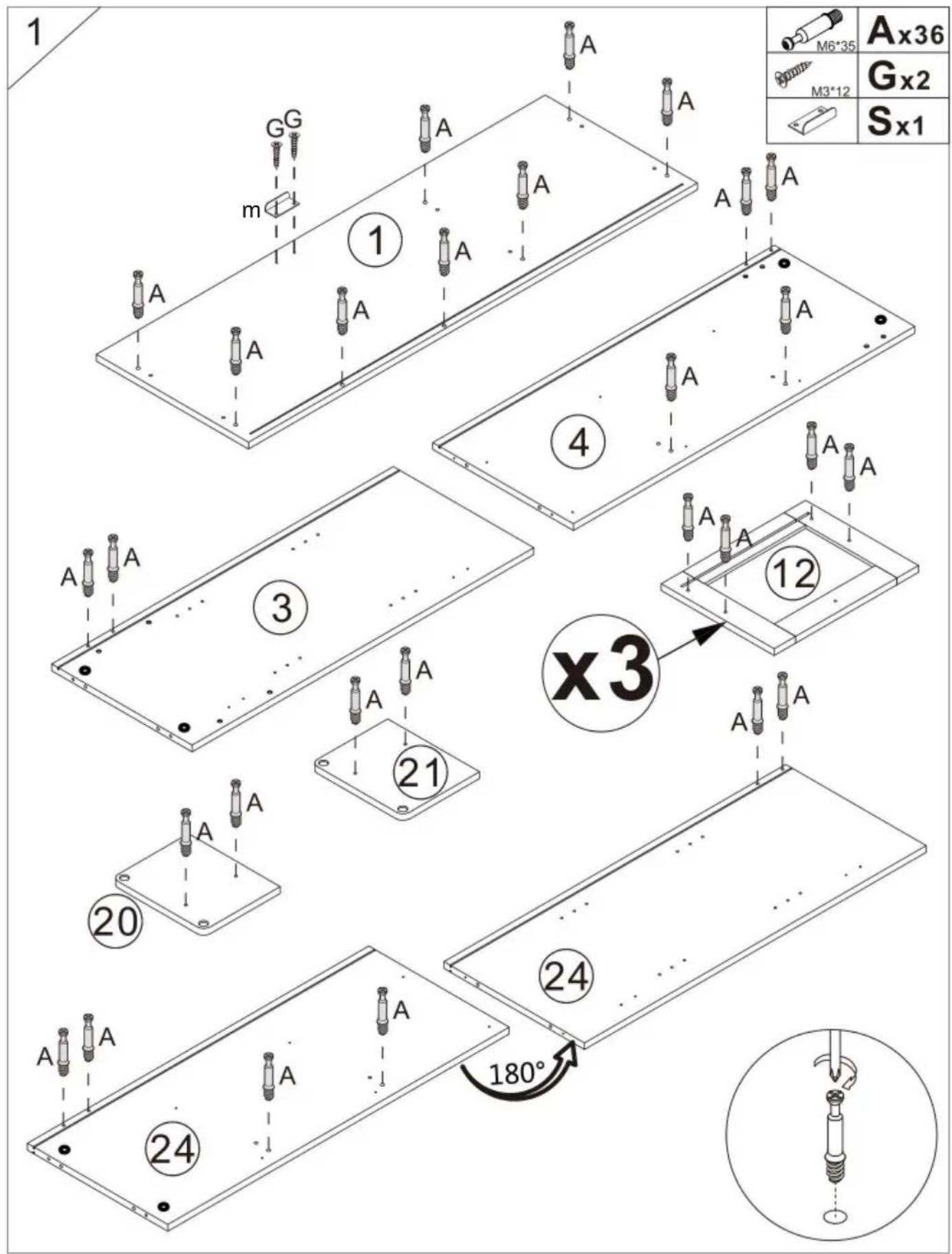

1 M6*35 A x36 M3*12 G x2 S x1 A x3 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x34 A x32 A x32 A x32 A x32 A…

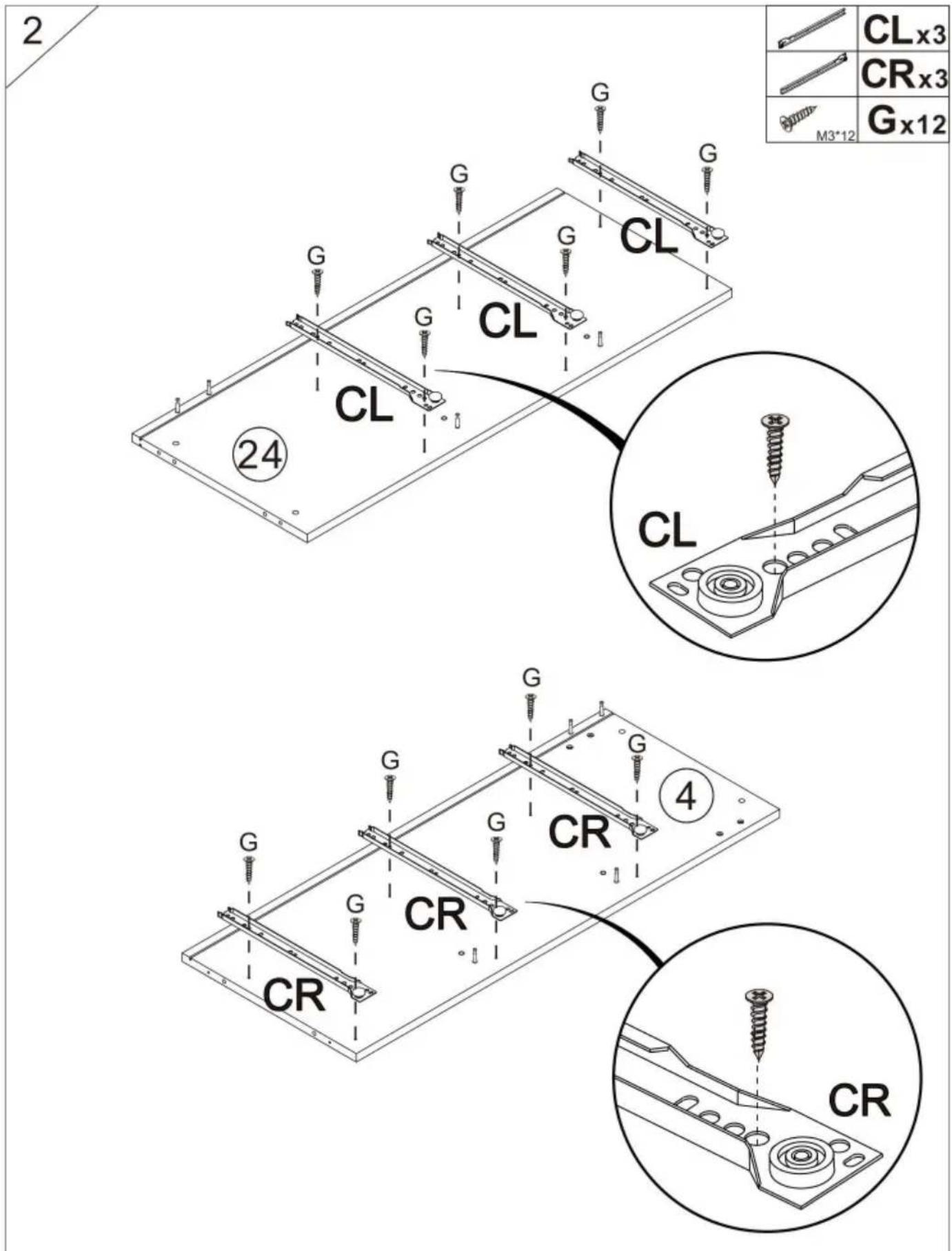

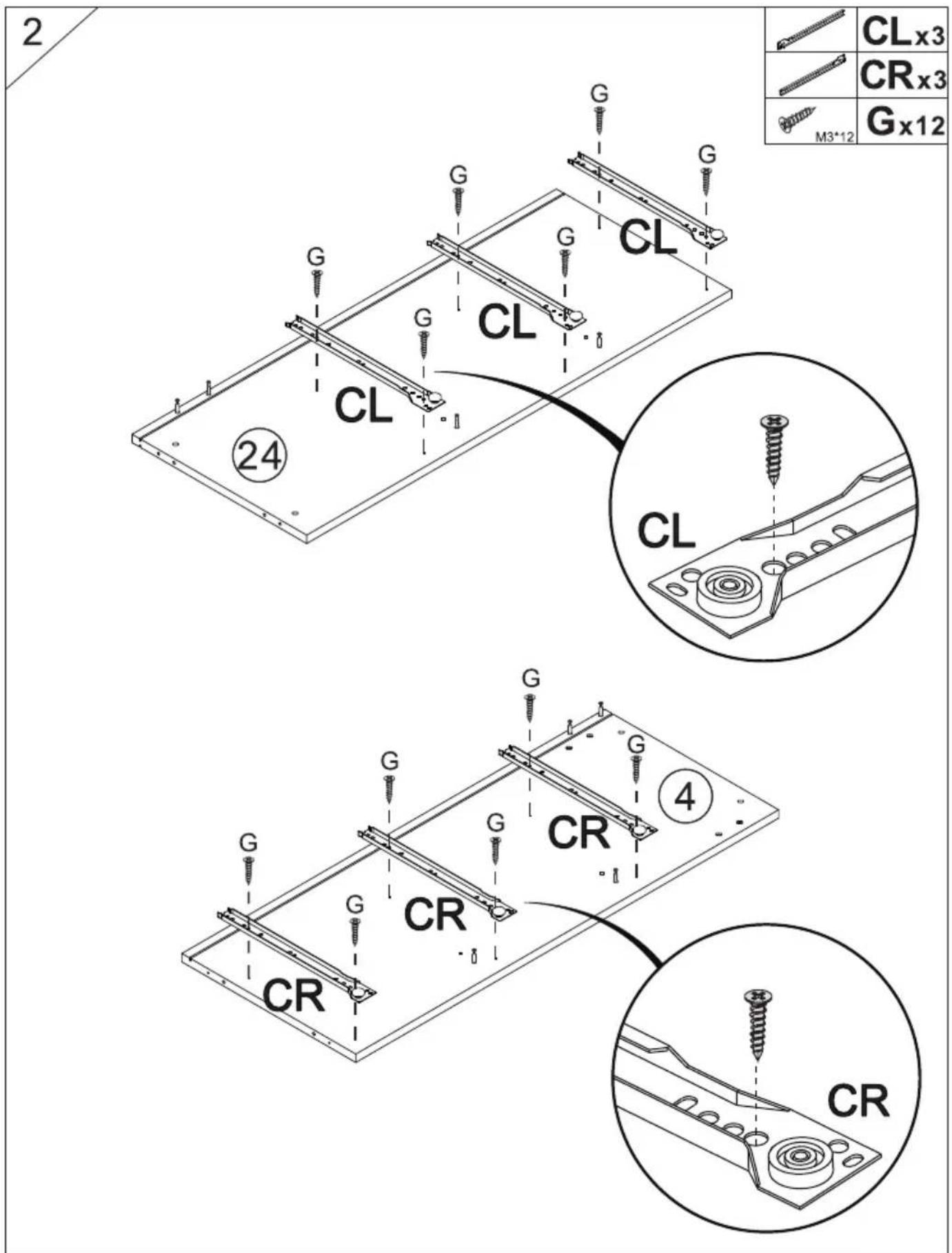

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR CR

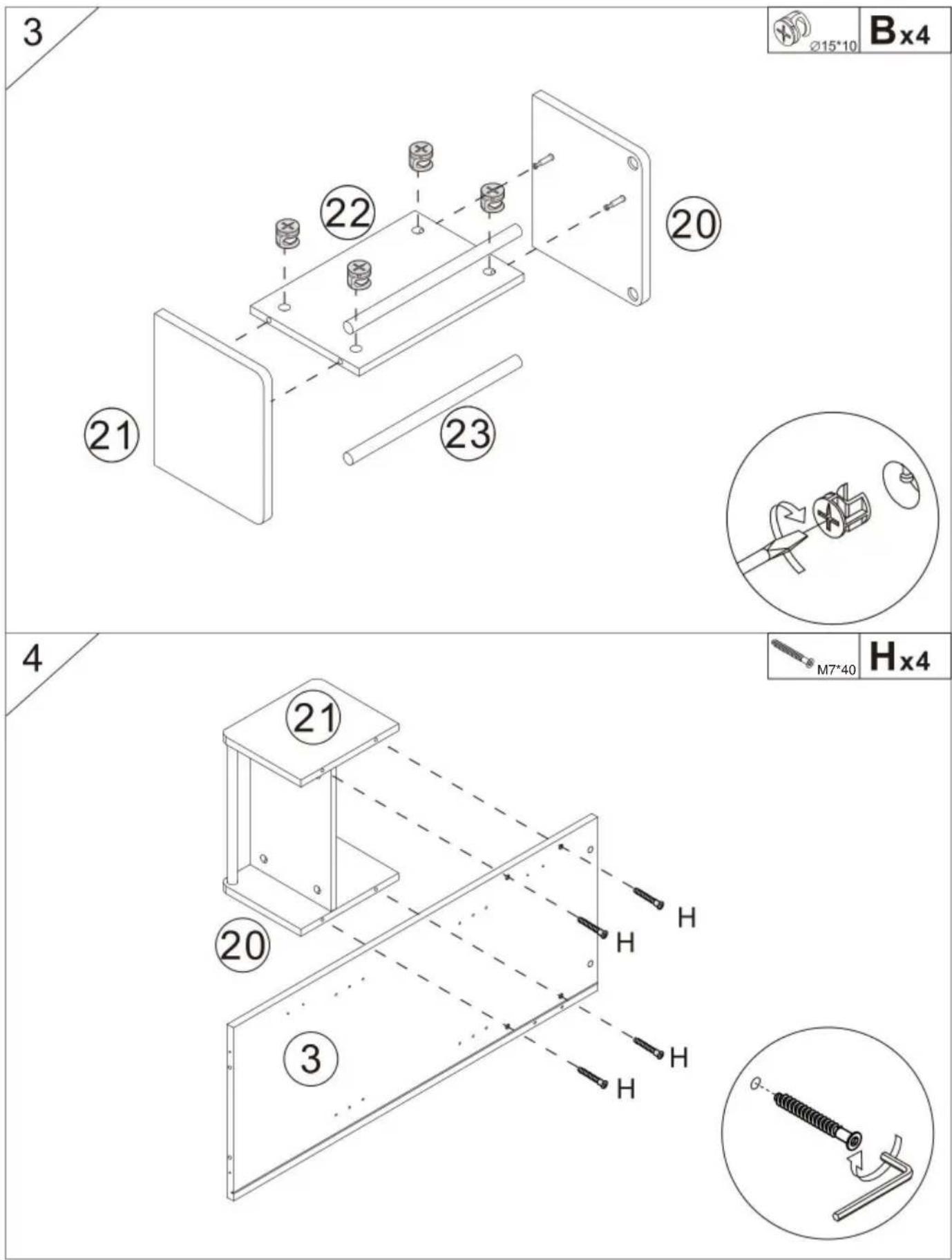

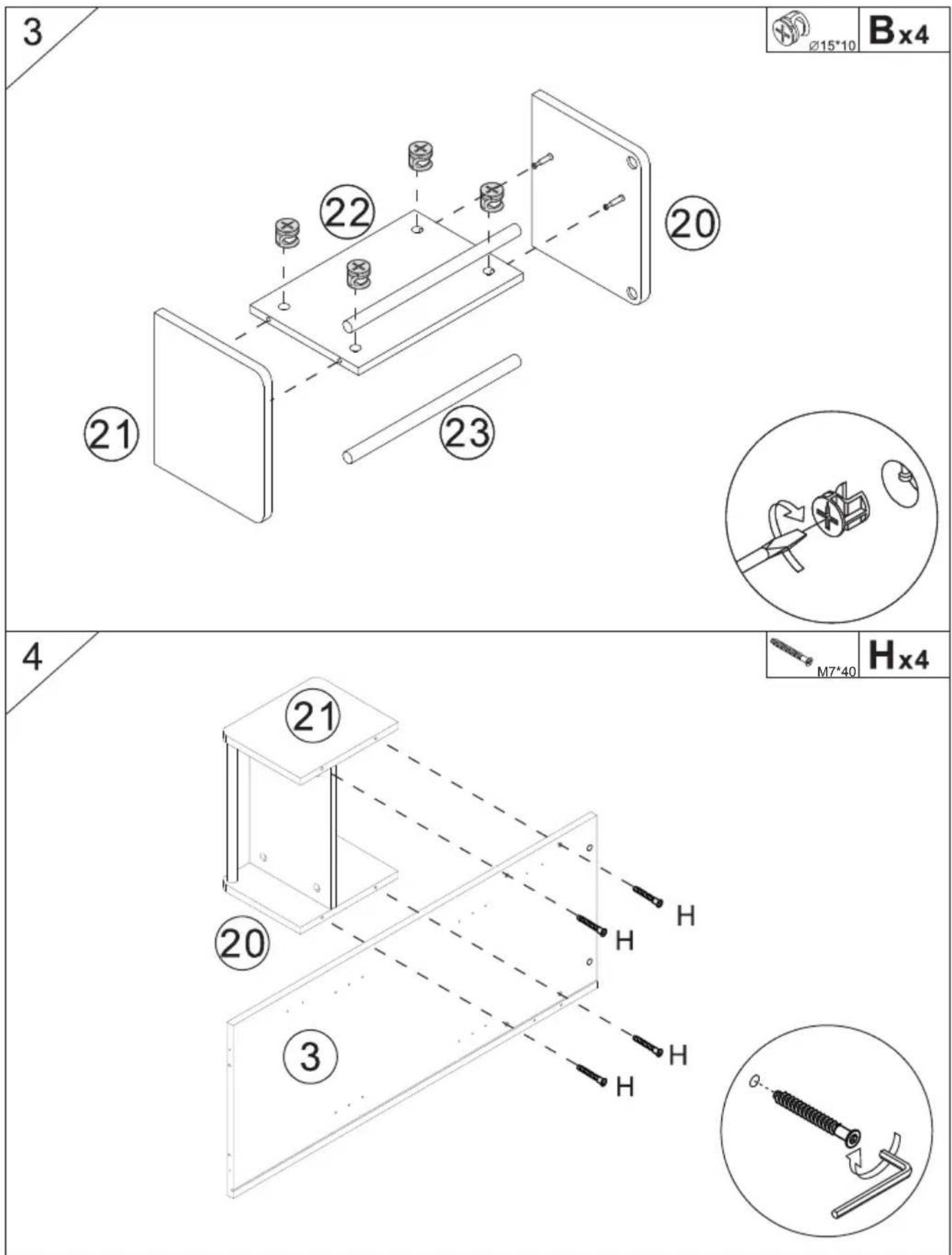

3 Ø15*10 B x4 20 21 23 4 M7*40 H x4 21 20 3

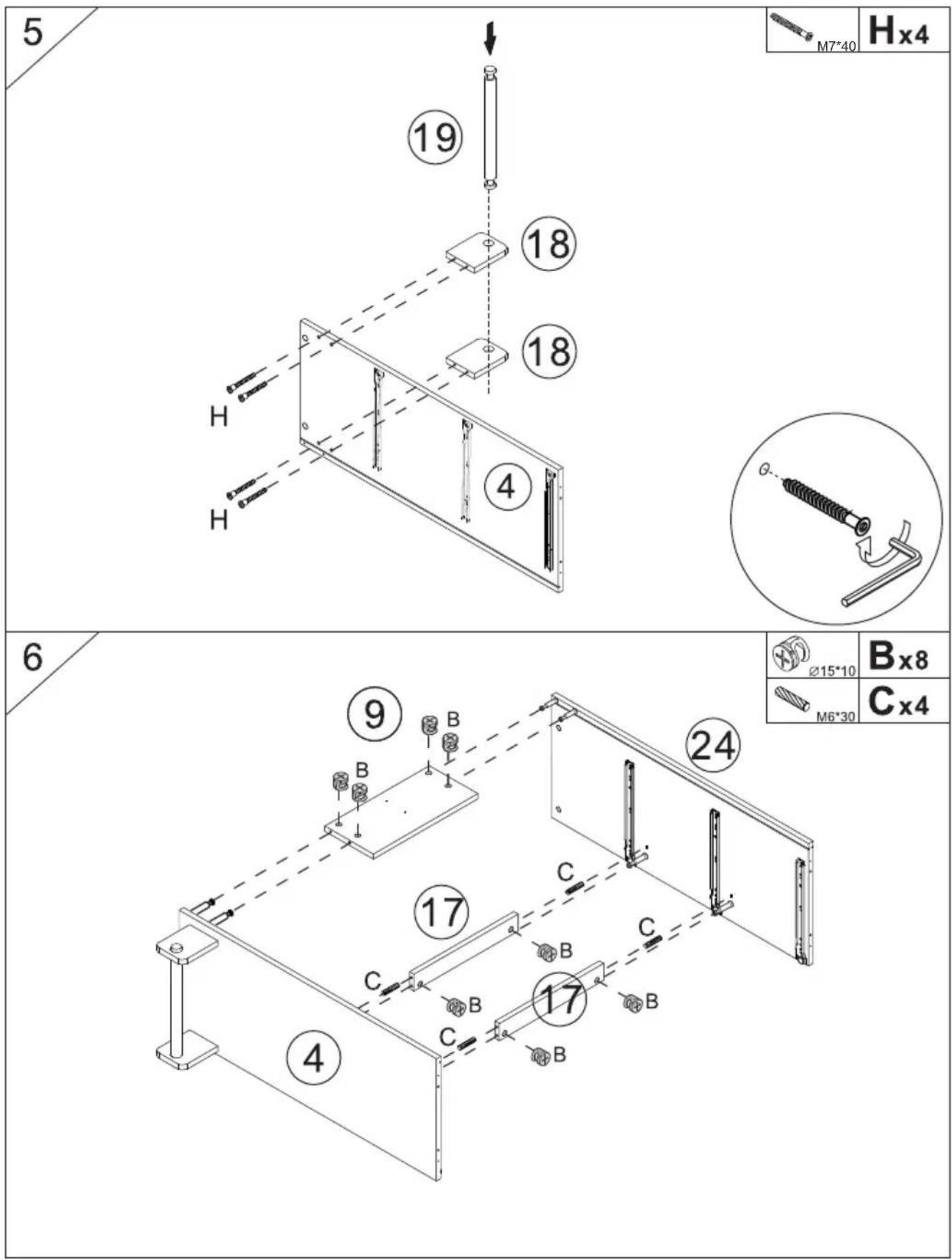

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

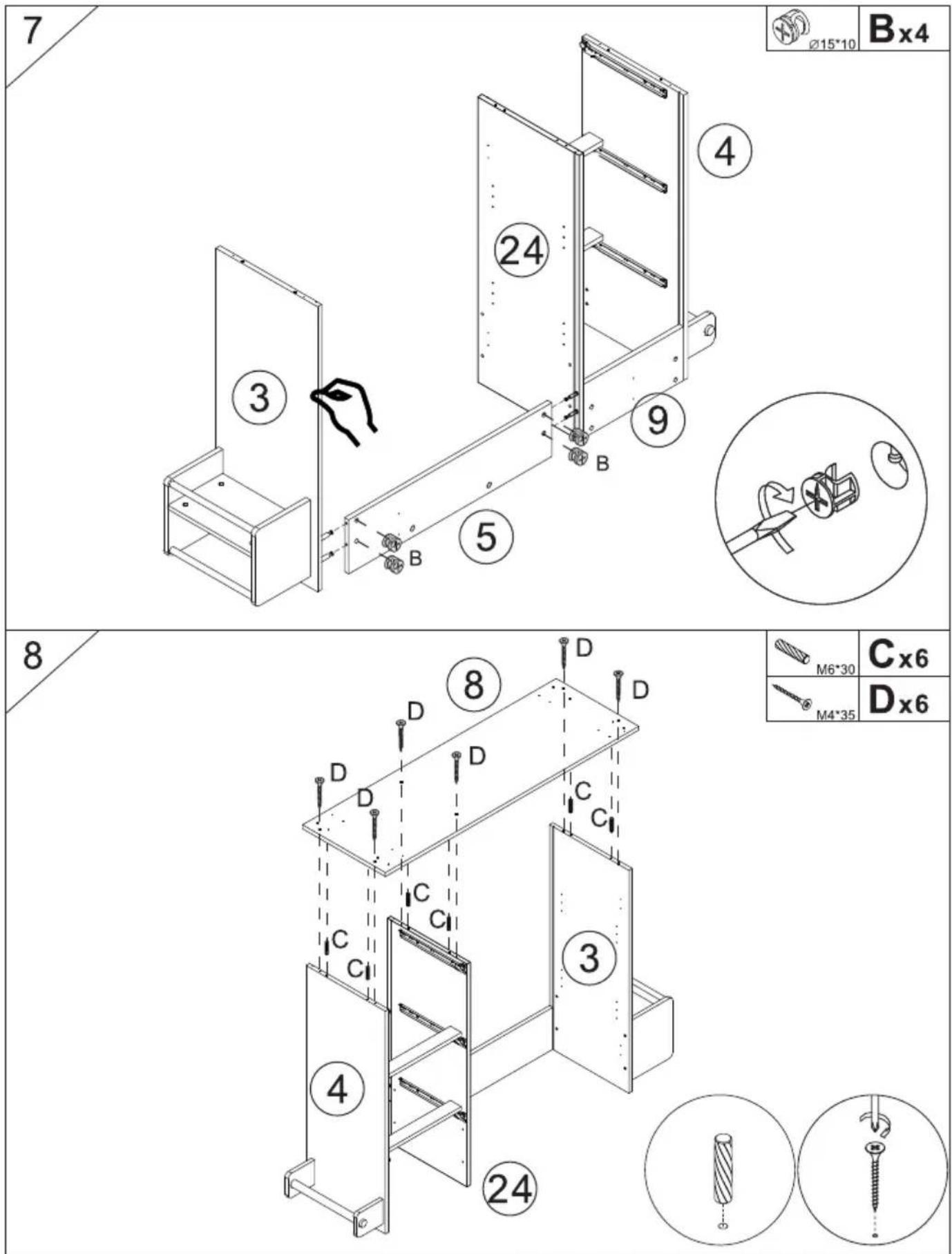

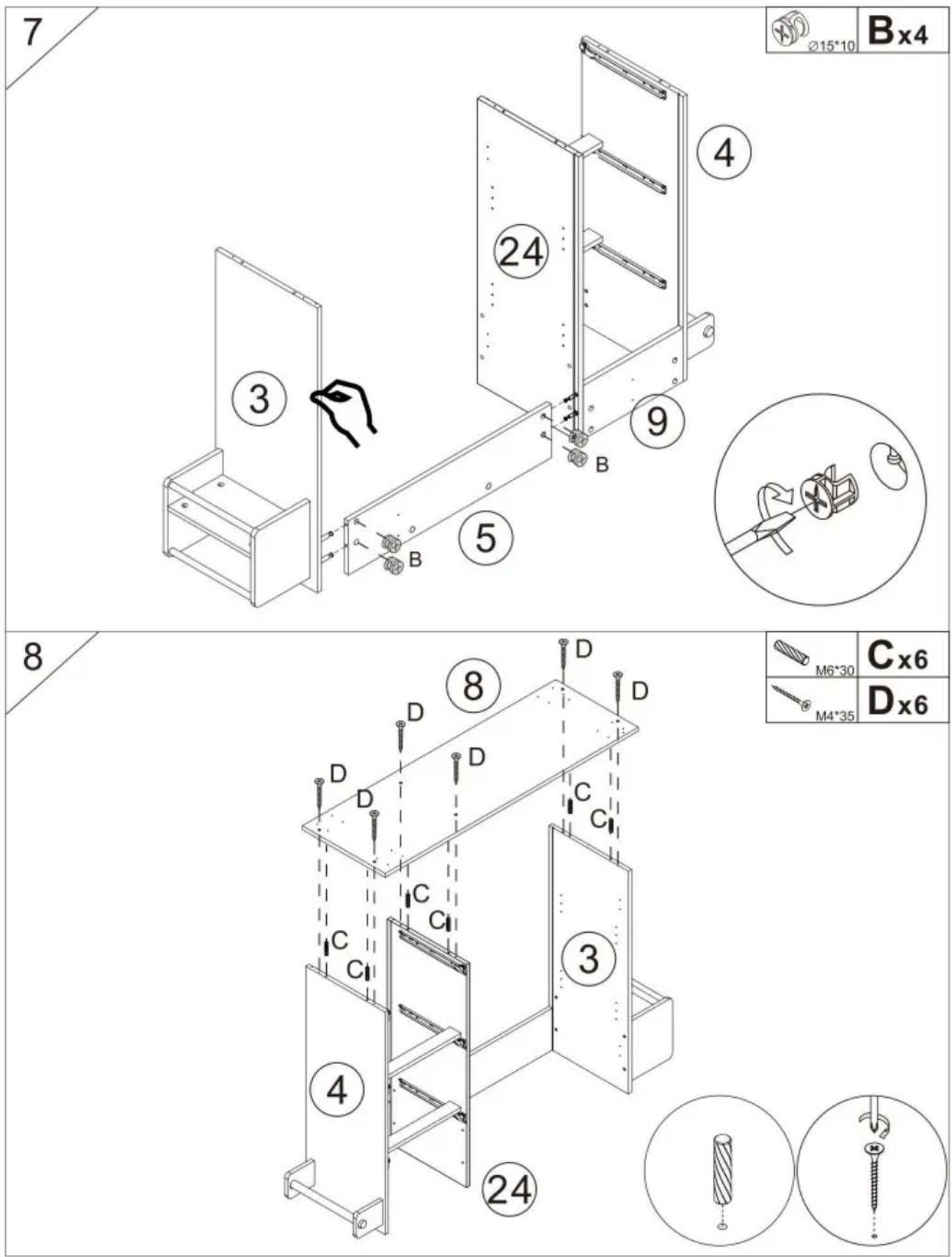

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

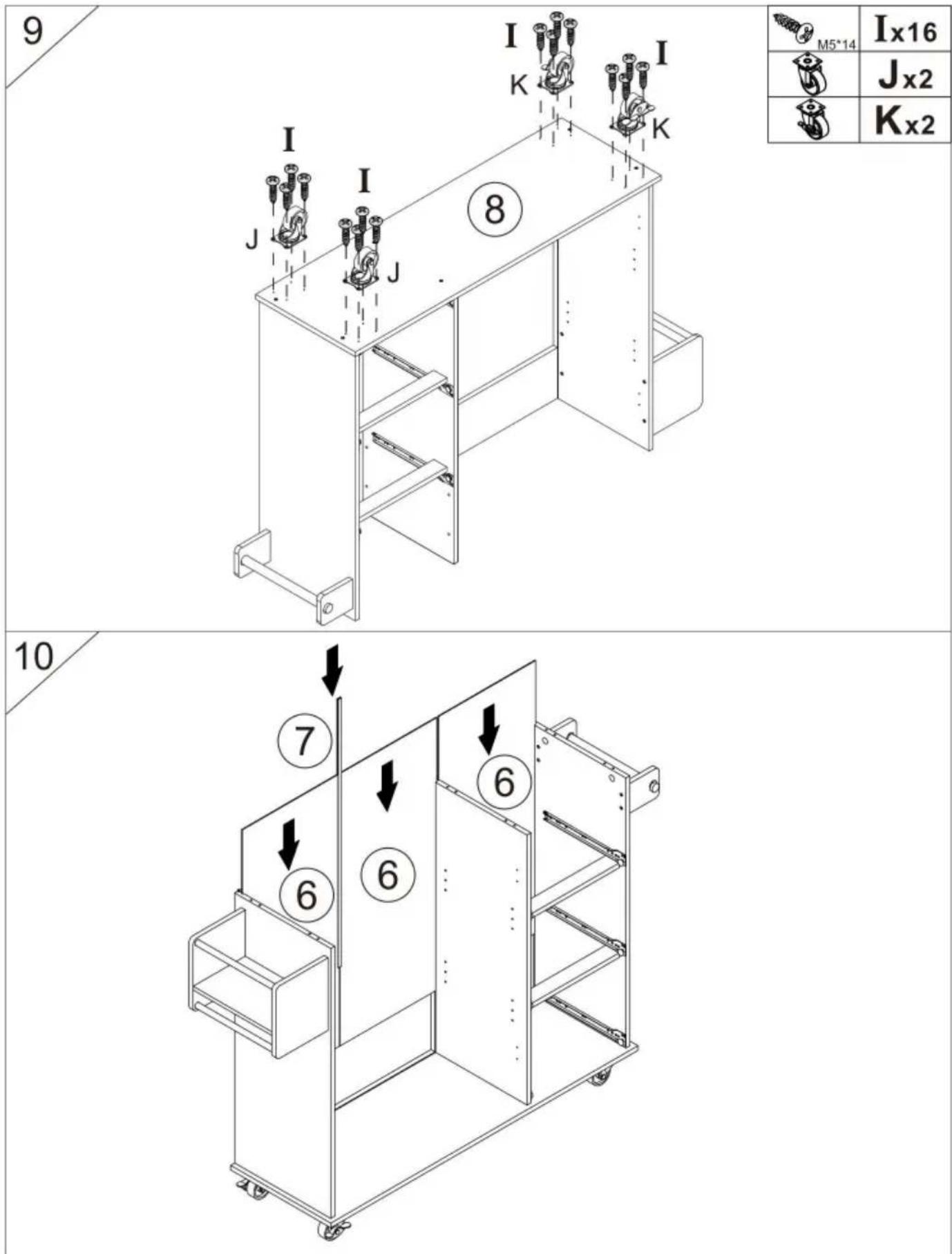

Vevor SR221265 - Assembly Steps - 6

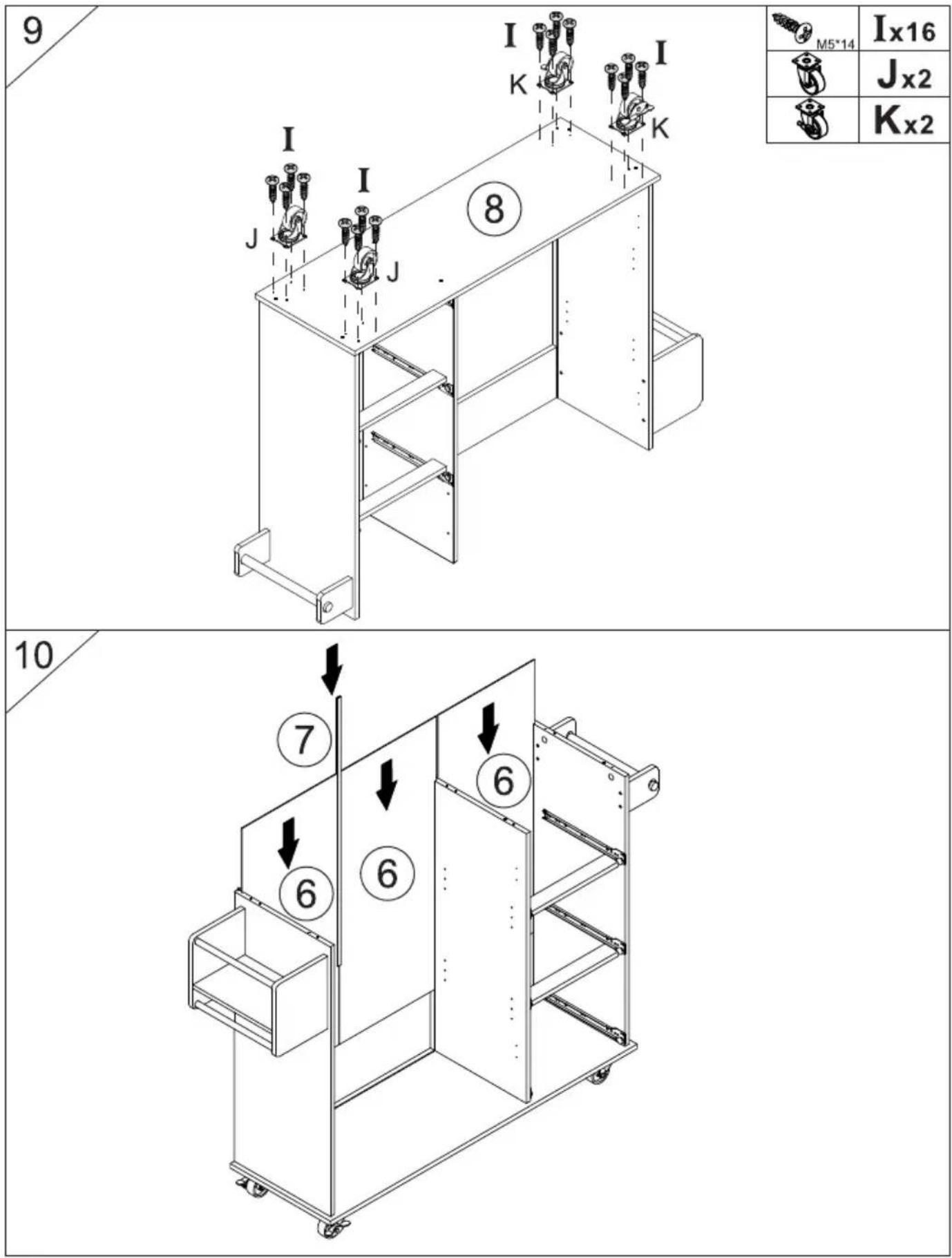

	Ix16
	Jx2
	Kx2

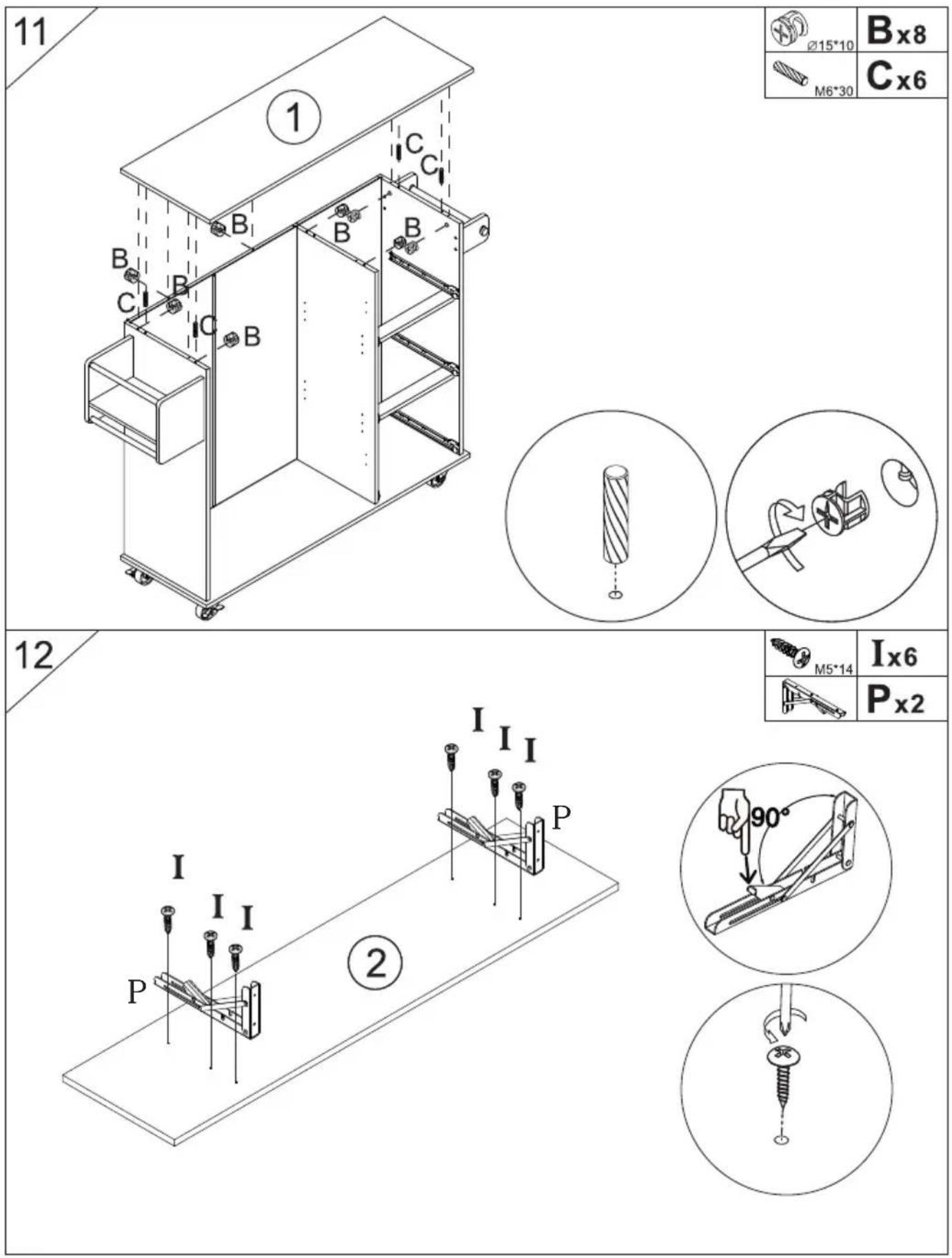

Vevor SR221265 - Assembly Steps - 7

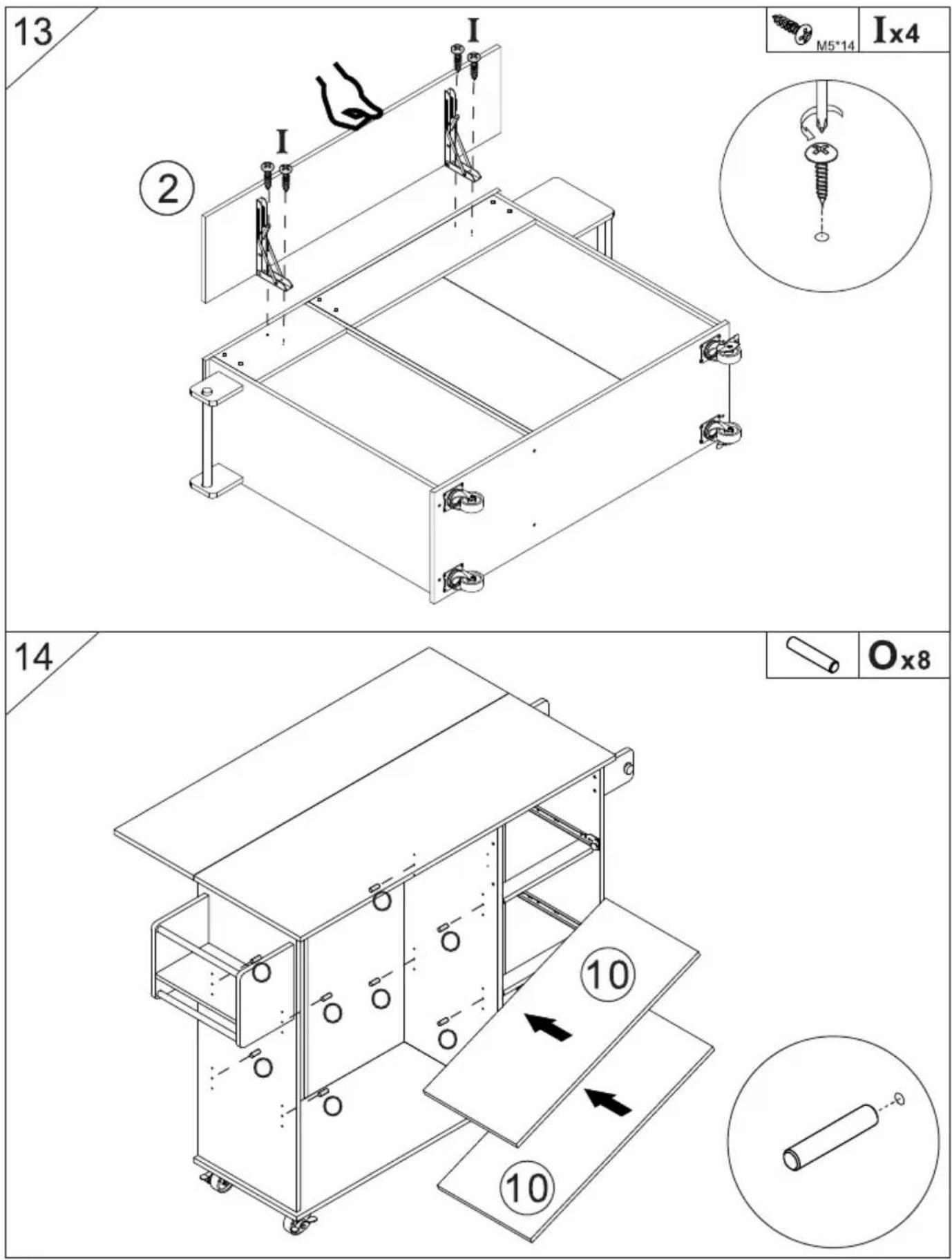

Vevor SR221265 - Assembly Steps - 8

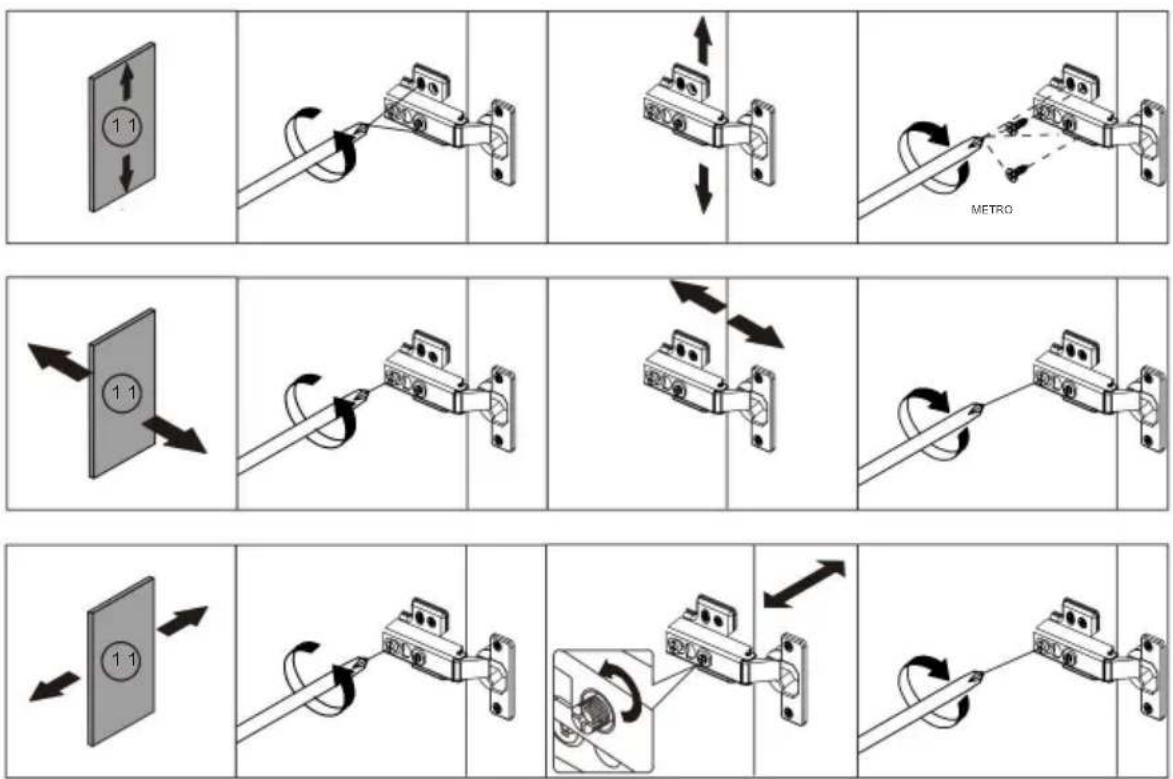

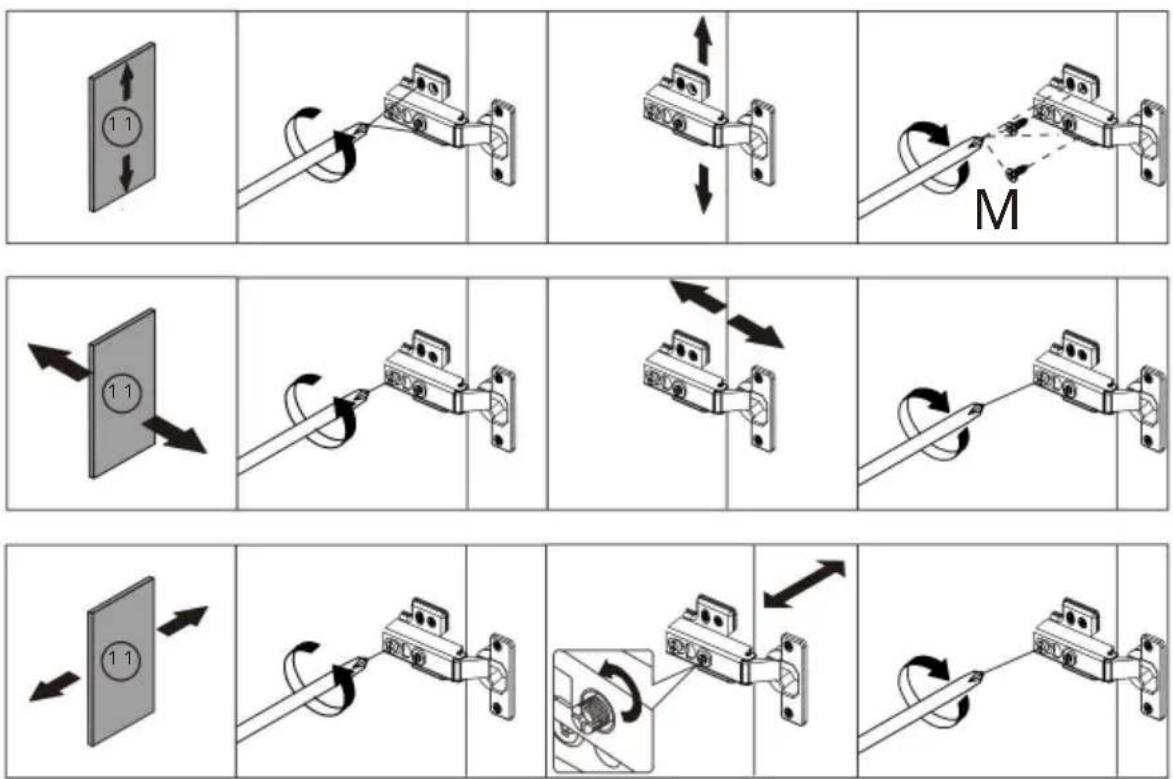

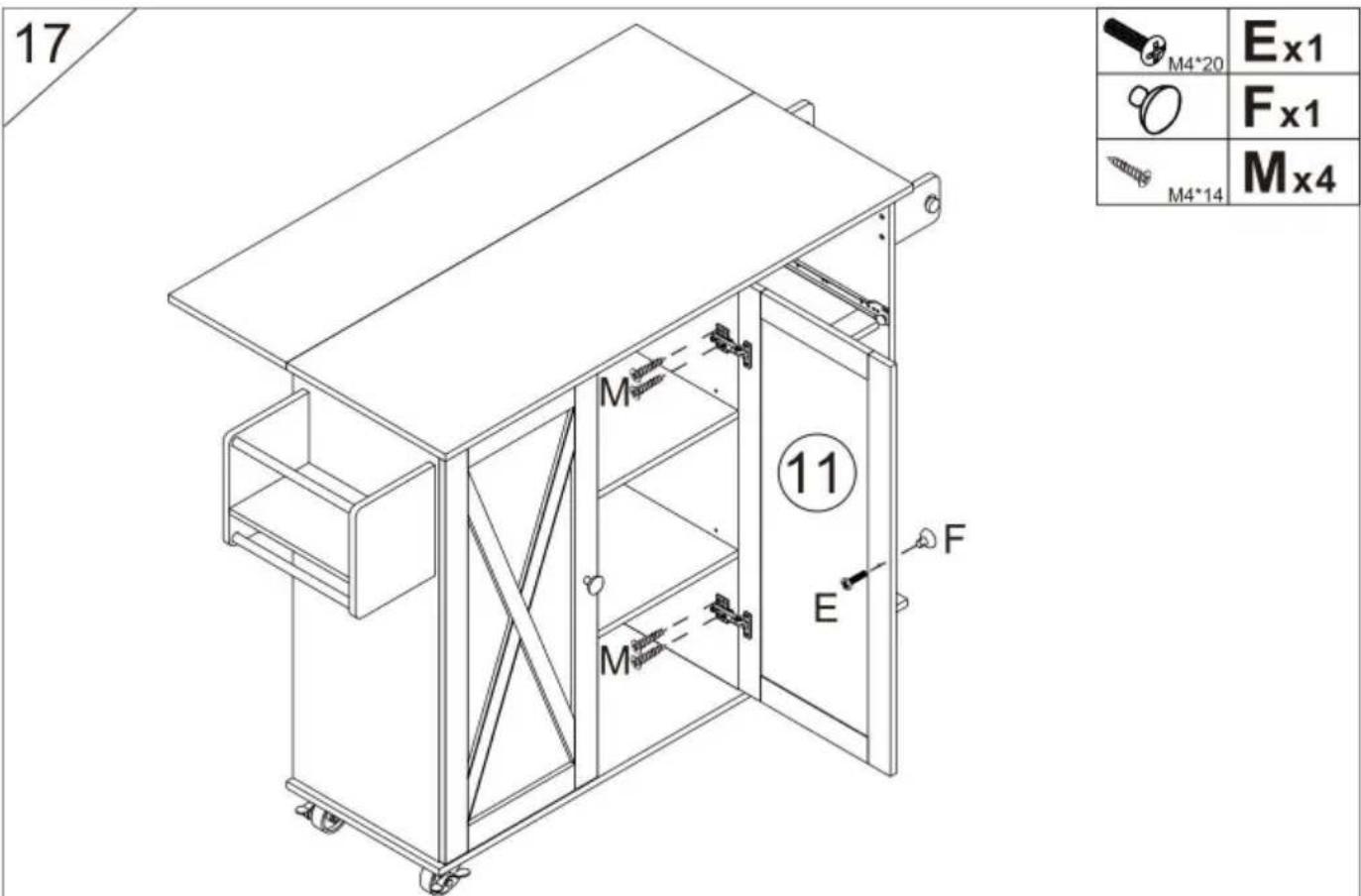

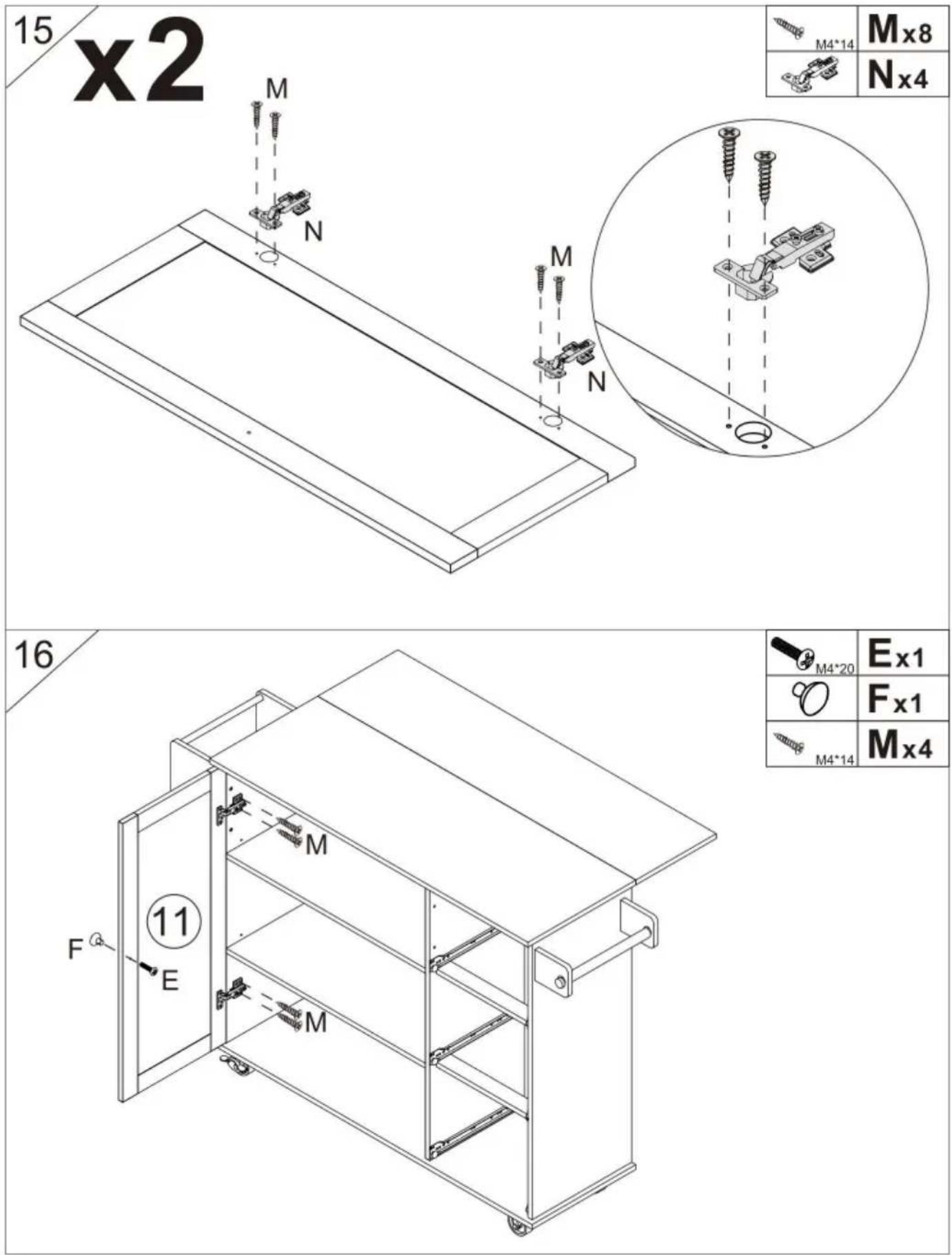

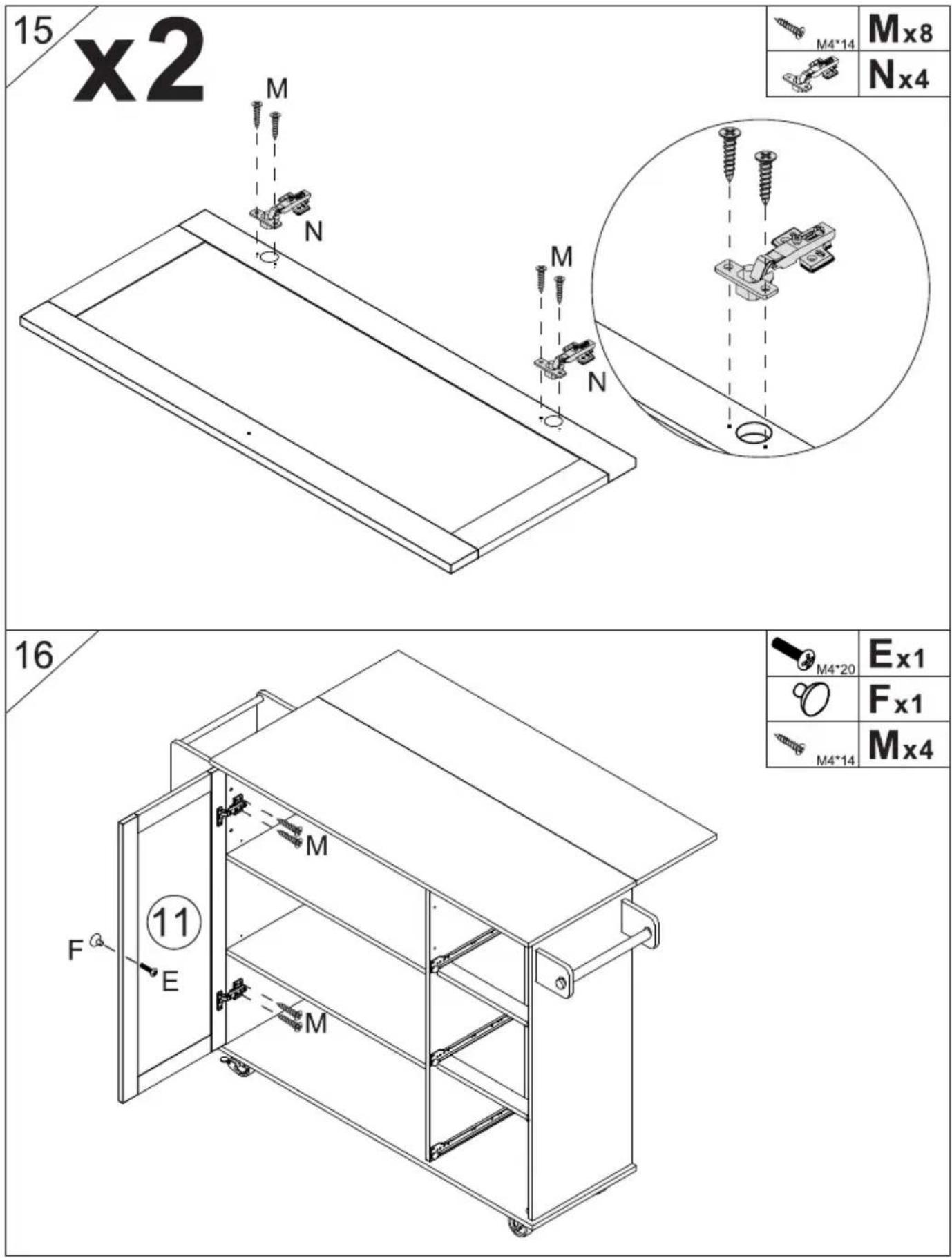

15 x2 M4*14 Mx8 Nx4 M M N M M 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

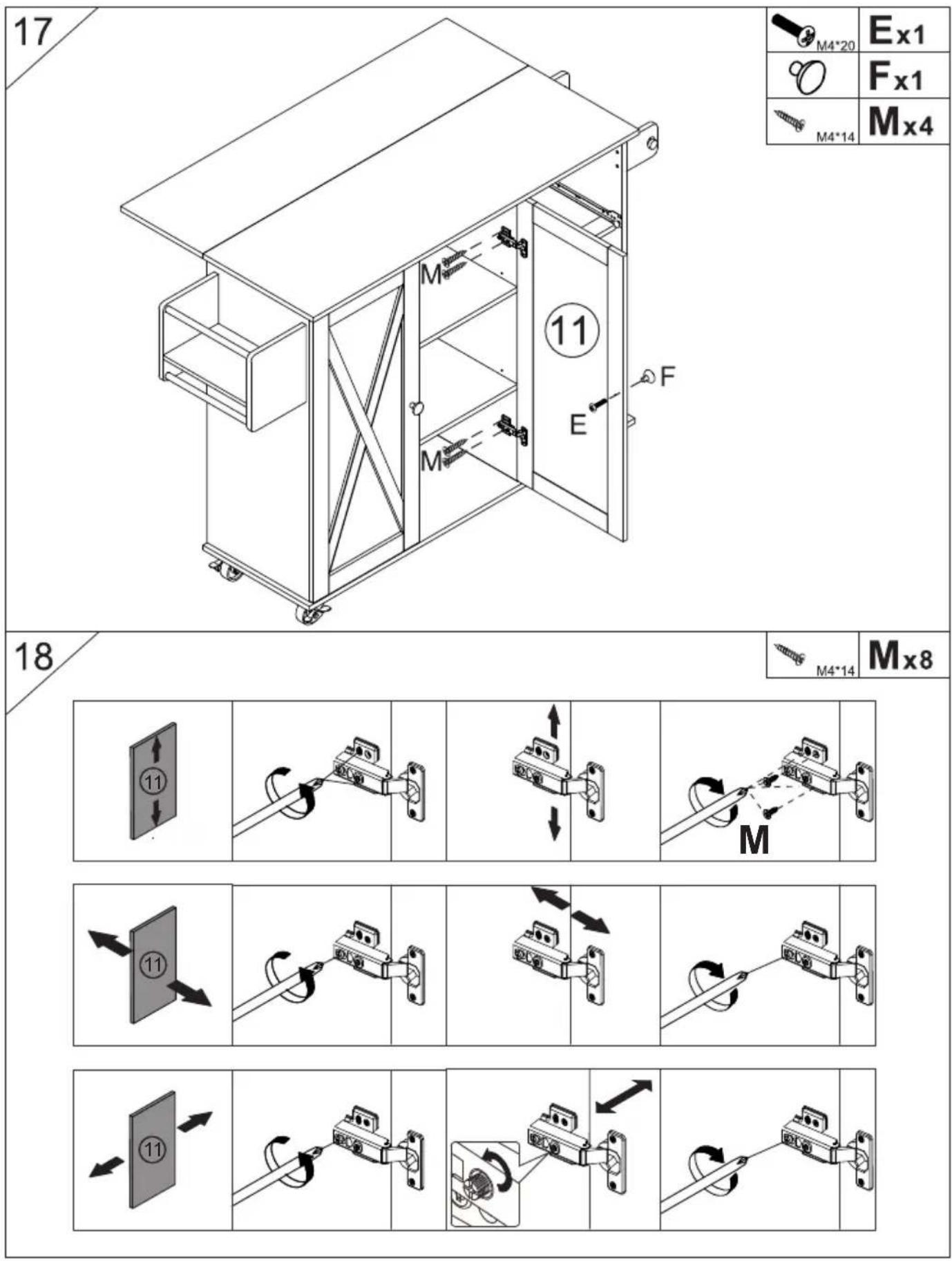

Vevor SR221265 - Assembly Steps - 10

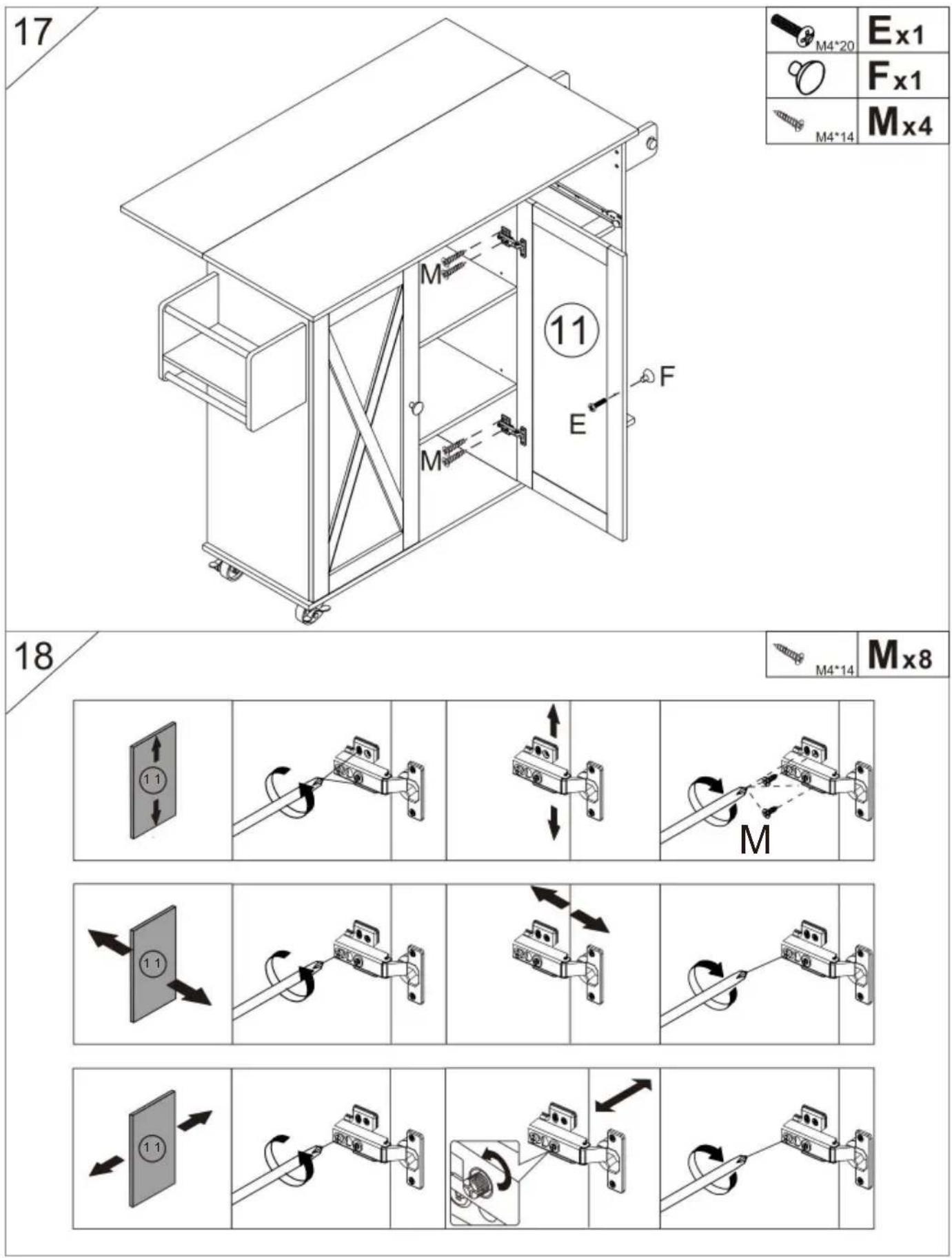

M4*20	Ex1
	Fx1
M4*14	Mx4

Mx8

Vevor SR221265 - Assembly Steps - 11

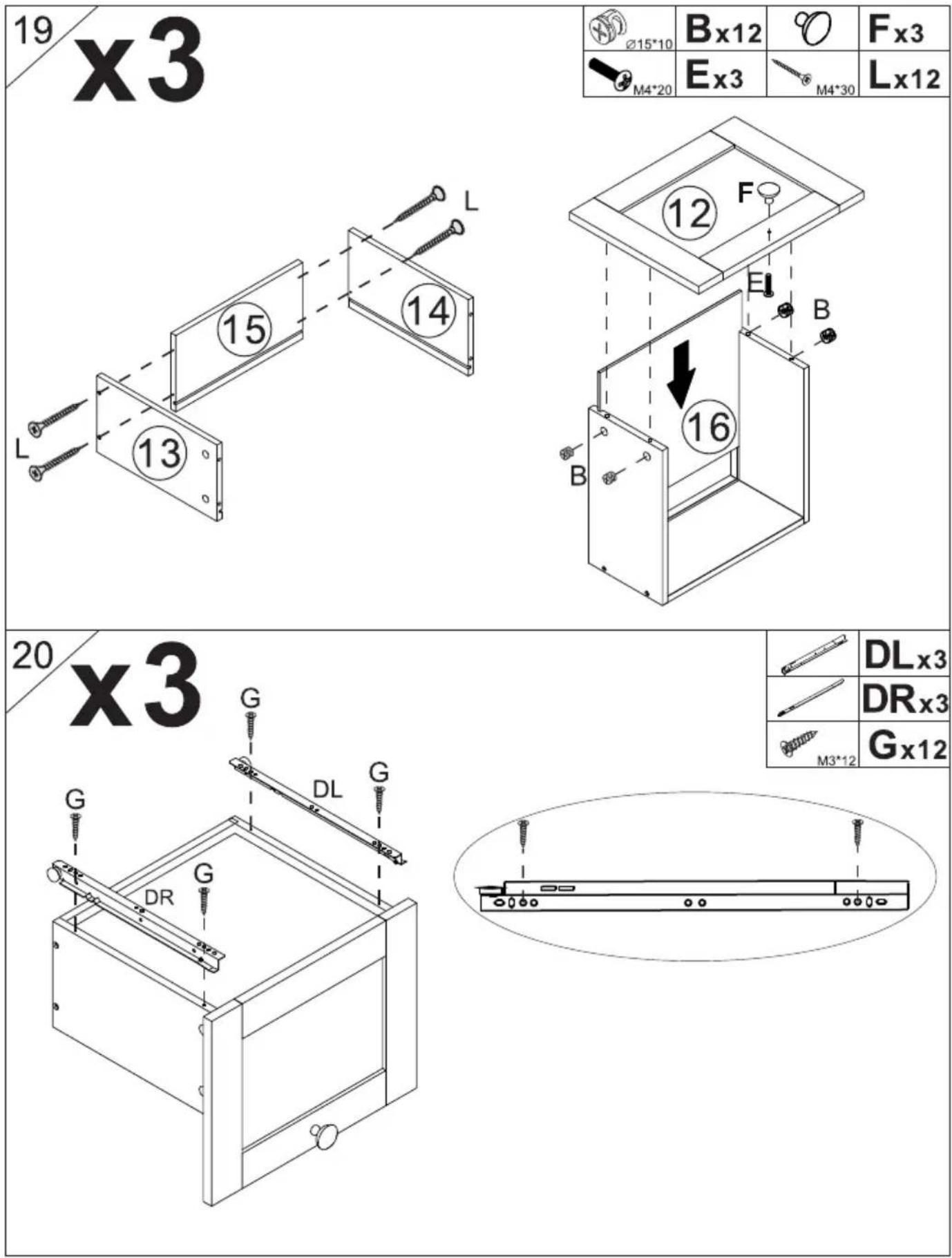

Vevor SR221265 - Assembly Steps - 12

	Bx12		Fx3
	Ex3		Lx12

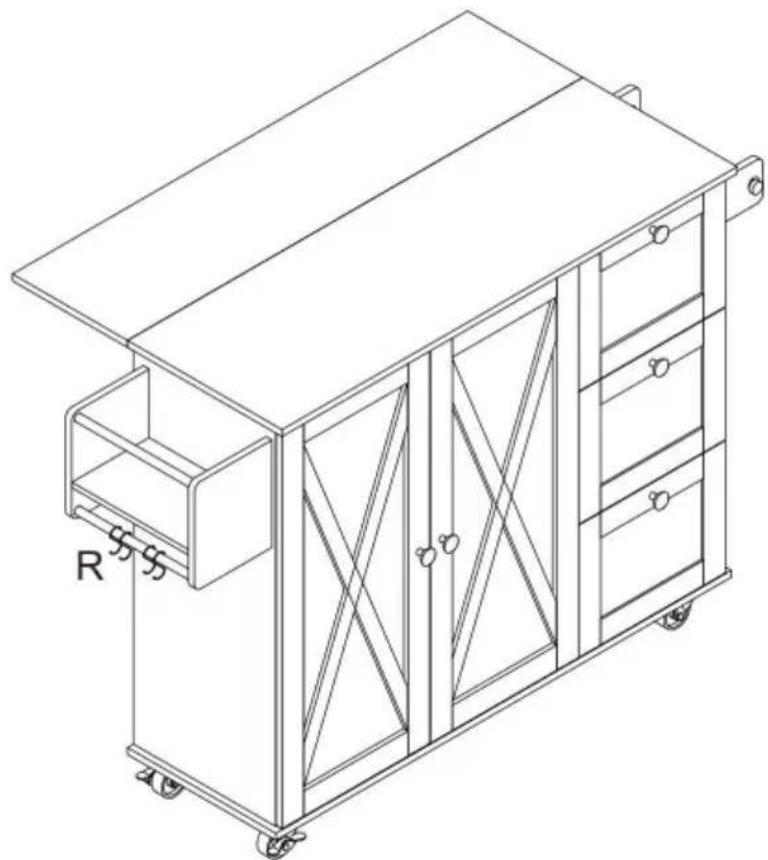

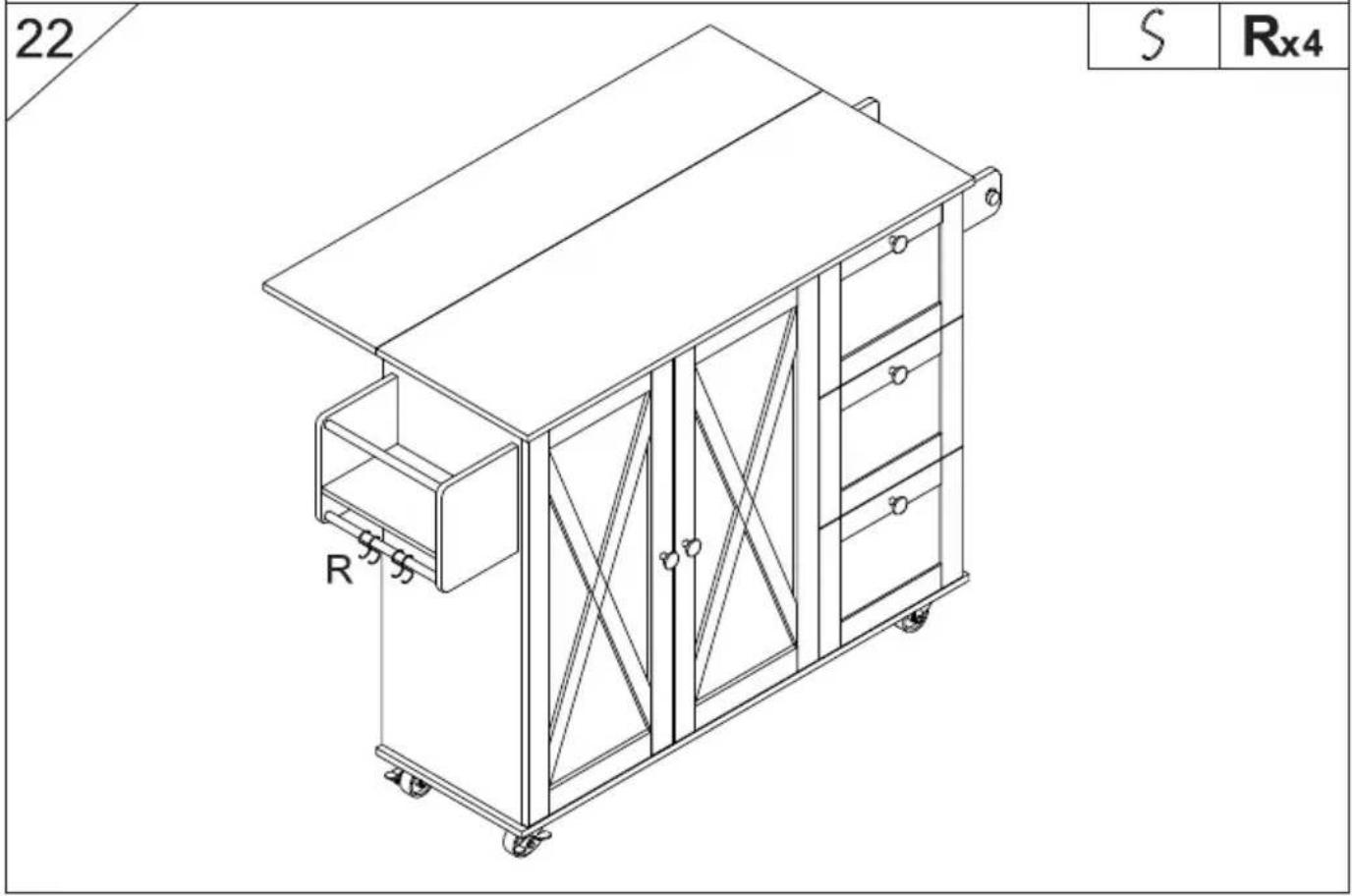

22 S Rx4 R S S

General Care

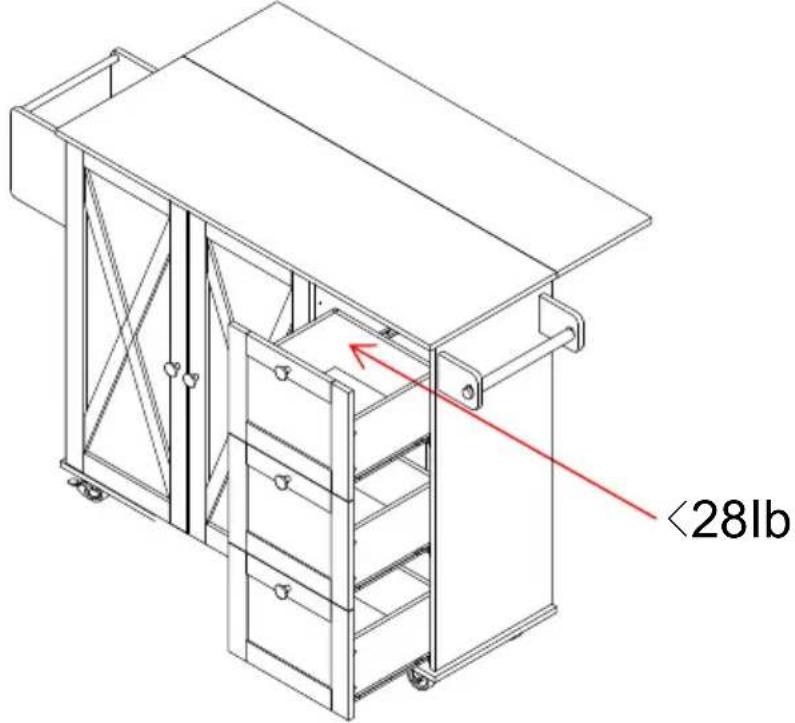

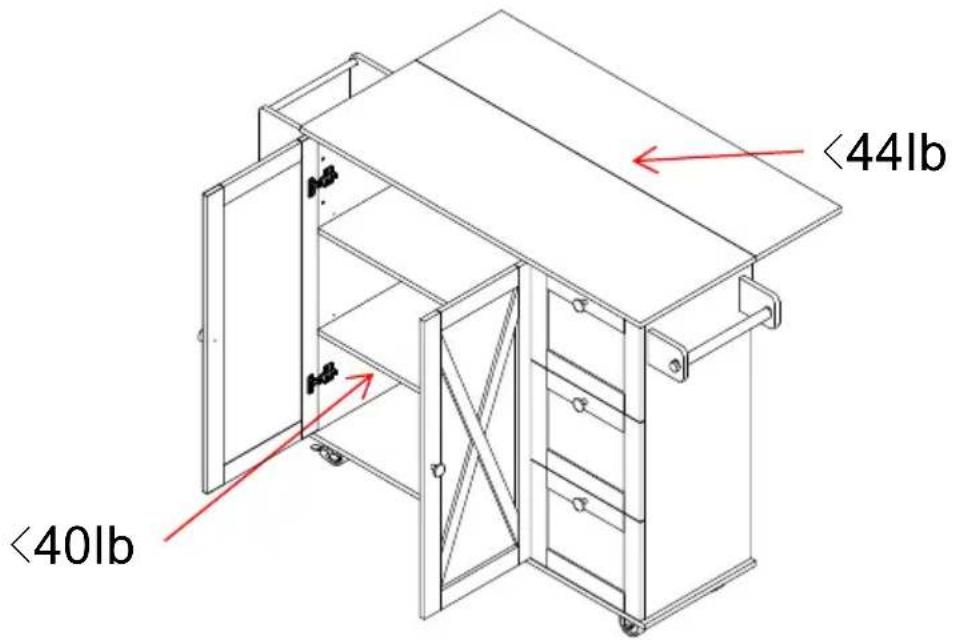

Make sure each layer should not exceed 40 lb loading weight.
Make sure folding board should not exceed 44 lb loading weight.

<40lb <44lb

Make sure each drawer should not exceed 28 lb loading weight.

<28lb

Cleaning

For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangcheng Road 803 Nong 11 Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor SR221265 - Cleaning - 1

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor SR221265 - Cleaning - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: SR221265

NEED HELP? CONTACT US!

PRODUCT PARAMETERS

LIST OF PARTS

1	2	3	4

5	6	7	8

9	10

13	14	15	16

172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*35[8203]36 PCS+1 de rechange	B ∅15*1036 PCS+1 de rechange	C ∅6*3016 PCS+1 de rechange	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS+1 de rechange	H M7*408 PCS
I M5*1426 PCS+1 de rechange	J[PY8K]2 PCS	K[0864]2 PCS	L M4*3012 PCS+1 de rechange	M M4*1424 PCS+1 de rechange	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R[SWWC]4 PCS	S1 PC	CL[T400]3 PCS	CR3 PCS	DL3 PCS	DR3 PCS

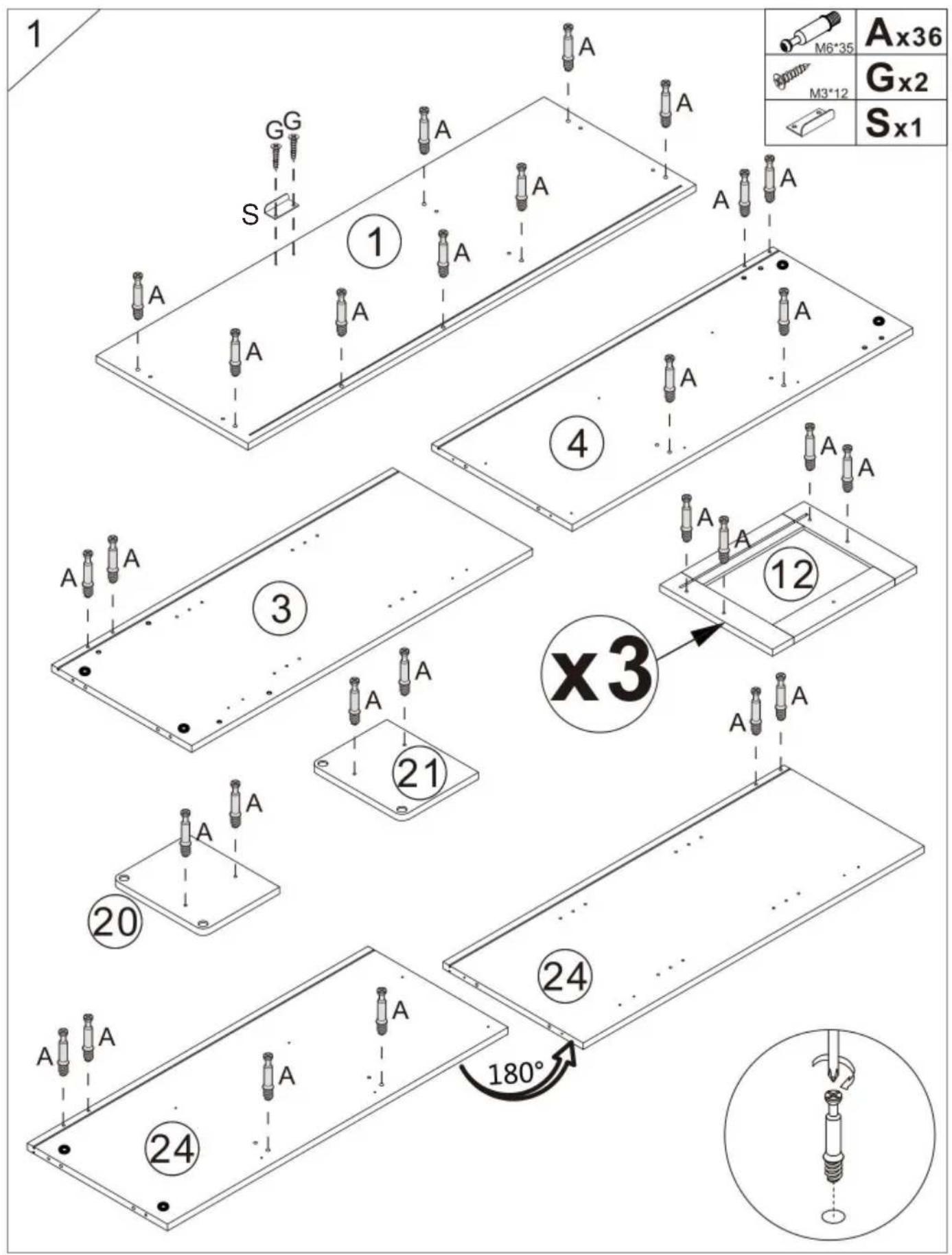

Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process

Cam Lock Fastening System

ASSEMBLY STEPS 1 M6*35 A x36 M3*12 G x2 S x1 m A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A 12 x3 3 21 20 24 180° 24

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

3 Ø15*10 B x4 20 22 21 23 4 M7*40 H x4 21 20 3

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

Vevor SR221265 - Cam Lock Fastening System - 6

Vevor SR221265 - Cam Lock Fastening System - 7

Vevor SR221265 - Cam Lock Fastening System - 8

15 x2 M4*14 Mx8 Nx4 M N M N 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

Vevor SR221265 - Cam Lock Fastening System - 10

	Ex1
	Fx1
	Mx4

M4*14

Mx8

Vevor SR221265 - Cam Lock Fastening System - 11

Vevor SR221265 - Cam Lock Fastening System - 12

	Bx12		Fx3
	Ex3		Lx12

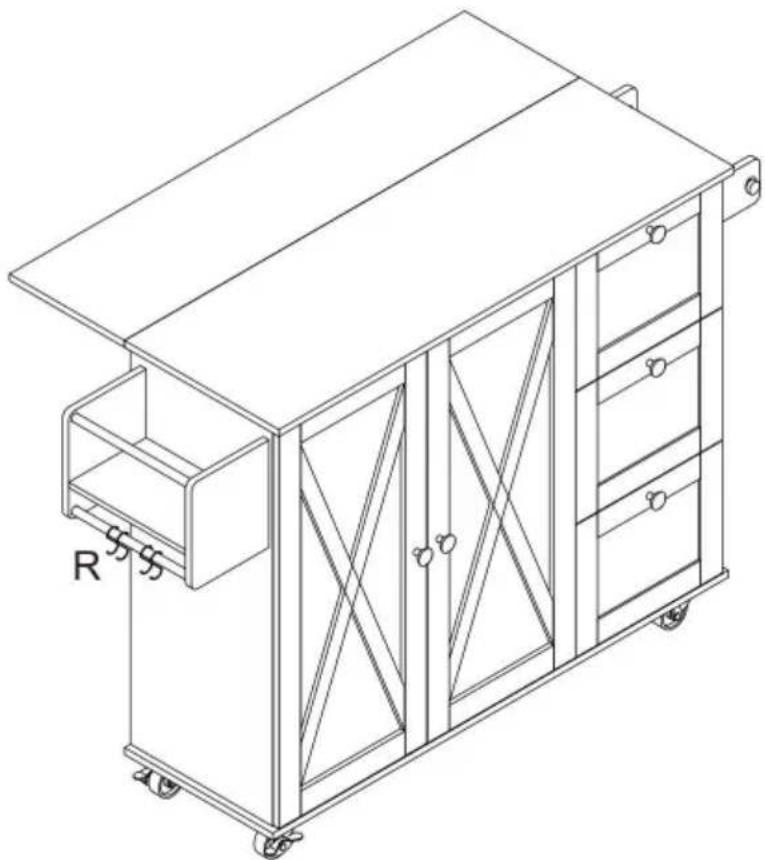

Line drawing of a mechanical cart with handlebars and wheels, no text or symbols present

Rx4

General Care

For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu,

Shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD

NSW 2122 Australia

Place, Rancho Cucamonga, CA 91730

Vevor SR221265 - General Care - 1

E-CrossStu GmbH

A/S YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: SR221265

PARTS LIST

11 PC	21 PC	31 PC	41 PC
51 PC	63 PCS	71 PC	81 PC
91 PC	102 PC	112 PCS	123 PCS
133 PCS	143 PCS	153 PCS	163 PCS
172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*35[06CS]36 PCS+1Ersatz	B ∅15*1036 PCS+1Ersatz	C ∅6*3016 PCS+1Ersatz	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS+1Ersatz	H M7*408 PCS
I M5*1426 PCS+1Ersatz	J[TZBT]2 PCS	K[XXBW]2 PCS	L M4*3012 PCS+1Ersatz	M M4*1424 PCS+1Ersatz	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R[ZGW8]4 PCS	S1 PC	CL3 PCS	CR3 PCS	DL3 PCS	DR3 PCS

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process

Vevor SR221265 - Cam Lock Fastening System - 1

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a pipette inserted into a rectangular block, no text or symbols present.

2 Simple line drawing of a mechanical assembly with a block and a directional arrow, no text or symbols.

4 Isometric line drawing of a mechanical setup with a cylindrical component mounted on a base plate, no text or symbols.

ASSEMBLY INSTRUCTIONS 1 M6*35 A x36 M3*12 G x2 S x1 A x3 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x38 A x38 A x38 A x38 A…

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

3 Ø15*10 B x4 21 22 20 23 4 M7*40 H x4 21 20 3

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

Vevor SR221265 - Cam Lock Fastening System - 12

	Ix16
	Jx2
	Kx2

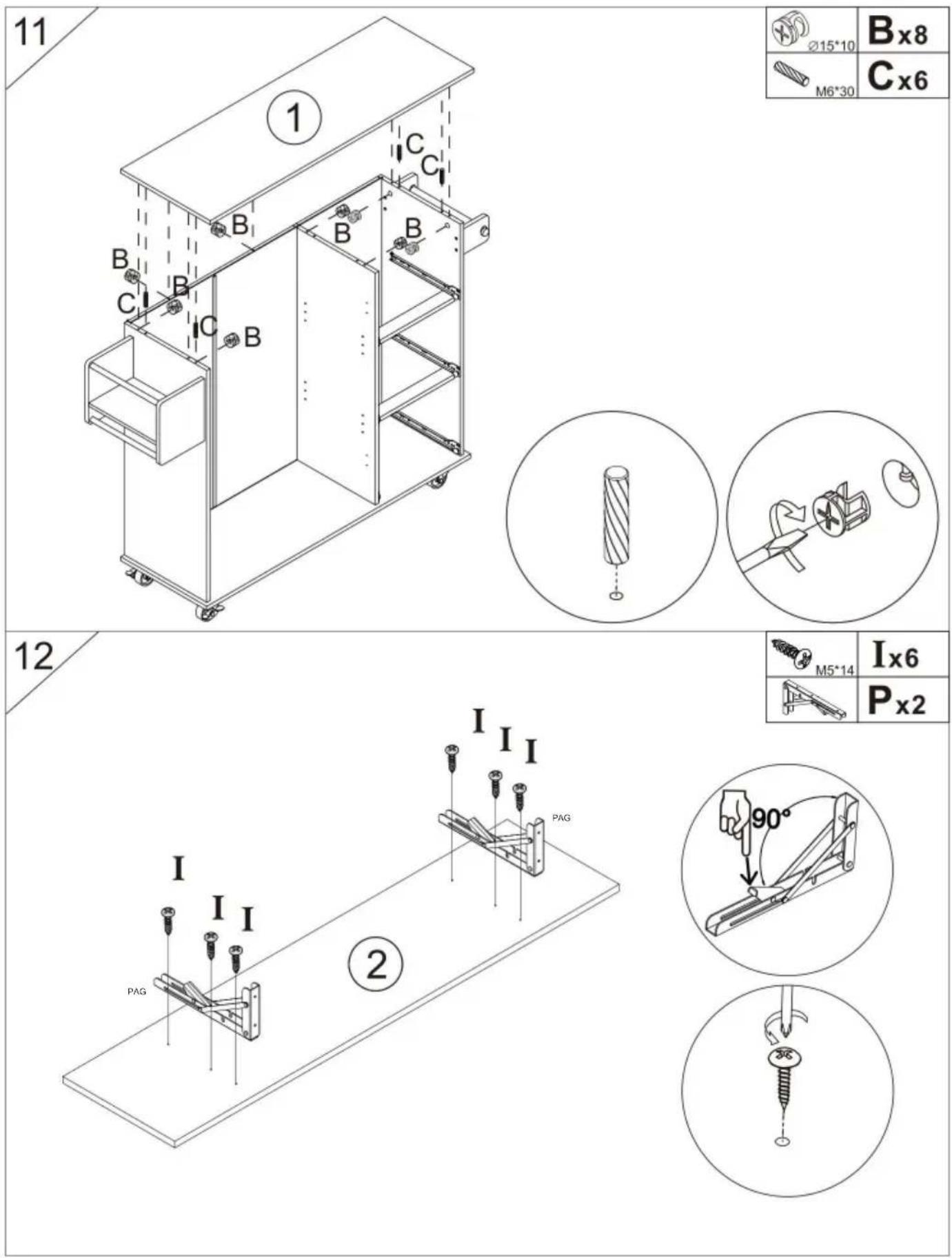

Vevor SR221265 - Cam Lock Fastening System - 13

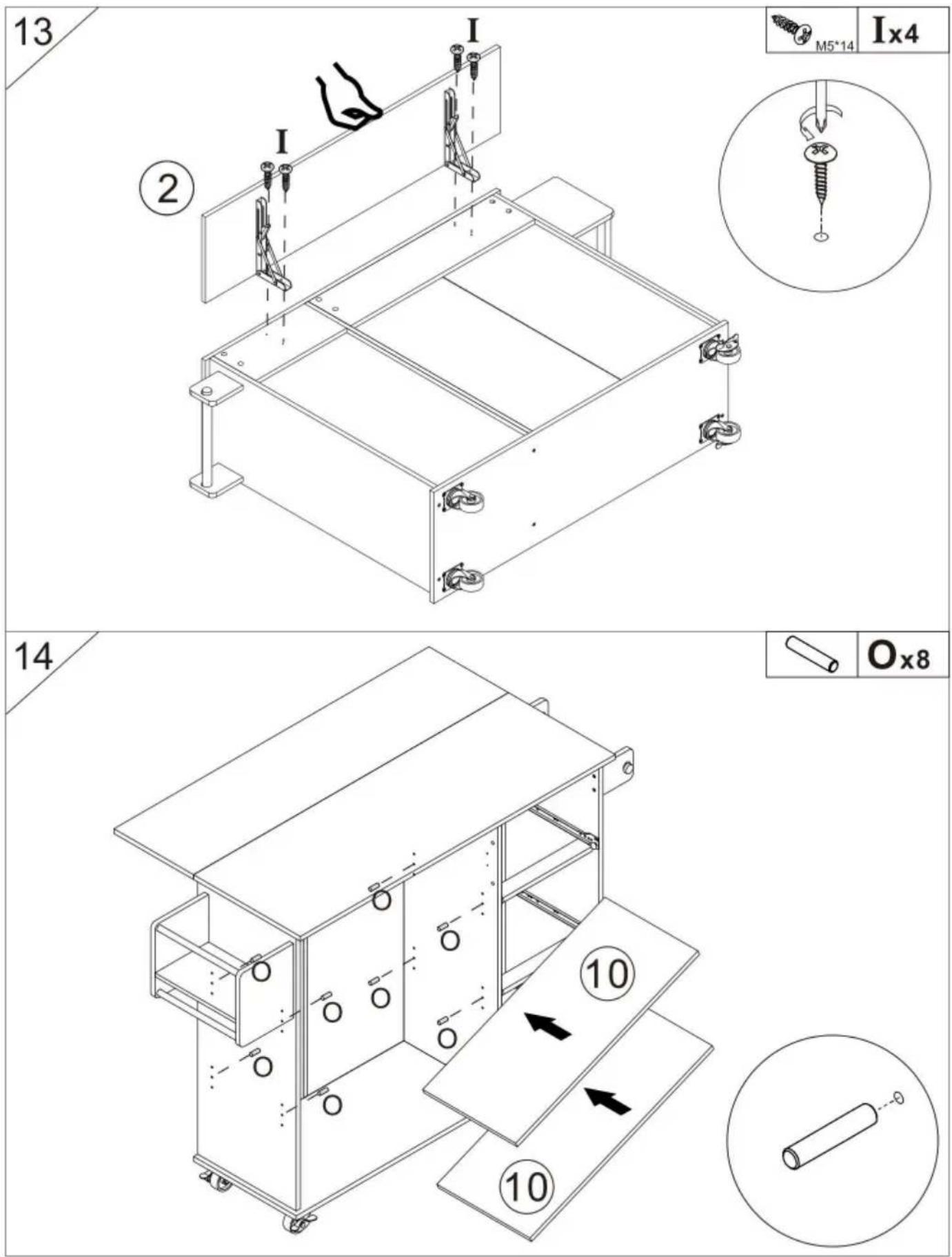

Vevor SR221265 - Cam Lock Fastening System - 14

15 x2 M4*14 Mx8 Nx4 M N M N 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

17 M4*20 Ex1 Fx1 M4*14 Mx4 M E F M 11

M4*20 Ex1 Fx1 M4*14 Mx4

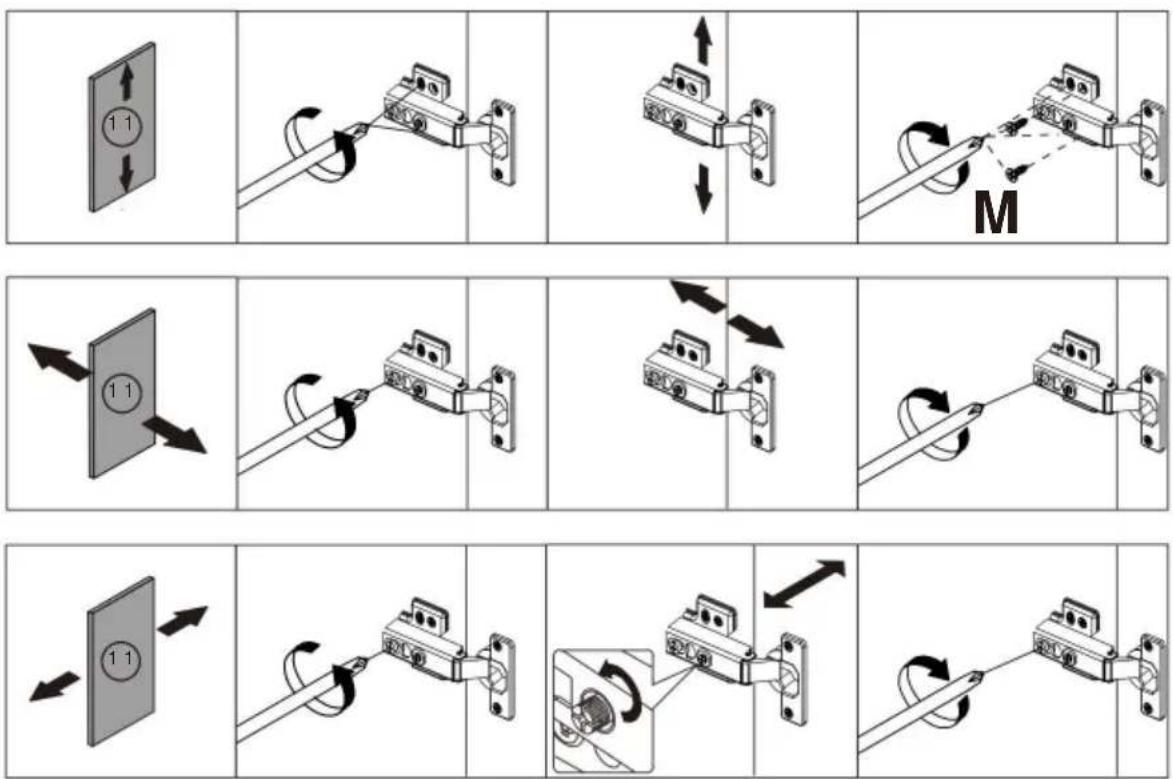

Vevor SR221265 - Cam Lock Fastening System - 18

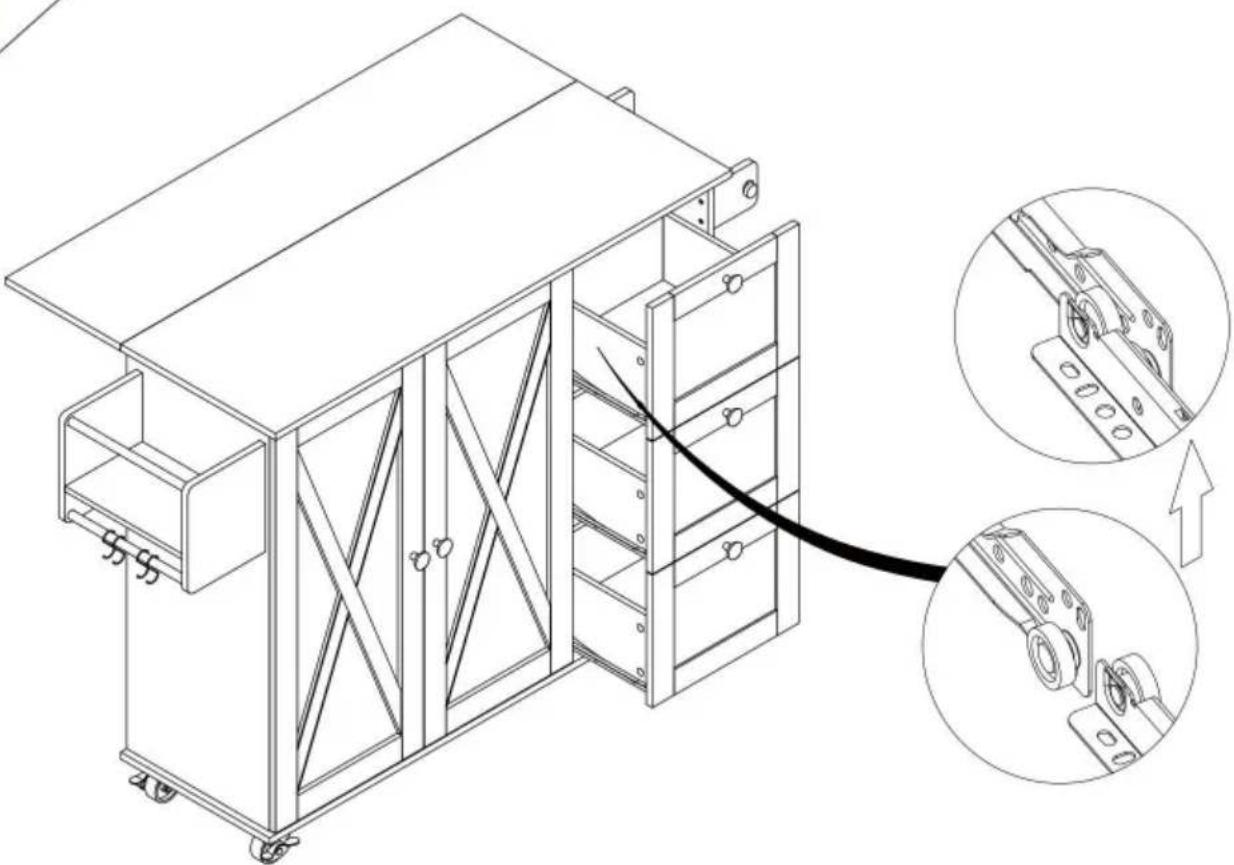

Vevor SR221265 - Cam Lock Fastening System - 20

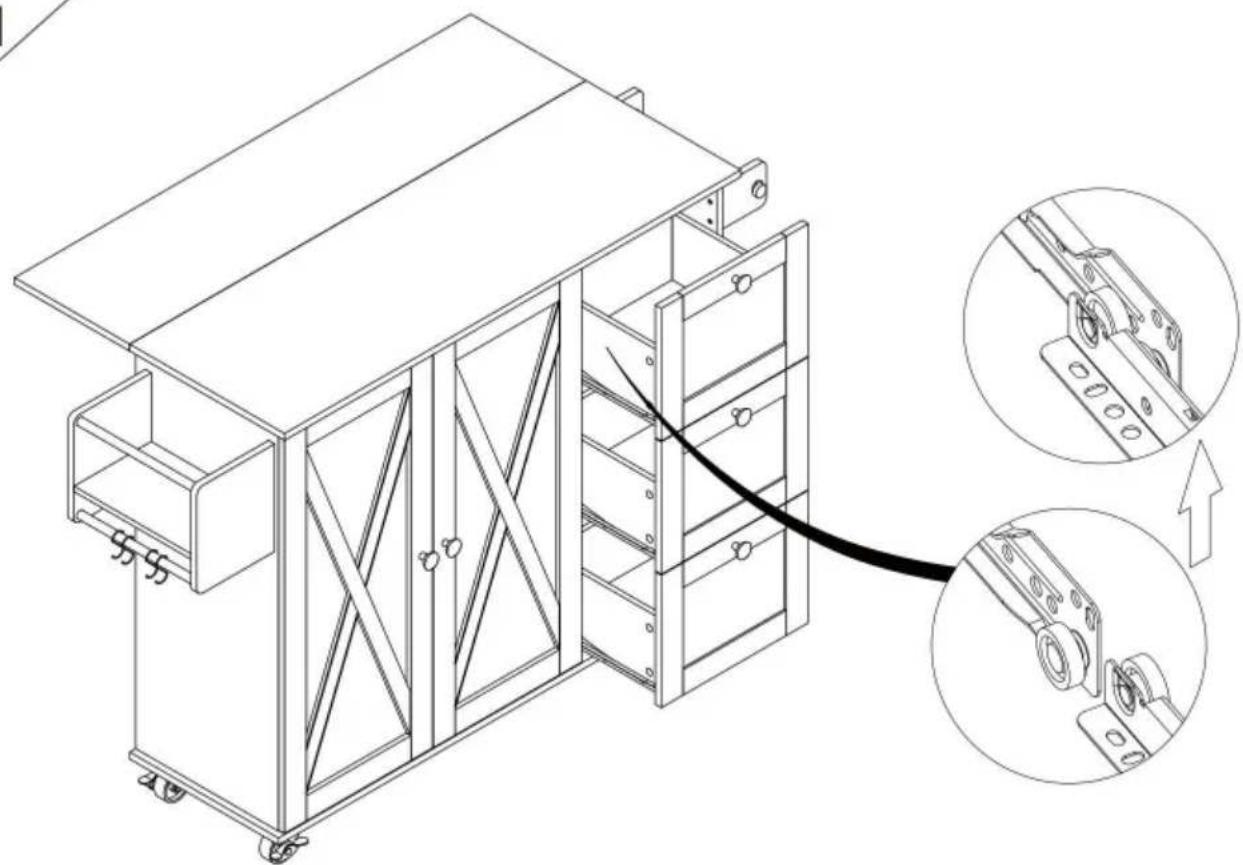

21 Technical line drawing of a mechanical device with internal components and a cable, showing exploded view, no text or symbols.

Line drawing of a mechanical cart with handlebars and wheels, no text or symbols present.

Rx4

General care

For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported into Australia by: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor SR221265 - General care - 1

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main.

Vevor SR221265 - General care - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: SR221265

PARTS LIST

11 PC	21 PC	31 PC	41 PC
51 PC	63 PCS	71 PC	81 PC
91 PC	102 PC	112 PCS	123 PCS
133 PCS	143 PCS	153 PCS	163 PCS
172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*35[244H]36 PCS+1 spare	B ∅15*1036 PCS+1 spare +1 spare	C ∅6*3016 PCS+1 spare	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS	H M7*40[XTXD]8 PCS
I M5*1426 PCS+1 spare	J[5254]2 PCS	K[CKZW]2 PCS	L M4*3012 PCS+1 spare	M M4*1424 PCS+1 spare	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R4 PCS	S1 PC	CL3 PCS	CR3 PCS	DL3 PCS	DR3 PCS
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process

Cam Lock Fastening System

ASSEMBLY STEPS 1 M6*35 A x36 M3*12 G x2 S x1 A x3 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x36 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x37 A x38 A x38 A x38 A x38 A…

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

3 Ø15*10 B x4 21 22 20 23 4 M7*40 H x4 21 20 3

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

Vevor SR221265 - Cam Lock Fastening System - 6

	Ix16
	Jx2
	Kx2

Vevor SR221265 - Cam Lock Fastening System - 7

Vevor SR221265 - Cam Lock Fastening System - 8

15 x2 M4*14 Mx8 Nx4 M N M N 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

17 M4*20 Ex1 Fx1 M4*14 Mx4 M E F 11 M E

	Ex1
	Fx1
	Mx4

Vevor SR221265 - Cam Lock Fastening System - 11

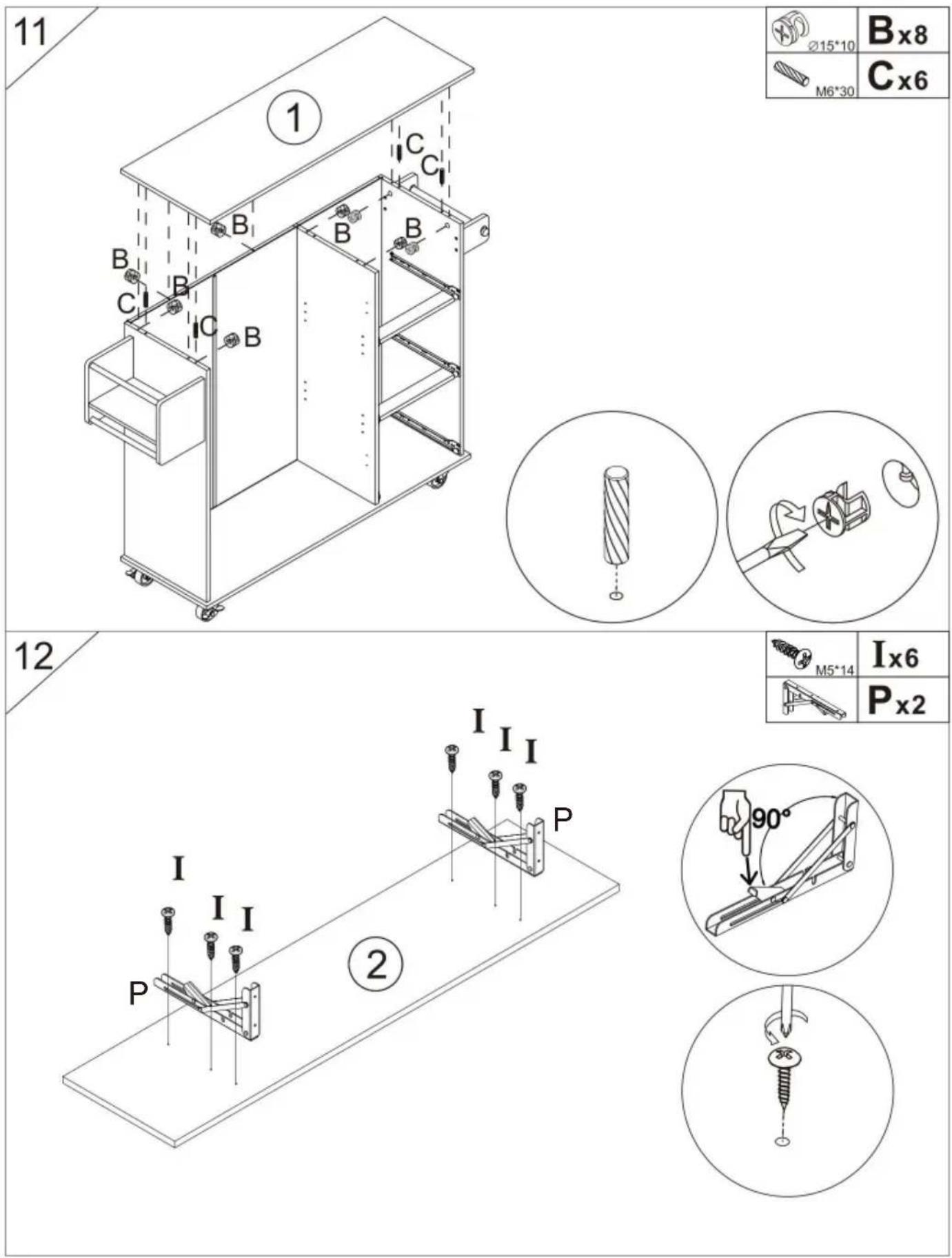

Vevor SR221265 - Cam Lock Fastening System - 13

21 Technical line drawing of a mechanical device with internal components and a cable, showing exploded view (no text or symbols)

Line drawing of a mechanical cart with handlebars and wheels, no text or symbols present

Rx4

General assistance

For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported in the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor SR221265 - General assistance - 1

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor SR221265 - General assistance - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: SR221265

PARTS LIST

1	2	3	4
5	6	7	8
9	10	11	12
13	14	15	16
172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*35[408X]36 PCS+1repuesto	B ∅15*1036 PCS	C ∅6*3016 PCS+1repuesto	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS+1repuesto+1repuesto	M7*408 PCS
I M5*1426 PCS+1repuesto	J[5H70]2 PCS	K2 PCS	L M4*3012 PCS+1repuesto	M M4*1424 PCS+1repuesto	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R4 PCS	S1 PC	CL3 PCS	CR3 PCS	DL3 PCS	DR3 PCS

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process

Vevor SR221265 - Cam Lock Fastening System - 1

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a pipette inserted into a rectangular block (no text or symbols)

Simple line drawing of a mechanical assembly with a block and a directional arrow (no text or symbols)

Isometric line drawing of a mechanical setup with a cylindrical component mounted on a base plate (no text or symbols)

ASSEMBLY STEPS 1 M6*35 A x36 M3*12 G x2 S x1 GG A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A 12 x3 ① ③ ④ ②1 ②0 ②4 ②4 180° ②4

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

3 Ø15*10 B x4 20 21 23 4 M7*40 H x4 21 20 3

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

Vevor SR221265 - Cam Lock Fastening System - 12

Vevor SR221265 - Cam Lock Fastening System - 13

Vevor SR221265 - Cam Lock Fastening System - 14

15 x2 M4*14 Mx8 Nx4 M N M N 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

Vevor SR221265 - Cam Lock Fastening System - 16

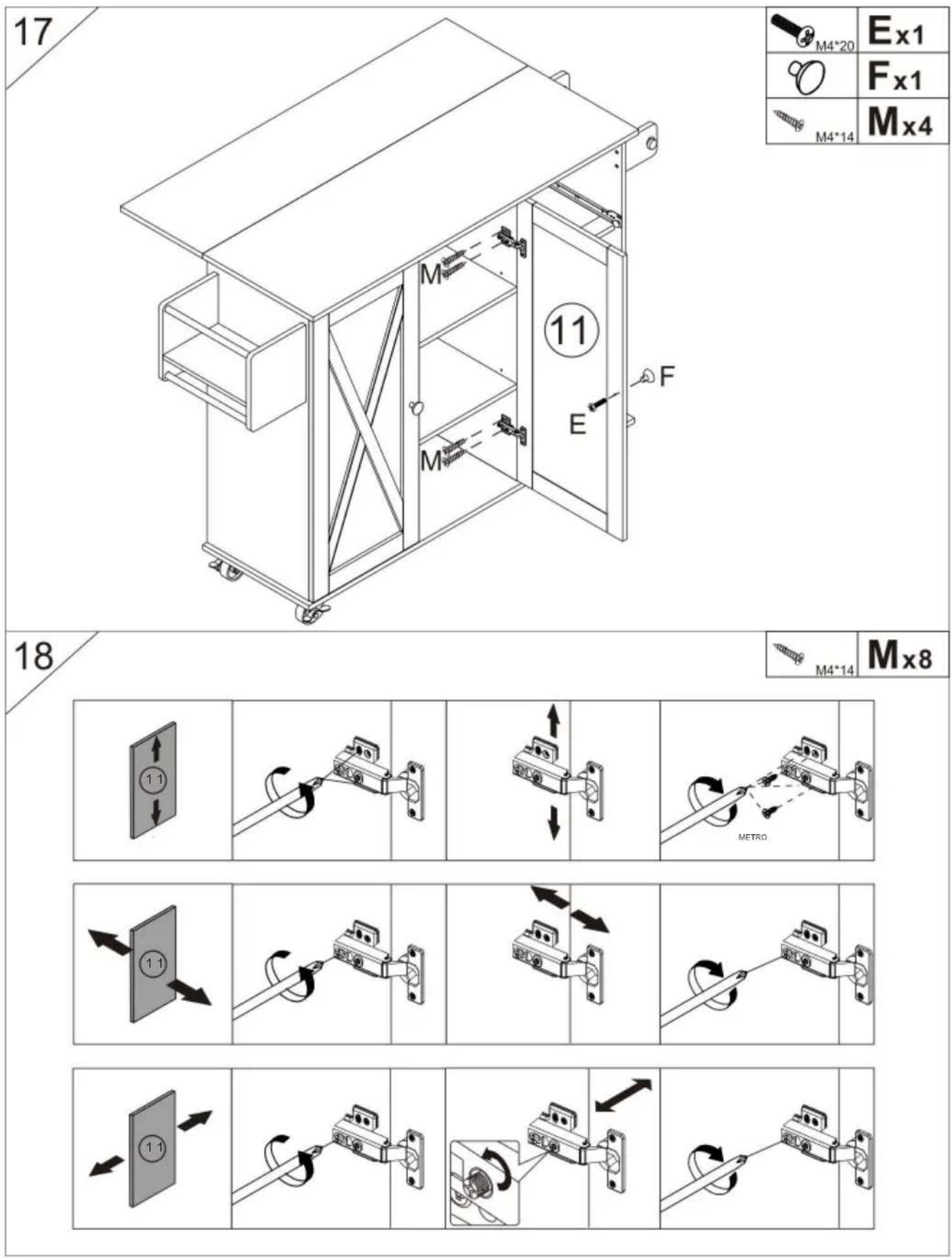

	Ex1
	Fx1
	Mx4

M4*14

Mx8

Vevor SR221265 - Cam Lock Fastening System - 17

Vevor SR221265 - Cam Lock Fastening System - 18

	Bx12		Fx3
	Ex3		Lx12

Line drawing of a mechanical cart with handlebars and wheels, no text or symbols present

Rx4

General care

For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor SR221265 - General care - 1

E-CrossStu GmbH

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: SR221265

NEED HELP? CONTACT US!

PARTS LIST





172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*35[8x0T]36 PCS+1zapasowy	B ∅15*1036 PCS+1zapasowy +1zapasowy	C ∅6*3016 PCS+1zapasowy	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS	H M7*408 PCS
I M5*1426 PCS+1zapasowy	J[W202]2 PCS	K[00C4]2 PCS	L M4*3012 PCS+1zapasowy	M M4*1424 PCS+1zapasowy	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R[0TB6]4 PCS	S1 PC	CL3 PCS	CR3 PCS	DL3 PCS	DR3 PCS
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process

Cam Lock Fastening System

ASSEMBLY STEPS 1 M6*35 A x36 M3*12 G x2 S x1 A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A x3 21 20 24 24 180°

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

3 Ø15*10 B x4 20 21 23 4 M7*40 H x4 21 20 3

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

Vevor SR221265 - Cam Lock Fastening System - 6

Vevor SR221265 - Cam Lock Fastening System - 7

Vevor SR221265 - Cam Lock Fastening System - 8

15 x2 M4*14 Mx8 Nx4 M N M N 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

17 M4*20 Ex1 Fx1 M4*14 Mx4 M E F M 11

	Ex1
	Fx1
	Mx4

Vevor SR221265 - Cam Lock Fastening System - 11

Vevor SR221265 - Cam Lock Fastening System - 13

	Bx12		Fx3
	Ex3		Lx12

Line drawing of a modular furniture cabinet with handlebars and wheels (no text or symbols)

Rx4

General Care

-For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor SR221265 - General Care - 1

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor SR221265 - General Care - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

Model: SR221265

NEED HELP? CONTACT US!

PARTS LIST

11 PC	21 PC	31 PC	41 PC
51 PC	63 PCS	71 PC	81 PC
91 PC	102 PC	112 PCS	123 PCS
133 PCS	143 PCS	153 PCS	163 PCS
172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*3536 PCS+1reserve	B ∅15*1036 PCS+1reserve	C ∅6*3016 PCS+1reserve	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS+1reserve	H M7*408 PCS
I M5*1426 PCS+1reserve	J[0480]2 PCS	K[546VH]2 PCS	L M4*3012 PCS+1reserve	M M4*1424 PCS+1reserve	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R4 PCS	S1 PC	CL3 PCS	CR3 PCS	DL3 PCS	DR3 PCS

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process

Vevor SR221265 - Cam Lock Fastening System - 1

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a pipette inserted into a rectangular block, no text or symbols present

2 Simple line drawing of a mechanical assembly with a block and a directional arrow (no text or symbols)

4 Isometric line drawing of a mechanical setup with a cylindrical component mounted on a base plate (no text or symbols)

ASSEMBLY STEPS 1 M6*35 A x36 M3*12 G x2 S x1 GG A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A 12 x3 ① ③ ④ ②1 ②0 ②4 ②4 180° ②0

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

3 Ø15*10 B x4 21 22 20 23 4 M7*40 H x4 21 20 3

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

Vevor SR221265 - Cam Lock Fastening System - 12

	Ix16
	Jx2
	Kx2

Vevor SR221265 - Cam Lock Fastening System - 13

Vevor SR221265 - Cam Lock Fastening System - 14

15 x2 M4*14 Mx8 Nx4 M N M N 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

17 M4*20 Ex1 Fx1 M4*14 Mx4 M E F M 11

	Ex1
	Fx1
	Mx4

Vevor SR221265 - Cam Lock Fastening System - 17

Vevor SR221265 - Cam Lock Fastening System - 19

21 Technical line drawing of a mechanical device with internal components and a cable, showing exploded view (no text or symbols)

Line drawing of a modular furniture cabinet with handlebars and wheels (no text or symbols)

Rx4

General care

- For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

C/O YH Consulting Limited, Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: SR221265

NEED HELP? CONTACT US!

www.vevor.com/support

PARTS LIST

Vevor SR221265 - PARTS LIST - 1

172 PC	182 PCS	191 PC	201 PC
211 PC	221 PC	232 PC	241 PC

A M6*35[CS18]36 PCS+1 reserv	B ∅15*1036 PCS+1 reserv +1	C ∅6*3016 PCSreserv +1	D M4*356 PCS	E M4*205 PCS	F5 PCS	G M3*1226 PCS	H M7*40[83X7]8 PCS
I M5*1426 PCS+1 reserv	J[DW44]2 PCS	K[12DW4]2 PCS	L M4*3012 PCS+1 reserv	M M4*1424 PCS+1 reserv	N4 PCS	O8 PCS	P2 PCS
Q1 PC	R[2Y25]-4 PCS	S1 PC	CL3 PCS	CR3 PCS	DL3 PCS	DR3 PCS
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process						-

Cam Lock Fastening System

ASSEMBLY SECTION 1 M6*35 A x36 M3*12 G x2 S x1 A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A x3 21 20 24 24 180°

2 CLx3 CRx3 M3*12 Gx12 CL CL 24 CL 4 CR CR G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

3 Ø15*10 B x4 21 22 20 23 4 M7*40 H x4 21 20 3

5 M7*40 Hx4 19 18 18 H H 4 6 Ø15*10 Bx8 M6*30 Cx4 9 B B C 24 17 C B C 17 B B 4

7 Ø15*10 B x4 3 24 9 B 5 8 M6*30 C x6 M4*35 D x6 D D D C C C C 3 4 24

Vevor SR221265 - Cam Lock Fastening System - 6

	Ix16
	Jx2
	Kx2

Vevor SR221265 - Cam Lock Fastening System - 7

Vevor SR221265 - Cam Lock Fastening System - 8

15 x2 M4*14 Mx8 Nx4 M N M N 16 M4*20 Ex1 Fx1 M4*14 Mx4 11 F E M M

Vevor SR221265 - Cam Lock Fastening System - 10

	Ex1
	Fx1
	Mx4

M4*14

Mx8

Vevor SR221265 - Cam Lock Fastening System - 11

Vevor SR221265 - Cam Lock Fastening System - 12

	Bx12		Fx3
	Ex3		Lx12

Line drawing of a mechanical cart with handlebars and wheels, no text or symbols present.

Rx4

General care

For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint-free cotton cloth.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor SR221265 - General care - 1

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main.

Vevor SR221265 - General care - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate https://www.vevor.com/support

Table of contents Click a title to access it

KITCHEN ISLAND USER MANUAL
MODEL: SR
VEVOR®
TOUGH TOOLS, HALF PRICE
NEED HELP? CONTACT US
PRODUCT PARAMETERS
ASSEMBLY PRECAUTIONS
USE PRECAUTIONS
WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM
TIPPING
PARTS LIST
CAM LOCK FASTENING SYSTEM
ASSEMBLY STEPS
GENERAL CARE
CLEANING
GENERAL ASSISTANCE

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : SR221265

Category : Kitchen furniture
