CEILING CURTAIN TRACK SET

MODEL: SZ-101A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CEILING CURTAIN

TRACK SET

MODEL: SZ-101A

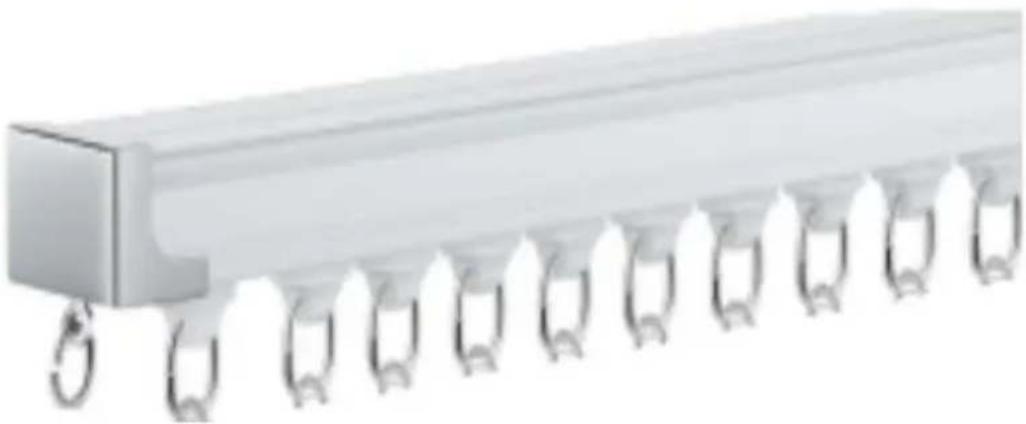

Illustration of a metallic mechanical component with multiple hanging clips (no text or symbols)

NOTE: The length please refer to your purchase!

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before assembly and commencing power tool operation. Always keep hands, face, hair, loose clothing and body at a safe distance from spindles and cutting tools. Always keep a firm grip on tool handles when in operation. Always disconnect from the power source before adjusting power tools.
3. Do not overload.

MODEL AND PARAMETERS

Model	SZ-101A
Color	White
Material	Aluminium alloy
Capacity	10kg/m (Equilibrium stress)
Curtain Track	1900mm/piece(Overall length 1.8m)2900mm/piece(Overall length 2.7m)3900mm/piece(Overall length 3.6m)4900mm/piece(Overall length 5.4m)

NOTE: The length please refer to your purchase!

STRUCTURE DIAGRAM AND COMPONENTS

White plastic mechanical component with mounting bracket and hook (no text or symbols)

Wall Mounting

White plastic mechanical component with a looped end and mounting bracket (no text or symbols visible)

Ceiling Mounting

Components
A Curtain Track	BTrack Runner	C Metal Hook
DMetal Clip	ETrack End Cap	F Wall Bracket
G Ceiling Bracket	H Connector	J Anchor
K Expansion Bolt	LUser Manual

The number of parts for each length of product is as follows:

1 900mm/piece(Overall length 1.8n	2 900mm/piece(Overall length 2.7m)
A Curtain Track x2B Track Runner x14C Metal Hook x14D Metal Clip x14E Track End Cap x2F Wall Bracket x4G Ceiling Bracket x4H Connector x1J Anchor x8K Expansion Bolt x8LUser Manual x1	A Curtain Track x3B Track Runner x22C Metal Hook x22D Metal Clip x2E Track End Cap x6F Wall Bracket x6G Ceiling Bracket x4H Connector x2J Anchor x12K Expansion Bolt x12LUser Manual x1
3 900mm/piece(Overall length 3.6n	4 900mm/piece(Overall length 5.4m)
A Curtain Track x4B Track Runner x28C Metal Hook x28D Metal Clip x28E Track End Cap x2F Wall Bracket x8G Ceiling Bracket x8H Connector x3J Anchor x16K Expansion Bolt x16LUser Manual x1	A Curtain Track x6B Track Runner x44C Metal Hook x44D Metal Clip x44E Track End Cap x2F Wall Bracket x12G Ceiling Bracket x12H Connector x5J Anchor x24K Expansion Bolt x24LUser Manual x1

HOW TO INSTALL IT

Close-up of a mechanical component with a 1.8in diameter dimension label (no other text or symbols)

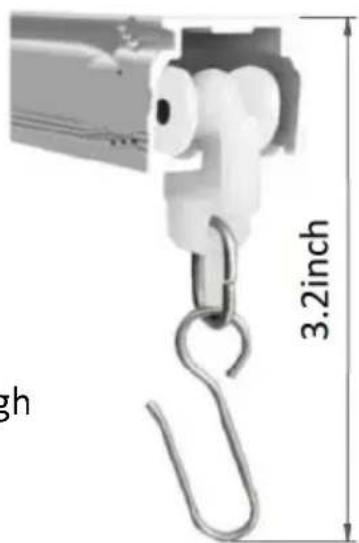

Note: Design your curtain heigh with this height in mind.

3.2inch gh

1. Connect the track segments together by inserting the connector halfway into one segment of the track and then the other half into another segment, continuing for the desired length.

If required, use a cut machine to cut the curtain track to the desired length.

Simple line drawing of a mechanical part or tool (no text or symbols)

Close-up of a white electrical outlet with three connectors and ventilation slots (no visible text or symbols)

1. (10"-12" apart) x.....x.....x.....x.....x.....

With a pencil, draw a line along the ceiling or wall where the curtain is to be installed. Mount the brackets with the provided anchors (if drywall) and expansion bolts approximately 10-12 inches apart. Add additional brackets as needed.

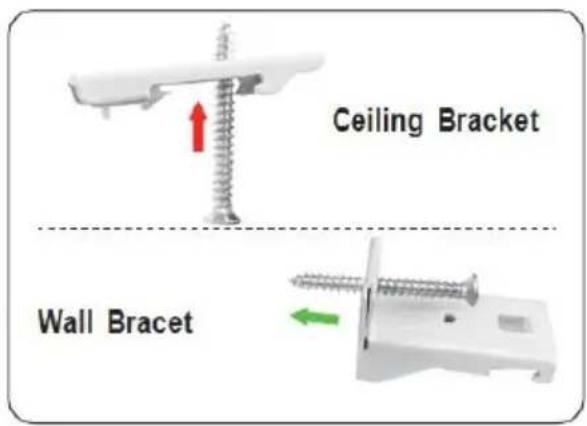

Ceiling Bracket Wall Bracket

Important: All lockable brackets must be facing the same direction.

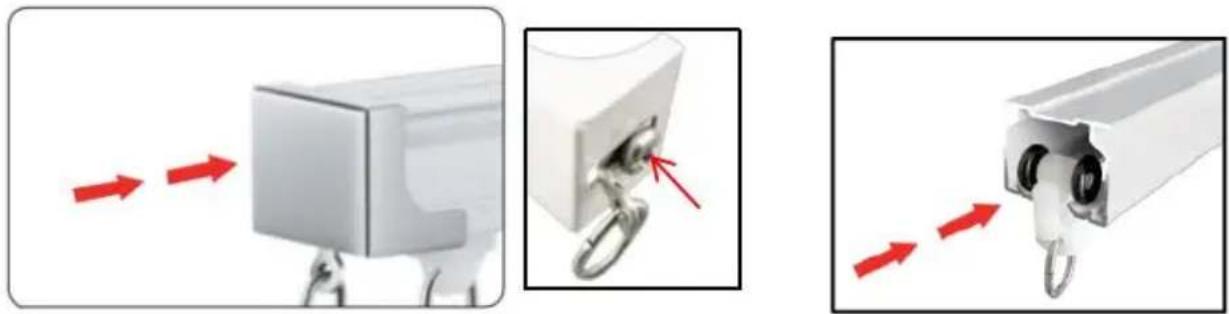

1. Fasten the track end cap on one end of the curtain track.

Insert the track runners into the curtain track. The track runners should roll in the inner track.

1. Fasten the curtain track to the mounted brackets installed in step 2.

To fasten, insert the curtain track into the two prongs of the bracket and push the other end in to snap the curtain track in place.

Fasten the other track end cap in place to lock in the track runners.

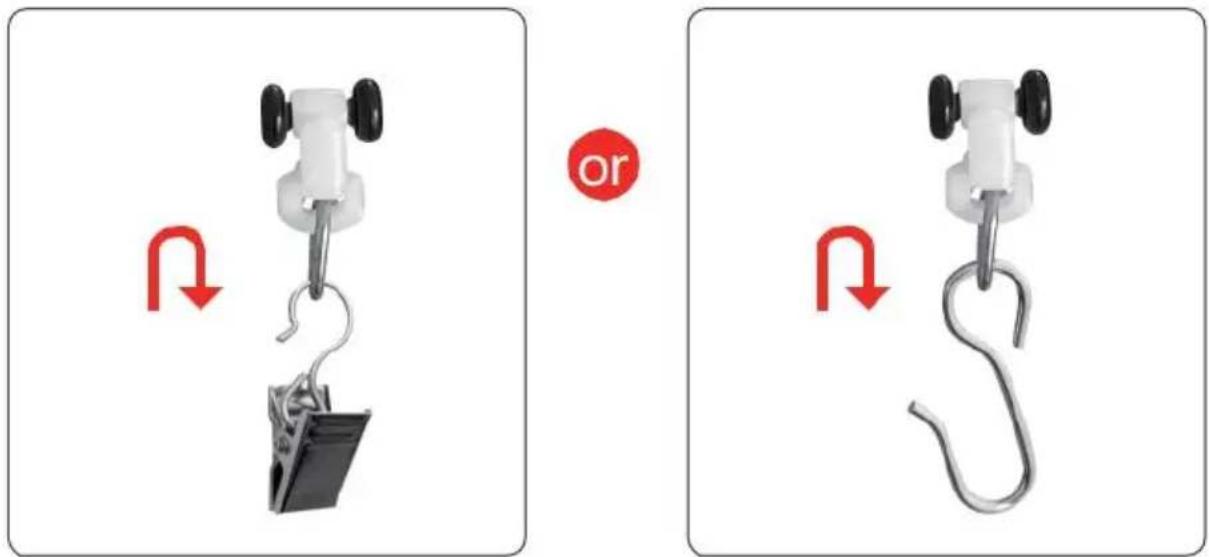

Attach the curtain using the hooks/clips to the track runners.

Diagram showing two methods of hooking a mechanical device, with red arrows indicating rotational direction and a red circle labeled 'or'.

Important:

Refrain from using excessive force to snap the bracket into the curtain track.

MAINTENANCE

1. Cleaning regularly .
2. Collision avoidance.
