NLSSHL412 - Pool safety barrier Vevor - Free user manual and instructions

Product Type	Pool Safety Barrier
Brand	Vevor
Model	NLSSHL412
Height	4 feet (1.22 m)
Length	12 feet (3.66 m)
Color	Black
Number of Posts	5
Post Spacing	36 inches (91.4 cm)
Compliance	NF P 90-306
Use	Restrict access of children under 5 years to the pool
Installation	Requires drilling into the ground, anchors included
Maintenance	Regular inspection of components, replacement of damaged parts
Spare Parts	Contact the seller or Vevor
Warranty	Electronic certificate at www.vevor.com/support
Package Contents	Fence, anchors (5), post covers (5), hook (1), template (1)
Minimum Distance from Pool	1.10 m
Distance Above Water	60 cm minimum
Power Supply	None (mechanical)
Manufacturer	Shanghaimuxinmuyeyouxiangongsi

Frequently Asked Questions - NLSSHL412 Vevor

What is the height of the Vevor NLSSHL412 barrier?

The barrier height is 4 feet, approximately 1.22 meters.

How to install the pool safety barrier?

Installation requires marking the location, drilling holes with a ∅16 drill bit, inserting plastic sleeves, then assembling the fence sections. Use the provided template to space posts 36 inches apart.

What is the minimum distance between the barrier and the pool?

The barrier must be installed at least 1.10 meters from the pool edge to ensure its effectiveness.

Is the barrier compliant with standard NF P 90-306?

Yes, this barrier is designed to comply with standard NF P 90-306, especially regarding its minimum height of 1.10 m.

How to maintain the barrier?

Regularly inspect all components, especially the locking systems. If a part is damaged, replace it immediately with an approved part.

What to do if a component is damaged?

Contact the store where you purchased the barrier or Vevor to get a spare part. Only use officially approved parts.

Can I use the barrier for an above-ground pool?

The barrier is intended for in-ground or semi-inground pools. For an above-ground pool, ensure the height and minimum distance requirements are met.

Can children climb the barrier?

The barrier is designed to restrict access but does not replace supervision. Ensure no nearby objects allow climbing.

What is the length of the NLSSHL412 model?

The NLSSHL412 model is 12 feet long, approximately 3.66 meters.

Is there a warranty for this barrier?

Yes, Vevor provides an electronic warranty certificate. You can download it at www.vevor.com/support.

USER MANUAL NLSSHL412 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POOL FENCE

MODEL:NLSSHL412, NLSSHL448, NLSSHL472, NLSSHL496, NLSSHL4108

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

Model:NLSSHL412, NLSSHL448, NLSSHL472, NLSSHL496, NLSSHL4108

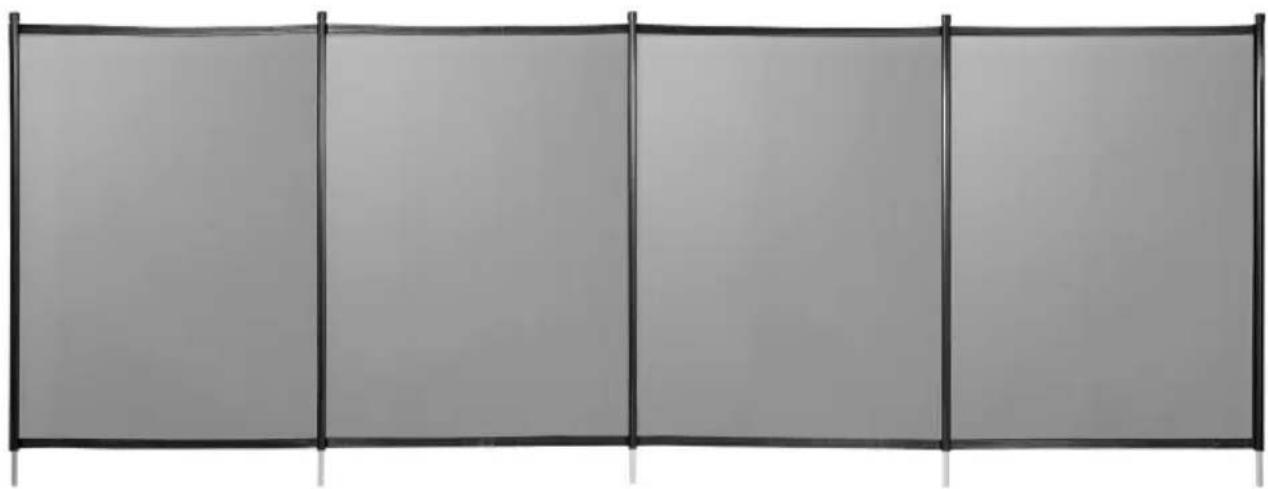

Four vertical panels with black borders, each containing a uniform gray shade and no text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soI updates on our product.

THIS SAFETY FENCE IS INTENDED TO LIMIT THE ACCESS OF THE POC TO CHILDREN UNDER FIVE YEARS. THIS FENCE IS INTENDED FOR INDIVIDUAL USE ONLY.

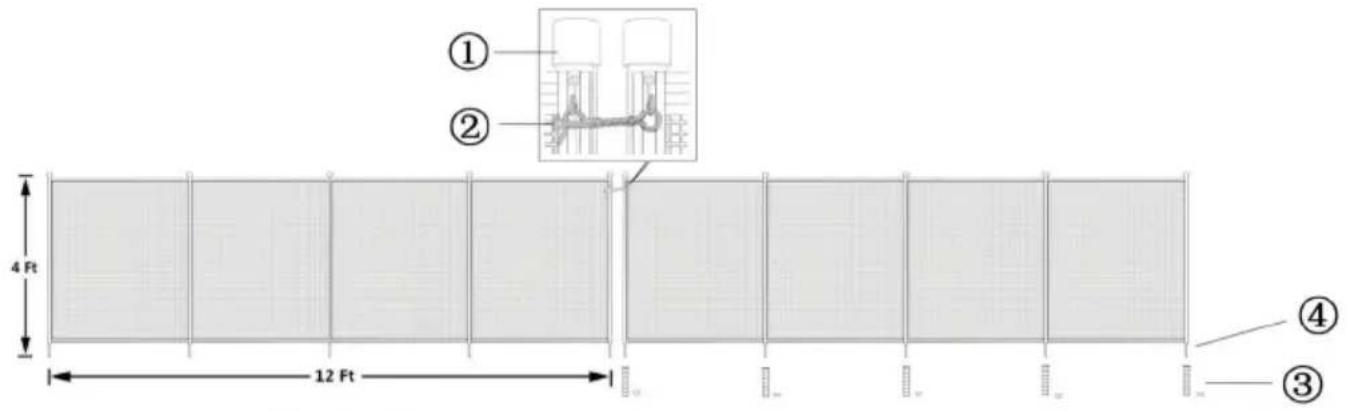

Important recommendations

Before starting, it is important to know which rules must be followed when in the barrier.

● The barrier must isolate the pool and all its points of access completely.
- All sides of the pool must be protected, whether with the barrier itself or fixed element such as a wall, a panel or any other type of fence, as long element complies with the NF P 90 -306 standard (particularly with the part that said element must never have a clearance height inferior to 1.10 m).

- In the case that the barrier must be connected to another element, make that it is firm enough to provide a stable point of attachment.

- Do not install the barrier on an unstable surface such as grass, sand.WARNING: it is imperative to maintain a corridor of at least 1.10m between the barrier and any fixed or movable point of attachment (on each side of the barrier).

- We recommend installing the barrier at a minimum distance of 2' above w level. In private pools for individual use, we recommend installing the barrier too far from the pool itself so that its efficiency is not reduced.

- However, when calculating the distance between the pool and the barrier, take into consideration the minimum distance required for carrying out maintenance tasks such as vacuuming. Do not leave a small distance which impair maintenance tasks.

- Before installing this product, please read and follow all the warnings and instructions that accompany this product. Failure to comply with the safety warnings and instructions could cause injuries, death or material damages.

- Please keep this instruction manual for future consultation.

- We reserve to change all of part of the articles or contents of this document without prior notice.

SPECIFICATIONS

Model	NLSSHL412
Product Size	4*12ft
Color	Black

Model	NLSSHL448
Product Size	4*48ft
Color	Black

Model	NLSSHL472
Product Size	4*72ft
Color	Black

Model	NLSSHL496
Product Size	4*96ft
Color	Black

Model	NLSSHL4108
Product Size	4*108ft
Color	Black

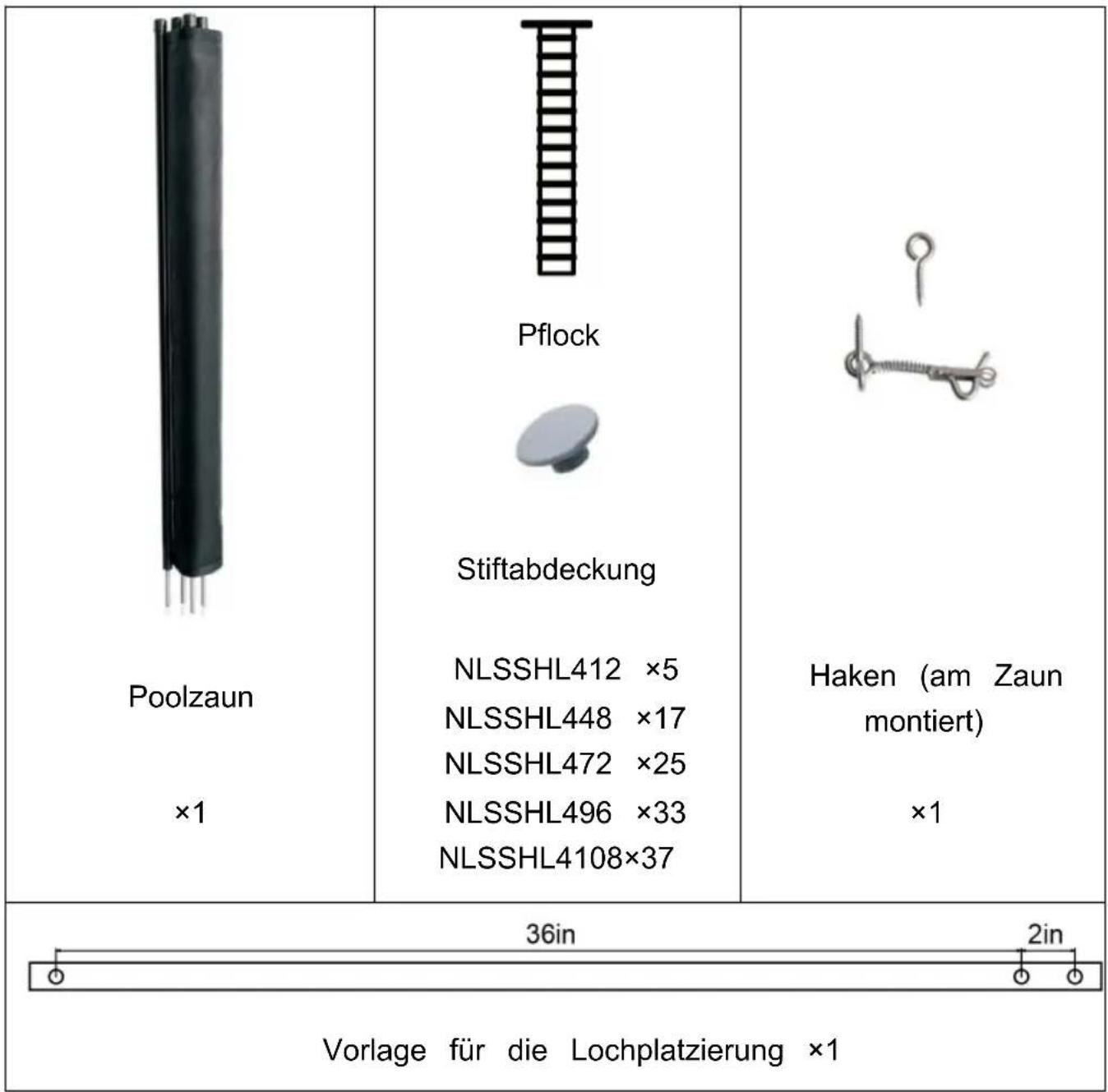

PARTS LIST

Pool fence ×1	Peg Peg cover NLSSHL412 ×5 NLSSHL448 ×17 NLSSHL472 ×25 NLSSHL496 ×33 NLSSHL4108×37	Hook (Installed on the fence) ×1
36in 2in Template for hole placement ×1

Required tools

1. Rotary Hammer Drill	8. Scissors
2. Concrete drill bit ø16 and ø10	9. Household Stapler
3. Extension Cord	10. #2 Square Head Screw Tip
4. Tape Measure	11. Cordless Screw Gun
5. Hammer	12. 1 - Template (Incl.)
6. Marker	13. Chalk Line
7. Garden Hose	14.Spirit level

NOTE: This manual takes NLSSHL412 as an example for installation instructions, other models are only different in length and the installation method is the same.

Installation

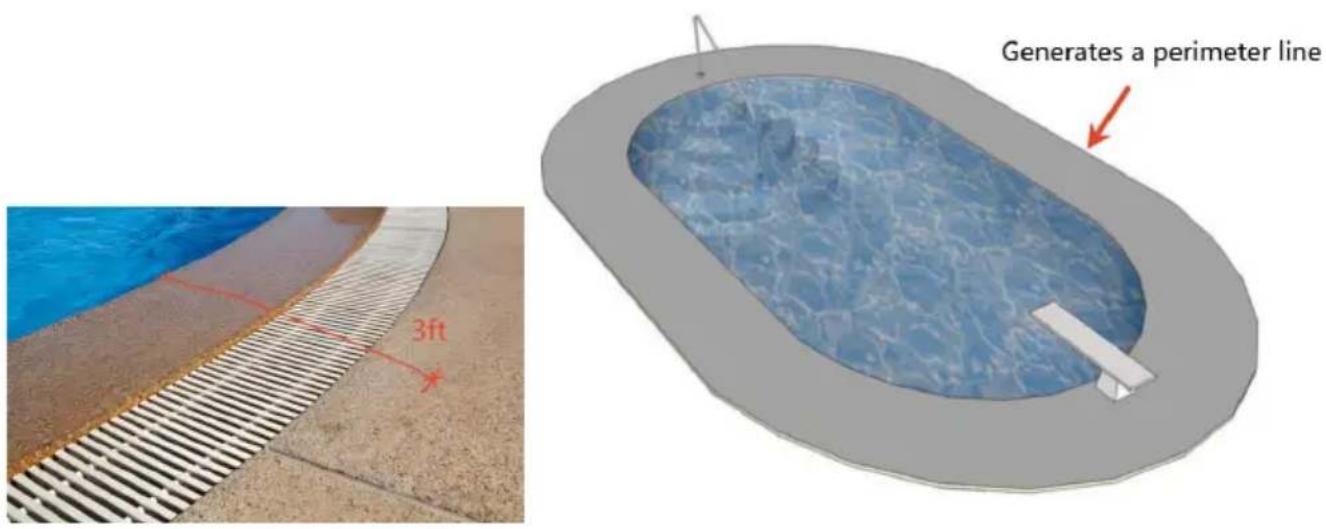

STEP 1: Site planning and marking

Determine the location of the fence:

The fence should be installed at least 3 feet away from the edge of the safety. Use a tape measure or garden hose to measure and mark out fence will be installed along the edge of the pool.

STEP 2: Determine the starting point

Find the manual opening location to enter the pool area as the starting point. Using the double holes on the provided template, mark the first hole at the starting point, which corresponds to the

STEP 2: Determine the starting point position of the first post on the left side of the fence. (Reserve the location of the door)

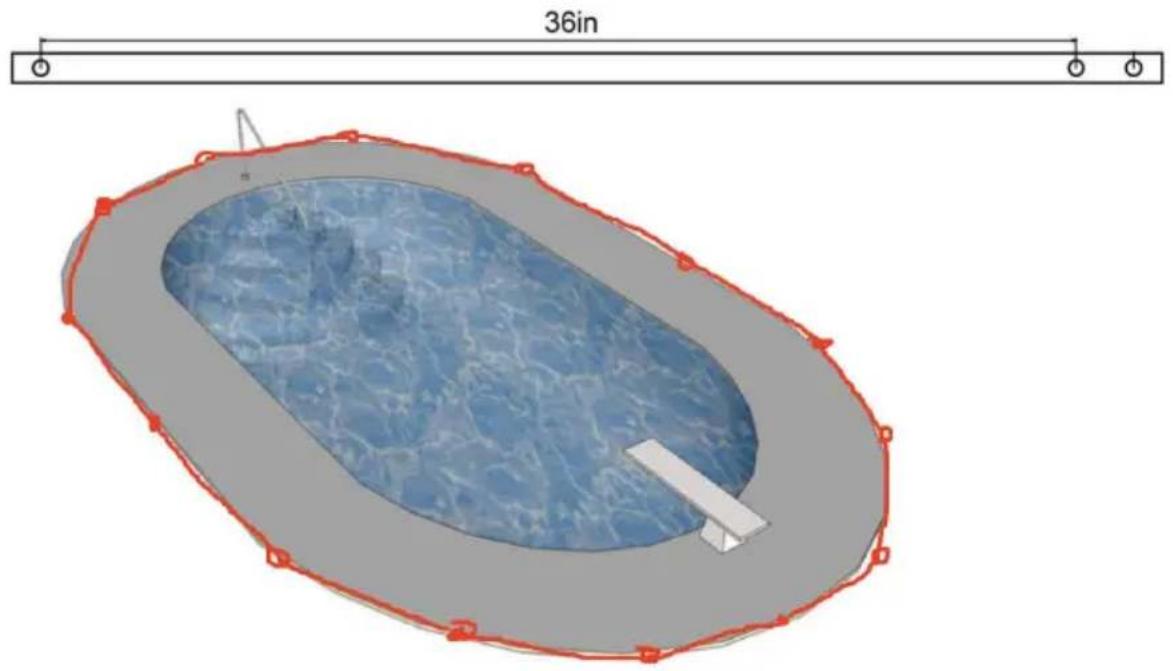

STEP 3: Mark other holes

Cover the template over the marked start hole, and move the template to mark the hole location of the first column on the right. After that, the other holes are marked sequentially by the stencil scale, usually 36 inches apart from adjacent holes. For subsequent fence sections, repeat the marking steps above until the entire perimeter fence hole is marked.

3D architectural rendering of a pool with red outline and scale indicator (36in), no text or symbols present

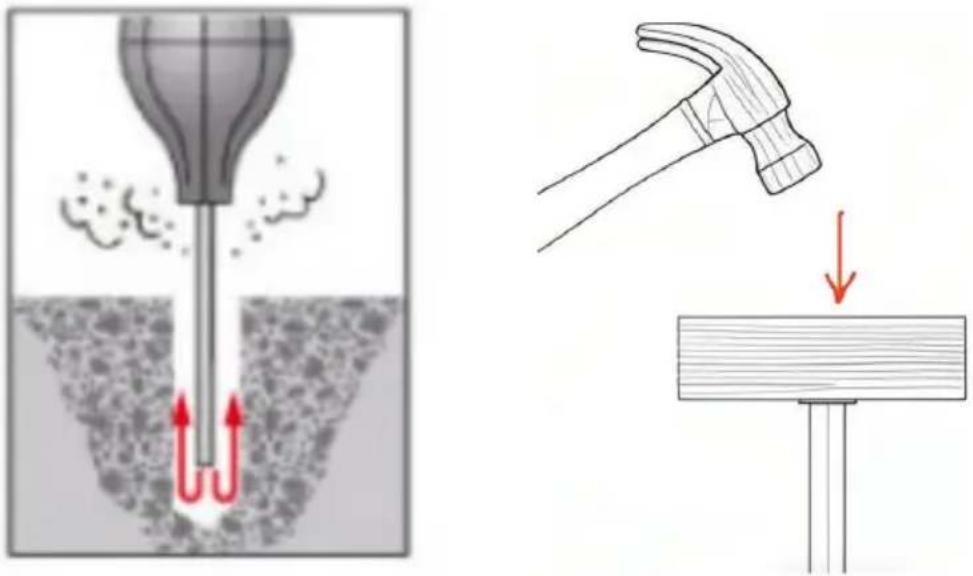

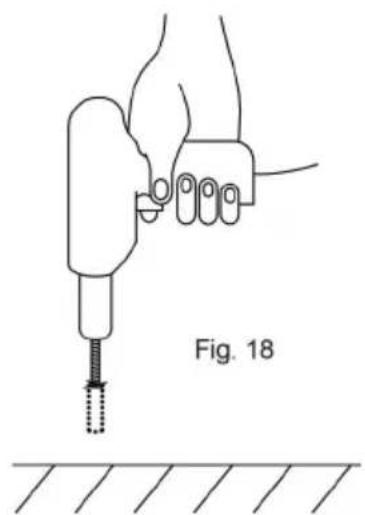

STEP 4: Drilling and Inserting Ground Sleeves

The holes must be made with drill bit 16 . If the initial hole is made to bit 10 then it may be easier to carry out the definitive drilling with 1 With the help of a spirit level, make the holes that have been marked these instructions above.

Line drawing of a hand using a drill bit to measure a screw on a surface (no text or symbols)

- Sleeving: Once drilling is completed, flush out the debris from the hole a garden hoseFig. 19. Next insert the plastic sleeves in the holes a down completely Fig. 20.

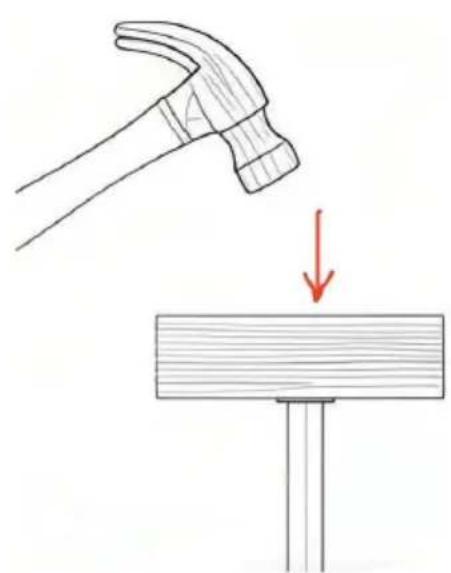

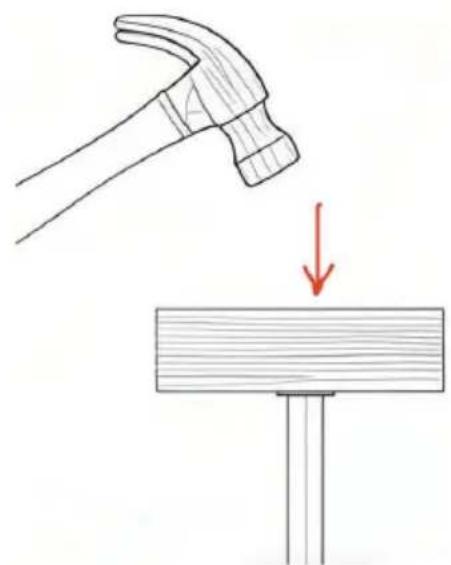

Tip: To avoid damaging the sleeve, place a piece of wood on top of the illustrated, and gently hammer the sleeve down into the hole until it sinks ground.

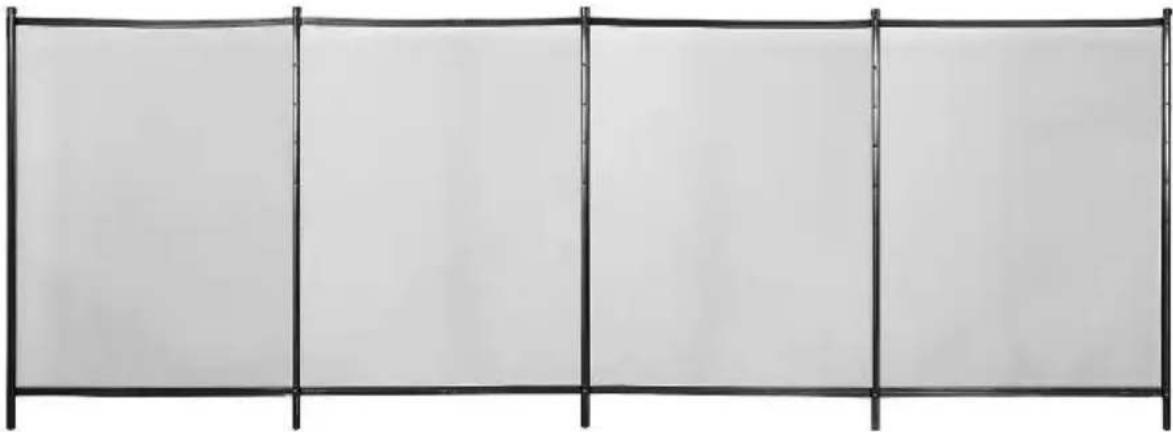

STEP 5: Assemble the fence parts

- Open the fence mesh:

Four vertical black metal frames arranged horizontally on a plain white background (no text or symbols)

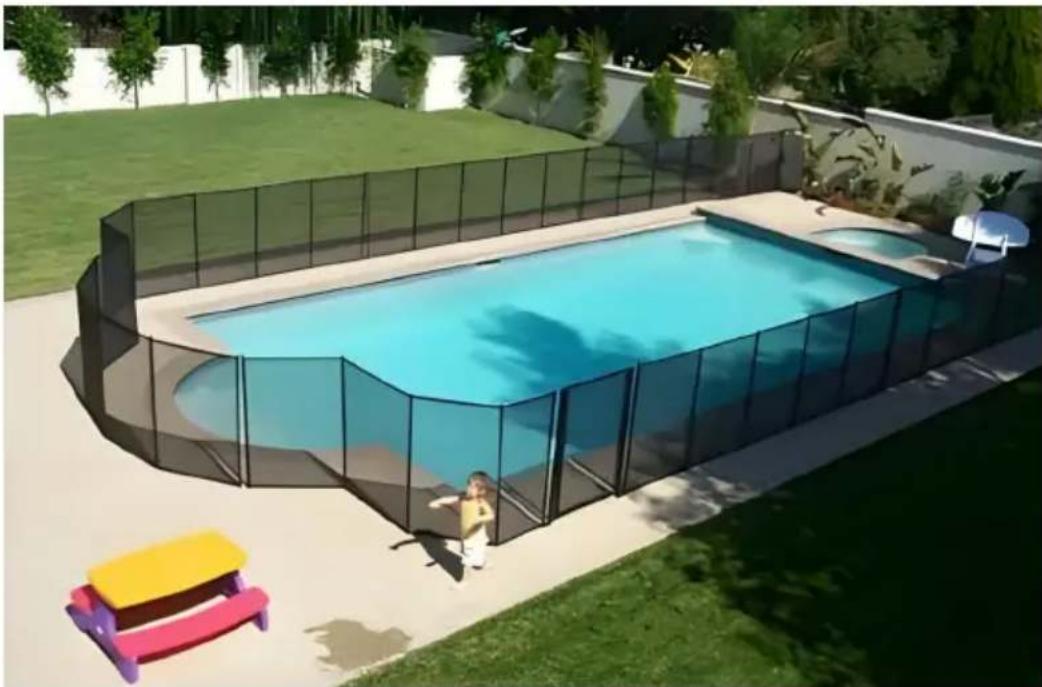

Install the fence: Start the installation from the starting point double hole Insert the first column into the corresponding hole, and when installing, it is slightly tilted back for easy insertion, and then push forward to make fit with the plastic sleeve. Install other columns and fence parts in turn that the fence is neat and straight.

Aerial view of a modern swimming pool with a child walking nearby, surrounded by green lawns and a bench (no text or symbols visible)

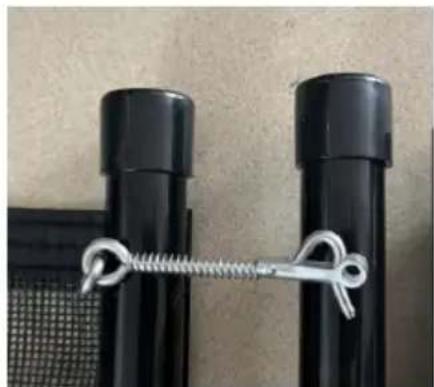

STEP 6: Finishing & Latching Your New Pool Fence.

Close-up of black metal posts with a coiled spring attached, against a plain wall (no text or symbols visible)

You must squeeze poles together and press the spring to remove and replatch.

WARNING: THE POLE CANNOT BE REMOVED IF YOU SIMPLY PULL WITHOUT TURNING IT AT THE SAME TIME. IT IS IMPERATIVE THAT ACCESS POINTS ARE CLOSED AT THE END OF THE SEASON OF SUPERVISED SWIMMING.

1. Maintenance

Try to regularly monitor all safety fence components. If any of the components should damaged, especially those relating to closing, please contact the shop where you purchased the barrier immediately in order to obtain a replacement part. It is imperati

replace the elements or groups of elements that are damaged as soon as possible. use parts that are not officially approved by the PROVIDER/ INSTALLER.

SAFETY PRECAUTIONS

• THE SWIMMING POOL CAN BE A HAZARD TO YOUR CHILDREN. DROWNING M HAPPEN VERY QUICKLY. WHEN CHILDREN ARE NEAR THE POOL THEY REQUIRE CONSTANT AND ACTIVE SUPERVISION, EVEN IF THEY ARE ABLE TO SWIM.
• THIS BARRIER DOES NOT REPLACE COMMON SENSE OR INDIVIDUAL RESPONSIBILITY. THE BARRIER CANNOT REPLACE SUPERVISION CARRIED OUT BY RESPONSIBLE ADULTS WHICH STILL REMAINS THE KEY FACTOR IN PROTECTING SMALL CHILDREN.
• POINTS OF ACCESS MUST BE CLOSED SYSTEMATICALLY WHEN NO ONE IS HOME, EVEN IF IT IS FOR A SHORT PERIOD OF TIME.
• WARNING! SAFETY IS GUARANTEED ONLY WHEN POINTS OF ACCESS ARE LOCKED.
• CHECK WHETHER THERE ARE ELEMENTS NEAR THE BARRIER THAT COULD ENABLE OR FACILITATE CLIMBING THE FENCE.
• CLOSING POINTS OF ACCESS THROUGH AUTOMATED CLOSING SYSTEMS SHOULD BE CHECKED SYSTEMATICALLY.
• WHEN THE BARRIER IS BROKEN OR DAMAGED AND REQUIRES REPAIR WORK IT IS VERY IMPORTANT TO INCREASE SUPERVISION TO PREVENT SMALL CHILDREN FROM ACCESSING THE POOL.

Two-panel illustration showing human figures in different poses: one with a stick and dashed line, the other with a diagonal pole and directional arrow (no text or symbols)

• LEARN RESCUE TECHNIQUES (CARDIOPULMONARY RESUSCITATION) AND UPDATE YOUR KNOWLEDGE PERIODICALLY. IT COULD SAVE A LIFE IN AN EMERGENCY.
• THE PRESENCE OF PARENTS AND/OR OTHER RESPONSIBLE ADULTS IS REQUIRED WHEN THE POOL IS ACCESSIBLE.

MEMORIZE AND DISPLAY NEAR THE POOL THE FIRST AID NUMBERS.
