USER MANUAL LZ-55L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FILTER PAPER

MODEL:LZ-18L-38L、LZ-55L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:LZ-18L-38L、LZ-55L

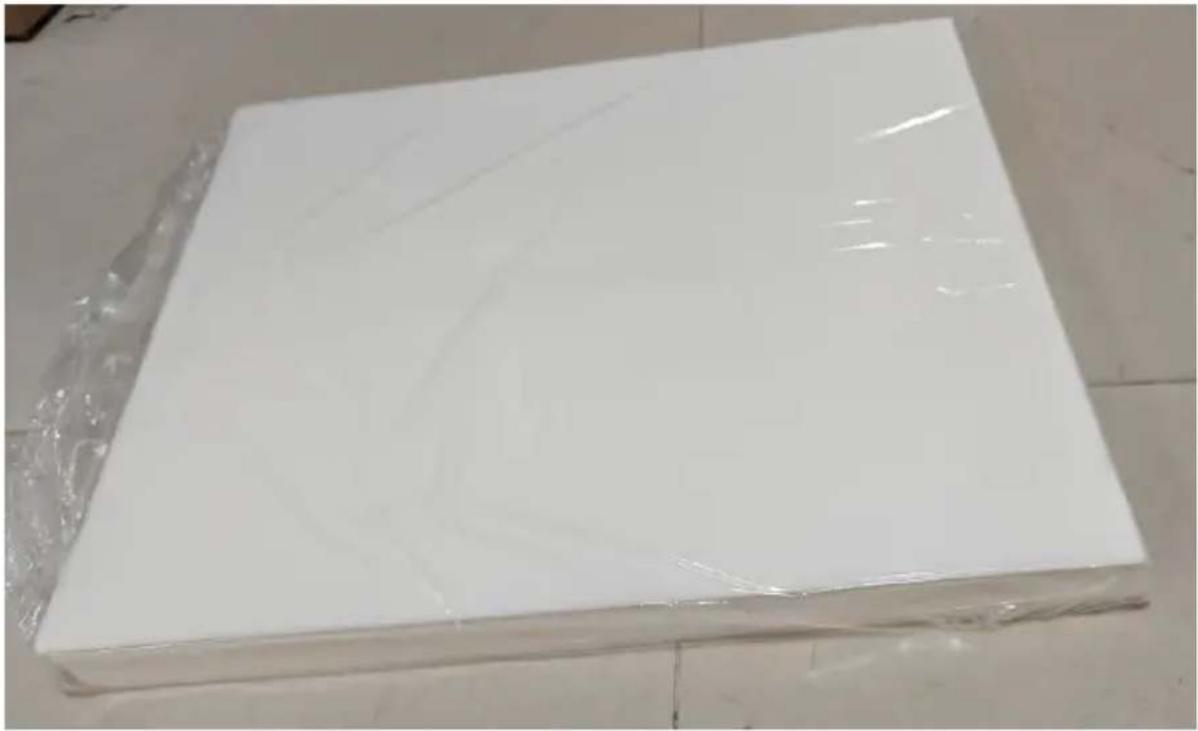

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www. vevor. com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your product if there are any technology or software updates on our product

IMPORTANT SAFEGUARDS

CAUTION: This equipment is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack experience and knowledge, unless they have been given supervision of instruction concerning use of the equipment by a person responsible for their safety.

CAUTION: Children should be supervised to avoid playing with the equipment.

CAUTION: This appliance is only for use with vevor brand Oil Fryer model:LZ-18L-38L、LZ-55L

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

MODEL	ADAPT TO OIL FRYER FILTE MODEL	SIZE(LENGTH*WIDTH)
LZ-18L-38L	LYC-18L、LYC-18L-EU LYC-38L、LYC-38L-EU	490×410mm
LZ-55L	LYC-55L、LYC-55L-EU	653×430mm

REPLACING FILTER PAPER

1. Ensure that the machine is OFF and oil has been returned to the
2. Unscrew the 4 clamps pressing the filter paper frame down.
3. Remove the metal frame.
4. Place a new sheet of filter paper into the filter pan.
5. Measure 8 ounces of filter powder and distribute evenly over the surface.
6. Place the metal frame over the gasket and filter paper.
7. Reinstall the 4 clamps and ensure the filter paper is securely in

SETUP

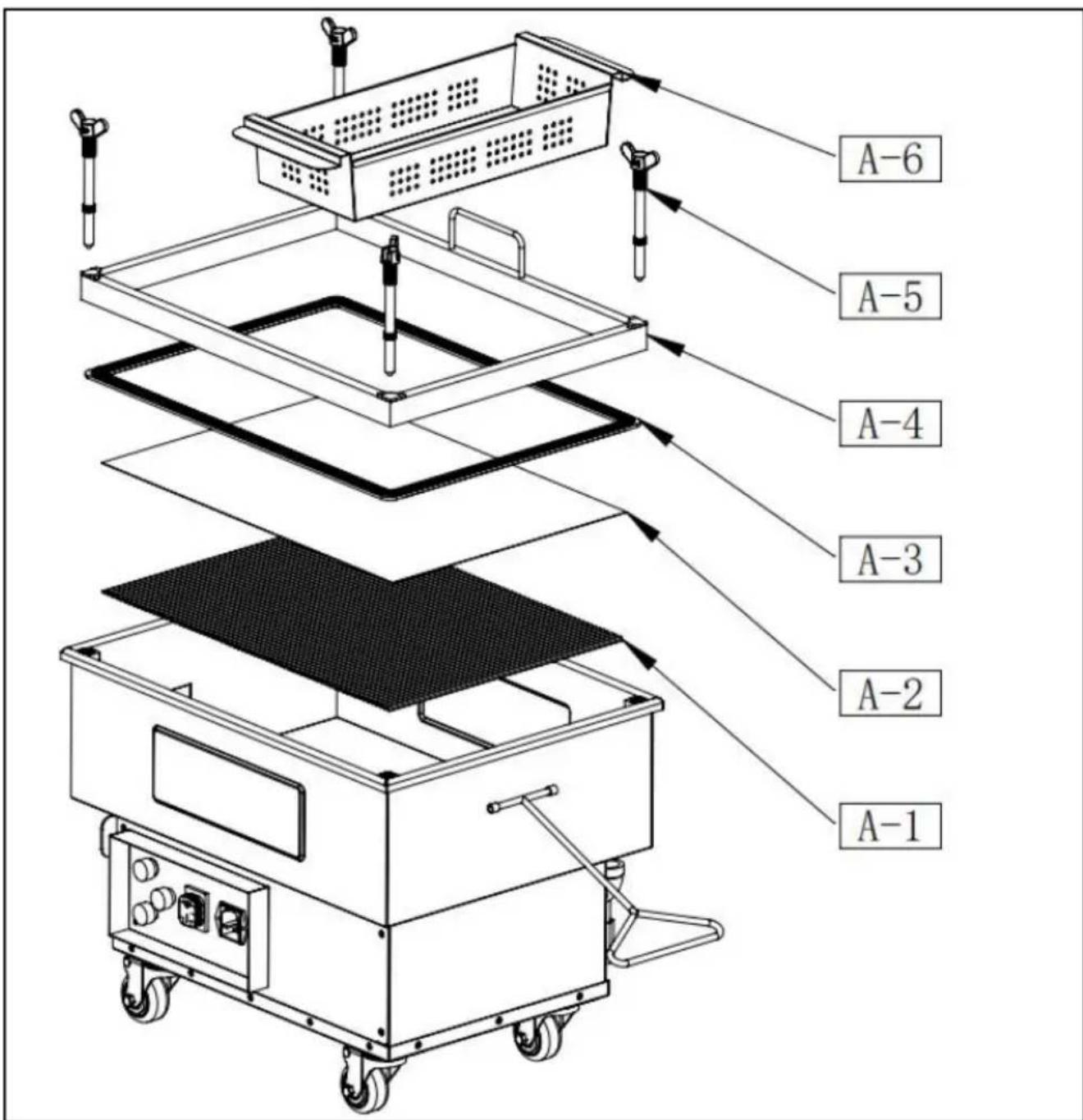

Adapt to Oil Fryer Filter For Model LYC-18L、LYC-18L-EU:

Caution: It must be installed in the order shown in the figure, and the paper(A-2) must be installed on top of the filter(A-1), otherwise the m may not work and be empty.

A-6 A-5 A-4 A-3 A-2 A-1

A-1:filter A-2:filter paper A-3:silicone pad A-4:pressure screen frame A-5:filter chamber reinforcement A-6:primary filter

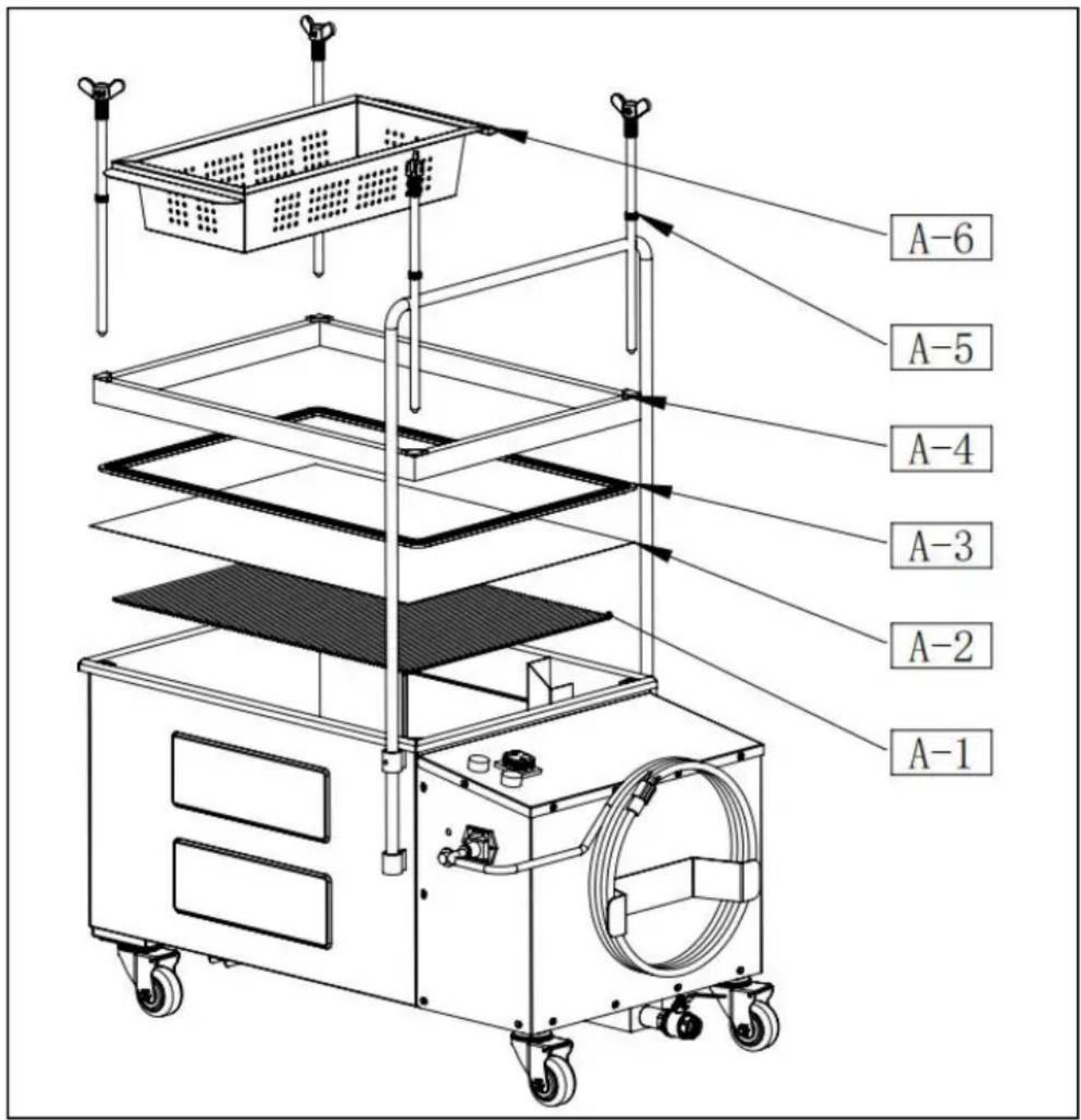

Adapt to Oil Fryer Filter For Model LYC-38L、LYC-38L-EU、LYC-55L、LYC-55L-EU:

Caution: It must be installed in the order shown in the figure, and the paper(A-2) must be installed on top of the filter(A-1), otherwise the machine may not work and be empty.

A-6 A-5 A-4 A-3 A-2 A-1

A-1:filter A-2:filter paper A-3:silicone pad A-4:pressure screen frame A-5:filter chamber reinforcement A-6:primary filter

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate www. vevor. com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

MODÈLE	ADAPTATION AU FILTRE DE FRITEUSE À HUILE MODÈLE	TAILLE (LONGUEUR * LARGEUR)
LZ-18L-38L	LYC-18L LYC-18L-EULYC-38L LYC-38L-EU	490×410mm
LZ-55L	LYC-55L LYC-55L-EU	653×430mm

REPLACEMENT DU PAPIER FILTRE

A-6 A-5 A-4 A-3 A-2 A-1

A-6 A-5 A-4 A-3 A-2 A-1

A-1 : filtre

A-2 : papier filtre

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

A-6 A-5 A-4 A-3 A-2 A-1

A-6 A-5 A-4 A-3 A-2 A-1

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

A-6 A-5 A-4 A-3 A-2 A-1

A-6 A-5 A-4 A-3 A-2 A-1

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

A-6 A-5 A-4 A-3 A-2 A-1

A-6 A-5 A-4 A-3 A-2 A-1

Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DEL REINO UNIDO

Grupo Pooledas Ltd.

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

A-6 A-5 A-4 A-3 A-2 A-1

A-6 A-5 A-4 A-3 A-2 A-1

A-1:filtr

A-5:wzmocnienie komory filtra

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

A-6 A-5 A-4 A-3 A-2 A-1

A-1:filter
A-2:filterpapier
A-5:filterkamerversterking
A-3: siliconen pad A-4: drukschermframe
A-6:primair filter

A-6 A-5 A-4 A-3 A-2 A-1

A-1:filter
A-2:filterpapier
A-5:filterkamerversterking
A-3: siliconen pad A-4: drukschermframe
A-6:primair filter

Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Unit 5 Albert Edward House, De Paviljoens

White rectangular object with transparent plastic wrap, placed on a tiled floor (no visible text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

A-6 A-5 A-4 A-3 A-2 A-1

A-6 A-5 A-4 A-3 A-2 A-1

Enhet 5 Albert Edward House, The Pavilions
