KD-23 - Handrail Vevor - Free user manual and instructions

Product Type	Handrail
Brand	Vevor
Model	KD-23
Color	Black
Suitable Number of Steps	2 to 3
Main Material	Steel with rubber handles
Included Components	2 pillars, 2 decorative covers, 2 large rubber sockets, 2 connectors, 1 crossbar, 2 small rubber sockets, 1 handrail, screws, nuts, expansion bolts, wrenches and drill bit
Main Functions	Provide stable support for going up and down stairs, secure movement
Care and Cleaning	Clean with a damp cloth and mild soap, avoid sharp objects
Safety Instructions	Read instructions carefully, ensure solid installation, do not overload, do not let children play with it
Assembly Precautions	Wear safety glasses and gloves, assemble on a clean and well-lit surface, requires 2 people
Spare Parts and Repairability	Screws, nuts and bolts are replaceable; contact Vevor support for parts
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical Support	Contact via www.vevor.com/support
Country of Origin	China (estimated)

Frequently Asked Questions - KD-23 Vevor

How to install the Vevor KD-23 handrail?

Follow the steps in the manual: fix the pillars (A) to the floor with expansion bolts (K), then assemble connectors (D) and crossbar (E), finally attach the handrail (G) with screws (H). It is recommended to have two people.

What is the maximum number of steps for this model?

The KD-23 model is designed for 2 to 3 steps. Check your staircase height before purchasing.

Is the handrail height adjustable?

No, the height is fixed. Ensure the pillars are suitable for your step height.

What tools are included with the product?

The kit includes a wrench (L), two hex keys (M) and a drill bit (N) to facilitate assembly.

Can I use this handrail outdoors?

The handrail is mainly designed for indoor use. Outdoors, make sure it is protected from weather and that the fixings are suitable.

How to maintain the handrail?

Clean it with a damp cloth and mild detergent. Avoid sharp or abrasive objects that could scratch the surface.

Is the handrail safe for children?

This product is not a toy. Do not let children play with it. Ensure the installation is stable and the screws are tight.

What to do if parts are missing?

Contact Vevor customer service at www.vevor.com/support with your order number. They will send you the missing parts.

Can I paint the handrail?

Painting rubber parts is not recommended. For metal parts, use a suitable paint after disassembling the components.

What is the maximum load capacity?

The manual does not specify an exact maximum load, but it is recommended not to overload the handrail to avoid risk of injury.

USER MANUAL KD-23 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

IRON HANDRAIL

MODEL: KD-23

We continue to be committed to provide you tools competitive price. "Save Half", "Half Price" or any

similar expressions used by us only represents a estimate of savings you might benefit from buying tools with us compared to the major top brands are not necessarily mean to cover all categories of it offered by us. You are kindly reminded to verify c when you are placing an order with us if you are saving half in comparison with the top major bra

MODEL:KD-23

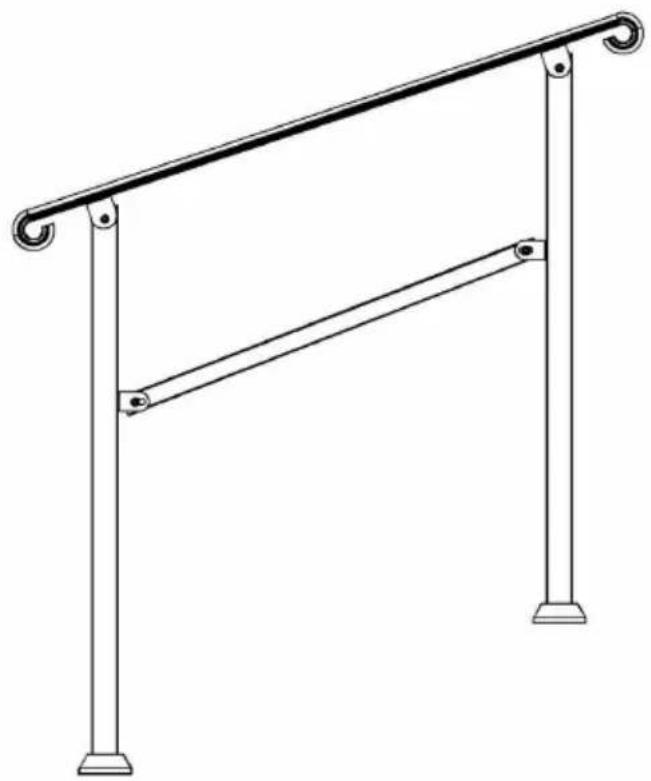

Simple line drawing of a two-side ladder structure with vertical supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserve clear interpretation of our user manual. The appeara the product shall be subject to the product you rec Please forgive us that we won't inform you again if any technology or software updates on our product.

SAFE INSTRUCTIONS

CAUTION: Carefully read instructions and procedures for safe operations. Failure to do so can result in injury.

WARNING:

1. Before using the handrail, ensure that the handrail securely installed to prevent personal injury and accidents.
2. When using the handrail, do not overload the han to avoid personal injury or accident.
3. Do not draw, cut, or use sharp objects on the to avoid damage.
4. If you need to disassemble the handrail, please the reverse steps to disassemble and store it prope
5. This product is not a toy. Do not allow children with this item.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-du work gloves during assembly.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly
5. Do not assemble when tired or under the influer alcohol, drugs or medication.
6. Product capabilities apply to properly and complet assembled products only.
7. For additional information regarding the parts listed, the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.
8. For safety reasons, this hardware is recommended be installed by 2 people.

SAVE THESE INSTRUCTIONS

Model	Suitable Number Of Step (steps)	Colour
KD-23	2-3	Black

COMPONENTS

No.	Name	Picture	QTY.
A	Pillar		2
B	Decorative Cover		2
C	Large Rubber Plug		2
D	Connector		2

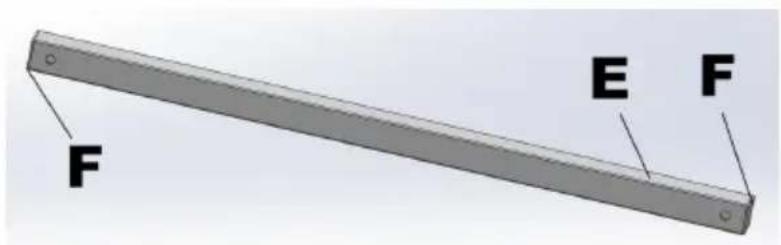

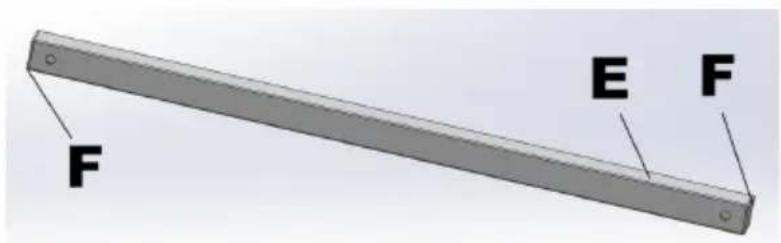

E	Cross-bar		1
F	Small Rubber Plug		2

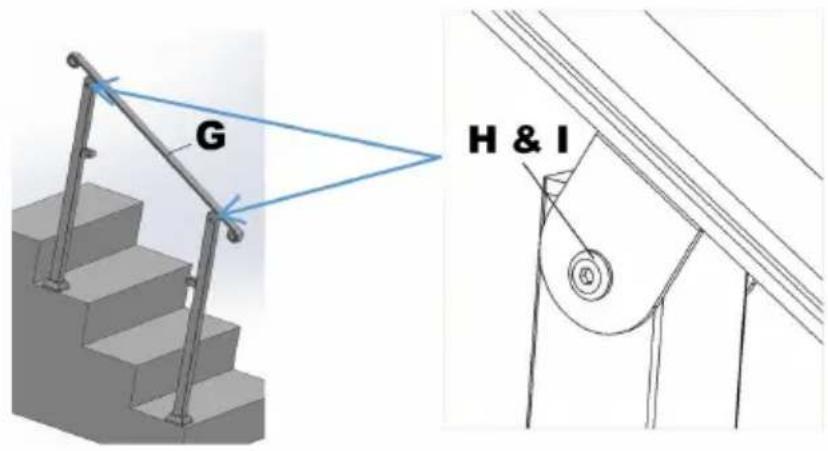

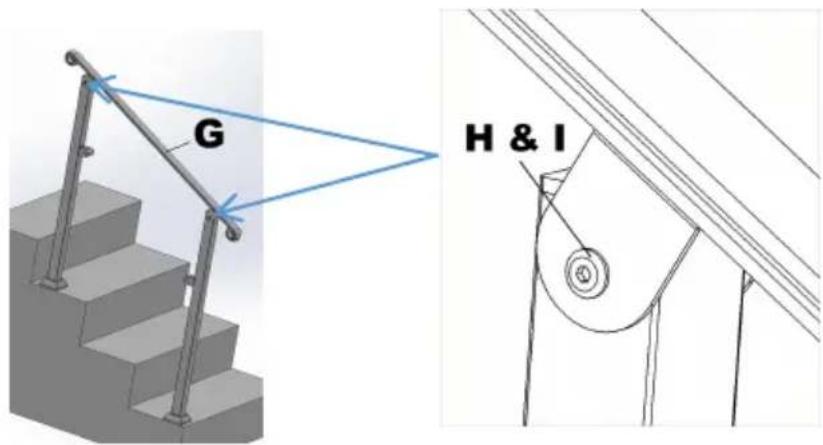

G	Handrail		1
H	Screw M6*16		8
I	Nut M6*45		2
J	Nut M6*30		2

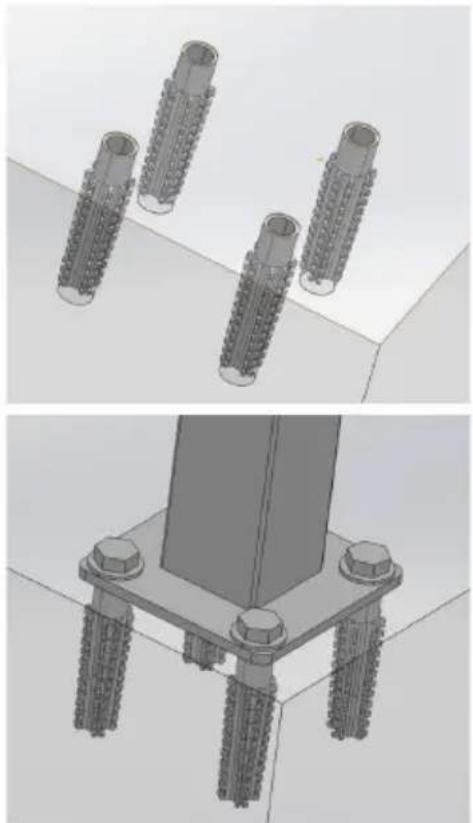

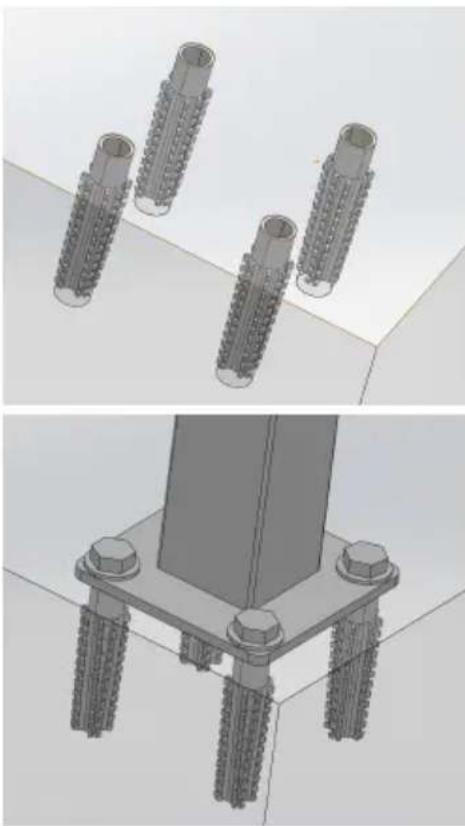

K	Expansion Bolt		8
L	Wrench		1
M	Hex Key		2
N	Drill Bit		1

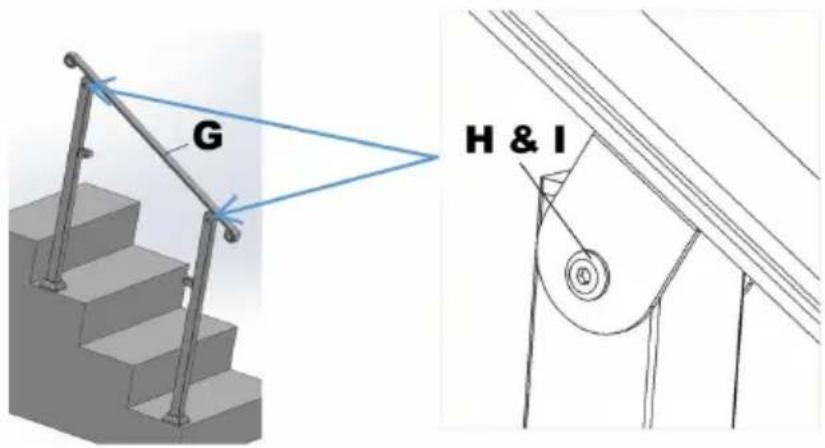

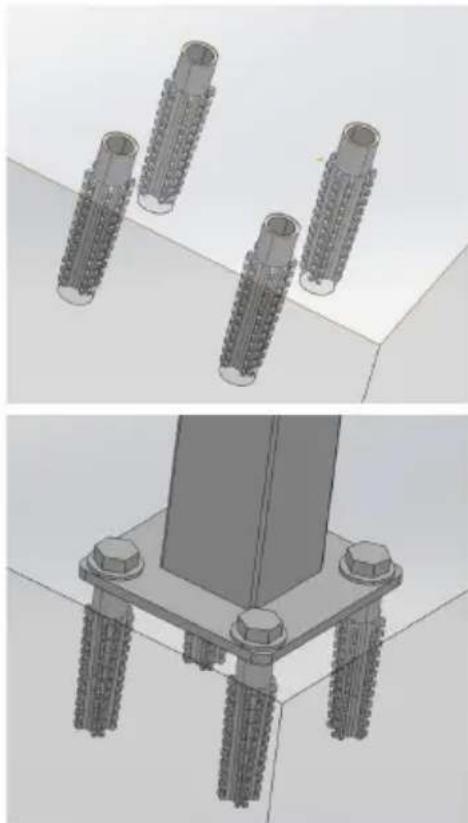

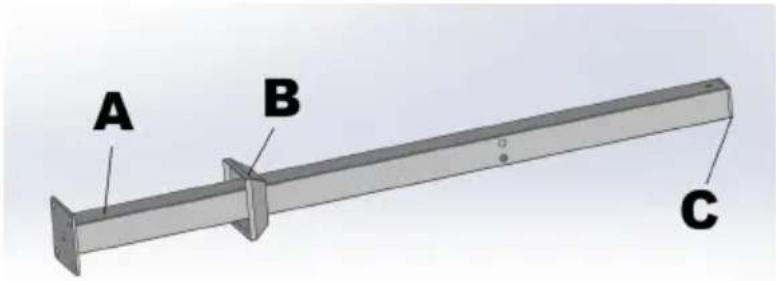

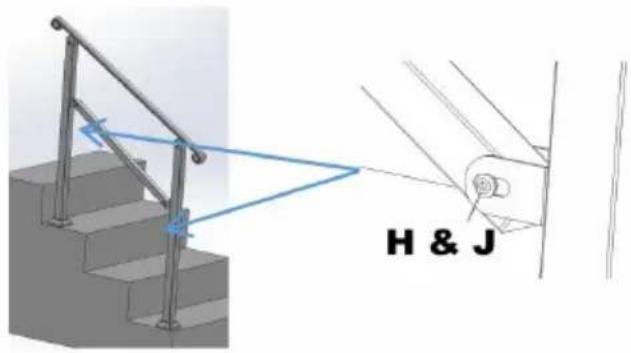

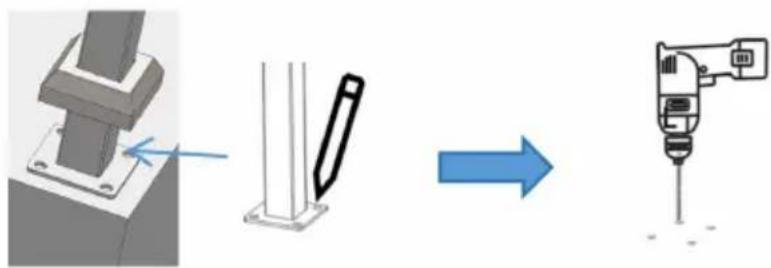

STEP 1:

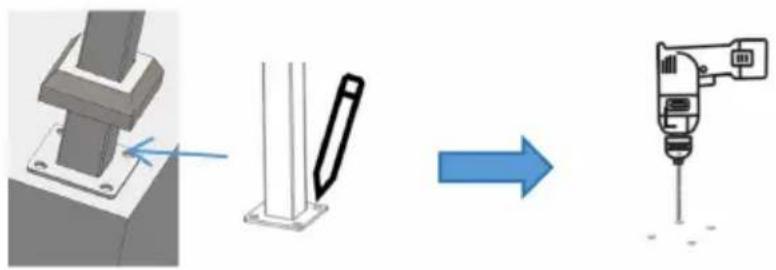

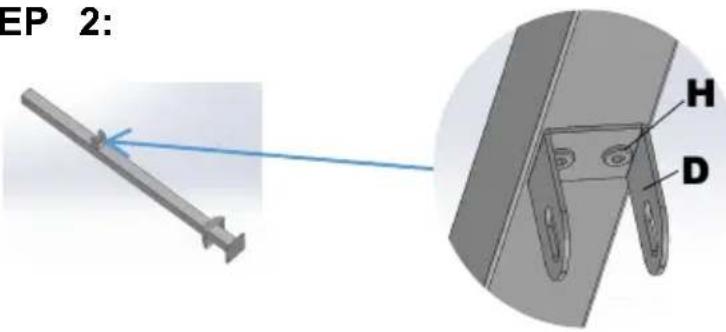

STEP 2:

STEP 3:

STEP 4:

STEP 5:

STEP 6:

Diagram showing a mechanical assembly process: step-by-step assembly of a bolted joint, then before and after the drill bit (no text or symbols present)

STEP 7:

3D technical illustration of mechanical components with threaded rods and bolts, shown from top and side views (no text or symbols)

STEP 8:

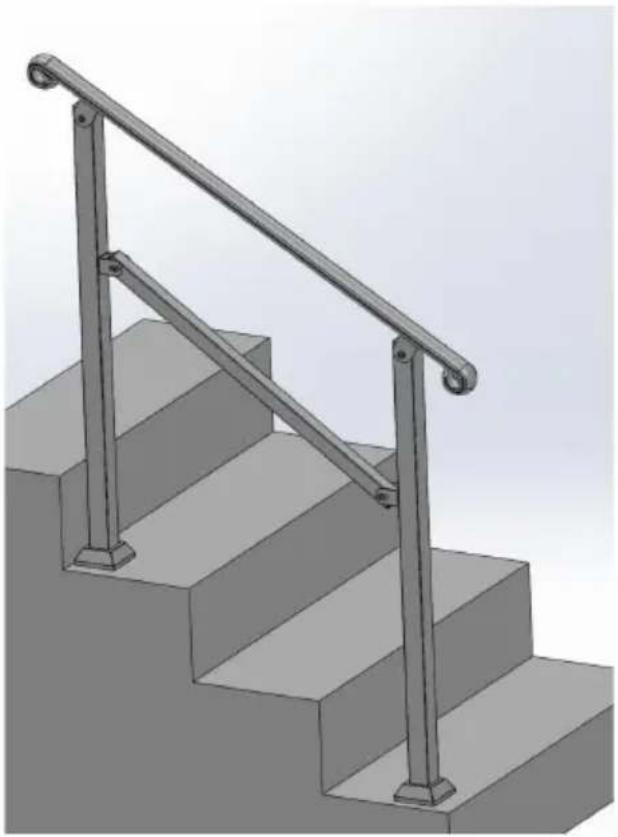

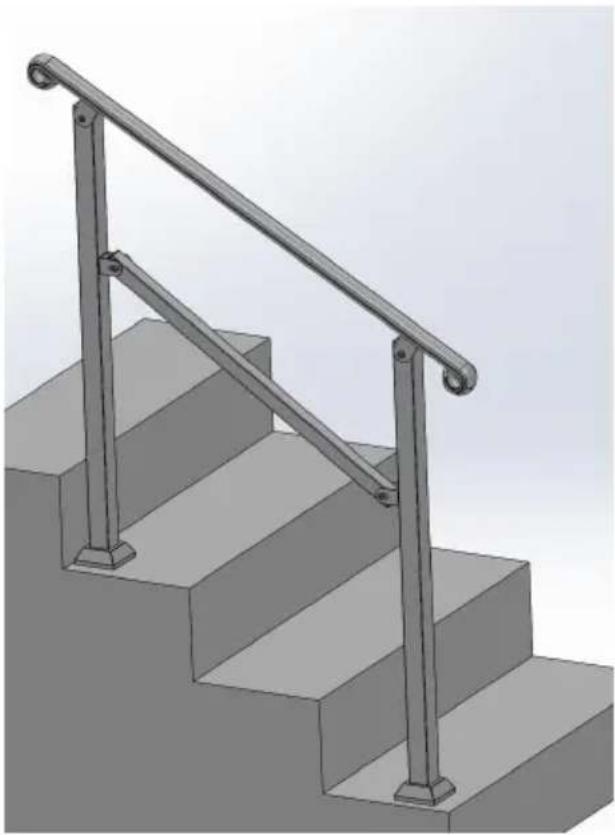

3D rendering of a staircase with metal railings and stepped stairs (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu

803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 25

9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®
