STAINLESS STEEL HANDRAIL

MODEL: BX-80 \ BX-100 \ BX-120

We continue to be committed to provide you tools competitive price. "Save Half", "Half Price" or any

similar expressions used by us only represents a estimate of savings you might benefit from buying tools with us compared to the major top brands are not necessarily mean to cover all categories of it offered by us. You are kindly reminded to verify c when you are placing an order with us if you are saving half in comparison with the top major bra

MODEL: BX-80 \ BX-100 \ BX-120

Line drawing of a vertical pole with a long diagonal rod and two small protrusions at the top (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserve clear interpretation of our user manual. The appeara the product shall be subject to the product you rec Please forgive us that we won't inform you again i any technology or software updates on our product.

SAFE INSTRUCTIONS

CAUTION: Carefully read instructions and procedures for safe operations. Failure to do so can result in injury.

WARNING:

1. Before using the handrail, ensure that the handrail securely installed to prevent personal injury and accidents.
2. When using the handrail, do not overload the han to avoid personal injury or accident.
3. Do not draw, cut, or use sharp objects on the to avoid damage.
4. If you need to disassemble the handrail, please the reverse steps to disassemble and store it prope
5. This product is not a toy. Do not allow children with this item.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-du work gloves during assembly.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly
5. Do not assemble when tired or under the influer alcohol, drugs or medication.
6. Product capabilities apply to properly and complet assembled products only.
7. For additional information regarding the parts listed, the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.
8. For safety reasons, this hardware is recommended be installed by 2 people.

SAVE THESE INSTRUCTIONS

Model	Length Of Handrail (mm)
BX-80	800
BX-100	1000
BX-120	1200

COMPONENTS

No.	Name	Picture	QTY.
A	Pillar		1
B	Decorative Cover		1
C	Adjustable Support		1
D	Handrail		1
E	Fixed Part		1
F	Screw M6*16		2
G	Nut M6		2
H	Expansion Bolt		8
I	Wrench		1
J	Hex Key		2
K	Drill Bit		1

L

Scouring Pad

1

STEP 1:

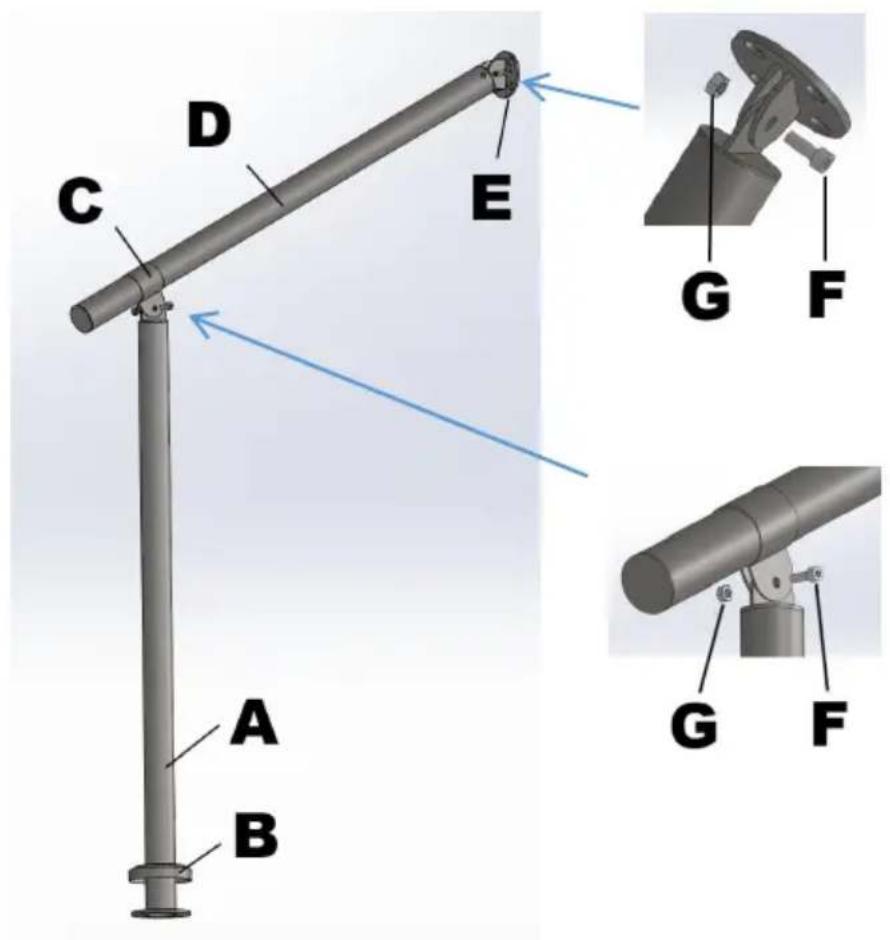

A B C D E G F G F

STEP 2:

3D illustration of a staircase with a metal railing (no text or symbols)

STEP 3:

3D rendering of a mechanical lever assembly with flanged shaft and mounting holes (no text or symbols visible)

STEP 4:

3D rendering of a mechanical assembly with a cylindrical component and a rod inserted (no text or symbols visible)

STEP 5:

3D rendered image of multiple cylindrical mechanical components arranged diagonally (no text or symbols visible)

Two identical cylindrical mechanical components with protrusions, placed on a plain background (no text or symbols visible)

STEP 6:

3D rendering of a mechanical joint with threaded rods and mounting holes (no text or symbols)

3D rendering of a mechanical flange with four tassels and bolt holes (no text or symbols)

STEP 7:

3D illustration of a staircase with a metal railing and horizontal beam (no text or symbols)
