USER MANUAL JH-101 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FOLDING SOCCER GOAL

MODEL: JH-101

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: JH-101

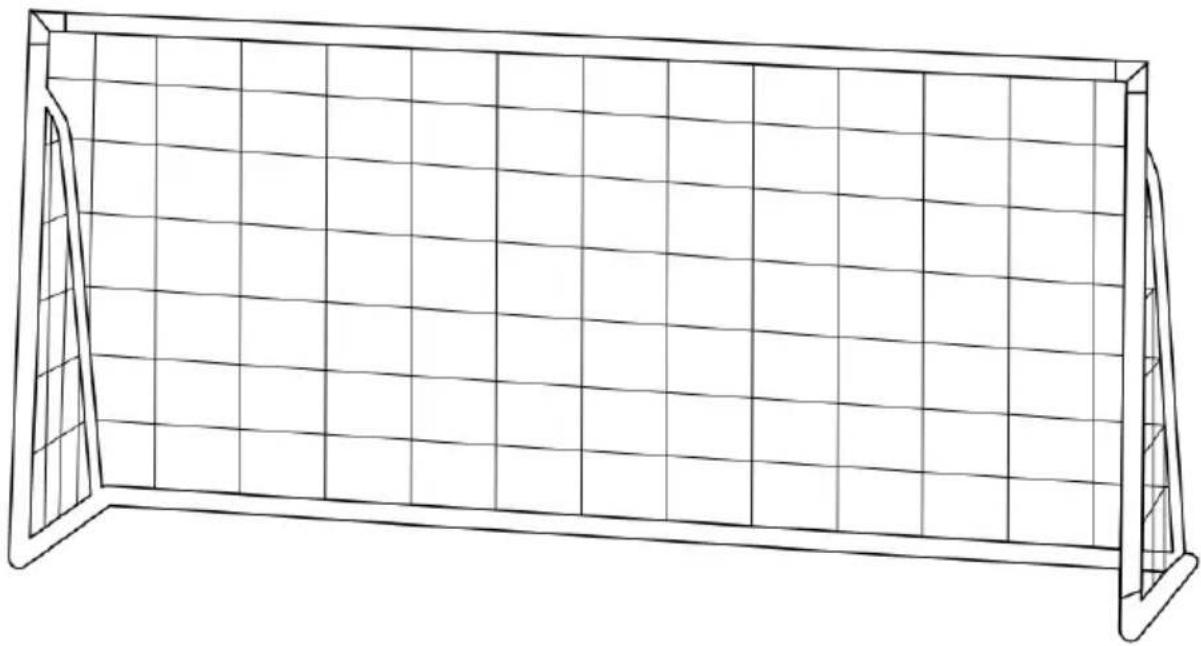

Line drawing of a soccer field with netting and support structure (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this Folding Soccer Goal. Please read a instructions before using it. The information will help you achieve the best post results.

SAFETY ADVICE

SAFE WORKING PRACTICE

▶ Always inspect the goal post and net for defects before use and replace damaged parts.
▶ Do not use the goal with faulty parts.
▶ The goal must always be secured to the ground. Weights to used on hard surfaces, ground anchors on grass.
▶ Never climb on the net or the goal frame. The goal must need to be used without the net fitted. Please always adhere to the safety instructions.
▶ Remove all weights and anchors before moving or disassembling the goal. Do not use the goal in windy weather
▶ Do not use the goal in sub zero temperatures. We advise ad supervision during assembly and use. Do not drop any heavy objects on the tubes.
▶ When dismantling the goal ensure that all fittings are packed away, and none are left on the playing surface.

WARNING:

Check regularly that pegs are secure. Loose pegs may cause in Care should be taken when using a mallet as misuse may cause injury.

SPECIFICATIONS

Model JH-101
Product size (mm)	3710 x 1830x 1215 mm
Color White
Material PVC + polyester
Main Frame 68mm,	1.8mm PVC Tubing
Netting 2mm, 30ply	PE

PART LIST

Note: Refer to part numbers and be sure all parts are included.

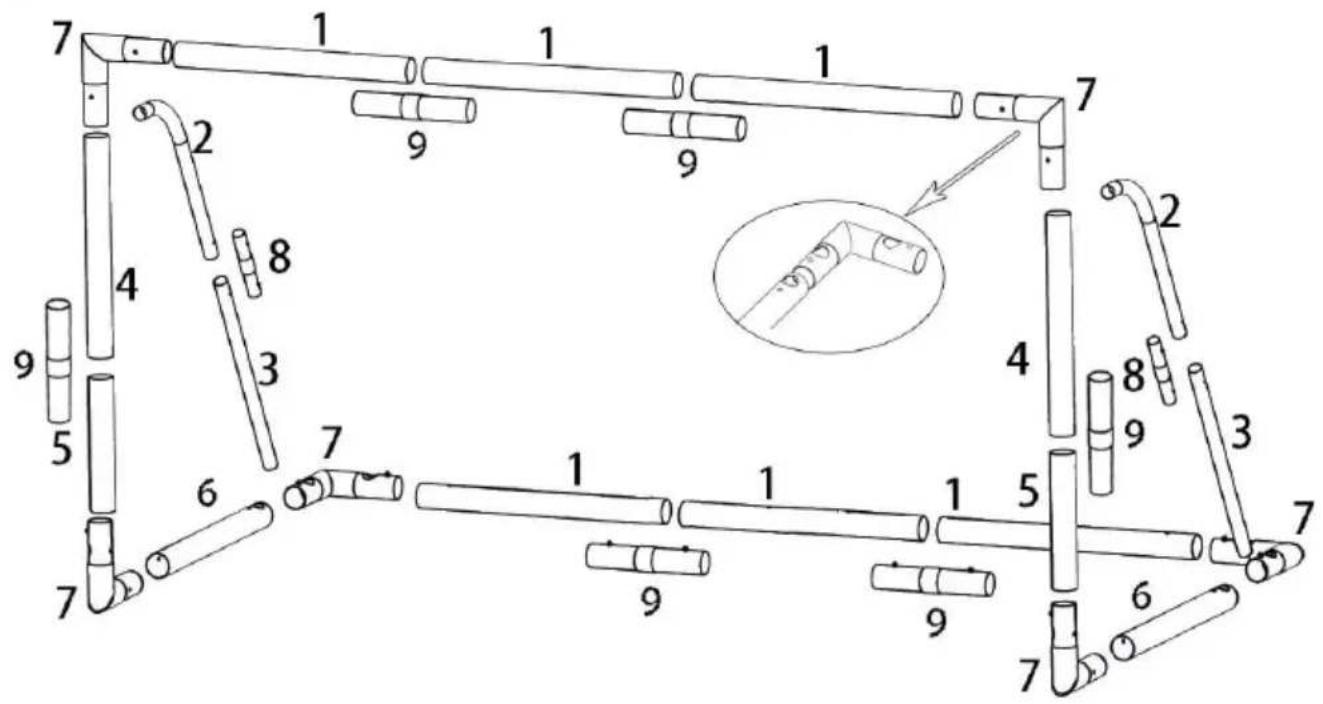

Technical diagram of a mechanical assembly with numbered components and an inset showing a close-up of a pipe fitting.

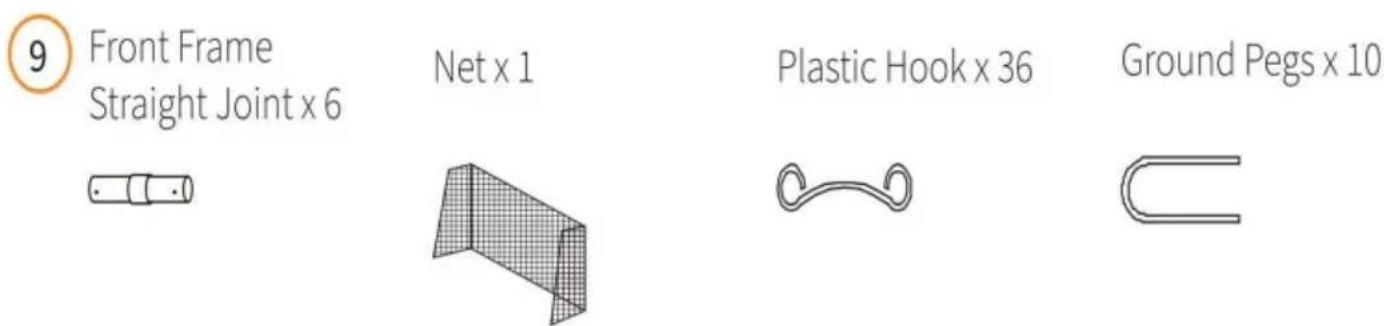

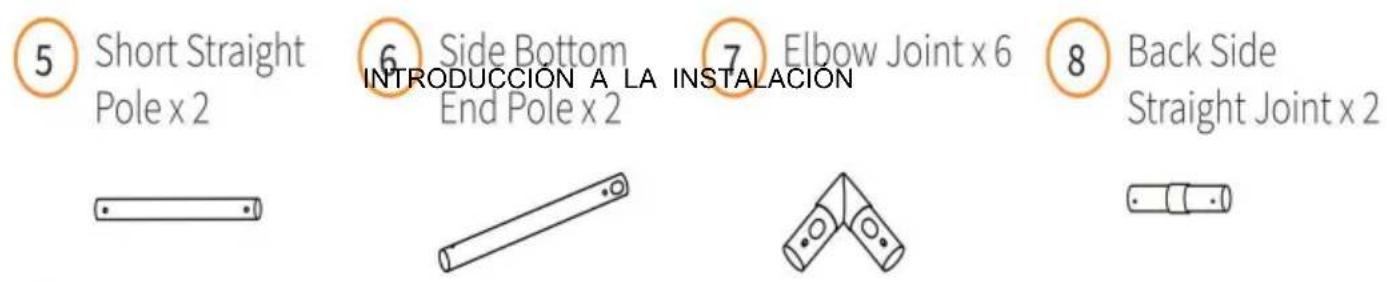

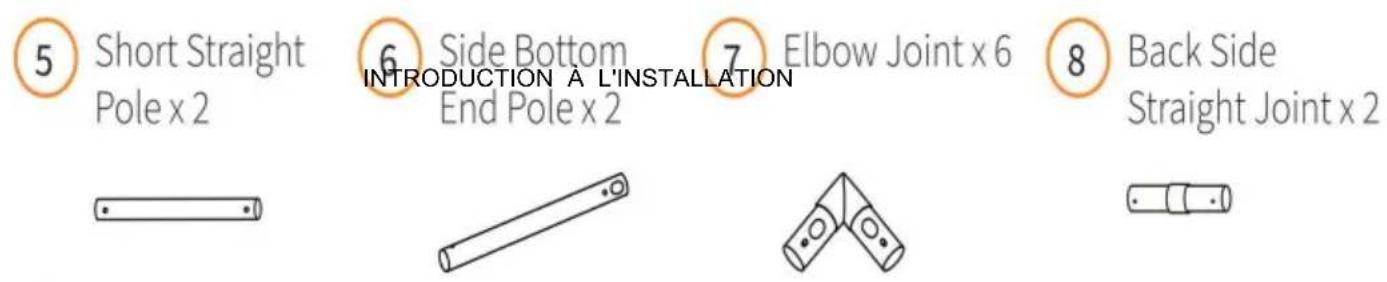

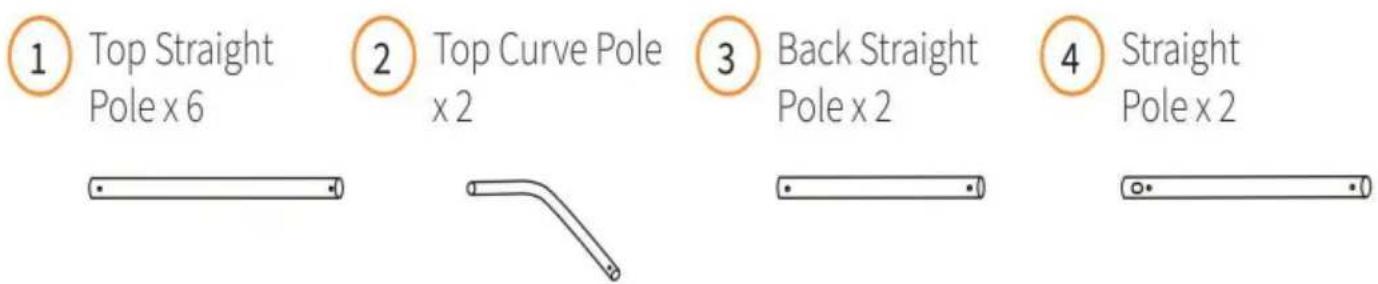

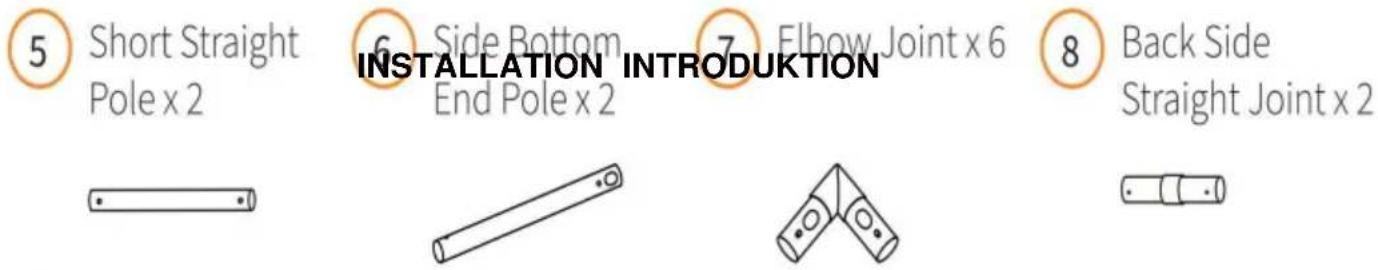

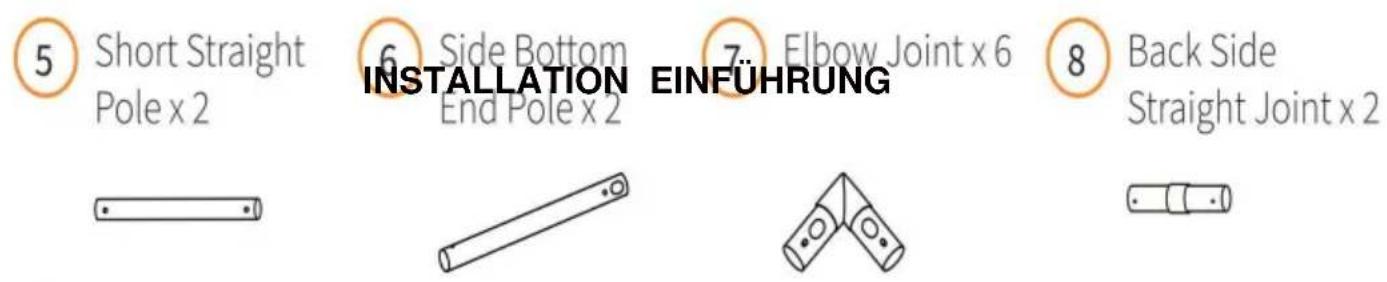

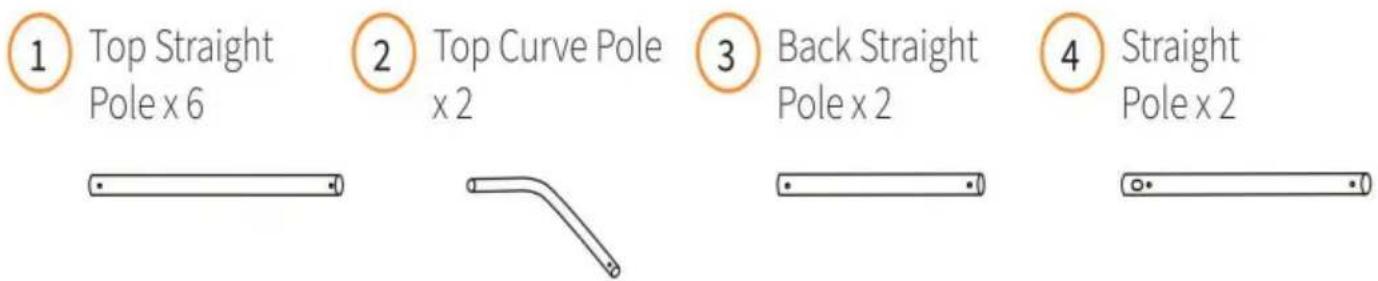

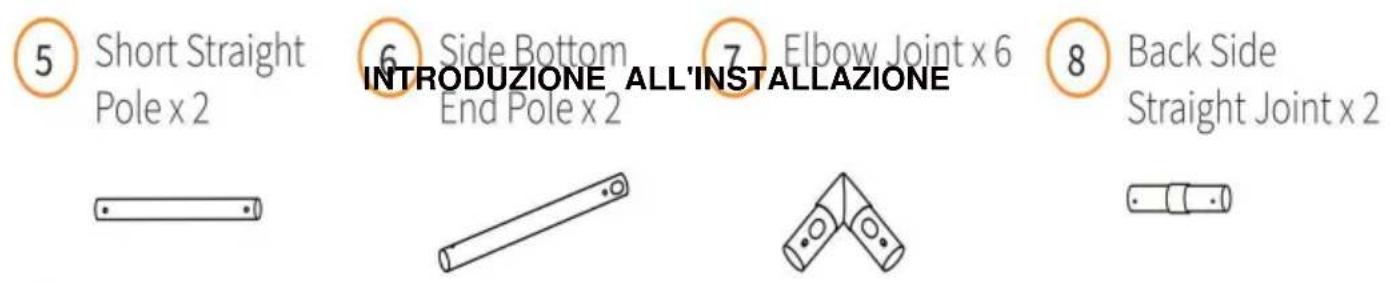

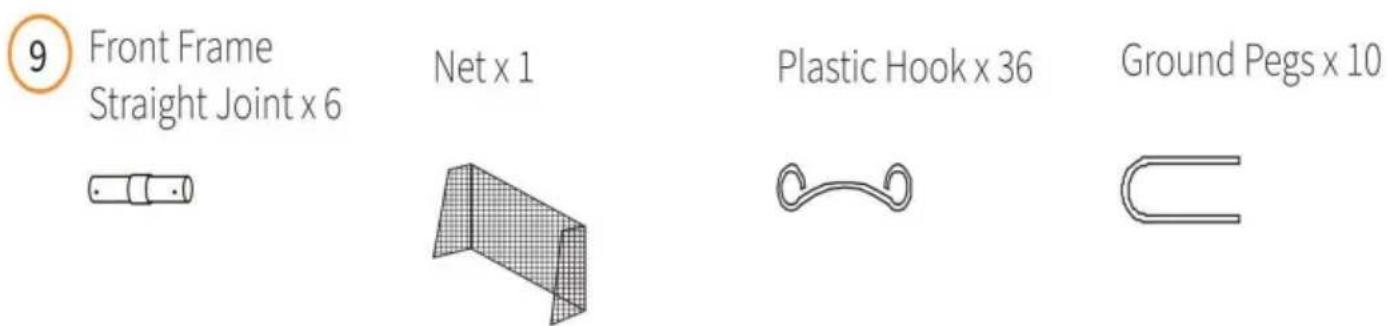

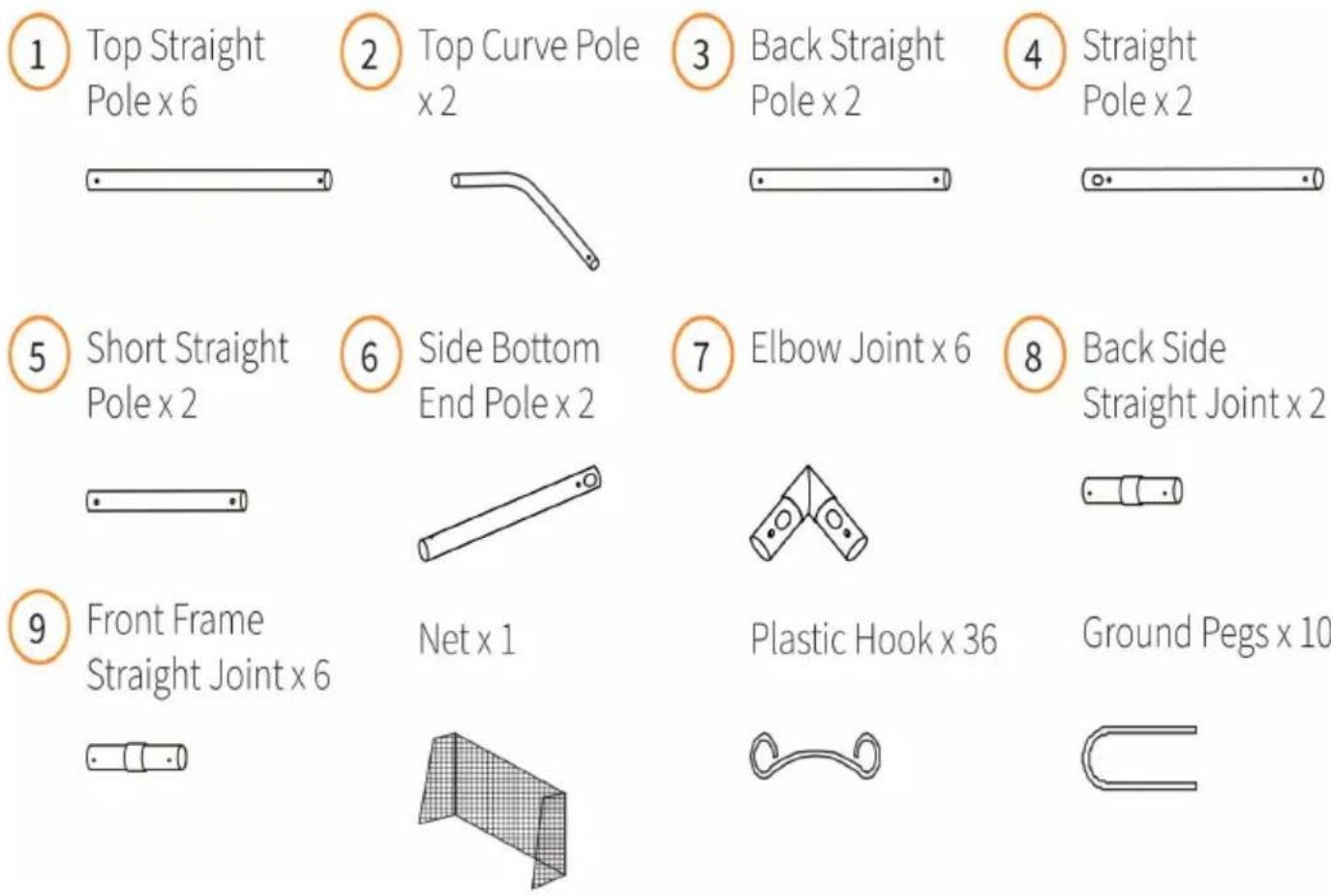

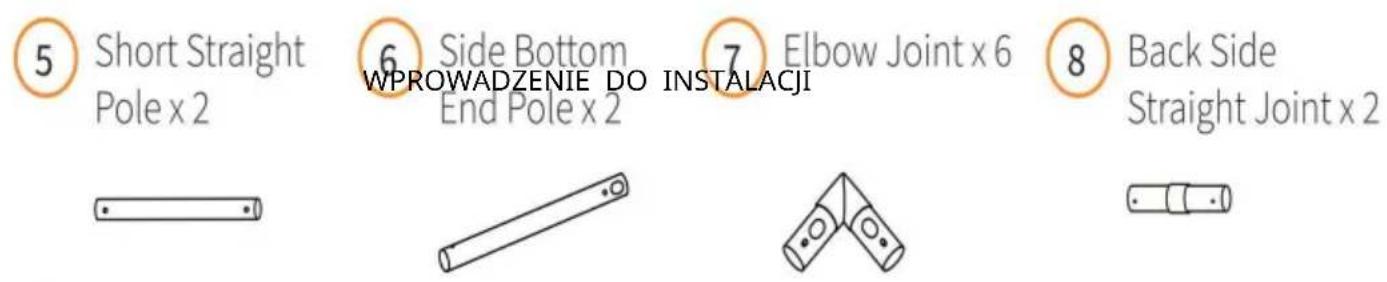

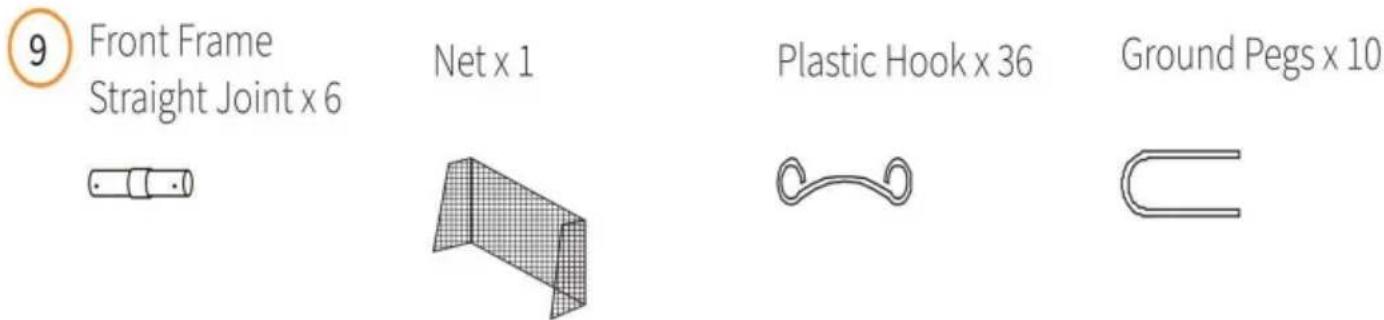

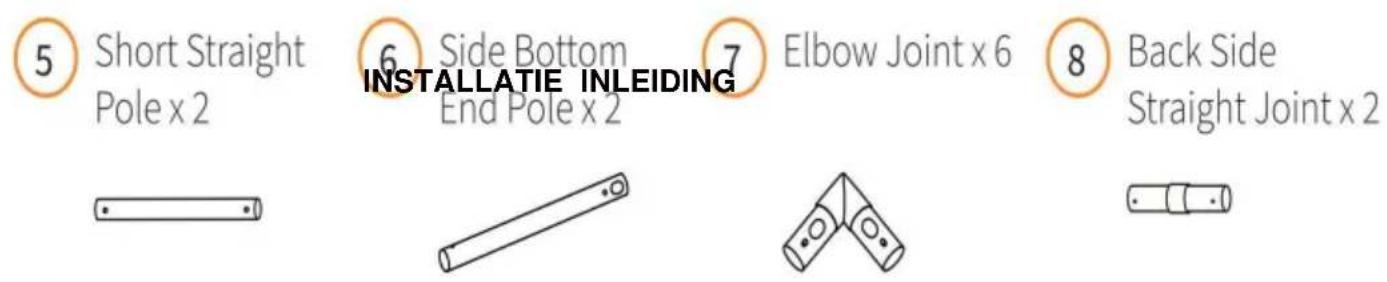

1 Top Straight Pole x 6 2 Top Curve Pole x 2 3 Back Straight Pole x 2 4 Straight Pole x 2 5 Short Straight Pole x 2 6 Side Bottom End Pole x 2 7 Elbow Joint x 6 8 Back Side Straight Joint x 2 9 Front Frame Straight Joint x 6 Net x 1 Plastic Hook x 36 Ground Pegs x 10

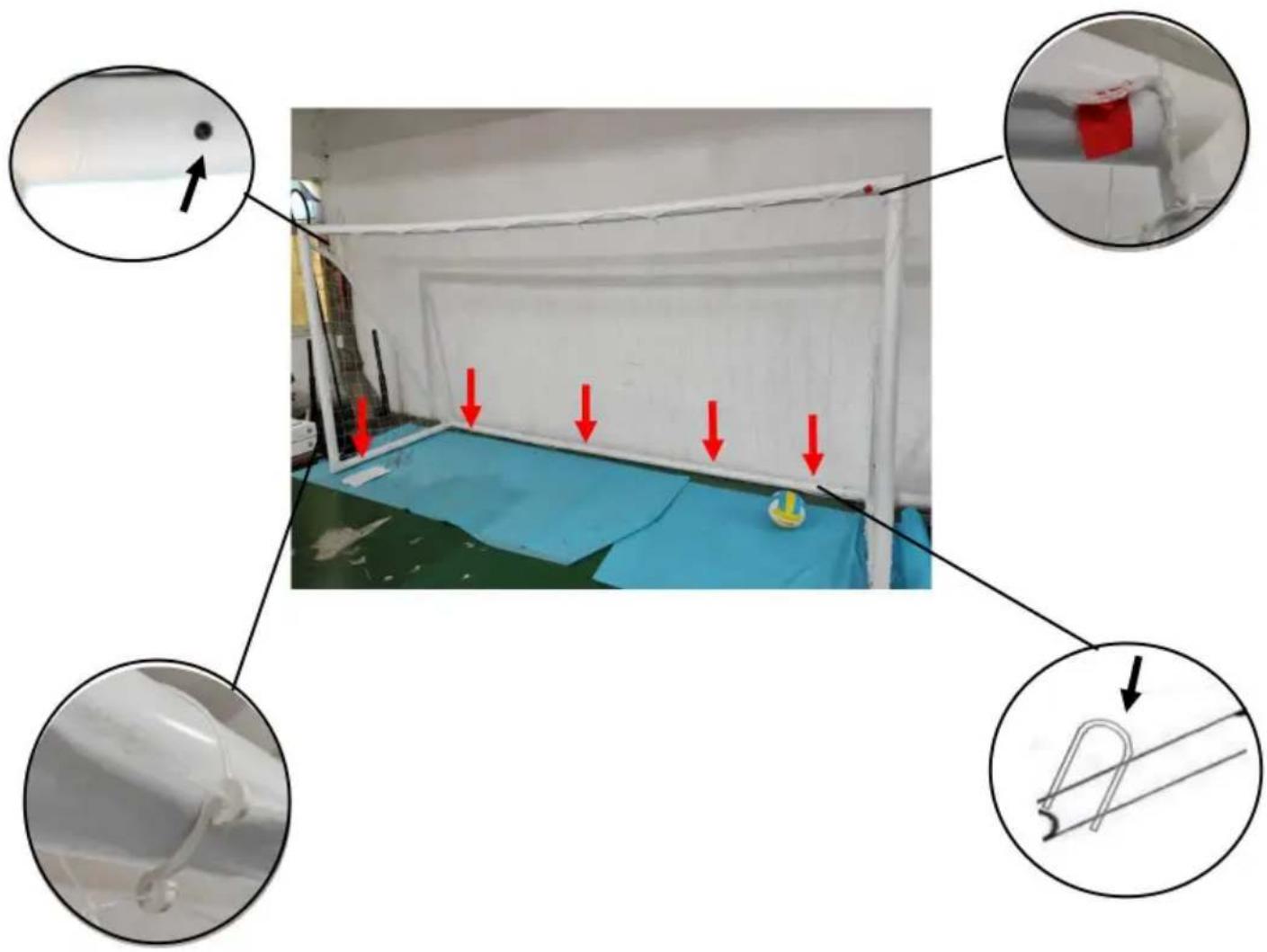

STEP 1:Push Button Fitting

STEP 2: Red Tal

Diagram showing a soccer net with red arrows indicating force application, including inset images of a ball and rope handling.

STEP 3: Hook
STEP 4: Pegs

STEPS

1. Open all packaging and organize all poles into several groups. Each part will have a number sticker matching the parts list opposite.
2. Connect the numbered poles together as shown in the diagram. Ensure the push-button on Joint 7 is located and locked into the h in Poles 1, 4 for a firm fixing (Step 1). Repeat Step 1 on the joint Poles 1, 4, 5, 6 for a firm fixing. And then place the support Poles the holes of joint 7.
3. Ensure all straight joint fittings are aligned and locked in position.
4. Ideally, two people should remove the net from the bag, unravel a open fully before fitting. Put the net over the frame with the red tab in the top left and right-hand corners once assembled.
5. The seam of the net should follow the frame supports. Secure the to the frame using the plastic hooks ensuring you space them out over the whole frame (Step 3).
6. It is for use on soft ground/grass only once fully assembled.

Locate the ground pegs to fix underground for added strength and stability (Step 4).

CLEANING AND MAINTENANCE

▶Clean the stand with a wet towel, the Net can be removed for washing and allowed to dry naturally.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
