HXTC-3LX - Transport cart Vevor - Free user manual and instructions

Product Type	Transport Cart
Brand	Vevor
Model	HXTC-3LX
Color	Black / White
Material	Steel
Number of Shelves	3
Shelf Type	L-shaped (one-sided)
Capacity per Shelf	73 lb (approx. 33 kg)
Total Capacity	219 lb (approx. 99 kg)
Wheels	4 wheels (2 with brake, 2 without)
Supplied Accessories	Document holder, bookends, storage panels, wrenches (10+17mm), hex key, M6 bolts
Power Source	None (manual)
Usage	Transport of books and documents
Safety	Do not transport people, do not overload, use brakes, flat surface
Maintenance	Clean after use, check bolt tightness, lubricate bearings
Installation	Requires two people, simple assembly
Country of Origin	China
Importer	SIHAO PTY LTD (Australia), Sanven (United States), UK/CE Representative in Frankfurt

Frequently Asked Questions - HXTC-3LX Vevor

How to assemble the HXTC-3LX cart?

Follow the steps in the manual: first install the storage panels, then the side plates, adjust and tighten, install the document holder and wheels. Use the provided hex key and bolts. It is recommended to have two people.

What is the maximum load capacity per shelf?

The maximum capacity is 73 lb (approx. 33 kg) per shelf. Do not exceed to avoid damage.

Do the wheels have brakes?

Yes, two of the wheels are equipped with brakes. To lock, lower the levers; to unlock, pull up.

Can I transport people on this cart?

No, it is strictly forbidden to transport people under any circumstances. Use it only for loads.

How to maintain the cart?

Clean the surface after each use. Regularly check the tightness of bolts and lubricate wheel bearings with grease.

What tools are provided for assembly?

A hex key, 10mm and 17mm wrenches, and M6 bolts of various lengths.

Can I use this cart on uneven terrain?

No, it is recommended to use on flat surfaces. On uneven terrain, the cart may tip over and cause injury.

What to do if a part is missing?

Contact Vevor customer service. The parts list is provided in the manual: side plates, panels, wheels, etc.

Is the cart foldable or disassemblable?

It is disassemblable for transport. Follow the reverse instructions to disassemble.

What is the product warranty?

The manual does not specify the warranty duration. Please contact Vevor for more information.

USER MANUAL HXTC-3LX Vevor

Affordable. Reliable. Home Improvement.

BOOK CARTS

MODEL: HXTC-3LX

MODEL: HXTC-3LX

Illustration of two industrial folding carts with perforated panels and wheels (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. It is forbidden to carry people under any condition.
2. Keep the product on level surfaces. It is forbidden to load articles uneven and hilly terrains. The product may become unstable and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
3. Overload is strictly prohibited.
4. Don't move too fast when passing pothole areas.
5. Use the brakes when this product is not being moved. This prevent the product from rolling.
6. Do not alter this product in any manner.
7. Do not lift the product directly with a forklift or tow with any med devices.

MODEL AND PARAMETERS

Model	HXTC-3LX
Shelve Type	L-shaped(Single-sided)
Number of Shelves	3
Max. Capacity	73lbs/per shelf
Material	Steel
Color	Black / White

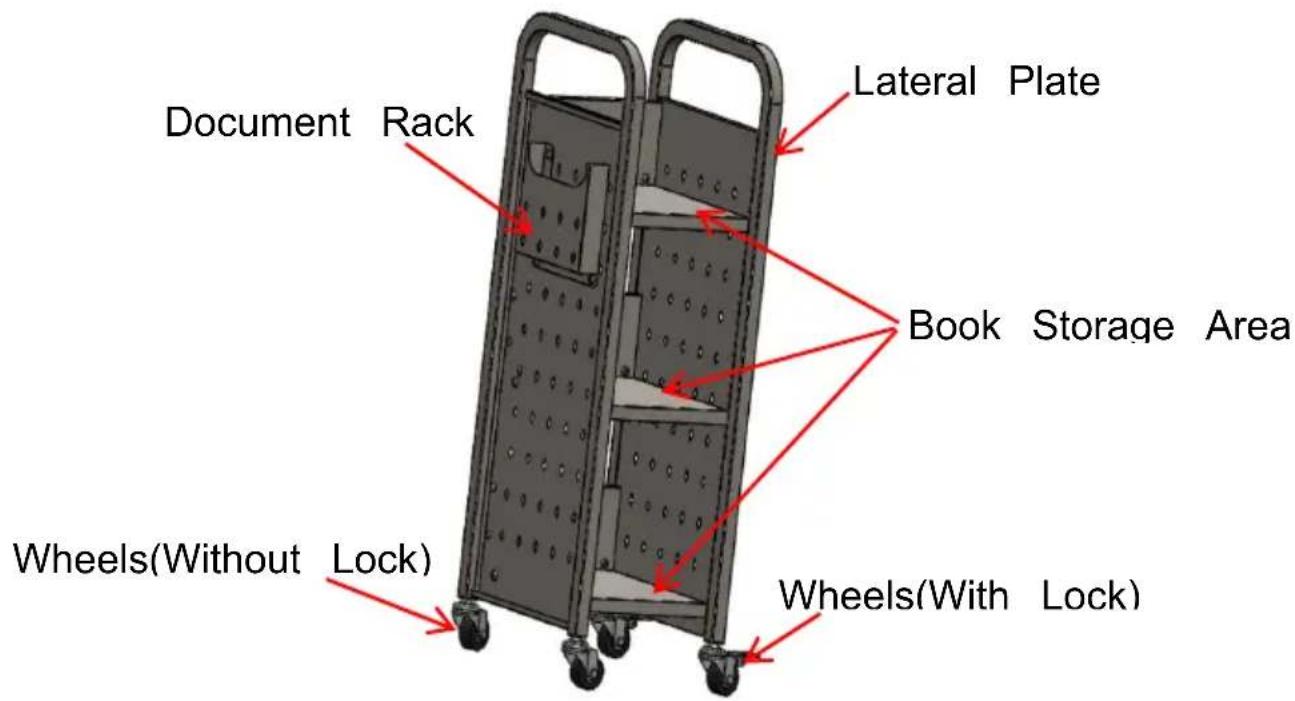

STRUCTURE DIAGRAM

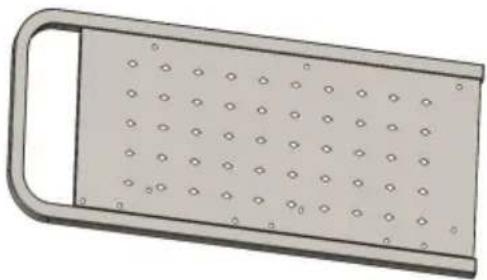

PARTS LIST

BOOK CARTS MODEL: HATC-GLX

Lateral Plates x1	Lateral Plates x1
Bookshelf Backboards x3	Book Storage Panels x3
Wheels(Without Lock) x2	Wheels(With Lock) x2
Bookends x1	Document Rack x1
Hex key x1	Hat nuts(M6) x10
Bolts(M6*8) x10	Wrenchs(10+17mm) x2
	BOOK CARTS MODEL: MTC-UX
Bolts(M6*14) x24	User Manual x1

INSTALLATION

NOTE: This installation is best done by two people.

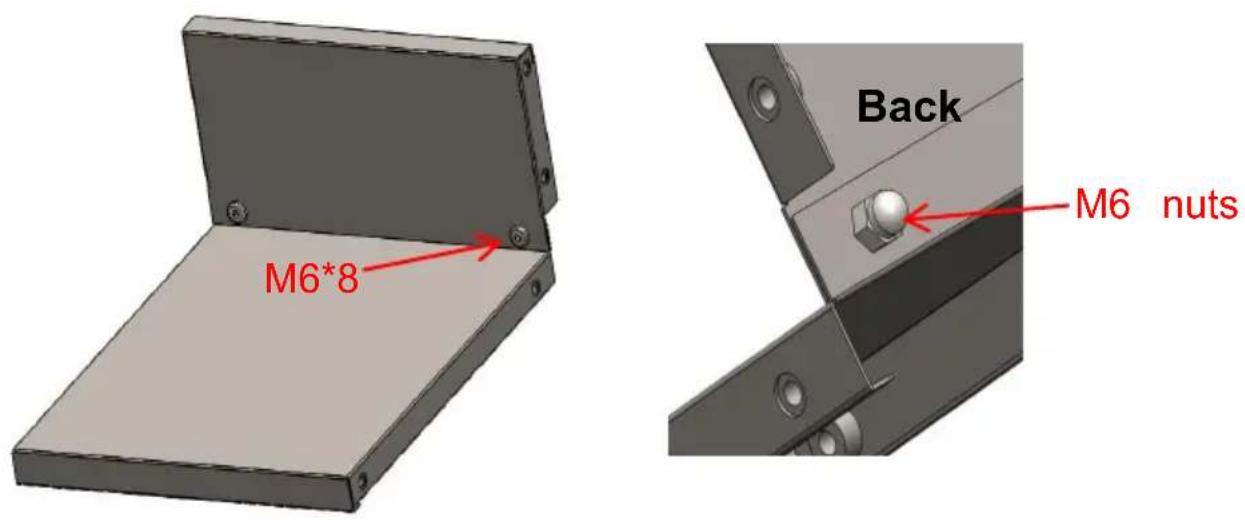

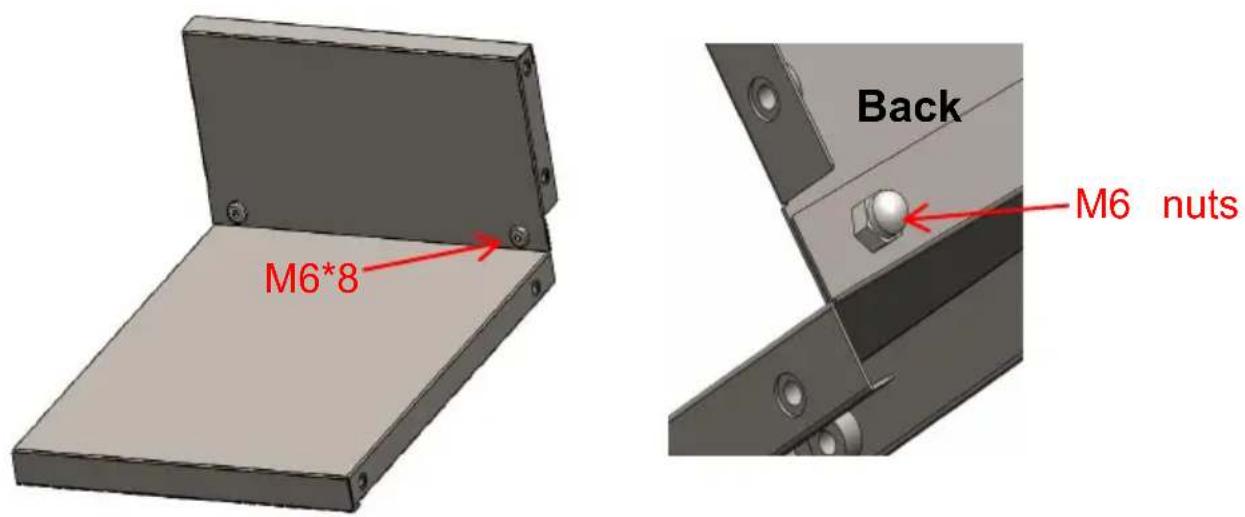

Step 1: Install the Book Storage Panel.

NOTE: Please do not tighten the bolts yet.

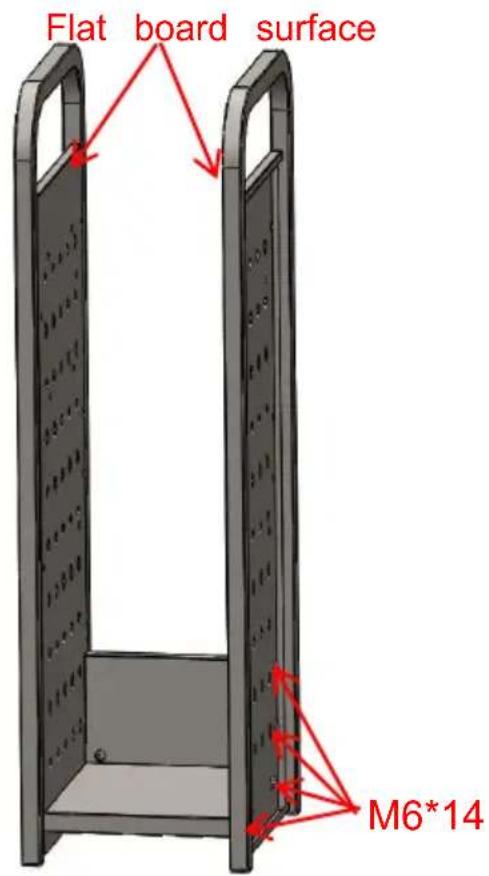

Step 2: Install the Lateral Plates.

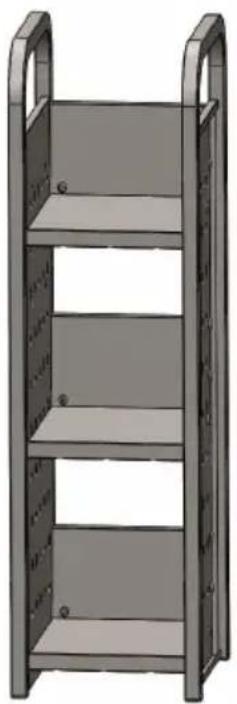

Step 3: After all parts are installed, adjust the angle of the frame and tighten all bolts.

3D rendering of a three-tiered shelf or cabinet structure with no visible text or symbols

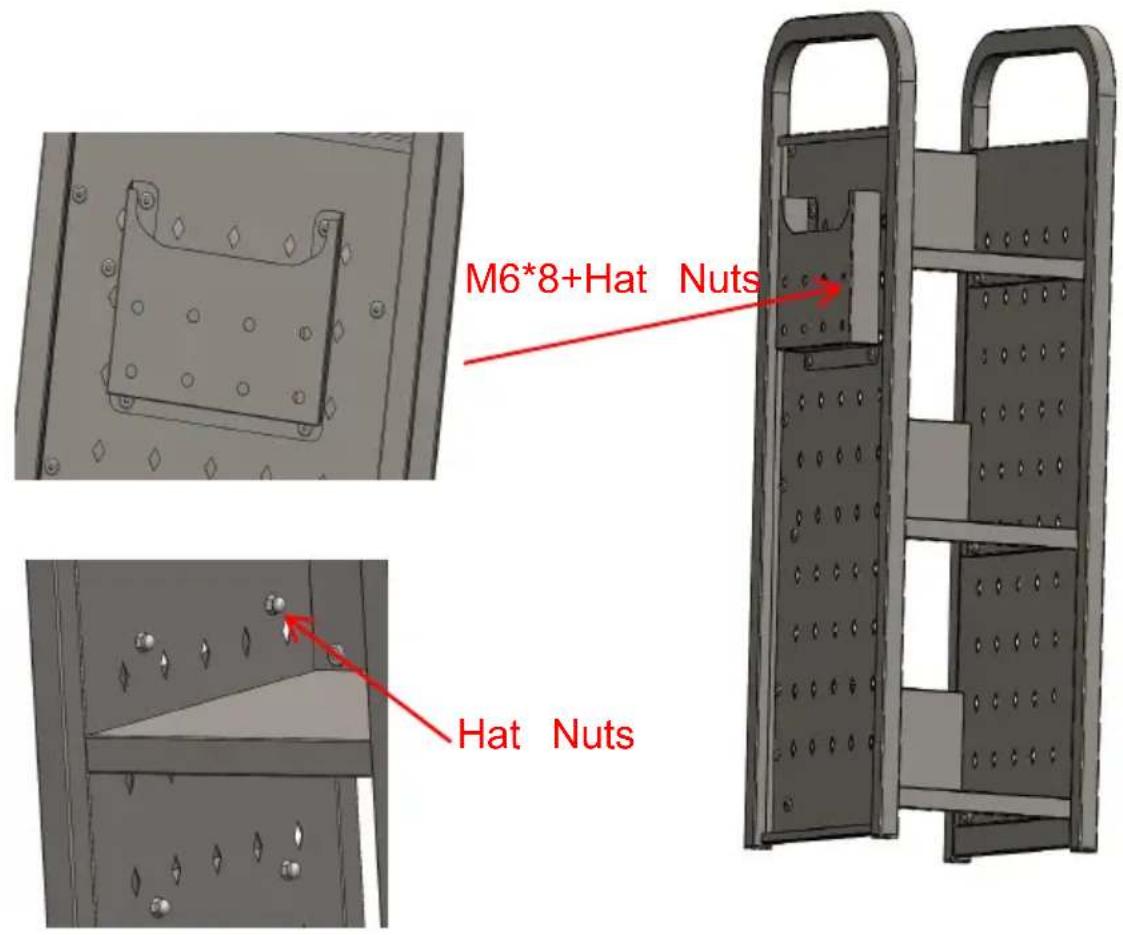

Step 4: Install the Document Rack.

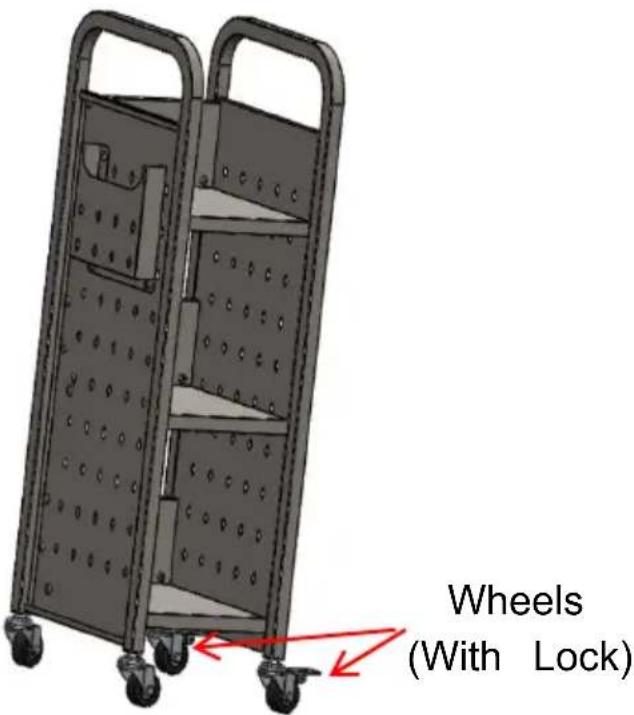

Step 5: Install the four wheels.

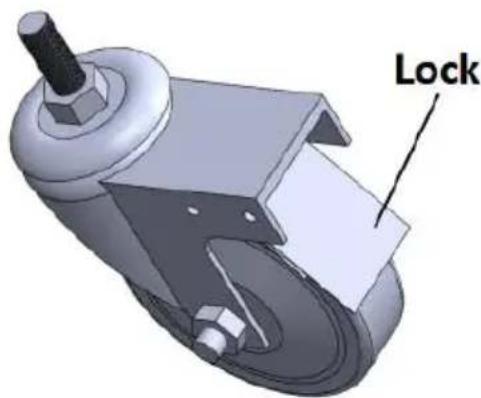

■ To lock the swivel casters with brake, step down the levers.

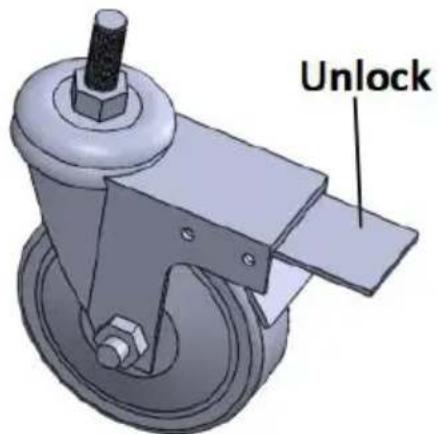

■ To unlock the swivel casters with brake, pull up the levers.

NOTE: The illustration is for illustration only.

MAINTENANCE

1. Clean the surface after each use .
   Please check and confirm that the cart is intact before each use.
2. Check that the bolts are tight.
3. Wheel bearings are regularly lubricated with grease.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

CHARIOTS À LIVRES

MODÈLE : HXTC-3LX

VEVOR

Affordable. Reliable. Home Improvement.

CHARIOTS À LIVRES

MODÈLE : HXTC-3LX

Illustration of two industrial folding carts with perforated panels and wheels (no text or symbols)

3D rendering of a multi-tiered shelf or rack unit with no visible text or symbols

Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. A/S YH Consulting Limited, bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

Bücherwagen

MODELL: HXTC-3LX

VEVOR

Affordable. Reliable. Home Improvement.

Bücherwagen

MODELL: HXTC-3LX

Illustration of two industrial folding carts with perforated panels and wheels (no text or symbols)

3D rendering of a three-tiered shelving unit with no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited,

Büro 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

EG-Vertreter

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

CARRELLI PORTA LIBRI

MODELLO: HXTC-3LX

VEVOR

Affordable. Reliable. Home Improvement.

CARRELLI PORTA LIBRI

MODELLO: HXTC-3LX

Illustration of two industrial folding carts with perforated panels and wheels (no text or symbols)

3D rendering of a multi-tiered shelf cabinet with no visible text or symbols

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122

YH CONSULTING LIMITED. C/O YH Consulting Limited

Ufficio 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

CARRITOS DE LIBROS

MODELO: HXTC-3LX

VEVOR

Affordable. Reliable. Home Improvement.

CARRITOS DE LIBROS

MODELO: HXTC-3LX

Illustration of two industrial folding carts with perforated panels and wheels (no text or symbols)

3D rendering of a multi-tiered shelf cabinet with no visible text or symbols

YH CONSULTING LIMITADA. A/C YH Consulting Limited

Oficina 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

WÓZKI NA KSIAŻKI

MODEL: HXTC-3LX

VEVOR

Affordable. Reliable. Home Improvement.

WÓZKI NA KSIAŻKI

MODEL: HXTC-3LX

Illustration of two large metal folding carts with perforated panels and wheels (no text or symbols)

3D rendering of a multi-tiered shelf cabinet with no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro

147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

©

MODEL: HXTC-3LX

Illustration of two industrial folding carts with perforated panels and wheels (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. It is forbidden to carry people under any condition.
2. Keep the product on level surfaces. It is forbidden to load articles uneven and hilly terrains. The product may become unstable and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
3. Overload is strictly prohibited.
4. Don't move too fast when passing pothole areas.
5. Use the brakes when this product is not being moved. This prevent the product from rolling.
6. Do not alter this product in any manner.
7. Do not lift the product directly with a forklift or tow with any med devices.

MODEL AND PARAMETERS

Model	HXTC-3LX
Shelve Type	L-shaped(Single-sided)
Number of Shelves	3
Max. Capacity	73lbs/per shelf
Material	Steel
Color	Black / White

STRUCTURE DIAGRAM

PARTS LIST

BOOK CARTS MODEL: HATC-GLX

Lateral Plates x1	Lateral Plates x1
Bookshelf Backboards x3	Book Storage Panels x3
Wheels(Without Lock) x2	Wheels(With Lock) x2
Bookends x1	Document Rack x1
Hex key x1	Hat nuts(M6) x10
Bolts(M6*8) x10	Wrenchs(10+17mm) x2
	BOOK CARTS MODEL: MTC-UX
Bolts(M6*14) x24	User Manual x1

INSTALLATION

NOTE: This installation is best done by two people.

Step 1: Install the Book Storage Panel.

NOTE: Please do not tighten the bolts yet.

Step 2: Install the Lateral Plates.

Step 3: After all parts are installed, adjust the angle of the frame and tighten all bolts.

3D rendering of a three-tiered shelf or rack unit with no visible text or symbols

Step 4: Install the Document Rack.

Step 5: Install the four wheels.

■ To lock the swivel casters with brake, step down the levers.
■ To unlock the swivel casters with brake, pull up the levers.

NOTE: The illustration is for illustration only.

MAINTENANCE

1. Clean the surface after each use .
   Please check and confirm that the cart is intact before each use.
2. Check that the bolts are tight.
3. Wheel bearings are regularly lubricated with grease.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

BOKVAGNAR

MODELL: HXTC-3LX

MODELL: HXTC-3LX

Illustration of two large metal folding carts with perforated panels and wheels (no text or symbols)

3D rendering of a multi-tiered shelf cabinet with no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited

Kontor 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EG-representant

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
