USER MANUAL GYZU-6T Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INDUSTRIAL MACHINERY MOVER USER MANUAL

Model: GYZU-6T, GYZU-6T*4, GYZG-6T*4, GYW-3T

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

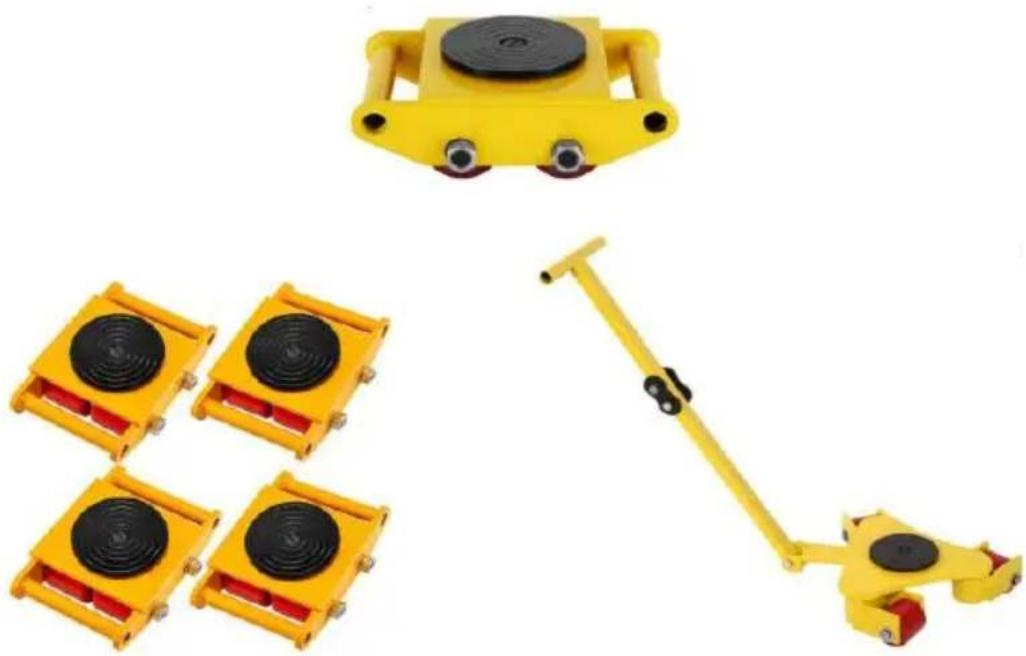

INDUSTRIAL MACHINERY MOVER

Yellow industrial robotic device with four wheels and a connecting lever mechanism (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precaution may result in serious personal injury.

GENERAL SAFETY RULES

1. It is recommended to use this product on flat, hard ground.
2. It is strictly prohibited to use this product on uneven or soft grou which is liable to cause property and personal injury.
3. This product is not suitable for use on sloping ground, otherwise accidents will occur easily.
4. Do not use more than the product load capacity.
5. Because the ground is not smooth, the wheels of each mover may be all involved in the work, it is recommended under the nominal loa use.
6. When using this product, it should be moved slowly at a low speed excessive speed can easily cause the mover to slide out, Accidents happen easily.
7. When the load is lighter, the steering performance of the mover is about good; conversely, the steering performance of the mover is not good. Do not swerve when the operator is struggling to turn. Heavy-du steering will cause serious wear on PU wheels, it is recommended to Jack lifting to assist the mover steering.
8. Do not recommend the use of a single or 2 movers together to large equipment, such use is not safe; For heavy equipment, 3 or 4 m are usually used together.
9. For high and narrow equipment, due to the high center of gravity, use of mover handling measures to prevent possible overturning.
10. When multiple movers are used together, rubber pads are added to ensure consistency in height; When handling, control the direction of ea

mover should be consistent, otherwise it is difficult or impossible to move. When turning, it is suggested to lift the weight slightly with the Jack and other tools to facilitate the mover to turn.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	GYZU-6T	GYZU-6T*4	GYZG-6T*4	GYW-3T
Total Load Capacity	4T	8T	12T	3T
Single Load Capacity	/	4T	4T	/
Package	1	4	4	1
Number of Wheels	4	4	4	3
Wheel Type	PU	PU	Carbon Steel	PU
Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
Color	Yellow	Yellow	Yellow	Yellow

GYZU-6T

1 2 3

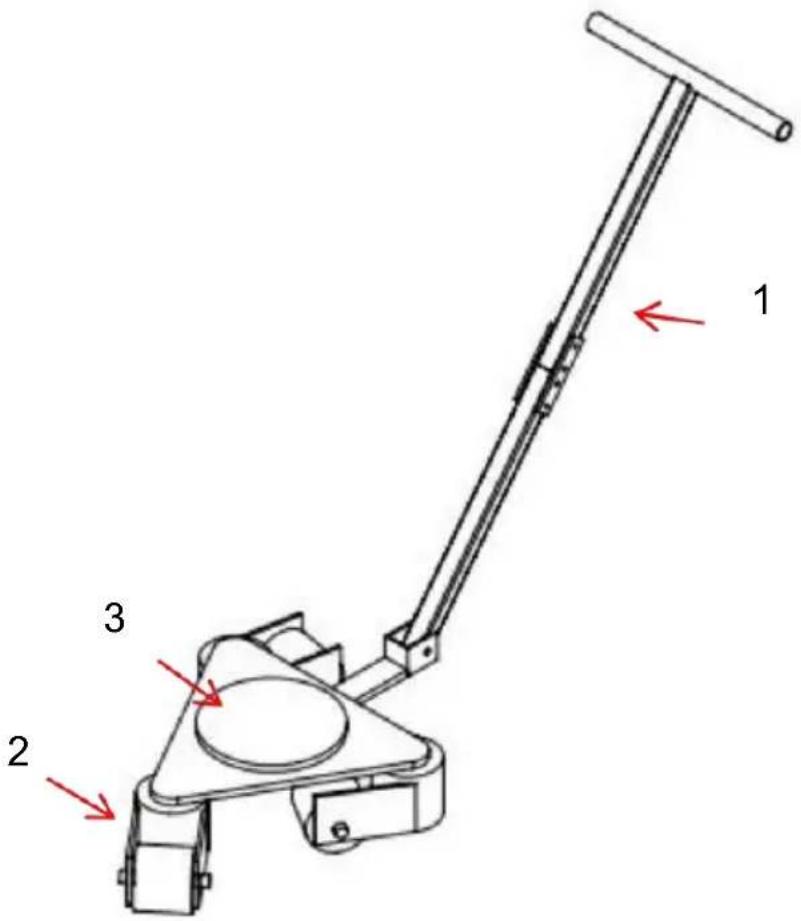

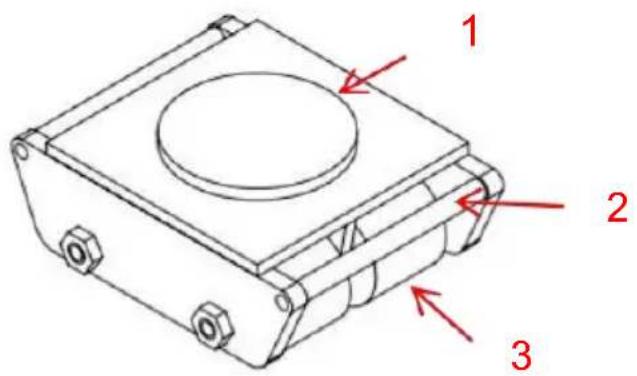

1. Rotary Disc 2. Integrated Tie Rod 3.Wheel

GYZU-6T\*4, GYZG-6T\*4

1 2 3

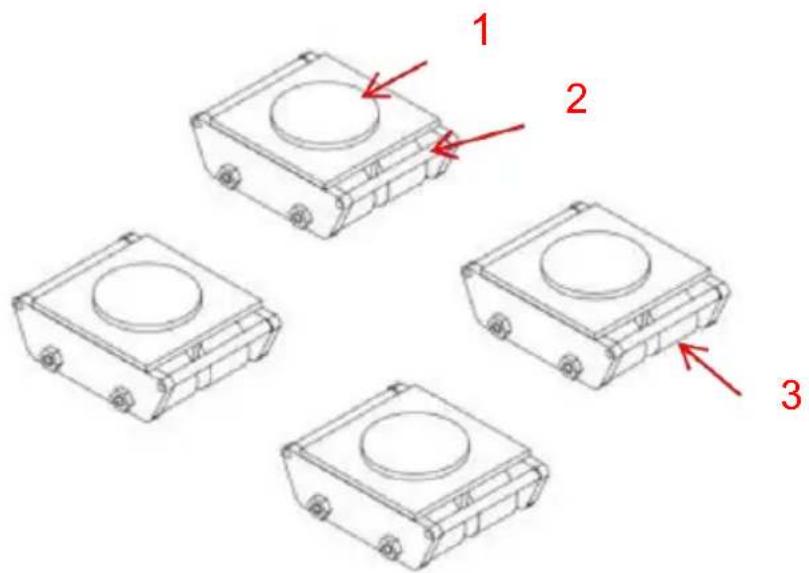

1. Rotary Disc 2. Integrated Tie Rod 3. Wheel

GYW-3T

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or motion.

1. Handle 2.Swivel Roller 3.Rotary Disc

COMPONENTS

NO.	Name	GYZU-6T	GYZU-6T*4	GYZG-6T*4	GYW-3T
1	Industrial Machinery Mover	1	4	4	1
2	Glove	/	/	/	1
3	Bolt+Nut	/	/	/	4
4	Connecting Sheet	/	/	/	2
5	Handle	/	/	/	2
6	User Manual	1	1	1	1

Step1: Use a large pry bar or hydraulic jack to lift the equipment.

Step2: Place the industrial machinery movers in the bottom of the equipment.

Step3: Ensure that the equipment is placed in the load-bearing center the industrial machinery mover.

Step4: When using this product, it should be moved slowly at a low as excessive speed can easily cause the movers to slide out.

NOTE: According to the different weights and sizes of the equipment choose the industrial machinery mover model, there are five styles to choose from, as shown below:

Technical line drawing of a mechanical assembly with a cube and support structure (no text or symbols)

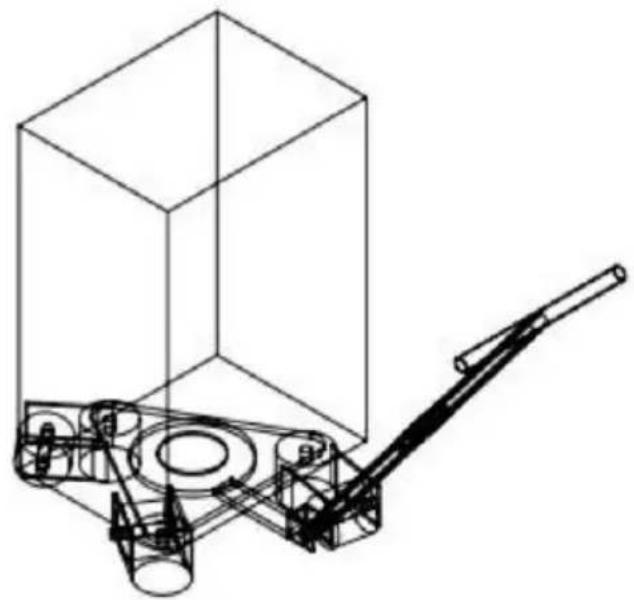

Fig.1

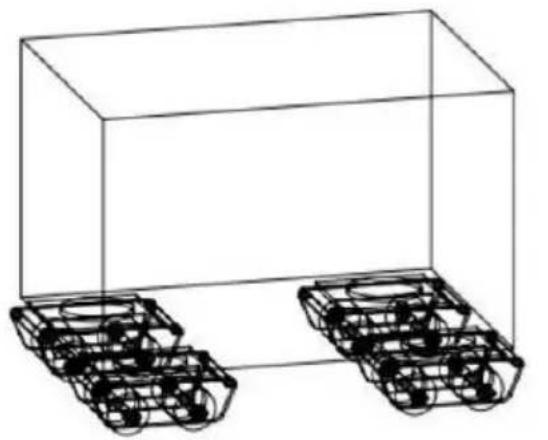

Line drawing of two wheeled robotic vehicles inside a transparent enclosure (no text or symbols)

3D wireframe diagram of two wheeled vehicle chassis inside a transparent enclosure (no text or symbols)

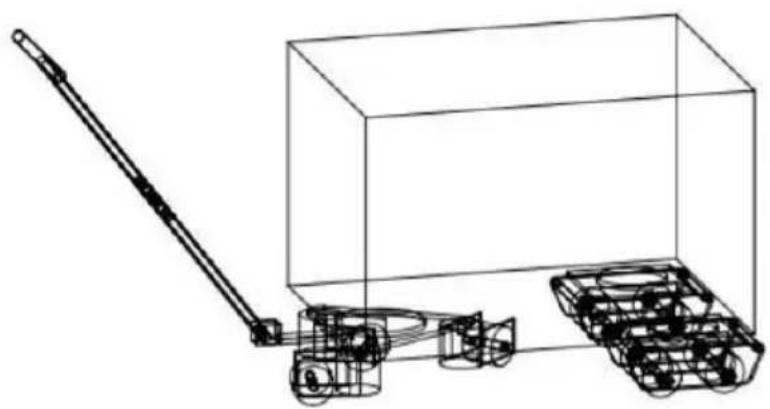

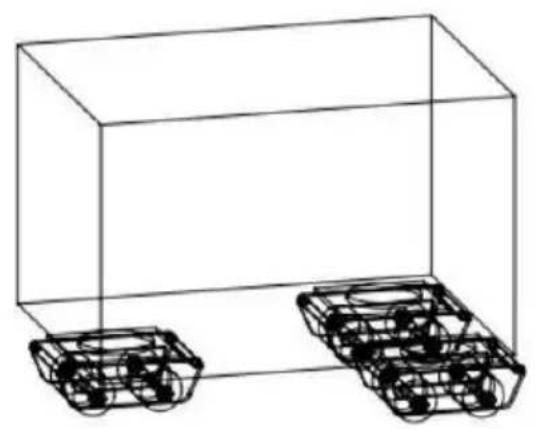

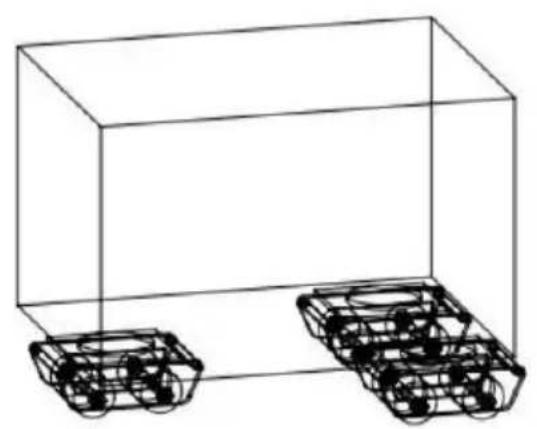

Fig.2 Fig.3

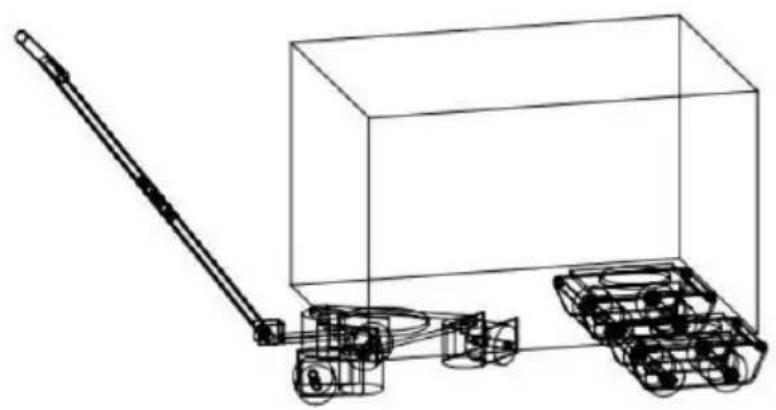

Line drawing of a wheeled cart with a rectangular box inside, no text or symbols present

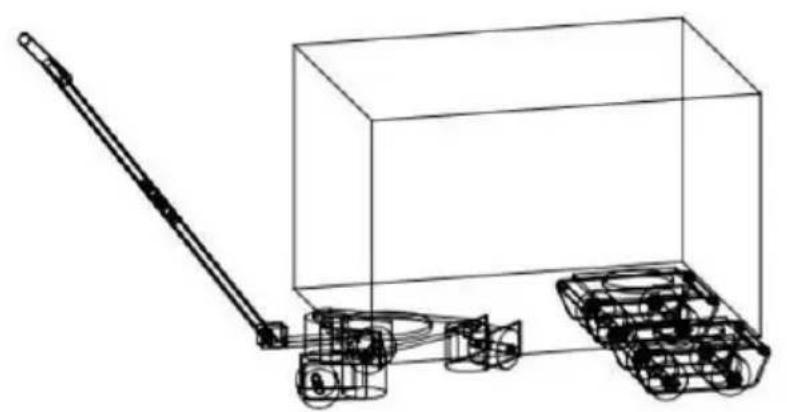

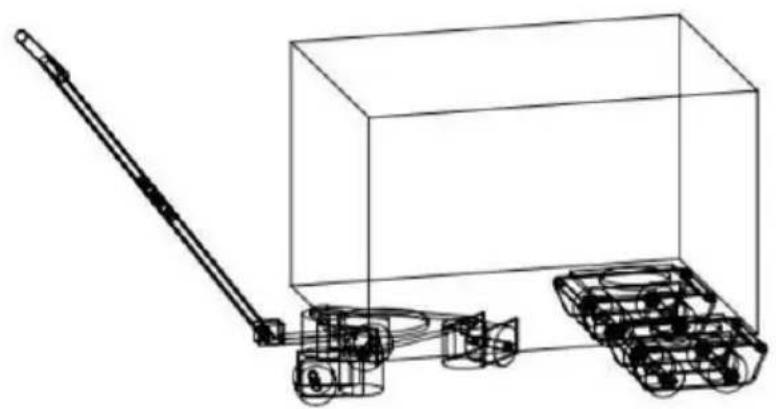

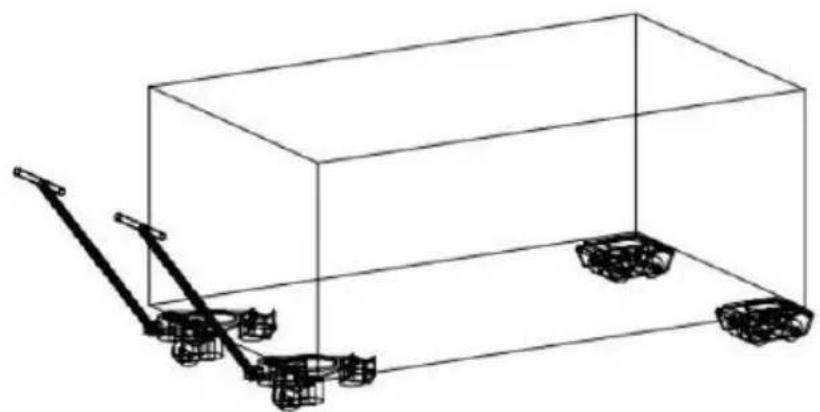

Fig.4

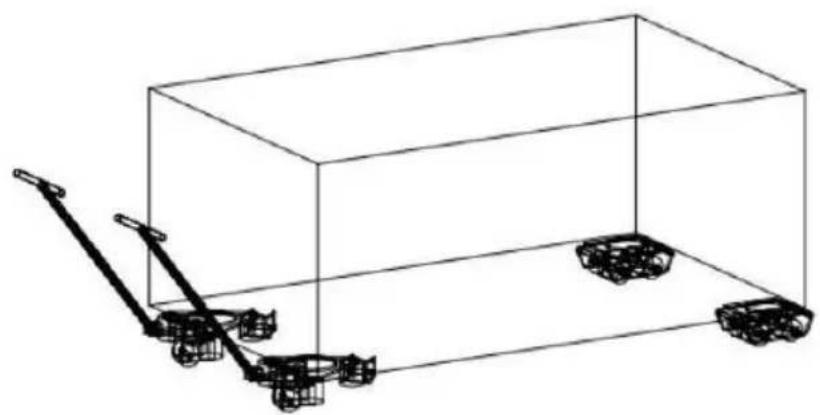

Line drawing of a vehicle chassis inside a transparent enclosure, with no text or symbols present.

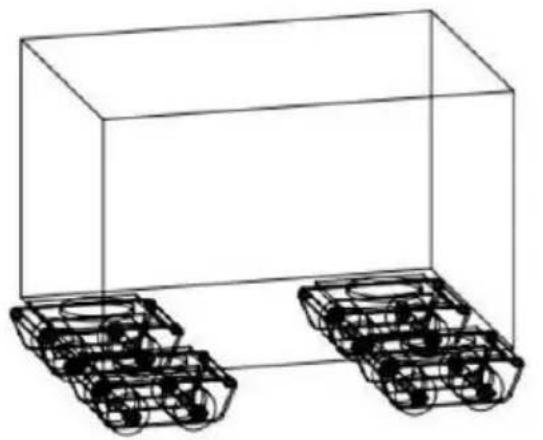

Fig.5

Two Steering Modes For Reference:

Simple diagram showing a device with four connectors and a dotted line indicating light or direction (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols

MAINTENANCE

1. After the use of the mover, remove the wheel of iron filings and sharp objects, storage dry environment.
2. Regular inspection of the mover. Replace bearings in time if the rotation is not flexible or large bearing clearance or noise. Replace the wheel in time, if the wheel is damaged.
3. After use, PU Wheel's mover should be cleaned in time, because wheel is easy to be hurt by sharp objects such as iron filings, sand
4. If the surface paint of the mover is damaged, it is recommended repair it in time to avoid rusting.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

TechnicalSupport and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
