H10263-57 - Pool accessory Vevor - Free user manual and instructions

Product type	Pool handrail
Brand	Vevor
Model	H10263-57
Adjustable height	35 to 57 inches (89 to 145 cm)
Maximum load capacity	600 lb (272 kg)
Main material	Stainless steel
Main function	Facilitate entry and exit from the pool
Installation	Floor mounting or on the edge of the pool
Recommended number of people for installation	2 people
Tools included	Allen key, flat wrench, screws and bolts
Parts supplied	Rail, pillars, spacers, base plate, screws, washers, nuts, shims
Maintenance and cleaning	Clean with a soft cloth and soapy water. Avoid abrasives.
Safety	Do not overload, do not use as a toy, check the fastening regularly
Repairability	Spare parts available on request from the manufacturer
Warranty	Manufacturer's warranty (see manual)

Frequently Asked Questions - H10263-57 Vevor

How to adjust the height of the handrail?

The height is adjusted by releasing the club handle (knurled handle) and sliding the rail to the desired height between 35 and 57 inches. Then tighten the handle to lock.

What is the maximum supported load?

The maximum load is 600 lb (272 kg). Never exceed this limit to avoid any risk of injury.

Does this model fit an above-ground pool?

Yes, it can be installed on an above-ground pool provided the edge is strong enough. Use the supplied shims to adjust the anchoring.

Does the installation require specific tools?

The necessary tools are provided: a hex key and a flat wrench. Assembly is done with the included screws, washers and nuts.

How to maintain the handrail?

Clean regularly with a soft cloth and soapy water. Rinse with clean water. Avoid abrasive or acidic products that could damage the finish.

Can the handrail be used as a seat support?

No, the handrail is designed to be grasped when entering and exiting the water. Do not sit on it and do not use it as a prolonged load support.

What to do if a part is missing or damaged?

Contact Vevor customer service or the dealer. Spare parts can be ordered by specifying the part number listed in the manual.

Can I install the handrail alone?

It is strongly recommended to have two people for installation, as some parts are heavy and need to be held in place during screwing.

Is the handrail rust-resistant?

Yes, it is made of stainless steel, making it corrosion-resistant in a pool environment. Rinsing with fresh water after use extends its lifespan.

How to fix the base plate to the ground?

The base plate is screwed onto the ground (concrete or wood) using the provided screws. Use the shim to adjust the tilt if necessary. Make sure the surface is flat and solid.

USER MANUAL H10263-57 Vevor

Affordable. Reliable. Home Improvement.

POOL HANDRAILS

MODEL: H10263-57

MODEL: H10263-57

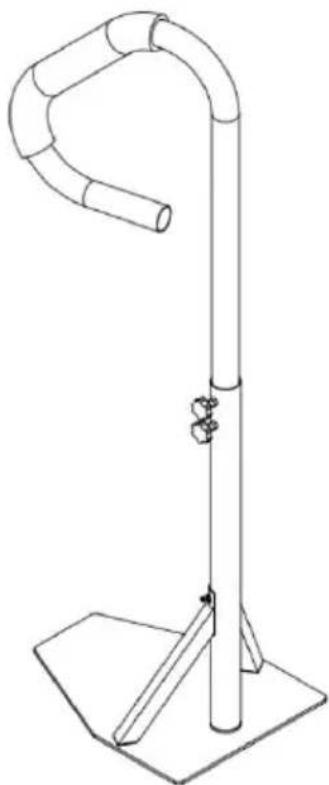

Line drawing of a simple outdoor walkway with a curved handle and base platform (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFE INSTRUCTIONS

CAUTION: Carefully read instructions and procedures for safe operation. Failure to do so can result in serious injury.

WARNING:

1. Before using the handrail, ensure that the handrail is securely install prevent personal injury and accidents.

2. When using the handrail, do not overload the handrail to avoid persinjury or accident.

3. Do not draw, cut, or use sharp objects on the handrail to avoid
4. If you need to disassemble the handrail, please follow the reverse to disassemble and store it properly.
5. This product is not a toy. Do not allow children to play with this

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or under the influence of alcohol, drug medication.
6. Product capabilities apply to properly and completely assembled products only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
8. For safety reasons, this hardware is recommended to be installed people.

SAVE THESE INSTRUCTIONS

Height (inch)	35-57
Maximum Bearing Capacity (lbs)	600

COMPONENTS

No.	Picture	Name	QTY
A		Handrail	1
B		Bottom pillar	1
C		Plum blossom handle	2
D		Diagonal brace	2
E		Base plate	1
F		Semi-countersunk head screws	3
G		Washer	2
H		Elastic gasket	2
I		Nut	2
J		Wrench	1
K		Hex key	1
L		Wedge block	2
M		Pipe plug (Installed)	1

INSTALLATION INSTRUCTIONS

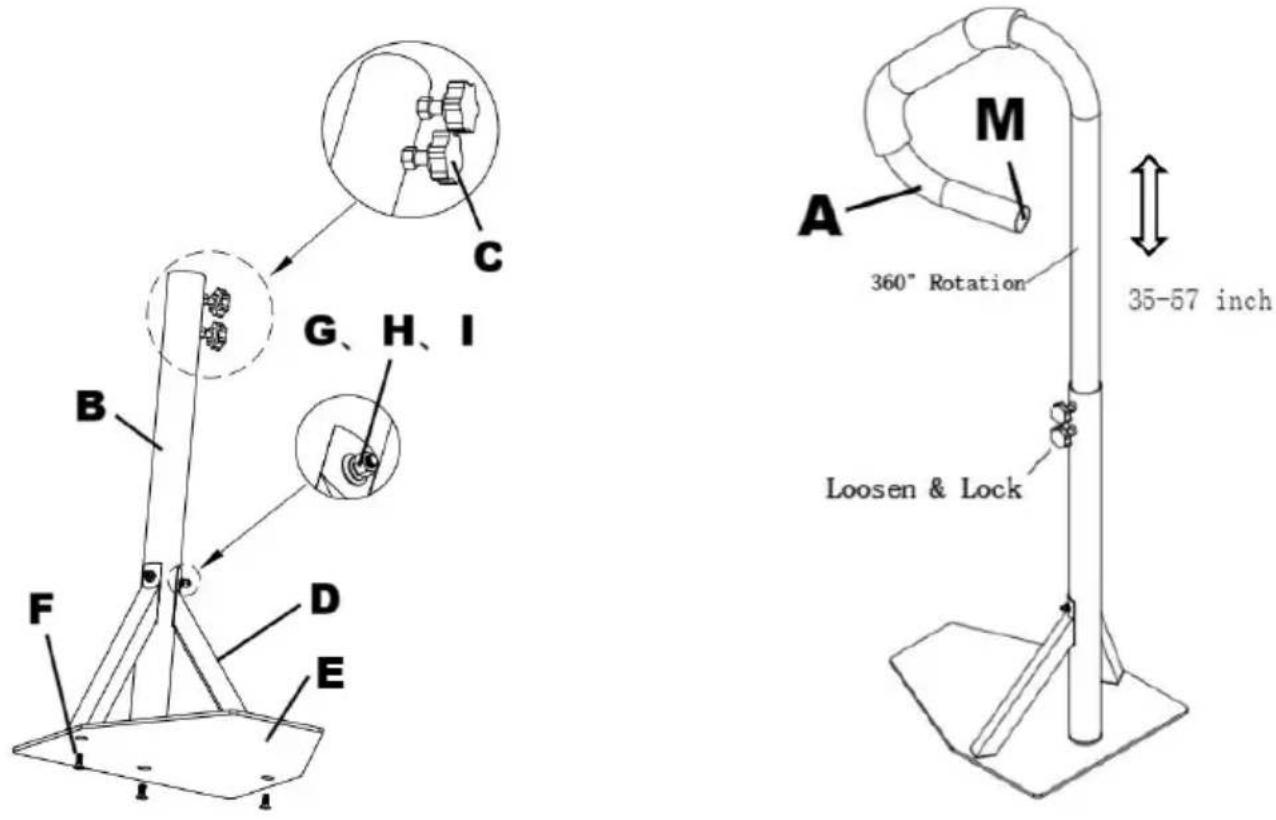

STEP 1: STEP 2:

Step 3:

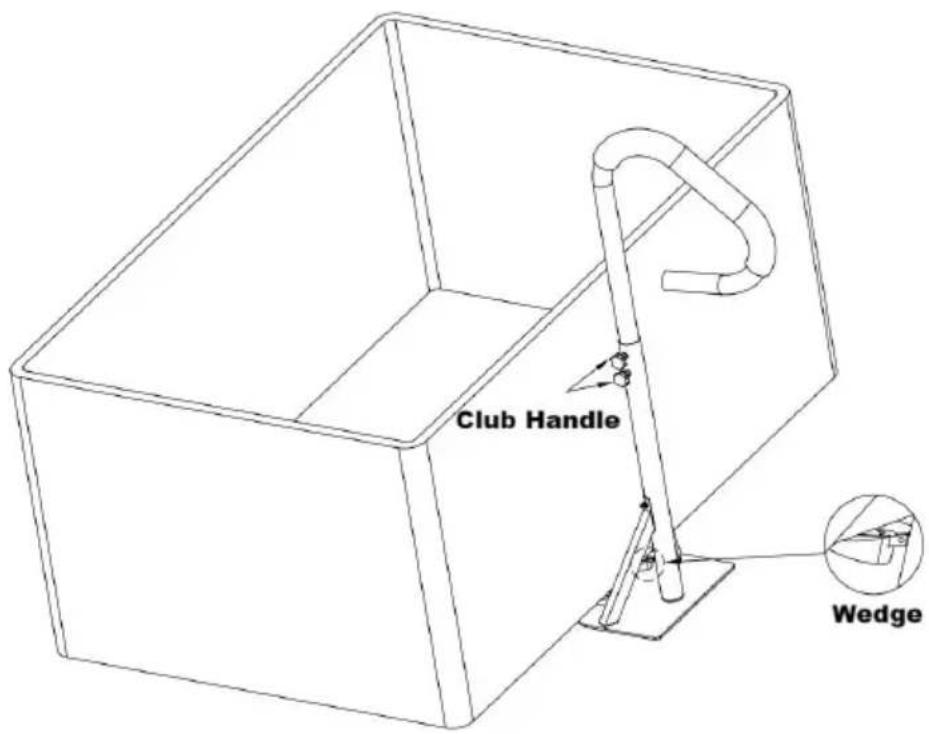

Note:

1) You can release the club handle to adjust the bend to the right hand angle.
2) After sliding the handrail into the bottom of the tub, you can use a to plug the handrail into the tub if necessary.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

RAMPES DE PISCINE

MODÈLE: H10263-57

MODÈLE : H10263-57

Line drawing of a simple outdoor walkway with a curved handle and support structure (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREET, ASTV NSW 2122 Australie

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

POOL-HANDLAUF

MODELL: H10263-57

MODELL: H10263-57

Line drawing of a simple outdoor walkway with a curved handle and base platform (no text or symbols)

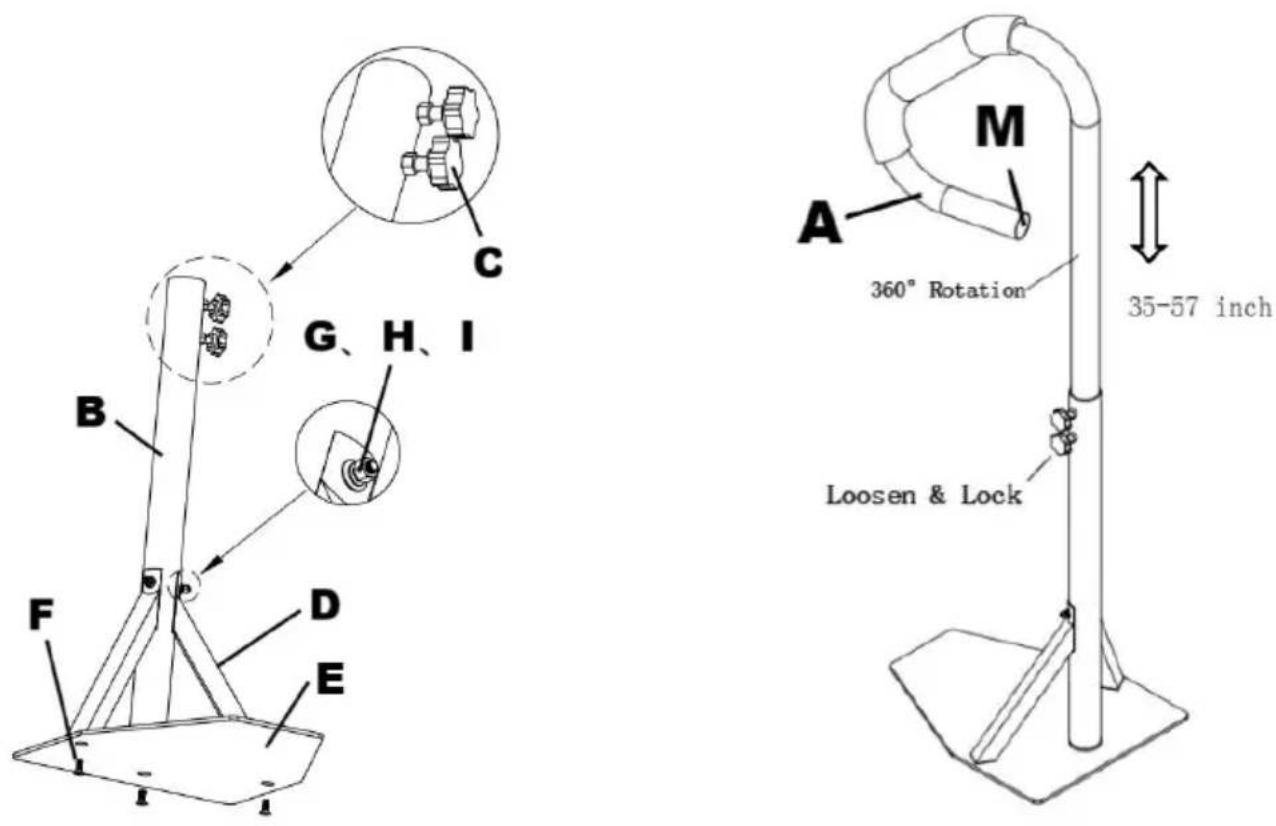

SCHRITT 1: SCHRITT 2:
