Product type	Manual double suction cup lifter
Brand	Vevor
Model	GS-N02
Number of suction cups	2
Suction cup diameter	4.7 inches (approx. 12 cm)
Suction cup material	Rubber
Handle material	Metal
Maximum load capacity	80 kg (estimated)
Product weight	1.5 kg (estimated)
Dimensions (L x W x H)	30 x 15 x 10 cm (estimated)
Power source	None (manual)
Operating principle	Vacuum created by deforming the suction cup via lever
Intended use	Lifting and moving non-porous materials (glass, metal, plastic, polished stone)
Compatible surfaces	Smooth, relatively flat, non-porous, clean, oil-free and water-free surfaces
Cleaning instructions	Clean the suction cups with transparent adhesive tape; clean the object's surface before use
Storage	In a dry place, away from heat and direct sunlight
Important safety instructions	Do not exceed the load capacity; check the handle tightness before use; do not use on porous surfaces; do not let children play with the device
Spare parts	Replacement suction cups available; use only identical parts
Warranty	Electronic support and warranty; use of non-identical parts voids warranty
Technical support	www.vevor.com/support

Frequently Asked Questions - GS-N02 Vevor

How to use the Vevor GS-N02 suction cup?

First clean the suction cup and the object's surface. Place the suction cup flat against the object, press firmly while pulling the plastic handle to create vacuum. The object can then be lifted and moved. To release, return the handle to its initial position.

What types of surfaces are suitable for this suction cup?

Surfaces must be smooth, relatively flat and non-porous, such as glass, metal, plastic or polished stone. Avoid rough, porous, or oil/grease-coated surfaces.

What is the maximum load capacity?

The maximum load capacity is not specified in the manual but is estimated at approximately 80 kg. Never exceed the capacity indicated on the device.

How to clean the suction cups?

Use transparent adhesive tape to clean the surface of the suction cups. Also ensure the surface of the object to be lifted is clean before each use.

How to store the suction cup after use?

Store it in a dry place, away from heat and direct sunlight, to prevent rust and wear.

What to do if the suction cup remains stuck to the object?

Gently lift the edge of the suction cup with your finger to let air in, which will break the vacuum and allow removal.

Can this suction cup be used on curved surfaces?

No, it is designed for flat and smooth surfaces. A curved surface may prevent creating sufficient vacuum.

Is it safe to lift heavy objects with this suction cup?

Yes, provided you follow instructions: check the condition of the suction cup, do not exceed the maximum load, and use only on suitable surfaces. Never use as a cart or for transporting people.

Where can I find spare parts?

Contact Vevor support via www.vevor.com/support or your dealer. Use only identical parts to ensure safety.

How to get the full manual in French?

The manual is available for free download on the site notice-facile.com. Select French language and your email to receive a translated version if necessary.

USER MANUAL GS-N02 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

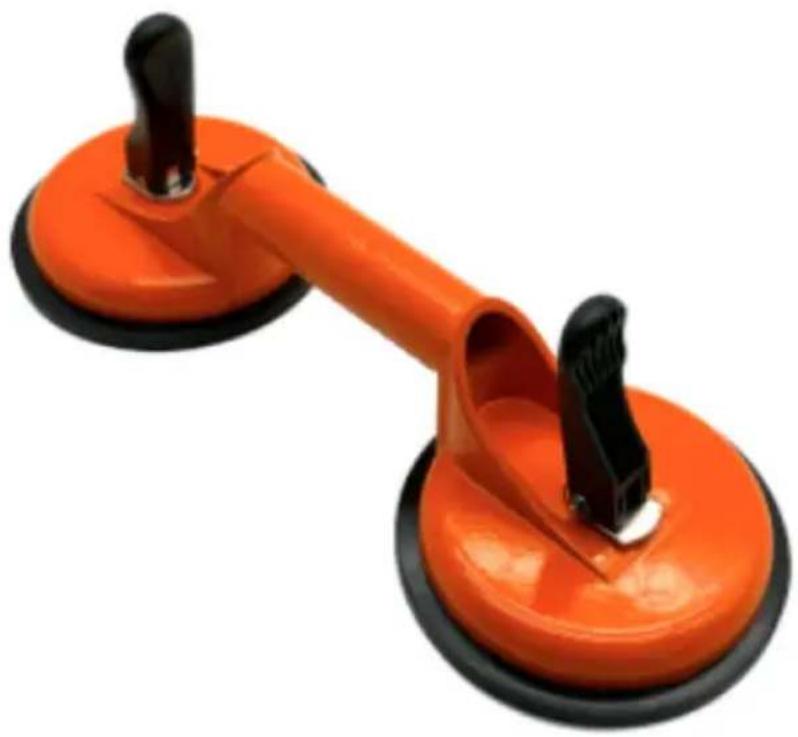

SUCTION CUPS

USER MANUAL

MODEL: GS-N02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SUCTION CUPS

MODEL: GS-N02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

1. This product is not a toy. Do not allow children to play with this.
2. Use as intended only. Do not stand on the product.
3. Make sure the handle is not loose before each use.
4. Do not exceed the listed weight capacity.

Safety Instructions:

1. Keep product away from damp, wet, rainy, high temperature, fire, or direct sun-shining conditions.
2. Check for alignment and binding of all moving parts, broken parts of mounting fixtures, and other conditions that may affect proper operation.
3. Never let children handle the product, and do not use the lifter as a toy.
4. When servicing, use only identical replacement parts. Use of any other parts will void the warranty.
5. Do not exceed the lifter's capacity.
6. Lifter should be used on non-porous materials with smooth, relatively flat surfaces.
7. Lifter can only be operated manually for short distances.
8. Check for damaged parts. Before use, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function, and the surface of rubber pads should be cleaned up without dirt.
9. If there is any question about a condition being safe or unsafe, do not use the product.

Product Use: Lifting and moving non-porous materials.

Storage: When not in use, the product should be stored in a dry location, away from high temperatures and direct sunlight, to inhibit rust and wear.

Operation Direction:

1. The principle of operation is by lever and pump action. The round cups are pressed onto the surface of the object to be lifted. The levers are squeezed together into position. The rubber pads are then securely clamped to the surface by vacuum so that the object can be lifted. To release, just flip back the levers.
2. The loaded surface needs to be smooth, relatively flat, and non-porous. Surfaces should be free of oil, grease, or water; otherwise, slipping can occur. Non-porous materials such as glass, metal, plastics, and polished stone are good examples.

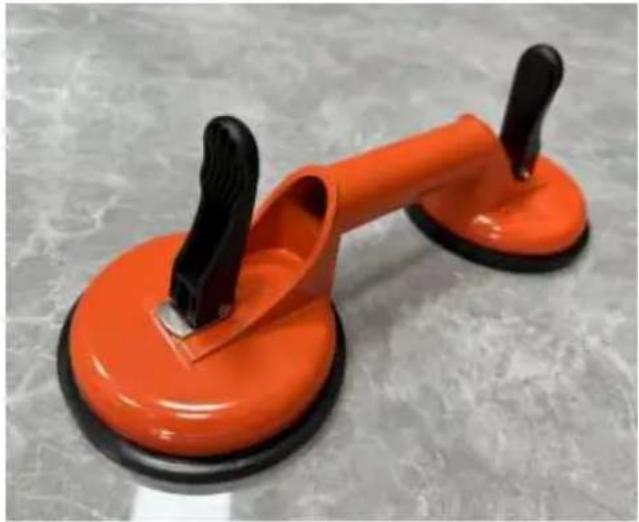

OPERATION AS BELOW

	1. When using, clean the suction with transparent sealing tape
	2. The surface of the item to be must be wiped clean.

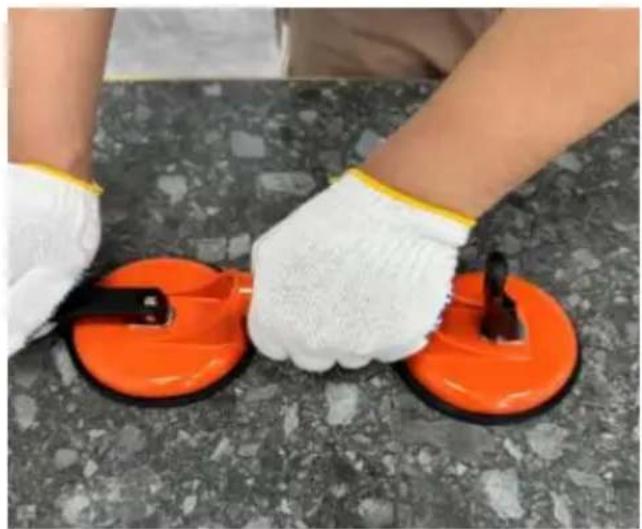

1. Place the suction pad flat against the item and press firmly on the surface while simultaneously pulling down the plastic handle. The suction pad will be lifted and deformed, creating a cavity with a considerable vacuum between the suction pad and the item. The atmospheric pressure causes the suction cup to hold the item firmly. At this point, the item can be lifted and moved by hand.

1. After moving the item, pull the handle back to its original position, allowing the suction pad to return to its flat shape and release the vacuum pressure, completing one lifting operation. If the suction cup remains attached to the item and cannot be removed, you can slightly lift the edge of the suction cup with your finger to let air into the vacuum cavity and separate the two.

	Items	Description
1	Name	Suction Cups
2	Model	GS-N02
3	Parameter	4.7 inches Metal handle Double Suction Cups
