Product Type	Built-in ice bucket (integrated ice bucket)
Brand	Vevor
Model	FG-SKU11
Exterior Material	Brushed stainless steel
Interior Material	Double layer with high-density polyurethane insulation
Thermal Insulation	High-density polyurethane + adhesive lid gasket + anti-condensation XPE sponge
Capacity	55.23 liters (calculated with water density)
Cutout Dimensions (L x W x H)	587 x 435 x 570 mm
Cold retention time	Up to 24 hours with ice
Included accessories	Cup, lid, strainer, sealing gasket (2x), siphon, screw, key
Recommended use	Storing beverages (wines, beers, cocktails, juices) for patios, yards, pools, restaurants, parties, barbecues
Maintenance	Drain water after each use, dry the interior to prevent mold and bacteria
Safety	Small parts: choking hazard. Keep away from children. Assemble only according to instructions.
Installation	Built-in, follow steps: place the siphon (part 4), install strainer and gaskets, tighten the screw, place cup and lid
Repairability	Spare parts available (cup, lid, gaskets, strainer, siphon). Contact Vevor after-sales service.
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of origin	China (manufacturer address: Shanghai)

Frequently Asked Questions - FG-SKU11 Vevor

What is the actual ice capacity of the FG-SKU11 ice bucket?

The total capacity is 55.23 liters. However, since ice has a different density than water, the amount of ice that can be loaded is less. For example, 10 kg of ice occupies the same volume as 23 kg of water. For optimal efficiency, fill the ice bucket with ice cubes or ice blocks.

How to install the built-in ice bucket FG-SKU11?

Installation is done in three simple steps: 1) Place the siphon (part #4) into the basin hole, then install the strainer and the two sealing gaskets (parts 5/6/7) onto the siphon. 2) Tighten the screw with the provided key, then attach parts 8 and 9 (cup and lid?) onto part 7. 3) Place the cup (part 1) and lid (part 2/3) onto the siphon to finish. Make sure the cutout dimensions (587x435x570 mm) are respected.

Does the ice bucket require an electrical power supply?

No, the FG-SKU11 ice bucket is a passive model with no electrical components. It uses high-density polyurethane insulation and an adhesive lid gasket to maintain temperature. No plug or battery is required.

How to clean and maintain the ice bucket?

After each use, drain the melted water and clean the interior with a soft cloth and soapy water. Rinse and dry thoroughly to prevent bad odors and bacteria. If not using for a long period, drain water, dry the interior, and leave the lid open to prevent mold.

What types of beverages can I store in this ice bucket?

This ice bucket is ideal for beverages such as wine, beer, cocktails, juices, and sodas. Its stainless steel design and efficient insulation keep drinks cold for 24 hours. It is perfect for patios, pools, barbecues, or parties.

Is there a risk of condensation on the exterior walls?

No, the sides and bottom are covered with an XPE sponge that prevents condensation. Thus, no water droplets form on the exterior surface, avoiding stains on your countertop or furniture.

What are the exact cutout dimensions required for installation?

For the FG-SKU11 model, the recommended cutout is 587 mm length, 435 mm width, and 570 mm height. However, always check the actual installation environment. The cutout height corresponds to the height reserved for inserting the ice bucket.

Can spare parts be ordered for the ice bucket?

Yes, spare parts are available. The included accessories are: a cup, a lid, a strainer, two sealing gaskets, a siphon, a screw, and a key. In case of loss or breakage, contact Vevor technical support via www.vevor.com/support.

How to ensure maximum insulation?

Make sure the lid is tightly closed and the adhesive gasket is in good condition. Use block ice instead of ice cubes for slower melting. Do not overload the ice bucket and pre-cool beverages before placing them inside.

Is this ice bucket suitable for professional use?

Yes, thanks to its robust brushed stainless steel construction and 55.23-liter capacity, it is perfect for bars, restaurants, hotels, or events. Its built-in design easily integrates into a countertop or bar furniture.

USER MANUAL FG-SKU11 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN ICE CHESTS INSTRUCTIONS

MODEL: FG-SKU1 / FG-SKU2 / FG-SKU3 / FG-SKU4 FG-SKU5 / FG-SKU6 / FG-SKU7 / FG-SKU8 FG-SKU9 / FG-SKU10 / FG-SKU11 / FG-SKU12 FG-SKU13

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

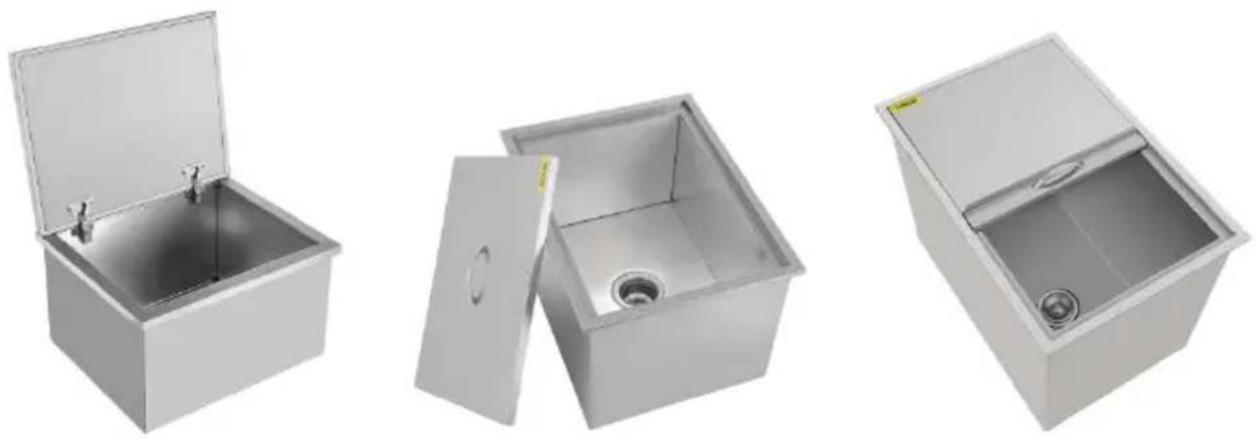

Three views of a metallic industrial storage unit with open and closed compartments, showing internal components (no text or symbols visible)

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep work area clean ar lighted, and keep spectators and children out of the work area.
2. Assemble only according to ice chest parameter. Improper assembly can create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades and other items, so as not to scratch the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in ice chest.
   Wrong installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a

adhesive strip to prevent heat loss and ensure your ice stays cool for long time.

1. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside and restaurants, perfect for any casual occasion such as dinner, sports pa barbecue.
2. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

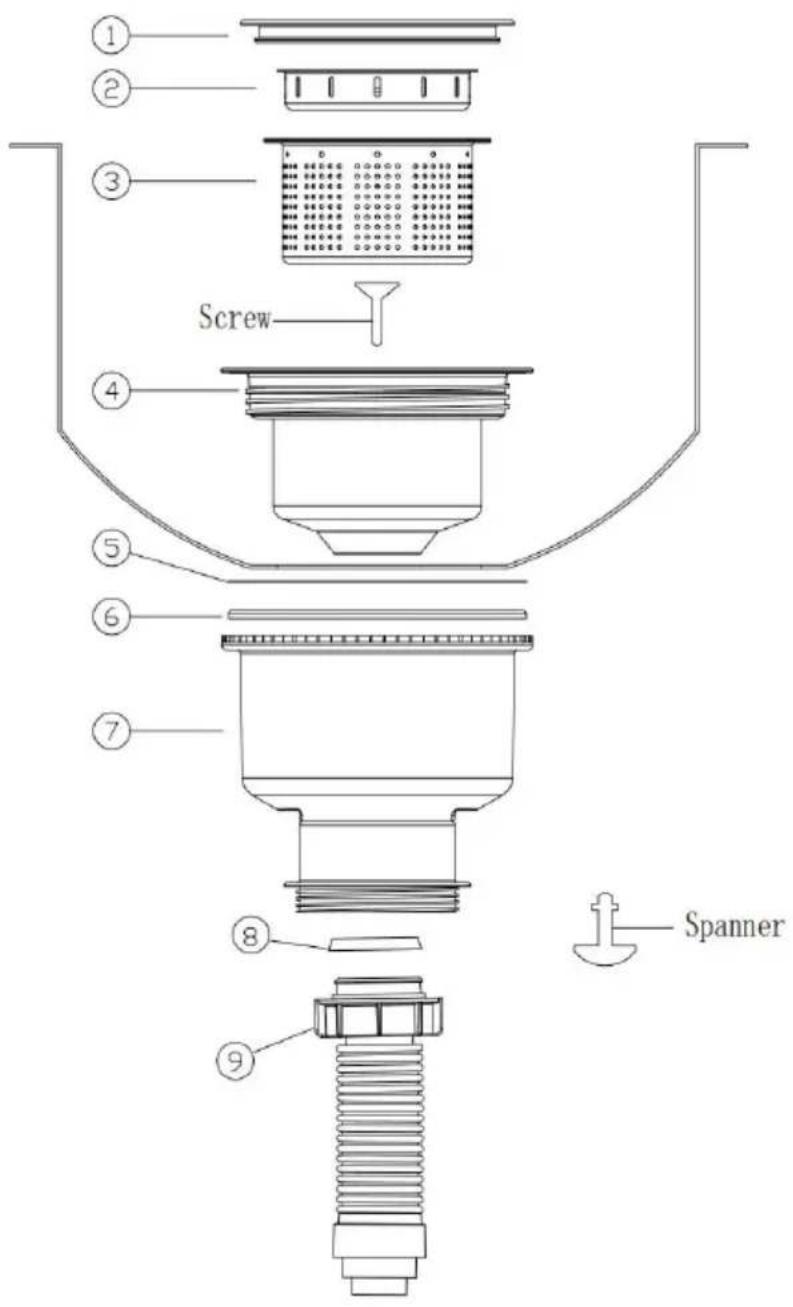

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on part.
2: Tighten the screw with the key, and tighten the 8/9 part on the
3: Place part No. 1/2/3 in part No. 4 to complete the installation.

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
FG-SKU1	345*295*660	28.52	Can provide 24H insulation effect.
FG-SKU2	495*400*540	44.24
FG-SKU3	595*495*590	78.37
FG-SKU4	695*390*640	82.6
FG-SKU5	695*493*640	107.8
FG-SKU6	333*283*690	25.3
FG-SKU7	485*335*535	30.25
FG-SKU8	535*410*530	43.5
FG-SKU9	515*410*690	77.9
FG-SKU10	435*283*590	26.7
FG-SKU11	587*435*570	55.23
FG-SKU12	895*435*580	95.66

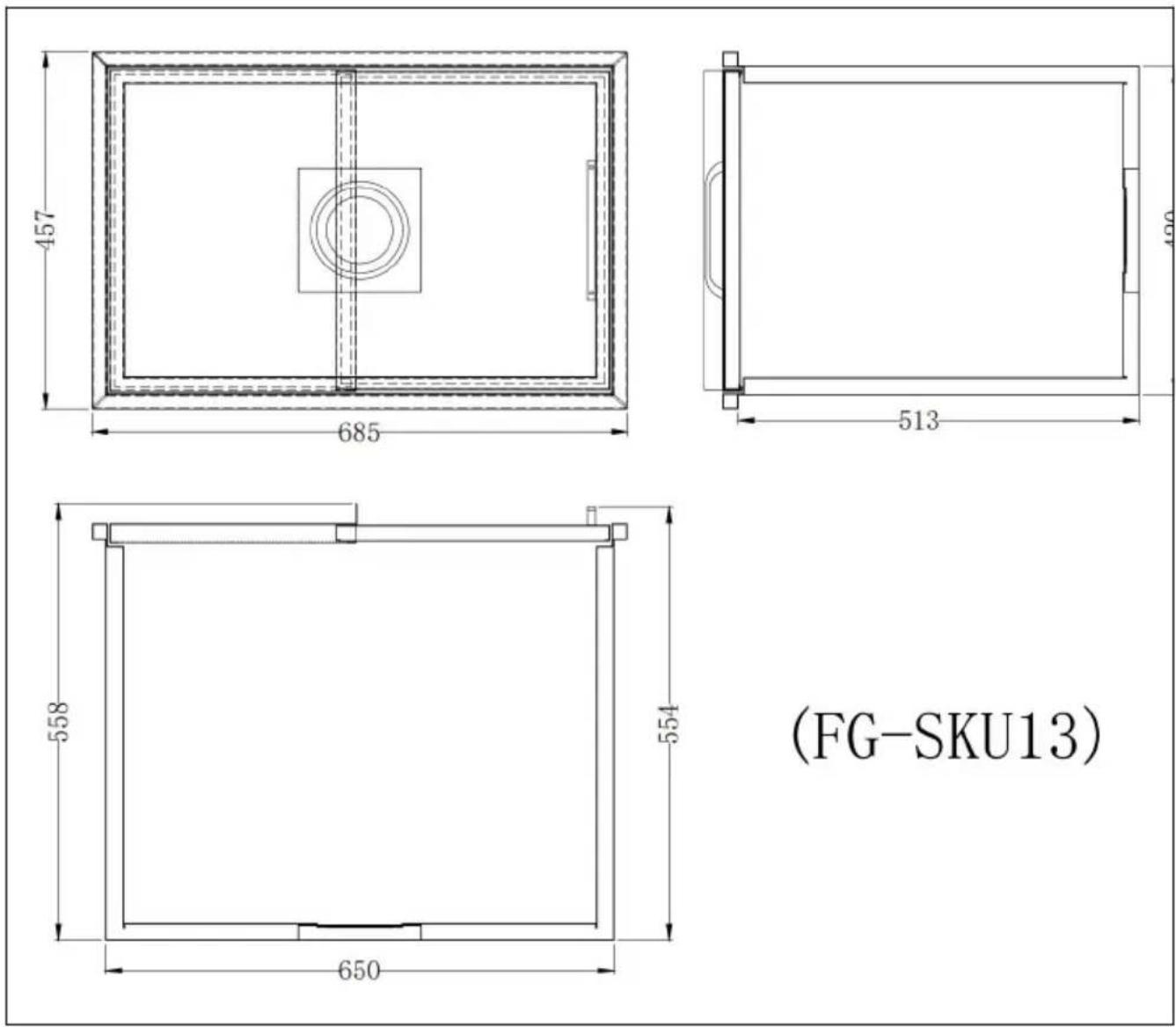

FG-SKU13	665*435*760	109.48

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment.
2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation.
3. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
4. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

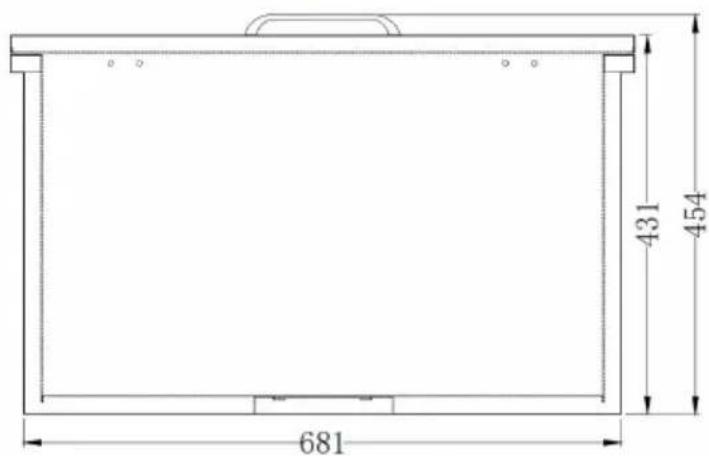

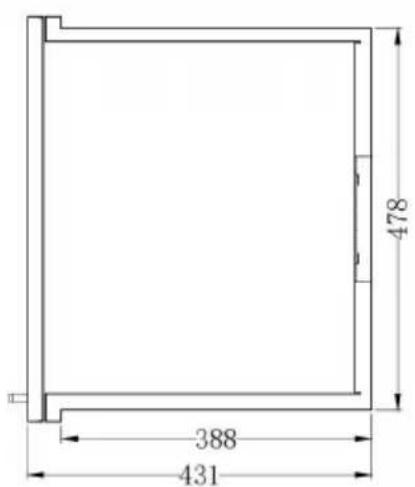

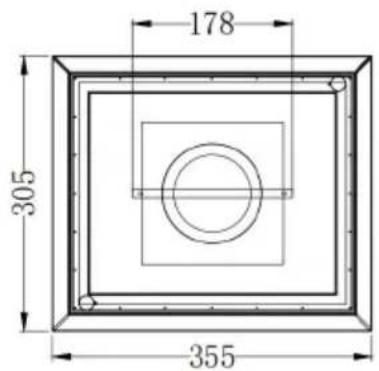

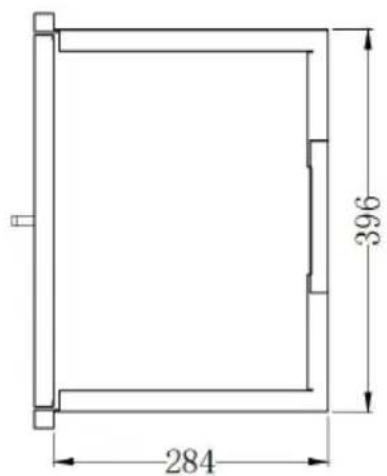

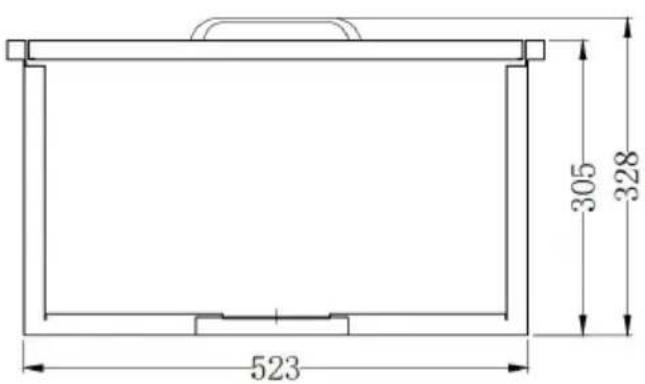

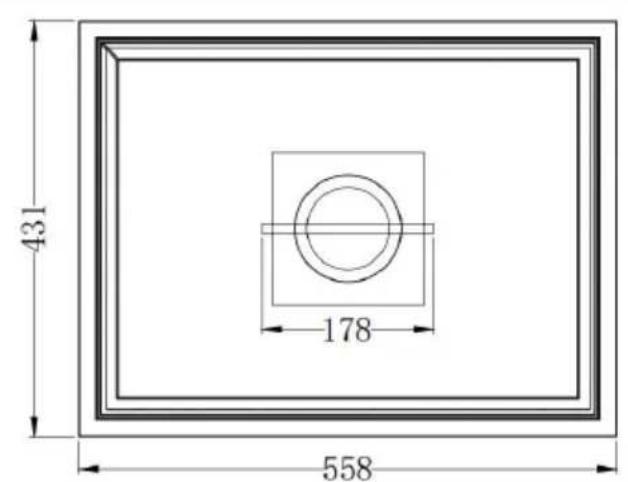

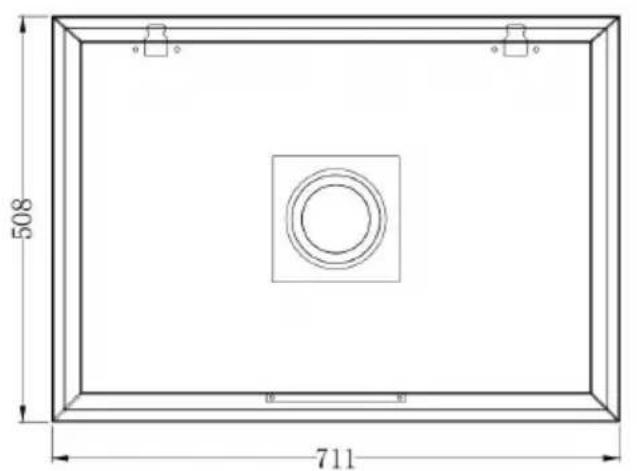

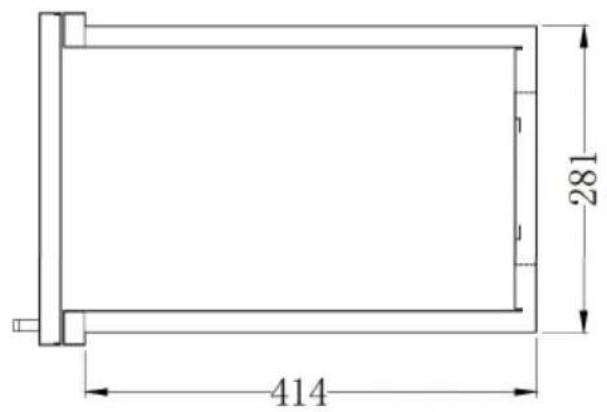

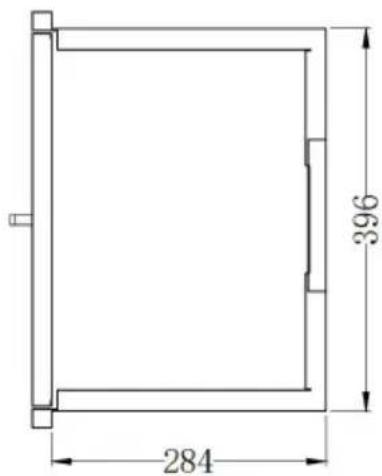

(FG-SKU1)

(FG-SKU2)

(FG-SKU3)

(FG-SKU4)

Technical drawing of a rectangular frame with a central circular recess and dimension labels (508 and 711), no readable text or symbols beyond measurement markers.

(FG-SKU5)

(FG-SKU6)

(FG-SKU7)

(FG-SKU8)

(FG-SKU9)

(FG-SKU10)

(FG-SKU12)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
