DC FUEL TRANSFER PUMP

MODEL: DCEX60A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: DCEX60A

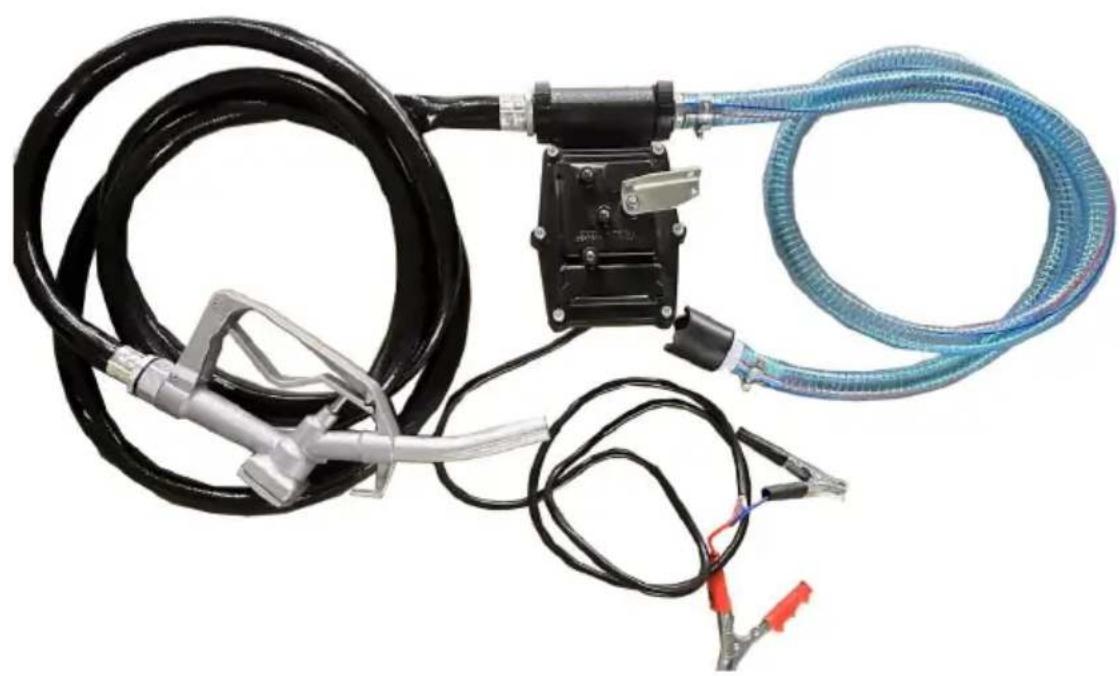

Product photo of a mechanical pump assembly with black and blue tubing, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

ACCESSORY

NO.	Description	Qty	Picture
1	Outlet Hose	1
2	Inlet Hose	1
3	Automatic Fuel Nozzle	1

MAIN SPECIFICATIONS

Model	DCEX60A
Voltage	DC12V
Power	1/4 HP
Max Flow	15 GPM
Max lift	40 FT
Max Suction lift	11.5 FT
Applicable temperature	-25~50°C
Working hours	Work for 30 minutes, stop fo minutes (at room temperature)

GENERAL SAFETY RULES

SAFTETY INSTRUCTIONS

To ensure safe and efficient operation, it is essential to read and fol each of these warnings and precautions.

1. DO NOT smoke near pump or use pump near an open flame. Fi result.
2. Disconnect power to pump before servicing pump.
3. Turn off the switch before connecting power.
4. Take motors needing service to an authorized repair shop or return factory to maintain.
5. A filter should be used on pump outlet to ensure that no foreign is transferred to fuel tank.
6. Tank or barrel should be anchored to prevent tipping in both the fu empty conditions

WARNING

1. This product should not be used for fluid transfer into aircraft. This product is not suited for used with fluids for human consumption or the containing water.

2. For DC pump extreme operating condition with working cycles long than 30 minutes can cause the motor temperature to rise, thus damage the motor itself. Each 30-minute working cycle should always be followed by a 30-minute power-off cooling phase.

3. Use PTFE tape on all pipe threads.
4. DO NOT RUNN DRY OVER 30 SECONDS

GENERAL DESCRIPTION

These products are positive displacement. Rotary vane pumps. Depend on installation and viscosity, these pumps can deliver up to 30L/Min. rugged design makes for a long life of dependability.

NOTE: FLUID COMPATIBILITY

These products are compatible with the following fluids:

Gasoline, Diesel, Kerosene & Mineral Spirits

Do Not use with other fluids without consulting manufacturer.

Environment Condition

Temperature	-25°C ~ +50°C
Relative Humidity	30% ~ 90%
Atmospheric Pressure	86Kpa ~ 106Kpa

OPERATION INSTRUCTIONS

1. Before electrical installation, ensure all parts are well installed, connected, grounded and well sealed.
2. Place the switch into the OFF position to prevent accidental spillance once power is engaged to the motor.
3. Pass the electrical wires to the power source and make sure the alligator clips are correctly connect to the negative (-) or positive (poles on the power source.

4. Open the fueling nozzle to fuel equipment.

5. When fueling is complete, return the nozzle to its storage position and turn off the Pump.

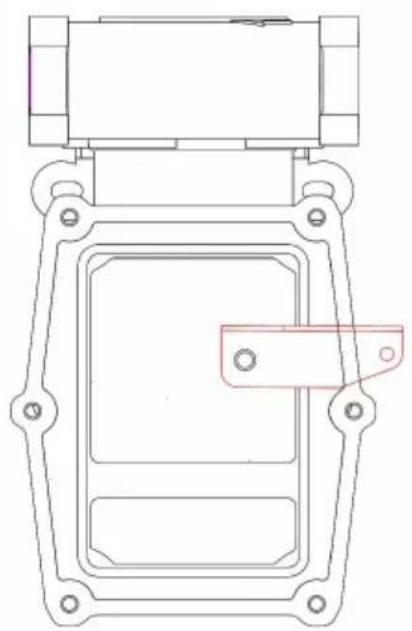

Technical line drawing of a mechanical component with mounting brackets and a central rectangular cutout (no text or symbols)

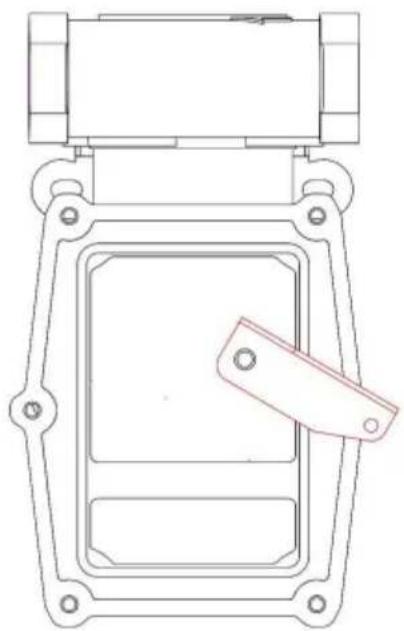

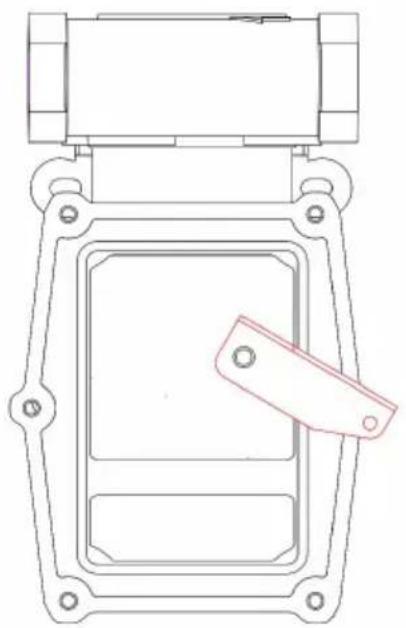

OFF ON

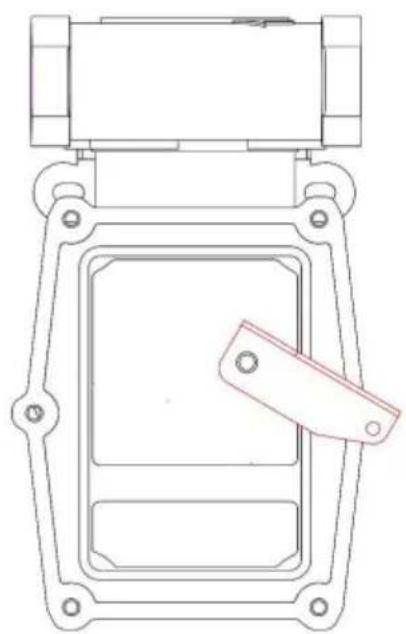

Technical line drawing of a mechanical component with mounting holes and a central rectangular housing (no text or symbols)

COMMON TROUBLESHOOTING

Symptom	Cause	Cure
Pump won’t prime	Suction line problem	Check for leaks or restrictions suction line
	Bypass valve oper	Remove and inspect valve; mus move freely and be free of de
	Vanes sticking	Check vanes and rotor slots fo nicks, burrs, and wear
	Excessive rotor or vane wear	Inspect rotor and vanes for excessive wear or damage; repl if necessary
	System blockages	Check filter and bypass valve f debris; remove nozzle and test with pump ON
Low capacity	Excessive dirt in screen	Remove and clean screen
	Suction line problems	Check for leaks or restrictions suction line
	Bypass valve sticking	Remove and inspect valve; mus move freely and be free of de
	Outlet blocked	Check pump outlet hose, nozzle and filter for blockage
	Vanes sticking	Check vanes and rotor slots fo wear; replace if necessary
	Excessive rotor or vane wear	Inspect rotor and vanes for excessive wear or damage; rep if necessary
	Hose or nozzle damage	Replace hose or nozzle
	Plugged filter	Replace filter
	Low fluid level	Fill tank
Motor overheats	Clogged screen	clean screen
	Restricted suction pipe	Remove and clean pipe
	Motor failure	Contact your local supplier for or replace
	Pump rotor lock-up	Clean and check pump rotor a vanes
