Product Type	Above Ground Garden Pond
Brand	Vevor
Model	DS-202
Dimensions (L x W x H)	Approx. 68 x 65 x 40 cm
Weight	Approx. 12 kg
Capacity	Approx. 170 liters
Lining Material	Reinforced PVC
Power Supply	None (passive pond)
Main Functions	Outdoor decoration, ornamental fish breeding
Maintenance and Cleaning	Clean with clear water, avoid harsh chemicals
Safety	Drowning risk, do not leave children unattended
Included Parts	Liner, ball valve, straps, poles, corner supports, patch kit
Repairability	Patch kit included for repairs
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support

Frequently Asked Questions - DS-202 Vevor

How to assemble the DS-202 pond?

Follow the steps in the manual: assemble the width and length poles with the corner and center supports, install the liner, then attach the bottom and top straps. It is recommended to have two people for assembly.

What is the water capacity of the pond?

The capacity is approximately 170 liters, based on the approximate dimensions of 68 x 65 x 40 cm.

Is the pond suitable for fish?

Yes, this above-ground pond is designed for breeding ornamental fish. Ensure you maintain appropriate water quality and use non-harmful treatments.

How to repair a leak in the liner?

Use the provided patch kit. Clean and dry the damaged area, apply the adhesive patch following the instructions.

Is water treatment needed for the pond?

For fish health, it is advisable to use water conditioners and a filtration system, although not included. Avoid unspecified medications.

Can I use chemicals in the pond?

Do not use medications or harsh chemicals without advice. Prefer treatments suitable for fish ponds.

What is the height of the poles?

Corner poles measure approximately 26.6 inches (67.6 cm) and center poles approximately 25.6 inches (65 cm), giving a pond height of about 40 cm after assembly.

Does the pond come with a pump?

No, the DS-202 pond is delivered without a pump. You can add one separately if you wish water circulation.

How to clean the pond liner?

Clean with clear water and a soft sponge. Avoid abrasive products that could damage the PVC.

Where to find spare parts?

Spare parts are available on the official website www.vevor.com/support or through customer service.

USER MANUAL DS-202 Vevor

Affordable. Reliable. Home Improvement.

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

ABOVE GROUND

FISH POND

MODEL:DS-202

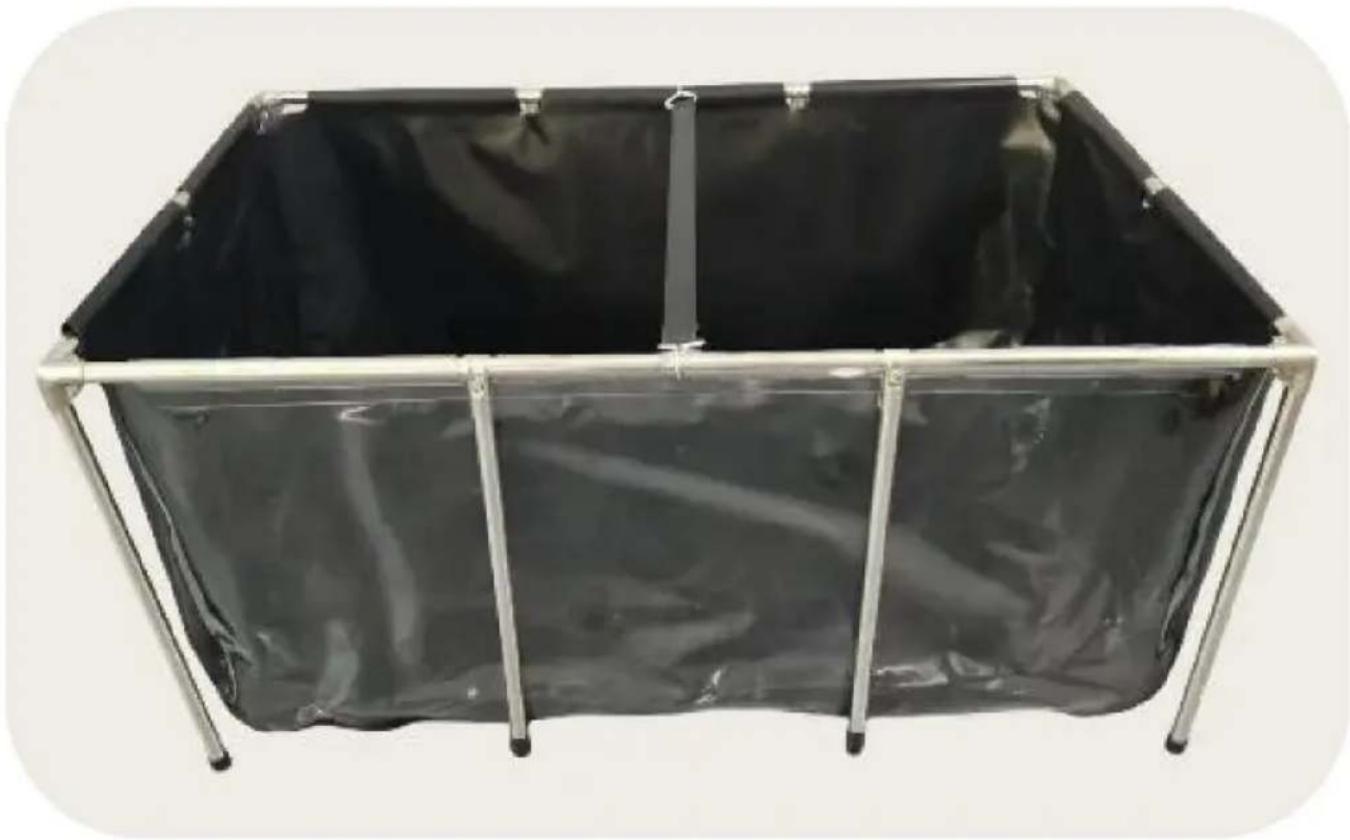

Exterior view of a rectangular metal frame with a transparent interior (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

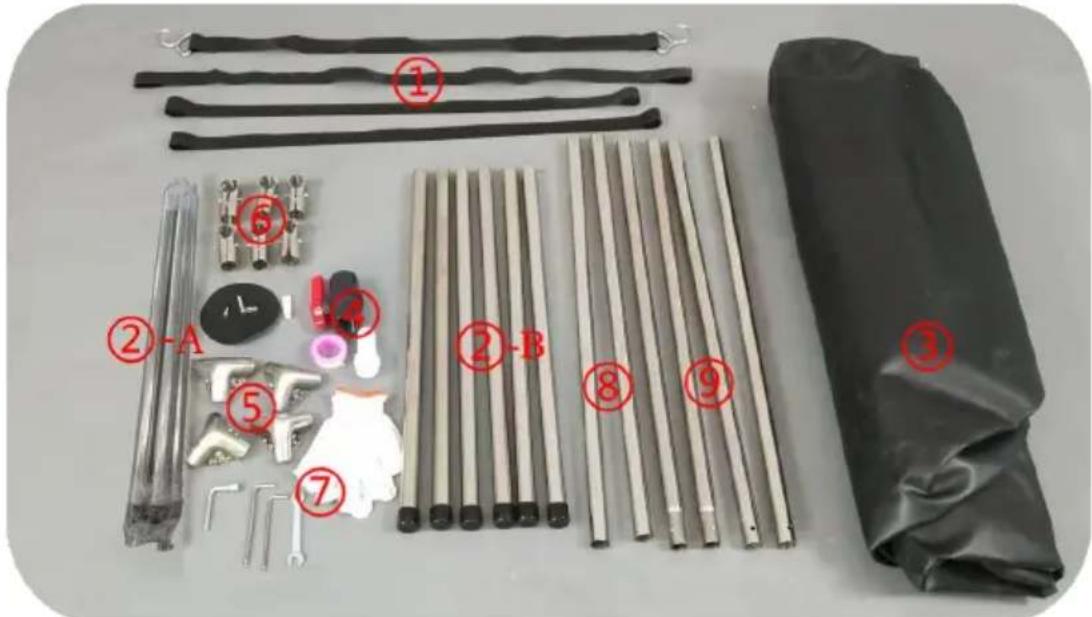

Parts List

	Upper Straps (with hooks)Lower Straps (without hooks)	x1x3
	Corner Leg Poles	x4+6
	Pond Liner	x1
	Ball Valve	x1
	Outer Corner Brackets	x4
	Center Pole Brackets	x6
	Patch kit	x1
	Width Poles	x2
	Length Poles	x4

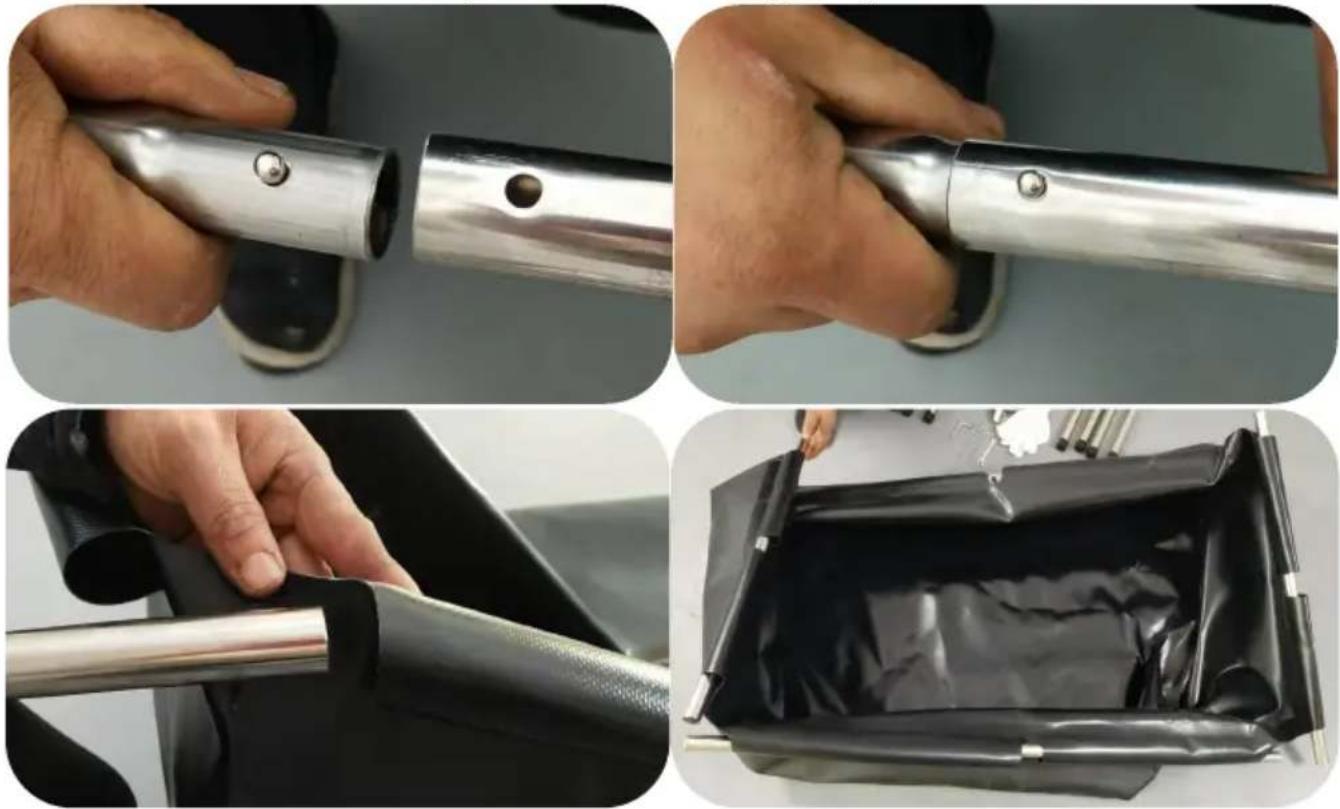

STEP-1

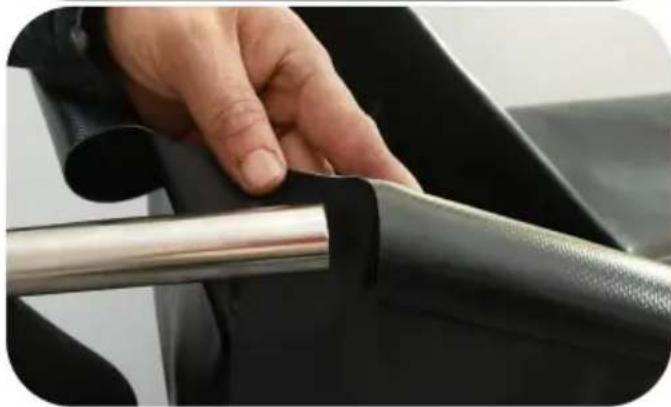

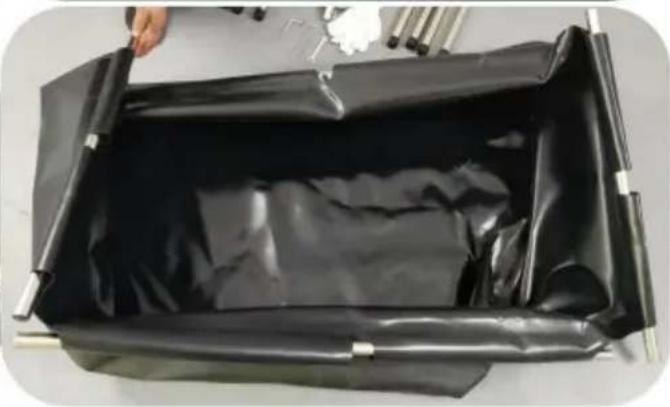

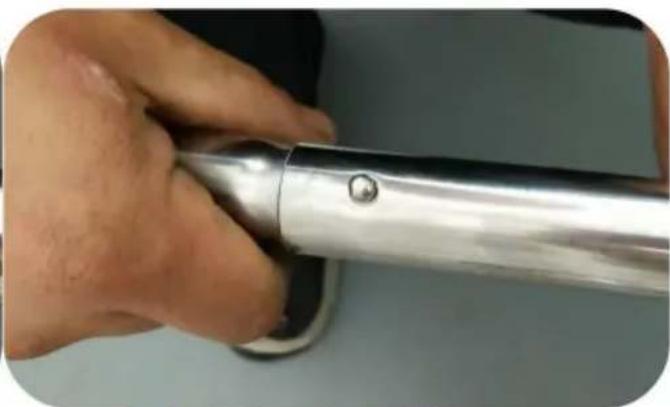

Assemble the width poles and length poles

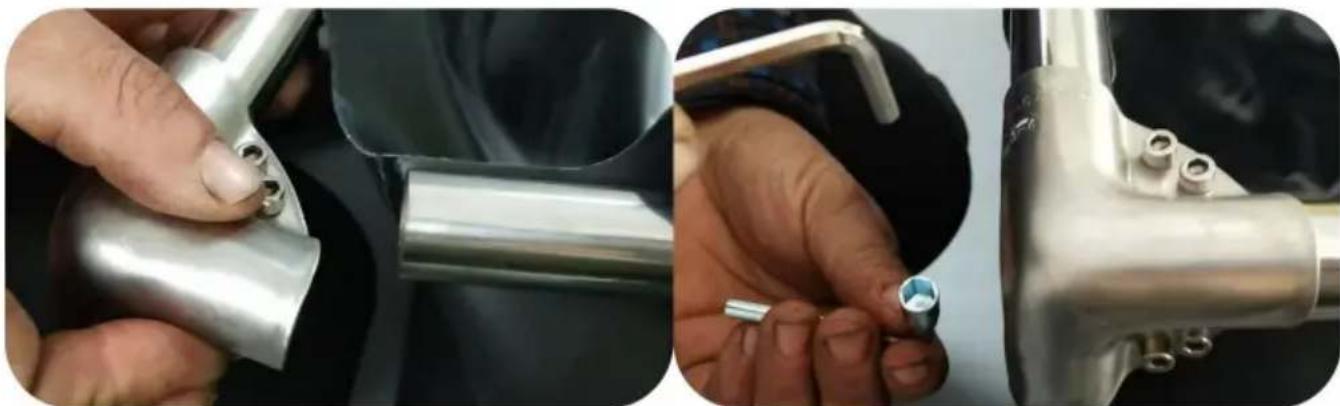

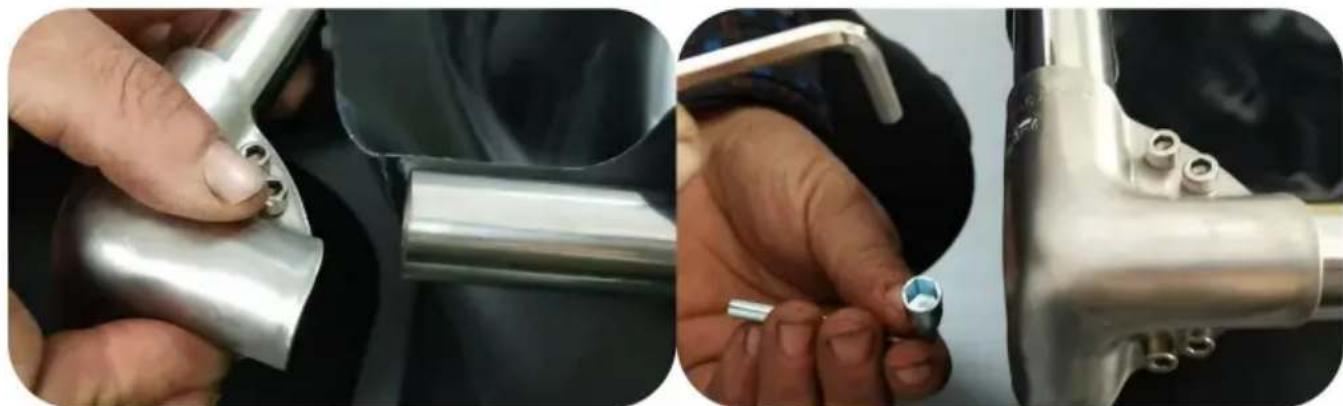

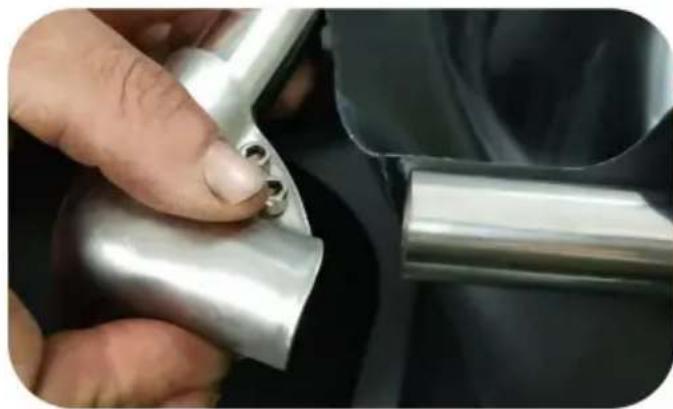

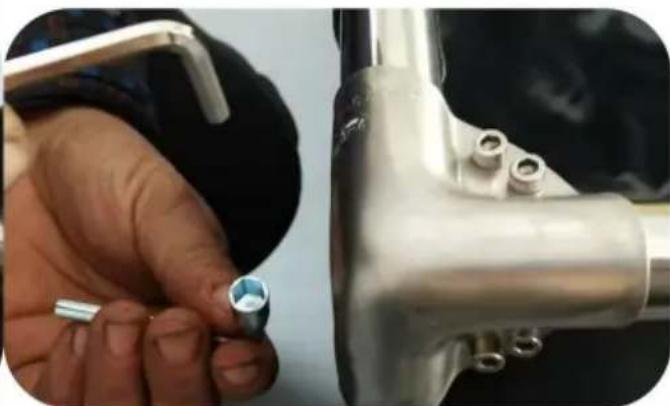

STEP-2

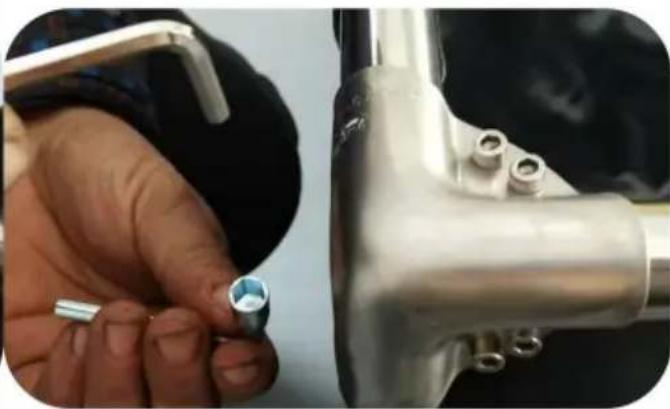

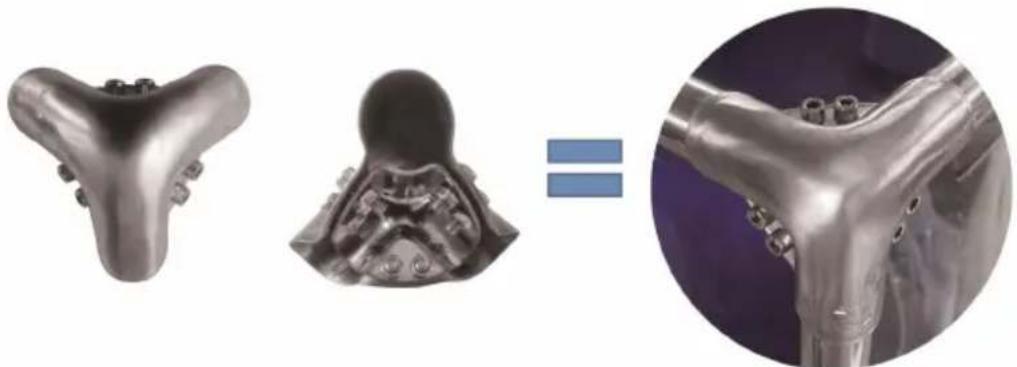

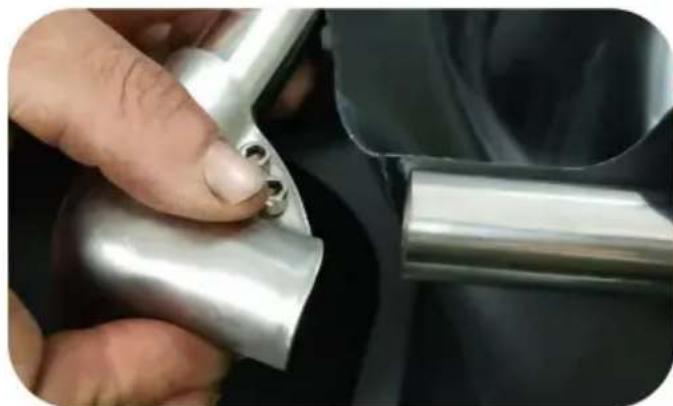

Assemble the Outer Corner Brackets at the four - corners.

Three metallic mechanical components with mounting holes and a close-up of the same body, all shown against a purple background (no text or symbols visible)

Close-up of a hand adjusting a metallic mechanical component with a cylindrical part inserted (no visible text or symbols)

Close-up of a hand holding a small metallic component next to a metallic mechanical bracket (no visible text or symbols)

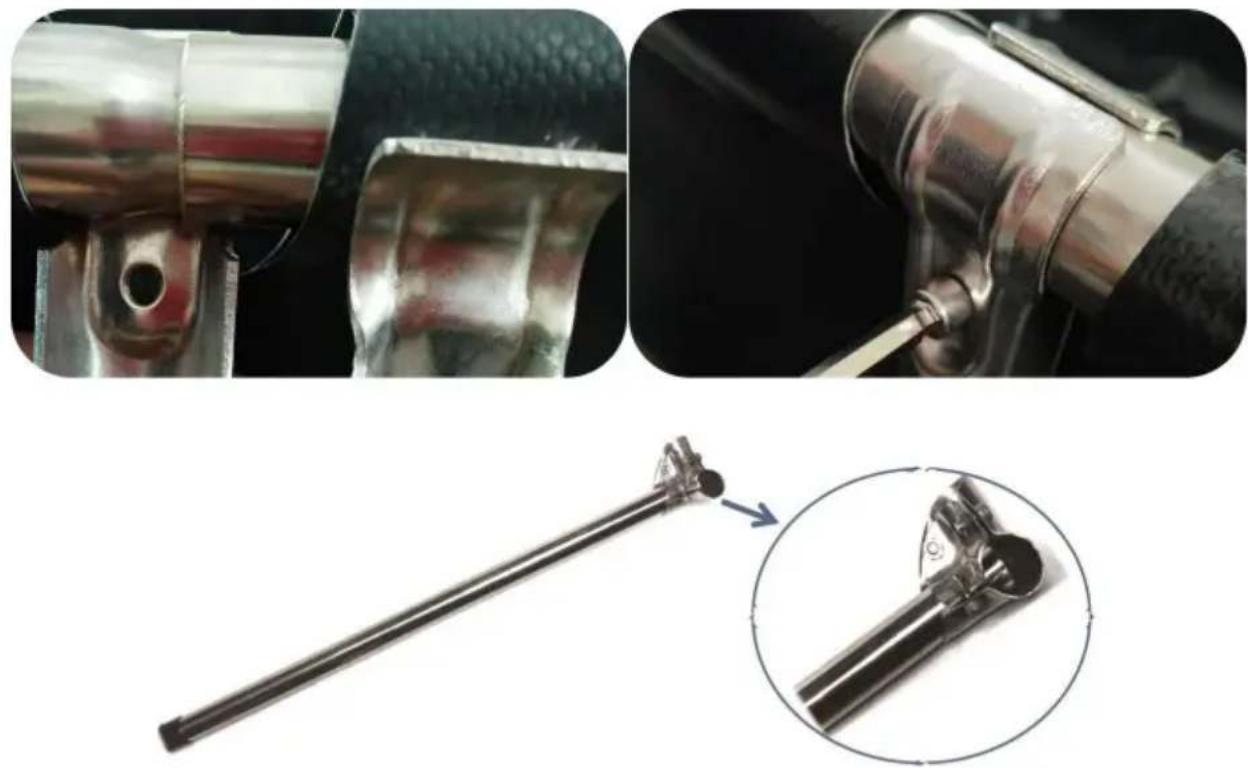

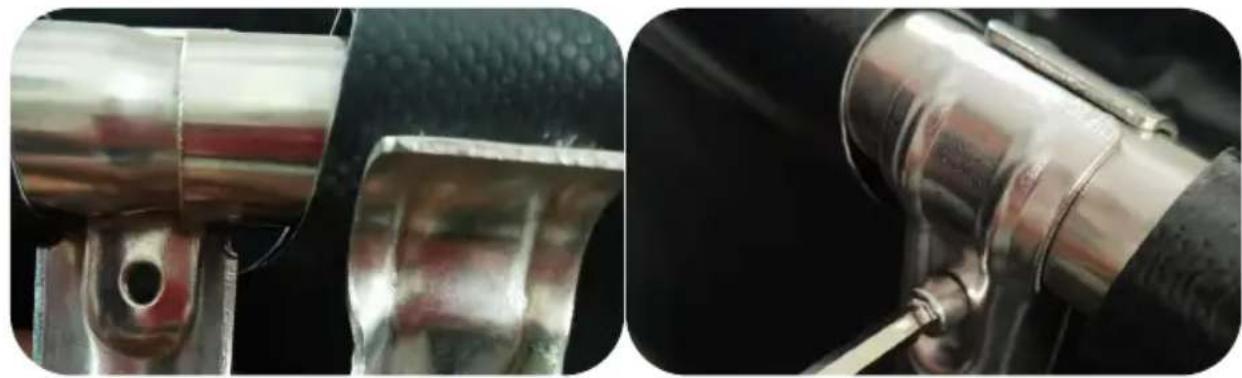

STEP-3

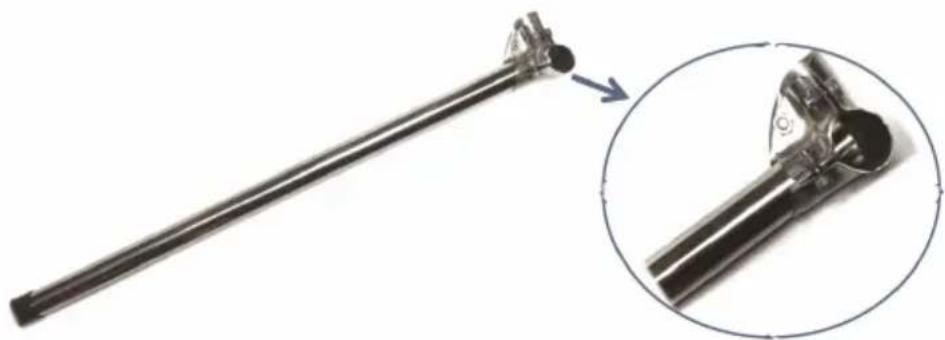

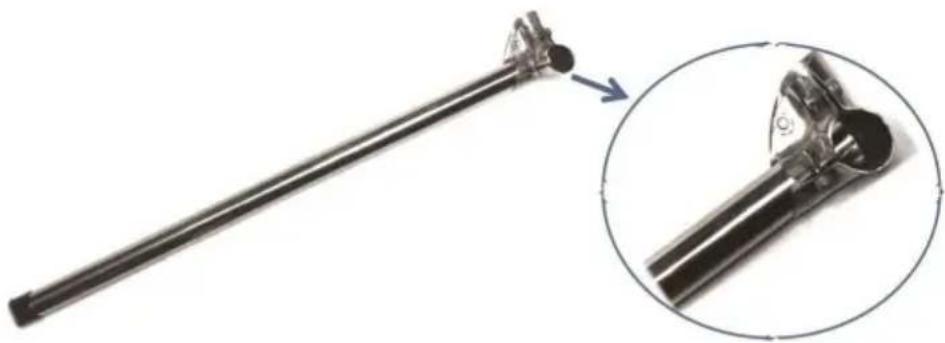

Assemble the Center Pole Brackets and Corner Leg Poles.

Close-up of metallic automotive exhaust pipe fittings and clamps, showing mechanical components (no text or symbols visible)

Close-up of a metallic mechanical lever with a close-up inset showing the tip detail (no text or symbols visible)

Pay attention to the installation of Corner Leg Poles. ②-A The length four corners is 26.6 inches, ②-B and in the middle is 25.6 inches.

STEP-4 Upper Straps (with hooks) Lower Straps (without hooks)

Four black rubber bands with metal clips arranged horizontally, above a simple black cross symbol (no text or labels)

Lay out the lower straps (without hooks) on the ground and then loc onto the legs of each center - frame leg pole (corner leg poles do straps). Next, hook one upper strap at the center of the pond.

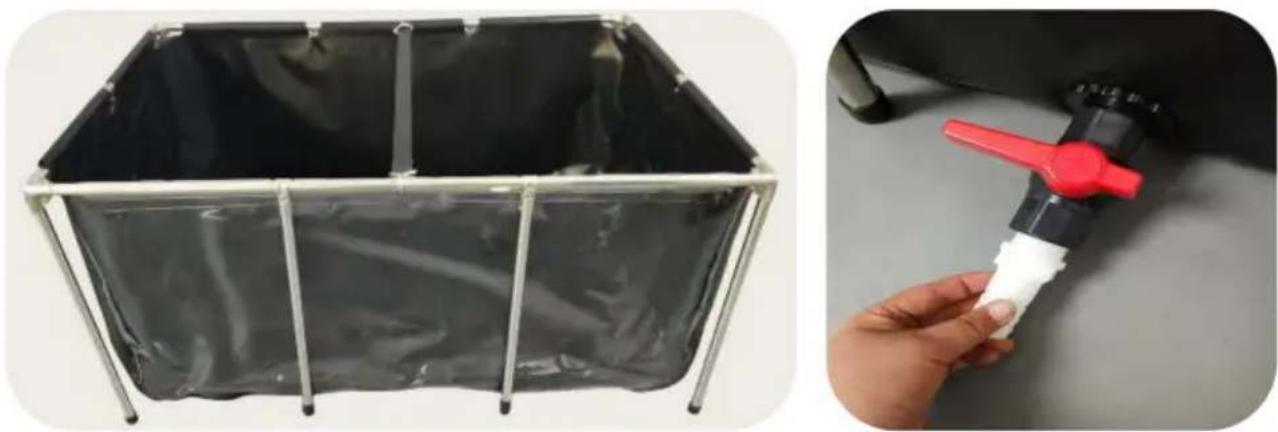

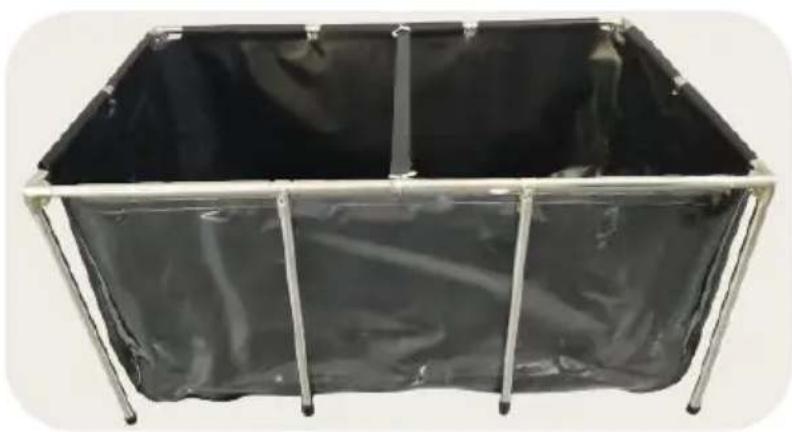

TEP-5 Installation is compl

Rectangular metal frame with transparent material, no visible text or symbols

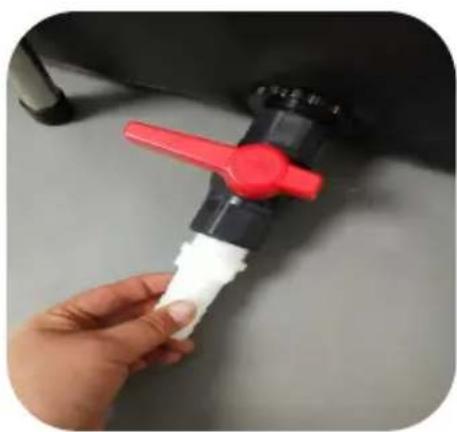

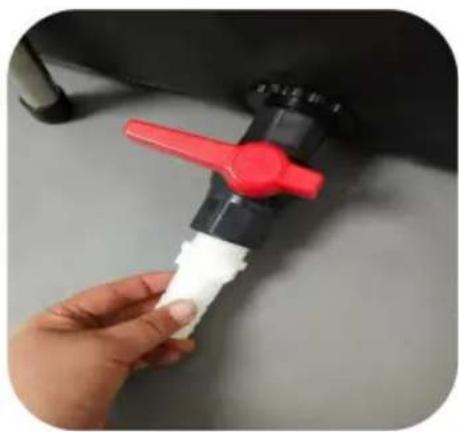

Hand holding a red and white plastic tap wrench against a dark surface (no text or symbols visible)

The bottom of the pool should be flattened before filling it with water cannot be adjusted after water is added.

Important Tips:

1. Extra tools will be required during assembly.
2. Two people are needed to assemble and move this produ
   3.Do not let children approach this product without adult supervision.
   4.Do not use medications in the pond.
3. This product may cause drowning.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
