Product Type	Built-in Ice Bucket
Brand	Vevor
Model	FG-SKU9
Exterior Material	Brushed Stainless Steel
Insulation	High-Density Polyurethane
Closure	Lid with Adhesive Seal
Capacity	77.9 L
Cutout Dimensions (L x W x H)	515 x 410 x 690 mm
Cold Retention Time	Up to 24 hours
Included Accessories	Tank, lid, seals (2), screen, siphon, screws, key
Recommended Use	Bar, patio, pool, restaurant, parties
Maintenance	Empty and dry after each use to prevent bacteria
Cleaning	Clean water, avoid abrasive products
Precautions	Do not use sharp objects to avoid scratches
Warranty	Electronic warranty certificate at vevor.com/support

Frequently Asked Questions - FG-SKU9 Vevor

How to install the Vevor FG-SKU9 ice bucket?

Follow the provided installation steps: place the gasket (part no. 4) into the basin hole, install the screen, siphon and screw (parts no. 5/6/7) onto the gasket, tighten the screw with the key, then screw parts no. 8/9 onto part no. 7. Finally, place the tank and lid (parts no. 1/2/3) on the gasket to finish. Ensure the installation is carried out in a clean and well-lit area.

What is the capacity of the FG-SKU9?

The capacity is 77.9 liters, calculated based on water density. Actual capacity for ice may vary because ice occupies more volume than water (e.g., 10 kg of ice fills the bucket, but it would take 23 kg of water for the same volume).

How long does the ice bucket keep ice cold?

The ice bucket can provide insulation effect for up to 24 hours, thanks to its double-wall construction and high-density polyurethane insulation. The sealed lid with adhesive tape helps limit heat loss.

What accessories are supplied with the FG-SKU9?

Included accessories are: a tank (part no. 1), a lid (part no. 2), a sealing gasket (part no. 3), an additional gasket (part no. 4), a screen (part no. 5), a siphon (part no. 6), a screw (part no. 7) and a key (part no. 8). Check the list in the manual.

How to clean and maintain the ice bucket?

After each use, empty the melted water and clean the inside with clean water. Dry thoroughly to prevent bacterial or mold growth. If not used for a long time, empty the water and keep the bucket dry. Avoid abrasive cleaners that could scratch the stainless steel surface.

Can I use the ice bucket for hot drinks?

The ice bucket is designed primarily to keep cold (ice, cold drinks). It is not recommended for hot drinks as the insulation is optimized for cold. Using it with hot liquids could damage the gasket or insulation.

Does condensation form on the outside?

The side and bottom of the product are wrapped with an XPE sponge which not only improves thermal insulation but also prevents condensation on the outer surfaces, thus avoiding water drips. This allows the ice bucket to be used without fear of staining furniture.

What cutout size is needed for built-in installation?

The recommended cutout dimensions for the FG-SKU9 model are 515 mm (L) x 410 mm (W) x 690 mm (H). Please refer to the actual installation environment to adjust slightly if necessary.

Is the ice bucket easy to install?

Yes, installation is simple. The instructions indicate to handle gently and follow the assembly steps. Note that wrong steps may cause damage, so follow the manual carefully. Assembly requires the supplied accessories and a key.

Where can I find the warranty certificate?

The electronic warranty certificate is available on the website www.vevor.com/support. You can also find technical support for your device there.

USER MANUAL FG-SKU9 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN ICE CHESTS INSTRUCTIONS

MODEL: FG-SKU1 / FG-SKU2 / FG-SKU3 / FG-SKU4 FG-SKU5 / FG-SKU6 / FG-SKU7 / FG-SKU8 FG-SKU9 / FG-SKU10 / FG-SKU11 / FG-SKU12 FG-SKU13

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

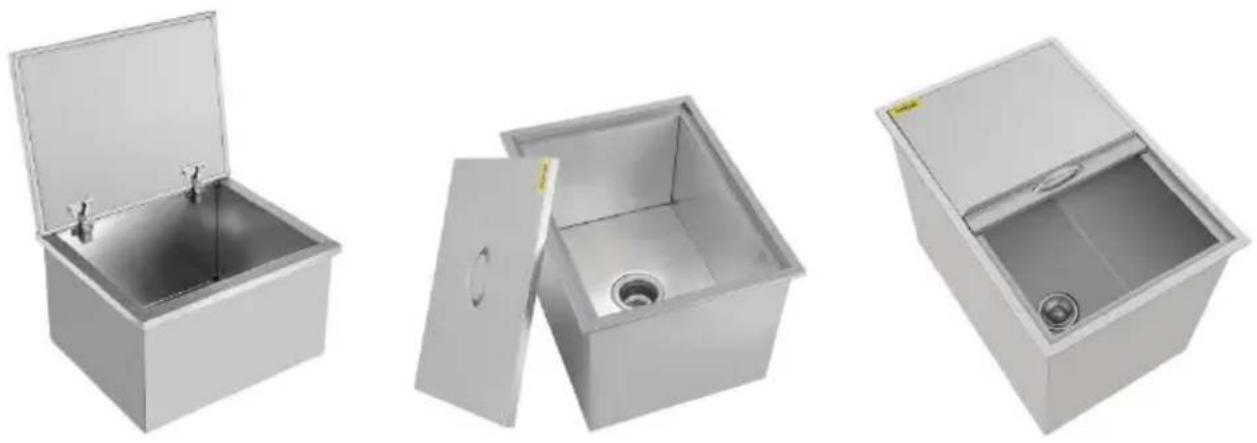

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep work area clean ar lighted, and keep spectators and children out of the work area.
2. Assemble only according to ice chest parameter. Improper assembly can create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades and other items, so as not to scratch the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in ice chest.
   Wrong installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a

adhesive strip to prevent heat loss and ensure your ice stays cool for long time.

1. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside and restaurants, perfect for any casual occasion such as dinner, sports pa barbecue.
2. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

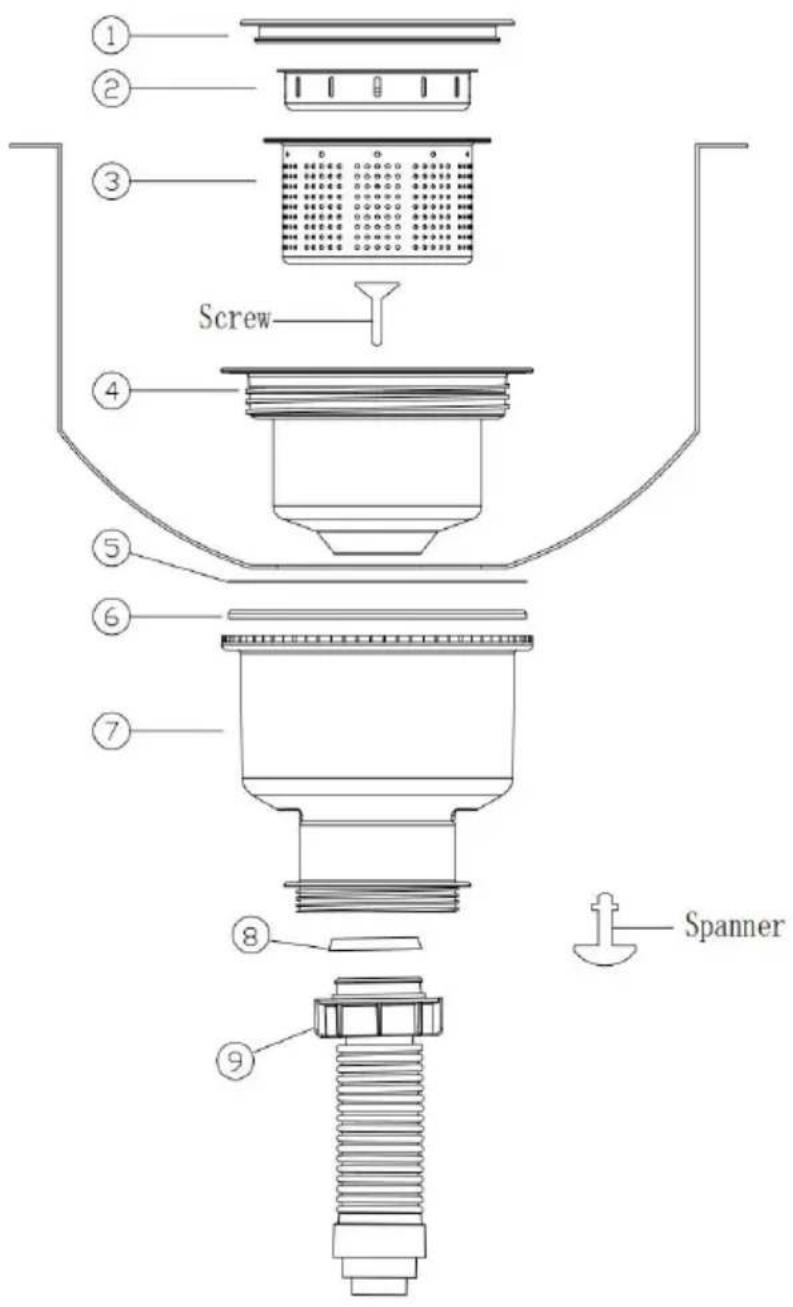

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on part.
2: Tighten the screw with the key, and tighten the 8/9 part on the
3: Place part No. 1/2/3 in part No. 4 to complete the installation.

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
FG-SKU1	345*295*660	28.52	Can provide 24H insulation effect.
FG-SKU2	495*400*540	44.24
FG-SKU3	595*495*590	78.37
FG-SKU4	695*390*640	82.6
FG-SKU5	695*493*640	107.8
FG-SKU6	333*283*690	25.3
FG-SKU7	485*335*535	30.25
FG-SKU8	535*410*530	43.5
FG-SKU9	515*410*690	77.9
FG-SKU10	435*283*590	26.7

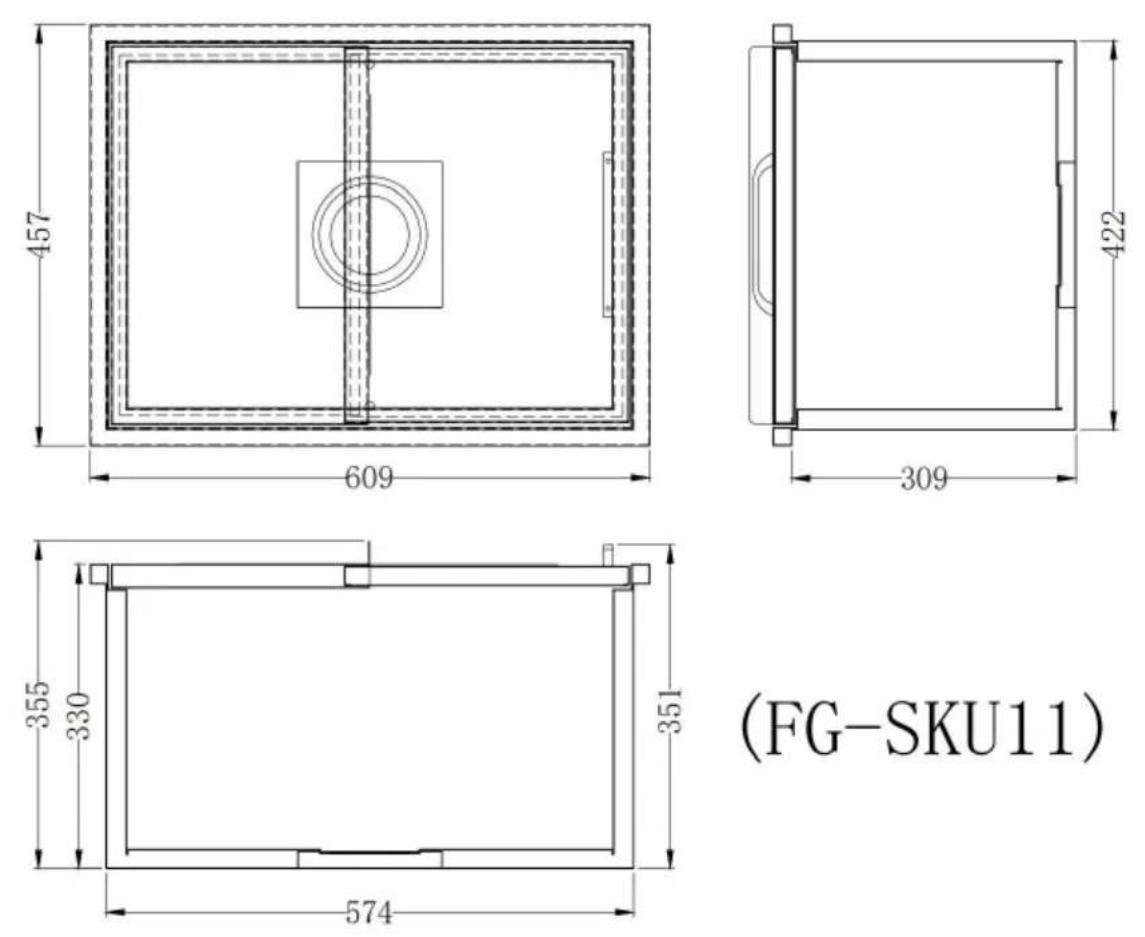

FG-SKU11	587*435*570	55.23
FG-SKU12	895*435*580	95.66

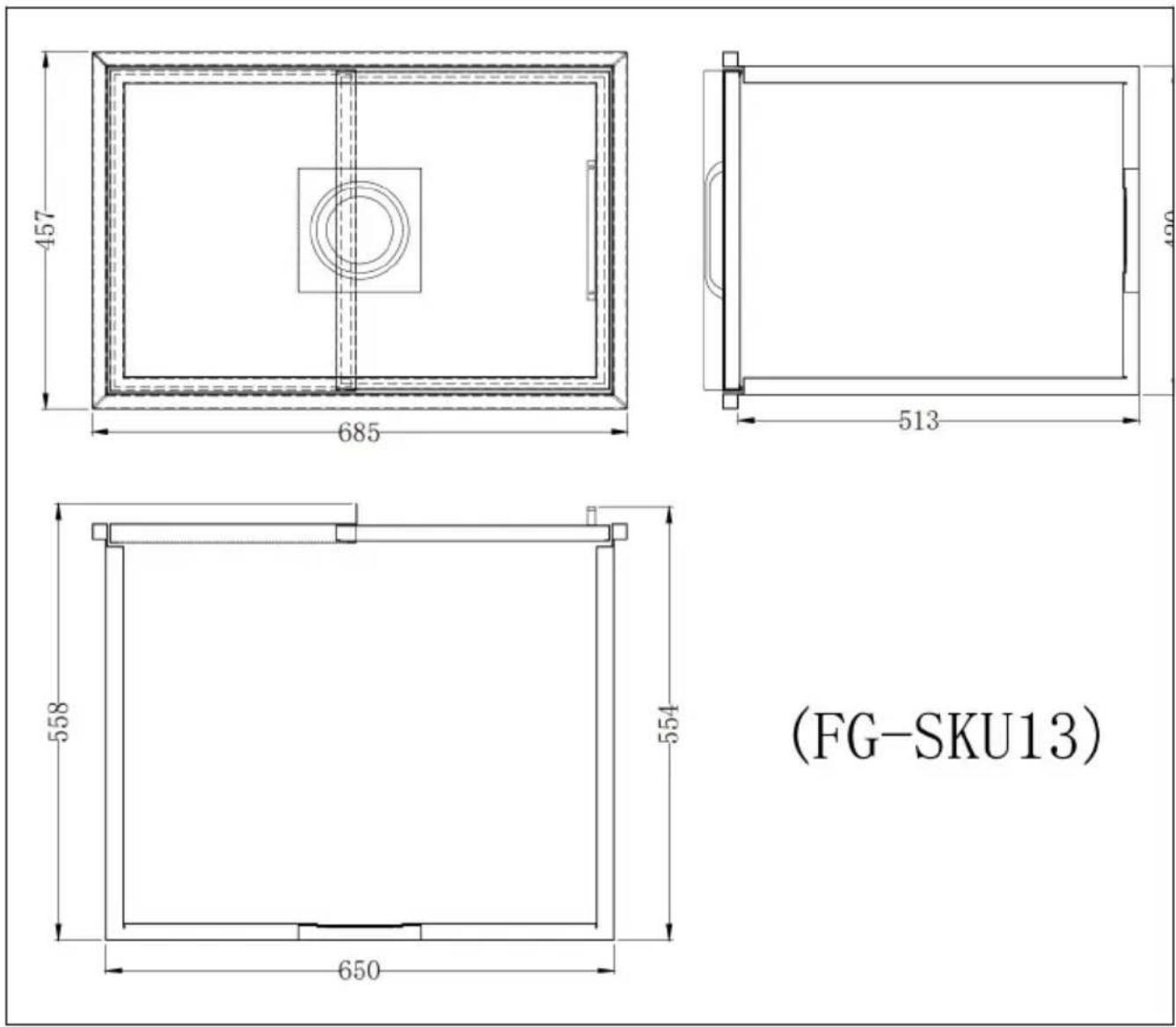

FG-SKU13	665*435*760	109.48

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment.
2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation.
3. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
4. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

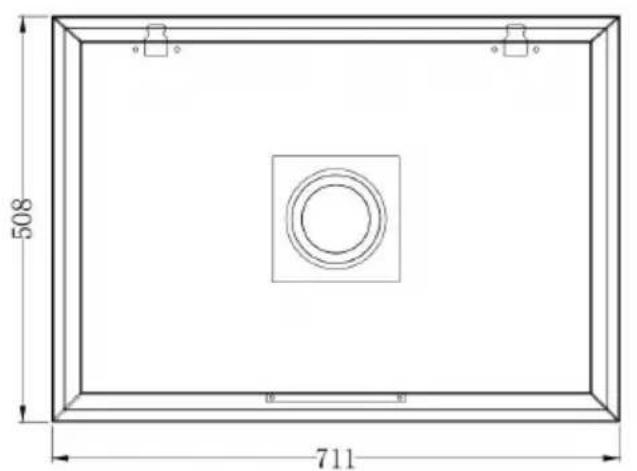

(FG-SKU1)

(FG-SKU2)

(FG-SKU3)

(FG-SKU4)

Technical drawing of a rectangular frame with a central circular recess and dimension labels (508 and 711), no readable text or symbols beyond measurement markers.

(FG-SKU5)

(FG-SKU6)

(FG-SKU7)

(FG-SKU8)

(FG-SKU9)

(FG-SKU10)

(FG-SKU12)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

FG-SKU 5 / FG-SKU6 / FG-SKU7 / FG-SKU8

FG-SKU 9 / FG-SKU10 / FG-SKU11 / FG-SKU12

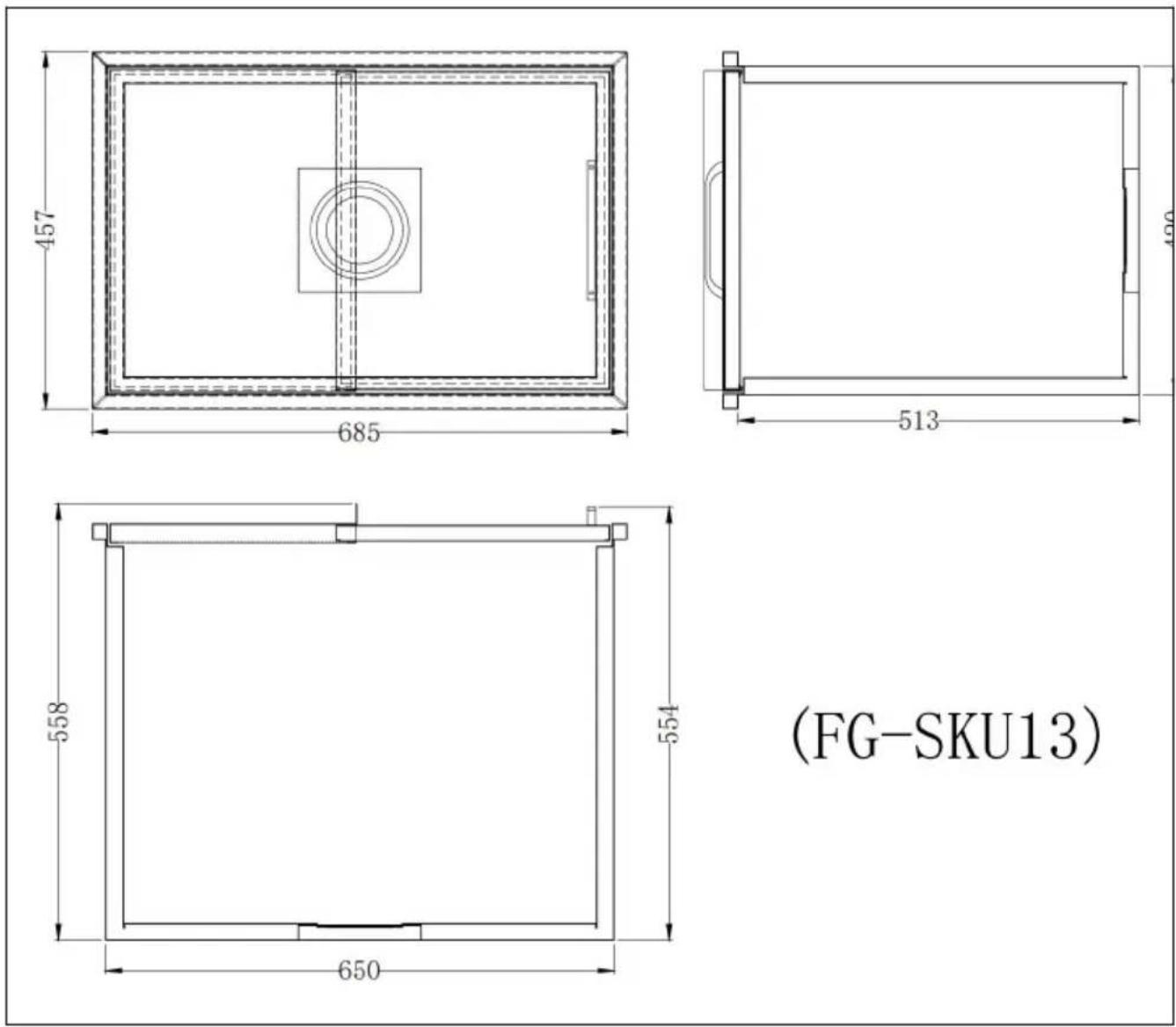

FG-SKU1 3
