USER MANUAL FBL210211 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TOILET HANDRAIL

MODEL:FBL210211

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:FBL210211

U-shaped metal pipe clamp with black and silver components mounted on a metal bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

IMPORTANT

1. Don not exceed the weight capacity - 300 lbs max.
2. Use on stable surfaces only.
3. Regularly inspect for signs of wear, damage or loose parts.
4. Clean regularly using a mild detergent and warm water, rinse off an soap residue. After cleaning, dry thoroughly.

Model	FBL210211
Rated Load(lbs / kg)	300 / 136

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NAME	QTY	NO	PICTURE	PART NAME	QTY
1		Rail	1	6		Bolt	1
2		Plate	1	7		Hex nut	1
3		Bolt Protection Cap	2	8		Sleeve Anchor	6
4		Flat washer	2	9		Hexagon Keys	1
5		Plastic washer	2	10		Outer Spanner	2

Installation Procedures

Tools You'll Need:

F20000 F20000000000000

Line drawing of a handheld electric drill putter with a base, enclosed in a circular frame (no text or symbols)

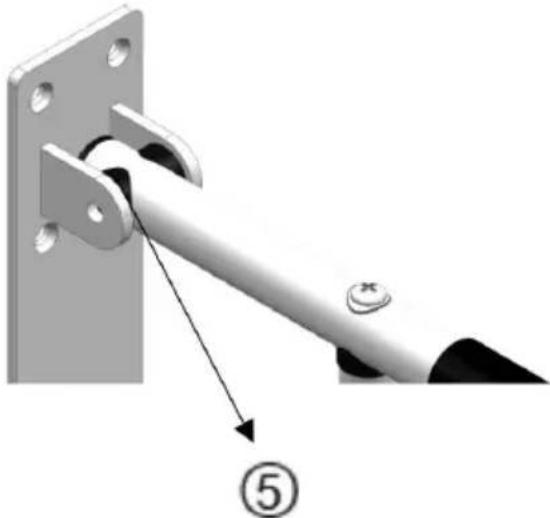

Step 1: Place the plastic washers on either side of the plate, then put rail in the center of the washers.

Mechanical assembly diagram showing a metal bracket with a pin and a numbered component (no text or symbols)

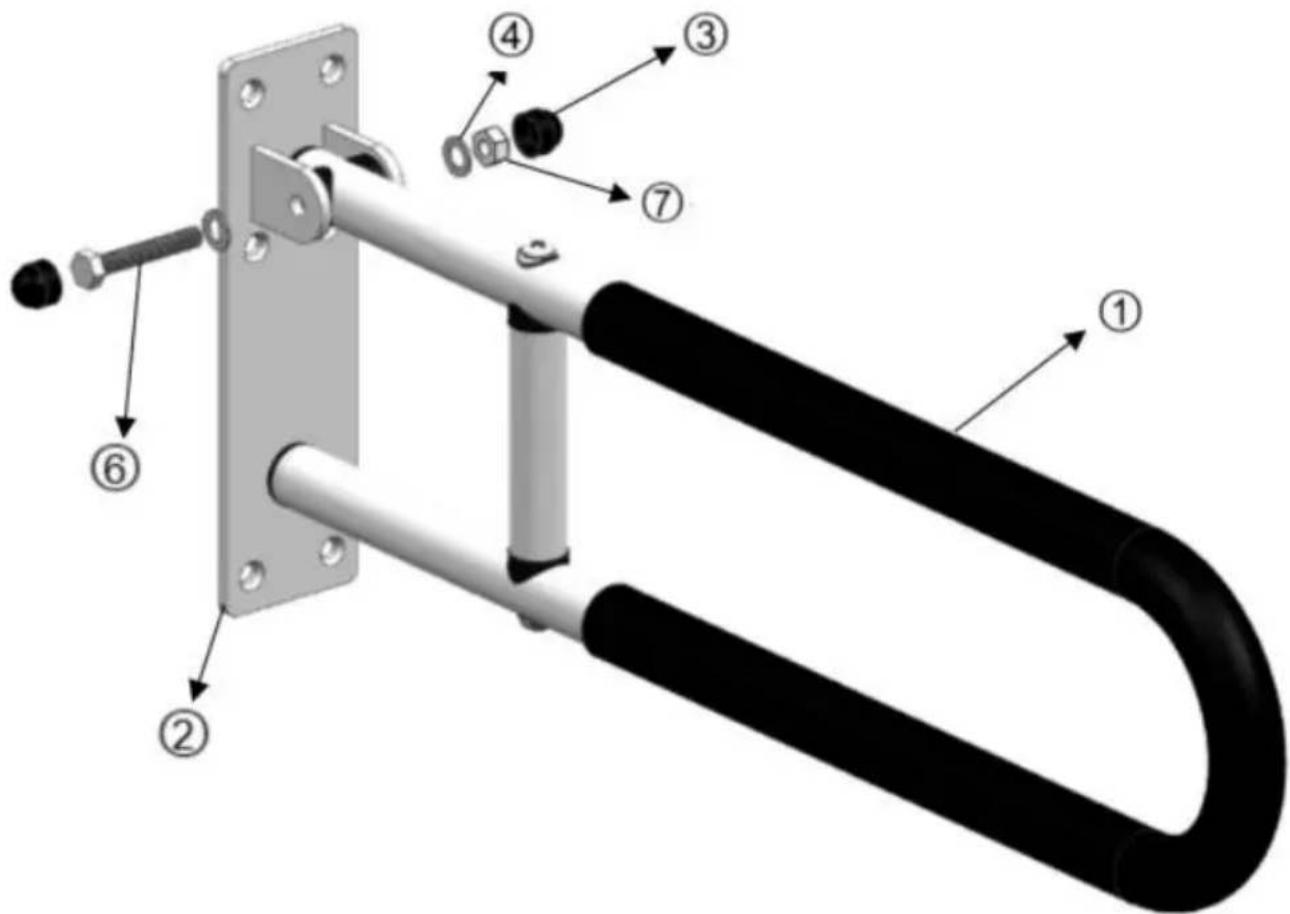

Step 2: Assemble the parts as shown in the diagram.

Technical diagram of a mechanical clamp or lever assembly with numbered parts labeled ① through ⑦

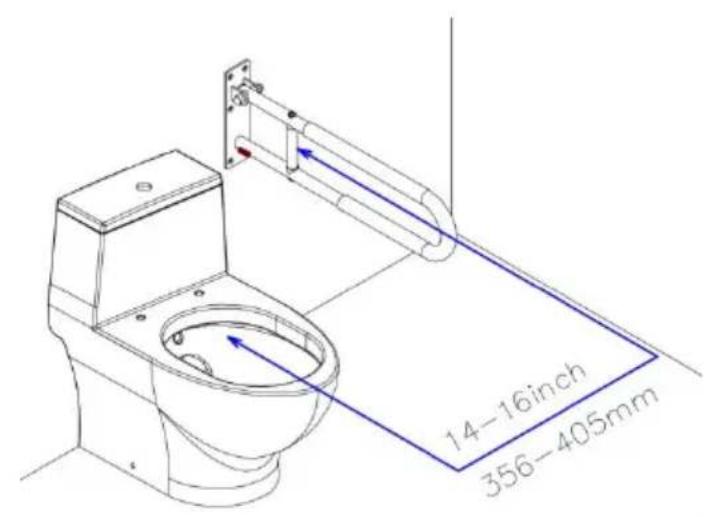

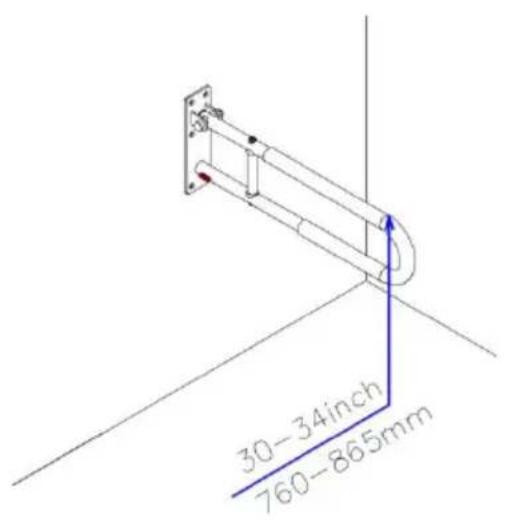

Step 3: Offer the rail up to the wall at the height required, ensuring fixing plate is straight. Mark the fixing hole locations.

30-34inch 760-865mm

14-16inch 356-405mm

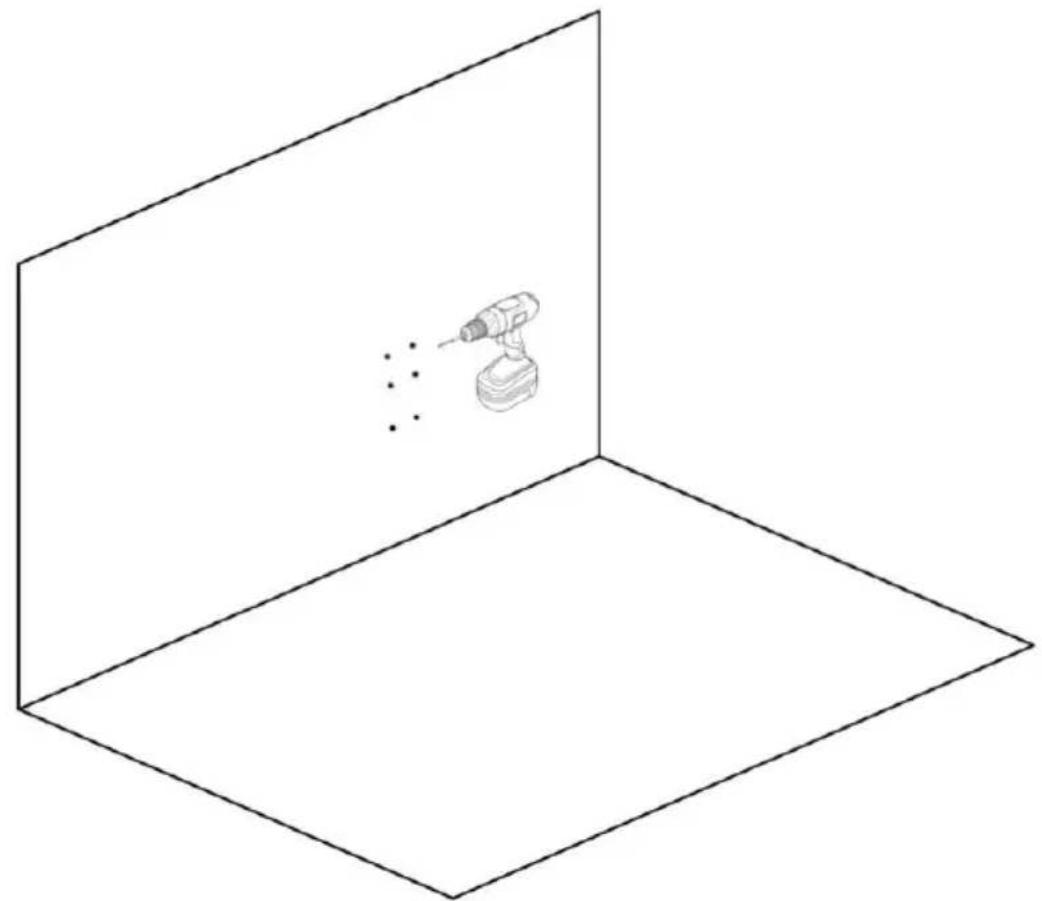

Step 4: Drill the holes in the wall.

Simple line drawing of a 3D coordinate system with a small electric drill inside, no text or symbols present.

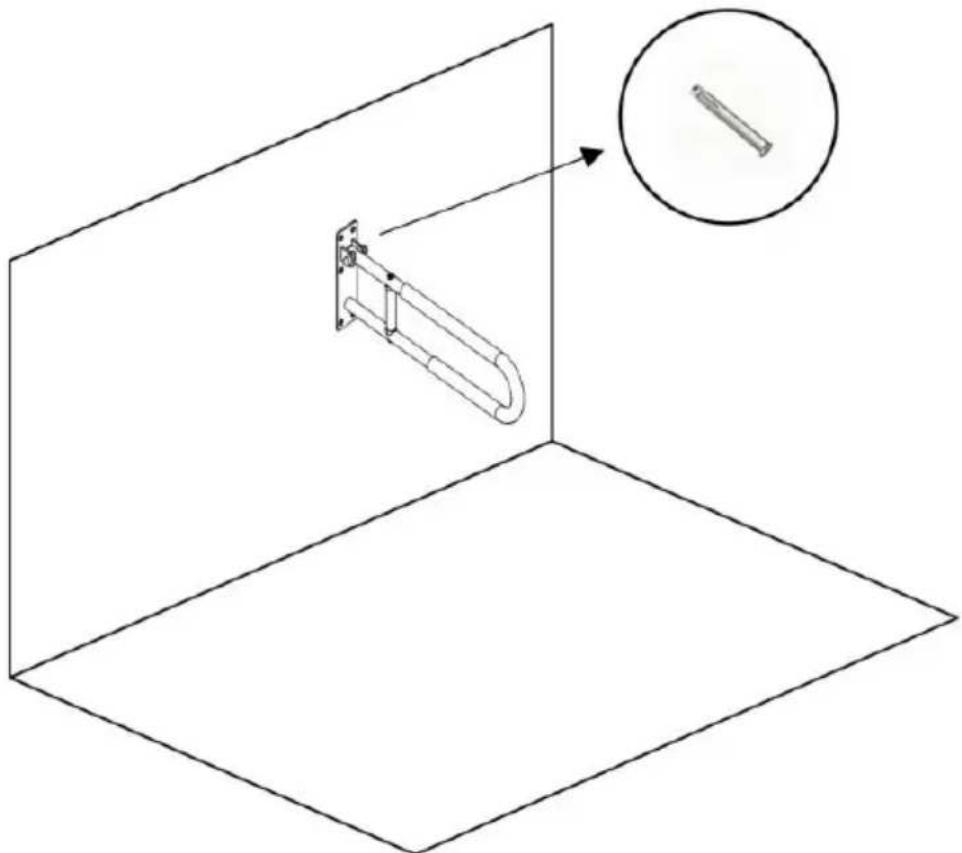

Step 5: Thread the sleeve anchor through the holes in the fixing plate align them with the holes punched in the wall.

Pure technical diagram showing a mechanical component inside a 3D coordinate system with an inset circular detail (no text or symbols)

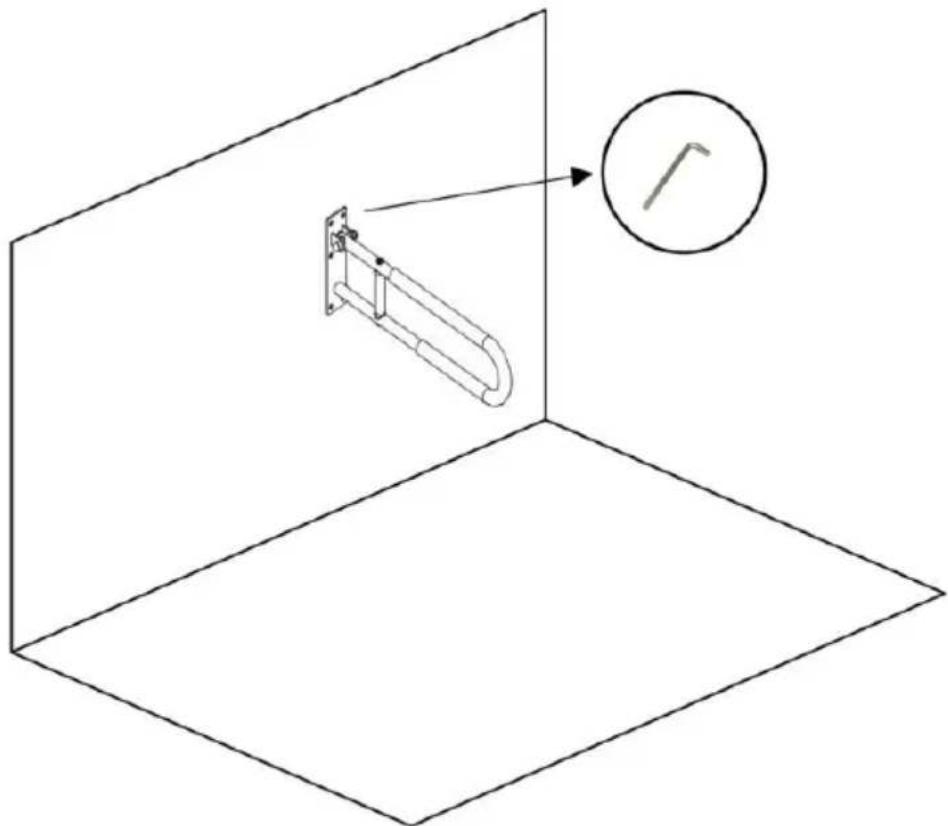

Step 6: Lock the sleeve anchors with a hexagon key to complete the installation.

Pure technical diagram showing a mechanical component inside a 3D coordinate system with an arrow pointing to it, no text or symbols present.

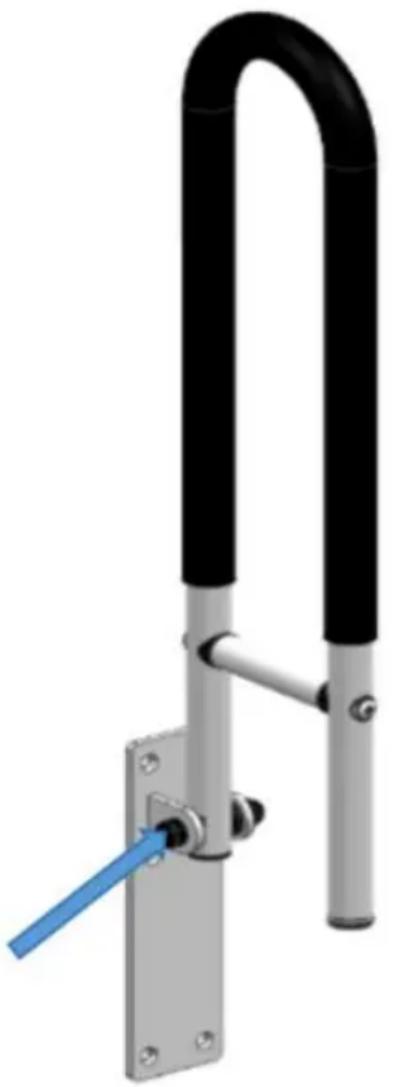

Folding Storage

As shown in the picture, the handrail can be folded upwards to save. Note: If the handrail cannot be kept in the storage state, it is necessary slightly tighten the screw at the rotating shaft pointed by the arrow to it in the storage state.

3D rendering of a U-shaped mechanical clamp or bracket with a blue handle inserted, mounted on a metal frame (no text or symbols visible)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®
