FG-SKU10 - Cooler Vevor - Free user manual and instructions

Product type	Built-in ice bin / ice bucket
Brand	Vevor
Model	FG-SKU10
Cutout dimensions (L x W x H)	435 x 283 x 590 mm
Capacity	26.7 L
Cold retention time	Up to 24 hours
Main material	Brushed stainless steel
Insulation	Double layer with high-density polyurethane
Lid seal	Adhesive tape for sealing
Anti-condensation coating	XPE foam on sides and bottom
Included accessories	Lid, strainer, sealing gaskets (x2), drain screw, mounting key
Installation	Built-in, follow the steps provided
Maintenance	Empty and dry after each use to prevent bacteria
Safety	Contains small parts - choking hazard. Keep out of reach of children.
Intended use	Ice storage, beverages (wines, beers, cocktails, juices)
Support and warranty	www.vevor.com/support - electronic warranty certificate
Country of origin	Imported by Vevor - see manual for details

Frequently Asked Questions - FG-SKU10 Vevor

How to install the FG-SKU10 ice bin?

Follow the steps in the manual: first place O-ring #4 into the basin hole, then install the strainer, gasket #2, and the siphon (parts 5/6/7) onto part #4. Tighten the screw with the key, then screw parts 8/9 onto part 7. Finally, place the cup (part 1) and lid (part 2/3) onto part 4.

What is the capacity of the FG-SKU10 ice bin?

The capacity is 26.7 liters, calculated based on water density. For ice, actual capacity may vary (approximately 10 kg of ice corresponds to 23 liters of water).

How long does the ice stay cold?

The ice bin can maintain a cold temperature for up to 24 hours thanks to its double-layer high-density polyurethane insulation and tight seal.

How to maintain the ice bin after use?

Empty the melt water after each use to prevent bacterial growth. If not using for a long time, empty the interior, dry it well, and store it dry.

Can I use the ice bin for hot drinks?

No, this device is designed only for cold. Its insulation keeps ice and drinks cold, but is not suitable for hot liquids.

Why is there condensation on the exterior walls?

Normally, the XPE foam on the sides and bottom prevents condensation. If you observe it, check that the foam is properly in place and that the lid closes correctly.

What accessories are included with the FG-SKU10?

Accessories include: a cup, a lid, a strainer, two sealing gaskets, a screw, and a mounting key. Check the full list in the manual.

Is the ice bin easy to build into a countertop?

Yes, installation is simple. The recommended cutout size is 435 x 283 x 590 mm. Make sure to follow the installation steps to avoid damage.

Where to find after-sales service or warranty?

Go to www.vevor.com/support for technical support and the electronic warranty certificate.

Can I replace the sealing gaskets myself?

Yes, the gaskets are spare parts. You can order them from the manufacturer. Follow the assembly instructions to replace them.

USER MANUAL FG-SKU10 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN ICE CHESTS INSTRUCTIONS

MODEL: FG-SKU1 / FG-SKU2 / FG-SKU3 / FG-SKU4 FG-SKU5 / FG-SKU6 / FG-SKU7 / FG-SKU8 FG-SKU9 / FG-SKU10 / FG-SKU11 / FG-SKU12 FG-SKU13

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

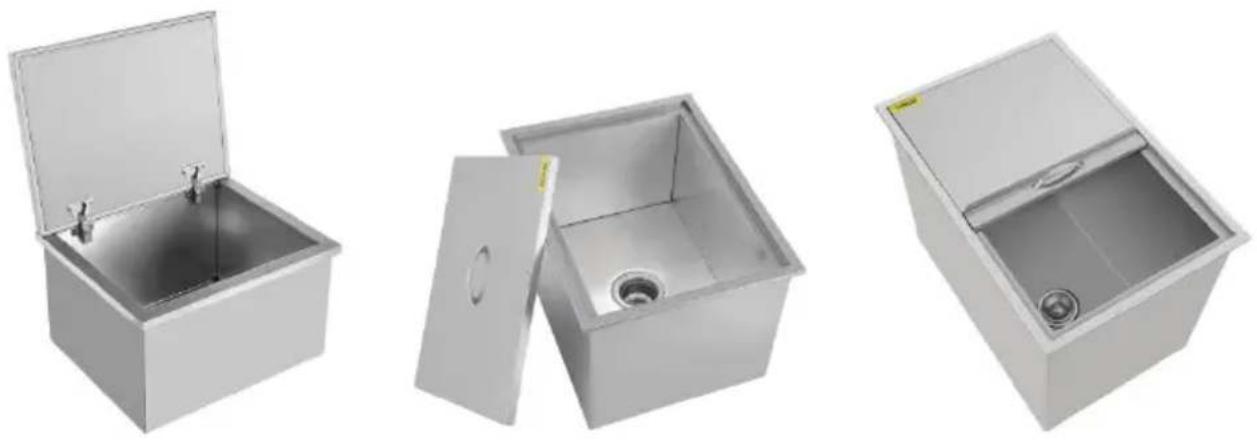

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep the work area clean and well-lit, and keep spectators and children out of the work area.
2. Assemble only according to the ice chest parameters. Improper assembly can create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades, and other items so as not to scratch the product.

NOTE:

1. The illustration shown is for reference only. It may not represent the actual product purchased.
2. Please follow the installation steps to mount this drop-in ice chest. Incorrect installation steps may cause damage or trouble.
3. Installation is easy. Please handle it gently.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. The double-layer design achieves better insulation. The interior is insulated with high-density polyurethane, and the lid is sealed with an

adhesive strip to prevent heat loss and ensure your ice stays cool for a long time.

1. The ice bucket with lid is a versatile and essential accessory. It can keep wines, beers, cocktails, and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside, and restaurants, perfect for any casual occasion such as dinner, sports parties, or barbecues.
2. The side and bottom of the product are wrapped with XPE sponge, which not only increases the thermal insulation effect but also prevents the side and bottom from condensation, which could lead to water dripping on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

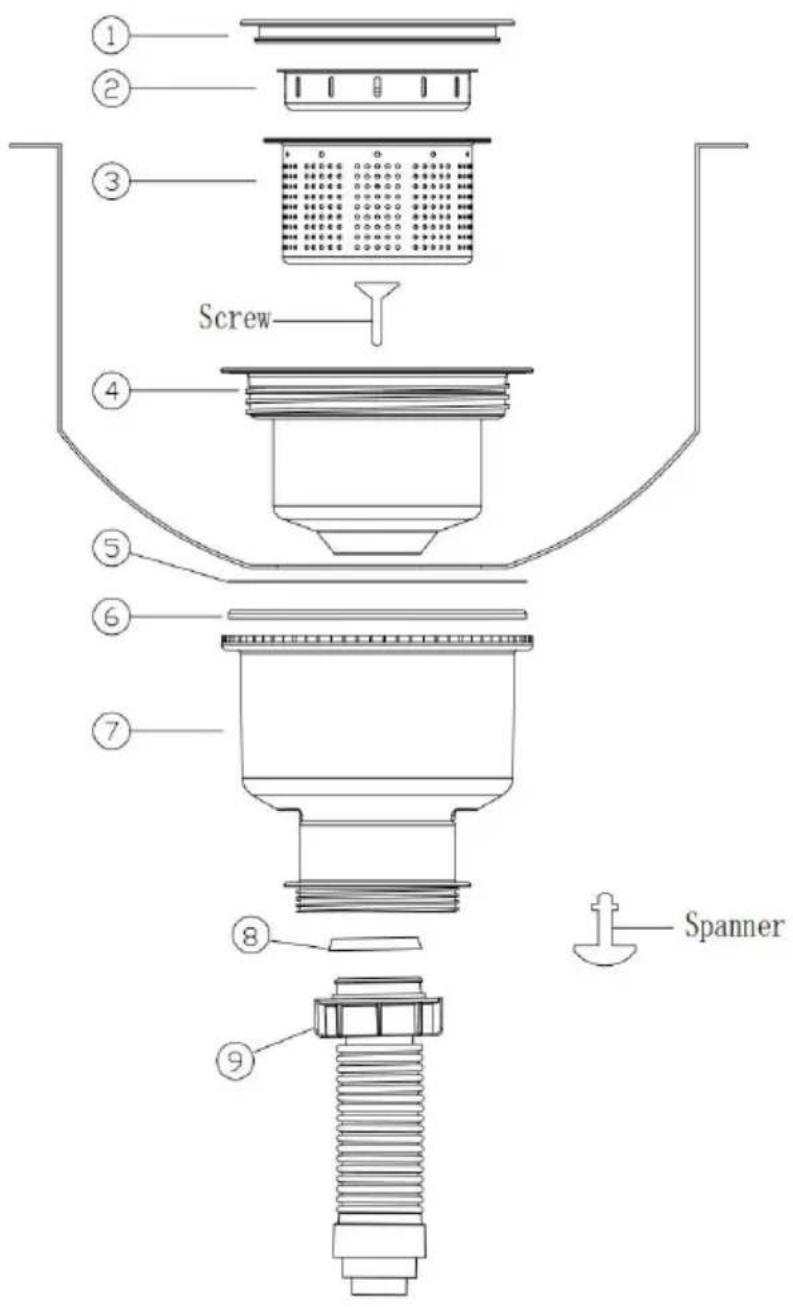

Installation steps:

1: Place part No. 4 in the basin hole, and install parts No. 5/6/7 on it. 2: Tighten the screw with the key, and tighten parts No. 8/9 on it. 3: Place parts No. 1/2/3 in part No. 4 to complete the installation.

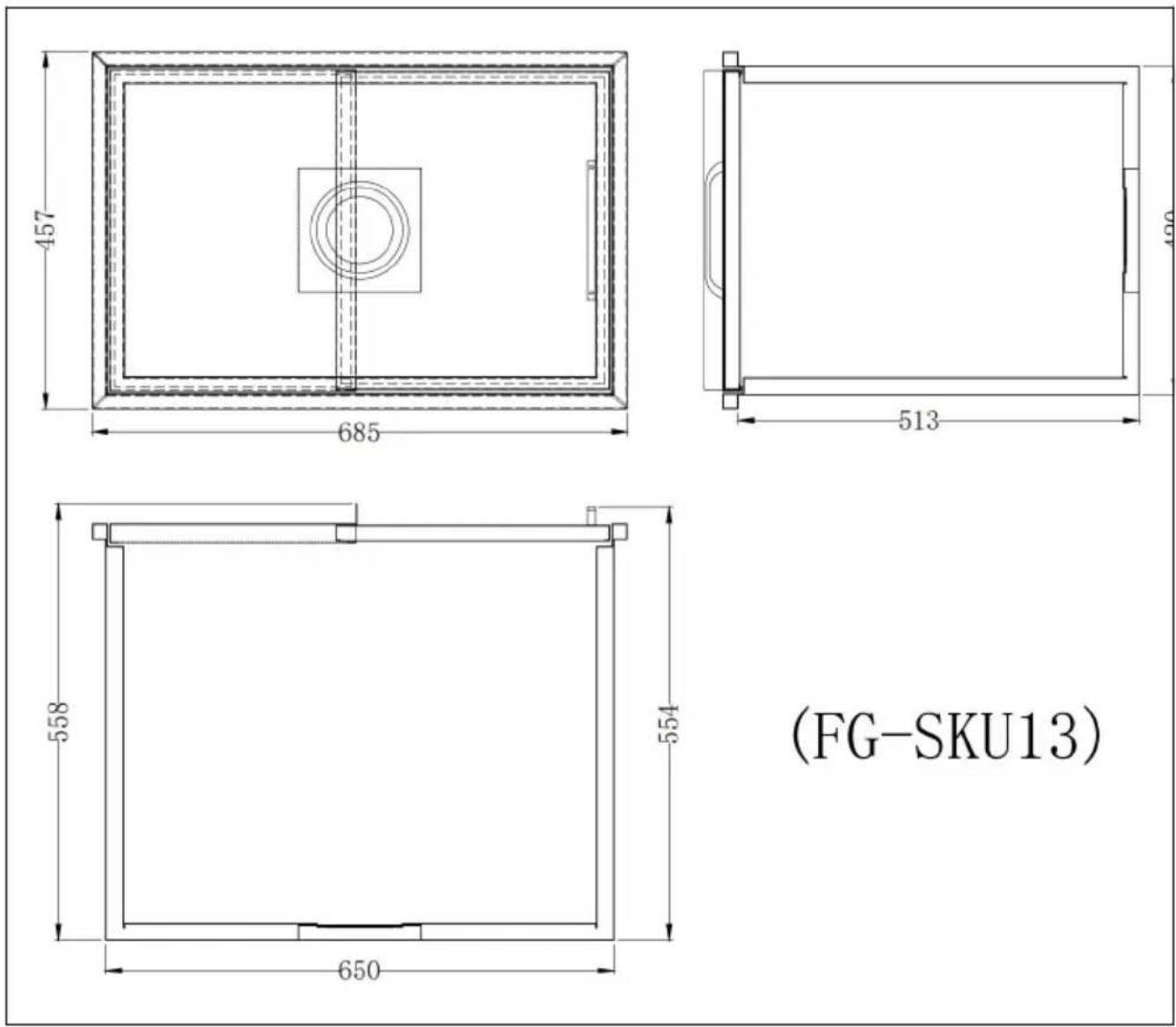

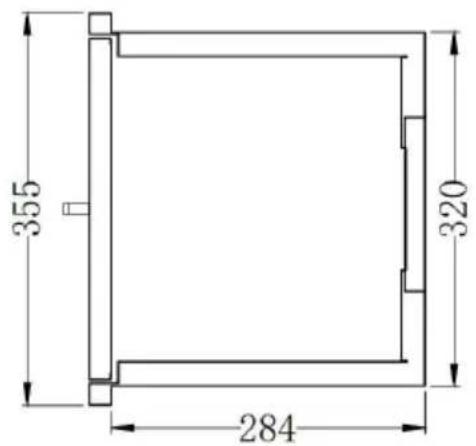

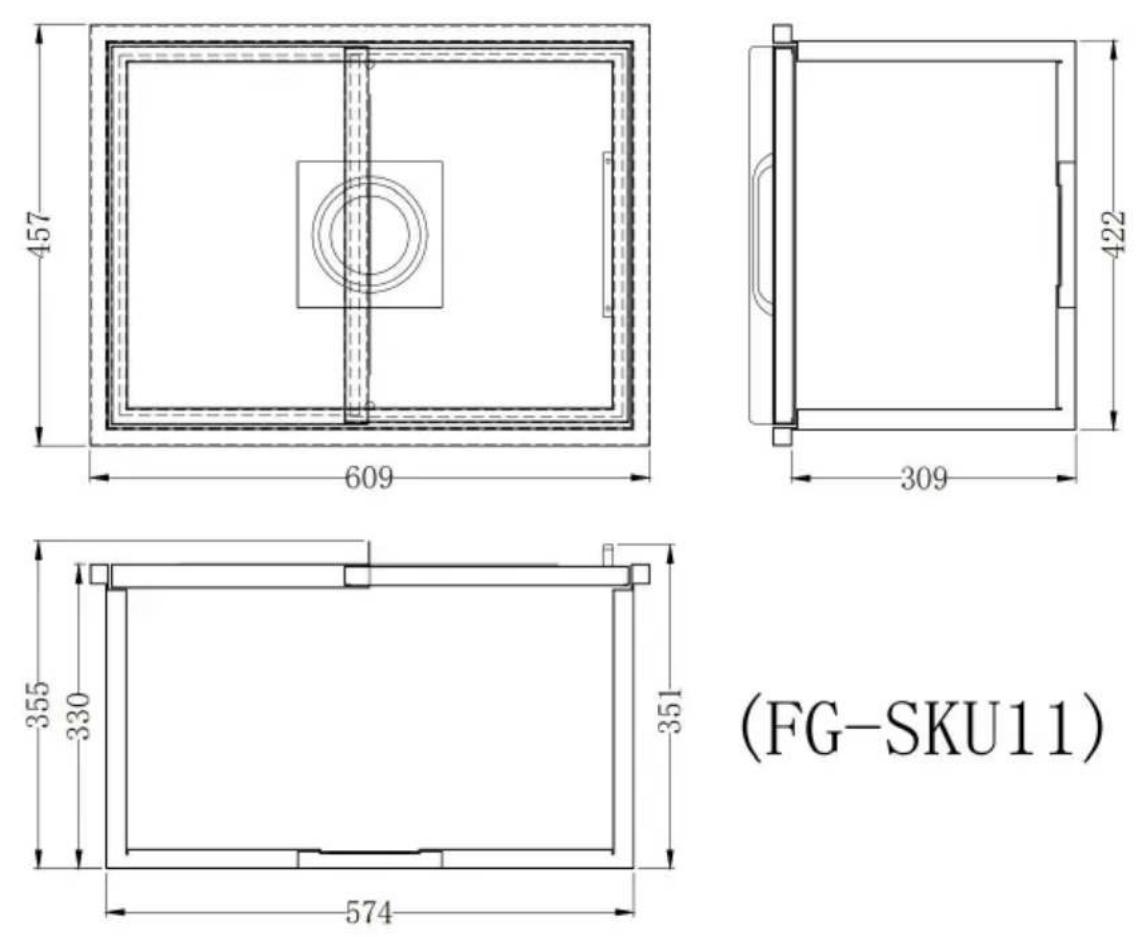

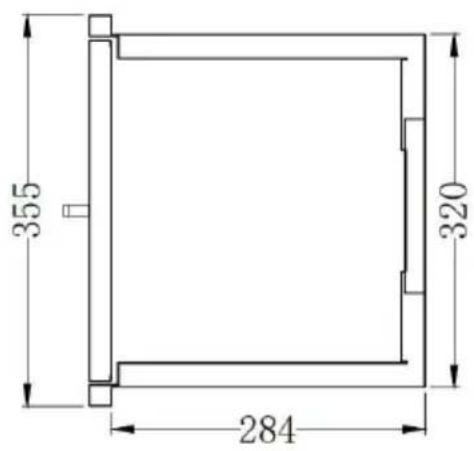

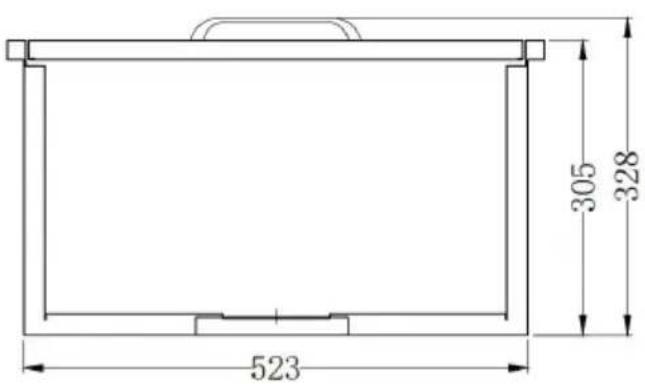

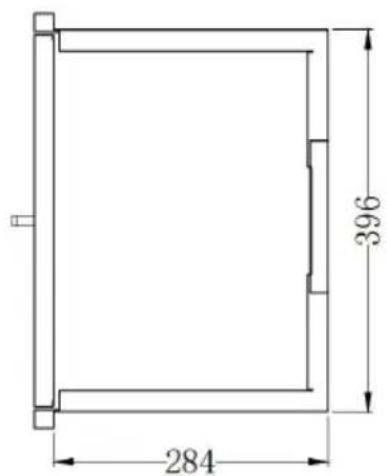

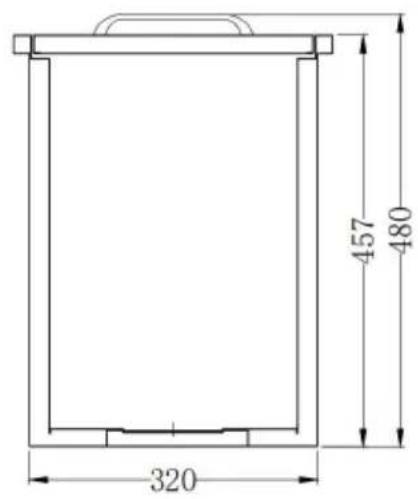

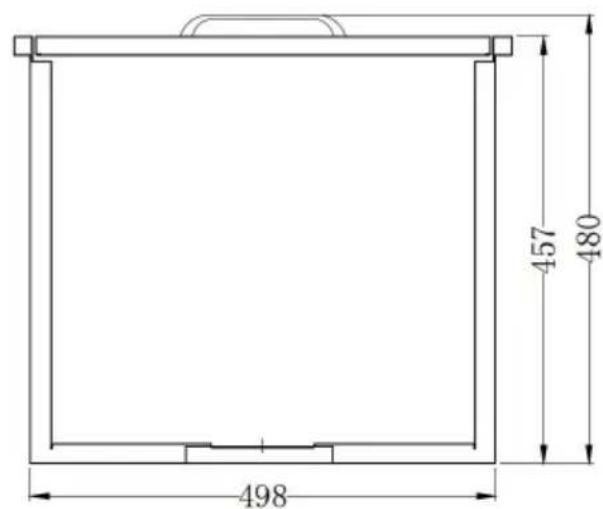

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
FG-SKU1	345*295*660	28.52	Can provide 24H insulation effect.
FG-SKU2	495*400*540	44.24
FG-SKU3	595*495*590	78.37
FG-SKU4	695*390*640	82.6
FG-SKU5	695*493*640	107.8
FG-SKU6	333*283*690	25.3
FG-SKU7	485*335*535	30.25
FG-SKU8	535*410*530	43.5
FG-SKU9	515*410*690	77.9
FG-SKU10	435*283*590	26.7
FG-SKU11	587*435*570	55.23
FG-SKU12	895*435*580	95.66
FG-SKU13	665*435*760	109.48

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment.
2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation.
3. The product capacity data in the table is calculated by the density of water, and there will be some errors in practice, which is a normal phenomenon.
4. Because the volume and density of ice is different from that of water, the loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water to fill the ice bucket.

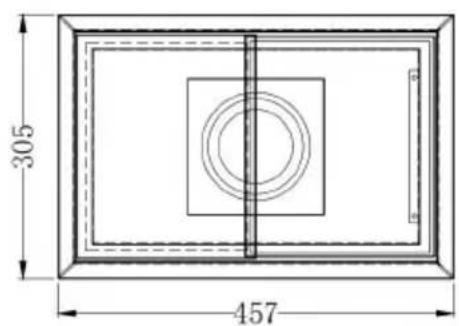

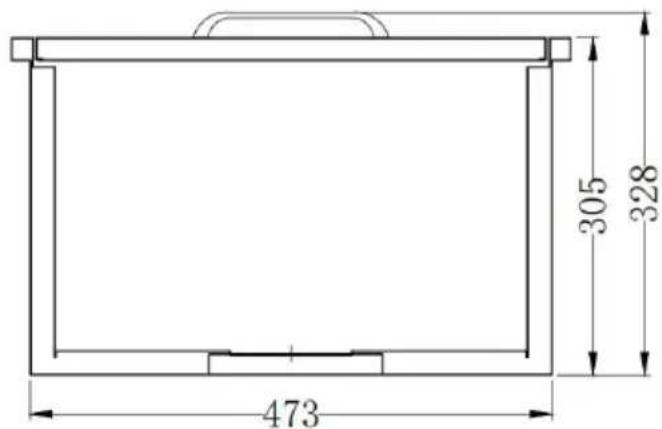

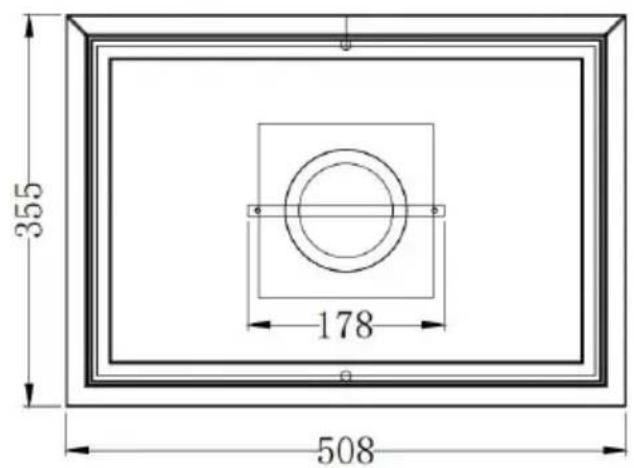

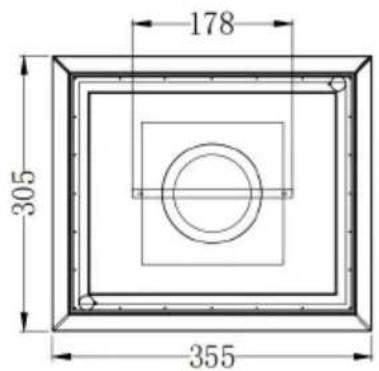

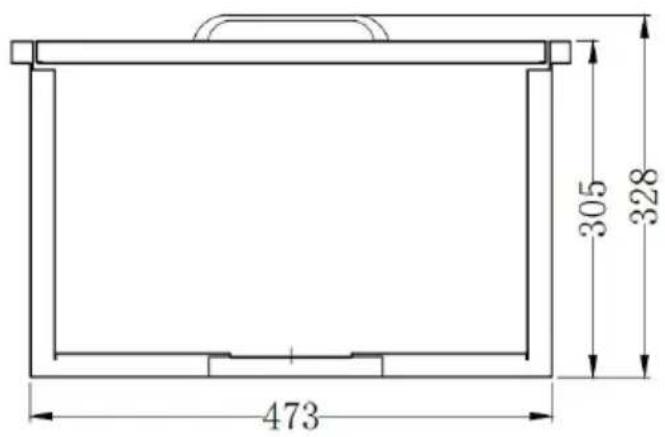

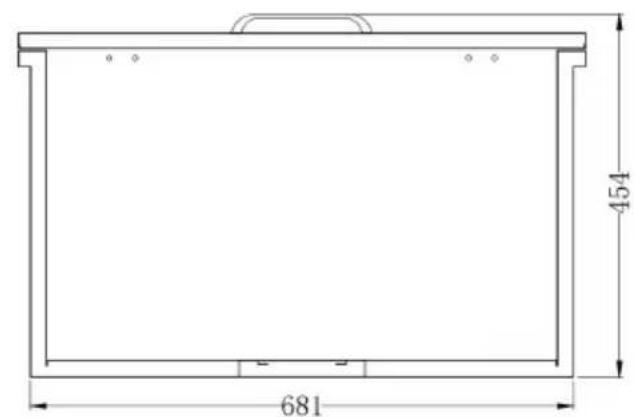

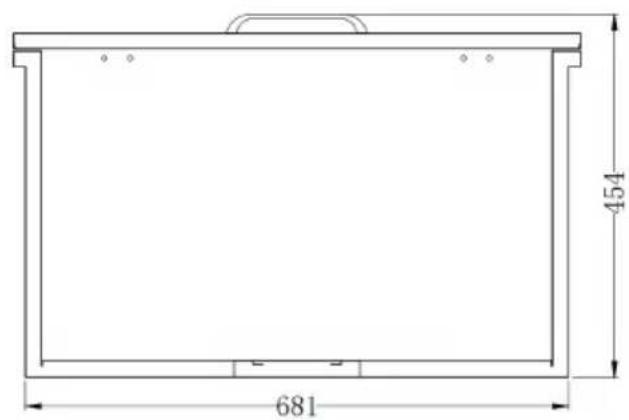

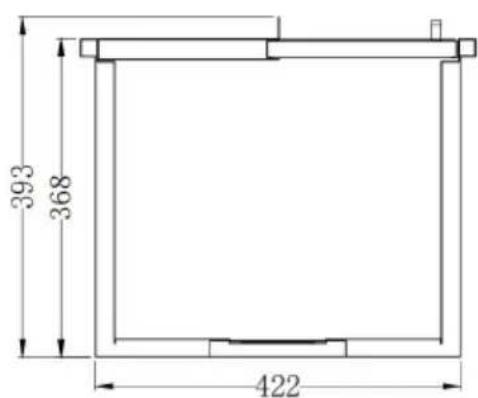

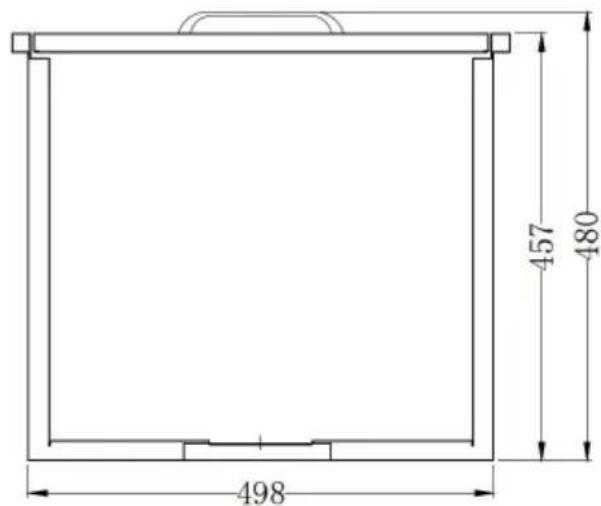

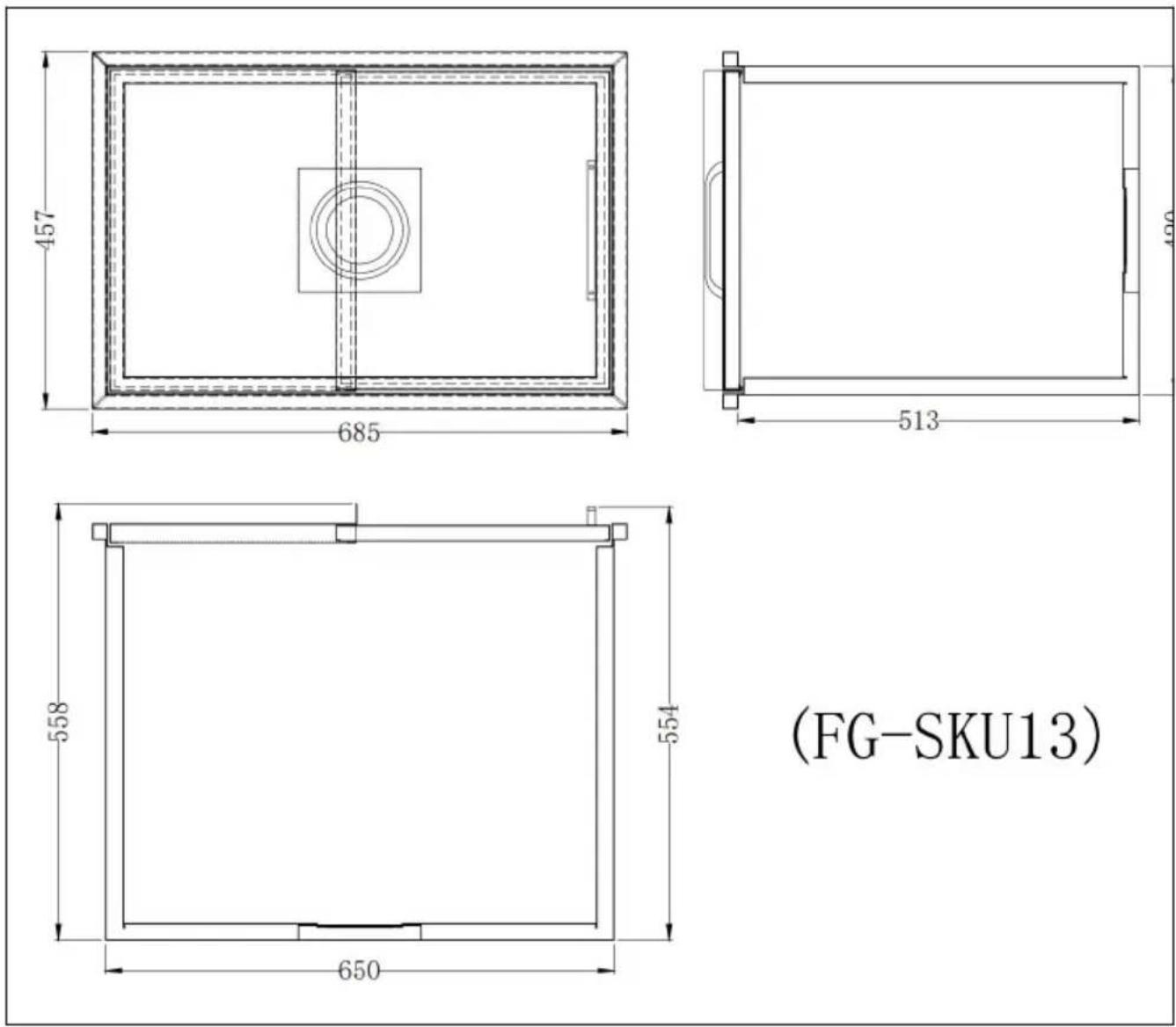

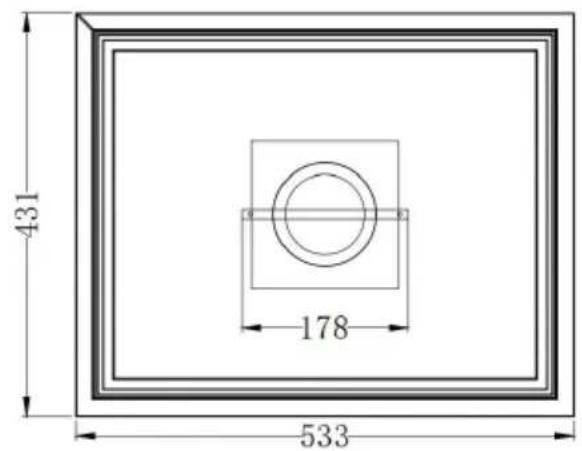

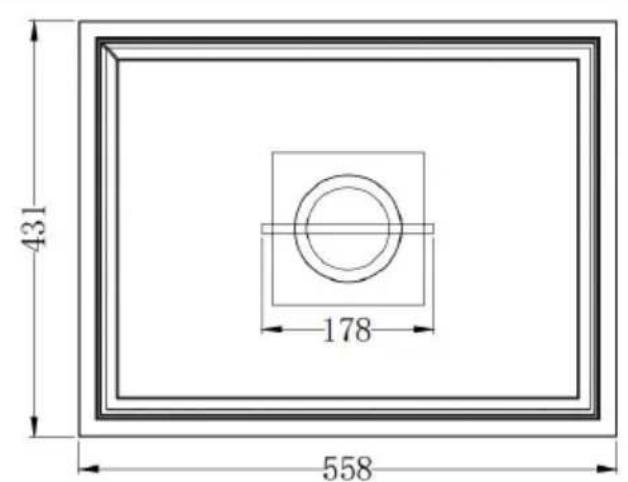

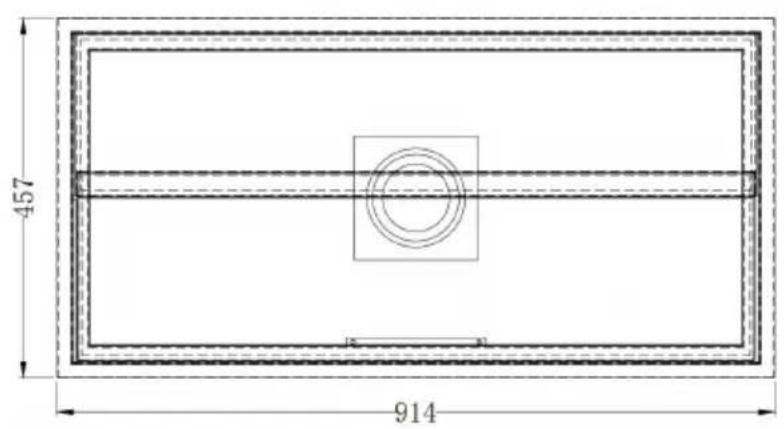

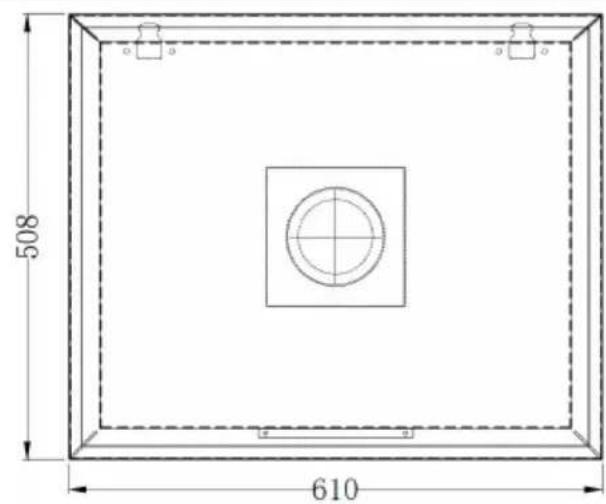

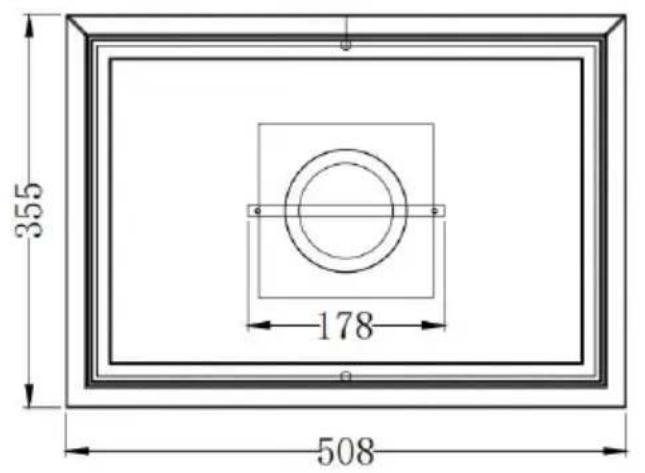

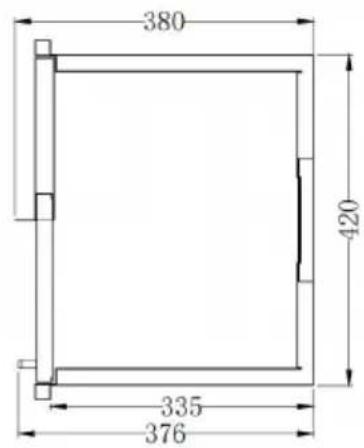

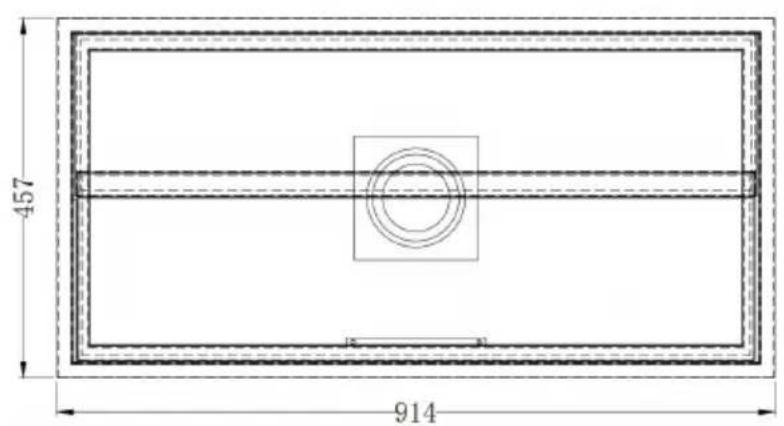

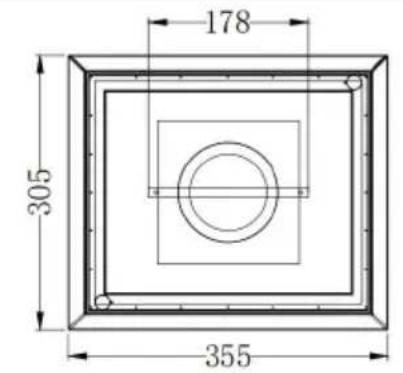

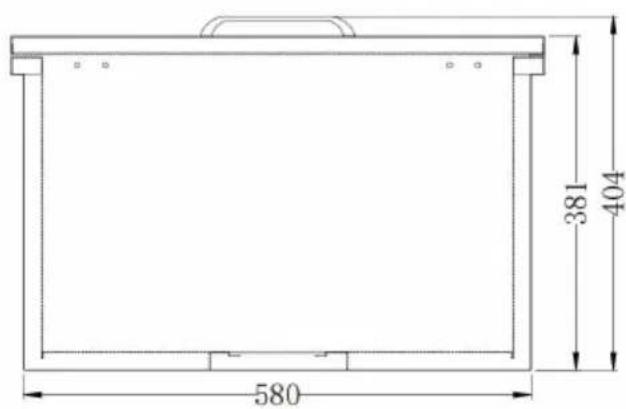

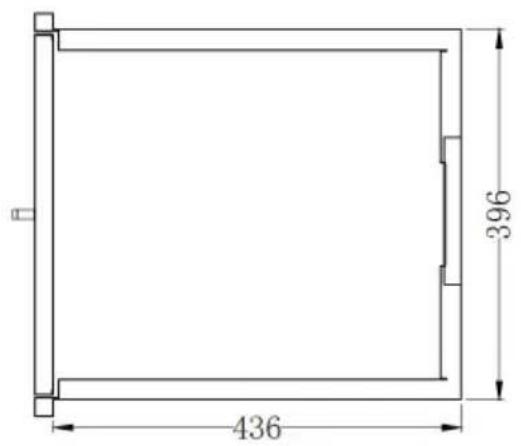

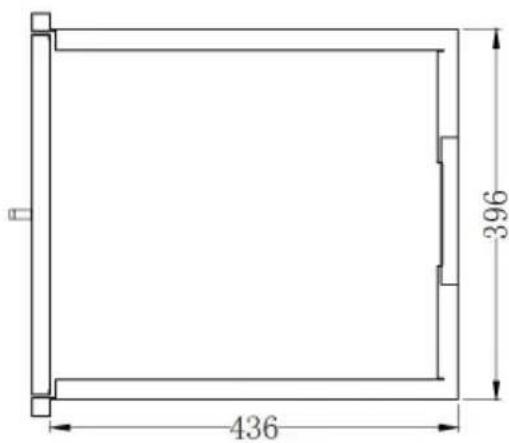

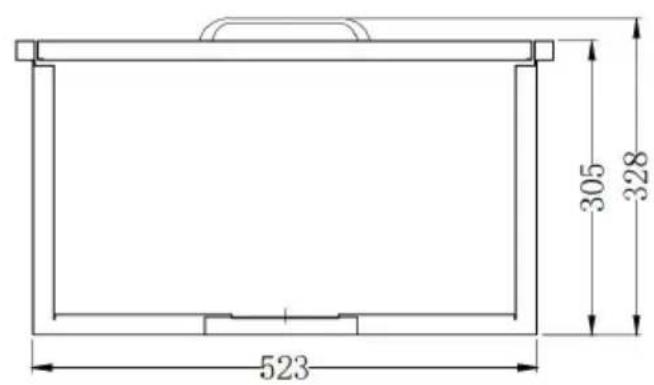

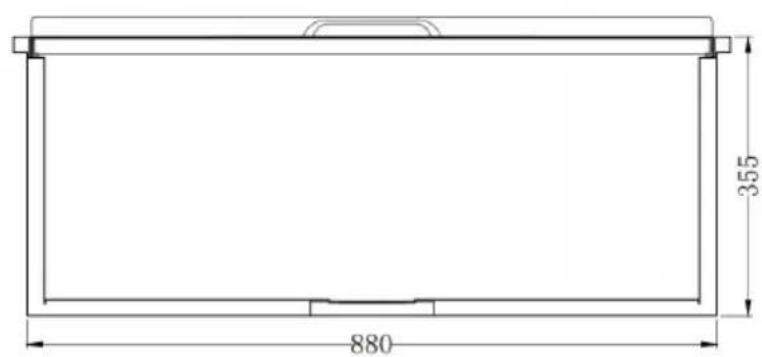

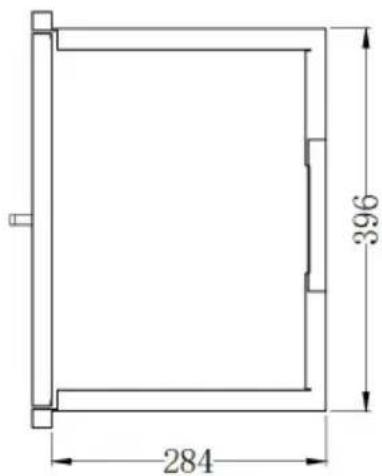

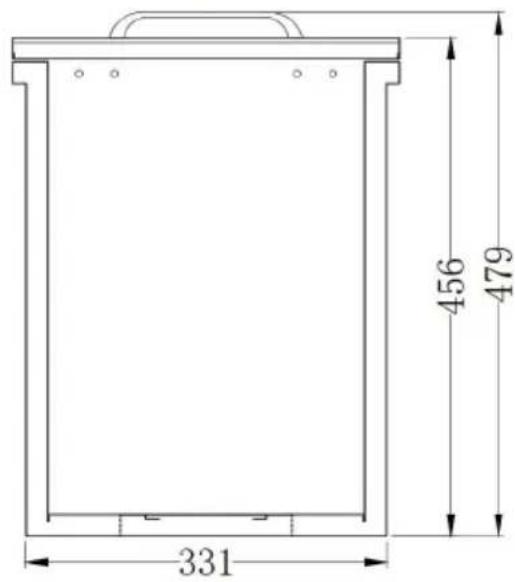

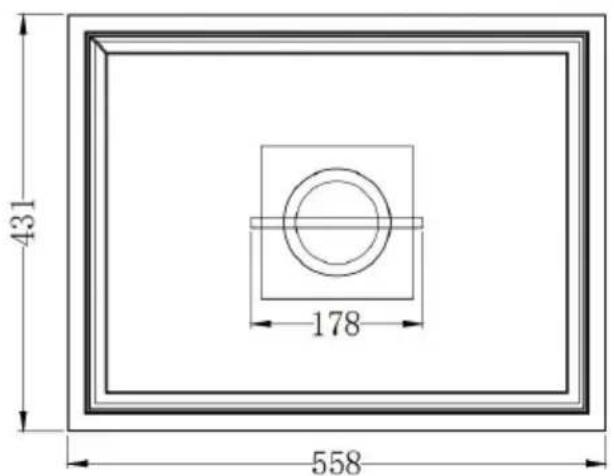

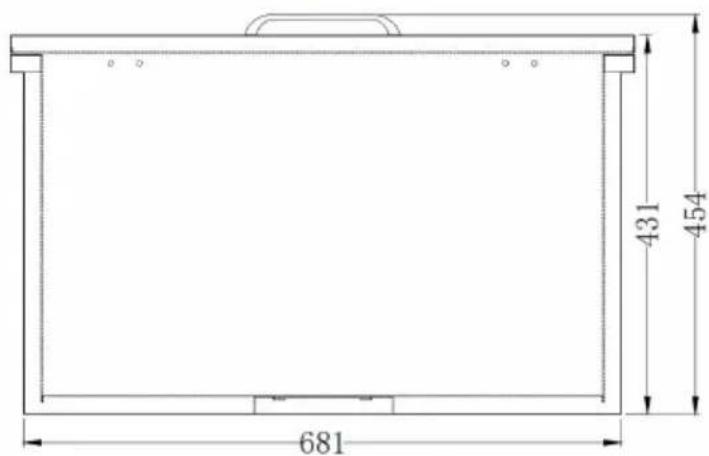

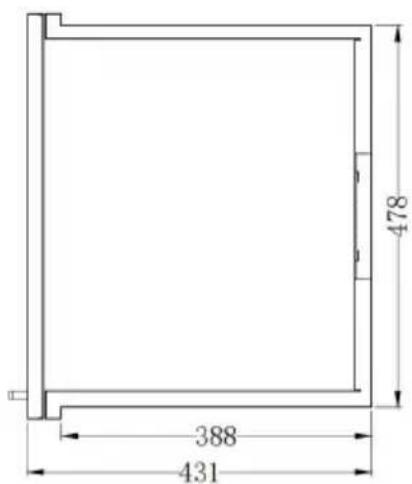

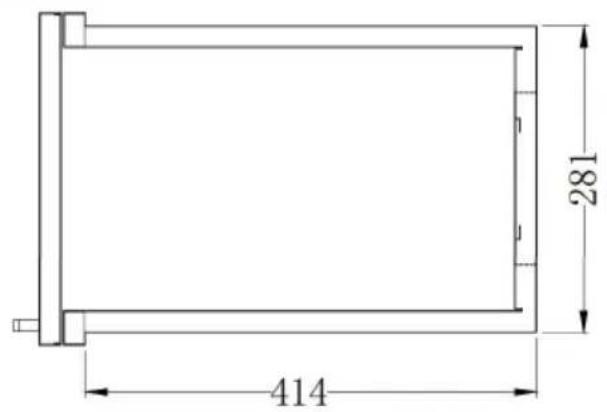

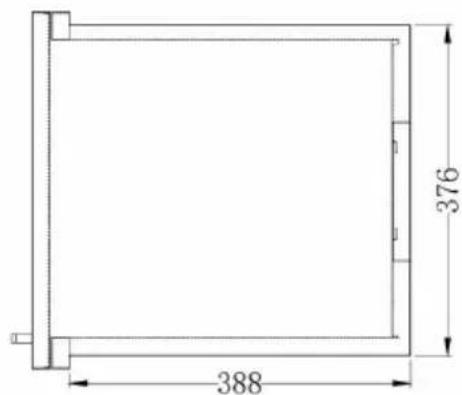

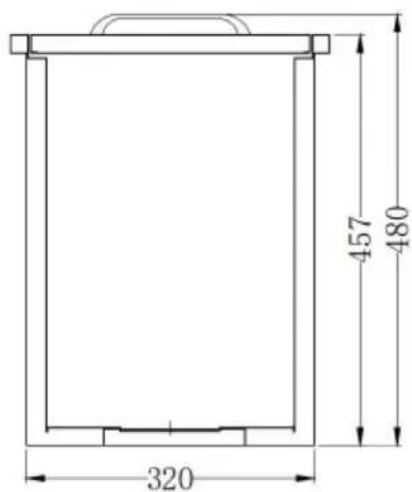

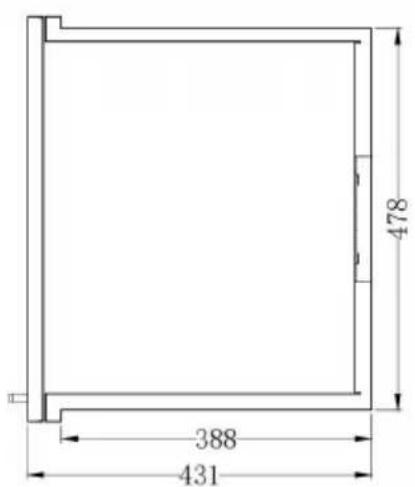

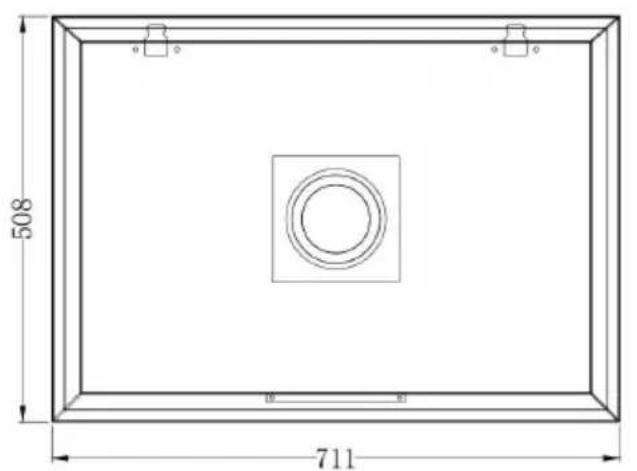

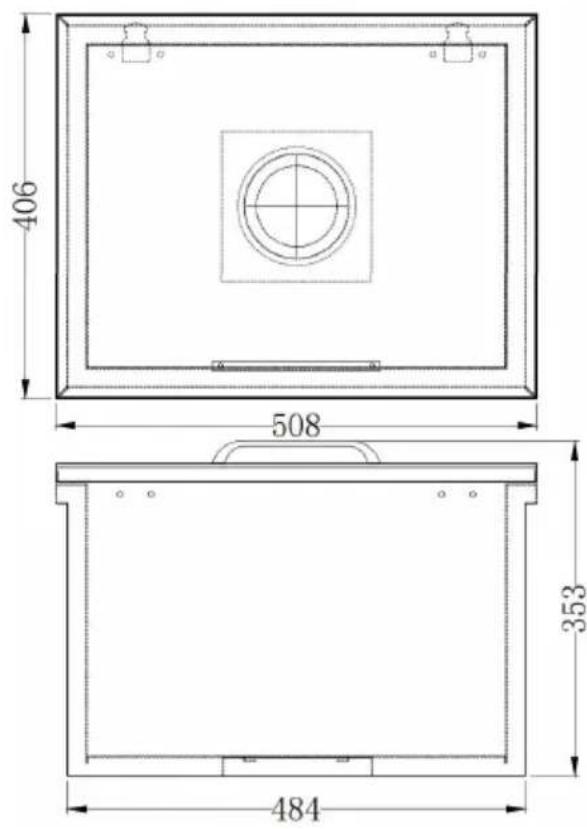

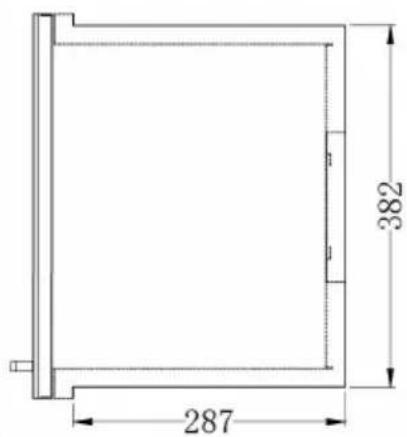

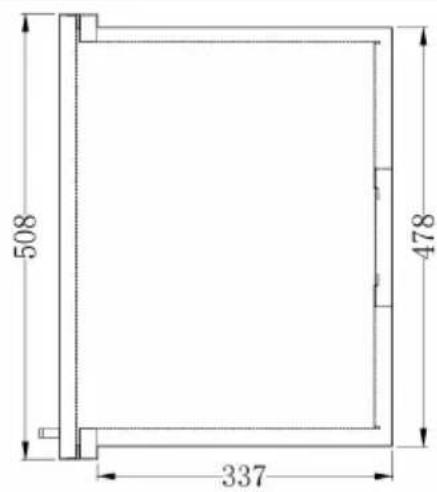

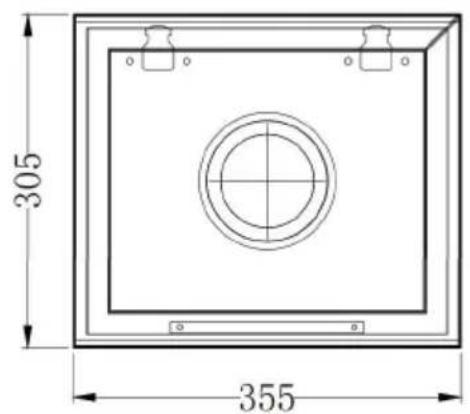

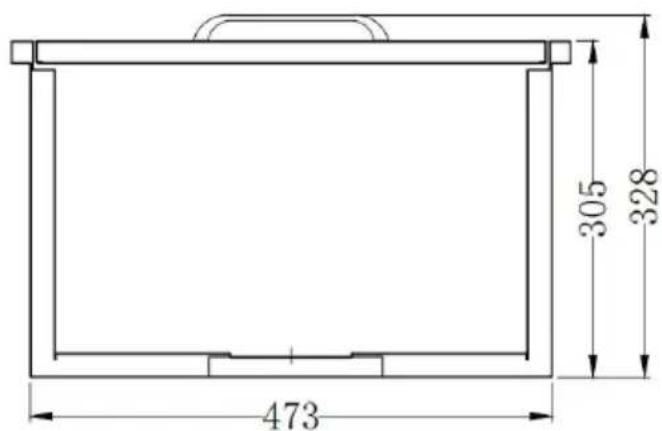

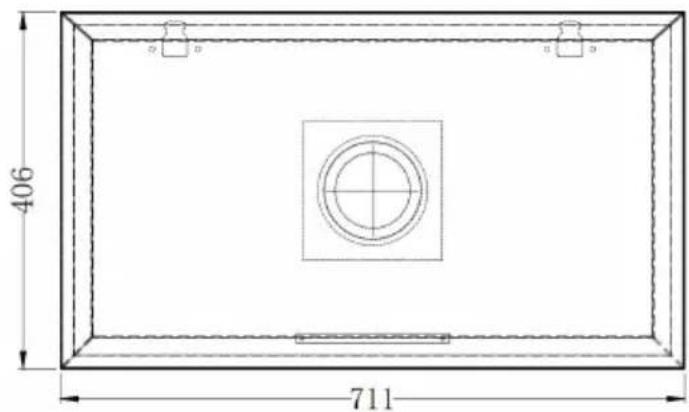

(FG-SKU1)

(FG-SKU2)

(FG-SKU3)

(FG-SKU4)

(FG-SKU5)

(FG-SKU6)

(FG-SKU7)

(FG-SKU8)

(FG-SKU9)

(FG-SKU10)

(FG-SKU12)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to replacing ice and water in time.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
