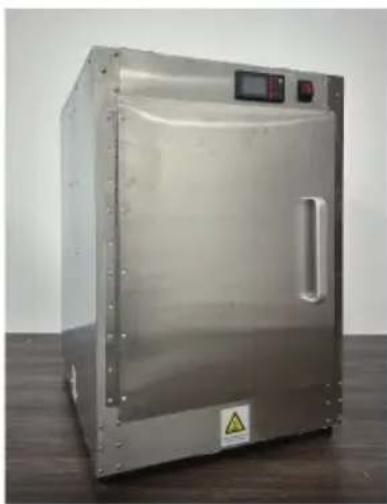

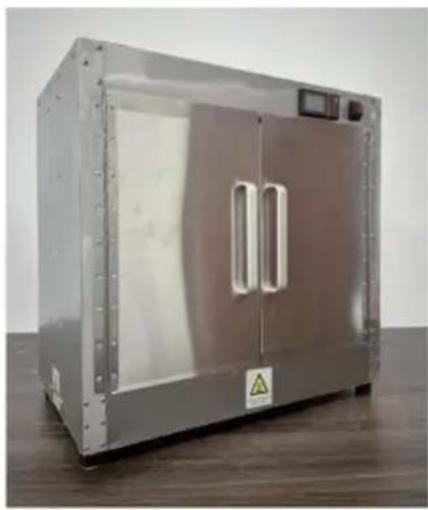

Exterior view of a stainless steel laboratory oven with clear glass doors and control panels (no visible text or symbols)

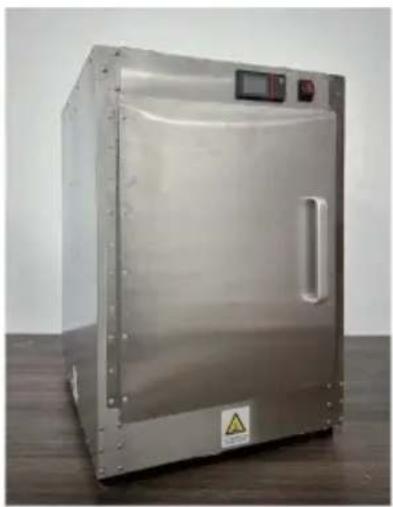

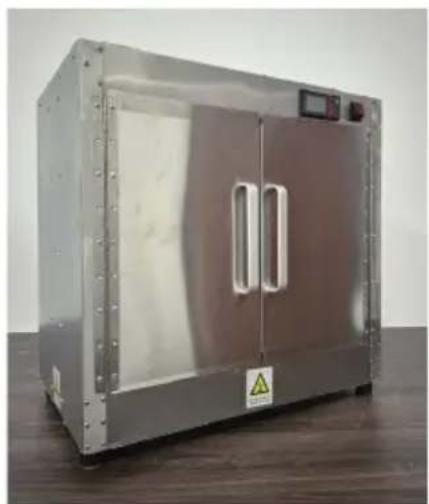

Exterior view of a stainless steel industrial incubator with control panel and warning symbol (no text or labels visible)

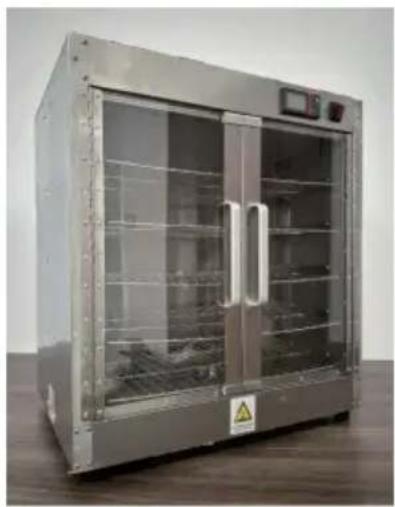

Exterior view of a stainless steel industrial incubator with control panel and warning label (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are an technology or software updates on our product.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

Please read this manual carefully before using this product

Make sure you are familiar with all safety and usage in

Keep this manual in a safe place for future reference.

FOR YOUR SAFETY!

Follow these precautions all the time to avoid personal injury to others.

Do not spray with water or cleaning products.

Do not use the unit with a damaged or modified electric cord.

To reduce the risk of equipment damage and personal injury:

1. Only use grounded power outlets that match the rated voltage nameplate.

2. Only use in a horizontal position.

3. Do not use a power strip, surge protection cord with the equipment.

4. Unplug the equipment before cleaning or moving.

5. Do not use cleaning agents or liquids on the outside of the away from open flames and other heat sources.

6. Do not operate damaged or malfunctioning equipment.

7. Do not leave equipment ON unattended.

8. Do not let children or minors touch or use this product. Please during use.

9. Do not put non food into the product for heating.

10. Please use purified water.

11. This appliance is not intended for use by persons (including with reduced physical, sensory or mental capabilities, or lack of knowledge and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their children should be supervised to ensure that they do not play in appliance.

12. If the supply cord is damaged, it must be replaced by the its service agent or similarly qualified persons in order to avoid

SAVE THESE INSTRUCTIONS

OPERATING INSTRUCTIONS

Includes the following accessories: power cord, anti-scald glovestin aluminum alloy handle, handle screws, cabinet feet, cabinetfoot scr small wrench, water box, manual. shelf.

Step 1: Attention: Tear of the white protective film on the surface operation : Use hair dryer to heat the protective film, heat it for time, and then tear it off by hand.

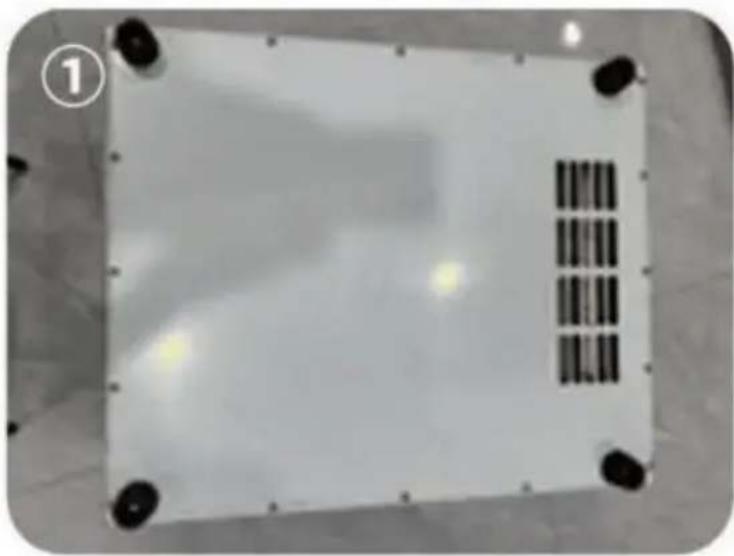

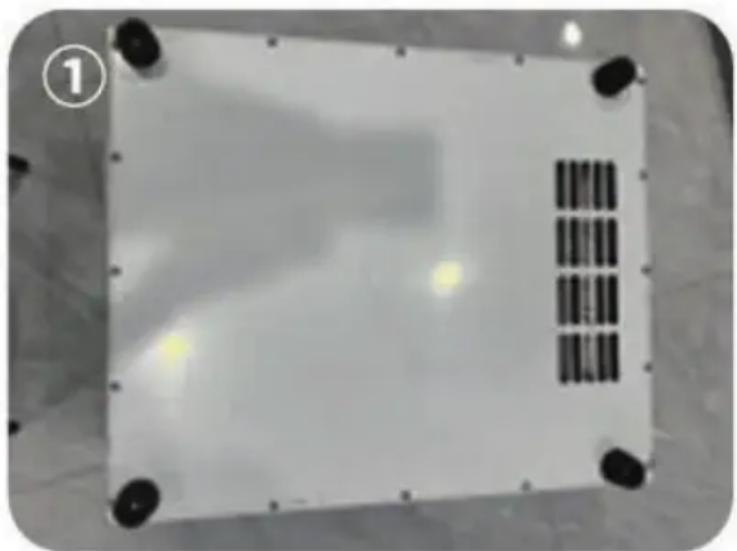

Step 2: Turn the cabinet upside down so that its bottom is facir takeout the bag with the cabinet legs, and install the long screw awrench with four cabinet legs inside, pass the screws of the c through the holes in the middle of the cabinet feet, and thenins the nuts on the four corners of the bottom of thecabinet, which firmly with a noheAs shown in Figure①.

Top-down view of a white rectangular electronic component with black mounting holes and a vertical striped pattern on the side (no text or symbols visible)

Step 3:

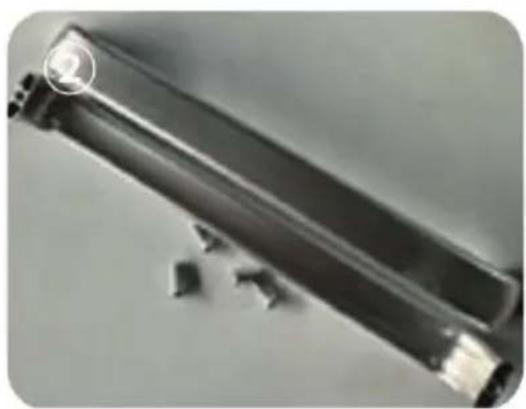

Install the aluminum alloy handle of the cabinet on the cabinet are two screw holes on the top and bottom of the aluminum allc take out the matching screws used to install the aluminum alloy the accessories, pass the screws through the two holes on the and then align the screw holes of the aluminum alloy handle w and tighten it with awrench.As shown in Figure②③④

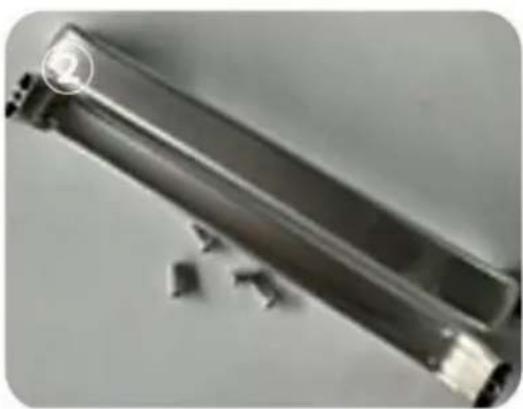

Close-up of a transparent cylindrical mechanical component with a circular end, partially detached fragments (no visible text or symbols)

Close-up of a white door with a vertical line and two red circular markers, no visible text or symbols.

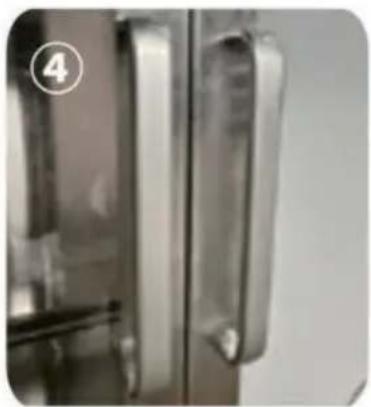

Close-up of a metallic door handle with a numbered label (4) in the corner, no visible text or symbols on the door itself.

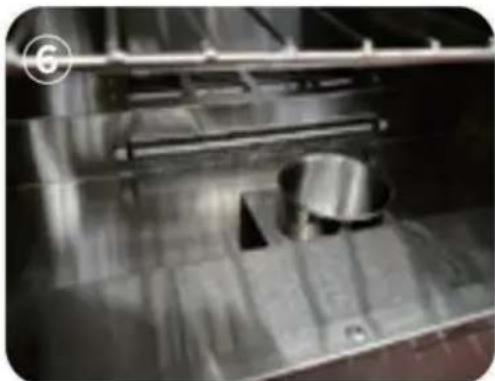

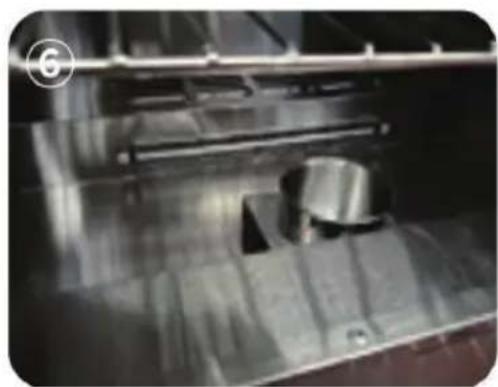

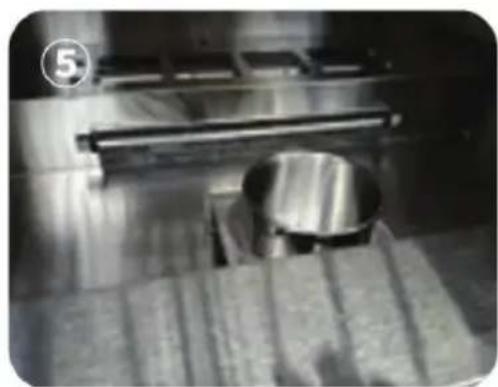

Step 4: Place the water box in the lowest space of the cabinet, water box needs to be placed close to the side of the cabinet blocking the air outlet and affecting the heating effect. As shown Figure⑤⑥.

Close-up of a metallic mechanical component with a circular base and horizontal rod, placed on a textured surface (no visible text or symbols)

Close-up of a metallic mechanical component mounted on a metal frame, with no visible text or symbols.

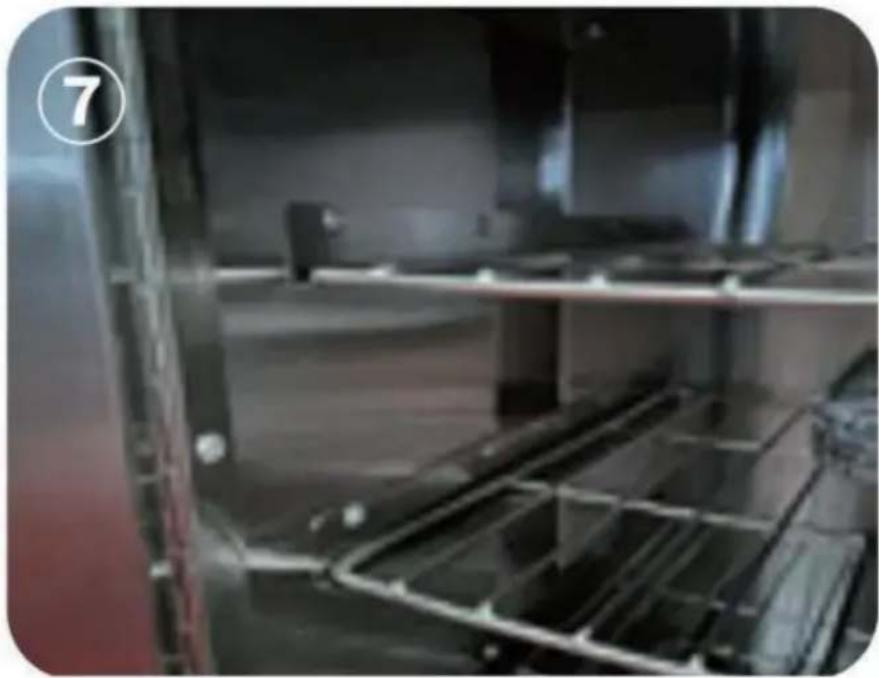

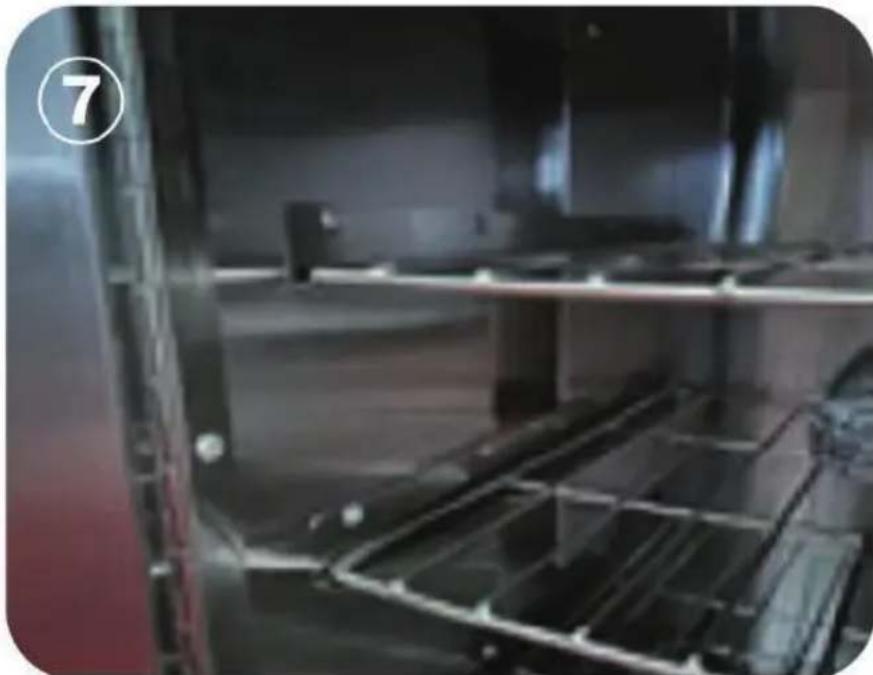

Step 5: Take out the shelves and place them on top of the shelf shown in Figure ⑦

Interior view of a warehouse or storage facility with metal shelving and overhead equipment (no visible text or symbols)

Step6:

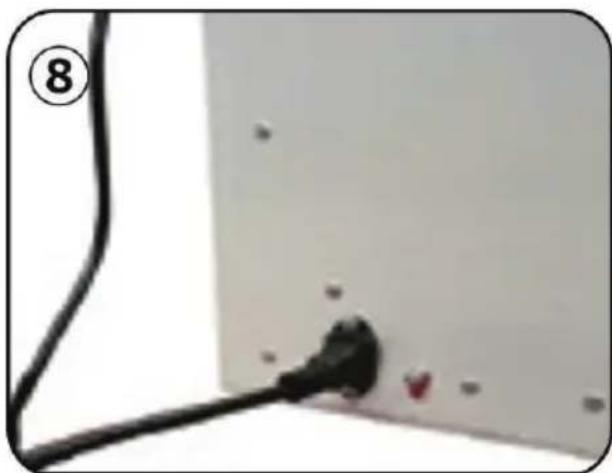

1. At the position of the power plug, connect the ground wire (the connection ground wire must be effectively grounded).
2. Plug the power cord into the powersocket behind the cabinet.poweron, press the red switch on the front of the cabinet, the cabinet is energized, the display screen is lit. As shown in Figure(8)
3. Set the desired temperature: Click the "set" key, and the blue set value on the screen will flash. Use the up and down keys to adjust it to the required temperature value, and then click the "set" key to save the setting and exit the temperature setting mode.

Close-up of a black cable with a small red mark on a white surface, no visible text or symbols

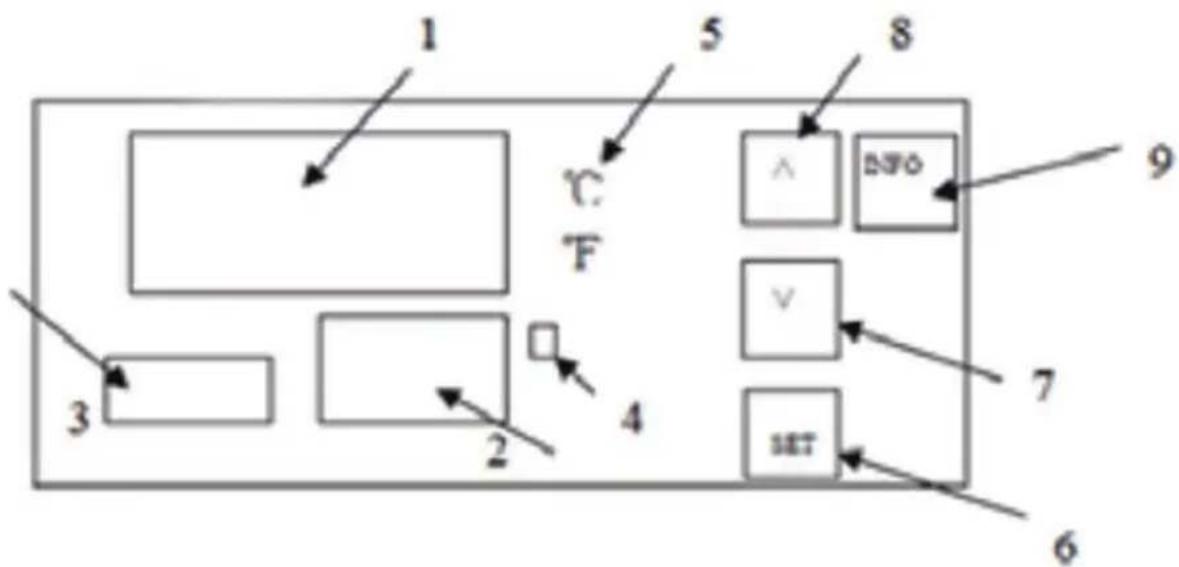

Step 7: Temperature setting Description of the function of the thermostat operation panel

1 5 8 C F 3 2 4 9 V 7 SET 6

1. Display the measured value

2. Display the set value.

3.Timekeeping time.When the power is on, press the SET key for 3 seconds to display P00, and the SET value is changed to 8. Then press the SET key to enter the internal parameter settings. Press the SET key continuously to find the P07 countdown setting, then press the up and down keys to SET the countdown time. Finally, press the SET key to save, and press the SET key for 3 seconds to save and exit the internal settings.

1. Heating indicator light, heating when it is on.

2. Celsius / Degree Fahrenheit indication. Press and hold the up increase key for 3 seconds to switch the display degrees Celsius/Fahrenheit

6.SET key:

Function I : click this key, the upper row will display SV, the lower row will flash, press the upper or lower key to set the temperature.and then click the lower key to set it to completion.

Function II: Press and hold this button for 3 seconds to enter the internal parameters.

1. Subtract key: Press this key to decrease the value.

2. Add button:

I. Press this button to increase the value when setting.

Ⅱ. Press and hold the up increase key for 3 seconds to switch the display degrees Celsius/Fahrenheit.

9.INFO button:

Function I: Press and hold this button for 3 seconds to power off or on.

Function Ⅱ: When you are in an internalparameter, click this key to rewind the previous parameter

PARAMETER TYPE

Note: When measuring the control page, press and hold the SET key for 3 seconds, and the parameter code P00 (parameter lock) will appear. After changing it to "8", click the SET key to appear other parameter codes. After adjusting the required value, press and hold the SET key to exit the measurement and control page in 3 seconds, and the parameters will be automatically saved (if you need to return to the previous code, click the "INFO" key once, No matter which code you stop at, you can press and hold the SET key for 3 seconds to exit). See the table below for the details of the meaning of the parameter code.

Parameter	Name Set Description			Initial Value
P00	Parameter locks	8、110	8:When the permission is unlocked the following parameter codes(P01,P04, P06, and P07)appear and if this value is a different value no other parameter code appears.110:Factory reset	0
P01 Return 0-10 Modify as needed 2
P04	Temperature correction	-20~20	It is used for temperature correction when there is a problem with the position of the sensor or other factors that affect the temperature.	0
P06	°C °F switching	°C °F	0:celsius 1:degree Fahrenheit	1
P07	Keep warm at are qular time	0~999unit minutes	Set the holding temperature at 0 for an unlimited time, Set 10 o'clock to start timing after reaching temperature, and turn off heating after 10 minutes. Set 60 to start timing after reaching temperature, and turn off heating after 60 minutes. And so on	0

Note: This product has the function of food heat preservation and constant temperature drying, with a maximum setting temperatureof177'F and 80'C. The access voltage is required to be 120V+10%and the device power is 850W.

CORRECTDISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices
