GGC-3P - Clamp Vevor - Free user manual and instructions

Brand	Vevor
Model	GGC-3P
Product Type	Transport Clamp
Maximum Load Capacity	90 kg (200 lbs)
Maximum Opening	0 - 1 inch (0 - 25.4 mm)
Quantity per Package	2 pieces
Compatible Materials	Flat non-porous or rough panels (plywood, MDF, glass, etc.)
Intended Use	Secure transport of large flat materials (plywood, drywall, door panels)
Actuation Mode	Manual: tightening by lifting the handle
Clamp Material	Steel (unspecified, typical)
Clamping Pads	Non-slip rubber
Safety - Pre-Use Check	Handle not loose, no damaged parts, clean pads
Safety - Usage Precautions	Wear gloves, do not exceed load, do not use on deformed or fragile surfaces
Maintenance	Clean rubber pads, store at room temperature away from sun to prevent rust and wear
Spare Parts	Use only identical parts, otherwise warranty void
Warranty	Warranty void if non-conforming parts used
Manufacturer	Shanghaimuxinmuyeyouxiangongsi
Importer (Australia)	SIHAO PTY LTD
Importer (United States)	Sanven Technology Ltd.

Frequently Asked Questions - GGC-3P Vevor

What is the maximum load capacity of the Vevor GGC-3P clamp?

The maximum load capacity is 90 kg (200 lbs). Never exceed this limit.

What types of materials can I transport with this clamp?

This clamp is designed for flat non-porous or rough panels such as plywood, MDF, glass, drywall, and door panels. Avoid deformed or fragile surfaces.

How to adjust the clamp opening?

Turn the knob (not visible) to adjust the opening so it is slightly wider than the material thickness. Then insert the material and lift the handle to tighten.

What is the minimum recommended material thickness?

It is recommended to use materials at least 1/4 inch (6 mm) thick. Thinner sheets may not grip securely.

How to clean and maintain the clamp?

Clean the rubber pads regularly to keep them clean and free of dirt. Store the device in a room-temperature place away from sun to prevent rust and wear.

What safety precautions should be followed?

Wear gloves to avoid scratches. Before each use, ensure the handle is not loose and no parts are damaged. Do not exceed the maximum load. This product is not a toy.

How many pieces are included in the package?

The GGC-3P model is sold in a set of 2 pieces. The GGC-3 model is sold individually.

Can I use this clamp to transport glass panels?

Yes, if the glass is flat and non-porous. Ensure the thickness is at least 6 mm and the glass is securely held. Wear gloves for handling.

What to do if the clamp does not tighten properly?

Check that the opening is correctly adjusted and the rubber pads are clean and in good condition. If the problem persists, inspect the parts for any damage.

Where can I get spare parts?

Use only spare parts identical to the original ones. Contact the manufacturer or authorized dealer. Using different parts will void the warranty.

USER MANUAL GGC-3P Vevor

Affordable. Reliable. Home Improvement.

CARRY CLAMPS

MODEL: GGC-3 & GGC-3P

VEVOR

Affordable. Reliable. Home Improvement.

CARRY CLAMPS

MODEL: GGC-3 & GGC-3P

Close-up of a black plastic hair clip with ribbed texture and mounting holes (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there a technology or software updates on our product.

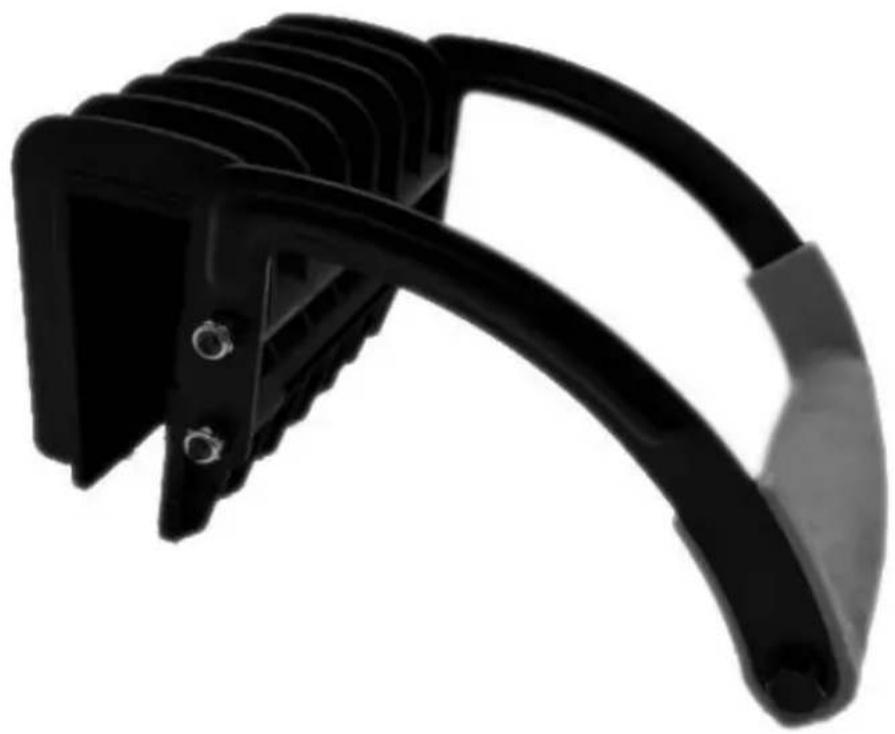

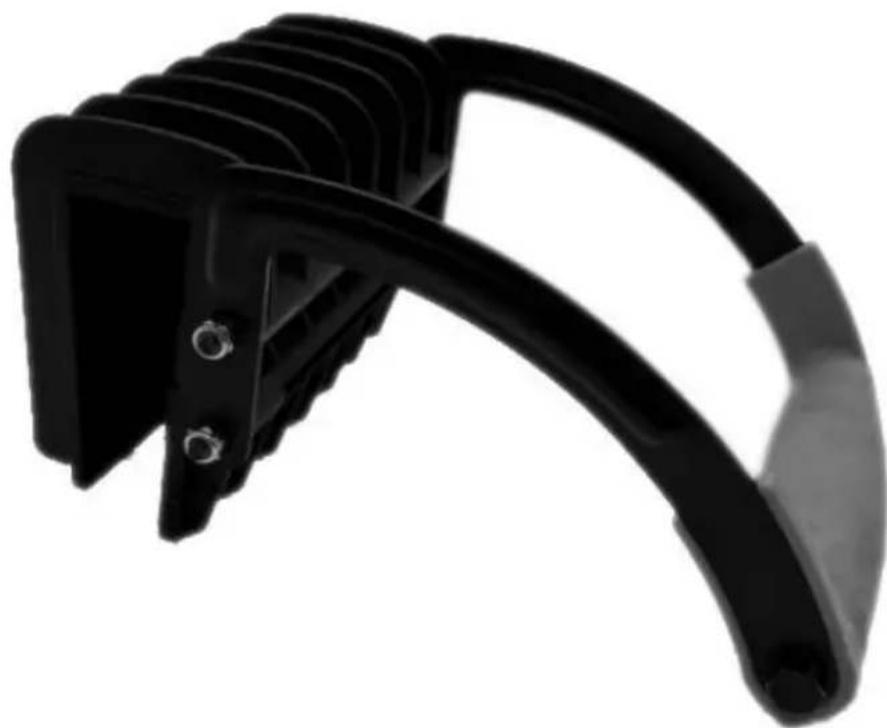

PRODUCT INTRODUCTION

Product Purpose :

Designed for safely and effortlessly carrying large flat materials like plywood, drywall, and door panels, replacing traditional manual handling

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only.
3. Make sure the handle is not loose before each use.
4. Do not exceed the listed weight capacity.
5. Carry clamps should be used on non-porous or rough flat panel materials.
6. Carry clamps can only be operated by hand lifting.
7. Wear gloves during operation to prevent scratches from the edges.
8. When serving, use only identical replacement parts. Use of any other parts will avoid the warranty.
9. Check for damaged parts. Before using, any part that appears dark should be carefully checked to determine that it will operate properly perform its intended function and the surface of rubber pads should be cleaned up without dirt.
10. When not in use, the product should be stored in a dry, not high temperature, without a direct sun shining location to inhibit rust and void out.

OPERATION

Close-up of a black metal latch handle attached to a wooden post (no text or symbols visible)

Close-up of a black metal handle bracket with red directional arrows indicating motion (no text or symbols)

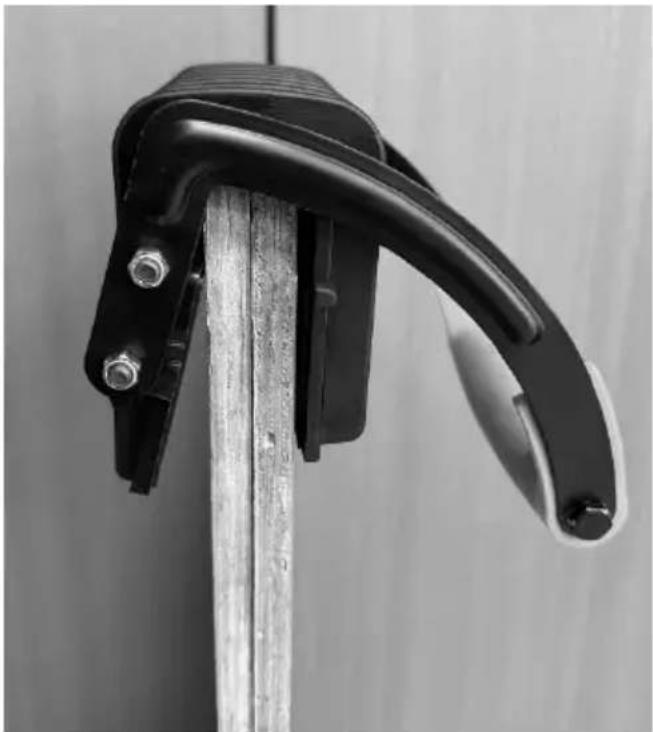

1. Adjust the Gripper

Adjust the opening thickness of the pliers so that it is slightly wider than the thickness of the material s as to facilitate clamping.

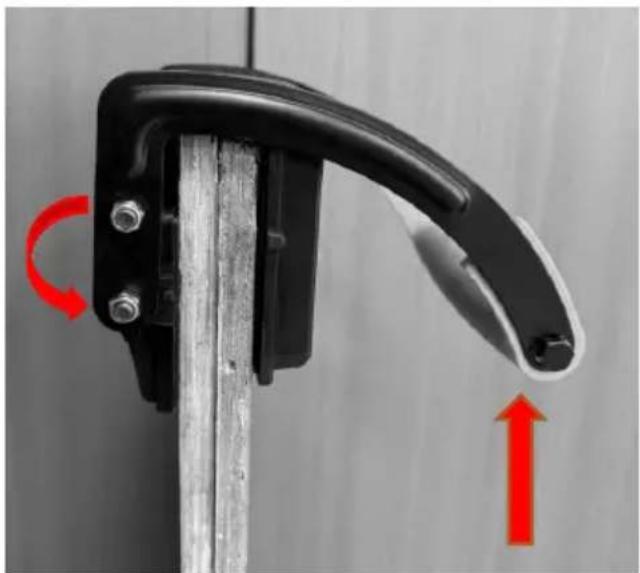

2. Gripping the Materia

After inserting the materials gently lift the handle upwa to make the movable clamping plate closely adhere to the materials.

Person using a tool to clean or store wood panel, no visible text or symbols

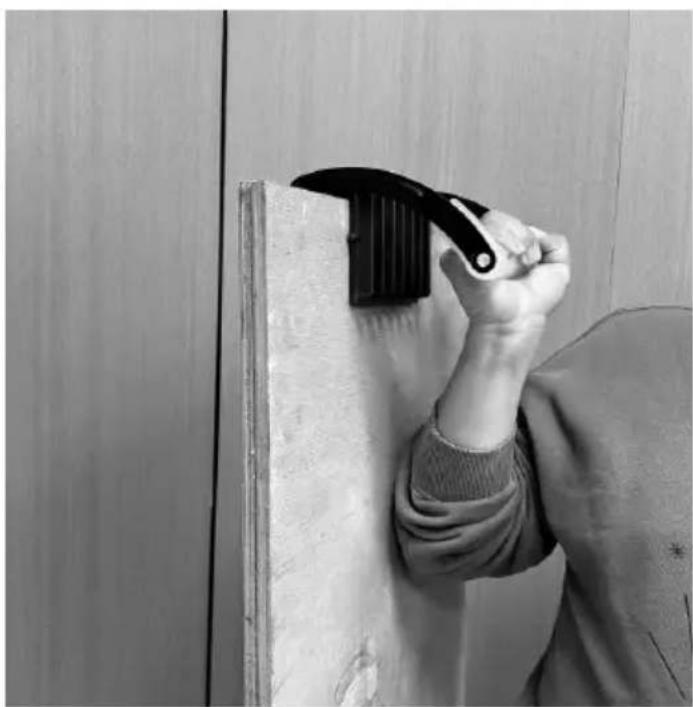

3. Carrying

After clamping, lift the han with your hand to move tl material.

Keep the material level wr carrying to avoid tilting.

Close-up of a black mechanical clamp securing a metal rod, with red arrows indicating motion direction (no text or symbols)

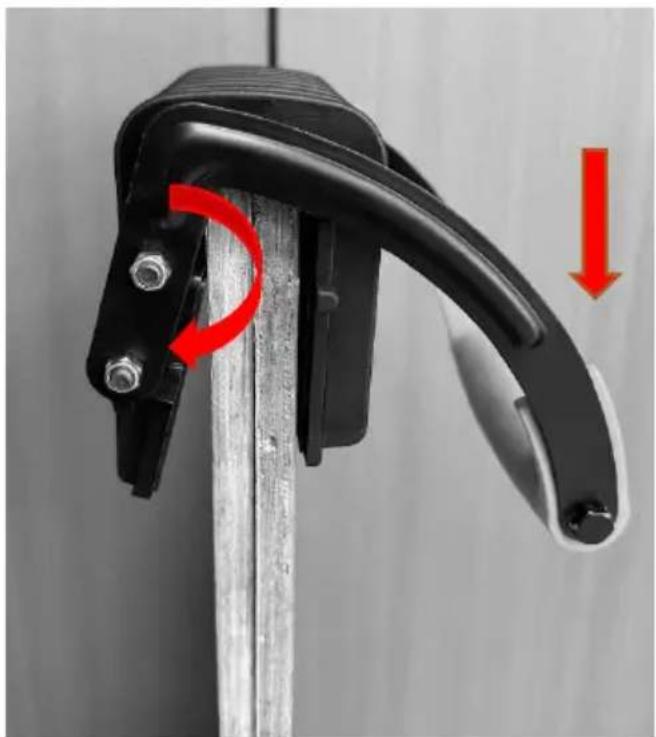

4. Releasing

After the lifting operation is completed, gently press the handle, and the movable splint will open, as shown the picture. Then, the clam can be removed.

Safety Notes:

1. Compatible Materials

Works best with flat panels (plywood, MDF, glass, etc.). Avoid warped fragile surfaces.

1. Weight Limit

Avoid overloading use. The maximum load-bearing weight is 200 poun

1. Sheet Thickness

Works best on materials 1/4 inch (6mm) or thicker; thinner sheets may grip securely.

Parameter

1	Model	GGC-3	GGC-3P
2	Load-Bearing	200 lbs	200 lbs
3	Thickness Of Clamping	0-1 INCH	0-1 INCH
4	Package Quantity	1 PCS	2 PCS

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
