Product Type	Flush mount ice bucket
Brand	Vevor
Model	FG-SKU6
Capacity	25.3 L
Cutout Dimensions (L x W x H)	333 x 283 x 690 mm
Exterior Material	Brushed stainless steel
Insulation	Double layer with high-density polyurethane
Lid Seal	Adhesive tape for sealing
Anti-condensation Protection	XPE sponge on sides and bottom
Recommended Use	Keeping beverages (wine, beer, cocktails) cool during parties, barbecues, on the terrace or by the pool
Included Accessories	Lid, sealing gasket (x2), filter, screw, key, siphon
Installation	Requires a cutout in a countertop or cabinet. Follow the provided steps.
Maintenance	Empty and clean after each use. Let dry to prevent bacteria.
Ice Retention Time	Approximately 24 hours (depending on conditions)
Safety	Small parts: choking hazard. Keep out of reach of young children. Do not use for other than intended purposes.
Interior Material	High-density polyurethane
Color	Brushed silver (stainless steel)
Country of Origin	Not specified in manual (estimate: China)

Frequently Asked Questions - FG-SKU6 Vevor

How to install the FG-SKU6 ice bucket?

Installation requires a cutout to the indicated dimensions (333 x 283 x 690 mm). First place part 4 into the hole, then install parts 5/6/7. Tighten the screw with the key, then fix parts 8/9. Finally, place the lid (parts 1/2/3). Refer to the manual for details.

How long does the ice stay cold?

The holding time is approximately 24 hours thanks to the high-density polyurethane insulation and lid seal. The actual duration depends on ambient temperature and opening frequency.

Can I use this ice bucket outdoors?

Yes, it is perfect for outdoor use on a terrace, by the pool, or during barbecues. Its brushed stainless steel resists light weather, but avoid prolonged exposure to rain.

What accessories are included with the FG-SKU6 model?

The box contains: a lid, two sealing gaskets, a filter, a screw, a key, and a siphon. Check the list in the manual.

How to clean and maintain the ice bucket?

After each use, empty the meltwater and clean the inside with a soft cloth and mild soap. Dry thoroughly to prevent bacteria. If not used for a long time, keep it dry.

Is the ice bucket suitable for commercial use?

Yes, it is suitable for restaurants, bars, and hotels. Its 25.3 L capacity and robust stainless steel construction make it ideal for light professional use.

What are the exact cutout dimensions?

The recommended cutout dimensions are: 333 mm length, 283 mm width, and 690 mm height. Ensure that the cabinet supports the weight.

Can I put wine bottles directly into the ice?

Yes, the bucket is designed to keep wine bottles, beers, and cocktails cool. The insulation maintains temperature without excessive condensation on surfaces.

How to avoid condensation on the outside?

The bottom and sides are covered with XPE sponge which prevents condensation and water drips. Ensure the gaskets are properly installed for optimal sealing.

Where can I find spare parts?

Contact Vevor customer service via www.vevor.com/support. Parts like the lid or gaskets are available on request.

USER MANUAL FG-SKU6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN ICE CHESTS INSTRUCTIONS

MODEL: FG-SKU1 / FG-SKU2 / FG-SKU3 / FG-SKU4 FG-SKU5 / FG-SKU6 / FG-SKU7 / FG-SKU8 FG-SKU9 / FG-SKU10 / FG-SKU11 / FG-SKU12 FG-SKU13

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

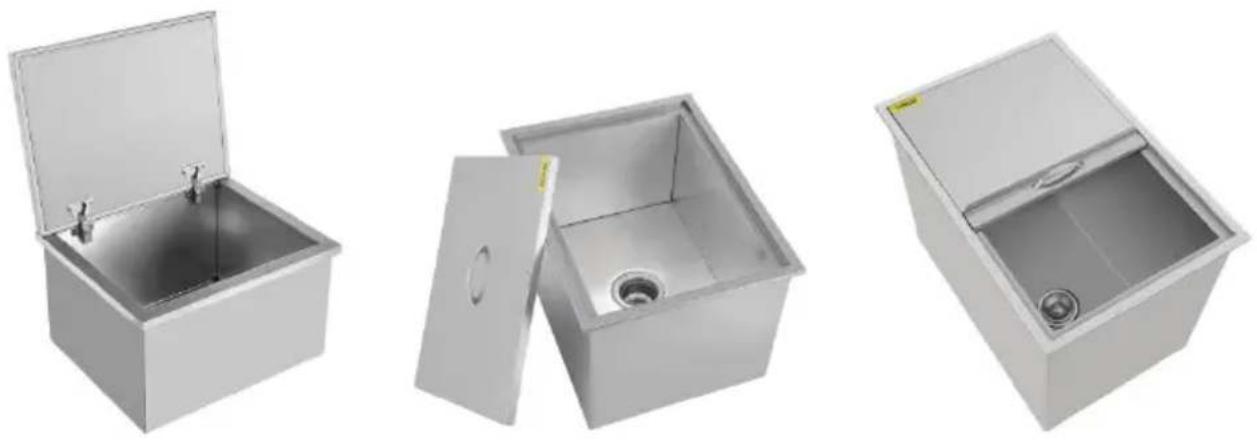

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep work area clean ar lighted, and keep spectators and children out of the work area.
2. Assemble only according to ice chest parameter. Improper assembly can create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades and other items, so as not to scratch the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in ice chest.
   Wrong installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a

adhesive strip to prevent heat loss and ensure your ice stays cool for long time.

1. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside and restaurants, perfect for any casual occasion such as dinner, sports pa barbecue.
2. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

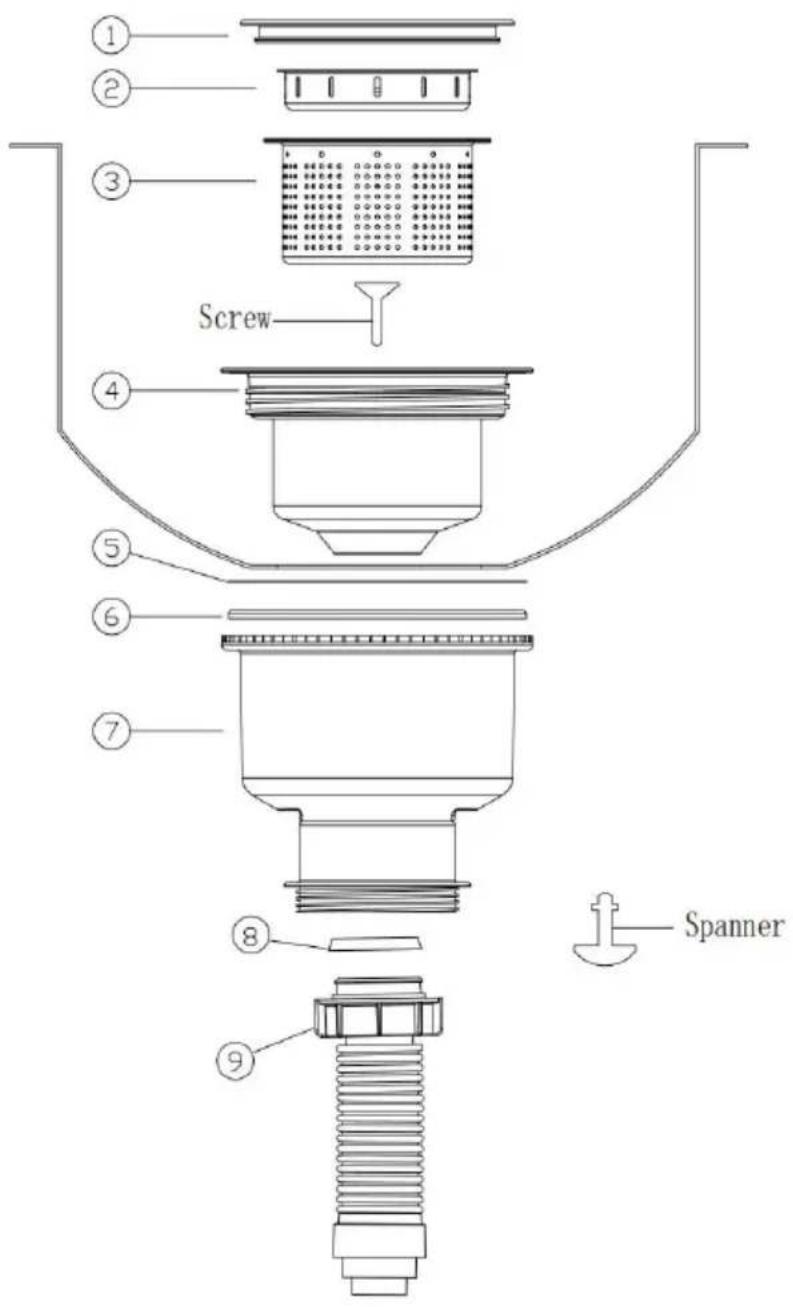

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on part.
2: Tighten the screw with the key, and tighten the 8/9 part on the
3: Place part No. 1/2/3 in part No. 4 to complete the installation.

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
FG-SKU1	345*295*660	28.52	Can provide 24H insulation effect.
FG-SKU2	495*400*540	44.24
FG-SKU3	595*495*590	78.37
FG-SKU4	695*390*640	82.6
FG-SKU5	695*493*640	107.8
FG-SKU6	333*283*690	25.3
FG-SKU7	485*335*535	30.25
FG-SKU8	535*410*530	43.5
FG-SKU9	515*410*690	77.9
FG-SKU10	435*283*590	26.7

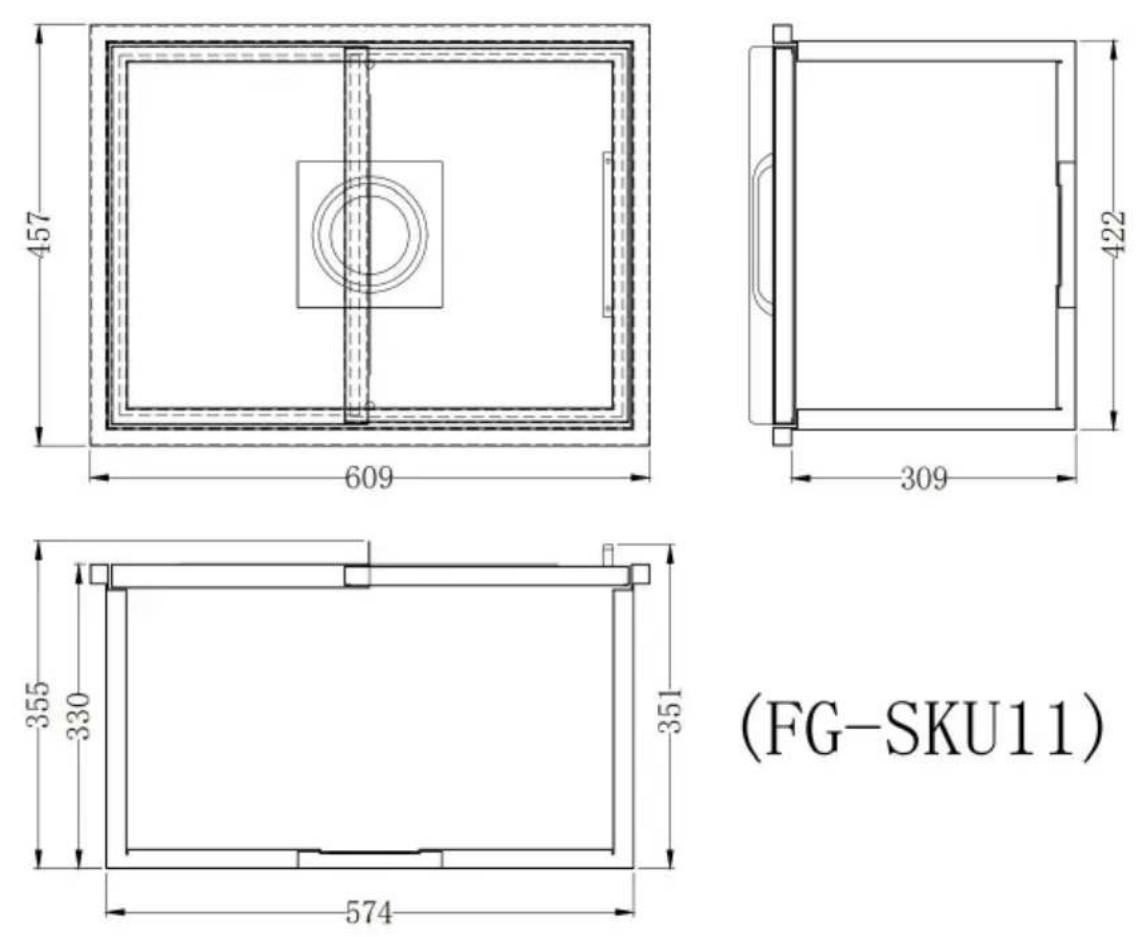

FG-SKU11	587*435*570	55.23
FG-SKU12	895*435*580	95.66

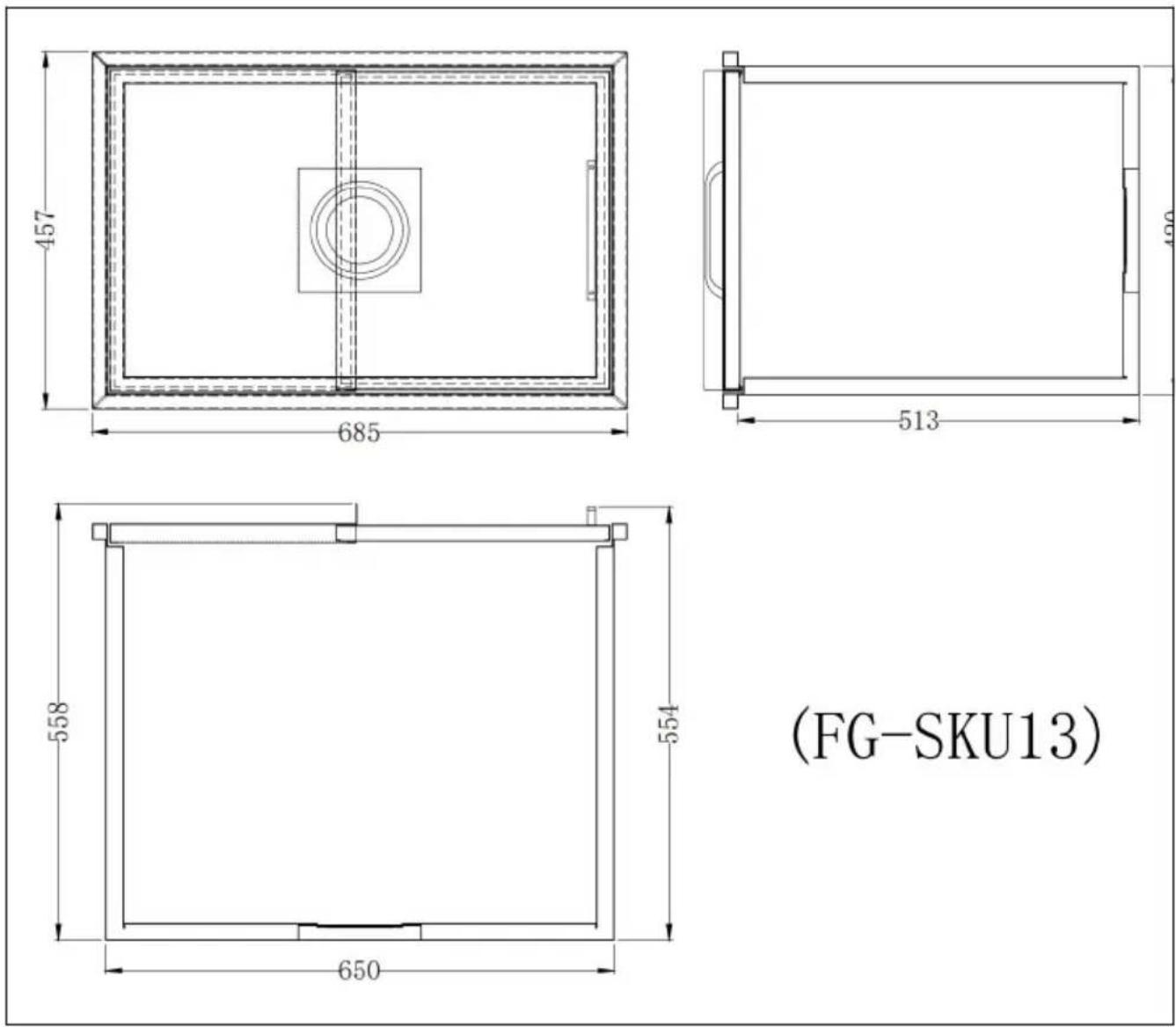

FG-SKU13	665*435*760	109.48

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment.
2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation.
3. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
4. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

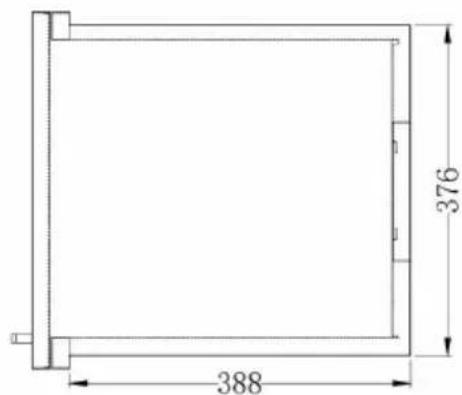

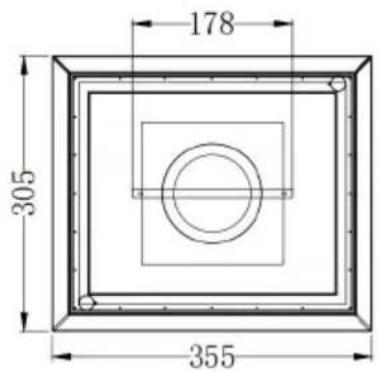

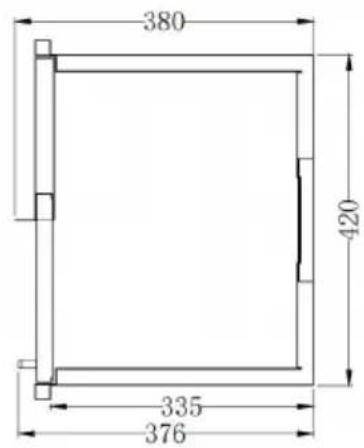

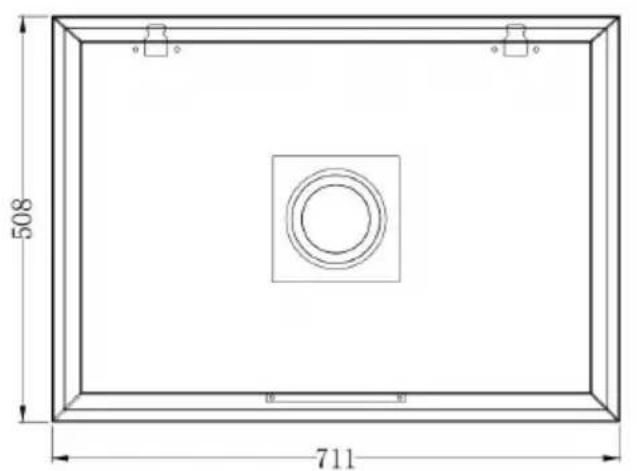

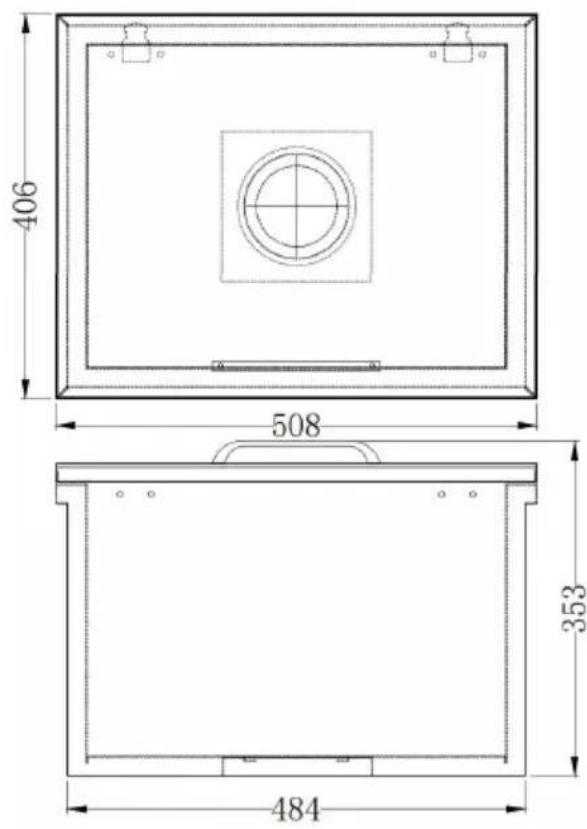

(FG-SKU1)

(FG-SKU2)

(FG-SKU3)

(FG-SKU4)

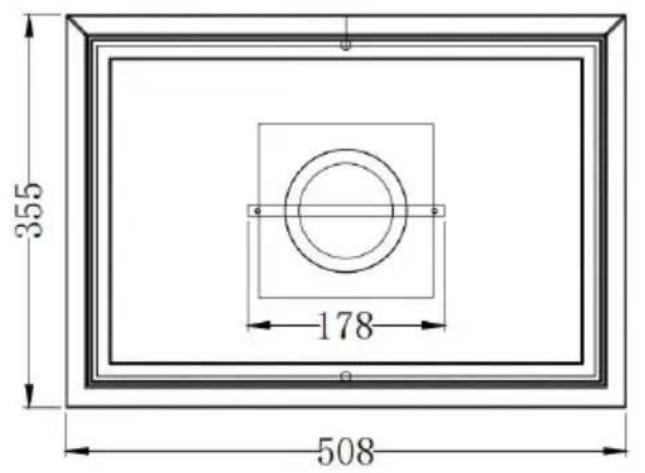

Technical drawing of a rectangular frame with a central circular recess and dimension labels (508 and 711), no readable text or symbols beyond measurement indicators.

(FG-SKU5)

(FG-SKU6)

(FG-SKU7)

(FG-SKU8)

(FG-SKU9)

(FG-SKU10)

(FG-SKU12)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
