USER MANUAL FG-SKU8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN ICE CHESTS INSTRUCTIONS

MODEL: FG-SKU1 / FG-SKU2 / FG-SKU3 / FG-SKU4 FG-SKU5 / FG-SKU6 / FG-SKU7 / FG-SKU8 FG-SKU9 / FG-SKU10 / FG-SKU11 / FG-SKU12 FG-SKU13

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

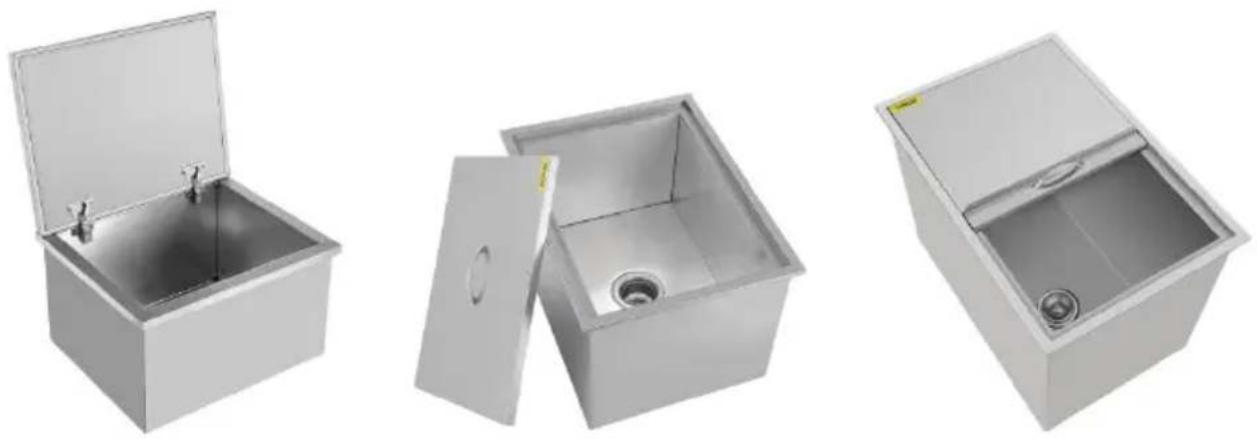

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep work area clean ar lighted, and keep spectators and children out of the work area.
2. Assemble only according to ice chest parameter. Improper assembly can create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades and other items, so as not to scratch the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in ice chest.
   Wrong installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a

adhesive strip to prevent heat loss and ensure your ice stays cool for long time.

1. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside and restaurants, perfect for any casual occasion such as dinner, sports pa barbecue.
2. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

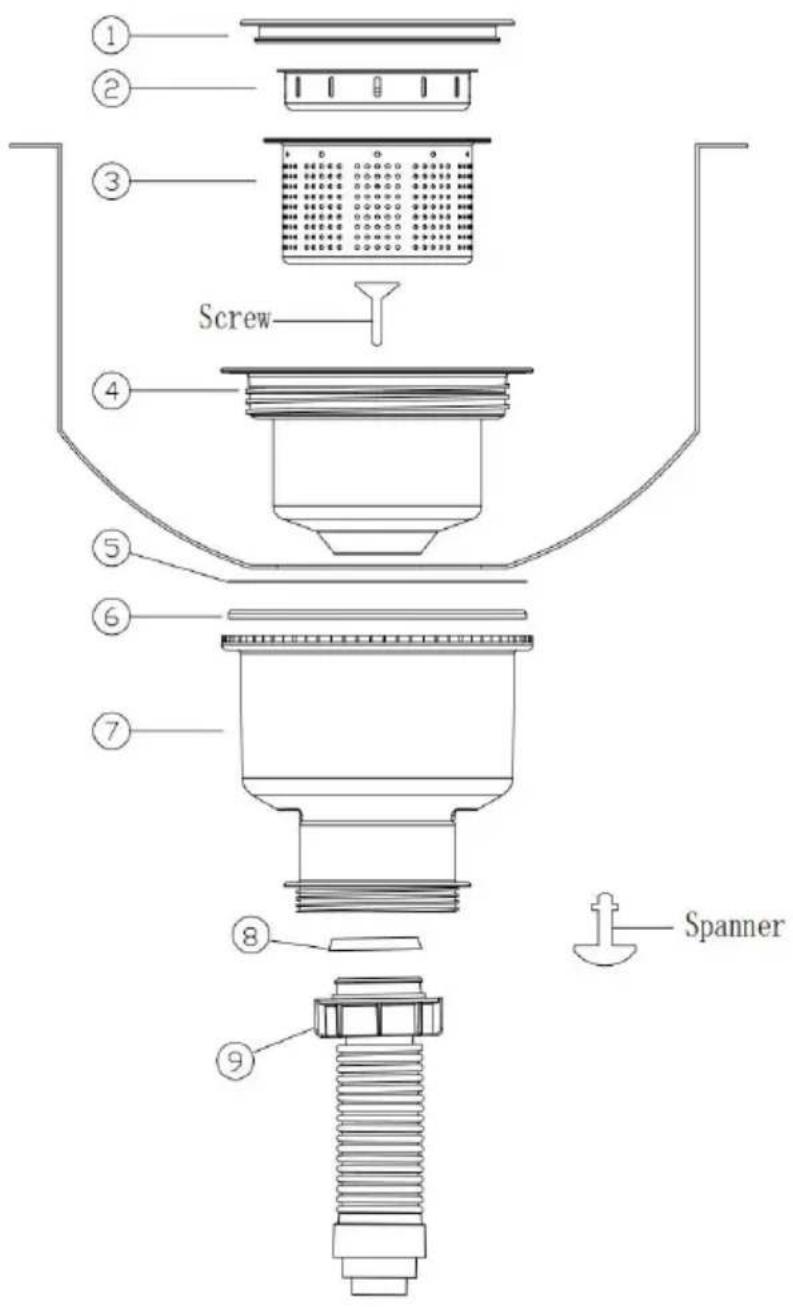

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

① ② ③ Screw ④ ⑤ ⑥ ⑦ ⑧ ⑨ Spanner

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on part.
2: Tighten the screw with the key, and tighten the 8/9 part on the
3: Place part No. 1/2/3 in part No. 4 to complete the installation.

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
FG-SKU1	345*295*660	28.52	Can provide 24H insulation effect.
FG-SKU2	495*400*540	44.24
FG-SKU3	595*495*590	78.37
FG-SKU4	695*390*640	82.6
FG-SKU5	695*493*640	107.8
FG-SKU6	333*283*690	25.3
FG-SKU7	485*335*535	30.25
FG-SKU8	535*410*530	43.5
FG-SKU9	515*410*690	77.9
FG-SKU10	435*283*590	26.7

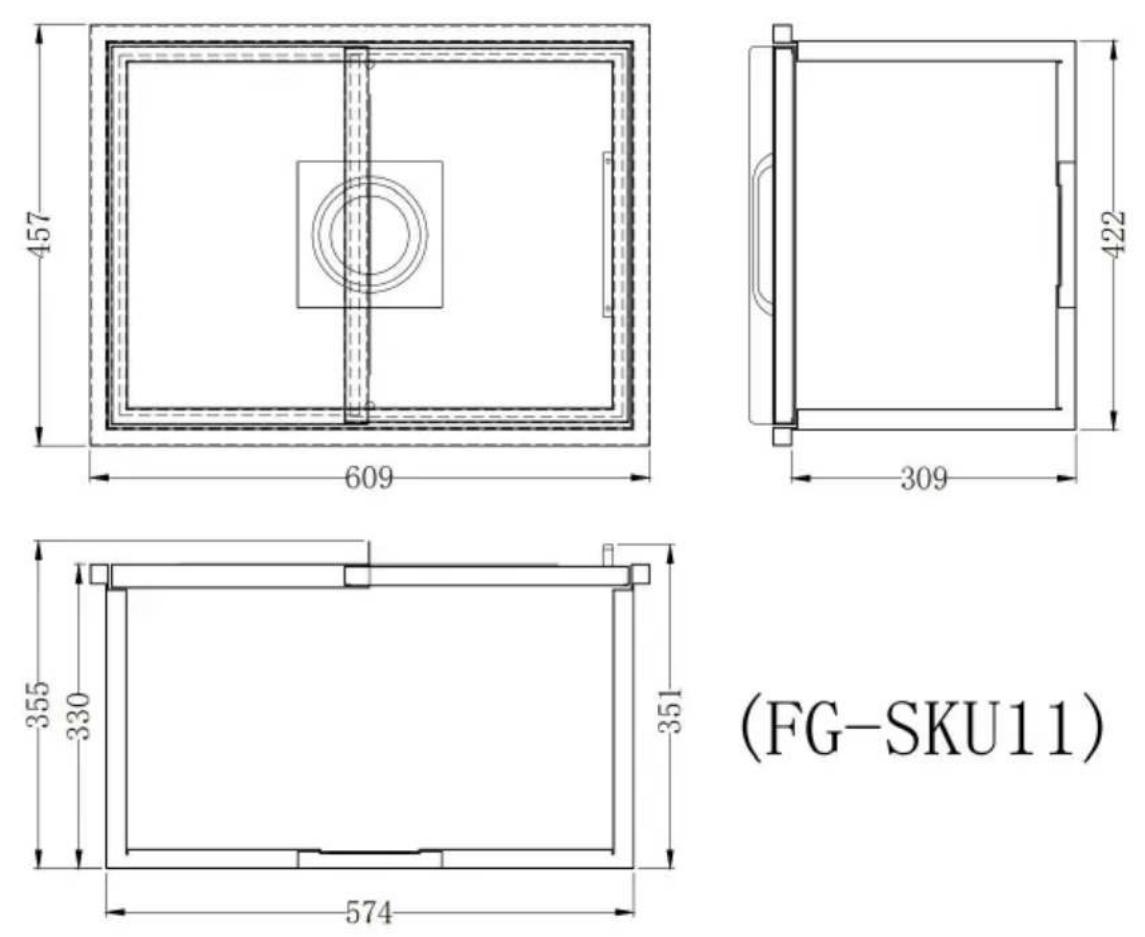

FG-SKU11	587*435*570	55.23
FG-SKU12	895*435*580	95.66
FG-SKU13	665*435*760	109.48

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment.
2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation.
3. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
4. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

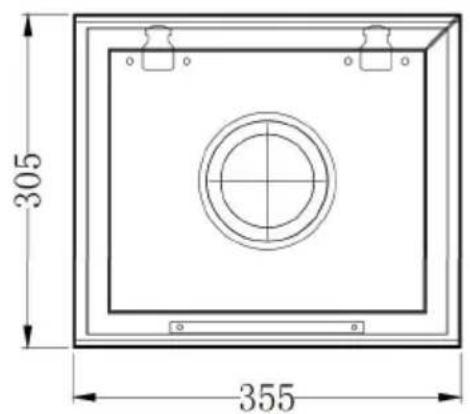

305 355

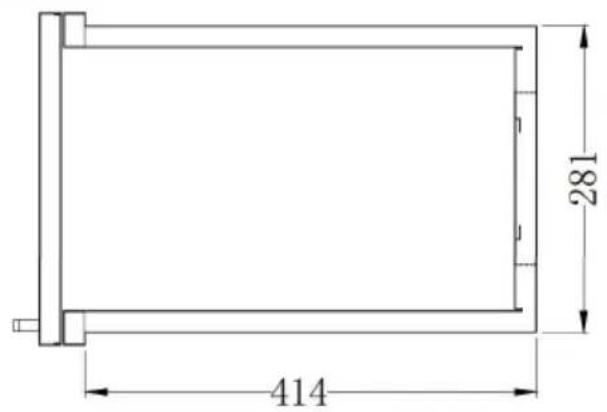

414 281

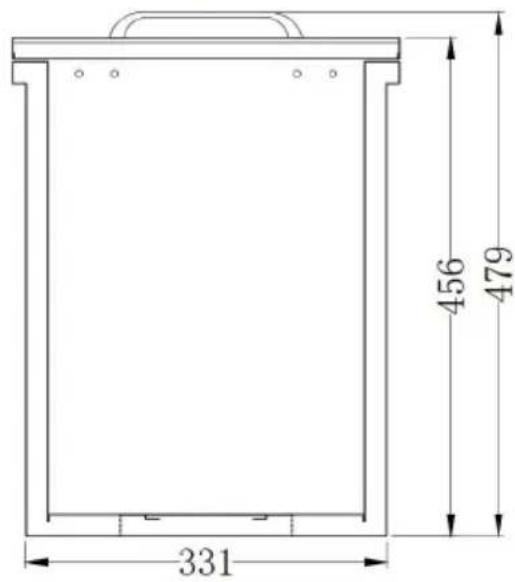

331 456 479

(FG-SKU1)

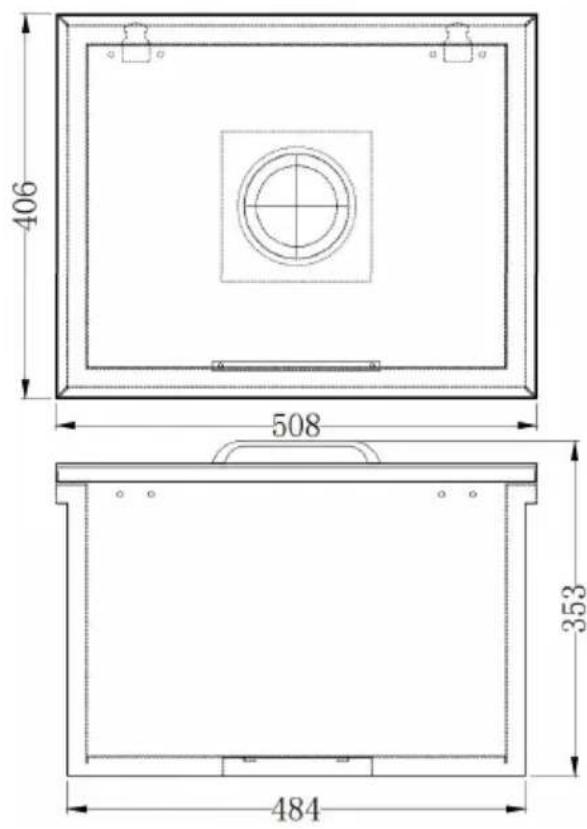

406 508 353 484

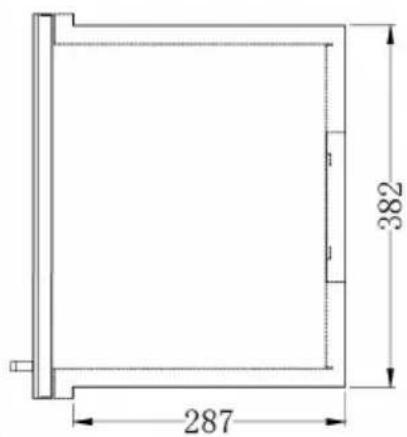

287 382

(FG-SKU2)

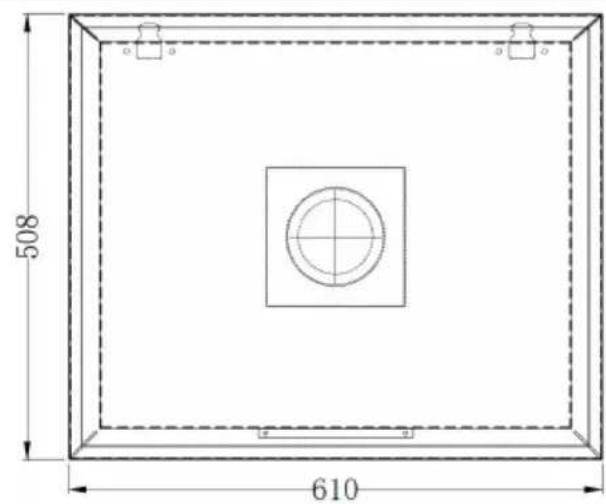

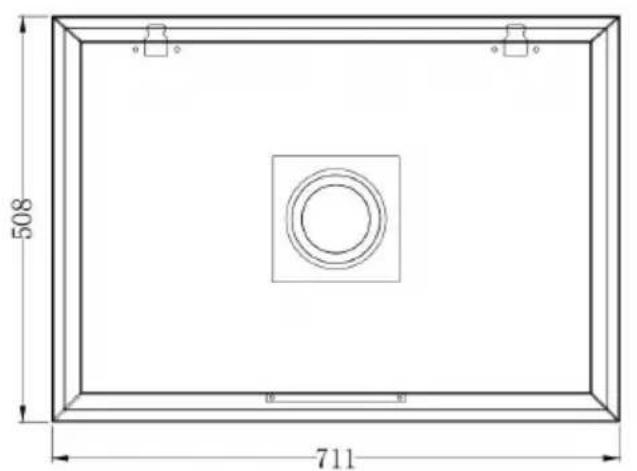

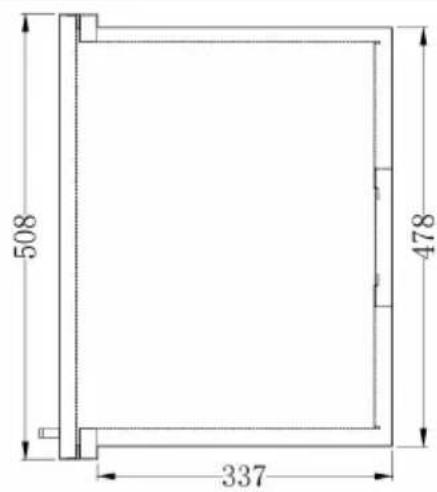

508 610

508 478 337

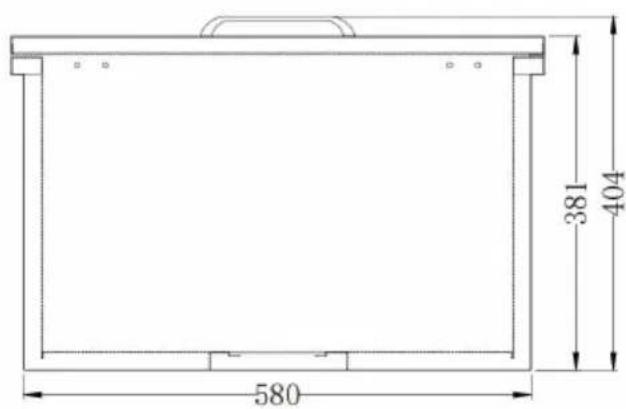

381 404 580

(FG-SKU3)

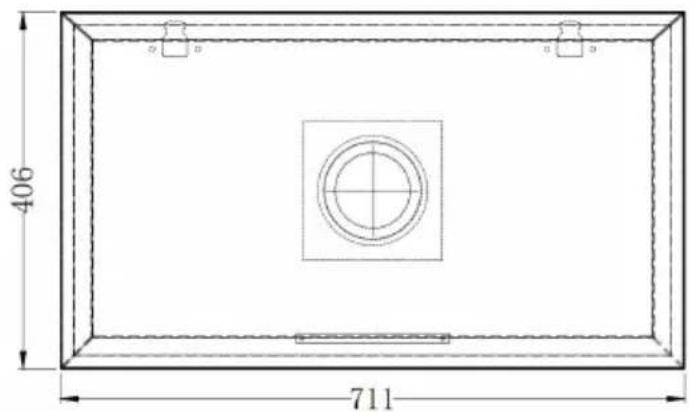

406 711

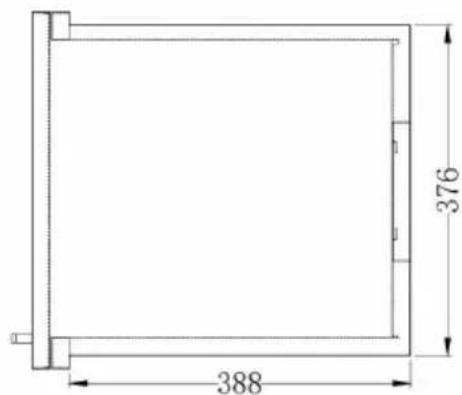

388 376

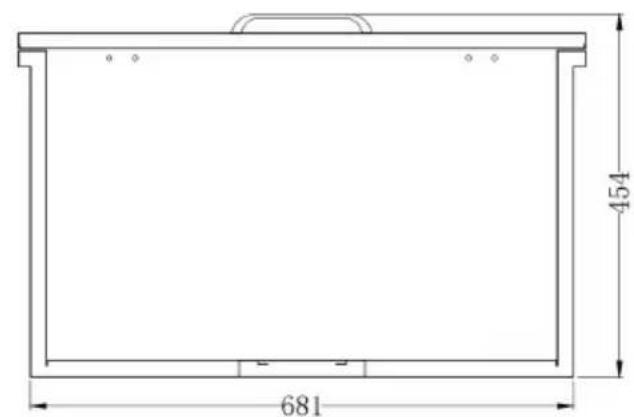

681 431 454

(FG-SKU4)

Technical drawing of a rectangular frame with a central circular recess and dimension labels (508 and 711), no readable text or symbols beyond measurement markers.

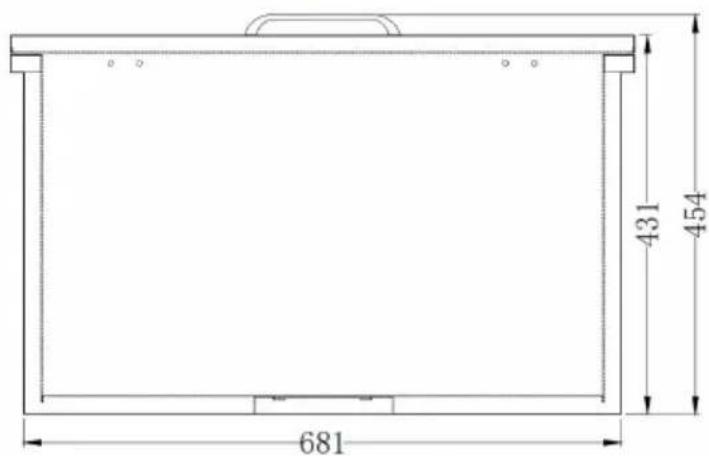

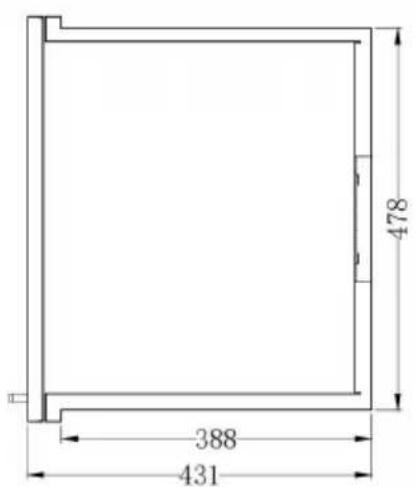

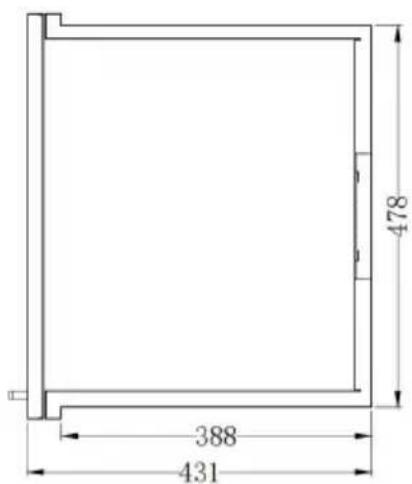

388 431 478

681 454

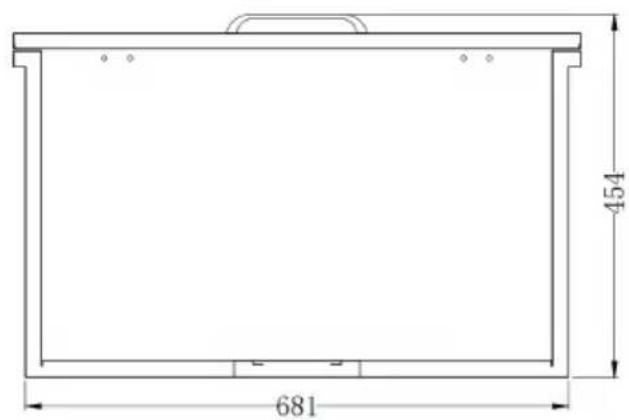

(FG-SKU5)

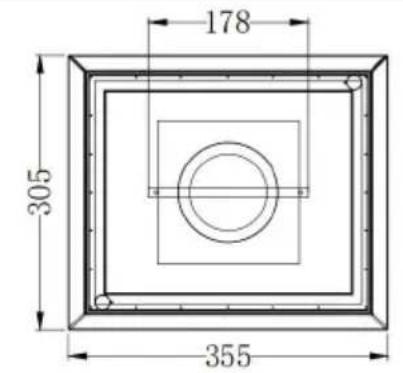

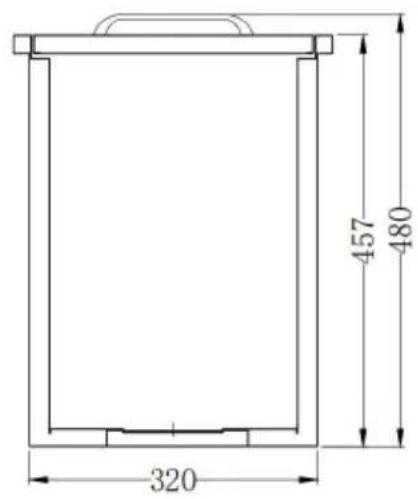

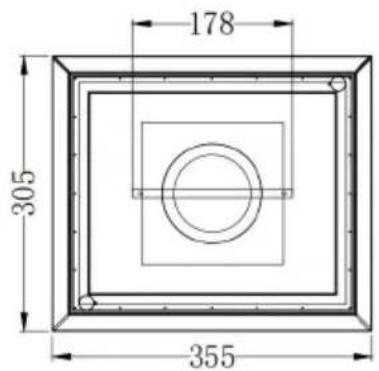

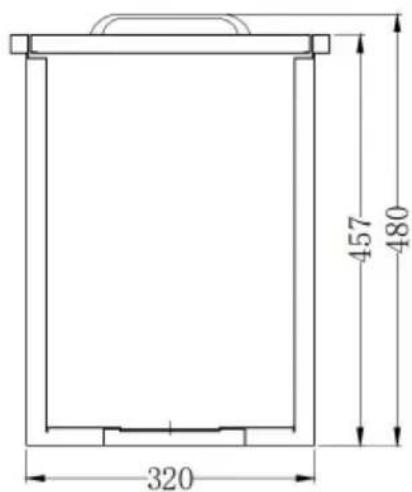

178 305 355

436 270

320 457 480

(FG-SKU6)

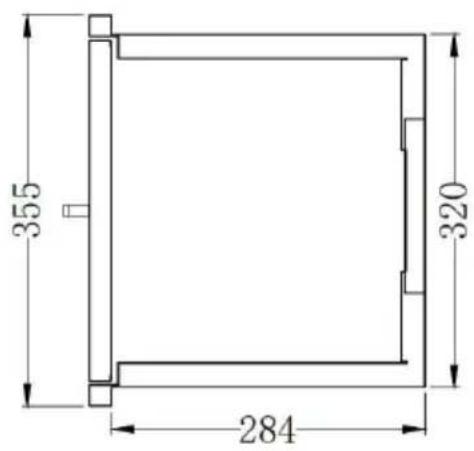

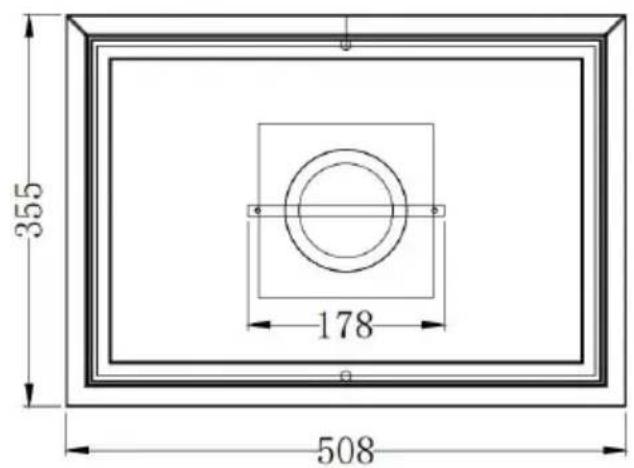

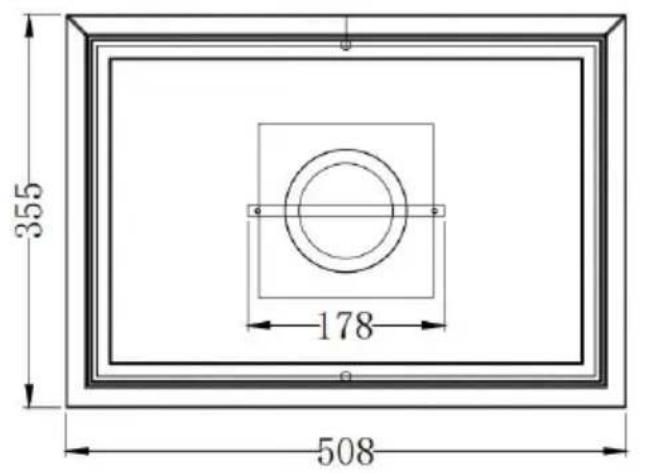

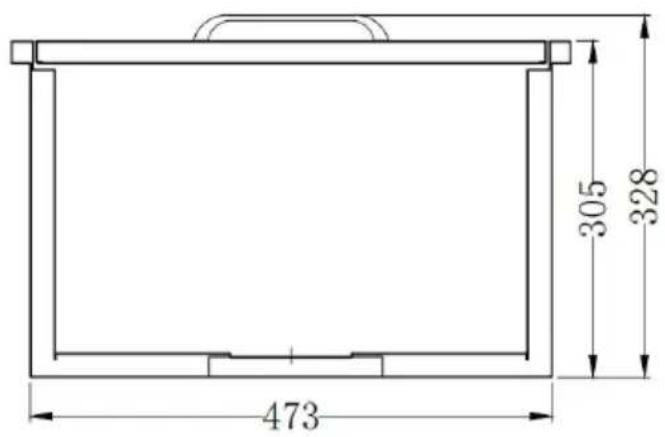

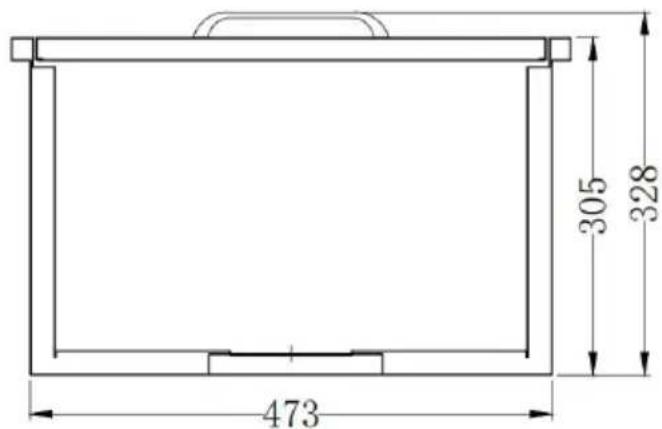

355 178 508

355 320 284

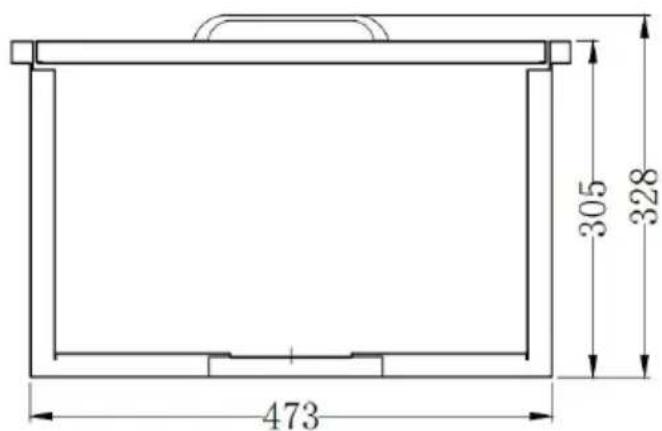

473 305 328

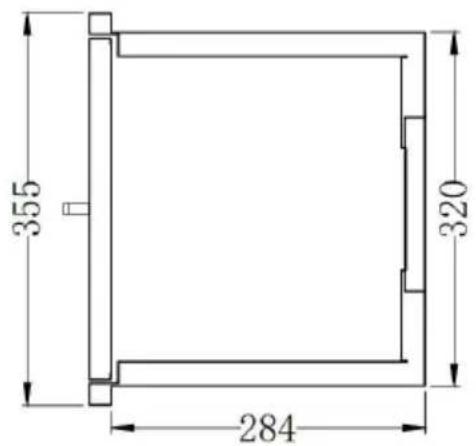

(FG-SKU7)

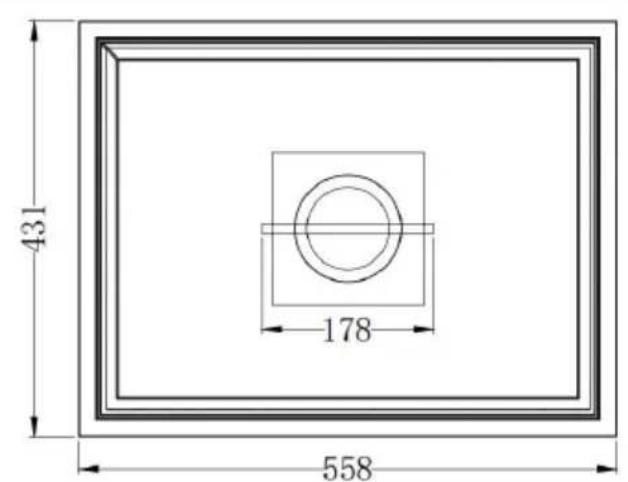

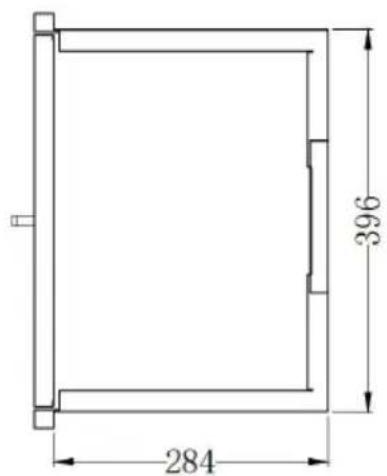

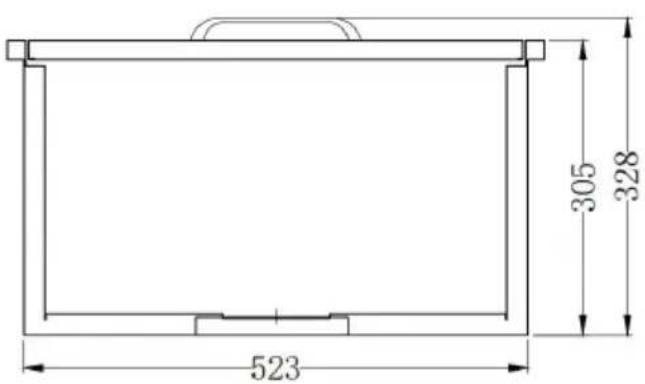

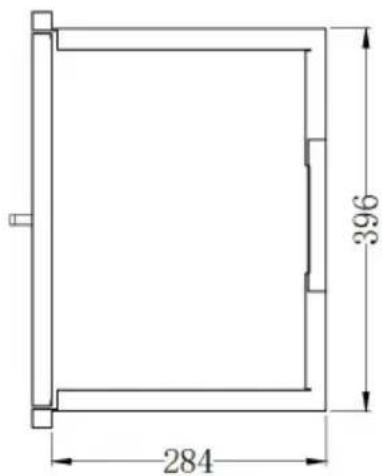

431 178 558

284 396

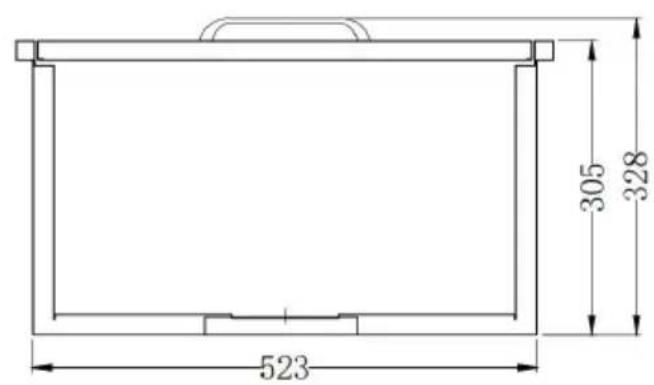

305 328 523

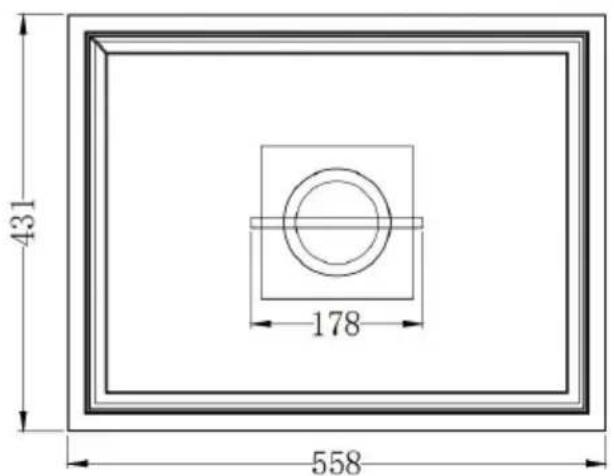

(FG-SKU8)

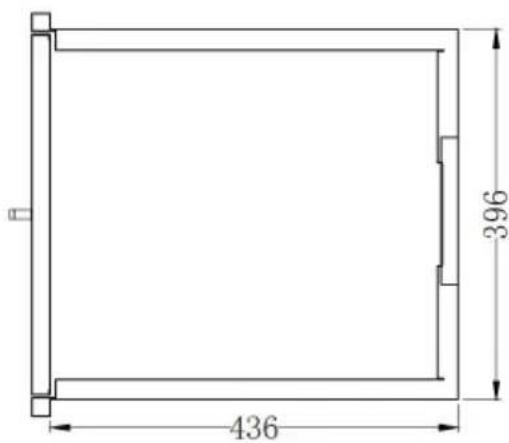

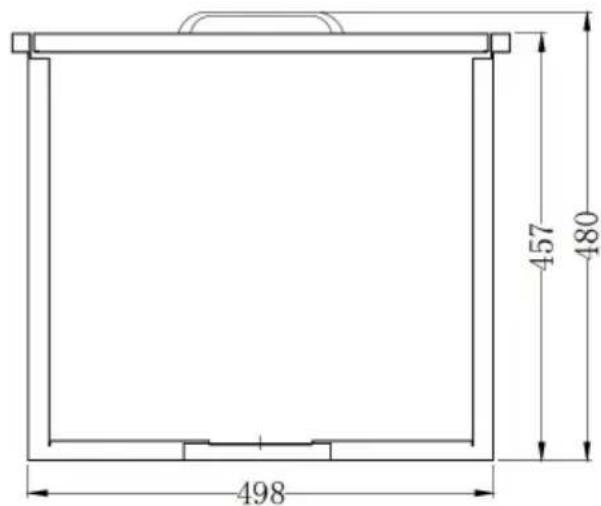

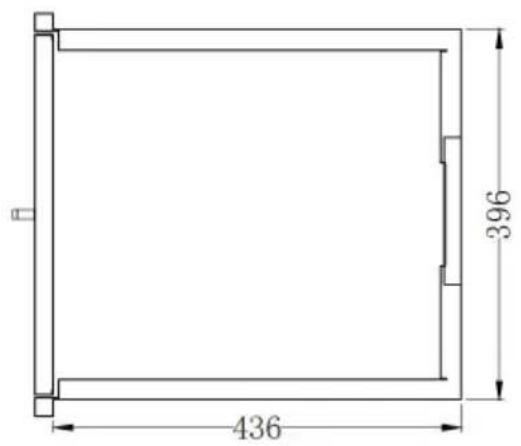

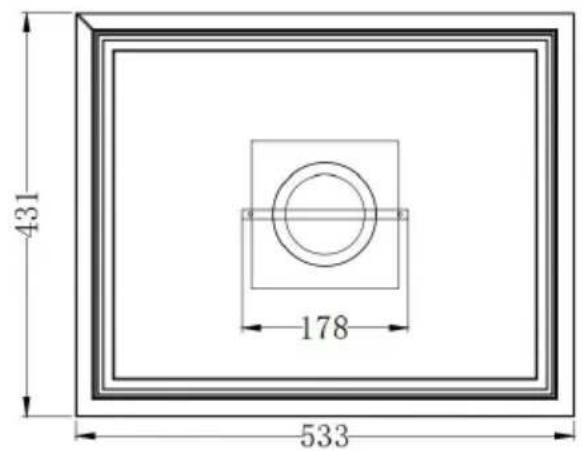

431 178 533

436 396

498 457 480

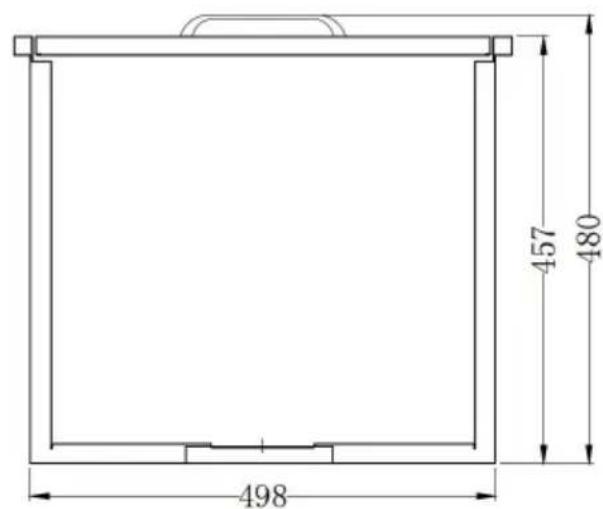

(FG-SKU9)

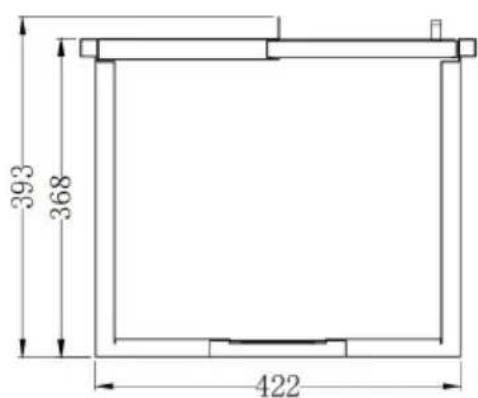

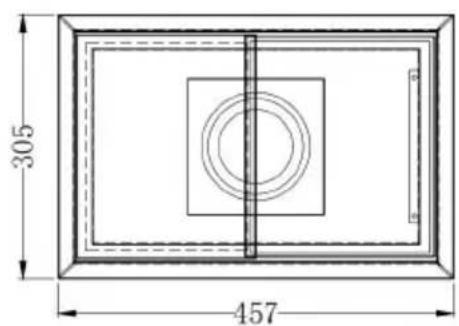

305 457

347 270

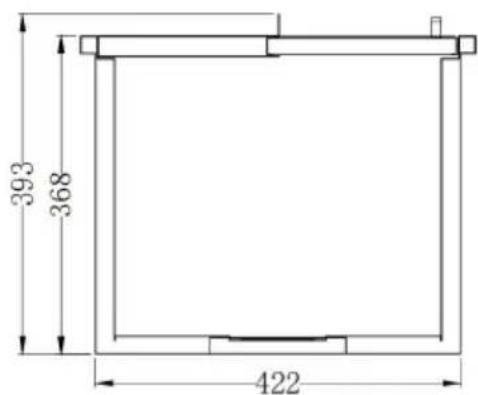

393 368 422

(FG-SKU10)

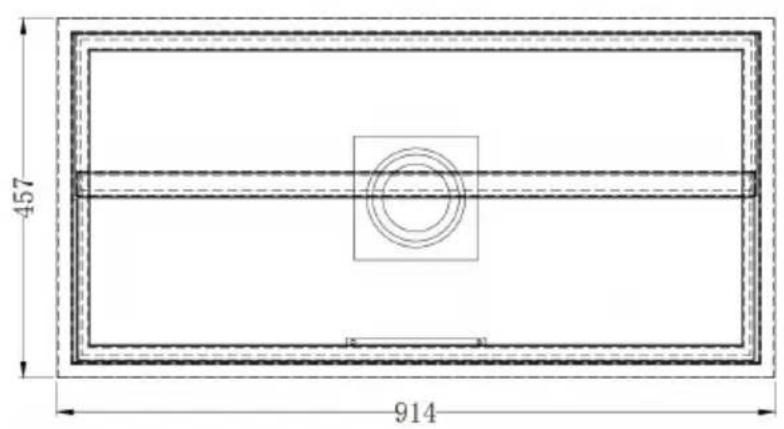

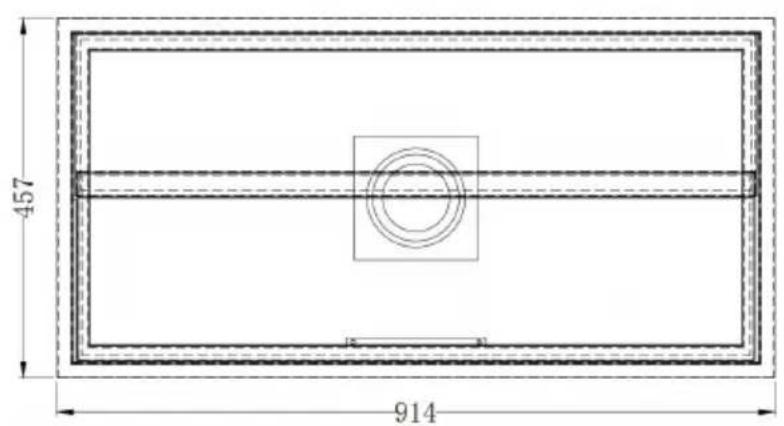

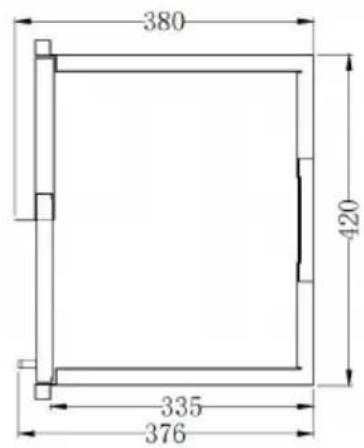

457 914

380 420 335 376

355 880

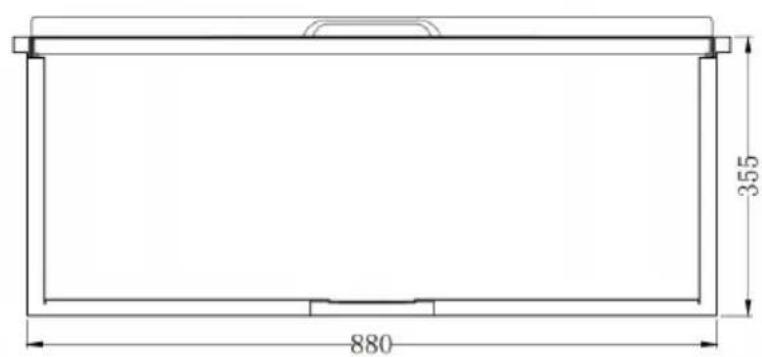

(FG-SKU12)

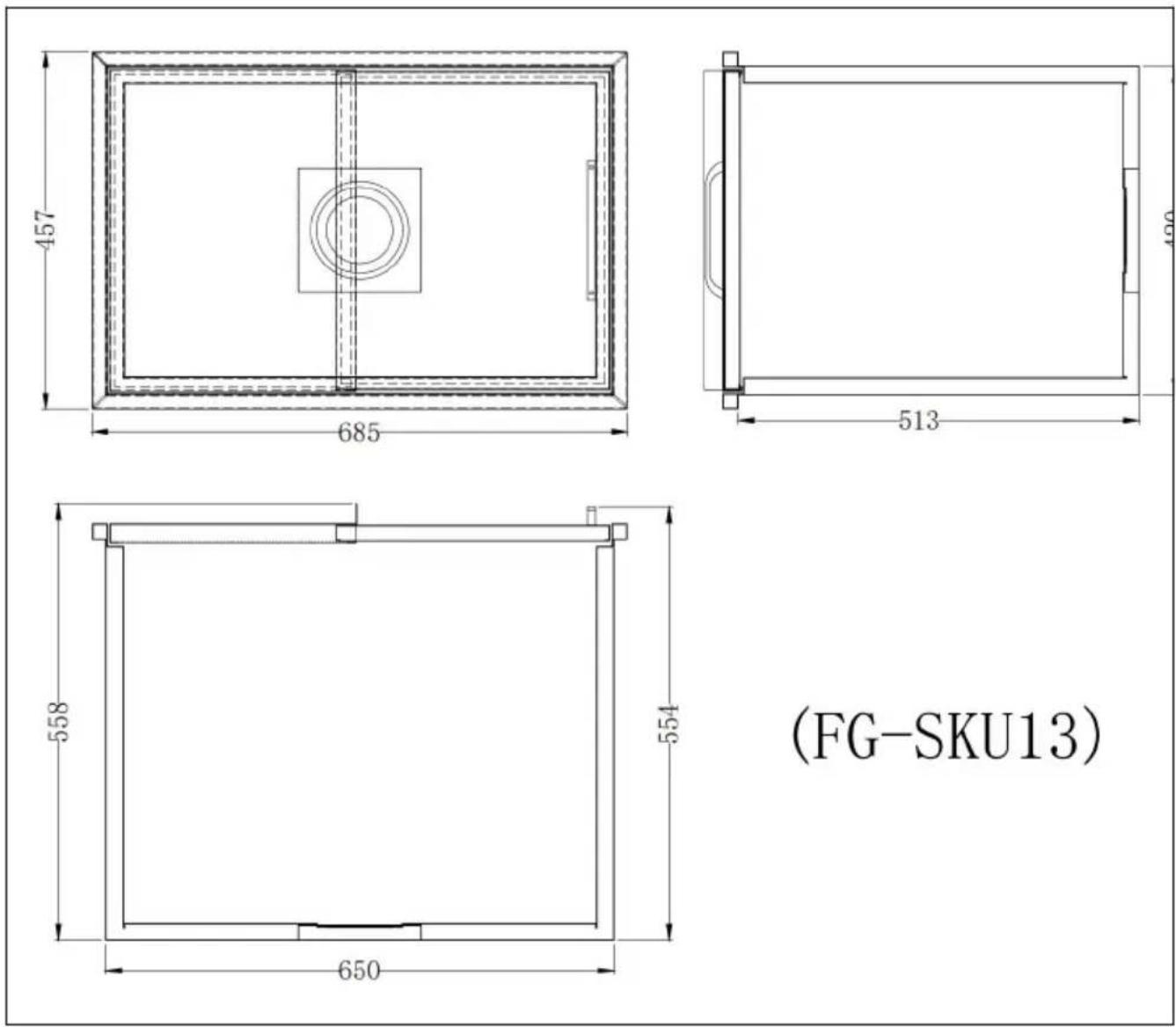

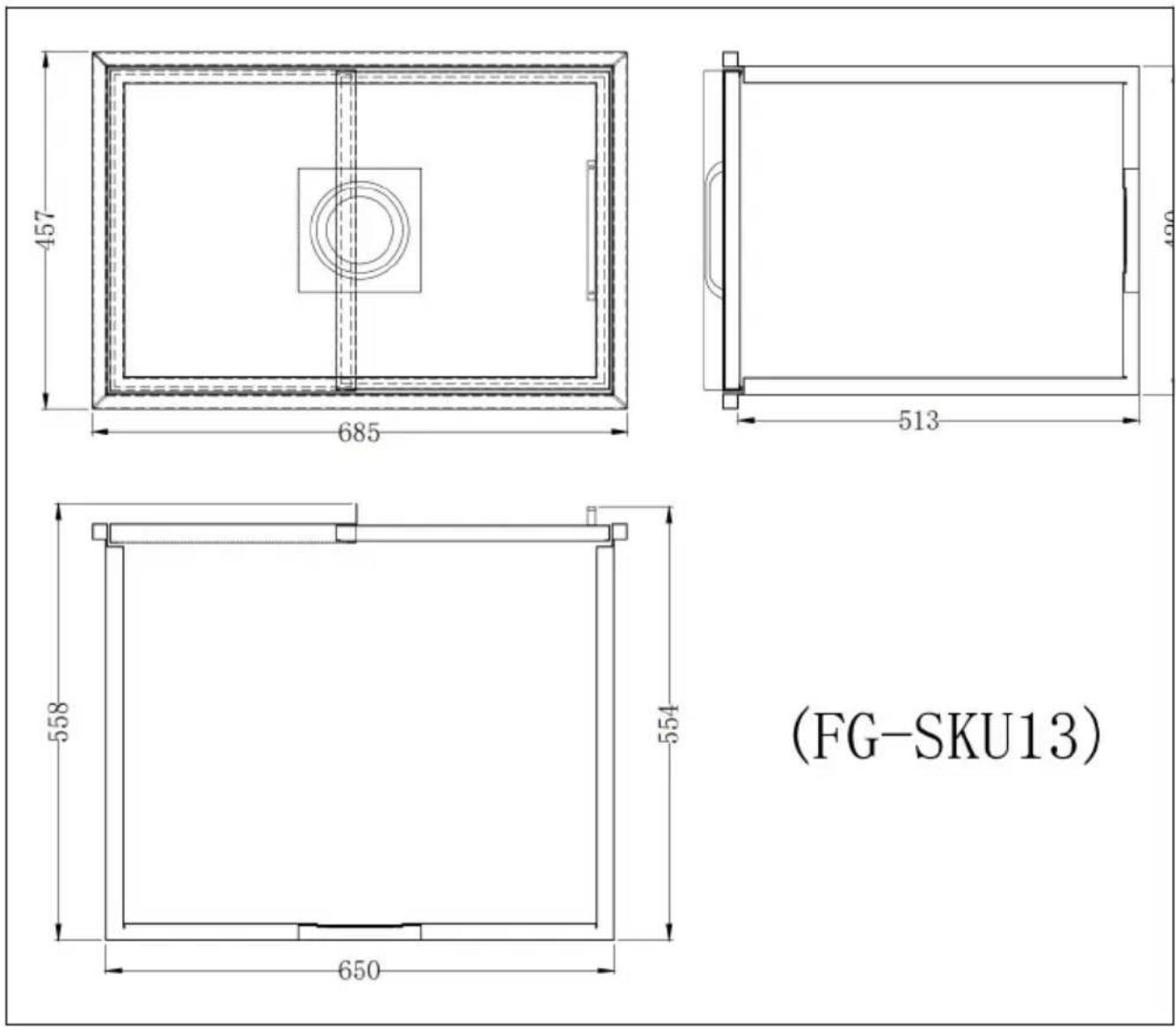

(FG-SKU13) 457 685 513 558 650 554

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
